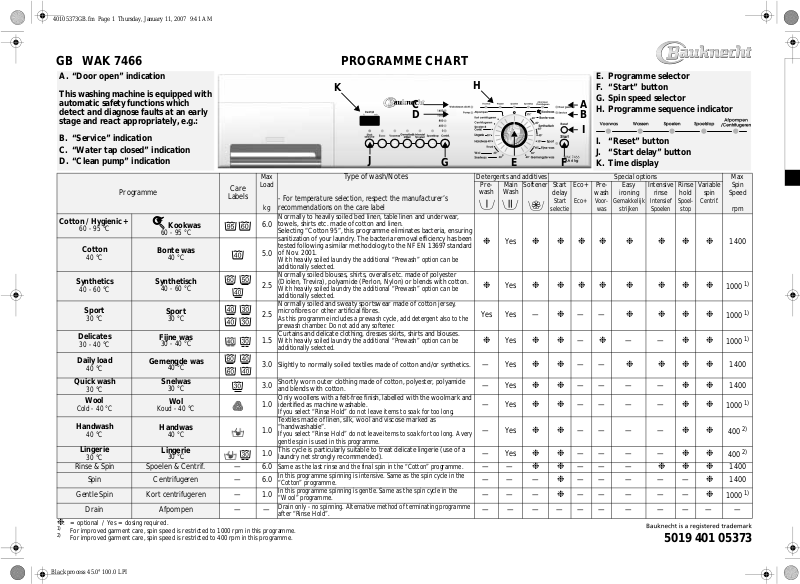

bauknecht WAK 7466 PROGRAMME CHART

40105373GB.fm Page 1 Thursday, January 11, 2007 9:41 AM

GB WAK 7466 PROGRAMME CHART

A. “Door open” indication This washing machine is equipped with

automatic safety functions which detect and diagnose faults at an early stage and react appropriately, e.g.:

B. “Service” indication C. “Water tap closed” indication D. “Clean pump” indication

Max

Programme

Cotton / Hygienic +

60 - 95 °C

Cotton

40 °C

Synthetics

40 - 60 °C

Sport

30 °C

Delicates

30 - 40 °C

Daily load

40 °C

Quick wash

30 °C

Wool

Cold - 40 °C

Handwash

40 °C

Lingerie

30 °C

Kookwas

60 - 95 °C

Bonte was

40 °C

Synthetisch

40 - 60 °C

Sport

30 °C

Fijne was

30 - 40 °C

Gemengde was

40 °C

Snelwas

30 °C

Wol

Koud - 40 °C

Handwas

40 °C

Lingerie

30 °C

Care

Labels

Rinse & Spin Spoelen & Centrif. — 6.0

Spin Centrifugeren — 6.0

Gentle Spin Kort centrifugeren — 1.0

Drain Afpompen — —

❉

: = optional / Yes = dosing required.

For improved garment care, spin speed is restricted to 1000 rpm in this programme.

For improved garment care, spin speed is restricted to 400 rpm in this programme.

Load

6.0

5.0

2.5

1.5

3.0

1.0

- For temperature selection, respect the manufacturer’s recommendations on the care label

Normally to heavily soiled bed linen, table linen and underwear, towels, shirts etc. made of cotton and linen. Selecting “Cotton 95”, this programme eliminates bacteria, ensuring sanitization of your laundry . The bacteria removal efficiency has been tested following a similar methodology to the NF EN 13697 standard of Nov. 2001.

With heavily soiled laundry the additional “Prewash” option can be additionally selected.

Normally soiled blouses, shirts, overalls etc. made of polyester (Diolen, Trevira), polyamide (Perlon, Nylon) or blends with cotton.

With heavily soiled laundry the additional “Prewash” option can be additionally selected.

Normally soiled and sweaty sportswear made of cotton jersey, microfibres or other artificial fibres.

As this programme includes a prewash cycle, add detergent also to the prewash chamber. Do not add any softener.

Curtains and delicate clothing, dresses skirts, shirts and blouses.

With heavily soiled laundry the additional “Prewash” option can be additionally selected.

Slightly to normally soiled textiles made of cotton and/or synthetics. Shortly worn outer clothing made of cotton, polyester, polyamide

and blends with cotton. Only woollens with a felt-free finish, labelled with the woolma rk and

identified as machine washable.

If you select “Rinse Hold” do not leave items to soak for too long.

Textiles made of linen, silk, wool and viscose marked as “handwashable”.

If you select “Rinse Hold” do not leave items to soak for too long. A very gentle spin is used in this programme.

This cycle is particularly suitable to treat delicate lingerie (use of a laundry net strongly recommended).

Same as the last rinse and the final spin in the “Cotton” programme. In this programme spinning is intensive. Same as the spin cycle in the

“Cotton” programme. In this programme spinning is gentle. Same as the spin cycle in the

“Wool” programme. Drain only - no spinning. Alternative method of terminating programme

after “Rinse Hold”.

Type of wash/Notes

C D

E. Programme selector

F. “Start” button G. Spin speed selector

H. Programme sequence indicator

I. “Reset” button J. “Start delay” button

Detergents and additives Special options

Pre-

Main

Wash

Yes

Softener Start

❉❉❉❉ ❉ ❉❉❉

❉❉

❉❉ ❉❉

❉❉

❉❉ ❉❉

wash

❉

Yes Yes —

❉

—Yes

—Yes —Yes

—Yes

—Yes —— ———

——— —————— — ——— —

delay

Start

selectie

❉

❉ ❉

K. Time display

Eco+

Pre-

wash

Eco+

Voor-

——

—

——

—— — — —— — —

—— — —

—— — — —— — —— — — —

—— — — —

was

❉

Easy

ironing

Gemakkelijk

strijken

Intensive

Intensief

Spoelen

rinse

Rinse

hold

Spoel-

stop

❉❉❉❉

——

❉❉

❉❉❉❉

❉❉ ❉❉

❉❉

❉❉❉

Variable

spin

Centrif.

❉ ❉

Max Spin

Speed

rpm

1400

1000

1400

1000

400

1400 1400

1000

5019 401 05373

Black process 45.0° 100.0 LPI

40105373GB.fm Page 2 Thursday, January 11, 2007 9:41 AM

CONSUMPTION DATA

Temperature

Programme

(°C)

Cotton / Hygienic+

Cotton with “Eco”

***

Cotton Synthetics Synthetics

Sport

Delicates

Daily load

Quick wash

Wool

Handwash

Lingerie

Consumption values were measured in normalized conditions in compliance with Standard IEC/EN 60 456. Consumption data in the home may vary with respect to the values in the table in relation to the water supply pressure and temperature, the load and the type of wash.

The remaining time indicator can deviate from the values in the table, because it takes into account the household conditions

applicable at that time. To reduce the water temperature, some cold water is adde d at the e nd of the main wash cycle, bef ore the pump drains the water out.

Reference Programme for Energy Label.

***

95 6.0 59 60 6.0 49 1.14 2:20 40 5.0 56 0.70 2:00 60 2.5 50 40 2.5 46 0.50 1:20 30 2.5 56 0.60 1:35 30 1.5 60 0.50 0:45 40 3.0 41 0.50 1:00 30 3.0 41 0.40 0:30 40 1.0 60 0.50 0:45 40 1.0 45 0.50 0:40 30 1.0 45 0.40 0:40

ADD DETERGENTS, CLOSE THE DOOR AND SELECT THE PROGRAMME

Add detergent as indicated on the front page and as described in the chapter “Detergent and Additives” in your Instructions for Use.

1. Turn the

programme selector

to the desired

programme and temperature.

2. The

time display

shows the duration of the chosen programme (in hours and minutes), and the indication lamp next to the

3. The

indication lamp

of the predefined spin

“Start”

button flashes.

speed lights up.

SELECT ANY DESIRED OPTION

Push the button(s) of any option(s) desired - the respective indication lights up. When the combination of programme and additional option(s) is not possible, the indication lights switch off automatically. Unsuitable combinations of options are deselected automatically.

“Eco” button

• With a modified temperature profile and a slightly prolonged washing duration, the optimum combination of excellent washing result and even lower energy consumption is achieved.

“Prewash” button

• Only for heavily soiled loads (for example sand, granular dirt) sensible. Increases the cycle time by approximately 15 min.

Load

Water

Energy

Approx. Programme

Duration

(kg)

(l)

(kWh)

1.90 2:00

0.80 1:35

(hours : minutes)

“Easy ironing” button

• Can be used together with “Cotton”, “Synthetics” and “Daily load” programmes to make ironing easier.

• Increases the water quantity and the clothes are spun very gently.

“Intensive rinse” button

• More water is added and rinse cycle is prolonged.

• This option is particularly suitable for areas with very soft water, washing baby linen and helping people with allergies.

• Selectable only on the lowest temperature step of each programme.

“Rinse hold” button

• The laundry remains in the last rinse water without progressing to the final spin cycle to avoid creasing and prevent colours from changing.

• This option is particularly recommended for the programmes “Synthetics”, “Daily load” and “Delicates”.

• It is particularly useful if you want to postpone spinning to a later time, or if you want to drain only .

The programme stops to “Rinse hold” at

Note:

the time the “Anticrease” light in the programme sequence indication is on. The indication lamp next to the

“Start”

button flashes.

Terminate the “Rinse hold” option:

• Press the

“Start”

button; the programme will terminate automatically with the final spin cycle for the present wash programme.

• If you do not wish to spin the clothes, turn the programme selector knob to the “Drain” programme and press the

“Start”

button.

“Variable spin” button

• Every programme has a predefined spin speed.

• Press the button to set another spin speed.

• If spin speed “0” is selected, the final spinning is cancelled but intermediate spin peaks remain during rinse. The water is drained out only.

START DELAY

The “Start Delay” allows to run the machine at the consumer’s convenience, for example at night when electricity is cheaper.

• Select programme, temperature and options.

• Press the “Start Delay” button to select the delay time by 1 to 23 hours;

• Press the

“Start”

button. The indication light next to the “Start Delay” button lights up and the countdown of the delay time begins.

•The time delay indication disappears when the programme starts and it is replaced by the remaining programme time.

• Once having pressed the

“Start”

button, the number of hours preselected can be reduced by pressing again the “Start Delay” button.

To cancel the “Start Delay” ..before you press the “Start” button:

• Turn the programme selector to another position or press the

“Reset”

button.

..after having pressed the “Start” button:

• Press the “Reset” button for at least 3 seconds - the start delay time disappears from the time display.

PROGR AMME START

Open the tap and press the indication lamp next to the

“Start”

button. The

button lights up. The programme sequence indicator shows the current programme phase, running from left to right through Wash, Rinse, Spin/Drain.

The time display shows the remaining programme time. Due to variations in load and temperature of inlet water, the remaining time is newly calculated in certain programme phases. If this is the case, an animation appears on the time display.

“DOOR OPEN” INDICATION

Before starting and after end of a programme, the lamp lights to show that the door can be opened. As long as a wash programme is running, the door remains locked and must on no account be forced open. In case you have an urgent need to open it during a running programme, refer to “Cancel (Reset) a running programme before the end”.

RED INDICATIONS

“Service”

Lighting up of the “Service” indication can be caused by a fault in an electrical component. Refer to the “Troubleshooting Guide” in your Instructions for Use; if the fault persists, contact our After Sales Service.

“Water tap closed”

The appliance has no or insufficient water supply. Open the water tap; if the indication still lights up, refer to the “Troubleshooting Guide” in the Instructions for Use.

“Clean pump”

Waste water is not pumped out. Check whether the drain hose is kinked or the filter must be cleaned; in the latter case refer to the Instructions for Use (“Removing the Filter”).

PROGRAMME END

• All the lights of the programme sequence indicator are off, and the “Door open” indication lights up.

1. Turn the programme selector to the “Off/O” position.

2. Close the water tap.

3. Open the door and unload the machine.

4. Leave the door ajar to allow the drum to dry.

CHANGE PROGRAMME AND/OR OPTIONS AFTER PROGRAMME START

1. Press the

“Start”

button to pause the

programme. The light flashes.

2. Select the new programme and, if you want, another spin speed and any options.

3. Press the

“Start”

button again. The new programme continues at the same position where the previous programme was interrupted. Do not add detergent for this programme.

CANCEL (RESET) A RUNNING PROGRAMME BEFORE THE END

The

“Reset”

button cancels a programme before

the end.

• Press the

“Reset”

button for at least 3 seconds. Any existing water is drained out before the door can be opened.
