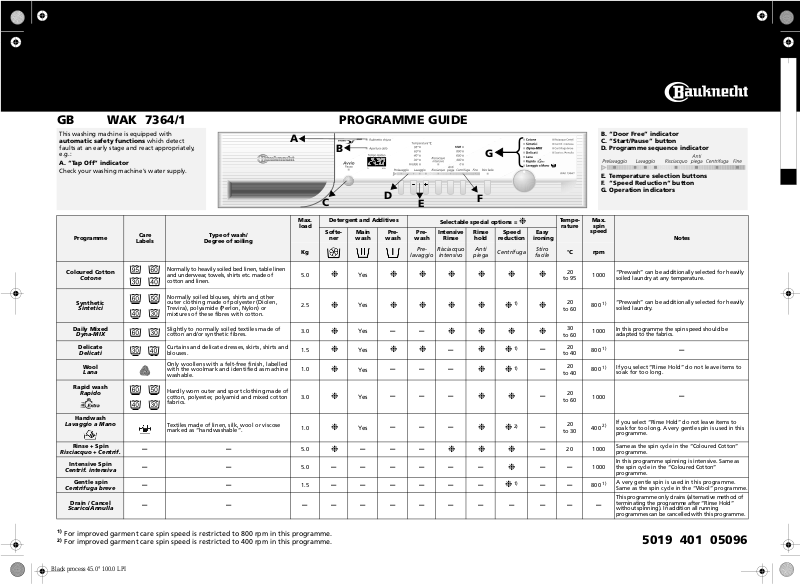

GB WAK 7364/1 PROGRAMME GUIDE

This washing machine is equipped with

automatic safety functions

faults at an early stage and react appropriately, e.g.:

A. “Tap Off” indicator

Check your washing machine's water supply.

which detect

B. “Door Free” indicator C. “Start/Pause” button

{

D. Programme sequence indicator

E. Temperature selection buttons F. “Speed Reduction“ button G. Operation indicators

Programme

Coloured Cotton

Cotone

Synthetic

Sintetici

Daily Mixed

Dyna-MIX

Delicate

Delicati

Wool

Lana

Rapid wash

Rapido

Handwash

Lavaggio a Mano

Rinse + Spin

Risciacquo + Centrif.

Intensive Spin

Centrif. intensiva

Gentle spin

Centrifuga breve

Drain / Cancel

Scarico/Annulla

Max.

load

Care

Labels

Normally to heavily soiled bed linen, table linen and underwear, towels, shirts etc. made of cotton and linen.

Normally soiled blouses, shirts and other outer clothing made of polyester (Diolen, Trevira), polyamide (Perlon, Nylon) or mixtures of these fibres with cotton.

Slightly to normally soiled textiles made of cotton and/or synthetic fibres.

Curtains and delicate dresses, skirts, shirts and blouses.

Only woollens with a felt-free finish, labelled with the woolmark and identified as machine washable.

Hardly worn outer and sport clothing made of cotton, polyester, polyamid and mixed cotton fabrics.

Textiles made of linen, silk, wool or viscose marked as “handwashable”.

–– –– ––

Type of wash/

Degree of soiling

5.0

2.5

3.0

1.5

1.0

3.0

1.0

5.0

1.5

–––––––––––––

Detergent and Additives

Softe-

ner

Main wash

❉

❉ ❉

❉

Yes

–––

Pre-

wash

lavaggio

❉❉❉❉ ❉ ❉

❉❉❉❉❉ 1)❉

––

❉❉

–––

Selectable special options =

Pre-

Intensive

wash

Pre-

Rinse

Risciacquo

intensivo

❉❉❉❉

–

❉

Rinse

hold

Anti

piega

❉❉ ❉❉

❉❉

–––––– ––––––

❉

Speed

reduction

Centrifuga

❉

Tem p e-

rature

Easy

ironing

Stiro

facile

–

°C rpm

to 95

to 60

to 40

to 60

to 30

20 1000

–– ––

Max.

spin

speed

“Prewash” can be additionally selected for heavily

1000

soiled laundry at any temperature.

“Prewash” can be additionally selected for heavily

800

soiled laundry.

In this programme the spin speed should be

1000

adapted to the fabrics.

800

If you select “Rinse Hold” do not leave items to

800

soak for too long.

1000

If you select “Rinse Hold” do not leave items to

soak for too long. A very gentle spin is used in this

400

programme.

Same as the spin cycle in the “Coloured Cotton” programme.

In this programme spinning is intensive. Same as

1000

the spin cycle in the “Coloured Cotton” programme.

A very gentle spin is used in this programme.

800

Same as the spin cycle in the “Wool” programme. This programme only drains (alternative method of

terminating the programme after “Rinse Hold” without spinning). In addition all running programmes can be cancelled with this programme.

Notes

–

For improved garment care spin speed is restricted to 800 rpm in this programme.

For improved garment care spin speed is restricted to 400 rpm in this programme.

Black process 45.0° 100.0 LPI

5019 401 05096

4gb05096.fm Page 2 Thursday, June 12, 2003 6:04 PM

CONSUMPTION DATA

Programme Temp er at ure

(°C) Coloured Cotton Coloured Cotton Coloured Cotton

Daily Mixed

Synthetic Synthetic

Rapid wash

Delicate

Wool

Handwash

* Consumption

programme duration

** The

particular household conditions and to adapt the programme run time accordingly.

*** To reduce

the pump drains the water out.

values

were measured in normalized conditions in compliance with Standard IEC 60456.

the water temperature

95 5.0 44*** 1.60 1:55 60 5.0 39 0.95 2:20 40 5.0 39 0.55 2:00 40 3.0 46 0.58 1:00 60 2.5 55*** 0.70 1:30 40 2.5 50 0.50 1:15 30 3.0 35 0.40 0:30 30 1.5 50 0.50 0:45 40 1.0 50 0.50 0:40 30 1.0 35 0.40 0:35

may also vary from the chart values. The washing machine is able to allow for

, some cold water is added at the end of the main wash cycle, before

POUR IN DETERGENT, CLOSE THE DOOR AND SELECT A PROGRAMME

Add the detergent as described in the chapter “Detergent and Additives” in the booklet.

1. Turn the

programme selector knob

any direction to the desired programme. The remaining time display shows the duration of the chosen programme (in hours and minutes) and the pilot lamp above the

“Start/Pause”

button is

flashing.

2. The programme sequence indicator and the indicator with the maximum possible spin speed light up.

3. The temperature can be altered by pressing the

“+”

“-”

button under the

corresponding LED display.

Wash

(kg)

Water

(l)

SELECT SPECIAL OPTIONS The indicator lights go on.

“Prewash” button

• Only for heavily soiled laundry (for example sand or granular dirt). Programme duration is increased by some 15 min.

“Intensive Rinse” button

• An additional rinse cycle is carried out.

• This additional option is particularly suitable for areas with very soft water, for washing baby linen and helping people with detergent allergies.

“Rinse Hold” button

• The laundry remains in the last rinse water without being spun: discoloration of the laundry and additional creasing are prevented.

• This additional option is particularly recommended for the programme “Synthetics” or “Delicates”.

• This additional function is particularly useful if you want to postpone spinning to a later time.

Energy

(kWh)

Programme duration **

approx.

(hours : minutes)

Note:

The programme has reached the “Rinse Hold” when the “Rinse Hold” button light flashes.

Terminate the “Rinse Hold” option:

• Press the “Rinse Hold” button again; the

programme will terminate automatically with the appropriate spin cycle for the current programme.

• If you do not wish to spin the clothes, turn

the programme selector knob to “Drain/ Cancel” and press the “

Start/Pause

”

button again.

“Speed Reduction“ button

• A maximum spin speed is assigned to each

programme.

• Press the button to set another speed for

the spin cycle.

• If the spin speed “0” is selected, the final

spin is cancelled. The water is only drained out.

“Easy Ironing” button

• To lessen creasing, the water quantity is

increased and the clothes are spun very gently at reduced power. This makes your laundry significantly damper at the end of the programme.

PROGRAMME START

After you have selected the programme and the additional option, the indicator light over the

“Start/Pause”

button flashes. Turn on the tap and start the programme by pressing the

“Start/Pause”

button. Now the

indicator light above the button goes on.

In addition, all programme phases are indicated by the associated lights. After the end of a programme phase the associated indicator light goes out. Thus the programme sequence indicator moves from left to right across the wash, rinse and spin phases. At the end of the programme only the “End” indicator is still on.

DOOR LOCK

In the first 15 minutes after the start of the “Cotton”, “Cotton coloured” and “Synthetic” programmes the door can be opened to add further laundry. This is not possible if “Rapid Wash” is selecte.

PROGRAMME END

• The remaining time display shows “0:00” and the “End” indicator lights up.

1. Turn the programme selector knob to the “Off” position.

2. Turn off the tap.

3. Open the door and unload the machine.

RESELECT AFTER PROGRAMME START

A newly-selected programme will continue in the same programme section during which the current programme was interrupted. Therefore do not add any more detergent.

1. Press the

“Start/Pause”

button to interrupt the programme. The indicator light flashes.

2. Select the new programme (with temperature), any additional options and

- if you wish - another spin speed.

3. Press the

“Start/Pause”

button again to

restart the programme.

• If you are in the “Prewash” programme step this additional option can not be deselected as described (to do this see “Interrupt/Cancel Programme).

CANCEL/DELETE PROGRAMME

1. Press the

“Start/Pause”

button to interrupt the programme. The indicator light flashes.

2. Set the programme selector to “Drain/ Cancel”. The spin speed

“0”

and the

remaining time “2 minutes” are displayed.

3. Press the

“Start/Pause”

button to start

the “Drain/Cancel” programme.
