GB |
WAK 6750/2 |
This washing machine is equipped with automatic safety functions which detect faults at an early stage and react appropriately, e.g.:
A. “Tap Off” indicator
Check your washing machine's water supply.

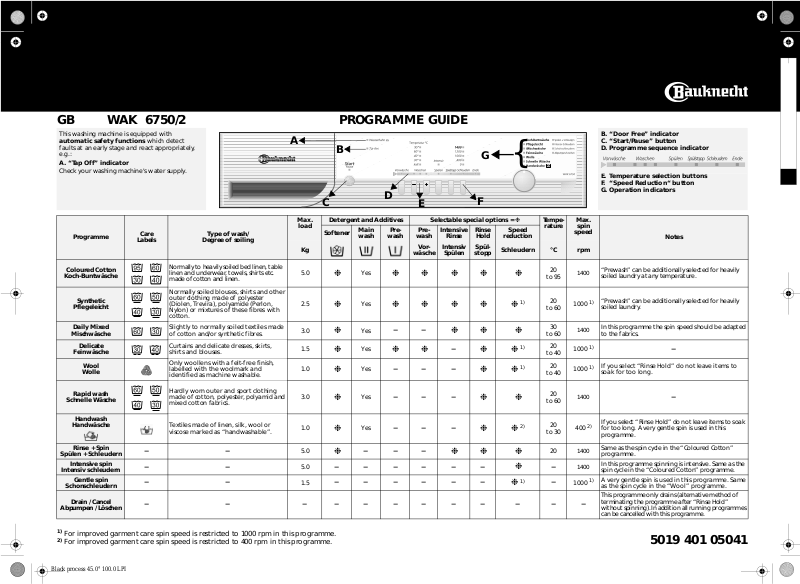

PROGRAMME GUIDE
A |
B |
|
{ |
|
G |
||
|
|
||
C |
D |
F |
|
E |
|
B.“Door Free” indicator
C.“Start/Pause” button
D.Programme sequence indicator
E.Temperature selection buttons
F.“Speed Reduction“ button
G.Operation indicators
|
|
|
|
|
|
|
|
|
|
|
|
Max. |
Detergent and Additives |
Selectable special options = |
|
Tempe- |
Max. |
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
load |
|
Main |
Pre- |
Pre- |
Intensive |
Rinse |
Speed |
rature |
spin |
|
||
|
|
|
|
|
Care |
Type of wash/ |
|
Softener |
|
speed |
|
|||||||||||||
Programme |
|
|
|
wash |
wash |
wash |
Rinse |
Hold |
reduction |
|
Notes |
|||||||||||||
|
|
|
|
|
|
|
||||||||||||||||||
|
|
|
|
|
Labels |
Degree of soiling |
Kg |
|
|
|
Vor- |
Intensiv |
Spül- |
Schleudern |
°C |
rpm |
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
wäsche |
Spülen |
stopp |
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
Coloured Cotton |
|
|
|
|
|
|
|
|
Normally to heavily soiled bed linen, table |
|
|
|
|
|
|
|
|
20 |
|
|
“Prewash” can be additionally selected for heavily |
|||
|
|
|
|
|
|
|
|
linen and underwear, towels, shirts etc. |
5.0 |
Yes |
1400 |
|||||||||||||
Koch-Buntwäsche |
|
|
|
|
|
|
|
|
to 95 |
soiled laundry at any temperature. |
||||||||||||||
|
|
|
|
|
|
|
|
made of cotton and linen. |
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Normally soiled blouses, shirts and other |
|
|
|
|
|
|
|
|
|
|
|
|
|
Synthetic |
|
|
|
|
|
|
|
|
outer clothing made of polyester |
|
|
Yes |
|
|
|
|
1) |
20 |
1000 1) |
“Prewash” can be additionally selected for heavily |
||||
|
|
|
|
|
|
|
|
(Diolen, Trevira), polyamide (Perlon, |
2.5 |
to 60 |
||||||||||||||
Pflegeleicht |
|
|
|
|
|
|
|
|
Nylon) or mixtures of these fibres with |
|
|
|
|
|
|
|
|
|
|
|
soiled laundry. |
|||
|
|
|
|
|
|
|
|
|
|
|
cotton. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Daily Mixed |
|
|
|
|
|
|
|
|
Slightly to normally soiled textiles made |
3.0 |
|
Yes |
– |
– |
|
|
|
30 |
1400 |
In this programme the spin speed should be adapted |
||||
Mischwäsche |
|
|
|
|
|
|
|
|
of cotton and/or synthetic fibres. |
to 60 |
to the fabrics. |
|||||||||||||
Delicate |
|
|
|
|
|
|
|
|
Curtains and delicate dresses, skirts, |
1.5 |
|
Yes |
|
|
– |
|
|
1) |
20 |
1000 |
1) |
– |
||
Feinwäsche |
|
|
|
|
|
|
|
|
shirts and blouses. |
|
to 40 |
|
||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Wool |
|
|
|
|
|
|
|
|
Only woollens with a felt-free finish, |
|
|
|
– |
– |
– |
|
|
1) |
20 |
|
1) |
If you select “Rinse Hold” do not leave items to |
||
|
|
|
|
|
|
|
|
labelled with the woolmark and |
1.0 |
Yes |
1000 |
|||||||||||||
Wolle |
|
|
|
|
|
|
|
|
|
to 40 |
|
soak for too long. |
||||||||||||
|
|
|
|
|
|
|
|
|
|
|
identified as machine washable. |
|
|
|
|
|
|
|
|
|
|
|
|
|
Rapid wash |
|
|
|
|
|
|
|
|
Hardly worn outer and sport clothing |
|
|
Yes |
– |
– |
– |
|
|
20 |
|
|
– |
|||
|
|
|
|
|
|
|
|
made of cotton, polyester, polyamid and |
3.0 |
1400 |
||||||||||||||
Schnelle Wäsche |
|
|
|
|
|
|
|
|
to 60 |
|||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
mixed cotton fabrics. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Handwash |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
If you select “Rinse Hold” do not leave items to soak |
||
Handwäsche |
|
|
|
|
|
|
|
|
Textiles made of linen, silk, wool or |
|
|
|
– |
– |
– |
|
|
2) |
20 |
400 |
2) |
|||
|
|
|
|
|
|
|
|
1.0 |
Yes |
for too long. A very gentle spin is used in this |
||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
viscose marked as “handwashable”. |
|
to 30 |
|
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
programme. |
Rinse + Spin |
|
|
|
– |
– |
5.0 |
|
– |
– |
– |
|
|
|
20 |
1400 |
Same as the spin cycle in the “Coloured Cotton” |
||||||||
Spülen + Schleudern |
|
|
|
programme. |
||||||||||||||||||||
Intensive spin |
|
|
|
– |
– |
5.0 |
– |
– |
– |
– |
– |
– |
|
– |
1400 |
In this programme spinning is intensive. Same as the |
||||||||
Intensiv schleudern |
|
|
|
spin cycle in the “Coloured Cotton” programme. |
||||||||||||||||||||
Gentle spin |
|
|
|
– |
– |
1.5 |
– |
– |
– |
– |
– |
– |
|
1) |
– |
1000 |
1) |
A very gentle spin is used in this programme. Same |
||||||
Schonschleudern |
|
|
|
|
|
as the spin cycle in the “Wool” programme. |
||||||||||||||||||
Drain / Cancel |
|
|
|
– |
– |
– |
– |
– |
– |
– |
– |
– |
– |
– |
– |
|
This programme only drains (alternative method of |
|||||||
|
|
|
|
terminating the programme after “Rinse Hold” |
||||||||||||||||||||
Abpumpen / Löschen |
|
|
|
|
without spinning). In addition all running programmes |
|||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
can be cancelled with this programme. |
1) For improved garment care spin speed is restricted to 1000 rpm in this programme. |
|
|
|
|
|
|
|
|
|
|
5019 401 05041 |
|||||||||||||
2) For improved garment care spin speed is restricted to 400 rpm in this programme. |
|
|
|
|
|
|
|
|
|
|
Black process 45.0° 100.0 LPI
4gb05041.fm Page 2 Monday, February 17, 2003 5:08 PM
CONSUMPTION DATA *
Programme |
Temperature |
Wash |
Water |
Energy |
Programme |
|
|
|
|
|
duration ** |
|
|
|
|
|
approx. |
|
(°C) |
(kg) |
(l) |
(kWh) |
(hours : minutes) |
Coloured Cotton |
95 |
5.0 |
44*** |
1.90 |
1:55 |
|
|
|
|
|
|
Coloured Cotton |
60 |
5.0 |
39 |
0.95 |
2:00 |
|
|
|
|
|
|
Coloured Cotton |
40 |
5.0 |
39 |
0.60 |
2:00 |
|
|
|
|
|
|
Daily Mixed |
40 |
3.0 |
46 |
0.58 |
1:00 |
|
|
|
|
|
|
Synthetic |
60 |
2.5 |
55*** |
0.70 |
1:30 |
|
|
|
|
|
|
Synthetic |
40 |
2.5 |
50 |
0.50 |
1:15 |
|
|
|
|
|
|
Rapid wash |
30 |
3.0 |
35 |
0.40 |
0:30 |
|
|
|
|
|
|
Delicate |
30 |
1.5 |
50 |
0.50 |
0:45 |
|
|
|
|
|
|
Wool |
40 |
1.0 |
50 |
0.60 |
0:40 |
|
|
|
|
|
|
Handwash |
30 |
1.0 |
35 |
0.40 |
0:35 |
|
|
|
|
|
|
*Consumption values were measured in normalized conditions in compliance with Standard IEC 60456.
**The programme duration may also vary from the chart values. The washing machine is able to allow for particular household conditions and to adapt the programme run time accordingly.
***To reduce the water temperature, some cold water is added at the end of the main wash cycle, before the pump drains the water out.
POUR IN DETERGENT, CLOSE THE DOOR AND SELECT A PROGRAMME
Add the detergent as described in the chapter “Detergent and Additives” in the booklet.
1.Turn the programme selector knob in any direction to the desired programme. The remaining time display shows the duration of the chosen programme (in hours and minutes) and the pilot lamp above the “Start/Pause”button is flashing.
2.The programme sequence indicator and the indicator with the maximum possible spin speed light up.
3.The temperature can be altered by pressing the “+” or “-” button under the corresponding LED display.
SELECT SPECIAL OPTIONS -
The indicator lights go on.
“Prewash” button
•Only for heavily soiled laundry (for example sand or granular dirt). Programme duration is
increased by some 15 min.
“Intensive Rinse” button
•An additional rinse cycle is carried out.
•This additional option is particularly suitable for areas with very soft water, for
washing baby linen and helping people with detergent allergies.
“Rinse Hold” button
•The laundry remains in the last rinse water without being spun: discoloration of the laundry and additional creasing are prevented.
•This additional option is particularly recommended for the programme “Synthetics” or “Delicates”.
•This additional function is particularly useful if you want to postpone spinning
to a later time.
Note: The programme has reached the “Rinse Hold” when the “Rinse Hold” button light flashes.
Terminate the “Rinse Hold” option:
•Press the “Rinse Hold” button again; the programme will terminate automatically with the appropriate spin cycle for the current programme.
•If you do not wish to spin the clothes, turn the programme selector knob to “Drain/
Cancel” and press the “Start/Pause” button again.
“Speed Reduction“ button
•A maximum spin speed is assigned to each programme.
•Press the button to set another speed for the spin cycle.
•If the spin speed "0" is selected, the final spin is cancelled. The water is only drained out.
PROGRAMME START
After you have selected the programme and the additional option, the indicator light over the “Start/Pause” button flashes. Turn on the tap and start the programme by pressing the “Start/Pause” button. Now the indicator light above the button goes on.
In addition, all programme phases are indicated by the associated lights. After the end of a programme phase the associated indicator light goes out. Thus the programme sequence indicator moves from left to right across the wash, rinse and spin phases. At the end of the programme only the “End” indicator is still on.
DOOR LOCK
In the first 15 minutes after the start of the “Cotton”, “Cotton coloured” and “Synthetic” programmes the door can be opened to add further laundry. This is not possible if "Rapid Wash" is selecte.
PROGRAMME END
• The remaining time display shows "0:00" and the "End" indicator lights up.
1.Turn the programme selector knob to the "Off" position.
2.Turn off the tap.
3.Open the door and unload the machine.
RESELECT AFTER PROGRAMME START
A newly-selected programme will continue in the same programme section during which the current programme was interrupted. Therefore do not add any more detergent.
1.Press the “Start/Pause”button to interrupt the programme. The indicator light flashes.
2.Select the new programme (with temperature), any additional options and - if you wish - another spin speed.
3.Press the “Start/Pause”button again to
restart the programme.
•If you are in the “Prewash” programme step this additional option can not be deselected as described (to do this see “Interrupt/Cancel Programme).
CANCEL/DELETE PROGRAMME
1.Press the “Start/Pause”button to interrupt the programme. The indicator light flashes.
2.Set the programme selector to “Drain/ Cancel”. The spin speed “0” and the remaining time “2 minutes” are displayed.
3.Press the “Start/Pause”button to start the “Drain/Cancel” programme.
