CONTENTS

BEFORE USING THE WASHING MACHINE

PRECAUTIONS AND GENERAL RECOMMENDATIONS

DESCRIPTION OF THE WASHING MACHINE

DOOR

CHILD SAFETY (IF AVAILABLE)

BEFORE THE FIRST WASH CYCLE

PREPARATION OF THE WASHING

DETERGENTS AND ADDITIVES

REMOVING THE FILTER

DRAINING RESIDUAL WATER

CARE AND MAINTENANCE

TROUBLESHOOTING GUIDE

AFTER-SALES SERVICE

ACCESSORIES

TRANSPORT / HANDLING

ELECTRICAL CONNECTION

BEFORE USING THE WASHING MACHINE

1.Removing the packaging and inspection

• After unpacking, make sure that the washing

machine is undamaged. If in doubt, do not use the washing machine. Contact After-Sales Service or your local retailer.

• Check that the accessories and supplied parts are

all present.

• Keep the packaging materials (plastic bags,

polystyrene parts, etc.) out of reach of children, as they are potentially dangerous.

2.Remove the transport bolts

• The washing machine is fitted with transport

bolts to avoid any possible damage to the interior during transport. Before using the machine, it is imperative that the transport bolts are removed.

• After their removal, cover the openings with the

4 enclosed plastic caps.

3.Install the washing machine

• Remove the protective film from the control panel.

• Move the appliance without lifting it by the worktop.

• Install the appliance on a solid and level floor

surface, preferably in a corner of the room.

• Make sure that all four feet are stable and resting

on the floor and then check that the washing machine is perfectly level (use a spirit level).

4.Water inlet

• Connect the water supply inlet hose in

accordance with the regulations of your local water company.

• Water inlet: Cold water only

(if no other information on your programme chart)

• Water tap: 3/4” threaded hose

connector

• Water pressure

(flow pressure): 100-1000 kPa (1-10 bar).

• Only use a new inlet hose for connecting the

washing machine to the water supply. Used hoses must not be employed anymore

5.Drain

• Connect the drain hose to the siphon or hook it

over the edge of a sink by means of the “U” bend supplied.

• If the washing machine is connected to an

integrated drainage system, ensure the latter is equipped with a vent to avoid simultaneous loading and draining of water (siphoning effect).

6.Electrical connection

• Electrical connections must be carried out by a

qualified technician in compliance with the manufacturer’s instructions and current standard safety regulations.

• Data regarding voltage, power consumption and

protection requirements is given on the inside of the door.

• The appliance must be connected to the mains by

means of a socket with an earth connection in accordance with current regulations. The washing machine must be earthed by law. The manufacturer declines all liability for damage to property or injury to persons or animals due to non-compliance with the directions given above.

• Do not use extension leads or multiple sockets.

• Before any maintenance on the washing machine

disconnect it from the mains supply.

• After installation, access to the mains plug or to

disconnection from mains supply must be ensured at all times via a double-pole switch.

• Do not operate the washing machine if it has

been damaged during transport. Inform the After-Sales Service.

• Mains cable replacement is only to be carried out

by After-Sales Service.

• The appliance must only be used in the

household for the prescribed uses.

Minimum housing dimensions:

Width: 600 mm

Height: 850 mm

Depth: 600 mm

PRECAUTIONS AND GENERAL RECOMMENDATIONS

1.Packaging

• The packaging material is entirely recyclable, and

marked with the recycling symbol . Adhere to current local regulations when disposing of packaging material.

2.Disposing of packaging and scrapping old washing machines

• The washing machine is built from reusable

materials. It must be disposed of in compliance with current local waste disposal regulations.

• Before scrapping, remove all detergent residues and cut off the power cable so that the washing machine is made unusable.

• This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

3.Location and surroundings

• The washing machine must only be installed in

closed spaces.

• Do not store flammable fluids near the appliance.

4.General recommendations

• Do not leave the appliance plugged in when not

in use.

• Turn off the tap.

• Before any cleaning and maintenance switch off

the machine or disconnect it from the mains.

• Clean the outside of the washing machine with a

damp cloth. Do not use abrasive detergents.

• Never open the door forcibly or use it as a step.

• Children must not be allowed to play with the

washing machine or to climb into the drum (see also the following page chapter “Child Safety”).

• If necessary, the power cable may be replaced

with an identical one obtained from our AfterSales Service. The power cable must only be replaced by a qualified technician.

5.EC Declaration of Conformity

• The appliance conforms to the following

European Standards: 73/23/EEC Low voltage directive

89/336/EEC Electromagnetic Compatibility Directive

93/68/EC CE Marking Directive .

DESCRIPTION OF THE WASHING MACHINE

1. Worktop

2. Control panel

3. Detergent dispenser

4. Service plate

(inside the door)

5. Door

6. Child safety device (if provided,

inside the door)

7. Plinth covering pump access

8. Adjustable feet

DOOR

To open the door, hold the door handle, press the inside handle and pull the door. Close the door by pressing it without excessive force until it clicks shut.

CHILD SAFETY (IF AVAILABLE)

To protect the appliance against improper use, turn the plastic screw on the interior of the door. To do this, use the thick rounded corner of the coloured insert from the detergent dispenser or a coin:

• Slot vertical: the door will not lock.

• Slot horizontal - normal position: the door can be locked

again.

BEFORE THE FIRST WASH CYCLE

To remove any residual water used in testing by the manufacturer, we recommend that you carry out a short wash cycle without laundry.

1. Open the tap.

2. Close the door.

3. Pour a little detergent (about 30 ml) into the main wash chamber of the detergent dispenser.

4. Select and start a short programme (see separate quick reference guide).

PREPARATION OF THE WASHING

1.Sort the laundry according to...

• Type of fabric / care label symbol

Cottons, mixed fibres, easy care/synthetics, wool, handwash items.

• Colour

Separate coloured and white items. Wash new coloured articles separately.

•Loading

Wash items of different sizes in the same load to improve washing efficiency and distribution in the drum.

• Delicates

Wash small items (e.g. nylon stockings, belts etc.) and items with hooks (e.g. bras) in a cloth bag or pillow case with zip. Always remove curtain rings or wash curtains with the rings inside a cotton bag.

2.Empty all pockets

Coins, safety pins etc. can damage your laundry as well as the appliance drum and tub.

3.Fasteners

Close zips and fasten buttons or hooks; loose belts or ribbons should be tied together.

Stain removal

• Blood, milk, eggs etc. are generally removed by the

automatic enzyme phase of the programme.

• To remove red wine, coffee, tea, grass and fruit

stains etc. add a stain remover to the main wash chamber of the detergent dispenser.

• Pre-treat heavily-soiled areas with stain remover if

necessary.

Dyeing

• Only use dyes that are suitable for washing machines.

• Follow the Manufacturer’s instructions.

• Plastic and rubber parts of the washing machine can

be stained by dyes.

Loading the laundry

1. Open the door.

2. Load the articles one at a time loosely into the

drum, without overfilling. Observe the load sizes given in the quick reference guide. Note: overloading the machine will result in unsatisfactory washing results and creased laundry

3. Close the door.

DETERGENTS AND ADDITIVES

The choice of detergent depends on:

• type of fabric (cottons, easy care/synthetics, delicate

items, wool).

Note: Use only specific detergents for washing wool

• colour

• the wash temperature

• degree and type of soiling

Remarks:

Any whitish residues on dark fabrics are caused by insoluble compounds used in modern phosphate-free powder detergents. If this occurs, shake or brush out the fabric or use liquid detergents. Use only detergents and additives specifically produced for domestic washing machines. When using descaling agents, dyes or bleaches for the pre-wash, make sure that they are suitable for use in domestic washing machines. Descalers could contain products which could damage your washing machine. Do not use any solvents (e.g. turpentine, benzine). Do not machine wash fabrics that have been treated with solvents or flammable liquids.

Dosage

Follow the dosage recommendations on the detergent pack. They depend on:

• degree and type of soiling

• size of wash

follow the detergent manufacturer’s instructions for a full load; half load: 3/4 the amount used for a full load; Minimum load (about 1 kg): 1/2 the amount used for a full load

• water hardness in your area (ask for information

from your water company). Soft water requires less detergent than hard water (refer to the water hardness table in the operating instructions).

Notes:

Too much detergent can result in excess foam formation, which reduces washing efficiency. If the washing machine detects too much foam, it may prevent spinning. Insufficient detergent may result in grey laundry in time and also calcifies the heating system, drum and hoses.

Water Hardness Chart

Water hardness Characteristics

1 2 3 4

soft

average

hard

very hard

German

°dH

0-7

7-14

14-21

over 21

French

°fH

0-12 12-25 25-37

over 37

English

°eH

0-9

9-17

17-26

over 26

Where to put detergent and additives

The detergent drawer has three chambers (fig. “A”).

Prewash Chamber

• Detergent for the prewash

Main Wash Chamber

• Detergent for the main wash

• Stain remover

• Water softener (water hardness class 4)

Softener Chamber

• Fabric softener

• Liquid starch

Pour additives only up to the “MAX” mark.

Separator

()

Separator

Using chlorine bleach

• Wash your laundry in the desired programme (Cotton, Synthetics),

adding an appropriate amount of chlorine bleach to the SOFTENER chamber (close the detergent dispenser carefully).

• Immediately after end of programme, start the “Rinse and Spin”

programme to eliminate any residual bleach smell; if you want, you can add softener. Never put both chlorine bleach and softener into the softener chamber at the same time.

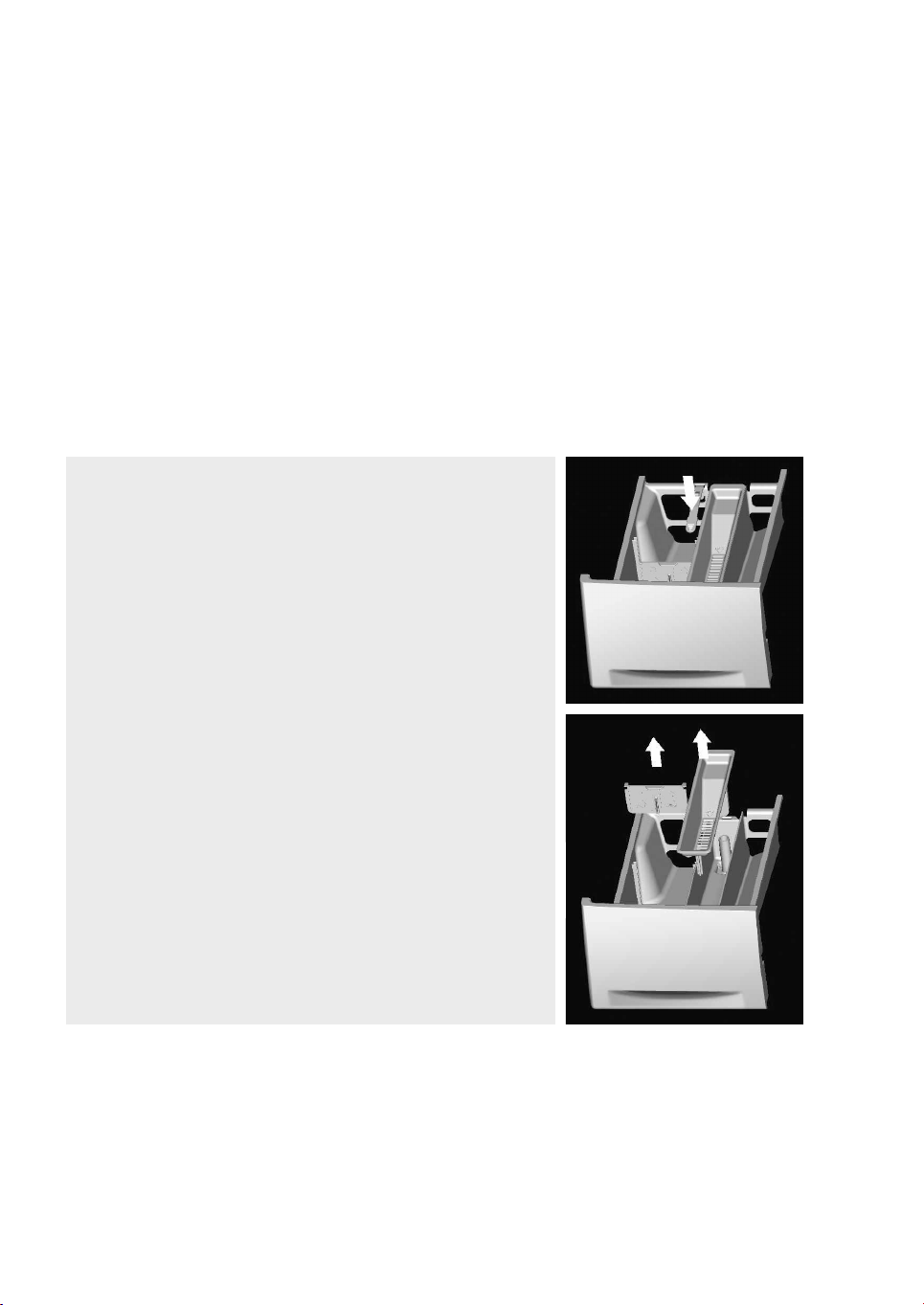

How to position the separator in the main wash chamber for powder or liquid detergent

For use with powder detergent: place the separator in the higher position. Lift the separator until its top can be reclined. Place its hooks on the upper end of the back guide rails and slightly push the separator down to fix it (fig. “B” and “C”). A gap should remain between the separator and the bottom of the main wash chamber, if the separator has been correctly installed (fi g. “B” and “C”).

For use with liquid detergent: place the separator in the lower position. Secure the separator in the chamber using the front guide rails. Position the separator so that it touches the bottom of the main wash chamber (fig. “D”).

Hooks

Guide

Rails

Notes:

• Keep detergents and additives in a safe, dry place out of the reach of children.

• Liquid detergents can be used for programmes with prewash. However, in this case a powder

detergent must be used for the main wash.

• Do not use liquid detergents when activating the “Start Delay” function (if available on your washing

machine).

• To prevent dispensing problems when using highly concentrated powder and liquid detergents, use the

special detergent ball or bag supplied with the detergent and place it directly inside the drum.

• When using descaling agents, bleaches or dyes, make sure that they are suitable for washing machines.

Descalers could contain components that can damage parts of your washing machine.

• Do not use any solvents in the washing machine (e.g. turpentine, benzine).

• If you use starch powder, proceed as follows:

1. Wash your laundry using the desired wash programme.

2. Prepare the starch solution according to the starch manufacturer’s instructions.

3. Select the “Rinse and Spin” programme, reduce the speed to 800 rpm and start the programme.

4. Pull out the detergent drawer until you can see about 3 cm of the main wash chamber .

5. Pour the starch solution into the main wash chamber while the water is running into the

detergent drawer.

6. If there are starch residues in the detergent drawer when the programme has finished, clean the main

wash chamber.

REMOVING THE FILTER

We recommend that you check and clean the filter regularly, at least two or three times a year.

Especially:

• If the appliance is not draining properly or if it fails to

perform spin cycles.

• If the pump is blocked by a foreign body (e.g. buttons,

coins or safety pins).

IMPORTANT: make sure the water has cooled before draining the appliance.

1. Stop the appliance and unplug it.

2. Remove the plinth by holding it tight on both sides,

pushing it downward and tilting it to the front.

3. Place a container beneath it.

4. Open the filter but do not remove it completely.

Slowly turn the filter counterclockwise until the water begins to drain out.

5. Wait until all the water has drained.

6. Now unscrew the filter completely and remove it.

7. Clean the filter and the filter chamber.

8. Check that the pump rotor moves freely.

9. Re-insert the filter and screw it in clockwise as far as it

will go.

10. Pour about 1 litre of water into the detergent drawer

to reactivate the “Eco system”. Check that the filter is inserted properly and securely.

11. Reinstall the plinth.

12. Plug in the appliance once again.

13. Select a programme and start it.

DRAINING RESIDUAL WATER

Before emptying the residual water, switch the appliance off and unplug it from the mains socket. Remove the plinth. Place a container beneath it.

1. Open the filter but do not remove it completely. Slowly turn the filter counterclockwise until the

water begins to drain out.

2. Wait until all the water has drained.

3. Now unscrew the filter completely and remove it.

4. Tilt the appliance forwards carefully to allow the water to flow out.

5. Re-insert the filter and screw it in clockwise as far as it will go.

6. Reinstall the plinth.

Before using the washing machine again:

1. Pour approx. 1 litre of water into the detergent drawer to reactivate the “Eco system”.

2. Plug in the appliance once again.

CARE AND MAINTENANCE

Appliance exterior and control panel

• Can be washed down with a soft, damp cloth.

• A little neutral detergent (non abrasive) can also

be used.

• Dry with a soft cloth.

Door seal

• Clean with a damp cloth when necessary.

• Check the condition of the door seal periodically.

Filter

• Check and clean the filter regularly, at least two

or three times a year (see “Removing the filter”).

Do not use flammable fluids for cleaning the appliance.

Detergent dispenser

1. Press the release lever in the main wash compartment downward and remove the drawer (fig. “A”).

2. Remove the cover grid from the fabric softener compartment.

Remove the separator from the main wash compartment by pulling it upward (fig. “B”).

3. Wash all the parts under running water.

4. Refit the separator and the grid in the detergent drawer and fit

the drawer back inside its housing.

Water supply hose

Check the supply hose regularly for brittleness and cracks and replace it if necessary using a new hose of the same type (available from After-Sales Service or specialist dealer). If your supply hose has a transparent hose coating (fig. “C”), periodically check the colour of the transparent coating. If the coating begins to turn red, this is an indication that the hose may have a leak and should be replaced. Contact our After-Sales Service team or specialist dealer to obtain a replacement hose.

Mesh filter for water connection

Check and clean regularly. For washing machines with an inlet hose as shown on pictures “A”, “B” or “C” (depending on the model):

1. Close the tap and loosen the inlet hose on the tap.

2. Clean the internal mesh filter and screw the water inlet hose back

onto the tap.

3. Now unscrew the inlet hose on the rear of the washing machine.

4. Pull off the mesh filter from the washing machine connection

with universal pliers and clean it.

5. Refit the mesh filter and screw the inlet hose on again.

6. Turn on the tap and ensure that the connections are completely

water-tight.

TROUBLESHOOTING GUIDE

Depending on the model, your washing machine is equipped with various automatic safety functions. This enables faults to be detected in good time and the safety system can react appropriately. These faults are frequently so minor that they can be removed within a few minutes.

The washing machine will not start, no indicator lamps are on.

Check whether:

• the mains plug is inserted into the socket;

• the wall socket is functioning correctly (use a

table lamp or similar appliance to test it).

The washing machine will not start... and the “Start/Pause” indicator lamp flashes.

Check whether:

• the door is properly closed (child safety);

• the “Start/Pause” button has been pressed;

• the “Water tap closed” indication lights up. Open the water tap and press the “Start/Pause” button.

The appliance stops during the programme

(varies depending on model)

Check whether:

• the “Rinse Hold” indicator lamp lights up; terminate this option by pressing the “Start/Pause” button or by choosing and starting the “Drain” programme;

• another programme has been selected and the “Start/Pause” indicator lamp is flashing.

Reselect the desired programme and press the

“Start/Pause” button.

• the door has been opened and the “Start/ Pause” indicator lamp is flashing. Close the door and press the “Start/Pause” button again.

• the washing machine’s safety system has been

activated (see “Fault description table”).

Residue from detergent and additives left in the detergent drawer at end of wash.

Check whether:

• the cover grid of the softener chamber and the separator of the main wash chamber are correctly installed in the detergent dispenser and all parts are clean (see “Care And Maintenance”);

• sufficient water is entering. The mesh filters of the water supply could be blocked (see “Care And Maintenance”);

• the position of the separator in the main wash

chamber is adapted to the use of powder or liquid detergent (see “Detergent and Additives”).

Machine vibrates during spin cycle.

Check whether:

• the washing machine is level and standing firmly

on all four feet;

• the transport bolts have been removed. Before

using the machine, it is imperative that the transport bolts are removed.

Final spin results are poor.

The washing machine has an imbalance detection and correction system. If individual heavy items are loaded (e.g. bathrobes), this system may reduce the spin speed automatically or even interrupt the spin completely if it detects too great an imbalance even after several spin starts, in order to protect the washing machine.

• If the laundry is still too wet at the end of the

cycle, add smaller articles of laundry and repeat the spin cycle.

• Excessive foam formation may prevent spinning.

Use the correct amount of detergent.

• Check that the spin speed selector has not been

set to “0”.

If your washing machine has a time display:

the programme time initially displayed is lengthened / shortened by a period of time:

This is a normal capacity of the washing machine to adapt to factors that can have an effect on the wash programme time, e.g.:

• excess foam formation;

• load imbalance due to heavy items of laundry;

• prolonged heating time due to reduced inlet

water temperature;

Because of influences like these, the time remaining in the programme run is recalculated, and updated if necessary. In addition, during the filling phase, the washing machine determines the load and if necessary adjusts the initial programme time displayed accordingly. During such update periods, an animation appears on the time display.

Fault description table

Red indication light is on

“Water tap closed” “FH” “Water supply fault”

“Clean pump” “FP” “Draining fault”

“Service”

a. “Water tap closed” indication lights up

The appliance has no or insufficient water supply. For models with remaining time display, “FH”

appears on that display. The “Start/Pause” indicator flashes.

Check whether:

• the water tap is fully open and there is sufficient

water supply pressure.

• kinks are present in water hose.

• the mesh filters of the water supply are blocked

(see “Care And Maintenance”/“Mesh Filters For Water Connection”).

• the water hose is frozen up.

After the problem has been removed, restart the programme by pressing “Start/Pause” again.

If the fault occurs again, contact After-Sales Service (see “After-Sales Service”).

b.“Clean pump” indication lights up

Waste water is not pumped out.

The “Clean pump” indication lights up.

For models with a remaining time display, “FP” appears on that display.

The washing machine stops in the appropriate programme step.

Unplug the appliance.

Check whether:

• kinks are present in the drain hose;

• the pump or the filter is blocked (see “Removing

The Filter”). IMPORTANT: make sure the water has cooled

before draining the appliance.

• the drain hose is frozen up.

Plug in the appliance again.

Select and start the “Drain” programme or push the “Reset” button for at least 3 seconds and restart the desired programme.

If the fault occurs again, please contact After-Sales Service (see “After-Sales Service”).

Digital display

(if fitted on your machine)

from “F02” to “F35” or “FA”

or “Fod”

c. “Service” indication lights up

The appliance stops during the programme.

For models with a remaining time display, a failure code between “F02” and “F35”, “FA” or “Fod” appears on that display.

If a failure code between “F02” and “F35” appears on the display:

Select and start the “Drain” programme or push the “Reset” button for at least 3 seconds.

Then select and start the desired programme again.

If the fault persists, unplug the appliance and contact After-Sales Service (see “After-Sales Service”).

If failure code “FA” appears on the display:

Switch the appliance off, pull out the mains plug and turn the water tap off. Tilt the appliance forward carefully to allow the collected water to flow out from the bottom of the appliance.

Then:

1. connect the appliance to the electrical supply;

2. turn the water tap on (if water immediately flows

into the appliance again, without the appliance being started, there is a failure. Turn off the tap and notify After Sales Service);

3. select and start the desired programme again. If the failure occurs again, unplug the appliance and

contact our After Sales Service (see “After Sales Service”).

If failure code “Fod” appears on the display:

Too much foam interrupted the washing programme. Avoid excessive detergent dosing.

1. Select and start the “Rinse & Spin” programme.

2. Afterwards, select and start the desired

programme again, using less detergent. If the fault persists, unplug the appliance and contact our After Sales Service.

Fault description

“Electrical module fault”

“Waterstop fault”

“Overfoaming”

AFTER-SALES SERVICE

Before contacting After-Sales Service:

1.Try to remedy the problem yourself (see

“Troubleshooting Guide”).

2.Restart the programme to check whether the

problem has solved itself.

3.If the washing machine continues to function

incorrectly, call After-Sales Service.

ACCESSORIES

Via our After-Sales Service or your specialist dealer, you can obtain:

• a Pedestal Drawer which can be installed

beneath your washing machine. It raises your machine to allow for more comfortable loading and unloading, as you now no longer need to bend as far to access the unit. Furthermore, it offers a great space-management tool and storage solution.

• a Stacking Kit by means of which you can fix

your dryer on top of your washing machine and thus effectively save space.

Specify:

• The nature of the problem.

• The washing machine model.

• The service code (number after the word

SERVICE).

The After-Sales Service sticker can be found inside the door.

• Your full address.

• Your telephone number and area code.

After-Sales Service phone numbers and addresses are given on the guarantee card. Alternatively, consult the dealer where you purchased the appliance.

Some models are able to be installed under your kitchen worktop; in that case, please contact our After-Sales Service (see above). Be aware that:

• the appliance MUST be installed under a

continuous worktop.

• according to the legal safety regulations, the

installation of the appliance MUST be carried out by an authorized technician or by our After-Sales Service.

• the appliance MUST be installed using the intermediate cover panel of the UBS Base Set which can be obtained from specialist dealers or our After-Sales Service.

TRANSPORT / HANDLING

Never lift the appliance by the worktop when transporting.

1. Pull out the mains plug.

2. Turn off the tap.

3. Disconnect the inlet and drain hoses.

4. Eliminate all water from the hoses and from the appliance (see “Removing the Filter”,“Draining

Residual Water”).

5. Fit the transport bolts (obligatory)

ELECTRICAL CONNECTION

For Great Britain only

Warning - this appliance must be earthed

Fuse replacement

If the mains lead of this appliance is fitted with a BS 1363A 13amp fused plug, to change a fuse in this type of plug use an A.S.T.A. approved fuse to BS 1362 type and proceed as follows:

1. Remove the fuse cover (A) and fuse (B).

2. Fit replacement 13A fuse into fuse cover.

3. Refit both into plug.

Important:

The fuse cover must be refitted when changing a fuse and if the fuse cover is lost the plug must not be used until a correct replacement is fitted. Correct replacement are identified by the colour insert or the colour embossed in words on the base of the plug. Replacement fuse covers are available from your local electrical store.

For the Republic of Ireland only

The information given in respect of Great Britain will frequently apply, but a third type of plug and socket is also used, the 2-pin, side earth type.

Socket outlet / plug (valid for both countries)

If the fitted plug is not suitable for your socket outlet, Please contact Whirlpool Service for further instruction. Please do not attempt to change plug yourself. This procedure needs to be carried out by a qualified Whirlpool technician in compliance with the manufactures instructions and current standard safety regulations.

bauknecht WAK 7269 PRIMELINE, WA PURE 22 TDI B, WA SENSITIVE 24 DI, WA 5341, WA SENSITIVIE 26 DI User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
