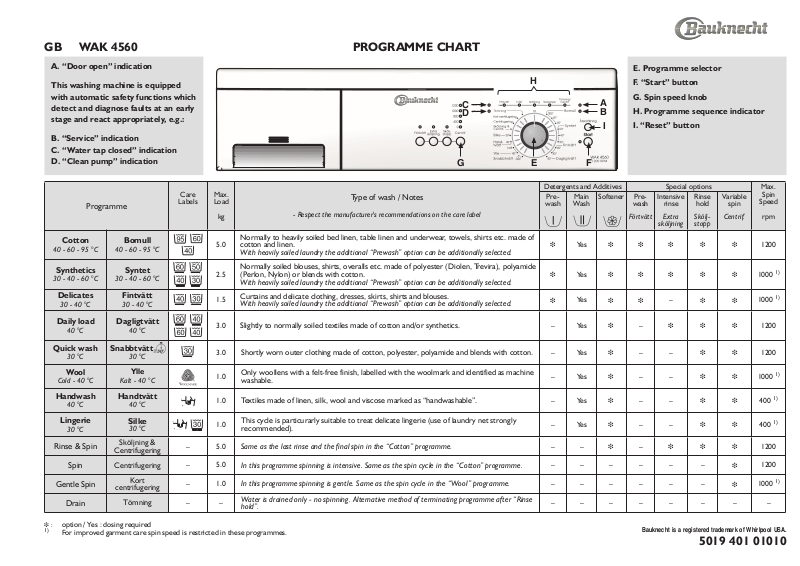

bauknecht WAK 4560 PROGRAMME CHART

GB WAK 4560

PROGRAMME CHART

A. “Door open” indication

This washing machine is equipped with automatic safety functions which detect and diagnose faults at an early stage and react appropriately, e.g.:

B. “Service” indication C. “Water tap closed” indication D. “Clean pump” indication

Care

Programme

Cotton

40 - 60 - 95 °C

Synthetics

30 - 40 - 60 °C

Delicates

30 - 40 °C

Daily load

40 °C

Bomull

40 - 60 - 95 °C

Syntet

30 - 40 - 60 °C

Fintvätt

30 - 40 °C

Dagligtvätt

40 °C

Labels

C D

Max. Load

Normally to heavily soiled bed linen, table linen and underwear, towels, shirts etc. made of

5.0

cotton and linen.

- Respect the manufacturer's recommendations on the care label

With heavily soiled laundry the additional “Prewash” option can be additionally selected.

Normally soiled blouses, shirts, overalls etc. made of polyester (Diolen, Trevira), polyamide

2.5

(Perlon, Nylon) or blends with cotton.

With heavily soiled laundry the additional “Prewash” option can be additionally selected.

Curtains and delicate clothing, dresses, skirts, shirts and blouses.

1.5

With heavily soiled laundry the additional “Prewash” option can be additionally selected.

3.0

Slightly to normally soiled textiles made of cotton and/or synthetics.

Type of wash / Notes

E. Programme selector

A B

Detergents and Additives Special options Max.

Pre-

wash

– Yes

Main

Wash

Yes

Softener Pre-

F. “Start” button

G. Spin speed knob

H. Programme sequence indicator

I. “Reset” button

Intensive

wash

Förtvätt

i i i i i

i i

rinse

Extra

sköljning

–

Rinse

Variable

hold

Sköljstopp

–

i i i

i i

spin

Centrif.

Spin

Speed

rpm

1200

1000

1200

Quick wash

30 °C

Wool

Cold - 40 °C

Handwash

40 °C

Lingerie

30 °C

Rinse & Spin

Spin

Gentle Spin

Drain

i : option / Yes : dosing required

For improved garment care spin speed is restricted in these programmes.

Snabbtvätt

30 °C

Ylle

Kalt - 40 °C

Handtvätt

40 °C

Silke

30 °C

Sköljning &

Centrifugering

Kort

centrifugering

Tömning

3.0

1.0

– 5.0

– 1.0

– –

Shortly worn outer clothing made of cotton, polyester, polyamide and blends with cotton.

Only woollens with a felt-free finish, labelled with the woolmark and identified as machine washable.

Textiles made of linen, silk, wool and viscose marked as “handwashable”.

This cycle is particurarly suitable to treat delicate lingerie (use of laundry net strongly recommended).

Same as the last rinse and the final spin in the “Cotton” programme.

In this programme spinning is intensive. Same as the spin cycle in the “Cotton” programme.

In this programme spinning is gentle. Same as the spin cycle in the “Wool” programme.

Water is drained only - no spinning. Alternative method of terminating programme after “Rinse hold”.

– Yes

– –

– – – – – –

– – – – – – – –

– –

–

i i i

Bauknecht is a registered trademark of Whirlpool USA.

i i

1200

1000

400

1200

1000

5019 401 01010

CONSUMPTION DATA

Programme

Temperature

Selector

(°C)

Load

(kg)

Water

(l)

Energy

(kWh)

Approx. Programme

Duration

(hours : minutes)

Cotton 95 5.0 49 * 1.90 2:00

Cotton ** 60 5.0 44 0,95 2:20

Cotton 40 5.0 44 0.60 2:00

Synthetics 60 2.5 50 * 0.70 1:30

Synthetics 40 2.5 45 0.55 1:15

Delicates 30 1.5 50 0.50

Daily load 40 3.0 45 0.45

Quick wash 30 3.0 40 0.40

Wool 40 1.0 55 0.60

Handwash 40 1.0 45 0.60

Lingerie 30 1.0 45 0.50

Consumption values were measured in normalized conditions in compliance with standard IEC/EN 60 456. Consumption data in the h

ome may vary with respect to the values in the table in relation to the water supply pressure and temperature, the load and the type of wash. * To reduce the water temperature, some cold water is added at the end of the main wash cycle, before the pump drains the water out. ** Reference Programme for Energy Label.

ADD DETERGENTS, CLOSE THE DOOR AND

SELECT THE PROGRAMME

Add detergents as indicated on the front page and as described in your Instructions for Use. Close the door and turn the programme selector to the desired programme and temperature. The indication lamp next to the “Start” button blinks. The indication lamp of the predefined spin

speed lights up.

SELECT ANY DESIRED OPTION

Push the button(s) of any option(s) desired - the respective indication lamp lights up. When the combination of programme and additional option(s) is not possible, the indication lights switch off automatically. Unsuitable combinations of options are deselected automatically.

“Prewash” button

• Only for heavily soiled loads (for example sand,

granular dirt) sensible. Increases the cycle time by approximately 15 min.

• Do not use liquid detergent for main wash when activating the Prewash option.

“Intensive rinse” button

• More water is added and rinse cycle is prologned.

• This option is particularly suitable for areas with

very soft water, washing baby linen and helps people with allergies.

“Rinse hold” button

• The laundry remains in the last rinse water

without progressing to the final spin cycle to avoid creasing and prevent colours from changing.

• This option is particularly recommended for the programmes “Synthetics”, “Daily load” and “Delicates”.

• This function is particularly useful if you want to postpone spinning to a later time, or if you want to drain only.

• If you select “Rinse hold” do not leave items to soak for too long. Note: The programme stops to “Rinse hold” at the time the “Rinse hold” light in the programme sequence indicator is on. The indication lamp next to the “Start” button blinks.

Terminate the “Rinse hold” option:

• Press the “Start” button; the programme will

terminate automatically with the final spin cycle

0:45

1:00

0:30

0:45

0:40

0:36

for the present wash programme.

• If you do not wish to spin the clothes, turn the programme selector knob to the “Drain” programme and press the “Start” button.

“Variable spin” button

• Every programme has a predefined spin speed.

• Press the button to set another spin speed.

• If spin speed “0” is selected, the final spinning is

cancelled but intermediate spin peaks remain during the rinse. The water is drained out only.

PROGRAMME START

Open the tap and press the “Start” button. The indication lamp next to the “Start” button lights up. The programme sequence indicator shows the current programme phase, running from left to right through Wash, Rinse, Spin/Drain. When the programme phrase is finised, the corresponding indication goes out.

“DOOR OPEN” INDICATION

Before starting and after end of a programme, the lamp lights to show the the door can be opened. As long as a wash programme is running, the door remains locked and must on no account be forced open. In case you have an urgent need to open it during a running programme, refer to “Cancel (Reset) a running programme before the end”.

RED INDICATIONS

“Service”

Lighting up of the “Service” indication can be caused by a fault in an electrical component. Refer to the “Troubleshooting Guide” in your “Instructions for Use”; if the fault persists, contact our After Sales Service.

“Water tap closed”

The appliance has no or insufficient water supply. Open the water tap: if the indications still lights up, refer to the “Troubleshooting Guide” in the Instructions for Use.

“Clean pump”

Waste water is not pumped out. Check whether the drain hose is kinked or the filter must be cleaned: in the latter case refer to the Instructions for Use (“Removing the Filter”).

PROGRAMME END

• All the lights of the programme sequence

indicator are off, and the “Door open” indication lights up.

1. Turn the programme selector to the “Off/O” position.

2. Close the water tap.

3. Open the door and unload the machine.

4. Leave the door ajar to allow the drum to dry.

CHANGE PROGRAMME AND/OR OPTIONS AFTER PROGRAMME START

1. Press the “Start” button to pause the programme. The light blinks.

2. Select the new programme (with temperature), any options and another spin speed if you want.

3. Press the “Start” button again. The new programme continues at the same position where the previous programme was interrupted. Do not add detergent for this programme.

CANCEL (RESET) A RUNNING PROGRAMME BEFORE THE END

The “Reset” button cancels a programme before the end.

• Press the “Reset” button for at least 3 seconds. Any existing water is drained out before the door can be opened.

Bauknecht is a registered trademark of Whirlpool USA.

5019 401 01010
