bauknecht WAK 2570 PROGRAMME CHART

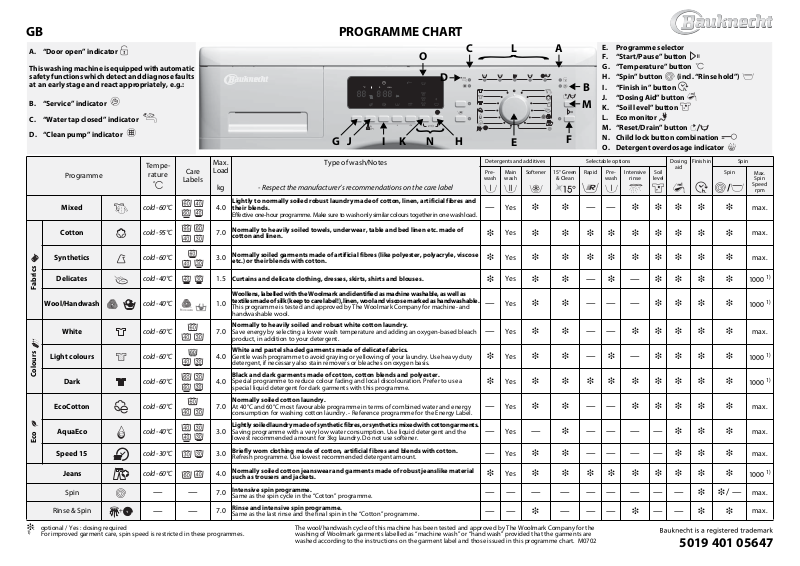

GB PROGRAMME CHART

A. “Door open” indicator

This washing machine is equipped with automatic
safety functions which detect and diagnose faults
at an early stage and react appropriately, e.g.:

B. “Service” indicator

C. “Water tap closed” indicator

D. “Clean pump” indicator

Tempe-

Programme

Mixed cold - 60 °C

Cotton cold - 95 °C

rature

Care

Labels

J

G

Max.
Load

kg

4.0

7.0

- Respect the manufacturer’s recommendations on the care label

Lightly to normally soiled robust laundry made of cotton, linen, artificial fibres and
their blends.

Effective one-hour programme. Make sure to wash only similar colours together in one wash load.

Normally to heavily soiled towels, underwear, table and bed linen etc. made of
cotton and linen.

Type of wash/Notes

I

O

}

N

D

HK

C

L

A

}

E

Detergents and additives Selectable options Dosing

Pre-

Main

wash

—

❉

Softener 15° Green

wash

Yes

❉❉—— ❉❉❉❉ ❉

Yes

❉❉❉❉❉❉❉❉❉

F

& Clean

E. Programme selector
F. “Start/Pause” button
G. “Temperature” button
H. “Spin” button (incl. “Rinse hold”)
I. “Finish in” button

B

J. “Dosing Aid” button

M

K. “Soil level” button
L. Eco monitor
M. “Reset/Drain” button
N. Child lock button combination
O. Detergent overdosage indicator

Rapid Pre-

wash

Intensive

rinse

Soil

level

Finish in Spin

aid

Spin

Max.
Spin

Speed

/

rpm

max.

max.

Synthetics cold - 60 °C

Delicates cold - 40 °C

Fabrics Colours Eco

Wool/Handwash cold - 40 °C

White cold - 60 °C

Light colours cold - 60 °C

Dark cold - 60 °C

EcoCotton cold - 60 °C

AquaEco cold - 40 °C

Speed 15 cold - 30 °C

Jeans cold - 60 °C

Spin

Rinse & Spin

❉: optional / Yes : dosing required

1)

For improved garment care, spin speed is restricted in these programmes.

——

——

Normally soiled garments made of artificial fibres (like polyester, polyacryle, viscose

3.0

etc.) or their blends with cotton.

Curtains and delicate clothing, dresses, skirts, shirts and blouses.

1.5

Woollens, labelled with the Woolmark and identified as machine washable, as well as
textiles made of silk (keep to care label!), linen, wool and viscose marked as handwashable.

1.0

This programme is tested and approved by The Woolmark Company for machine- and
handwashable wool.

Normally to heavily soiled and robust white cotton laundry.

Save energy by selecting a lower wash temperature and adding an oxygen-based bleach

7.0

product, in addition to your detergent.

White and pastel shaded garments made of delicate fabrics.

Gentle wash programme to avoid graying or yellowing of your laundry. Use heavy duty

4.0

detergent, if necessary also stain removers or bleaches on oxygen basis.

Black and dark garments made of cotton, cotton blends and polyester.

Special programme to reduce colour fading and local discolouration. Prefer to use a

4.0

special liquid detergent for dark garments with this programme.

Normally soiled cotton laundry.

At 40°C and 60°C most favourable programme in terms of combined water and energy

7.0

consumption for washing cotton laundry. - Reference programme for the Energy Label.

Lightly soiled laundry made of synthetic fibres, or synthetics mixed with cotton garments.

Saving programme with a very low water consumption. Use liquid detergent and the

3.0

lowest recommended amount for 3kg laundry. Do not use softener.

Briefly worn clothing made of cotton, artificial fibres and blends with cotton.

3.0

Refresh programme. Use lowest recommended detergent amount.

Normally soiled cotton jeanswear and garments made of robust jeanslike material

4.0

such as trousers and jackets.

Intensive spin programme.

7.0

Same as the spin cycle in the “Cotton” programme.

Rinse and intensive spin programme.

7.0

Same as the last rinse and the final spin in the “Cotton” programme.

The wool/handwash cycle of this machine has been tested and approved by The Woolmark Company for the
washing of Woolmark garments labelled as “machine wash” or “hand wash” provided that the garments are
washed according to the instructions on the garment label and those issued in this programme chart. M0702

Yes

❉

❉

—

—

❉

❉

—

—

—

❉

❉❉❉❉❉❉❉❉❉

Yes

❉❉— ❉ — ❉❉ ❉ ❉

Yes

❉❉—— — ❉❉ ❉ ❉

Yes

❉❉—— ❉❉❉❉ ❉

Yes

❉❉— ❉ — ❉❉ ❉ ❉

Yes

❉❉❉❉❉❉❉❉❉

Yes

❉❉—— ❉❉❉❉ ❉

Yes

— ❉ —— — —❉❉ ❉

Yes

❉❉—— — —❉❉ ❉

Yes

❉❉❉❉❉❉❉❉❉

—— — — —— — —— ❉❉ / —

—— ❉ ———❉ —— ❉❉

5019 401 05647

max.

1000

1000

max.

1000

1000

max.

max.

max.

1000

max.

max.

1)

1)

1)

1)

1)

- the sensor technology adapts water, energy and programme duration to the size of your wash load

CONSUMPTION DATA

Programme

Mixed 40 4.0 48 0.50 1:00 —
Cotton 95 7.0 74** 220 2:30 —
Cotton 60 7.0 54 1.19 2:20 1:35
Cotton 40 7.0 66 0.75 2:05 1:15

Synthetics 60 3.0 46** 0.90 1:35 1:10
Synthetics 40 3.0 42 0.50 1:20 0:55

Delicates 40 1.5 60 0.65 0:50 —

Wool/Handwash 40 1.0 45 0.55 0:40 —

White 40 7.0 68 0.80 2:20 —

Light colours 40 4.0 60 0.45 1:20 —

Dark 40 4.0 40 0.55 1:40 1:15
EcoCotton* 60 7.0 54 0.84 4:00 —
EcoCotton* 60 3.5 40 0.63 3:00*** —
EcoCotton* 40 3.5 40 0.61 3:00*** —

AquaEco 40 3.0 19 0.45 1:00 —
Speed 15 30 3.0 25 0.15 0:15 —

Consumption values were measured in normalized conditions, in compliance with IEC/EN 60456. In the home, they may vary depending on the individual
water supply pressure and temperature, the load and the type of wash. The consumption data indicated are based on an inlet water temperature of approx.
15°C through the cold fill valve as well as the hot fill valve (if available). If your washing machine has a hot fill valve, connection of this valve to hot water
supply will lower the energy consumption by reduced heating times, depending on the individual hot fill inlet water temperature.
Water and energy consumptions refer to the default setting of the programmes, with temperature and load as indicated in the table; selecting any options
or changing the spin speed will also change the consumption data.

* Reference programmes for Energy Label.
** To reduce the water temperature, some cold water is added at the end of the main wash cycle before the water is drained.

*** Automatic adaptation of programme duration after detection of wash load.

Jeans 40 4.0 52 0.50 1:30 1:10

The programme duration may differ from the values indicated above as it depends on the operation conditions applicable at that time (see also
“Troubleshooting Guide” in your Instructions for Use).

Temperature

(°C)

LOAD LAUNDRY, CLOSE DOOR AND SELECT
PROGRAMME

Load the laundry, close the door and turn the programme selector
to the desired programme; the “Start/Pause” indicator blinks.
The temperature and spin speed shown on the display can
be altered by pressing the “Temperature” button or the
“Spin” button . If you do not use the “Dosing Aid” , add
detergent now.

SELECT OPTIONS IF DESIRED

If the combination programme/option or option/option is not
possible, the indicator switches off automatically. For certain
programmes, an option may already be preset; if you want you
can deselect it.

“15° Green & Clean” button

• Enables ecological washing by saving energy used for water­heating, while maintaining a good wash result.

• Bright colours live longer with this option; this was tested and
approved by the German “wfk” laundry research institute.

• Recommendable for lightly soiled laundry without stains.

• Make sure that your detergent is suitable for cold wash
temperatures (15 or 20°C).

• Not selectable for Cotton 70 - 95°C.

“Rapid” button

• Enables quicker washing by shortening the programme duration.

• Recommendable for only lightly soiled laundry.

• Not selectable for Cotton 70 - 95°C.

“Prewash” button

• Adds a prewash cycle to the wash programme selected;
prolongs the programme by about a quarter of an hour.

• Recommended for heavily soiled laundry (e.g. containing
sand or granular dirt).

Load

(kg)

Water

Energy

(l)

(kWh)

• Do not use liquid detergent for the main wash when
activating the “Prewash” option.

“Intensive rinse” button

• More water is added and rinse cycle is prolonged.

• Particularly suitable for areas with very soft water or for
washing baby linen, and helps people with allergies.

“Soil level” button

• Adapts the programme duration to the soil level of your
laundry. Also influences the detergent quantity
recommendation when using the “Dosing Aid” button.

= lightly soiled - = normally soiled - = heavily soiled

Not all soil levels are selectable for each programme.

“Spin” button (incl. “Rinse Hold” )

• Press the button to change the predefined spin speed.

• If you select spin speed “0”, the final spinning is cancelled
and the water is drained out only. However, intermediate
spin phases remain during the rinse.

• If you select “Rinse hold” , the laundry remains in the last
rinse water without progressing to the final spin cycle, to avoid
creasing and prevent colours from changing. To activate the
“Rinse hold”, press the “Spin” button repeatedly until the “Rinse
hold” symbol on the display lights up.

- The wash programme stops to “Rinse hold” when the

“Rinse hold” symbol on the display blinks; the “Start/
Pause” indicator blinks as well.

- To terminate the “Rinse hold” by spinning the laundry, press

“Start/Pause” - the laundry will be spun with the default spin
speed. You can also select another spin speed with the "Spin"
button before you start the spin cycle with “Start/Pause”.

- To terminate the “Rinse hold” by draining the water

without spinning, press the “Spin” button until spin speed
“0” appears on the display; then press “Start/Pause” to
start the draining.

- Do not leave the laundry to soak for too long in the “Rinse

hold” (especially silk!).

Approx. Programme Duration

(hours : minutes)

without “Rapid” with “Rapid”

SET CYCLE END (“FINISH IN”)

With this function you can postpone your programme to complete
at a later time: press the button to select in how many hours the
programme shall be finished. Thus, it allows you to have your
laundry ready at a particular time and to profit from more favourable
energy rates during the night, for example.

• Do not use liquid detergent when activating this function.

• The time until the cycle end can be selected in full hour time
segments (1 to 24 h). When you press the button, the shortest
possible time will be displayed; keep on pressing the button to
loop through all the available times. To remove it again, keep
on pressing the button until you see the value “0:00”.

• When you have selected the desired time until the cycle end,
press “Start/Pause” - the countdown will begin.

• During the countdown, you can still modify the programme
setting (select or deselect options, change spin speed etc.). If
the modifications prolong the programme duration so that it
overruns the originally set time until the cycle end, the
programme will start immediately.

• Sometimes the programme may finish before the selected
time until the cycle end has expired (e.g. for small loads). In
this case, the washing machine will tumble the laundry
regularly to keep it fresh, until the selected “Finish in” time
has expired. During tumbling, the display will show an
animation. The tumbling phase can be stopped at any time
either by pressing any button or by rotating the programme
selector; the animation will stop and the door will unlock in
about 1 minute as indicated on the display.

DETERGENT DOSING RECOMMENDATION

With the “Dosing Aid” button, you can make your washing machine
indicate you the recommended detergent quantity for your wash
load, depending on the soil level selected and the size of the load.

• Helps to save detergent and protect the environment and
also sensitive skin by avoiding detergent overdosing.

• Before you use this function, you must adapt the washing
machine to the dosing amounts which are recommended for
the detergents you use. Also check if your region’s water
hardness corresponds with the water hardness level “soft” of
your washing machine - if not adapt it.

• Select programme, options and cycle end BEFORE using the
“Dosing Aid” button.

For any details, refer to the separate “Dosing Aid” Instructions for Use.

“DOOR OPEN” INDICATOR

Before starting and after end of a programme, the indicator lights to
show that the door can be opened. As long as a wash programme is
running, the door remains locked and must on no account be forced
open. In case you have an urgent need to open it during a running
programme, refer to “Reset a running programme before the end”.

ECO MONITOR

The “Eco monitor” gives you a rough feedback about the power
consumption of the programme setting you selected.
As soon as you turn the programme selector to any programme, the
“Eco monitor” is on.

less more

The indicator on the left is to show that the “Eco monitor” is active.
The four indicators next to it show the degree of consumption: the
less power your programme setting is forecasted to consume, the
less indicators will light up. This depends on the programme,
temperature and options selected, and also on the size of the wash
load. For that reason, the forecasted degree of power consumption
may adapt when the washing machine detects the wash load.

PROGRAMME START

Open the tap and press the “Start/Pause” button . The
“Start/Pause” indicator lights up. When the laundry load is

detected or the programme duration is adapted, the display
shows an animation.

CHILD LOCK

Prevents children from starting a wash cycle or changing the
settings of a running programme. Cannot be activated or
deactivated when the programme selector is in the “Off/O”
position. To activate the child lock:

• Turn the programme selector to a programme position, or
run a programme as usual.

• Press the 2 buttons marked with the key symbol
simultaneously for at least 3 seconds. A key-like symbol will shortly
appear on the display to indicate that the child lock is active.

Any time you try to change a programme setting with active child
lock, the display will briefly show the key-like symbol. The
programme setting cannot be changed anymore. The only change
possible is to switch the washer off by turning the programme
selector to the “Off/O” position. To deactivate the child lock,
proceed in the same way as for activating it.

FAILURE INDICATORS

If one of the failure indicators lights up, or in case of any malfunction,
consult the “Troubleshooting Guide” in your Instructions for Use.

Spin speed on display blinks: Unbalance during spinning.

PROGRAMME END

• The “Door open” indicator lights up. The display shows

“End”.

1. Turn the programme selector to the “Off/O” position.

2. Close the water tap.

3. Open the door and unload the machine.

4. Leave the door ajar to allow the drum to dry.

DETERGENT OVERDOSAGE INDICATOR

The symbol will light up at the end of the programme if you used
too much detergent. Use less detergent next time.

CHANGE PROGRAMME AND/OR OPTIONS
AFTER PROGRAMME START

1. Press the “Start/Pause” button to pause the

programme. The indicator blinks.

2. Select the new programme, temperature, any options and

another spin speed if you want.

3. Press the “Start/Pause” button again. The new

programme continues at the same position where the
previous programme was interrupted. Do not add
detergent for this programme.

RESET A RUNNING PROGRAMME BEFORE
THE END

The “Reset/Drain” button cancels a programme before the end.

• Press and hold the “Reset/Drain” button for a few

seconds; an animation appears on the display. The water is
drained; it may last some time until you can open the door.

5019 401 05647
