Bauknecht GSI 4745 CTW-WS, GSI 4745 CTW-BR, GSI 4745 CTW-SW, GSI 4745 CTW-IN Quick Reference Guide
GB
GSI 4745
Further indications are given in the pages to follow and in the user instructions.
Rinse aid level indicator
Add rinse aid.
Salt level indicator
Add regeneration salt;
only add regeneration salt immediately before
starting a wash programme.
Quick Reference Guide
Programme progress indicator
Pre-rinse/
Pre-wash
Washing
Drying
Programme end
Programme selector
Start button
Indicator lamp lit while the dishwasher is
operating.
Flashes when a fault occurs.
Switches off at the end of the programme.
Programme Symbol
and Temperature
Pre-wash
Rapid 40° C
Bio-Normal 50° C
Normal 65° C
1) Values may vary in relation to usage, e.g. different loads, water
temperatures - above or below 15° C - as well as water hardness and power supply voltage.
2) Programme recommended when using detergents of type B (enzyme-based detergents).
Reference programme for energy label.
3) Programme recommended when using detergents of type A (non enzyme-based detergents).
3)
Crockery to be washed later.
Lightly soiled crockery with no dried-on food.
2)
Normally or heavily soiled crockery with dried-on food.
Normally or heavily soiled crockery.
Programme selection
and recommended load type
Place the detergent in the:
small large
compartment compartment
- - 5.0 0.02 9
- X 13.0 0.85 30
X X 16.0 1.35 86
X X 16.0 1.55 86
Water
(Litres)
Consumption
Normal load
Energy
(kWh)
5019 100 90240
(We reserve the right to make technical modifications)
1)
Time
(Min.)
B
A
C
How to use the dishwasher
1. After loading the dishwasher, close the
door properly and open the water
supply tap.
2. The dishwasher switches on automatically
as soon as the programme selector knob
is turned.
indicator lamps will switch on.
3. Turn the selector knob to select the
desired programme.
indicator lamp lights up.
select options (if supplied).
4. Press the Start button to start the
selected wash programme.
indicator lamp will light up.
the programmed data cannot be
altered by pressing the programme
selector knob.
Note:
pressed, the dishwasher memorises
the last programme selected. This
information remains in the memory even
during interruption of the power supply.
Note:
during a wash programme, when switched
on again the dishwasher resumes the
wash cycle from where it was interrupted.
5. To indicate the end of the programme,
the Start indicator lamp switches off
and
switches on
One of the programme
The corresponding
If necessary.
The Start
Once set,
once the Start button has been
To change the selected progra mme,
press the Start button for about 5
seconds,
lamp switches off.
programme using the programme
selector knob and press the Start
button.
Only open the dishwasher door if
strictly necessary during a wash cycle
and exercise maximum caution.
Danger of scalding from steam.
until the Start indicator
if the dishwasher is switched off
the End indicator lamp (if fitted)
(for about 30 min.)
Select a new
.
6. Turn the programme selector knob
counter clockwise to the “initial” position
to switch off the dishwasher (only after
the Start indicator lamp has switched
off).
All the indicator lamps switch off.
7. Open the door (warning: beware of hot
steam). Unload the lower rack before
the upper one. Close the water tap.
Upper rack
Rack height adjustment:
(The dishwasher is delivered with the upper
rack in the top position).
The rack height can also be changed
when loaded.
• To lower: pull out the
handles and gently lower the rack.
• To raise: pull up the
until the rack clicks into place.
• The rack must be level on both sides.
two
side handles
two
side
Upper and lower rack
Crockery holders:
• Down: cups and long-stemmed glasses.
•
Up: plates.
“Vario Organizer” multi-purpose
support:
• To be used, for example, for longhandled utensils
with the blade facing downwards)
cups and glasses.
• May be used in three different
positions (see also “Dishwasher
loading instructions” on Page 4).
1. Upon the left-hand side of the rack.
2. Upside-down, towards the centre of
the rack.
3. Upside-down, towards the left side.
Glass holder:
(arrange knives
Lower rack
B
A
Plate holders:
• May be lowered to increase
,
available space (A).
• May be removed to increase
available space (B).
To remove: pull the handle u p.
Cutlery basket:
The cutlery basket can be removed to
increase (C) available space.
C
Please read the user instructions carefully.
Tips and advice
• Arrange crockery so that items do not
touch each other. Arrange large crockery
in the lower rack and smaller crockery
in the upper rack.
• Load cups at an angle to facilitate
water drainage.
• In general, place the cutlery in the
basket with the handles positioned
downwards. but ensure that sharp
knives and forks that might cause
injury are placed in the basket with the
handles positioned upwards.
• Make sure the water jet can reach all
loaded items and that the spray arms
turn freely.
Important
• Fill the detergent dispenser and check
the salt and rinse aid level.
• Do not use the appliance for items not
suitable for washing in a dishwasher,
for example. wooden items, aluminium,
plastic utensils, tin, hand-decorated
crockery (unglazed), silver cutlery.
• Do not put liquid fat in the dishwasher
(e.g. oil used for frying) or candle wax.
• If a fault occurs or you wish to change
the current programme, press the
“START” button for about 5 seconds
until the Start indicator lamp switches off.
• If regeneration salt is to be added,
immediately
in order to eliminate any residual salt
(rinsing alone is not sufficient).
• Sometimes even after the regeneration
salt container has been filled, the
corresponding indicator lamp (if
present) may light up during the first
wash cycle.
start a wash programme
• Before starting a wash programme,
make sure that the spray arms can turn
freely and are not impeded by crockery
or cutlery.
• Switch off the dishwasher: once the
“Start” indicator lamp has switched off.
If you switch off the dishwasher during a
wash cycle, when switched on again the
dishwasher resumes the cycle from
where it was interrupted without having
to start it again.
If a fault occurs, before contacting our
After-Sales Service, make the following
checks to try and remedy the problem:
The dishwasher is not working:
• Is the plug properly inserted in the wall
socket?
• Is there a power failure?
• Is the dishwasher switched on?
• Has the Start button been pressed?
• Has the delayed start timer been set (if
fitted).
• Is the water supply tap on?
• Is the flow of water obstructed by
impurities? If so, close the water supply tap,
detach the water hose and clean the filter.
Then re-connect the water hose to the tap
and open the water tap once again.
• Are the filters clogged? (See “Care and
Maintenance” chapter in the user
instructions).
• Is the door closed properly?
• Is a fault indicated?
(The Start indicator lamp flashes).
Start the programme again from the
beginning: press the Start button for
about 5 seconds, until the Start indicator
lamp switches off.
Select a new programme and press the
Start button.
Troubleshooting Guide
Crockery still dirty after washing:
• Was the crockery loaded properly?
• Crockery must be loaded facing
downwards; this is important, especially
for large items of crockery.
• The water jets must spray the entire
surface of all items.
• Make sure that crockery and cutlery are
arranged properly.
• Have you selected the correct programme?
• Did you use too much or too little detergent?
(The use of poor quality detergents result in
less effective washing).
• Are the filters clogged or incorrectly
assembled? (See “Care and Maintenance”
chapter in the user instructions).
• Are the spray arms blocked or the nozzles
clogged? (See “Care and Maintenance”
chapter in the user instructions).
• Is the lower spray arm correctly fitted?
• Is the salt container cap (water softening
system) screwed down?
Marked crockery:
• Is the water hardness level selector not
properly adjusted? See (“Filling the salt
container” in the user instructions).
• Is the salt container empty? (See “Filling
the salt container” in the user instructions).
• Was insufficient detergent used? (See
“Filling the detergent dispenser” in the
user instructions).
Marked glasses and cutlery:
• Was too much rinse aid used? (See
“Filling the rinse aid dispenser” in the user
instructions).
Note:
with some models, when the Start button
is pressed a pre-wash cycle precedes the
actual wash programme; this regenerates the
water softening system.
AFTER-SALES
SERVICE
If, after carrying out the above checks.
The fault persists or reoccurs, switch
off the appliance and close the water tap.
Then contact our After-Sales Service
(see warranty). Please specify:
• The nature of the fault.
• The appliance type and model.
• The service code (the number indicated
after the word Service on the adhesive
rating plate) inside the door on the
right-hand side.
Your full address and telephone number.
•
Please read the user instructions carefully.

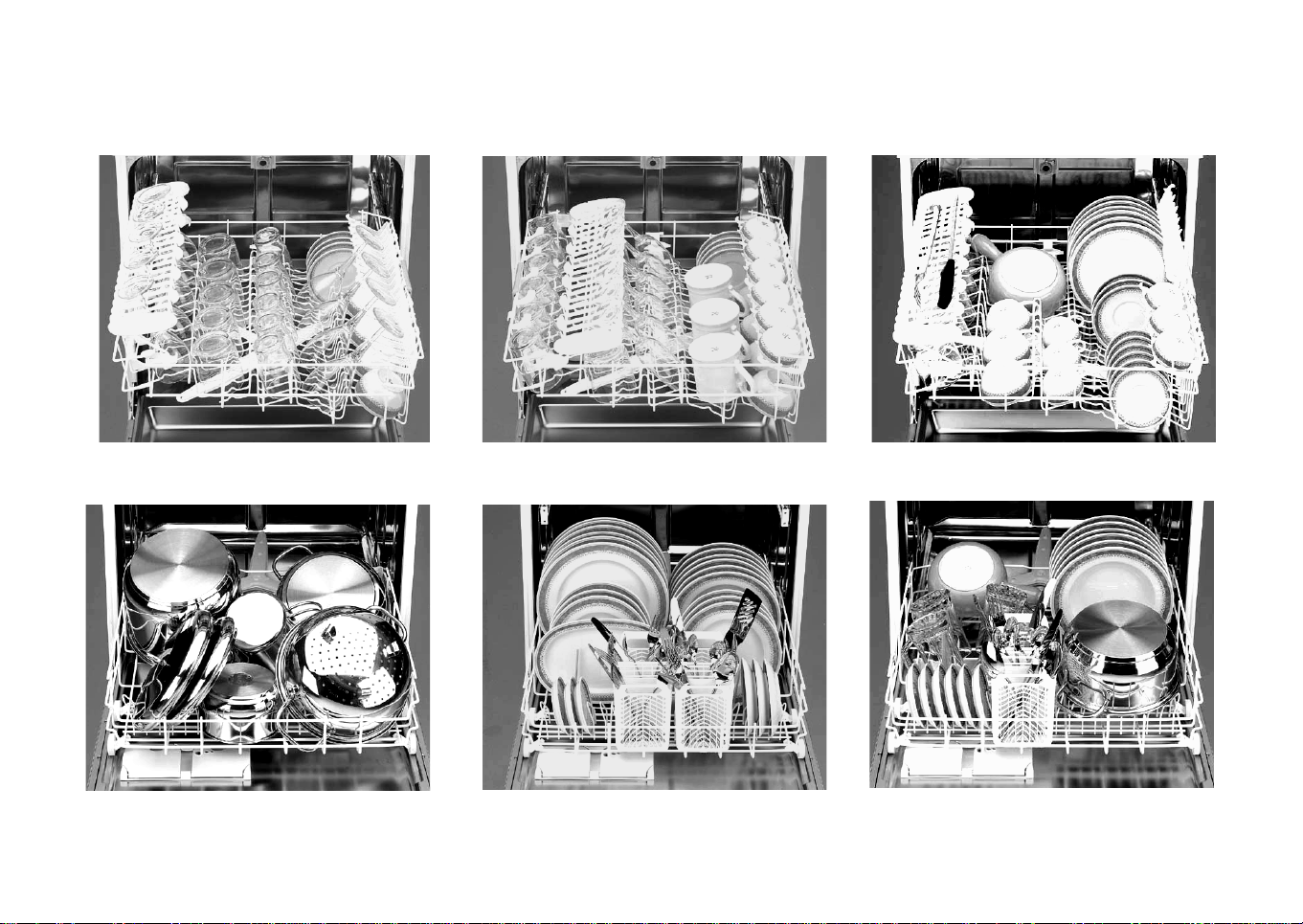

Dishwasher loading instructions
UPPER RACK
LOWER RACK
Depending on the model, rack features may vary (see “Upper and lower rack” description).
