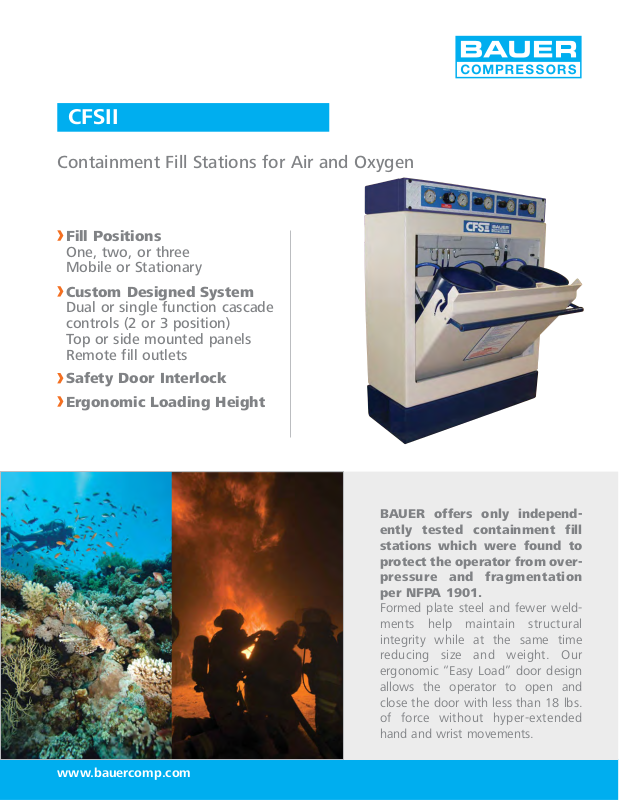

Bauer CFSII DATASHEET

CFSII

www.bauercomp.com

BAUER offers only independ­ently tested containment fill
stations which were found to
protect the operator from over­pressure and fragmentation
per NFPA 1901.

Formed plate steel and fewer weld­ments help maintain structural
integrity while at the same time
reducing size and weight. Our
ergonomic “Easy Load” door design
allows the operator to open and
close the door with less than 18 lbs.
of force without hyper-extended
hand and wrist movements.

Fill Positions

One, two, or three
Mobile or Stationary

Custom Designed System

Dual or single function cascade
controls (2 or 3 position)
Top or side mounted panels
Remote fill outlets

Safety Door Interlock

Containment Fill Stations for Air and Oxygen

Ergonomic Loading Height

BAUER COMPRESSORS INC.

1328 Azalea Garden Rd. | Norfolk, VA 23502
TEL. [phone]
FAX [phone]

[e-mail]
www.bauercomp.com

BAUER MIAMI

10052 N.W. 53rd St. | Sunrise, FL 33351
TEL. [phone]
FAX [phone]

[e-mail]

BAUER SAN FRANCISCO

267 East Airway Blvd. | Livermore, CA 94551
TEL. [phone]
FAX [phone]

[e-mail]

CFSII

291.09.09.3SP

subject to alteration without notice or obligation

BAUER COMPRESSORS INC. CFSII

CFSII

STANDARD SCOPE OF SUPPLY DIMENSIONS L x W x H inches (mm)

CFSII-1S, OXY-1S 18 x 21 x 55 (457 x 533 x 1397)
CFSII-1M, OXY-1M 18 x 21 x 39 (457 x 533 x 990)
CFSII-2S, OXY-2S 30 x 21 x 53 (762 x 533 x 1346)
CFSII-2M, OXY-1M 30 x 21 x 39 (762 x 533 x 990)
CFSII-3S 41 x 21 x 53 (1041 x 533 x 1346)
CFSII-3M 41 x 21 x 39 (1041 x 533 x 990)

WEIGHT pounds (kg)

CFSII-1S, OXY-1S 433 (196) CFSII-1M, OXY-1M 360 (163)
CFSII-2S, OXY-2S 670 (304) CFSII-2M, OXY-2M 550 (249)
CFSII-3S 905 (411) CFSII-3M 740 (336)

*All components in Oxygen stream are Oxygen cleaned in compliance with A.S.T.M. Standard G-93.
Dimensions and weight are approximate and are subject to change. Images shown with additional accessories.

CFSII-2S CFSII-2S OXY-2S*

CFSII-1S CFSII-2M CFSII-2S/CSCD

Complete with cylinder scuff guard, SCBA
fill connection, fill hose and bleed valve

Fill control panel with adjustable regulator,
relief valve, manual control valve and pressure
gauge for each fill position (S version only)

CFSII M versions designed for use
with remote air distribution panel

Mounting base is standard on “S”
version and optional on “M” version

Convenient door handle actuation
Bottom venting
Reduced footprint
