ADSL2+ Router
ComTW263R4
ADSL2+ Router
ADSL2+ Router
System Requirement
1. Pentium 200 MHz processor or above
2. Windows 98SE, Windows Me, Windows 2000, Windows XP and
Windows Vista.
3. 64 MB of RAM or above
4. 25 MB free disk space
Package Contents
For Annex-A ADSL2+ Router
1. ADSL2+ Router
2. CD-ROM (Software & Manual)
3. Quick Installation Guide
4. 1 x Telephone Cable (RJ-11)
5. Ethernet Cable (RJ-45)
6. AC Adaptor
7. Annex A ATF085A1R Splitter (Optional, with an extra RJ-11
Telephone cable)
For Annex-B ADSL2+ Router
1. ADSL2+ Router
2. CD-ROM (Software & Manual)
3. Quick Installation Guide
4. 1 x Telephone Cable (RJ-11)
5. Ethernet Cable (RJ-45)
6. AC Adaptor
7. Annex B ATF057R Splitter (Optional, with an extra RJ-11 Telephone
cable)
2
ADSL2+ Router
Installation & Setup
●LAN Connection:
Connect an Ethernet cable from your PC's Ethernet port to ADSL2+ Router's
LAN Port.
●WAN Connection:
Connect the telephone cable from your home's telephone jack to the
telephone port (LINE) of the ADSL2+ Router, if there is no Splitter applied.
●Power Adapter Connection:
Connect the power adapter to the power inlet (PWR) of the ADSL2+ Router
and turn the power switch (SW) on.
Figure 1: Rear View of the ADSL2+ Ro uter
3
ComTW263R4
ADSL2+ Router
Connection of ADSL2+ Router
If you have an ISDN telephone line connected the router as shown below:
(Annex-B ADSL2+ Router)
**Use the “ATF057” Annex-B Splitter (Optional)
1. Connect the supplied RJ45 Ethernet cable from your PC's Ethernet
port to the ADSL2+ Router's “LAN” Port.
2. Connect the supplied RJ11 telephone cable from your home's
telephone jack to the “LINE” port of the supplied ATF057 splitter.
Connect the other supplied RJ11 telephone cable to the “MODEM”
port of the splitter and connect the other end of this cable to the “LINE”
port of your ADSL2+ Router.
3. Connect a RJ11 telephone cable to the “PHONE” port of the splitter
and connect the other end to the telephone input.
4. Connect the power adapter to the power inlet (PWR) of the ADSL2+
Router and turn the “SW” switch of your ADSL2+ Router on.
4
ADSL2+ Router
If you have a PSTN telephone line (normal analog line) connected the
router as shown below: (Annex-A ADSL2+ Router)
**Use the “ATF085A1R” Annex-A Splitter (Optional)
1. Connect the supplied RJ45 Ethernet cable from your PC's Ethernet
port to ADSL2+ Router's “LAN” Port.
2. Connect the supplied RJ11 telephone cable from your home's
telephone jack to the “LINE” port of the supplied ATF085A1R splitter.
Connect the other supplied RJ11 telephone cable to the “MODEM”
port of the splitter and connect the other end of this cable to the “LINE”
port of your ADSL2+ Router.
3. Connect a RJ11 telephone cable to the “PHONE” port of the splitter
and connect the other end to your telephone.
4. Connect the power adapter to the power inlet (PWR) of the ADSL2+
Router and turn the power switch (SW) of your ADSL2+ Router on.
5
ComTW263R4
ADSL2+ Router
LED Meaning
Your ADSL2+ Router has indicator lights on the front side. Please see below
for an explanation of the function of each indicator light.
1 Ethernet Port model
● Power : Power indicator
● ADSL ACT : ADSL Active indicator
● ADSL LINK : ADSL Link indicator
● 10M ACT : Ethernet 10M speed active indicator
● 100M ACT : Ethernet 100M speed active indicator
Label Color On Flash Off
PWR Yellow Power On NA Power Off
ADSL
Green NA ADSL Active ADSL IDLE
ACT
ADSL
Green Connect to
LINK
10M
Green 10M
ACT
100M
Green 100M
ACT
Table 1.1-- 1 Ethernet Port LED function
DSLAM
Connected
Connected
Disconnect to
DSLAM
Transmit /
Receive Data
Transmit /
Receive Data
NA
10M
Disconnected
100M
Disconnected
6
ADSL2+ Router
4 Ethernet Ports model:
● Power : Power indicator
● ADSL ACT : ADSL Active indicator
● ADSL LINK : ADSL Link indicator
● LAN 1~4 : Ethernet 10/100M speed active indicator
Label Color On Flash Off
PWR Yellow Power On NA Power Off
ADSL
Green NA ADSL Active ADSL IDLE
ACT
ADSL
Green Connect to
LINK
LAN
Green Ethernet
1~4
Table 1.2-- 4 Ethernet Ports LED function
DSLAM
Connected
Disconnect to
DSLAM
Transmit /
Receive Data
NA
Ethernet
Disconnected
7
ComTW263R4
ADSL2+ Router
Configuration Procedures
Before starting the ADSL2+ Router configuration, please kindly configure the
PC computer as below, to have automatic IP address / DNS Server.
For Windows 98SE/ME/2000/XP
1. Click on "Start” -> “Control Panel” (in Classic View).In the Control
Panel, double click on "Network Connections" to continue.
2. Single RIGHT click on “Local Area connection", then click
"Properties".
8
ADSL2+ Router

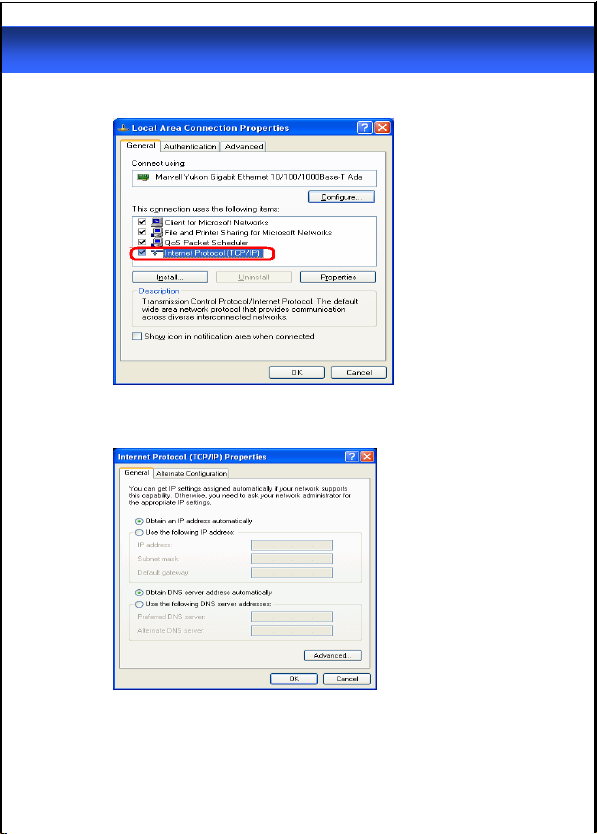

3. Double click on "Internet Protocol (TCP/IP)".
4. Check "Obtain an IP address automatically” and “Obtain DNS
server address automatically” then click on "OK" to continue.
5. Click "Show icon in notification area when connected" (see screen
image in 3. above) then Click on "OK" to complete the setup
procedures.
9
ComTW263R4
ADSL2+ Router
For Windows Vista-32/64
1. Click on "Start” -> “Contr ol Panel ” (in Classic View) -> “Network and
Sharing Center”. In the Manage network connections, double click on
"Manage network connections" to continue.
2. Single right click on “Local Area connection", then click "Properties".
3. The screen will display the information “User A ccount Control” and click
“Continue” to continue.
10
ADSL2+ Router

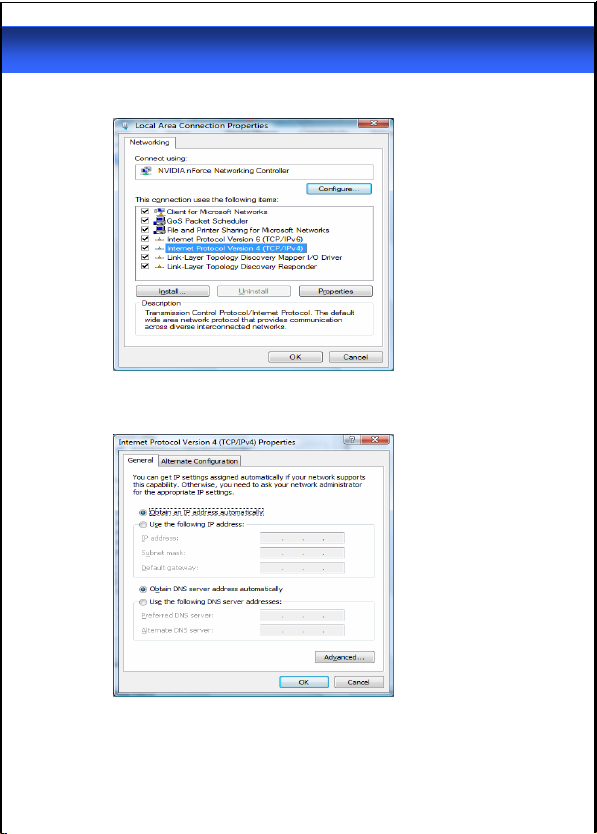

4. Double click on "Internet Protocol Version 4(TCP/IPv4)"
5. Check "Obtain an IP address automatically" and “Obtain DNS server
address automatically” then click on "OK" to continue.
6. Click "Show icon in notification area when connected" (see screen
image in 4. above), then Click on "OK" to complete the setup
procedures.
11
ComTW263R4
ADSL2+ Router
ADSL2+ Router Configuration via Ethernet Port

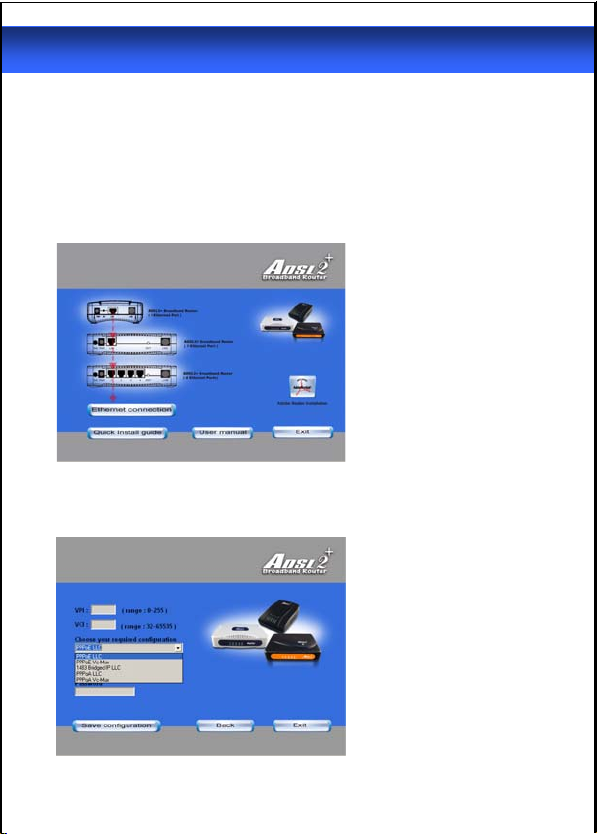

1. Please insert the supplied CD into your CD-ROM drive.
2. The CD should auto-start, displaying the window shown in 3. below. If
your CD does not start automatically go to Windows Explorer, Select
your CD drive and double click “setup.exe”
3. Please click “Ethernet connection” button to continue.
4. Enter the VPI, VCI, Username, and Password your ISP(Internet
Services Provider) provided, and choose your required configuration.
Then press “Save Configuration”. Please wait for about 30 seconds.
You can now access the Internet!!
12
ADSL2+ Router
13
ComTW263R4
ADSL2+ Router
14
7435-0B72-00
