BaudTec RN243R4A9 User Manual
Wireless ADSL2+ Router User’s Guide
Wireless
ADSL2+ Router
User’s Manual
1
Wireless ADSL2+ Router User’s Guide
Table of Contents
1 Introduction .......................................................... 8
Features ................................................................................ 8
Device Requirements ........................................................... 8
Using this Document ............................................................. 9
Notational conventions .................................................. 9
Typographical conventions ............................................ 9
Special messages .......................................................... 9
Getting Support ..................................................................... 9
2 Getting to know the device ................................ 10
Computer / System requirements ...................................... 10
Package Contents .............................................................. 10
For Annex-B 802.11n WLAN ADSL2+
Router ....................................................................... 10
For Annex-A 802.11n WLAN ADSL2+
Router ....................................................................... 10
Installation & Setup ............................................................. 11
LED meanings & activations .............................................. 12
Back Panel Connectors ............................................... 13
3 Computer configurations under
different OS, to obtain IP address
automatically ................................................... 16
4 Utility CD execution ........................................... 29
Connecting the Hardware ................................................... 29

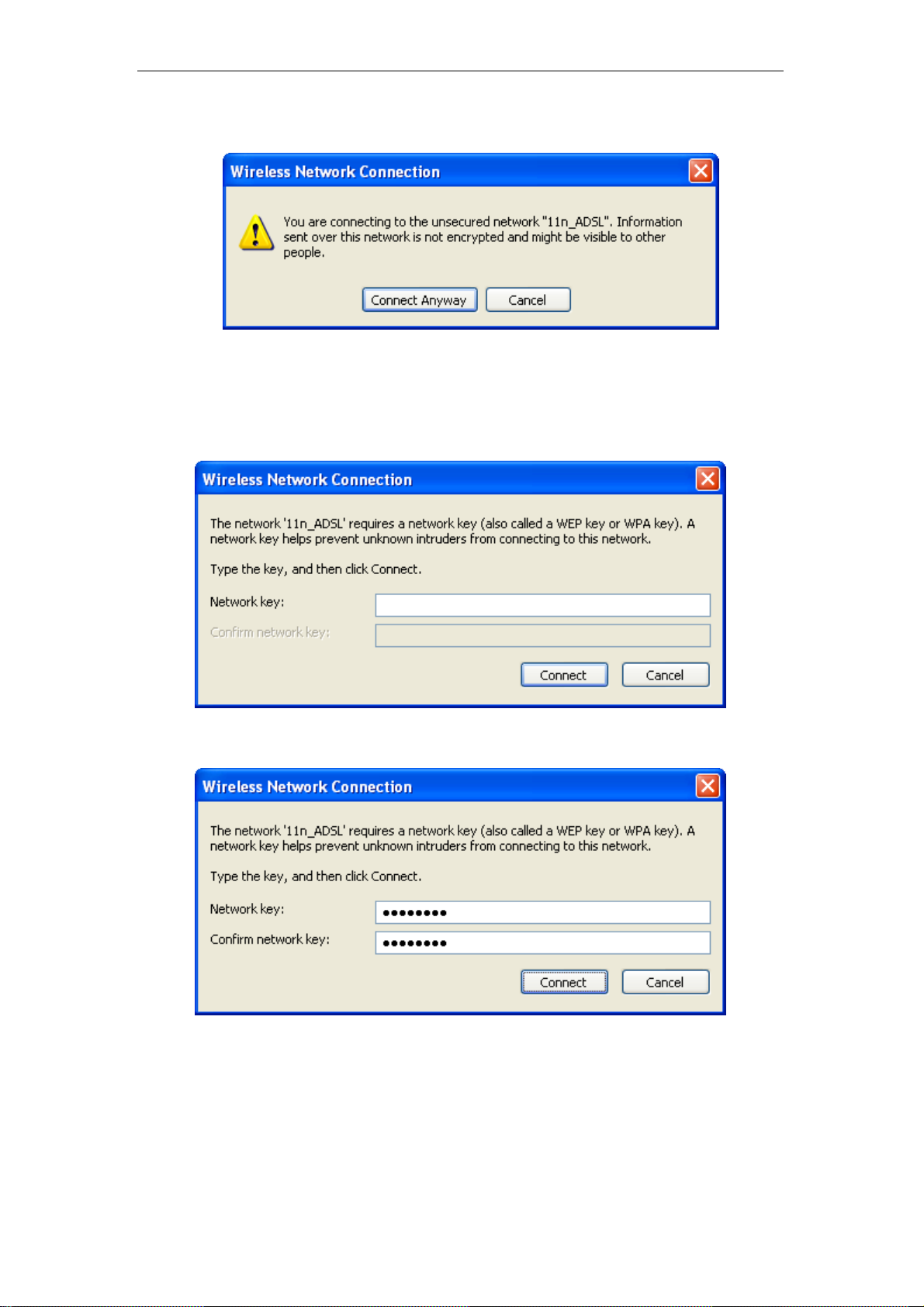

Wireless Connection ........................................................... 35
5 Getting Started with the Web pages ................. 37
Accessing the Web pages .................................................. 37
Testing your Setup .............................................................. 40
Default device settings ........................................................ 40
6 Overview ........................................................... 43
Internet access settings ...................................................... 45
About Wireless ADSL2+ Router ......................................... 45

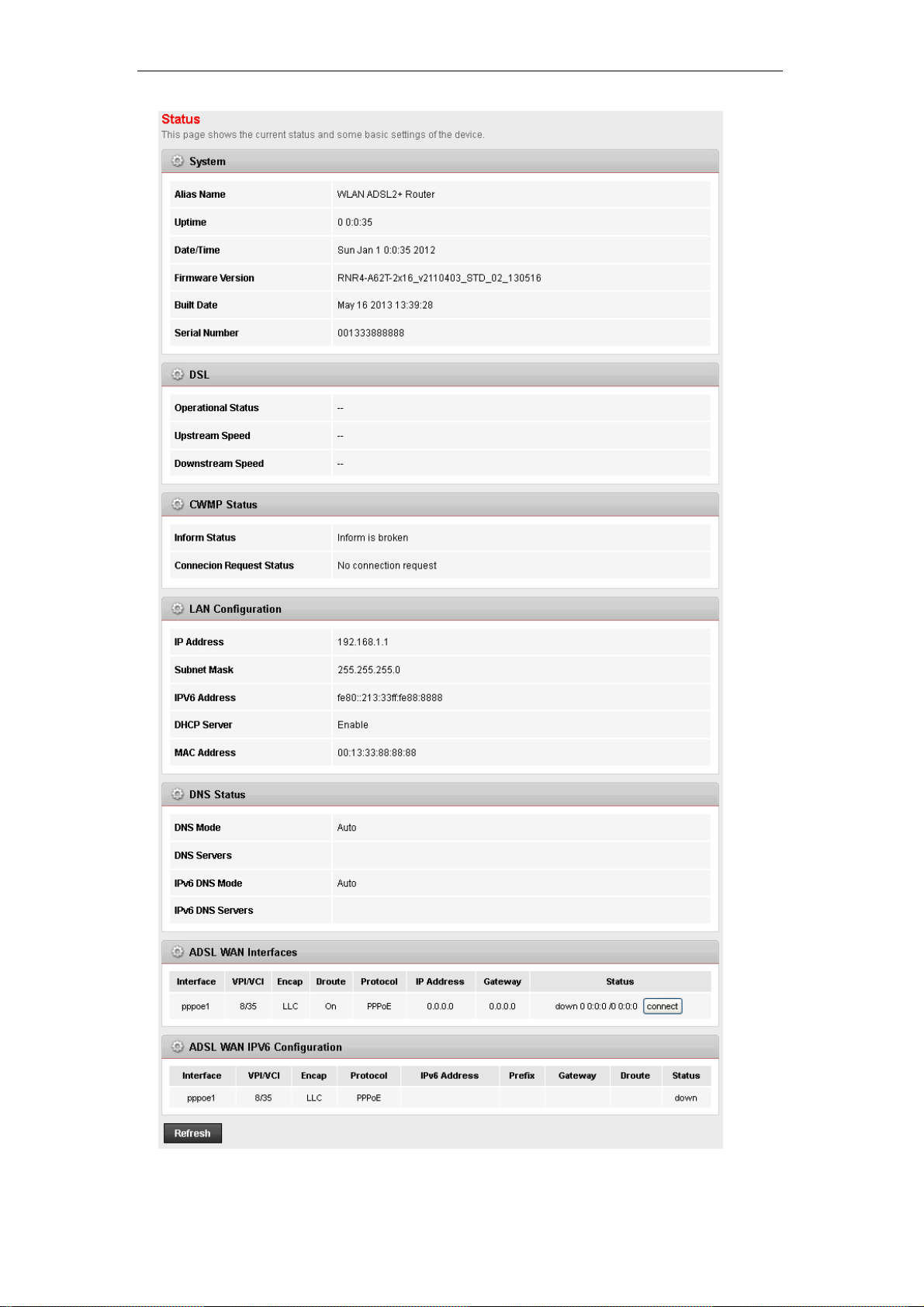

7 Status ................................................................ 46
Device Info .......................................................................... 46
ADSL ................................................................................... 48
Statistics .............................................................................. 49
8 Quick Setup ....................................................... 50

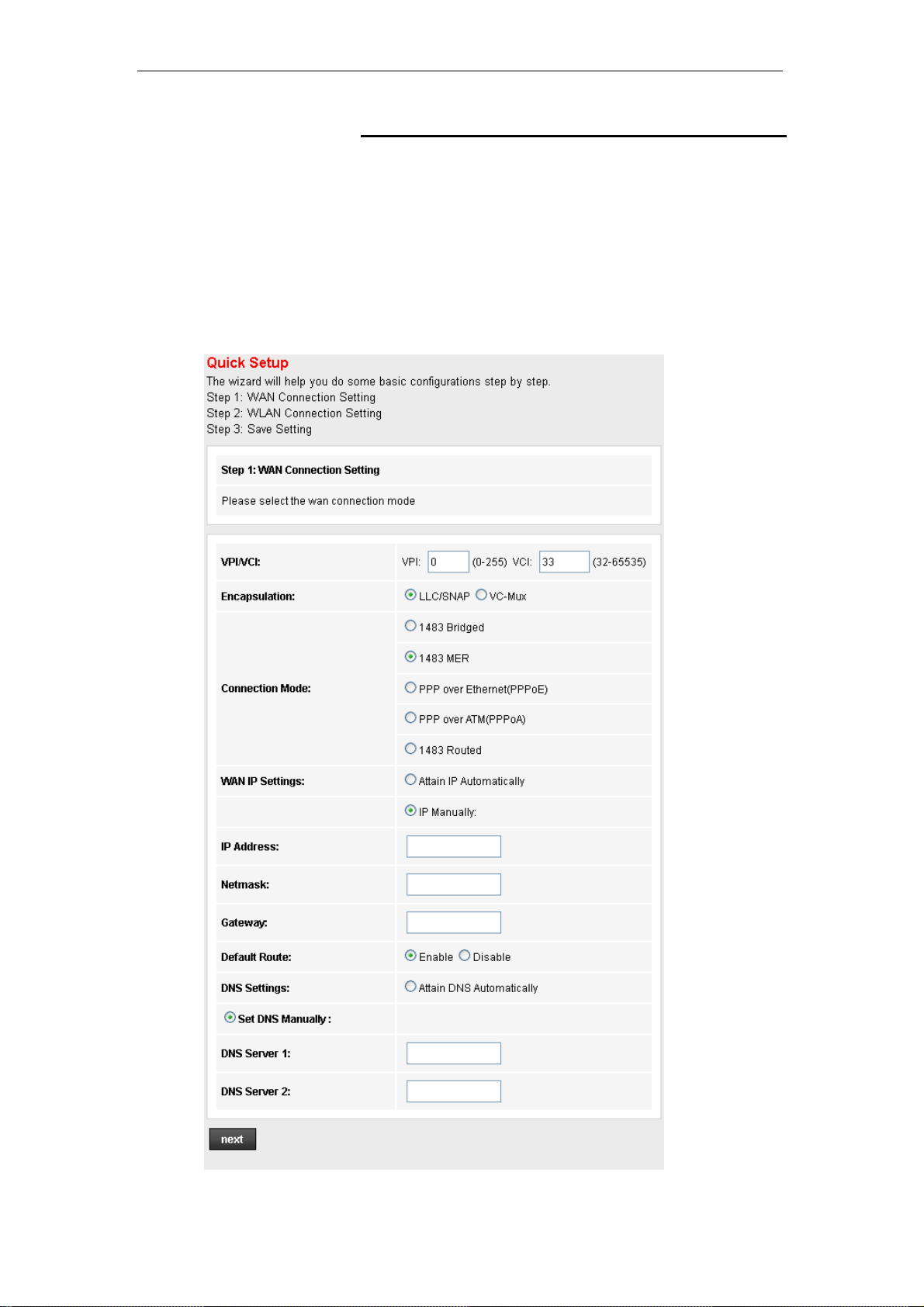

Wizzard ............................................................................... 50
2
Wireless ADSL2+ Router User’s Guide
WAN Connection Setting - PPPoE DSL
connection ....................................................................... 51
WAN Connection Setting - PPPoA DSL
connection ....................................................................... 52
WAN Connection Setting - Bridged DSL
connection ....................................................................... 53
WAN Connection Setting - 1483 MER by
DHCP ............................................................................... 54
WAN Connection Setting - 1483 MER by
Fixed IP ............................................................................ 55
WLAN Connection Setting .................................................. 56
Save Settings ...................................................................... 57
9 Internet Access .................................................. 58
Types of Internet Access .................................................... 59

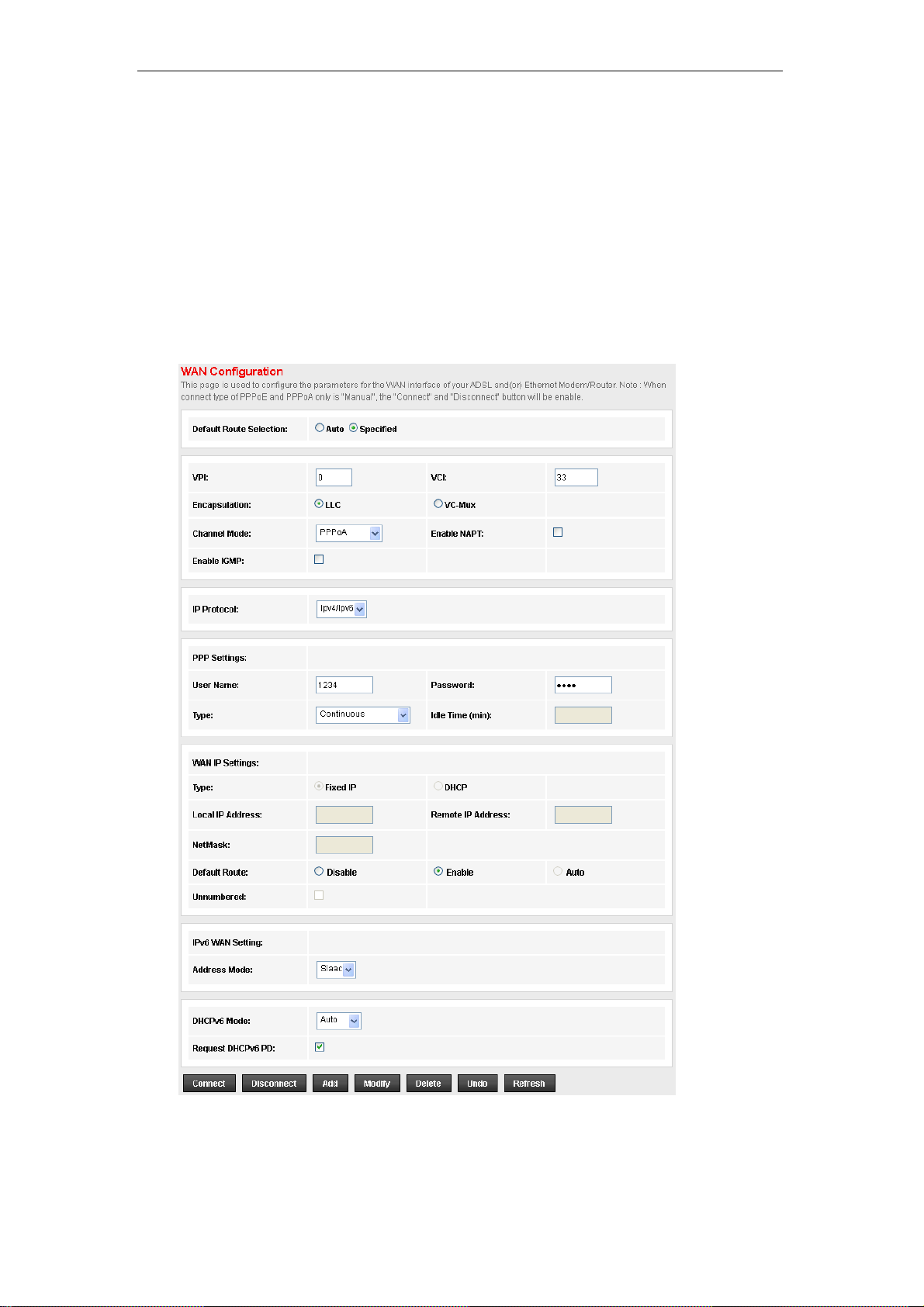

Configuring your PPPoE DSL connection ......................... 60
Configuring your PPPoA DSL connection ......................... 62
Configuring your Bridged DSL connection ......................... 64
Configuring your 1483 MER by DHCP .............................. 65
Configuring your 1483 MER by Fixed IP ........................... 66
Auto PVC Configuration ..................................................... 67
ATM Settings ....................................................................... 68
ADSL Settings ..................................................................... 70
10 Local Network Configuration ............................. 73
Changing the LAN IP address and subnet
mask ................................................................................ 73
Adding the Secondary LAN IP address and
subnet mask .................................................................... 78
11 DHCP Settings .................................................. 79

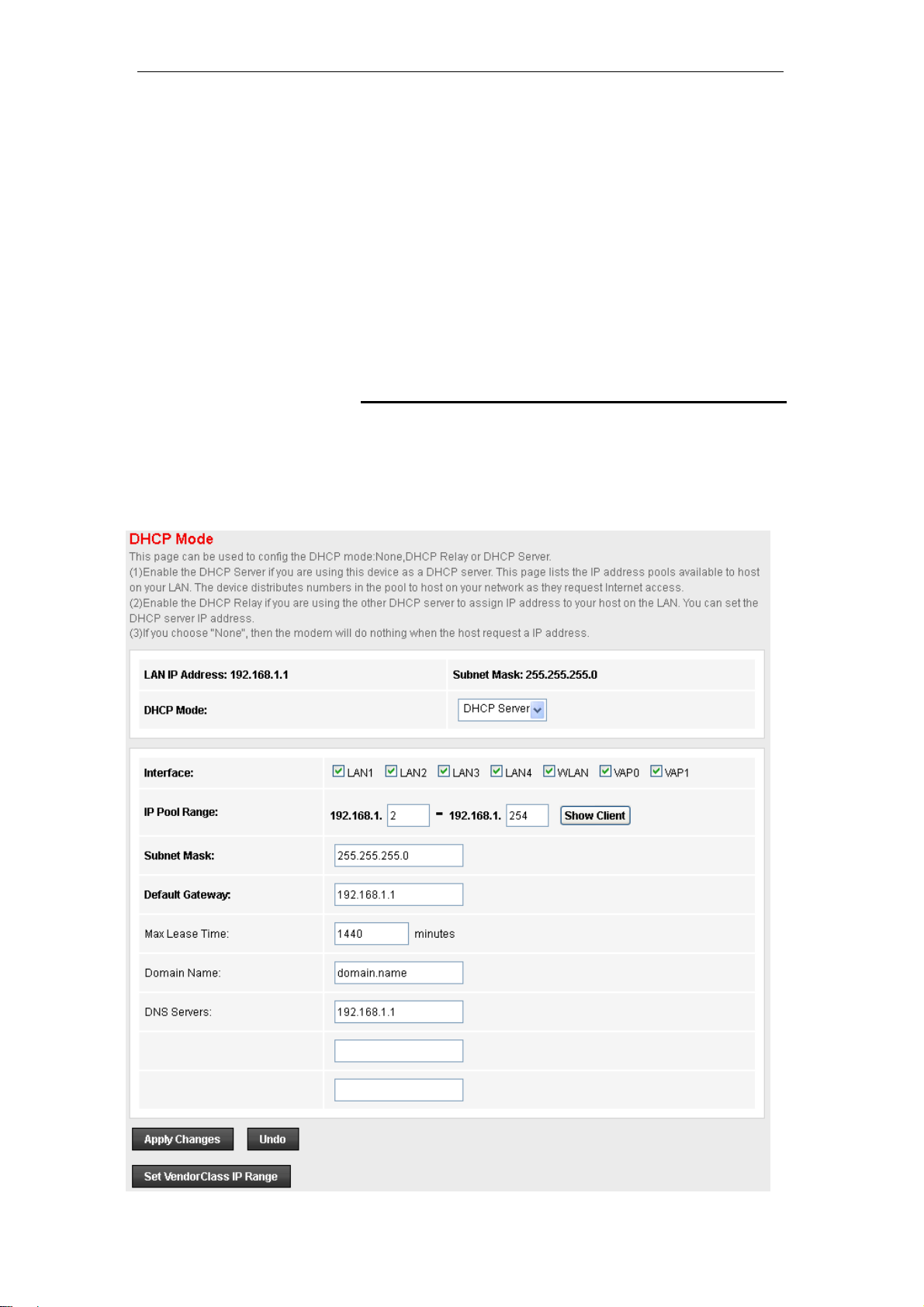

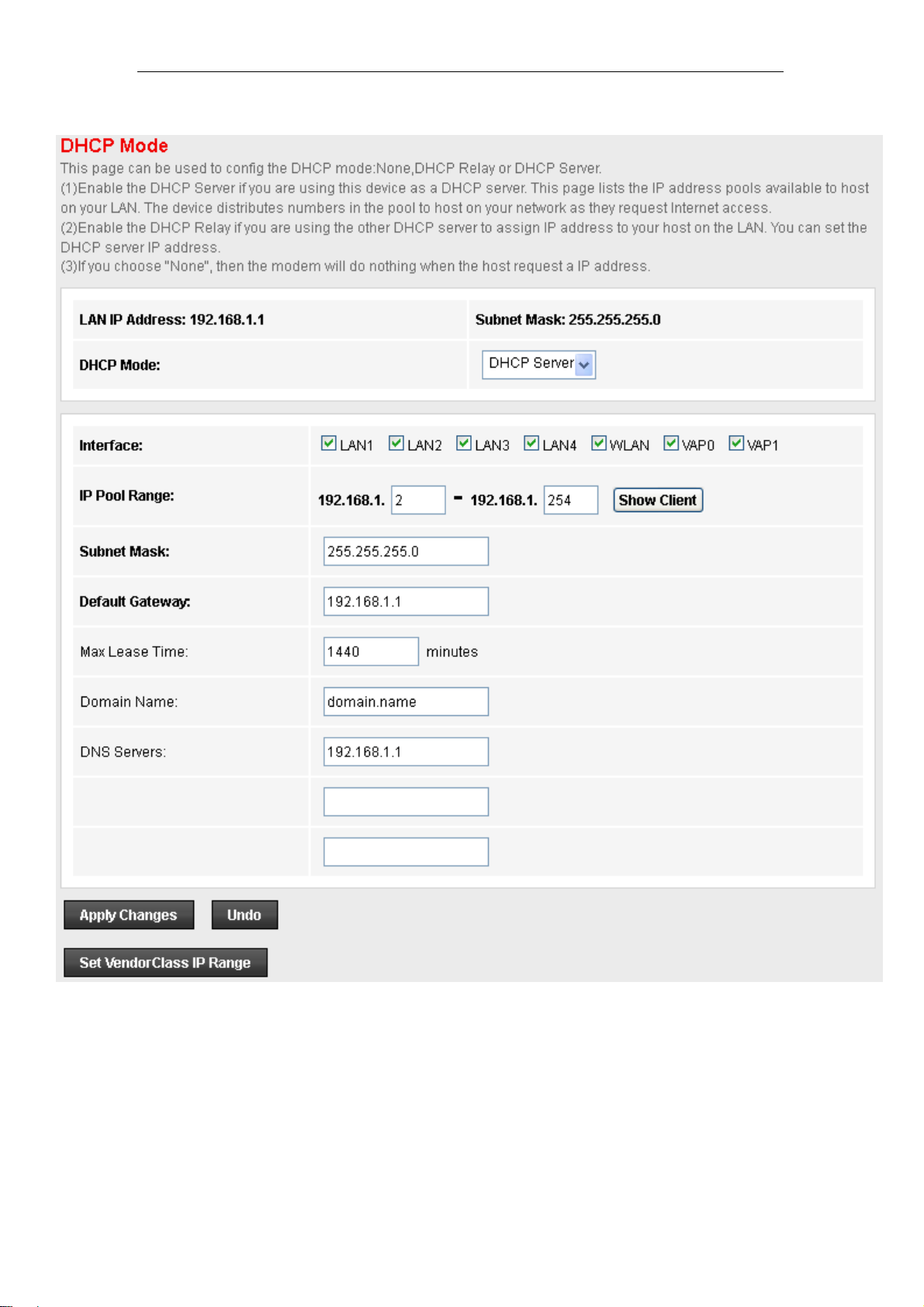

DHCP Server Configuration ............................................... 79
DHCP Relay Configuration ................................................. 81
DHCP None Configuration ................................................. 83
12 DHCP Static Configuration ................................ 84
DHCP Static Configuration ................................................. 84
13 LAN IPv6 Configuration ..................................... 85
LAN IPv6 Configuration ...................................................... 85
14 Wireless Network .............................................. 86
Basic Settings ..................................................................... 86
Security ................................................................................ 88

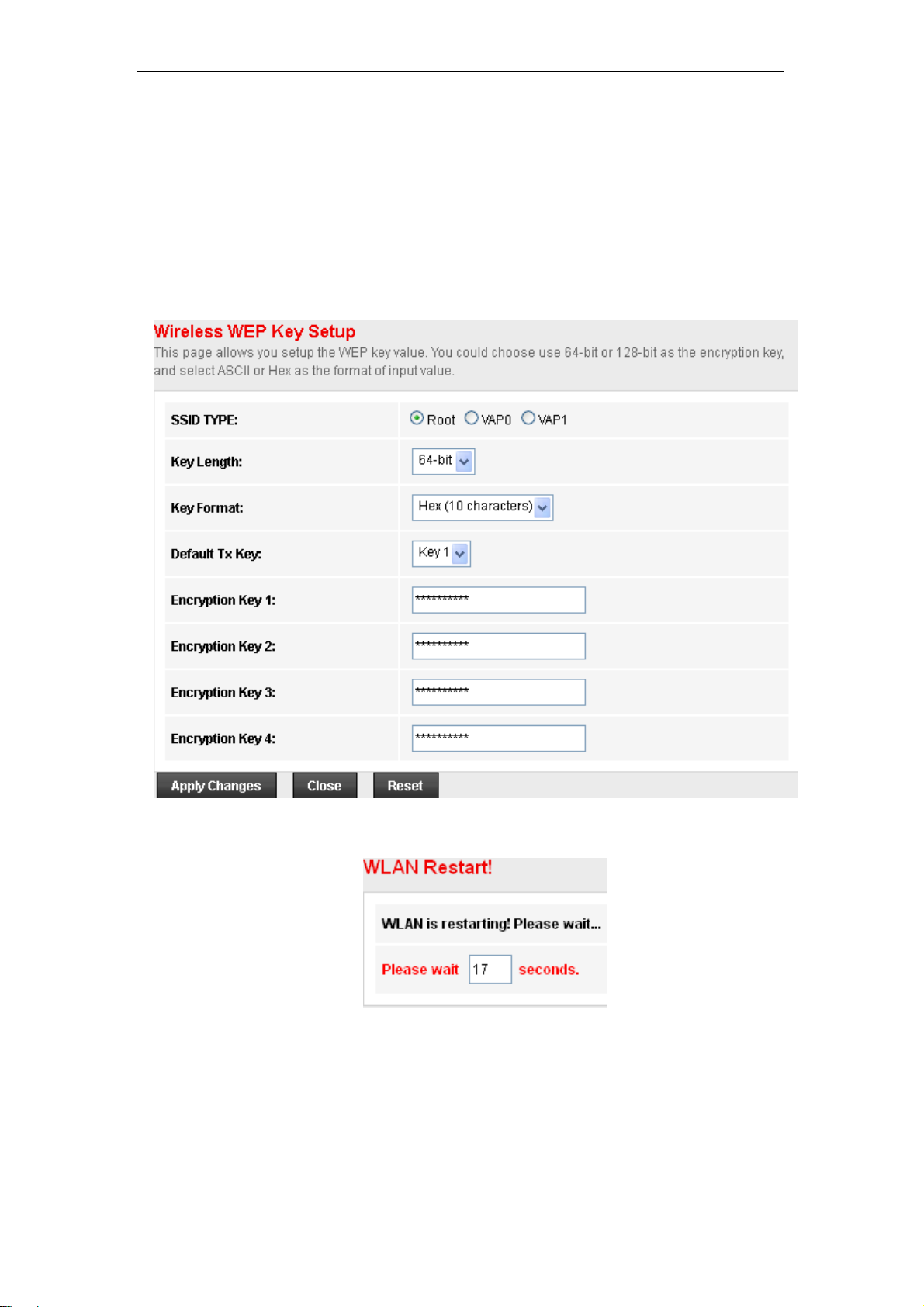

WEP + Encryption Key ................................................ 90
WEP + Use 802.1x Authentication .............................. 91
WPA/WPA2/WPA2 Mixed + Personal
(Pre-Shared Key)...................................................... 92
3
Wireless ADSL2+ Router User’s Guide

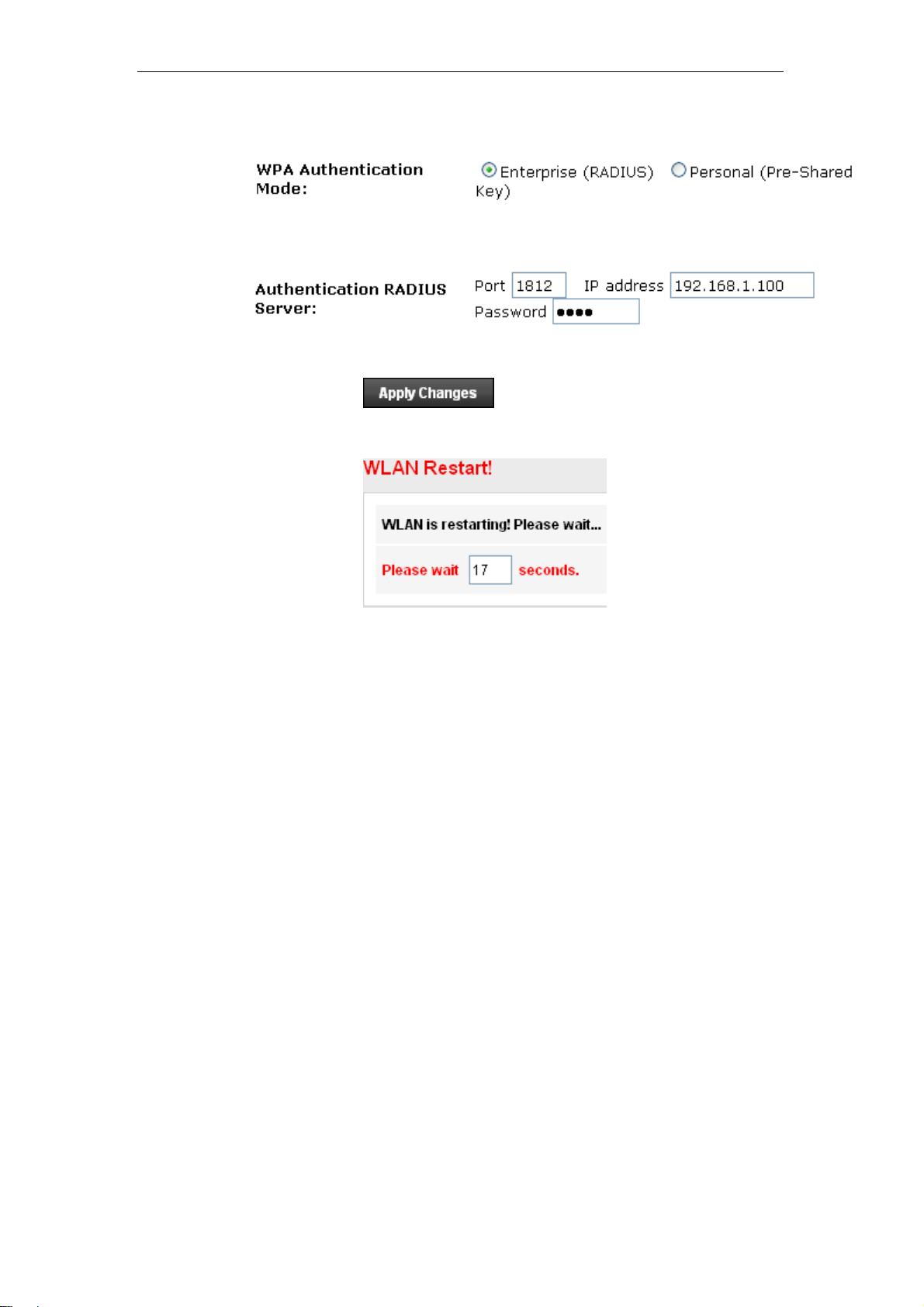

WPA/WPA2/WPA2 Mixed + Enterprise
(RADIUS) .................................................................. 93
Wireless Multiple BSSID Settings ...................................... 95
Access Control List ............................................................. 96
Allow Listed .................................................................. 97
Deny Listed .................................................................. 98

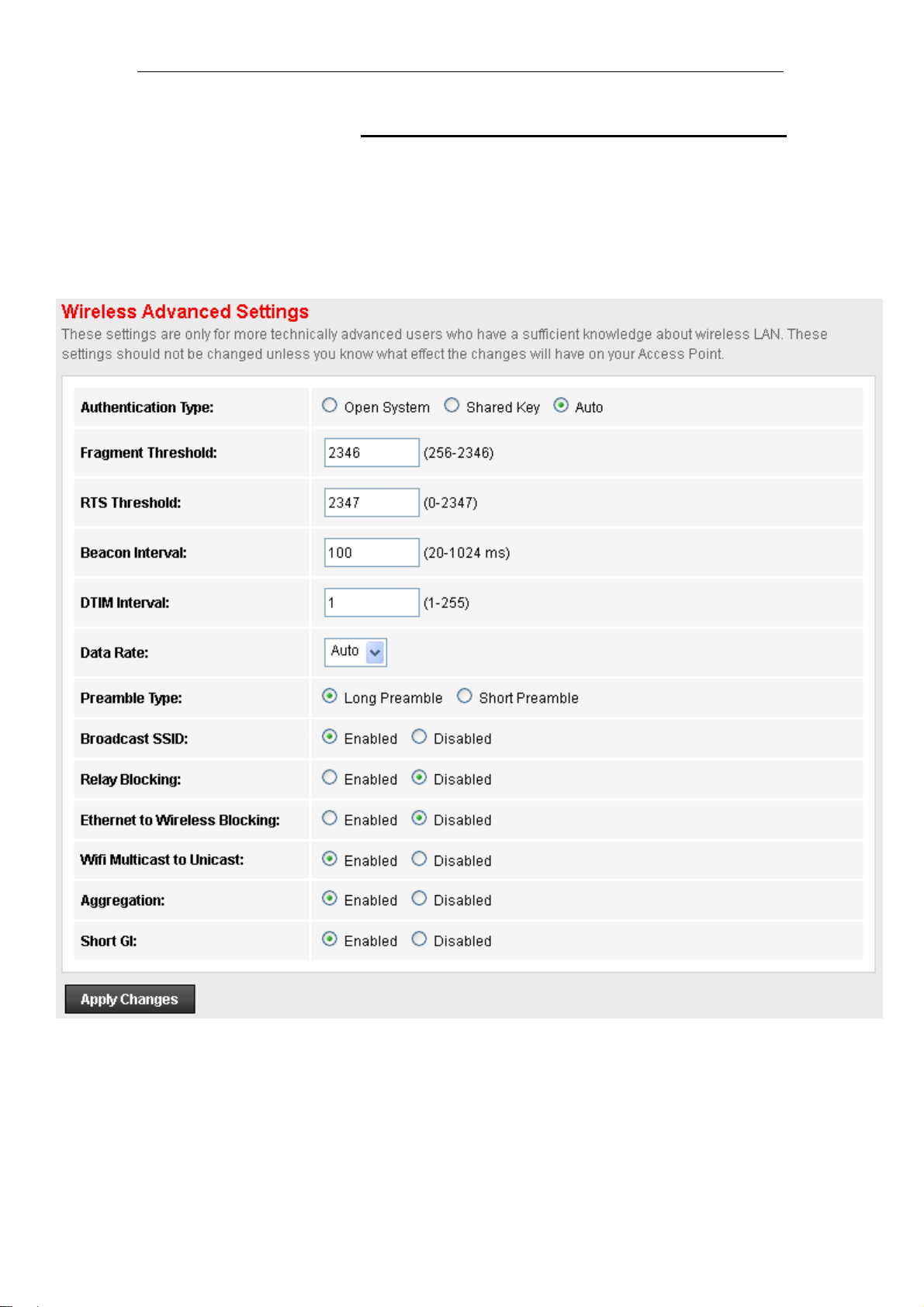

Advanced Settings .............................................................. 99
WPS .................................................................................. 102
Introduction of WPS ................................................... 102
Supported WPS features ........................................... 102
AP mode ..................................................................... 103
AP as Enrollee ........................................................... 103
AP as Registrar .......................................................... 103
AP as Proxy ............................................................... 103
Infrastructure-Client mode ......................................... 103
Instructions of AP’s and Client’s
operations ............................................................... 104
Operations of AP - AP being an enrollee ......................... 106
Operations of AP - AP being a registrar ........................... 117
AP mode ..................................................................... 117
Push Button method .................................................. 121
15 Routing ............................................................125
Static Route ....................................................................... 125
IPv6 Static Route .............................................................. 127
RIP ..................................................................................... 128
16 DMZ .................................................................130
Configuring DMZ ............................................................... 130
17 Virtual Server ...................................................132
Configuring Virtual Server ................................................. 132
Configuring custom applications ...................................... 133
Virtual Server for FTP ................................................ 134
Port Forwarding for HTTP ......................................... 137
Deleting custom applications ..................................... 140
18 ALG .................................................................141
Configuring ALG ............................................................... 141
19 NAT Exclude IP ...............................................142
Configuring NAT Exclude IP ............................................. 142
20 Port Trigger .....................................................143
Configuring Port Trigger ................................................... 143
4
Wireless ADSL2+ Router User’s Guide
21 FTP ALG Port ..................................................144
Configuring Port Trigger ................................................... 144
22 Nat IP Mapping................................................145
Configuring Port Trigger ................................................... 145
23 IP QoS .............................................................146
IP QoS ............................................................................... 146
24 CWMP Config .................................................148
CWMP Configuration ........................................................ 148
25 Port Mapping ...................................................150
Port Mapping ..................................................................... 150
26 Bridging ...........................................................153
Bridging ............................................................................. 153
27 Client Limit .......................................................154
Client Limit ......................................................................... 154
28 Tunnel Configuration .......................................155
Tunnel Configuration ........................................................ 155
29 Others ..............................................................156
Others ................................................................................ 156
30 IGMP Proxy .....................................................157
IGMP Proxy ....................................................................... 157
31 MLD Proxy .......................................................158
MLD Proxy ........................................................................ 158
32 UPnP ...............................................................159
Configuring UPnP ............................................................. 160
UPnP Control Point Software on Windows
ME .................................................................................. 161
UPnP Control Point Software on Windows
XP with Firewall ............................................................. 161
SSDP requirements ................................................... 162
33 DNS Configuration ..........................................165
DHCP Server Configuration - Attain DNS
Automatically ................................................................. 165
DHCP Server Configuration - Set DNS
Manually ......................................................................... 166
IPv6 DNS........................................................................... 167
34 Dynamic DNS Configuration ...........................168
Overview of Dynamic DNS ............................................... 168
Dynamic DNS Configuration – DynDNS.org ................... 170
Dynamic DNS Configuration – TZO ................................. 172
5
Wireless ADSL2+ Router User’s Guide
35 MAC Filtering ...................................................174
Configuring MAC filtering to Deny for
outgoing access ............................................................. 174
36 IP/Port Filtering ................................................176
IP/Port Filtering .................................................................. 176
37 IPv6/Port Filtering ............................................178
IPv6/Port Filtering .............................................................. 178
38 URL Filter ........................................................180
Configuring URL Blocking of Keyword ............................. 180
39 ACL Configuration ...........................................182
ACL Config ........................................................................ 182
40 IPv6 ACL Configuration ...................................183
IPv6 ACL Config ............................................................... 183
41 DoS .................................................................184
DoS Config ........................................................................ 184
42 Firmware Update .............................................185
About firmware versions ................................................... 185
Manually updating firmware .............................................. 185
43 Backup/Restore ...............................................187
Backup settings ................................................................. 187
Restore settings ................................................................ 188
44 Password .........................................................189
Setting your username and password ............................. 189
45 Commit/Reboot ...............................................191
Commit .............................................................................. 191
Reboot ............................................................................... 192
Resetting to Defaults ......................................................... 192
46 Time Zone .......................................................194
SNTP Server and SNTP Client
Configuration settings .................................................... 194
47 Log ...................................................................200
Log ..................................................................................... 200
48 Diagnostic ........................................................201
Ping ................................................................................... 201
Ping6 ................................................................................. 202
Traceroute ......................................................................... 203
Traceroute6 ....................................................................... 203
ATM Loopback .................................................................. 204
ADSL Diagnostic ............................................................... 205
6
Wireless ADSL2+ Router User’s Guide
Diagnostic Test ................................................................. 206
A Configuring your Computers ...........................208
Configuring Ethernet PCs ................................................. 208
Before you begin ........................................................ 208
Windows® XP PCs .................................................... 208
Windows 2000 PCs ................................................... 208
Windows Me PCs ...................................................... 210
Windows 95, 98 PCs ................................................. 210
Windows NT 4.0 workstations ................................... 211
Assigning static Internet information to
your PCs ................................................................. 212
B IP Addresses, Network Masks, and
Subnets ........................................................213
IP Addresses ..................................................................... 213
Structure of an IP address ......................................... 213
Network classes ......................................................... 213
Subnet masks ................................................................... 214
C Troubleshooting ...............................................216
Troubleshooting Suggestions ........................................... 216
Diagnosing Problem using IP Utilities .............................. 218
ping ............................................................................. 218
nslookup ..................................................................... 219
D Glossary ..........................................................220
7
Wireless ADSL2+ Router User’s Guide
1 Introduction
Congratulations on becoming the owner of the Wireless
ADSL2+ Router. You will now be able to access the Internet
using your high-speed DSL connection.
This User Guide will show you how to connect your Wireless
ADSL2+ Router, and how to customize its configuration to
get the most out of your new product.
Features
The list below contains the main features of the device and
may be useful to users with knowledge of networking
protocols. If you are not an experienced user, the chapters
throughout this guide will provide you with enough
information to get the most out of your device.
Features include:
• Internal DSL modem for high-speed Internet access
• 10/100Base-T Ethernet Router to provide Internet
connectivity to all computers on your LAN
• Network address translation (NAT) functions to provide
security for your LAN
• Network configuration through DHCP Server and DHCP
Client
• Services including IP route and DNS configuration, RIP, and
IP and DSL performance monitoring
• User-friendly configuration program accessed via a web
browser
• User-friendly configuration program accessed via EasySetup
program
Device Requirements
In order to use the Wireless ADSL2+ Router, you must have
the following:
• DSL service up and running on your telephone line
• Instructions from your ISP on what type of Internet
access you will be using, and the addresses needed to set
up access
• One or more computers each containing an Ethernet
card (10Base-T/100Base-T network interface card (NIC))
• For system configuration using the supplied
a. web-based program: a web browser such as Internet
Explorer v4 or later, or Netscape v4 or later. Note that version
4 of each browser is the minimum version requirement – for
optimum display quality, use Internet Explorer v5, or
Netscape v6.1
b. EasySetup program: Graphical User Interface
8
Wireless ADSL2+ Router User’s Guide
You do not need to use a hub or switch in order to connect more
Note
than one Ethernet PC to your device. Instead, you can connect
up to four Ethernet PCs dire ctly to you r devi ce usi ng the ports
labeled Ethernet on the rear panel.
Using this Document
Notational conventions
• Acronyms are defined the first time they appear in the
text and also in the glossary.
• For brevity, the Wireless ADSL2+ Router is referred to as
“the device”.
• The term LAN refers to a group of Ethernet-connected
computers at one site.
Typographical conventi ons
• Italic text is used for items you select from menus and
drop-down lists and the names of displayed web pages.
• Bold text is used for text strings that you type when
prompted by the program, and to emphasize important
points.
Special messages
This document uses the following icons to draw your
attention to specific instructions or explanations.
Note
Provides clarifying or non-essential information on the current
topic.
Definition
Explains terms or acronyms that may be unfamiliar to many
readers. These terms are also included in the Glossary.
Provides messages of high importance, including messages
relating to personal safety or system integrity.
WARNING
Getting Support
Supplied by:
Helpdesk Number:
Website:
9
Wireless ADSL2+ Router User’s Guide
2 Getting to know the device
Computer / System requirements
• 1. Pentium 200MHZ processor or above
• 2. Windows 98SE, Windows Me, Windows 2000, Windows
XP, Windows Vista, Windows 7 and Windows 8
• 3. 64MB of RAM or above
• 4. 25MB free disk space
Package Contents
For Annex-B 802.11n WLAN ADSL2 + Router
• 1. 802.11n WLAN ADSL2+ Router
• 2. CD-ROM (Software & Manual)
• 3. Quick Installation Guide
• 4. 1 x Telephone Cable (RJ-11)
• 5. Ethernet Cable (RJ-45)
• 6. Power Adaptor
• 7. Annex-B Splitter (Optional, with an extra RJ-11
Telephone cable)
For Annex-A 802.11n WLAN ADSL2 + Router
• 1. 802.11n WLAN ADSL2+ Router
• 2. CD-ROM (Software & Manual)
• 3. Quick Installation Guide
• 4. 1 x Telephone Cable (RJ-11)
• 5. Ethernet Cable (RJ-45)
• 6. Power Adaptor
• 7. Annex-A Splitter (Optional, with an extra RJ-11
Telephone cable)
10
Wireless ADSL2+ Router User’s Guide
Installation & Setup
Follow each STEP carefully and only go to the next step once you have complete the
previous STEP.
Connection of 802.11n WLAN ADSL2+ Router
If you have an ISDN telephone line
connect the modem router as shown below:
1. Connect the supplied RJ45 Ethernet cable from your PC's Ethernet port to any of the 4
802.11n WLAN ADSL2+ Router's LAN Ports.
2. Connect the supplied RJ11 telephone cable from your home's telephone jack to the
“LINE” port of the supplied splitter. Connect another RJ11 telephone cable to the
“MODEM” port of the splitter and connect the other end of this cable to the LINE port of
your 802.11n WLAN ADSL2+ Router.
supplied RJ11 telephone cable from your home's telephone jack to the “LINE” port of your
802.11n WLAN ADSL2+ Router.)
3. Connect a RJ11 telephone cable to the “PHONE” port of the splitter and connect the other
end to your telephone.
4. Connect the power adapter to the power inlet “POWER” of the 802.11n WLAN ADSL2+
Router and turn the “ON/OFF SWITCH” switch of your 802.11n WLAN ADSL2+ Router on.
(If there is no option Splitter, please connect the
11
Wireless ADSL2+ Router User’s Guide
If you have a PSTN telephone line (normal analog line) connect the router as shown
below:
1. Connect the supplied RJ45 Ethernet cable from your PC's Ethernet port to any of the 4
802.11n WLAN ADSL2+ Router's LAN Ports.
2. Connect the supplied RJ11 telephone cable from your home's telephone jack to the
“LINE” port of the supplied splitter. Connect the other supplied RJ11 telephone cable to
the “DSL” port of the splitter and connect the other end of this cable to the “LINE” port of
your 802.11n WLAN ADSL2+ Router. (If there is no option Splitter, please connect the
supplied RJ11 telephone cable from your home's telephone jack to the “LINE” port of your
802.11n WLAN ADSL2+ Router.)
3. Connect a RJ11 telephone cable to the “PHONE” port of the splitter and connect the other
end to your telephone.
4. Connect the power adapter to the power inlet “POWER” of the 802.11n WLAN ADSL2+
Router and turn the “ON/OFF SWITCH” switch of your 802.11n WLAN ADSL2+ Router on.
LED meanings & activations
Your 802.11n WLAN ADSL2+ Router has indicator lights on the
front side. Please see below for an explanation of the function of
each indicator light.
Power indicator
12
Internet Active indicator
Wireless ADSL2+ Router User’s Guide
Ethernet Active indicator
Wireless Active indicator
Table1. LED function
Label Color On Flash Off
Red N/A N/A N/A
Green Ready Waiting for device ready Power Off
WPS Active indicator
ADSL Link indicator
Green Ethernet Connected Transmit / Receive Data Ethernet
Green WLAN Ready Transmit / Receive Data WLAN Off
Green Connect to DSLAM Disconnect to DSLAM N/A
Green The device has a WAN IP
Red N/A N/A N/A
Green N/A Start WPS pairing within 2
address from ISP
The icons appear on the products are for application indication
only.
The trademark or intellectual property is belonging to their
respective owners.
Transmit / Receive Data N/A
minutes
Back Panel Connectors
Table 2 shows the function of each connector and switch of the device.
Disconnected
WPS Idle
Table 2. Function / Description of Connectors
13
Wireless ADSL2+ Router User’s Guide
Connector Description
ANTENNA
(Optional)
POWER
SWITCH
LAN1~4
LINE
RESET
WPS
WLAN
Option 1: 1 fixed ANTENNA
Option 2: 2 fixed ANTENNA
Connects to your 802.11n WLAN ADSL2+ router 12Vac power adaptor
Power Switch
RJ-45 Jack (Ethernet Cable) connection to your PC, or HUB
Connects to your ADSL2+ line – for ADSL2+ Line input
Reset button. RESET the 802.11n WLAN ADSL2+ router to its default
settings.
Press this button for at least 5 full seconds to start to reset it to its default
settings.
Press this button for at least 3 full seconds and the WPS LED will flash to
start WPS.
Now go to the wireless adapter or device and press its WPS button. Make
sure to press the button within 120 seconds (2 minutes) after pressing the
router's WPS button.
Press this button for at least 3 full second to turn off/on wireless signals
Figure1. Rear View of the 802.11n WLAN ADSL2+ Router
Figure2. WPS and WLAN button
Figure3. RESET button
14
Wireless ADSL2+ Router User’s Guide
15
Wireless ADSL2+ Router User’s Guide
3 Computer configurations under different OS,
to obtain IP address automatically
Before starting the 802.11n WLAN ADSL2+ Router
configuration, please kindly configure the PC computer as
below, to have automatic IP address / DNS Server.
For Windows 98SE / ME / 2000 / XP
1. Click on “Start” -> “Control Panel” (in Classic View). In the Control Panel,
double click on “Network Connections” to continue.
2. Single RIGHT click on “Local Area connection”, then click “Properties”.
16
Wireless ADSL2+ Router User’s Guide
3. Double click on "Internet Protocol (TCP/ IP)".
4. Check "Obtain an IP address automatically" and “Obtain DNS server
address automatically” then click on "OK" to continue.
5. Click "Show icon in notification area when connected" (see screen
image in 3. above) then Click on "OK" to complete the setup procedures.
17
Wireless ADSL2+ Router User’s Guide
For Windows Vista-32/64
1. Click on “Start” -> “Control Panel” -> “View network status and tasks”.
2. In the Manage network connections, click on “Manage network
connections” to continue.
18
Wireless ADSL2+ Router User’s Guide
3. Single RIGHT click on “Local Area connection", then click "Properties".
4. The screen will display the information “User Account Control” and click
“Continue” to continue.
5. Double click on "Internet Protocol Version 4 (TCP/IPv4)".
19
Wireless ADSL2+ Router User’s Guide
6. Check "Obtain an IP address automatically" and “Obtain DNS server
address automatically” then click on "OK" to continue.
For Windows 7-32/64
1. Click on “Start” -> “Control Panel” (in Category View) -> “View netw ork
status and tasks”.
20
Wireless ADSL2+ Router User’s Guide
2. In the Control Panel Home, click on “Change adapter settings” to
continue.
3. Single RIGHT click on “Local Area connection", then click "Properties".
21
Wireless ADSL2+ Router User’s Guide
4. Double click on "Internet Protocol Version 4 (TCP/IPv4)".
22
Wireless ADSL2+ Router User’s Guide
5. Check "Obtain an IP address automatically" and “Obtain DNS server
address automatically” then click on "OK" to continue.
23
Wireless ADSL2+ Router User’s Guide
For Windows 8-32/64
1. Move the mouse or tap to the upper right corner and click on “Settings”.
24
Wireless ADSL2+ Router User’s Guide
2. Click on “Control Panel”.
25
Wireless ADSL2+ Router User’s Guide
3. Click on “View network status and tasks”.
4. In the Control Panel Home, click on “Change adapter settings” to
continue.
26
Wireless ADSL2+ Router User’s Guide
5. Single RIGHT click on “Ethernet", then click "Properties".
6. Double click on "Internet Protocol Version 4 (TCP/IPv4)".
27
Wireless ADSL2+ Router User’s Guide
7. Check "Obtain an IP address automatically" and “Obtain DNS server
address automatically” then click on "OK" to continue.
28
Wireless ADSL2+ Router User’s Guide
4 Utility CD execution
Connecting the Hardware
This section describes how to connect the device to the wall
phone port, the power outlet and your computer(s) or network.
1. Before you begin to execute utility CD Installations, please
ensure the 802.11n WLAN ADSL2+ Router has been
powered on.
2. Please insert the supplied CD into your CD-ROM drive.
3. The CD should auto-start, displaying the window shown in 4.
below. If your CD does not start automatically, go to
Windows Explorer, Select your CD drive and double click
"Autorun.exe".
4. To configure the Internet and Wireless configuration, please
click the " Easy Configuration ".
29
Wireless ADSL2+ Router User’s Guide
5. Select Protocol mode and enter the VPI, VCI, Username
and Password your ISP (Internet Services Provider)
provided.
6. Please click “ Wireless Configuration ” button.
30
Loading...
