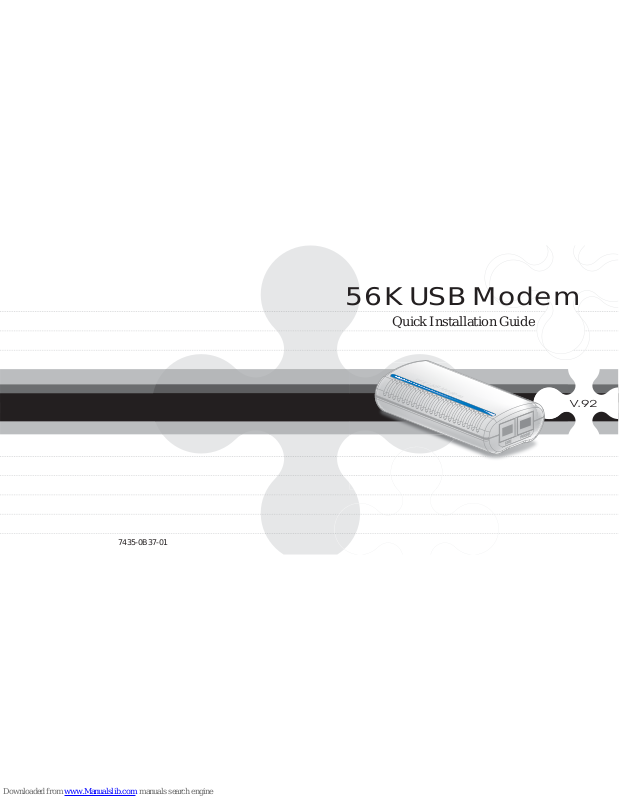

BaudTec AS560USB Quick Installation Manual

7435-0B37-01

V.92

56K USB Modem

56K USB

Modem

Quick Installation Guide

AS560USB

1

System Requirements

• Computer with Pentium 200 MMX or higher processor.

• Windows 98/98SE/ME/2000/ XP and Vista Operating System.

• 20 MB Hard Disk free space or above

• Sound card for voice features

• 1 available USB port.

• CD-ROM drive.

Package Includes

The box contains the following items:

z One 56Kbps USB Modem
z One RJ11 Phone Line Cable
z One USB cable
z One Utility CD with Drivers and User's Manual
z One Quick Installation Guide

If any of these items are missing or damaged, please contact your dealer
or sales representative for assistance.

AS560USB

2

Hardware Setup

This chapter contains detailed instructions how to install and
configure the 56Kbps USB modem, as well as how to verify if your
installation is correct. We recommend that you follow the steps
accordingly to avoid future problems.

ESD Precautions

Electrostatic discharge (ESD) can damage your processor, disk drives,
expansion boards, and other system components. Always observe the
following precautions before you install any system component.

1. Do not remove a component from its protective packaging until you
are ready to install it.

2. Wear a wrist grounding strap and attach it to a metal part of the
system unit before handling components. If a wrist strap is not
available, maintain contact with the system unit throughout any
procedure requiring ESD protection.

Installing the 56Kbps USB Modem

1. Turn off the System and unplug the AC power supply from the
system.

2. Please connect USB modem and PC with USB cable.

3. Please connect 56Kbps USB modem to the telephone line and
telephone set, as following procedures.
