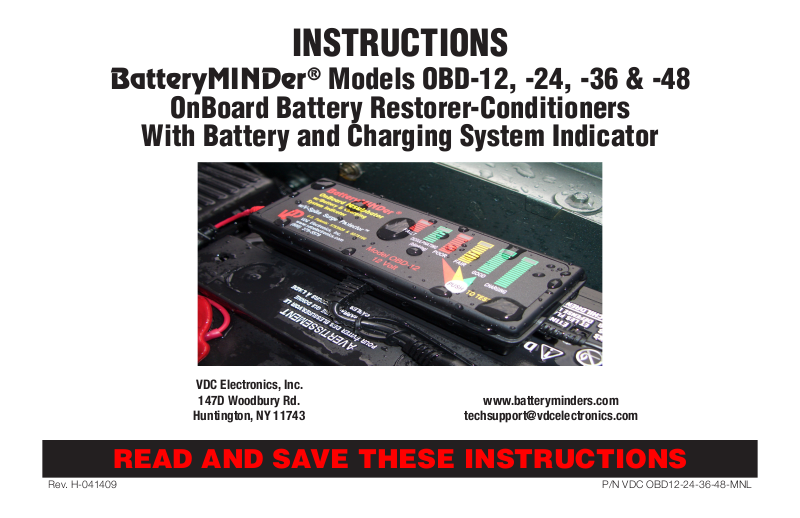

BatteryMINDer OBD-12, OBD-24, OBD-36, OBD-48 User Manual

BatteryMINDer Models OBD12-24-36-48
INSTRUCTIONS
BatteryMINDer
®
Models OBD-12, -24, -36 & -48
OnBoard Battery Restorer-Conditioners
With Battery and Charging System Indicator
VDC Electronics, Inc.
147D Woodbury Rd.
Huntington, NY 11743
www.batteryminders.com
techsupport@vdcelectronics.com
Rev. H-041409 Page 1 ` P/N VDC OBD12-24-36-48-MNL
READ AND SAVE THESE INSTRUCTIONS
BatteryMINDer Models OBD12-24-36-48
Table of Contents
General ..................................................................................................................................................................... 3
Qualifying Your Battery ............................................................................................................................................ 4
Components & Descriptions .................................................................................................................................... 8
Auxiliary charger connector.................................................................................................................................... 9
Installing the Restorer-Conditioner ....................................................................................................................... 10
Battery Setup Configurations ................................................................................................................................. 11
Operating the Restorer-Conditioner ....................................................................................................................... 12
Troubleshooting ...................................................................................................................................................... 12
Battery and Charging System Tester ..................................................................................................................... 13
Operation .......................................................................................................................................................... 13
To Test Battery .................................................................................................................................................. 13
To Test Alternator / Charging System .............................................................................................................. 14
Spike Surge Protector ...................................................................................................................................... 14
LED Battery & Alternator Voltage Test Indications ................................................................................................ 15
Specifications ......................................................................................................................................................... 16
Our Guarantee and Warranty Conditions ............................................................................................................... 17
For Repair or Replacement..................................................................................................................................... 18
Rev. H-041409 Page 2 ` P/N VDC OBD12-24-36-48-MNL
BatteryMINDer Models OBD12-24-36-48
General
The BatteryMINDer® OnBoard Battery Restorer­Conditioners are designed to desulfate your batteries while you are operating your vehicle. The units utilize patented technology to produce a wide range of
high frequency pulses known as RFP™ (Random
Frequency Pulsation) designed to dissolve both
old and newly formed sulfate. RFP™ technology,
sweeps the entire frequency range known to cause sulfation crystals to resonate and then safely
dissolve them. Sulfuric acid, the main component in the sulfate crystals, safely returns to the battery’s electrolyte. The Specic Gravity (S.G.) of the electrolyte is now higher and able to generate more
electrical energy-storage capacity than the previously sulfated batteries.
Additional advantages of using sulfation-free batteries
include extended alternator and belt life, as the vehicle’s charging system no longer needs to work
as hard trying to charge batteries that will not accept
high alternator output current due to sulfation build-
up. Better fuel economy can also be expected, as much lower output current is now demanded from the alternator to keep clean, sulfate-free batteries fully
charged. Lower alternator output current translates to lower engine level.
Each of the BatteryMINDer On-Board RFP™ Battery
Restorer-Conditioners can serve up to six batteries at
a time. Thus, even large commercial vehicles, boats and commercial equipment require only one unit per system. Units are effective on all brands / types of batteries, including Maintenance-free, Gel, AGM, Deep Cycle, Sealed, and Free-electrolyte. Installation is a simple two wire hook-up to just one (1) battery or two (2) if using 6-volt batteries in series. The
units stop working shortly after you turn your engine off. They do not use any power while your vehicle is turned off and very little when vehicle is running.
Rev. H-041409 Page 3 ` P/N VDC OBD12-24-36-48-MNL
BatteryMINDer Models OBD12-24-36-48
QUALIFYING YOUR BATTERY:
Preliminary Requirements To conrm your battery’s condition before using your Battery Restorer-Conditioner (in order to prove the
effect of the Battery Restorer-Conditioner) please
take the following suggestions. The time it will
take will be very worthwhile. If you experience any
problems, or are not sure of how to properly use or connect your BatteryMINDer, please e-mail our
technical support at: techsupport@vdcelectronics.
com or call our toll-free technical support line 800­379-5579 x206 (Eastern Time). Be certain to leave your phone number with the area code, time zone and the best time to call. To gain the best result from your new Battery Restorer-Conditioner and to maximize the life and performance of your batteries we strongly recommend you qualify (test) your batteries before attempting to either charge-maintain or desulfate them. Remember, even if you just purchased a “new” battery it may have been subjected to
conditions that have caused “sulfation” such as high temperature (>=80°) and/or allowed to self-discharge
to 2.06 Volts/Cell or lower. NOTE: If your battery is new and you are certain it
was not subject to conditions that could have caused sulfation, even before you purchased it, then you can disregard our recommendations for qualifying / testing your battery, before using the BatteryMINDer.
Testing a Filler Cap or Manifold-type Lead Acid Battery
1. Carefully remove all caps or manifold-type covers from your battery.
2. Check the water-liquid electrolyte level. If the level is low or has ever been below top of
plates, severe lead plate sulfation has taken place. Signicant recharge/reconditioning time is needed to
restore these plates to a condition where the battery
can be expected to function normally.
3. Rell each cell with distilled water only to the
liquid level indicator found in each cell.
Rev. H-041409 Page 4 ` P/N VDC OBD12-24-36-48-MNL
BatteryMINDer Models OBD12-24-36-48
4. Recharge the battery to ensure that it is
completely charged as possible before you determine its condition. Allow battery to “rest”* overnight for a minimum of 12 hours before testing with a temperature compensated hydrometer and/or digital type voltmeter only.
* “RESTED” = a battery that has been as fully charged as possible, using a 3 stage charger or your alternator and left disconnected from charger or any type load for a minimum of 12 hours before testing.
5. If the BatteryMINDer battery condition LED lights
YELLOW (single battery) or no balls oat in one or
more cells, your battery may be too far gone to be fully desulfated. Use a hot/cold calibrated hydrometer tester for the most accurate results** (see next page) if you see an increase in the Specic Gravity (SG) or voltage indicating that there is an improvement in the battery’s condition, continue desulfating for an
additional 72 hours and retest the battery. Continue
this process until the SG or voltage readings no
longer increase.
OCV = Open Circuit No Load VoltageOCV = Open Circuit No Load Voltage
Temp. Compensated Hydrometer - meter or 4 ball type
1.270 (4 Balls floating)
1.250 (3 Balls floating)
1.190 (2 Balls floating)
1.150 (1 Balls floating)
1.120 (0 Balls floating)
1
May denote shorted cell or battery that has been severely
discharged and may not be recoverable
6-V 3 cells
6.3V 8.4V 12.6V 100%
6.18 8.26 12.4 75%
6.09 8.13 12.2 50%
6.0 8.0 12.0 25%
5.8817.84111.81 0%
8-V 4 cells
12-V 6 cells
Full Capacity Percentage
Rev. H-041409 Page 5 ` P/N VDC OBD12-24-36-48-MNL
BatteryMINDer Models OBD12-24-36-48
**Testing with a Hot/Cold Calibrated Hydrometer Tester
Read the tester instructions carefully for most
accurate readings.
1. When using the tester the rst time or after a long period of non-use, ll the tester with the battery uid and let it sit for 1/2 hour or longer. This will soak the balls in order to give you more accurate readings.
Failure to do so will give you false readings indicating
a battery that may not be in as good a condition as you may have thought.
2. After inserting the tester in a cell, gently tap the tester several times against the inside wall of each cell to dislodge air bubbles that will cause more balls to oat than should. Failure to do so will yield
false readings that indicate a battery that is not fully desulfated or does not qualify for desulfation.
3. If no balls oat in any cell, the cell is shorted. This means your battery is beyond the point of being
properly recharged or reconditioned-desulfated. Properly dispose of the battery.
If each cell oats two (2) or more balls (or 1190 on gauge-type), your battery can be desulfated-
reconditioned.
4. Always rinse the tester with fresh water after every use. Failure to do so will cause false readings.
Testing a Sealed, AGM or Gelled-type Lead Acid Battery
These batteries have no ller caps or manifold-
type covers. Because you cannot gain access to the interior of your battery you cannot test it with a
hydrometer.
USE A DIGITAL VOLTMETER ONLY:
1. Recharge the battery with the BatteryMINDer
to ensure it is as completely charged as possible, before you determine its condition. Allow battery to “rest” (see pg. 13) for a minimum of 12 hours before testing with a digital voltmeter only.
Failure to test a “rested” (see pg. 13) battery will
cause false readings.
Rev. H-041409 Page 6 ` P/N VDC OBD12-24-36-48-MNL
