BATRON COG-BT12864G-01 User Manual

BTHQ 128064AVC-STF-06-LED02YG-COG

Nov/2002

BA TRON

1/13

DATA MODUL AG Landsberger Str. 322 80687 München Tel.: [phone] Fax [phone]

www.data-modul.de

BTHQ 128064AVC-STF-06-LED02YG-COG

BA TRON

DOCUMENT REVISION HISTORY 1:

DOCUMENT

REVISION

FROM TO

A 2002.11.06 First Release.

DATE DESCRIPTION CHANGED

(Based on Test Specification:
VL-TS-COG-BT12864-XX, REV. A,

2002.10.28)

BY

PHILIP
CHENG

2/13

CHECKED

BY

R.S.LIN

DATA MODUL AG Landsberger Str. 322 80687 München Tel.: [phone] Fax [phone]

www.data-modul.de

BTHQ 128064AVC-STF-06-LED02YG-COG

BA TRON

Page No.

1. GENERAL DESCRIPTION 4

2. MECHANICAL SPECIFICATIONS 4

3. INTERFACE SIGNALS 7

4. ABSOLUTE MAXIMUM RATINGS 8

4.1

4.2 ENVIRONMENTAL CONDITION 8

5. ELECTRICAL SPECIFICATIONS 9

5.1 TYPICAL ELECTRICAL CHARACTERISTICS 9

5.2 TIMING SPECIFICATIONS 10

ELECTRICAL MAXIMUM RATINGS (Ta=25°C)

3/13

CONTENTS

8

DATA MODUL AG Landsberger Str. 322 80687 München Tel.: [phone] Fax [phone]

www.data-modul.de

BTHQ 128064AVC-STF-06-LED02YG-COG

BA TRON

Preliminary Specification

Item No.: COG-BT12864G-01

1. General Description

4/13

of

LCD Module Type

• 128 x 64 dots STN Yellow Positive Transflective STD LCD Module.

• Viewing Direction: 6 O’clock.

• Driving duty: 1/65 Duty, 1/9 bias.

• ‘ULTRA CHIP’ UC1606 (COG) LCD Controller-Driver or equivalent.

• Logic Power Supply: +3V.

• FPC.

• Yellow-Green LED02 backlight.

2. Mechanical Specifications

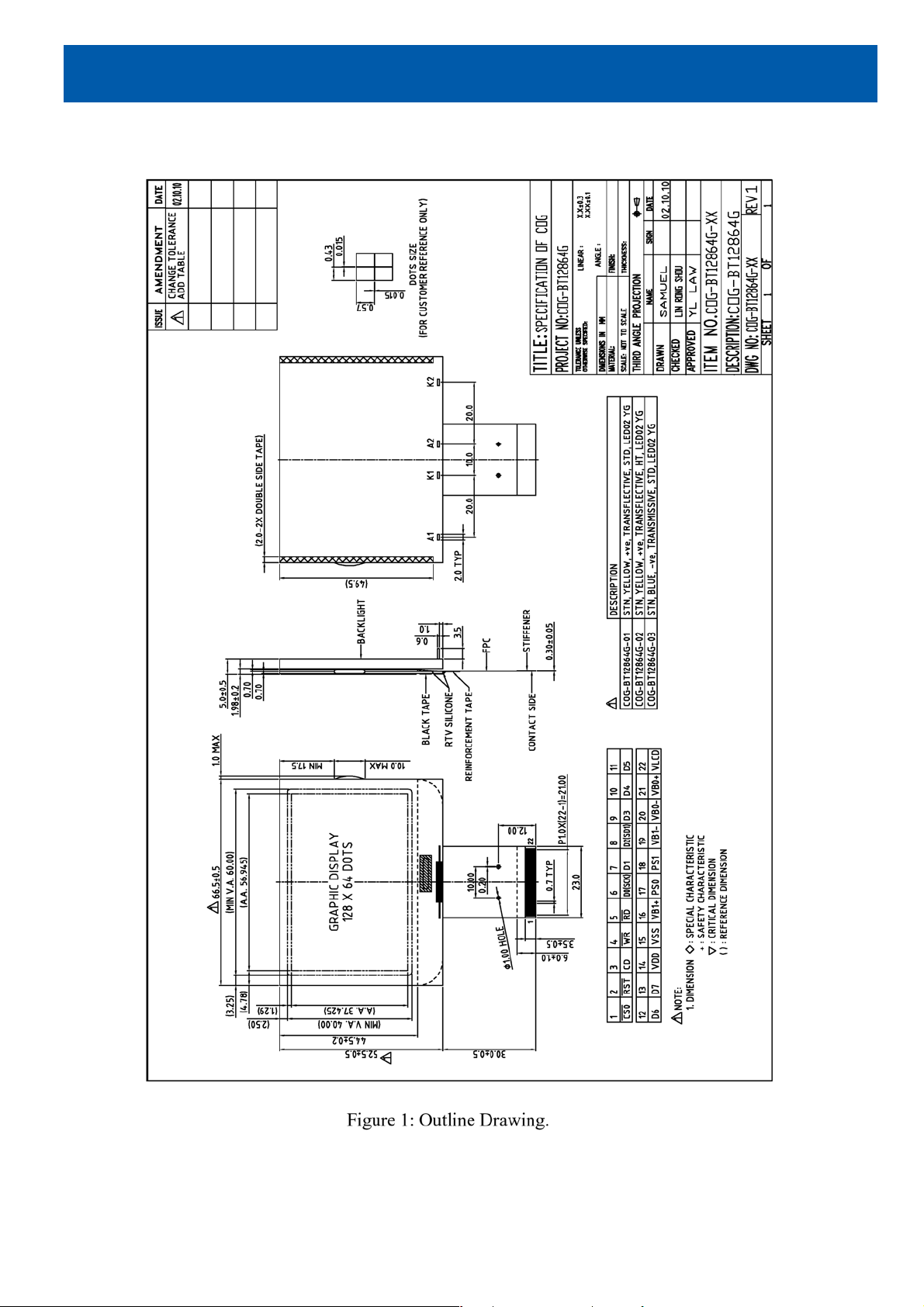

The mechanical detail is shown in Fig. 1 and summarized in Table 1 below.

Table 1

Parameter Specifications Unit
Outline dimensions 67.5(W) x 82.5(H) x 8.5(D) mm
Effective viewing area (V.A.) 60.00 MIN.(W) x 40.00 MIN.(H) mm
Active area (A.A.) 56.945(W) x 37.425(H) mm
Display format 128 x 64 dots
Dot size 0.43(W) x 0.57(H) mm
Dot spacing 0.015(W) x 0.015(H) mm
Dot pitch 0.445(W) x 0.585(H) mm
Weight: TBD grams

DATA MODUL AG Landsberger Str. 322 80687 München Tel.: [phone] Fax [phone]

www.data-modul.de

BTHQ 128064AVC-STF-06-LED02YG-COG

BA TRON

5/13

DATA MODUL AG Landsberger Str. 322 80687 München Tel.: [phone] Fax [phone]

www.data-modul.de

BTHQ 128064AVC-STF-06-LED02YG-COG

BA TRON

VLCD

VB0+

VB0-

VB1­PS1

PS0

VB1+

VSS

VDD

D0(SCK),D1,
D2(SD1)~D7

8

DOT MATRIX LCD

CONTROLLER-DRIVER

'ULTRA CHIP'

UC1606

(COG)

OR EQUIVALENT

/RD
/WR

CD
/RST

/CS0

6/13

COG-BT12864G

LCD GRAPHIC DISPLAY

64

128 X 64 DOTS

128

A1

K1
A2
K2

YELLOW-GREEN LED02 BACKLIGHT

Figure 2: Block diagram

DATA MODUL AG Landsberger Str. 322 80687 München Tel.: [phone] Fax [phone]

www.data-modul.de

BTHQ 128064AVC-STF-06-LED02YG-COG

BA TRON

3. Interface signals

Pin No. Symbol Description

1 CS0 Chip Select. In parallel mode and S8 mode, chip is selected when CS0=”L” and

CS1=”H”. When the chip is not selected, D[7:0] may be
high impedance.

2 RST When RST =”L”, all control registers are re-initialized by their default states. When

RST is not used, connect the pin to VDD.

3 CD Select Command or Display Data for read/write operation.

“L”: Command ”H”: Display data
4 WR
5 RD

6 D0(SCK)
7 D1
8 D2(SD1)
9 D3

10 D4
11 D5
12 D6
13 D7

14 VDD VDD1 is the digital power supply and it should be connected to a voltage source

15 VSS Ground.
17 PS0
18 PS1

16 VB1+
19 VB1­20 VB0­21 VB0+

22 VLCD Main LCD Power Supply.A by-pass capacitor CL is optional. When CL is used,

- A1 Anode 1 of LED Backlight

- K1 Cathode 1 of LED Backlight

- A2 Anode 2 of LED Backlight

- K3 Cathode 2 of LED Backlight

RD/WR(WR[1:0]) controls the read/write operation of the host interface.

In parallel mode, RD/WR(WR[1:0]) meaning depends on whether the interface is

in the 6800 mode or the 8080 mode. In serial interface modes, these two pins are

not used. Connect to VSS.

Bi-directional bus for both serial and parallel host interfaces.

In S8 and S9 mode, connect unused pins to VDD or VSS.

PS=1x Ps=0x

D0 D0 SCK
D1 D1
D2 D2 SD1
D3 D3
D4 D4
D5 D5
D6 D6
D7 D7

that is no higher than VDD2&3.

VDD2&3 is the analog power supply and it should be connected to the same power

source. Minimize the trace resistance for VDD2&3.

PS[1:0] Parallel/Serial.

Serial modes: “LL”: serial (S8) “LH”: serial (S9)

Parallel modes: “HL”: 8080 “HH”: 6800

LCD Bias Voltages. These are the voltage sources to provide SEG driving currents.

These voltages are generated internally. Connect capacitors of CBX value between

VBX+ and VBX–. The resistance of these four traces directly affects the SEG

driving strength of the resulting LCD module. Minimize the trace resistance is

critical in achieving high quality image.

connect CL between VLCD and VSS, and keep the trace resistance under 300

Ohm.

7/13

Table 2

DATA MODUL AG Landsberger Str. 322 80687 München Tel.: [phone] Fax [phone]

www.data-modul.de

A
H

V

H

BTHQ 128064AVC-STF-06-LED02YG-COG

BA TRON

4. Absolute Maximum Ratings

4.1 Electrical Maximum Ratings(Ta = 25 ºC)

Parameter Symbol Min. Max. Unit
Logic supply voltage VDD1 - VSS -0.3 +5.5 V
LCD generator supply voltage VDD2 - VSS -0.3 +5.5 V
Analog circuit supply voltage VDD3 - VSS -0.3 +5.5 V
LCD generated voltage VLCD -0.3 +15.5 V
Any input voltage Vin -0.3 VDD+0.3 V

8/13

Table 3

Note:

The modules may be destroyed if they are used beyond the absolute maximum ratings.

All voltage values are referenced to VSS = 0V.

VDD=VDD1=VDD2=VDD3.

4.2 Environmental Condition

Table 4

Item

Operating

Temperature

(Topr)

Storage

Temperature

(Tstg)

Remark

Min. Max. Min. Max.
mbient Temperature
umidity

0°C +50°C -10°C +60°C

95% max. RH for Ta ≤ 40°C

Dry
no condensation

< 95% RH for Ta > 40°C

ibration (IEC 68-2-6)

cells must be mounted
on a suitable connector

Shock (IEC 68-2-27)

alf-sine pulse shape

Frequency: 10 ∼ 55 Hz
Amplitude: 0.75 mm
Duration: 20 cycles in each direction.
Pulse duration : 11 ms

Peak acceleration: 981 m/s

2

= 100g

3 directions

3 directions

Number of shocks : 3 shocks in 3
mutually perpendicular axes.

DATA MODUL AG Landsberger Str. 322 80687 München Tel.: [phone] Fax [phone]

www.data-modul.de

BTHQ 128064AVC-STF-06-LED02YG-COG

BA TRON

5. Electrical Specifications

5.1 Typical Electrical Characteristics

At Ta = 25 °C, VDD = 3V±5%, VSS=0V.

Parameter Symbol Conditions Min. Typ. Max. Unit

Supply voltage

VDD-VSS 2.85 3.0 3.15 V
(Logic & booster)
LCD driving voltage VLCD-VSS 9.3 9.6 9.9 V

VIH ”H” level 0.8 VDD1 - - V Input signal voltage

” L” level - - 0.2VDD1 V

V

IL

Supply Current

IDD Character mode,
(Logic & booster)

VA1K1 Forward current
yellow-green LED02
backlight
(8 LED dies)

VA2K2 Forward current

9/13

Table 5

- 0.2 0.3 mA

Note 1

1.9 2.1 2.3 V Supply voltage of

= 60 mA

Number of LED
dies
=(1X4)
=4.

1.9 2.1 2.3 V

= 60 mA

Number of LED
dies
=1X4)
=4.

Note

(1) : There is tolerance in optimum LCD driving voltage during production and it will be within the

specified range.

DATA MODUL AG Landsberger Str. 322 80687 München Tel.: [phone] Fax [phone]

www.data-modul.de

BTHQ 128064AVC-STF-06-LED02YG-COG

BA TRON

5.2 Timing Specifications

Parallel bus timing characteristics (for 8080 MCU)

At Ta= 0°°°°C to +50°°°°C

10/13

DATA MODUL AG Landsberger Str. 322 80687 München Tel.: [phone] Fax [phone]

www.data-modul.de

BTHQ 128064AVC-STF-06-LED02YG-COG

BA TRON

Parallel bus timing characteristics (for 6800 MCU)

At Ta= 0°°°°C to +50°°°°C

11/13

DATA MODUL AG Landsberger Str. 322 80687 München Tel.: [phone] Fax [phone]

www.data-modul.de

BTHQ 128064AVC-STF-06-LED02YG-COG

BA TRON

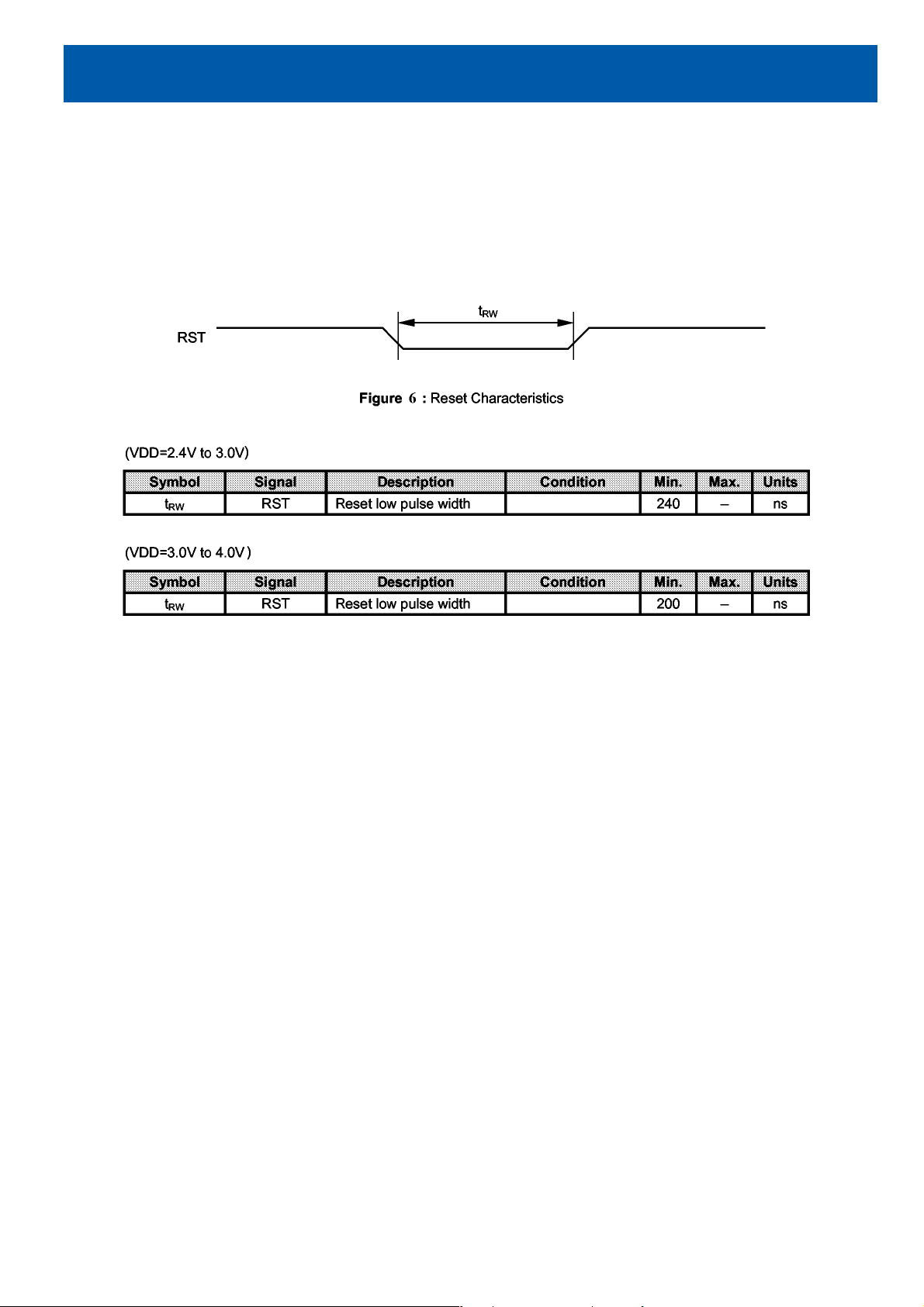

Serial bus timing characteristics

At Ta= 0°°°°C to +50°°°°C

12/13

DATA MODUL AG Landsberger Str. 322 80687 München Tel.: [phone] Fax [phone]

www.data-modul.de

BTHQ 128064AVC-STF-06-LED02YG-COG

BA TRON

Serial bus timing characteristics

At Ta= 0°°°°C to +50°°°°C

13/13
