BATRON BTHQ 22008VSS-01 User Manual

BA TRON

BTHQ 22008VSS-SRE-06

Nov/2002

1/12

DATA MODUL AG Landsberger Str. 322 80687 München Tel.: [phone] Fax [phone]

www.data-modul.de

BA TRON

BTHQ 22008VSS-SRE-06

DOCUMENT REVISION HISTORY 1:

DOCUMENT

REVISION

FROM TO

A 2002.11.12 First Release. PHILIP

DATE DESCRIPTION CHANGED

CHENG

BY

2/12

CHECKED

BY

M.Y.LU

DATA MODUL AG Landsberger Str. 322 80687 München Tel.: [phone] Fax [phone]

www.data-modul.de

BA TRON

BTHQ 22008VSS-SRE-06

CONTENTS

Page No.

1. GENERAL DESCRIPTION 4

2. MECHANICAL SPECIFICATIONS 4

3. INTERFACE SIGNALS 6

4. ABSOLUTE MAXIMUM RATINGS 7

4.1

4.2 ENVIRONMENTAL CONDITION 7

5. ELECTRICAL SPECIFICATIONS 8

5.1 TYPICAL ELECTRICAL CHARACTERISTICS 8

5.2 TIMING SPECIFICATIONS 9

5.3 TIMING DIAGRAM OF VDD AGAINST V0 11

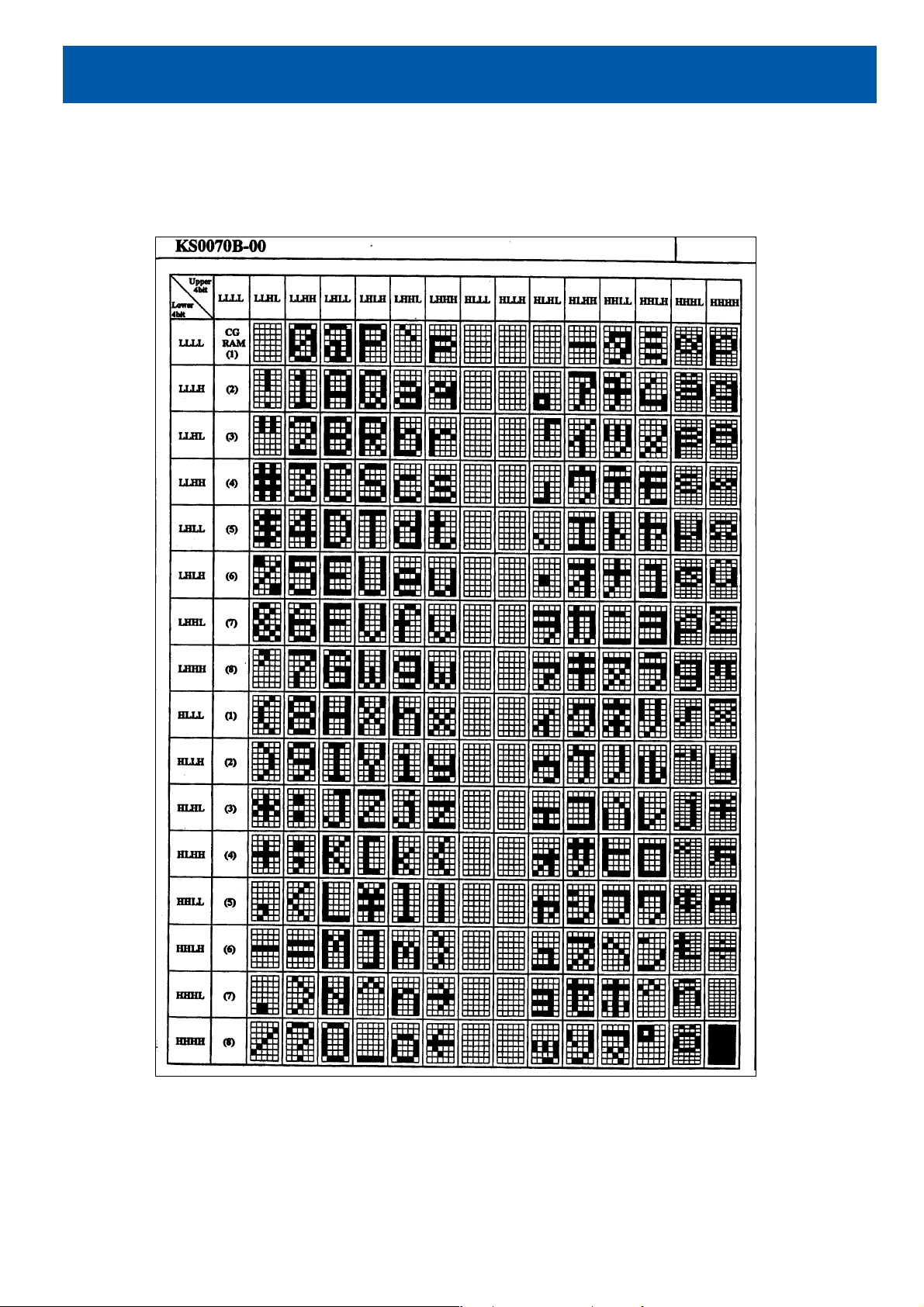

6. CGROM CHARACETR CODE TABLE 12

ELECTRICAL MAXIMUM RATINGS (Ta=25°C)

7

3/12

DATA MODUL AG Landsberger Str. 322 80687 München Tel.: [phone] Fax [phone]

www.data-modul.de

BA TRON

BTHQ 22008VSS-SRE-06

1. General Description

4/12

Specification

of

LCD Module Type

Item No.: BTHQ 22008VSS-01

• 20 characters (5x8 dots) x 2 lines STN Positive Yellow Reflective Dot Matrix LCD module.

• Viewing Angle: 6 O’clock direction.

• Driving scheme: 1/16 Duty, 1/5 bias.

• ’SAMSUNG’ KS0070BP-00CC (Die form) LCD Controller & Driver or equivalent.

• ’SAMSUNG’ KS0065B-PCC (Die form) LCD Segment Driver or equivalent.

2. Mechanical Specifications

The mechanical detail is shown in Fig. 1 and summarized in Table 1 below.

Table 1

Parameter Specifications Unit
Outline dimensions 146.0(W) x 43.0(H) x 11.0 MAX.(D) mm
Effective viewing area 123.0(W) x 23.0(H) mm
Display format 20 characters x 2 lines ­Character size 4.840(W) x 9.217(H) (5 x 8 dots) mm
Character spacing 1.160(W) x 0.536(H) mm
Character pitch 6.000(W) x 9.753(H) mm
Dot size 0.956(W) x 1.139(H) mm
Dot spacing 0.015(W) x 0.015(H) mm
Dot pitch 0.971(W) x 1.154(H) mm
Weight: Approx. 57 grams
