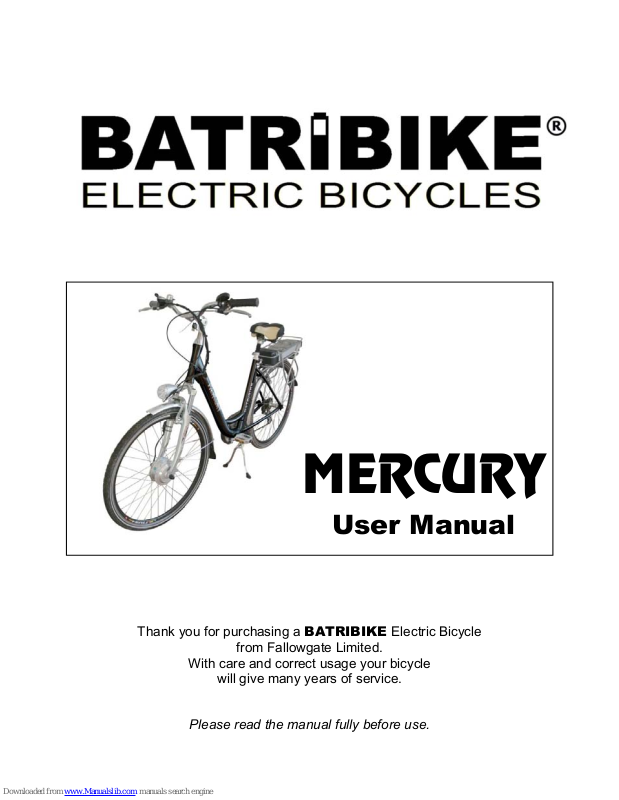

Batribike Mercury User Manual

Thank you for purchasing a BATRIBIKE Electric Bicycle

from Fallowgate Limited.

With care and correct usage your bicycle

will give many years of service.

Please read the manual fully before use.

MERCURY

User Manual

MODEL:-

MERCURY

SERIAL NUMBER:-

PURCHASE DATE:-

DAY MONTH YEAR

/

/

IMPORTANT PLEASE READ THIS MANUAL FULLY

PRIOR TO ASSEMBLY AND USE

For your safety and to ensure a long and trouble free life of your bicycle,

check the operation of brakes, lights, tyre pressures, horn and gears.
Also check all fasteners, including quick release mechanisms, before

every ride.

Service & Spares

Cables may stretch a little during the first few uses. Brakes and gears may need
to be adjusted after the first few rides to ensure correct operation. If you return
the bicycle to us, (please contact us first), we will be pleased to check and adjust
accordingly within the first 6 weeks of purchase, free of charge. If it is more con­venient for you a local cycle shop could carry out this operation at your expense.

Your BATRIBIKE bicycle uses standard cycle parts wherever possible. Items
such as tyres, tubes, lights, brake pads/blocks and cables may be obtained
direct from us or your local cycle shop or retailer.
Specialist parts such as the motor, battery, & electrical parts or frame compo­nents are only available from Fallowgate Limited

PACKAGE CONTENTS

1 ELECTRIC BICYCLE
1 BATTERY
1 BATTERY CHARGER
1 MANUAL

3

Usage Instructions

Battery Charging.

The battery can be charged either on or off the bicycle, but must be charged
inside in dry conditions to avoid the risk of electrical shock. Only use the charger
supplied with the bicycle.

1) Ensure the power is turned off at the battery.

2) Lift handle on battery.

3) Insert charger lead into socket on battery casing.

4) Insert 3 pin mains plug into mains socket and switch on at wall.

5) There is an indicator light on the charger
CHARGE—Glows red when charging and green when charge is
complete.

6) When battery is charged, firstly turn off the mains supply, unplug

and then remove the charging plug from the battery.

To ensure maximum battery life charge your battery after each ride & DO NOT
leave fully discharged.

If your BATRIBIKE Mercury is not in use for an extended period,

charge the battery once a month to prevent deterioration.

Important

PLEASE CHARGE THE BATTERY

BEFORE FIRST USING THE BICYCLE.

Even though the battery indicator will show charge this cannot be

relied upon until the battery has had the initial full charge.

The lock for the battery is located at the underside
rear left of the carrier.

To remove the battery push and turn the key to
the unlock position and the lock will release. Then
pull the battery out to the rear with the handle.

Take care when inserting the battery that the
grooves in the battery and carrier line up correctly.

4

Riding

To turn on the power, press the red switch on the battery to the on position. The
switch on the battery and the indicator on the handlebars will light up.

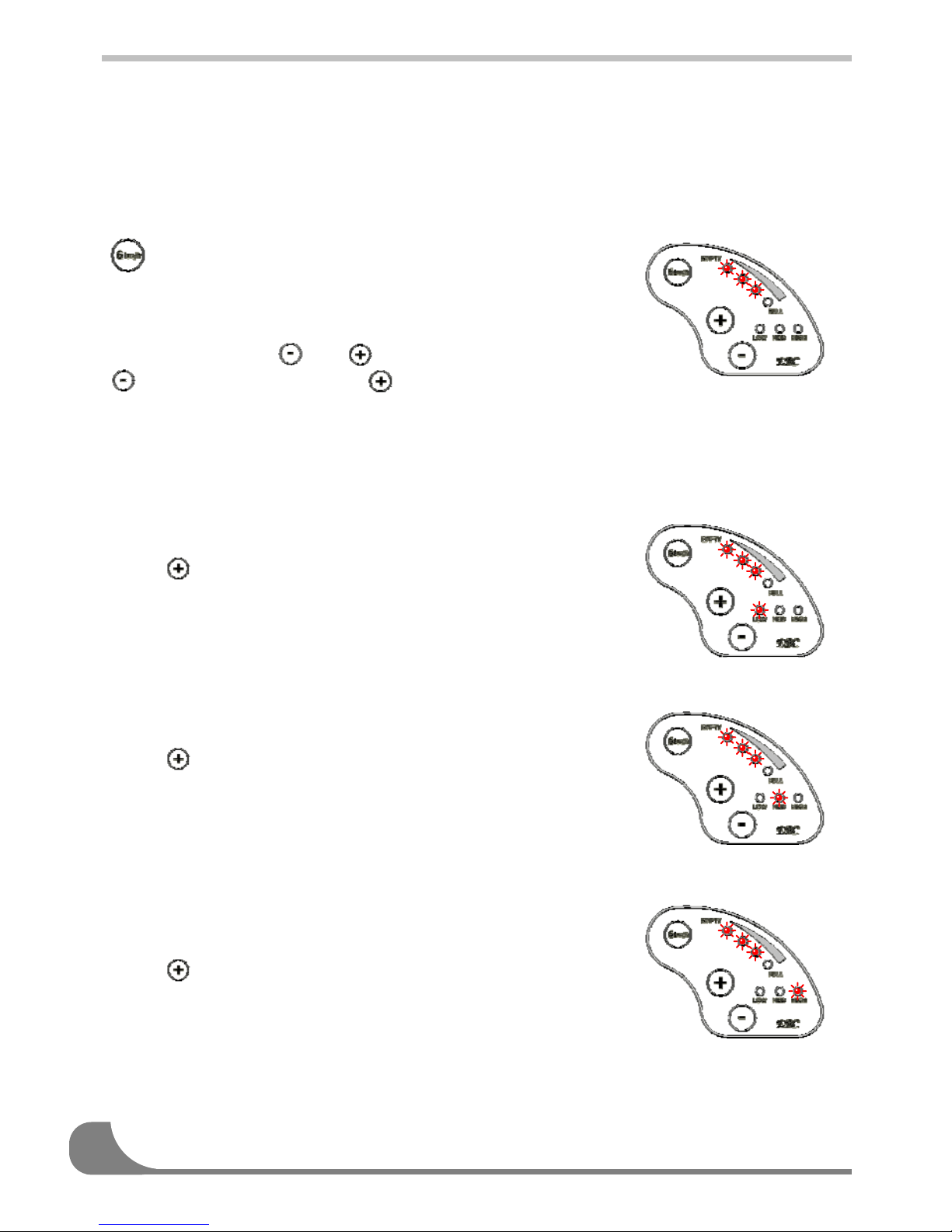

Pressing the 6km/h button will immediately power
the motor to approximately 6km/h (4 mph), and is
useful to assist in setting off from standstill.

The amount of assistance from the motor can be
selected using the and buttons.
reduces assistance and increases assistance.

The picture above shows no assistance selected and a 3/4 full battery.

Press once and LED “LOW” lights up giving low
level assistance.
(Less assistance will give greater range).

Press once more and LED “MED” lights
up giving medium level assistance.

Press once more and LED “HIGH” lights
up giving high level assistance.

5

Press once more and all three LEDs light up. In this
mode the throttle will work and you can travel without
pedalling. Speed is regulated by twisting the throttle.
Twisted fully towards you gives full power. Releasing
fully gives no power.

Pressing will drop back to high power setting, pressing again will reduce to
medium level etc.

Horn

To operate the horn press the green button on the left handlebar.

Front & Rear Lights

To turn the lights on press the red button on the handlebar.
Press again to turn off.

Extra Rear Light/Reflector

An additional rear light is supplied and this requires 2 AA size batteries.
There is a switch on the light for operation.

Braking

To stop release the throttle and pull the brake levers.

Side Stand

To put the bicycle on its stand:-

1) While holding the bicycle upright, push the stand
to its full extent.

2) Lean bicycle over onto stand.

Make sure bicycle is on solid ground.

Tyre Pressures

The tyres should be pumped up to within the range stated on the sidewall.
This should be regularly checked as running with the correct pressures
will ensure maximum range from the battery.

6

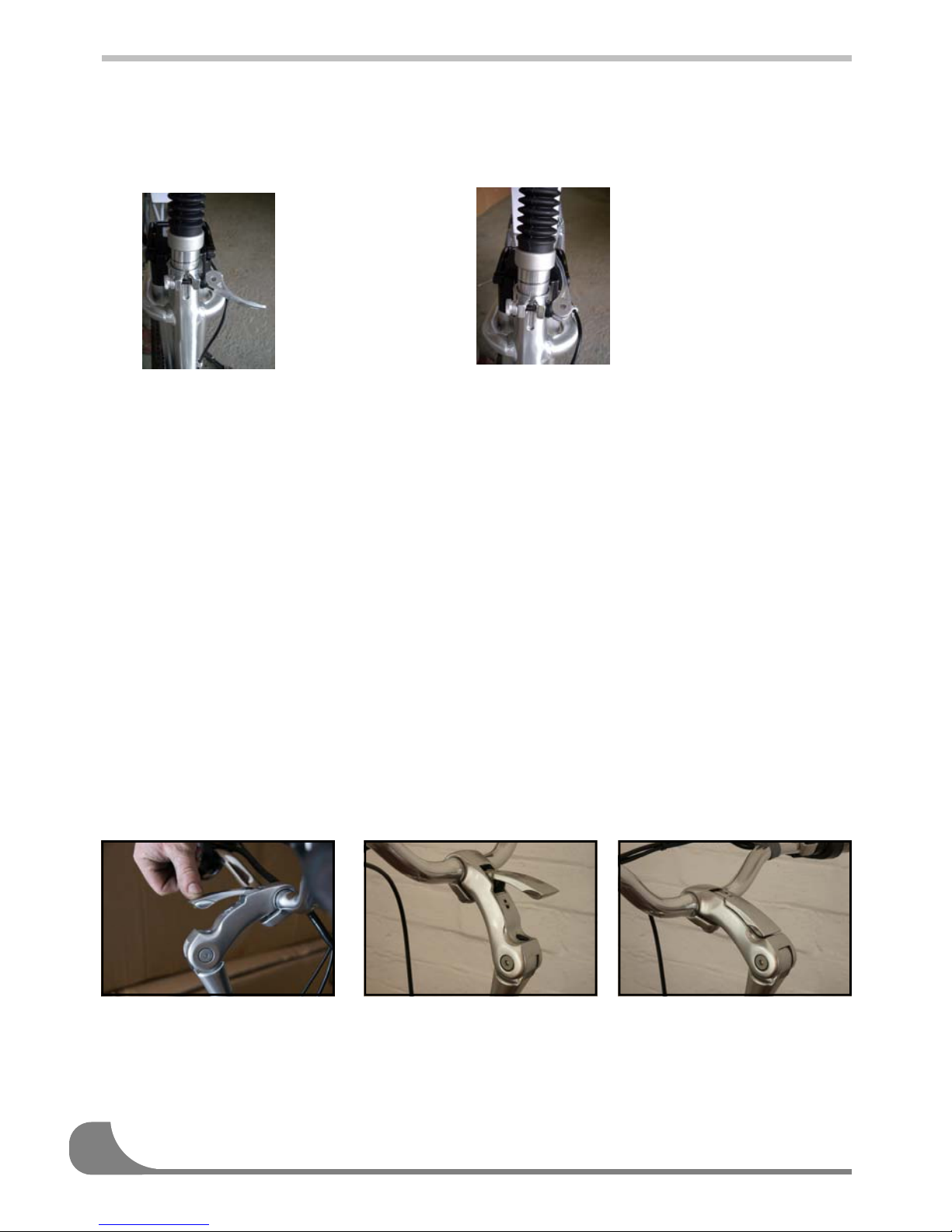

Quick release fittings for seat height adjustment.
With the locking lever in the loose position, tighten the nut until finger tight, The
final tightening is done by moving the lever to the locked position. To undo move
lever to loose position to enable height adjustment.

Loose Locked

Adjusting the handlebars

The handlebars can be adjusted for height and angle to suit the rider

1. Release the handlebar locking lever by pulling upwards. (Take care as
this is quite stiff)

2. Adjust the angle and height as required.

3. Ensure that the handlebars are centrally located in the clamp

4. Push the handlebar locking lever down until it is once again flush with the
top of the stem.

Lift lever Adjust to suit Ensure bars are

central

Close Lever

Notes

BATRIBIKE Electric Bicycles are exclusive to:-

Fallowgate Limited
Kellaway House
Marton Road
Sturton-by-Stow
Lincoln
LN1 2AH
Phone: [phone]
E-mail: [e-mail]

Warranty

Please retain your receipt as this is your proof of purchase and entitlement to
Warranty.

 The Frame of your new BATRIBIKE Mercury is guaranteed

for 2 years from date of purchase.

 Other main cycle parts have a warranty of 1 year.

 The battery is covered for 6 months as battery life is determined

by User care.

In the event of warranty repairs becoming necessary you should return your
bicycle to BATRIBIKE at the address below. Delivery & collection charges are
not redeemable under warranty.

Brake blocks/pads, tyres, lights and cables etc. are considered as consum­ables and replacements are available from BATRIBIKE or may be obtained
from your local cycle shop.

————————— USER MANUAL—BATRIBIKE Mercury — ISSUE 1 — ©2010 Fallowgate Limited —————————
