Page 1

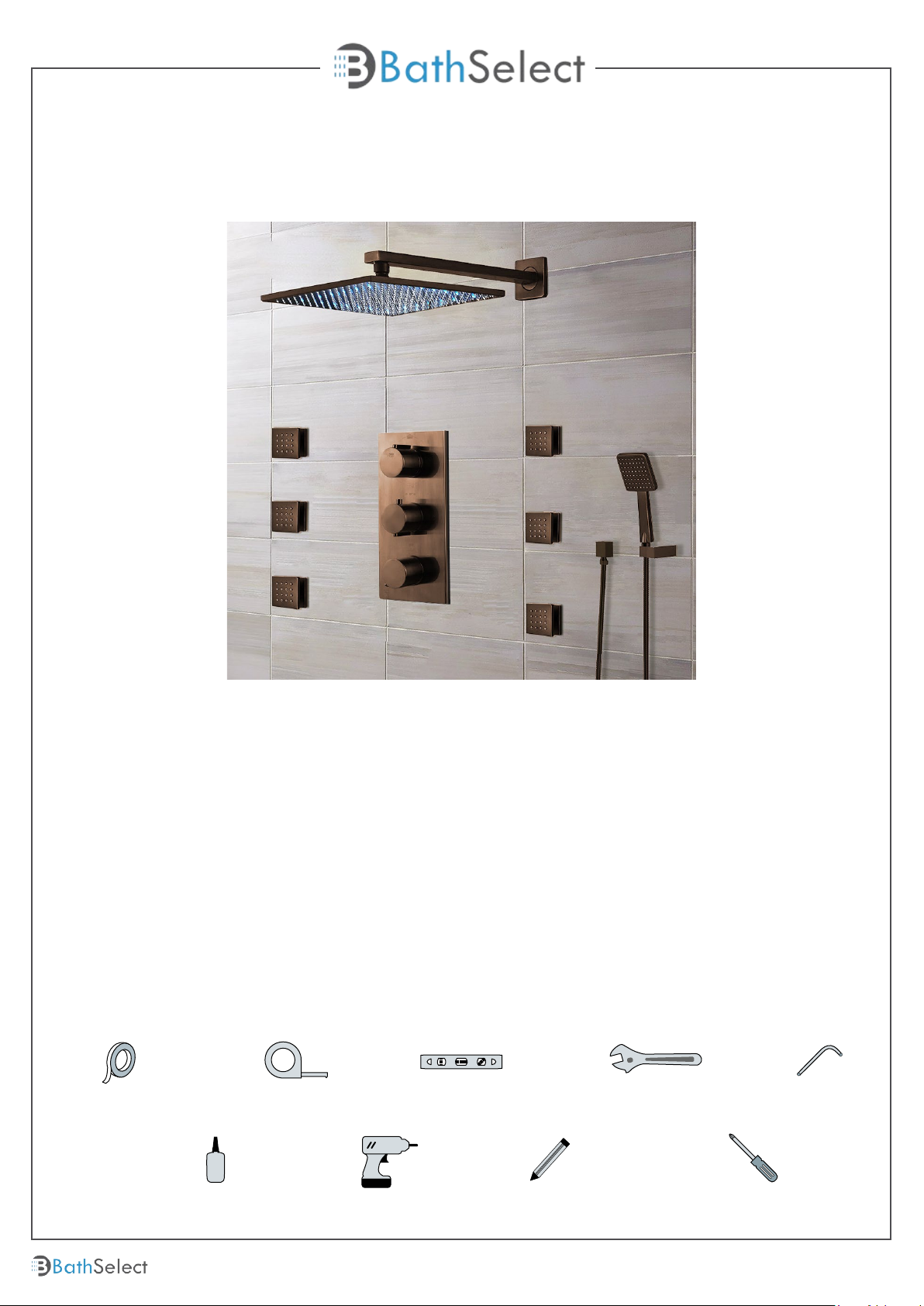

Product code: B-0522ORB
LIGHT OIL RUBBED BRONZE SIERRA MULTI COLOR WATER
POWERED LED SHOWER WITH ADJUSTABLE BODY JETS AND
THERMOSTATIC MIXER-WALL MOUNT STYLE INSTALLATION
PRIOR TO INSTALLATION
Please read installation instructions below. All plumbing should be
installed in accordance with applicable building codes and regulations.
Unpack and inspect the items for any shipping damages. If you find
damages, do not install.
All products must be installed by a professional and certified plumber
otherwise warranty may be voided.
POSSIBLE TOOLS REQUIRED*
Plumbers Tape
Tape Measure
Level
Adjustable Wrench
Hex Wrench
Thread Sealant
Drill
Pencil or Marker
1
Screwdriver
*not included
bathselect.com
Customer Service: 800-500-9895
Page 2

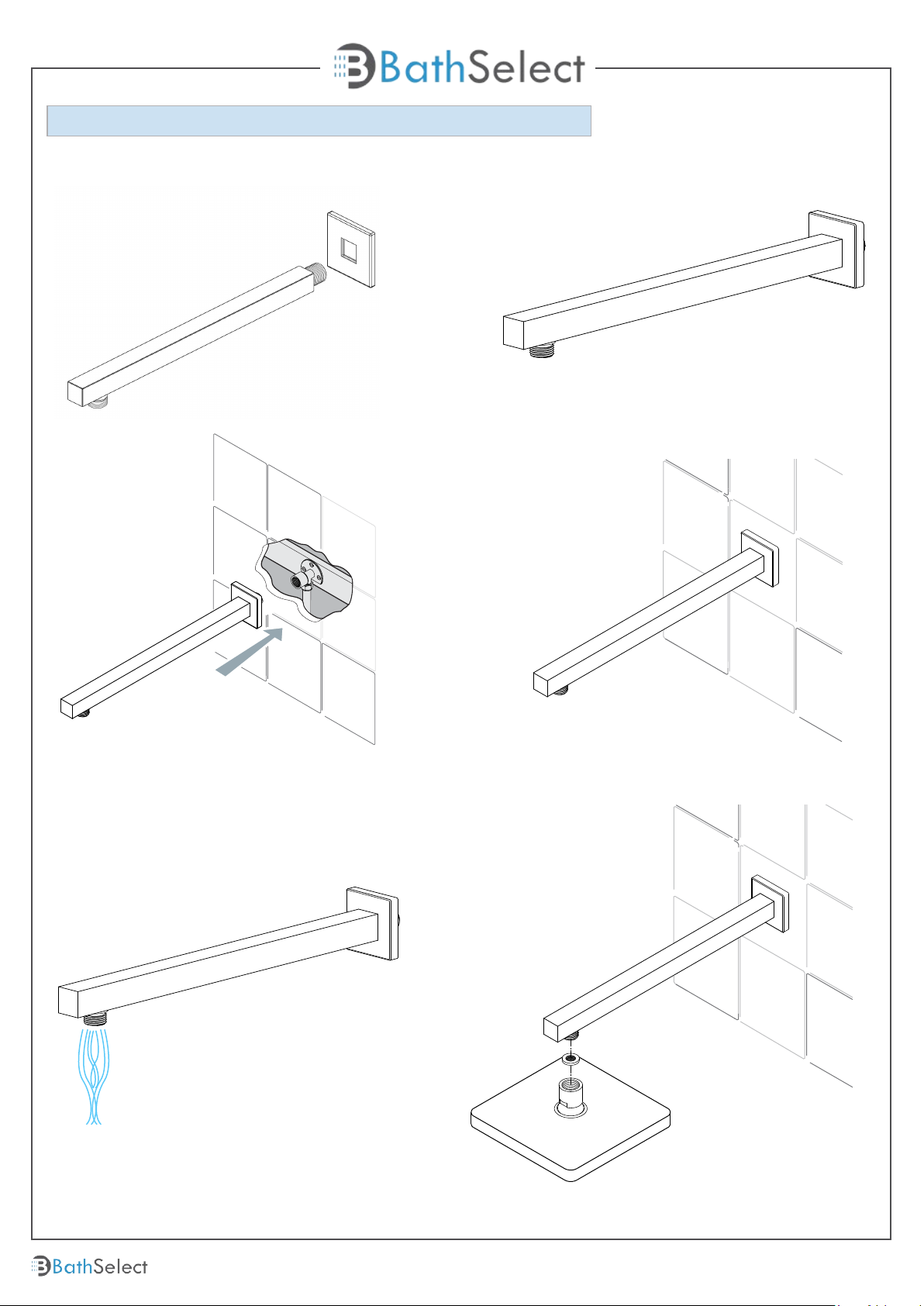

Wall Mount Shower Installations Instructions
Step 1: Step 2:
Step 3: Step 4:
Step 5: Step 6:
2
bathselect.com
Customer Service: 800-500-9895
Page 3
Step 7:
Product shown is only for installation display purpose
1. Apply plumber's tape to the threads on both ends of the shower arm and slide on the
decorative escutcheon.
2. Insert the new arm into the fitting in the Wall and twist to tighten. Finish tightening
with your adjustable wrench. Wrap a dry cloth around the shower arm to protect the finish
while tightening with adjustable wrench.
3. Thread the new shower head onto the arm and hand-tighten. Hold the shower arm in
place with groove joint pliers and finish tightening the shower head with your adjustable
wrench. Wrap both in a dry cloth to protect the finish.
4. Before securing the decorative escutcheon, turn on the water supply to make sure that
all connections are tight and there is no leaking. If no leaks are detected, continue with the
installation. If leakage does occur, use your adjustable wrench to tighten the connections
as necessary.
5. Apply a bead if silicone sealant to the back of the escutcheon and press firmly into place
against the installation surface. Wipe away any excess sealant with your damp cloth.
(If you have opted for LED option)
The LED light will change its color by detecting water temperature:
0-30°C (32-86°F): Blue LED
30-40°C (86-104°F): Green LED
40-50°C (104-122°F): Red LED
50-100°C (122-212°F): Flashing Red LED
Note: The LED lights are powered by water flow, and will be activated once the water is
turned on.
3
Customer Service: 800-500-9895
bathselect.com
Page 4

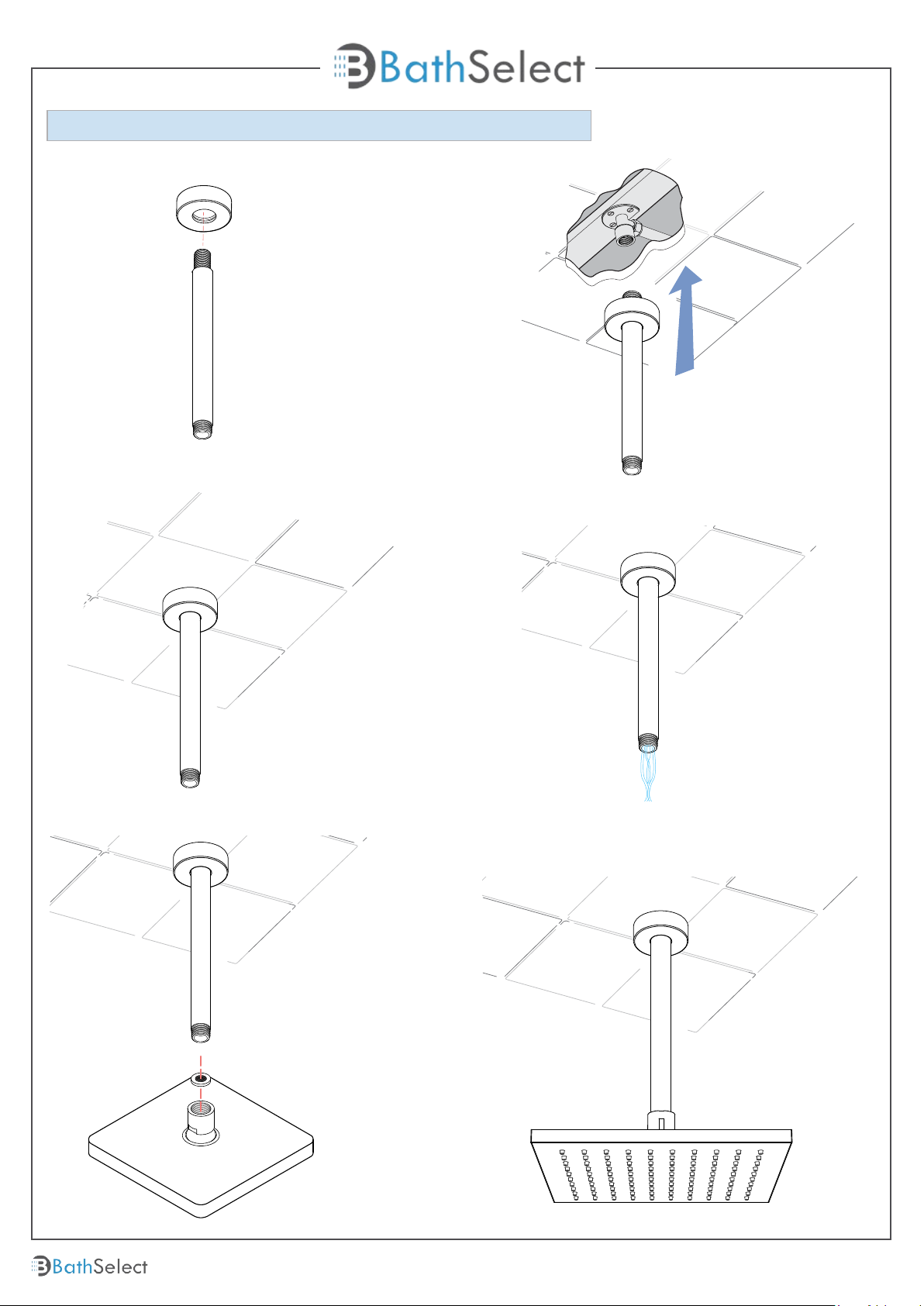

Ceiling Mount Shower Installations Instructions
Step 1: Step 2:
Step 3: Step 4:
Step 5: Step 6:
4
bathselect.com
Customer Service: 800-500-9895
Page 5

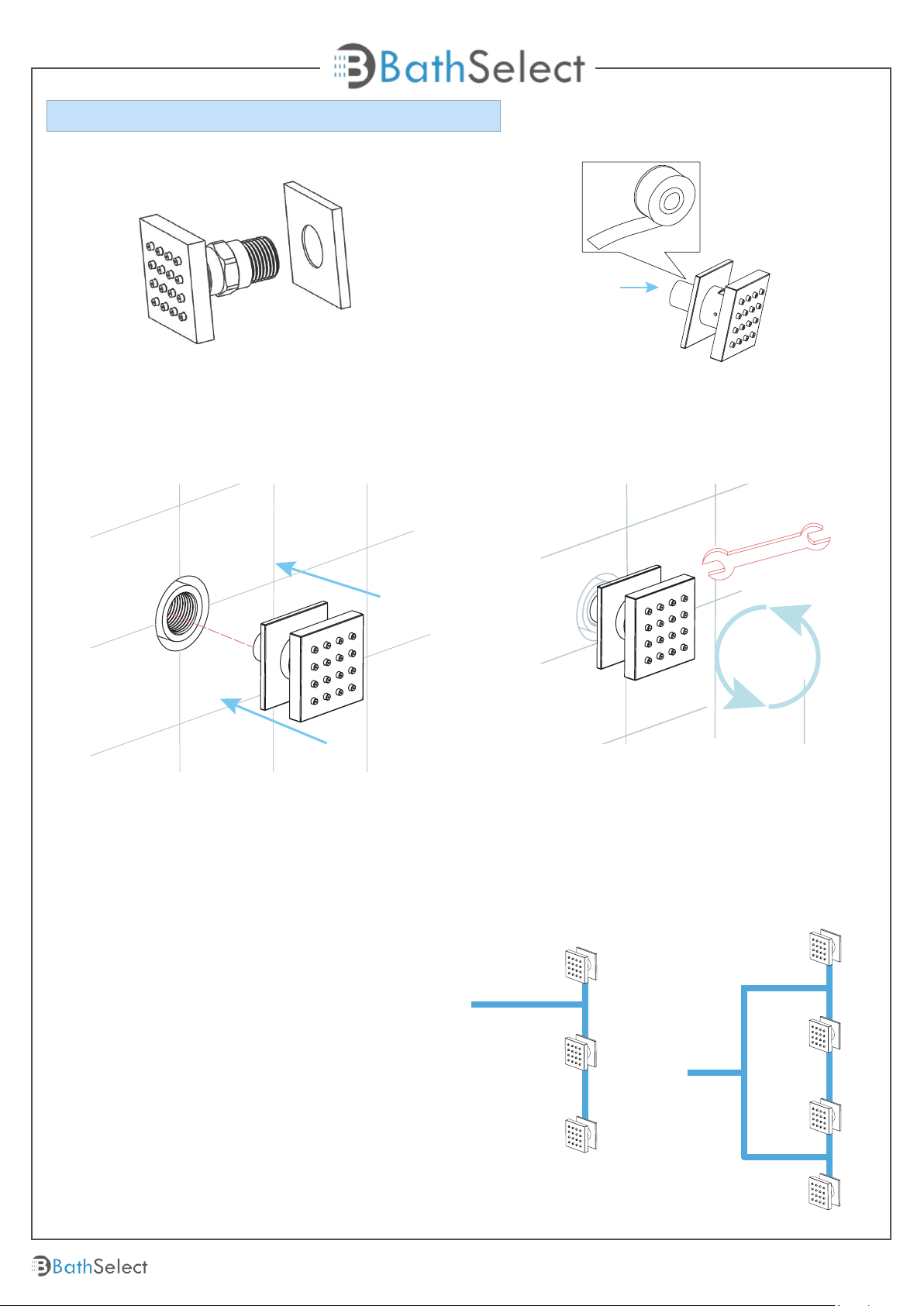

Body Jets Spray Installations Instruction
G1/2
Step 1: Attach the escutcheon to the body
spray.
Step 2: Apply teflon tape to threaded tail pipe
of the body spray
Step 3: Press the escutcheon against the
finished wall
Pressure Balancing Loop:
• If installing bodysprays in a bank of 3 or
fewer, a pressure balancing loop is not
necessary.
• If installing bodysprays in a bank of 4 or
greater, a pressure balancing loop must be
used to keep the pressure even between the
bodysprays.
Step 4: Screw the Body spray tightly into the
female of water Supply
5
Customer Service: 800-500-9895
bathselect.com
Page 6
Appropriate
fitting
To fit
flush
Can be cut
to length

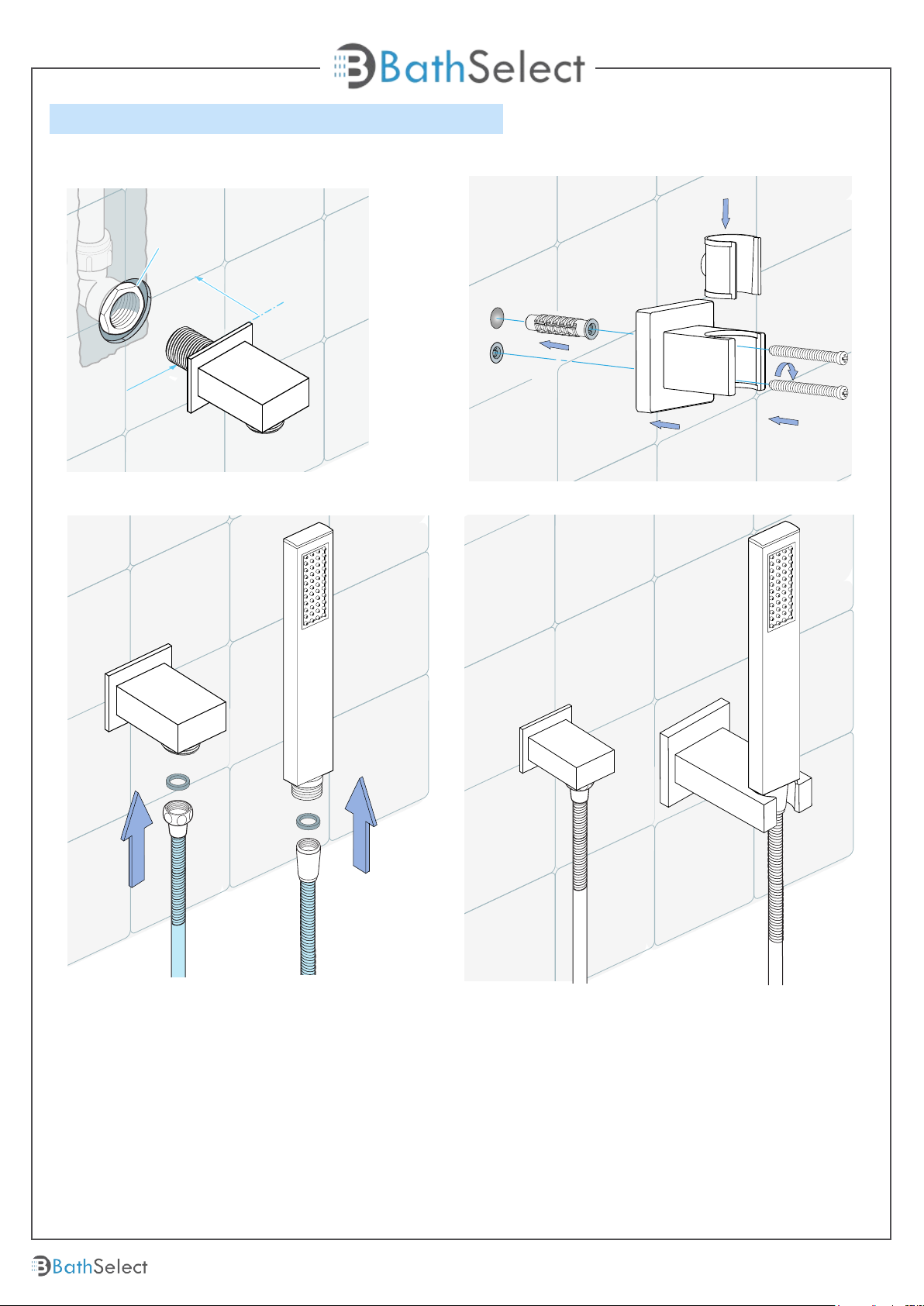

Hand Shower Installations Instruction
Step 1: Wall Elbow Step 2: Wall Bracket
Step 3: Step 4:
Hand Shower Outlet Installation
• Complete the outlet pipework ensuring it ends in an appropriate 15mm x 1/2" BSP female thread elbow.
Note: This fitting is not supplied as variations in installations require the selection of a suitable solder or
compression fitting.
• Install the 'Wall Outlet', thread long male 1/2" BSP into the appropriate female fitting using PTFE tape to
give a watertight joint.
Note: The thread can be cut to size if required. Make sure that all debris is removed from the connector and
the section that has been cut is dressed correctly, before installation.
6
bathselect.com
Customer Service: 800-500-9895
Page 7

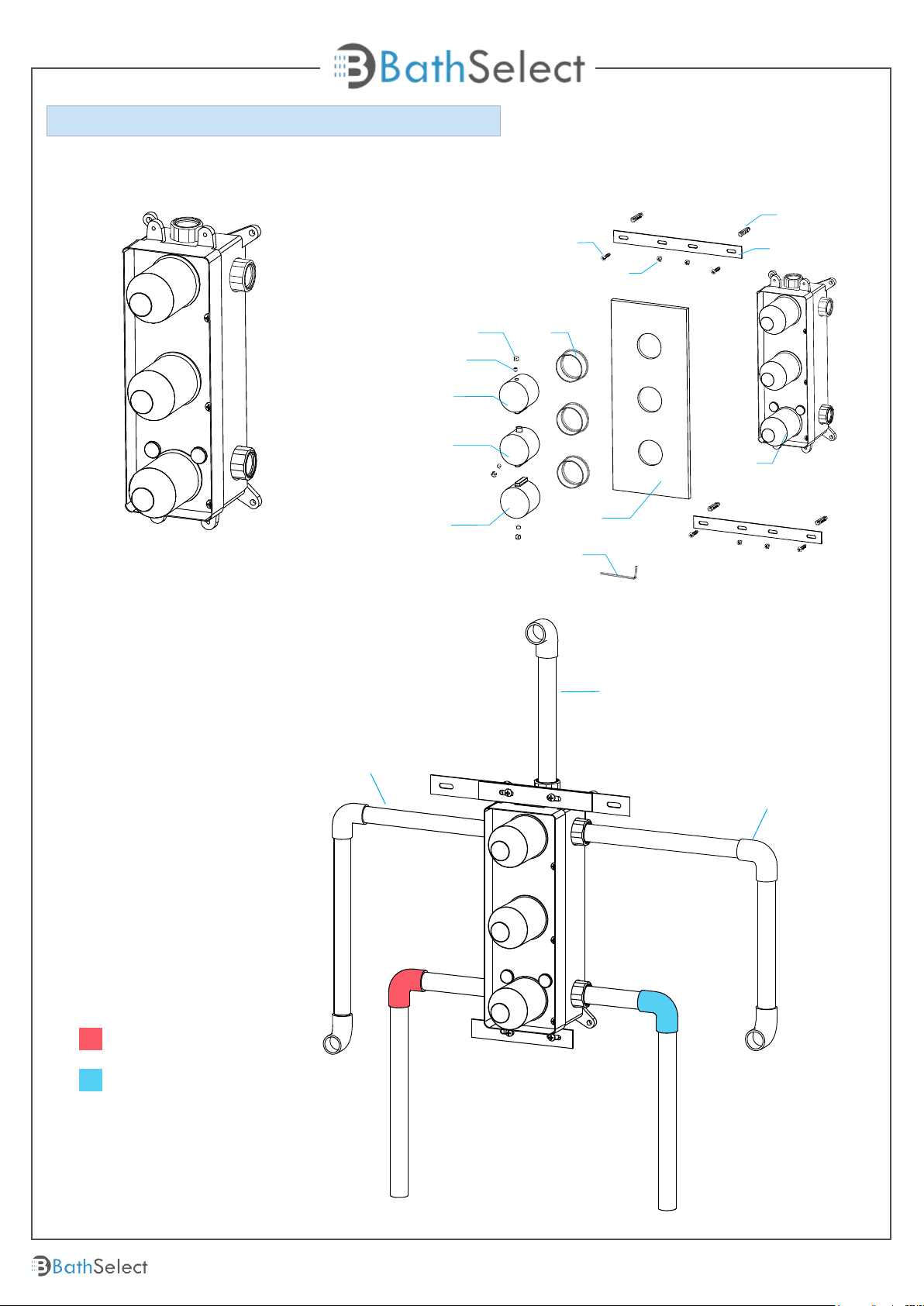

Mixer Installations Instructions
Step 1
Step 3 ( Connection)
Step 2
Tapping Screw 1
Button
Screw 1
Diverter
Handle
Temp.
Handle
On/Off
Handle
Cover
Hex Wrench
Tapping Screw 2
Plate
Anchor
Positioning
Bar
Rough-in Body
Hot water
Cold water
Function 1
Function 2
Function 3
Hot Water In Cold Water In
7
bathselect.com
Customer Service: 800-500-9895
Page 8
Acid

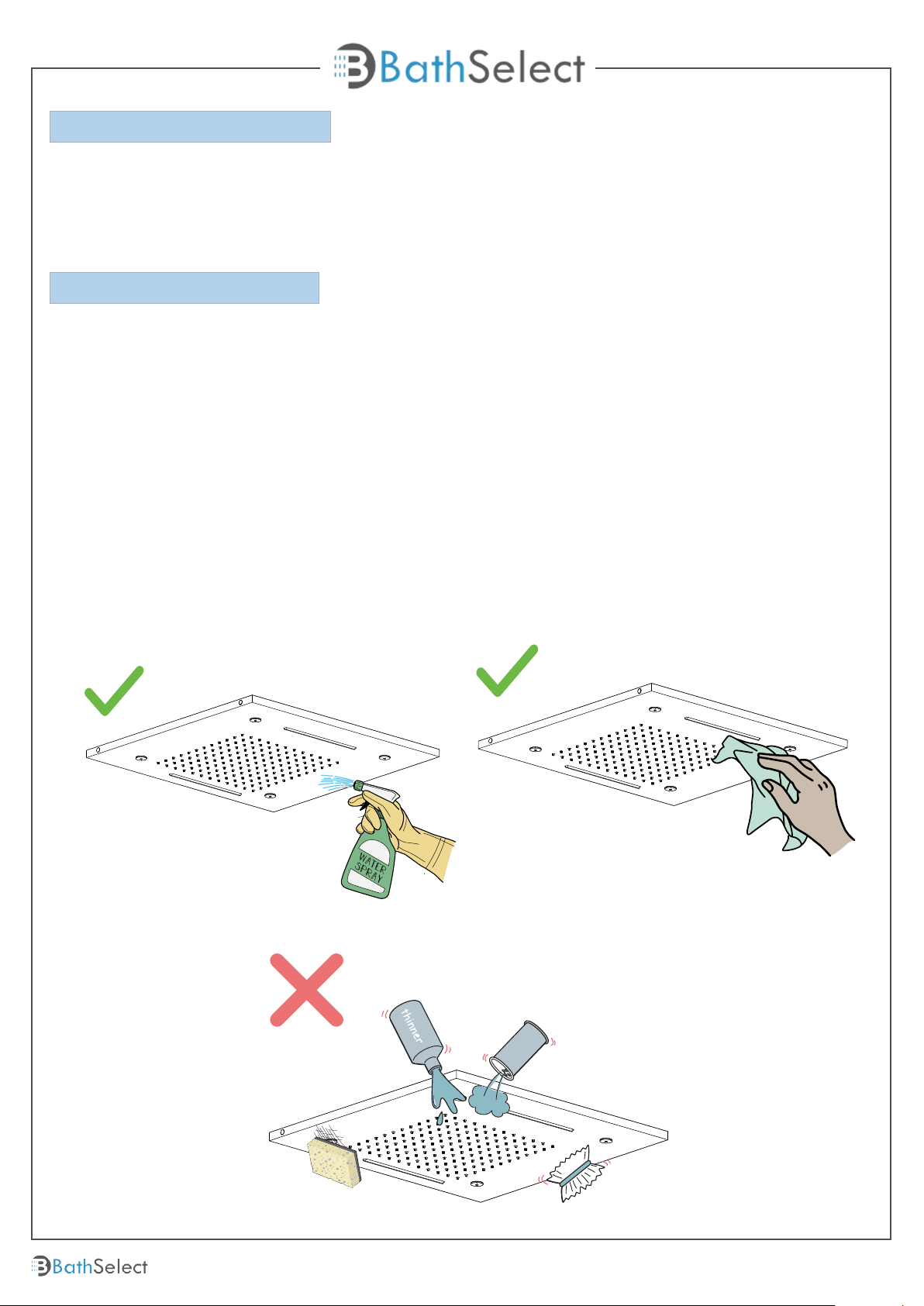

General Information
All products manufactured and supplied by BathSelect are safe and comply to legislative
requirements. Providing they are installed correctly and receive regular maintenance in
accordance with these instructions your user experience will not be affected.
Care & Cleaning
1. The product can be cleaned with warm water, a mild soap and a clean soft cloth.
2. Clean progressively and gently.
3. It is not required to use any abrasive cleaning pads, wire wool or cloths to clean the
product.
4. Avoid a vigorous cleaning action, as this could contribute to denaturing and dulling
5.Abrasive or strong cleaning products containing ammonia, bleaches, alcohol, dyes,
acids (hydrochloric, formic, phosphorus, chlorine or acetic) will be not be affected.
6. If using a spray cleaner, apply the cleaning agent onto a soft cloth, never directly spray
onto the product as the cleaner may enter gaps and openings and cause damage. Do
not allow the cleaner to remain on the product for a period of time. After cleaning, rinse
thoroughly with clean water.
8
Customer Service: 800-500-9895
bathselect.com
