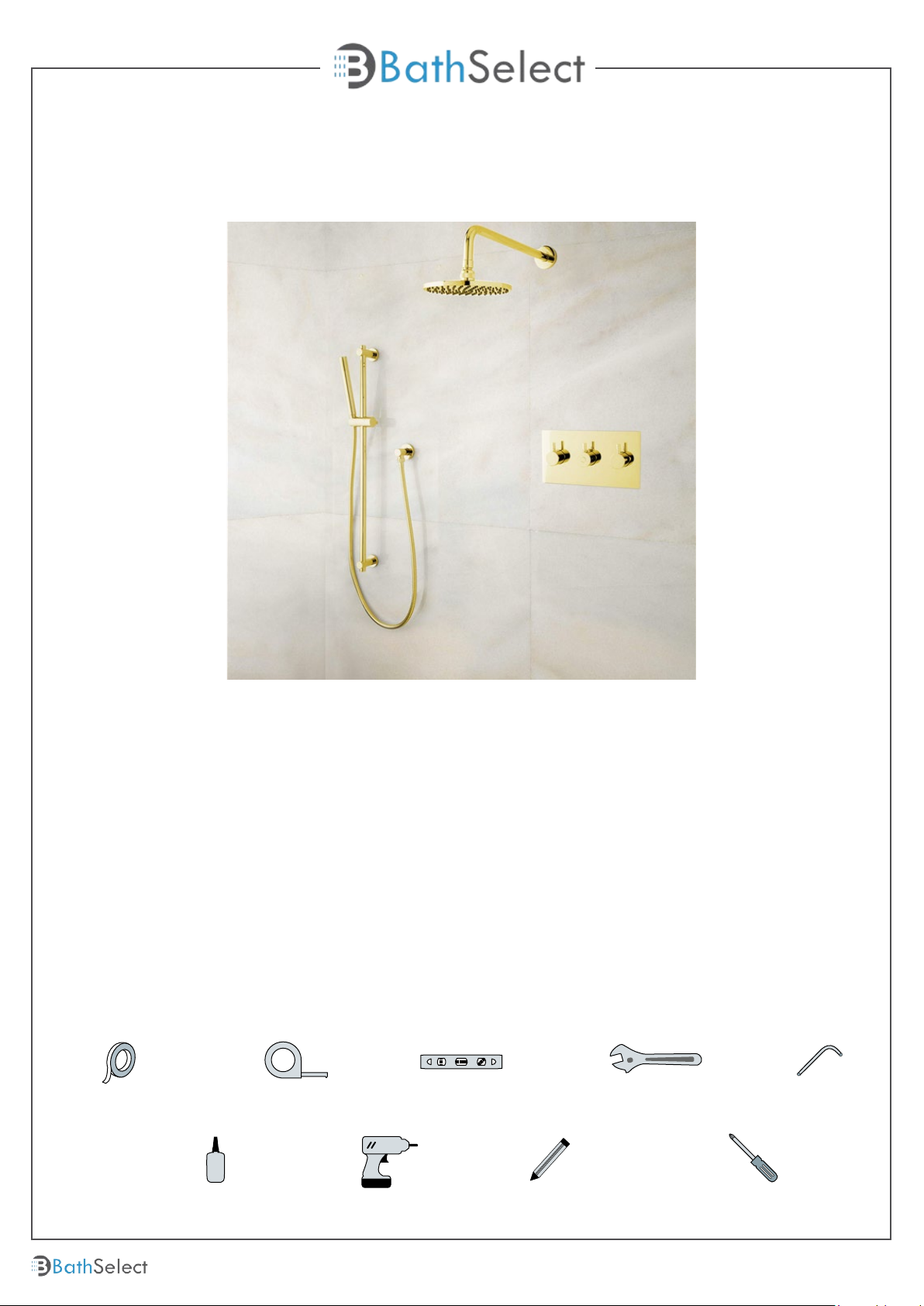

Product code: BST67G
GOLD WALL MOUNT ROUND RAINFALL SHOWER SET WITH
HANDHELD SHOWER INSTALLATION INSTRUCTIONS
PRIOR TO INSTALLATION
Please read installation instructions below. All plumbing should be
installed in accordance with applicable building codes and regulations.
Unpack and inspect the items for any shipping damages. If you find
damages, do not install.
All products must be installed by a professional and certified plumber
otherwise warranty may be voided.
POSSIBLE TOOLS REQUIRED*
Plumbers Tape
Tape Measure
Level
Adjustable Wrench
Hex Wrench
Thread Sealant
Drill
Pencil or Marker
1
Screwdriver
*not included
bathselect.com
Customer Service: 800-500-9895
Page 2

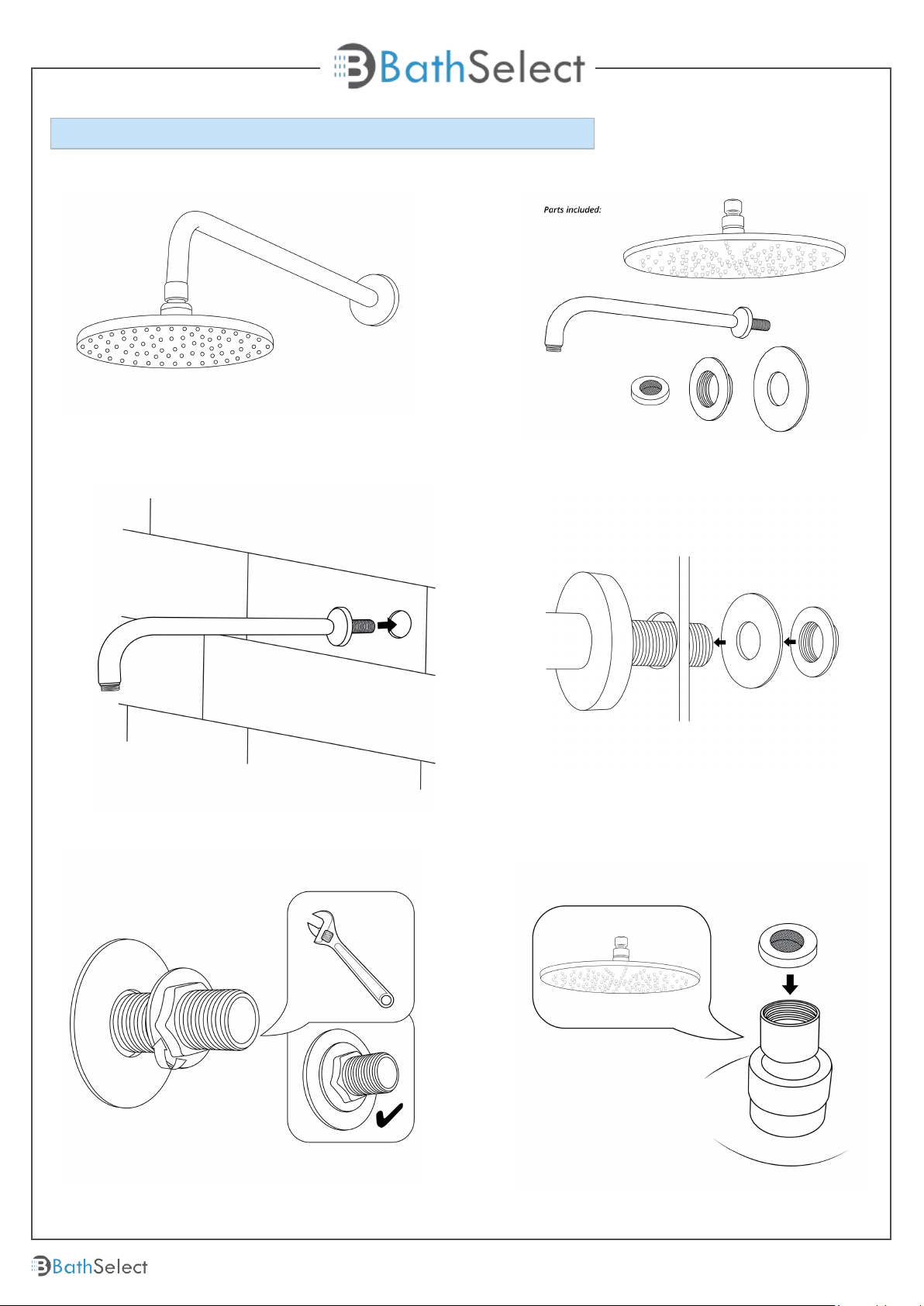

Wall Mount Shower Installations Instructions
Step 1: Step 2:
Step 3: Step 4:
Step 5: Step 6:
2
bathselect.com
Customer Service: 800-500-9895
Page 3

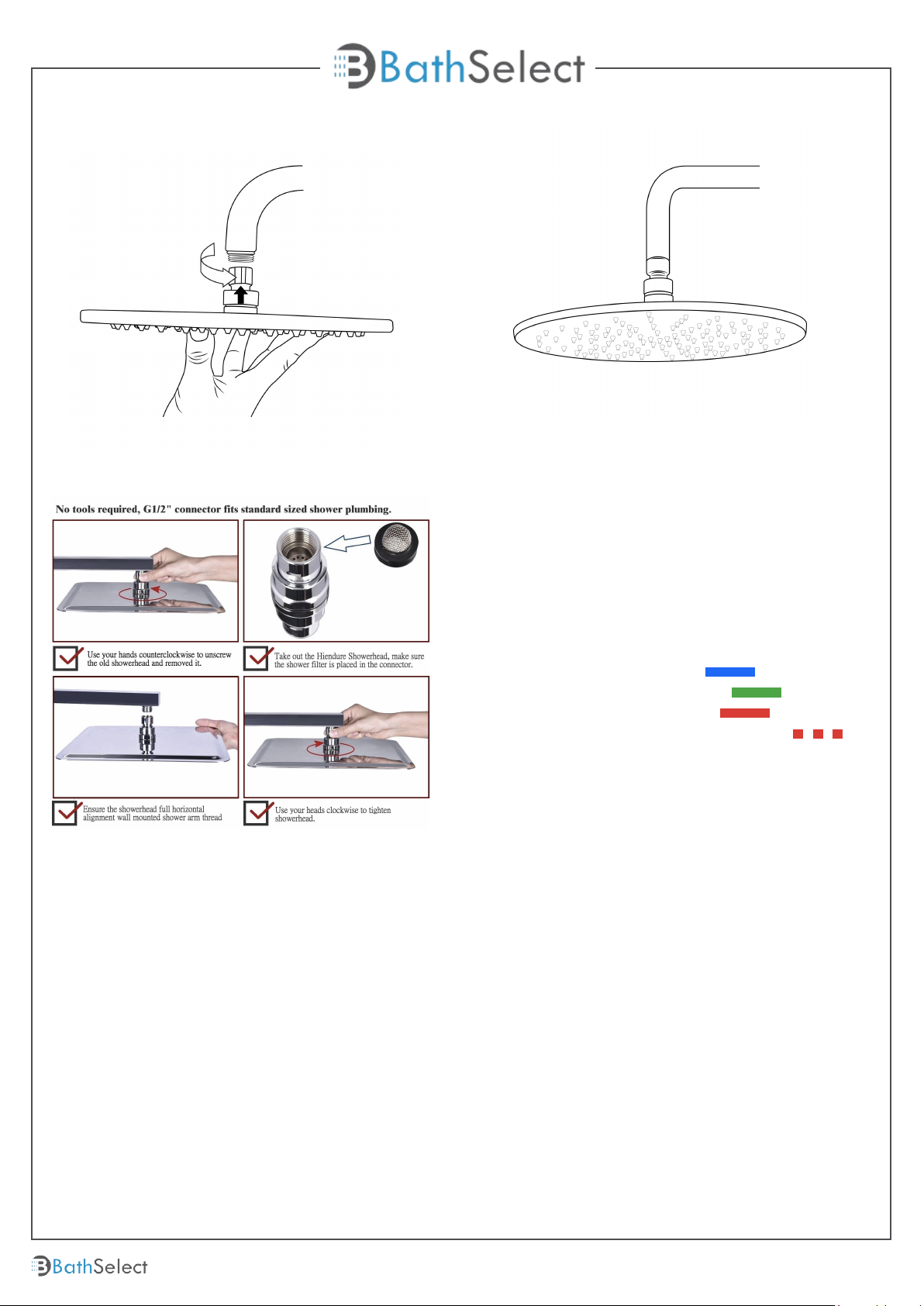

Step 7: Step 8:
Step 9 (Note):
(If you have opted for LED option)
The LED light will change its color by detecting
water temperature:
0-30°C (32-86°F): Blue LED
30-40°C (86-104°F): Green LED
40-50°C (104-122°F): Red LED
50-100°C (122-212°F): Flashing Red LED
Note: The LED lights are powered by water flow,
and will be activated once the water is turned on.
Product shown is only for installation display purpose
1. Remove the old shower head by using the channel lock pliers or monkey wrench. Be
sure to turn the pliers counter-clockwise to loosen the old shower head. (tip: right is tight,
left is loose.)
2. Remove the shower arm by turning it by hand counter-clockwise.Make sure you
remember to apply putty or tape to the new arm. (tip: using teflon tape is less messy)
3. Apply teflon tape to the threading of the shower arm by wrapping it around the threads,
go all the way around 3 or 4 times depending on the quality of the teflon tape.
4. Install the new shower arm by going clockwise by hand until it is tight, then put painters
tape around the arm and tighten the arm with the channel lock or monkey wrench.
5. Place teflon tape around the threads on the shower head and then place the shower
head onto the shower arm by turning the shower head clockwise after the shower arm is
already in the wall.t
3
Customer Service: 800-500-9895
bathselect.com
Page 4
Appropriate
fitting
To fit
flush
Can be cut
to length

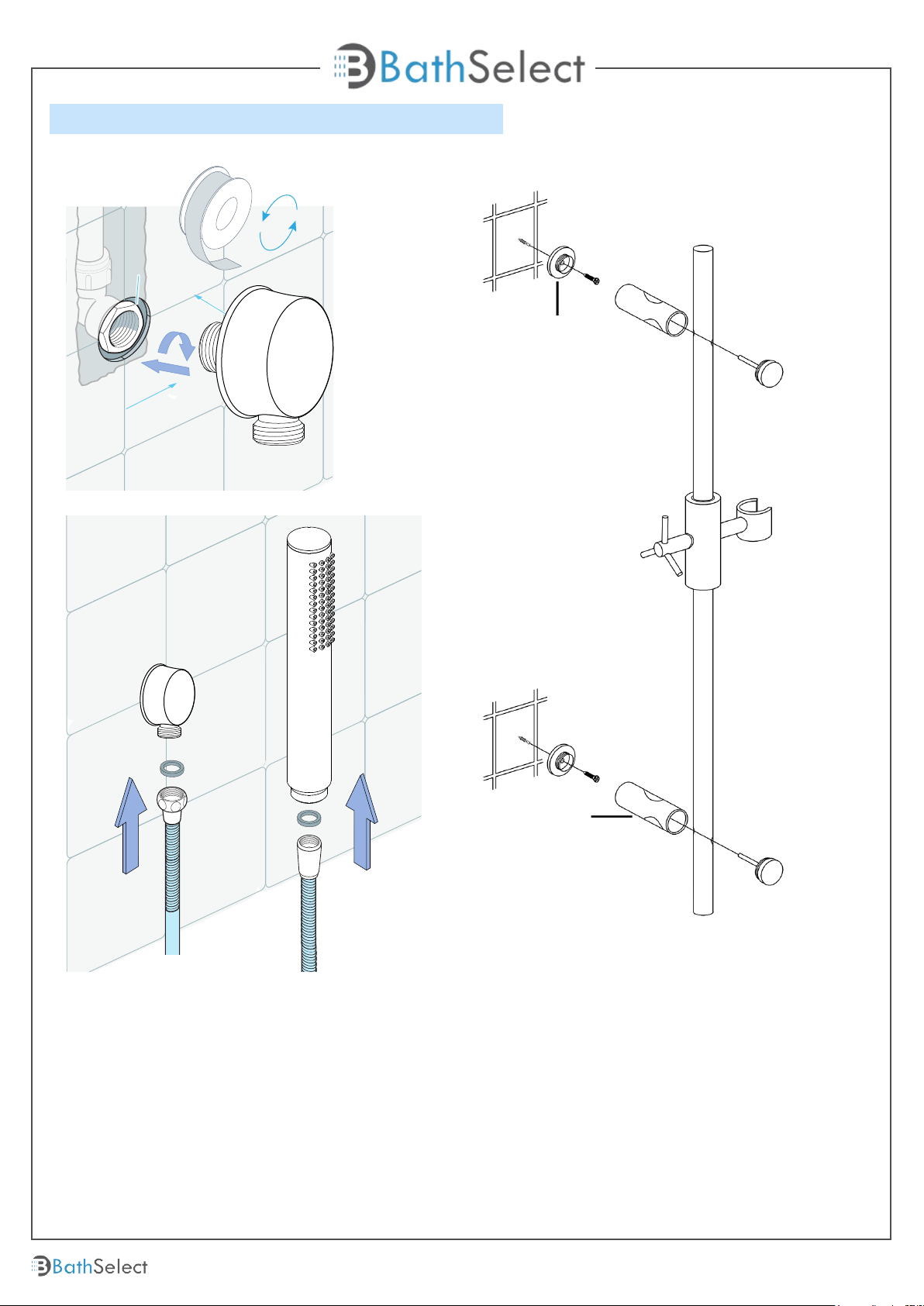

Hand Shower Installations Instruction
Step 1: Step 2:
Back Cap
Step 3:
Cover
Hand Shower
Holder
Slide Bar
End Support
Hand Shower Outlet Installation
• Complete the outlet pipework ensuring it ends in an appropriate 15mm x 1/2" BSP female thread elbow.
Note: This fitting is not supplied as variations in installations require the selection of a suitable solder or
compression fitting.
• Install the 'Wall Outlet', thread long male 1/2" BSP into the appropriate female fitting using PTFE tape to
give a watertight joint.
Note: The thread can be cut to size if required. Make sure that all debris is removed from the connector and
the section that has been cut is dressed correctly, before installation.
4
bathselect.com
Customer Service: 800-500-9895
Page 5

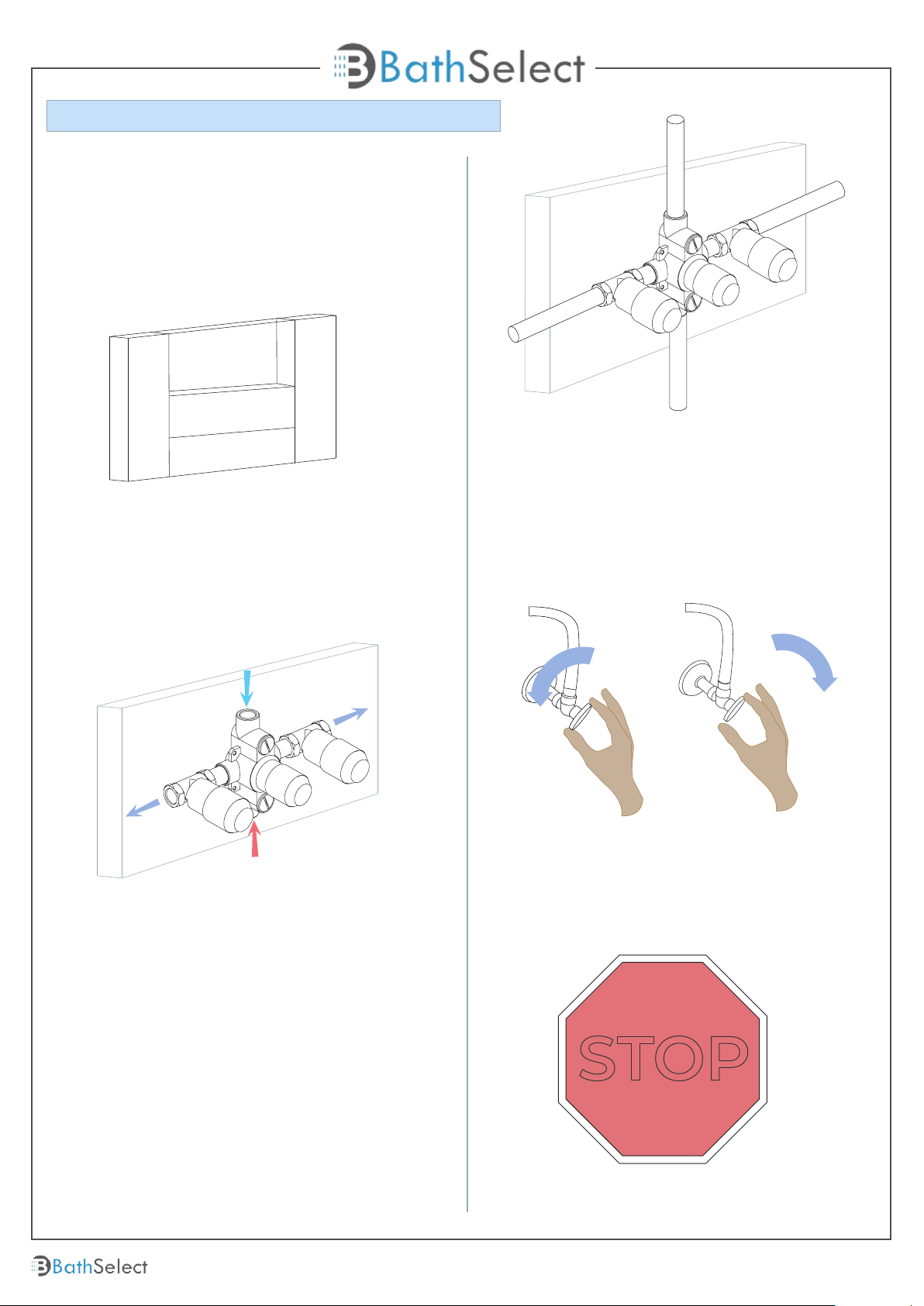

Shower Mixer Installations Instruction
1. To prepare for installation, wood blocking should be
installed between the two studs where the valve will
mount. The wood blocking will need to be installed
2 ¼”-2 ¾” behind the finished wall.
Important: Take into consideration the thickness of the
finished wall materials, such as tile, when calculating
measurements.
2. Secure the valve to the prepared wood blocking using
the provided hardware. Ensure that the “cold” inlet is
pointing down, and the “hot” inlet is pointing up. Use a
level to ensure that the valve is straight and level.
Tip: Leave the protective sleeves on the valve stems until
your finished wall is complete, and you are ready to install
the trim pieces.
cold
4. Once all piping is routed and connections have been
made, use a ½” test plug to perform a water pressure test.
Turn on the main water supply to your home and water
test the installed plumbing. Ensure that there are no
leaks, then shut the water o. Remove the test plug.
Note: Water pressure testing should be performed by a
licensed plumber if you are not familiar with this
procedure.
out
out
hot
3. Route, assemble, and connect all in-wall piping as
desired to and from the shower valve. Make all
connections appropriately depending upon the type of
pipe that is being used. For copper pipe, soldering will be
required and should be completed by a licensed
plumber. Apply plumber’s tape to any threaded
connections if applicable. Install any wood blocking that
is necessary to support the piping and valve.
Important Notes:
A) The valve has two single-function outlets, one exiting
left and the other exiting right. The plumbing for the
hand shower will connect to one outlet, and the
plumb-ing for the shower head will connect to the other.
OFF
ON
Important: Complete the construction of your wall,
including any finished wall materials such as tile, before
proceeding with the remainder of the installation.
STOP
B) Female fittings will need to be placed where the hand
shower’s supply elbow will attach, as well as where the
shower arm will attach. The fittings should sit no more
than ¼” behind the finished wall.
5
bathselect.com
Customer Service: 800-500-9895
Page 6

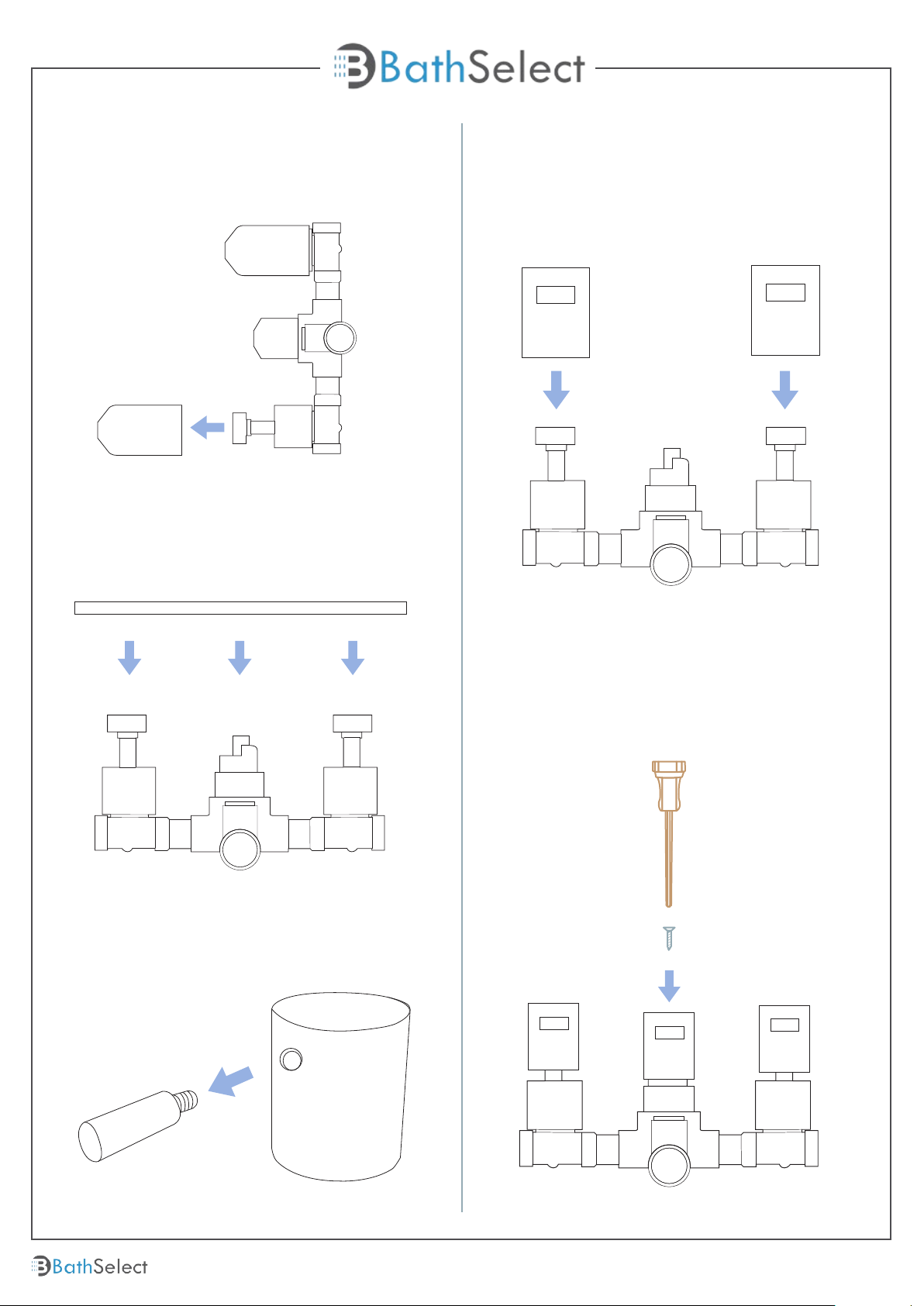

Step 2: Trim Installation
1. Once the finished wall is complete, remove the
protective sleeves from the valve stems. If the test plug
has not yet been removed, remove that as well.
2. Slide the decorative back plate onto the valve. Ensure
that the markings located above each opening on the
back plate are facing up.
4. Slide the knobs onto the left and right spindles. Use the
threaded mounting posts to secure the knobs to the
spindles. Tighten the posts using the provided hex
wrench, then reattach the levers by threading them onto
the posts.
3. Disassemble the left and right control knobs to prepare
for install. Untwist the lever from each knob, then remove
the threaded posts from each.
5. To install the temperature control knob, slide the knob
onto the center valve stem. Use the provided screw to
attach, and tighten with a Phillip’s screwdriver. Insert the
decorative screw cover to conceal the screw.
6
bathselect.com
Customer Service: 800-500-9895
Page 7
Acid

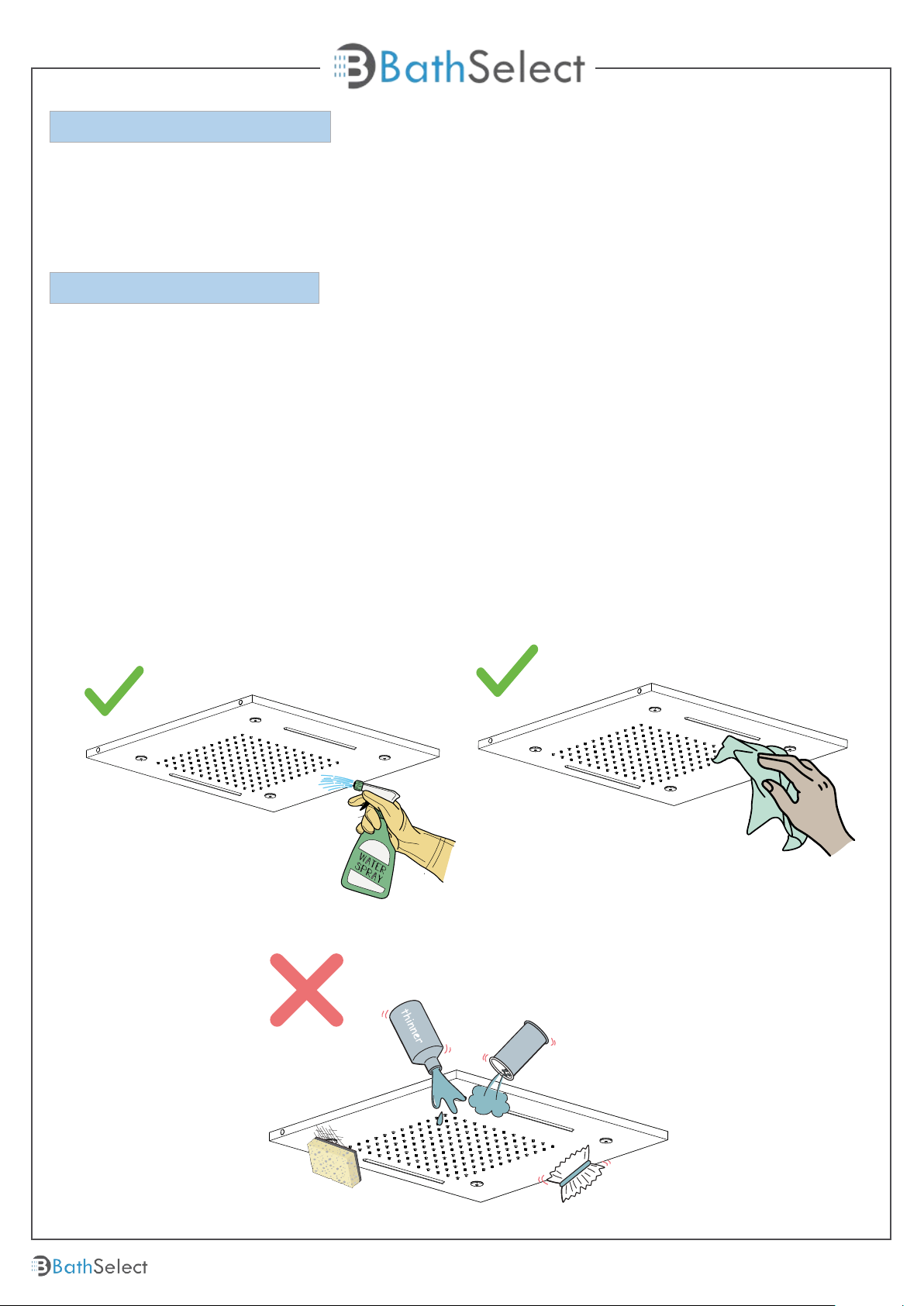

General Information
All products manufactured and supplied by BathSelect are safe and comply to legislative
requirements. Providing they are installed correctly and receive regular maintenance in
accordance with these instructions your user experience will not be affected.
Care & Cleaning
1. The product can be cleaned with warm water, a mild soap and a clean soft cloth.
2. Clean progressively and gently.
3. It is not required to use any abrasive cleaning pads, wire wool or cloths to clean the
product.
4. Avoid a vigorous cleaning action, as this could contribute to denaturing and dulling
5.Abrasive or strong cleaning products containing ammonia, bleaches, alcohol, dyes,
acids (hydrochloric, formic, phosphorus, chlorine or acetic) will be not be affected.
6. If using a spray cleaner, apply the cleaning agent onto a soft cloth, never directly spray
onto the product as the cleaner may enter gaps and openings and cause damage. Do
not allow the cleaner to remain on the product for a period of time. After cleaning, rinse
thoroughly with clean water.
