Page 1
Customer Services
t: 01225 303900
Before you start
It is recommended that the unit and basin are secured to a suitably reinforced wall to ensure stability. Place the furniture
unit in the desired position. Secure unit to the wall through the pre-drilled holes in the rear brace using xings suitable for
the wall surface (not supplied). If in any doubt please consult an expert.
Wear suitable eye protection when drilling. Take care when using power tools near water - the use of a residual current
device (RCD) is recommended. Beware of hidden pipes or cables. Take care when drilling tiled surfaces as the drill might
slip. Use a piece of masking tape to prevent the drill from wandering.

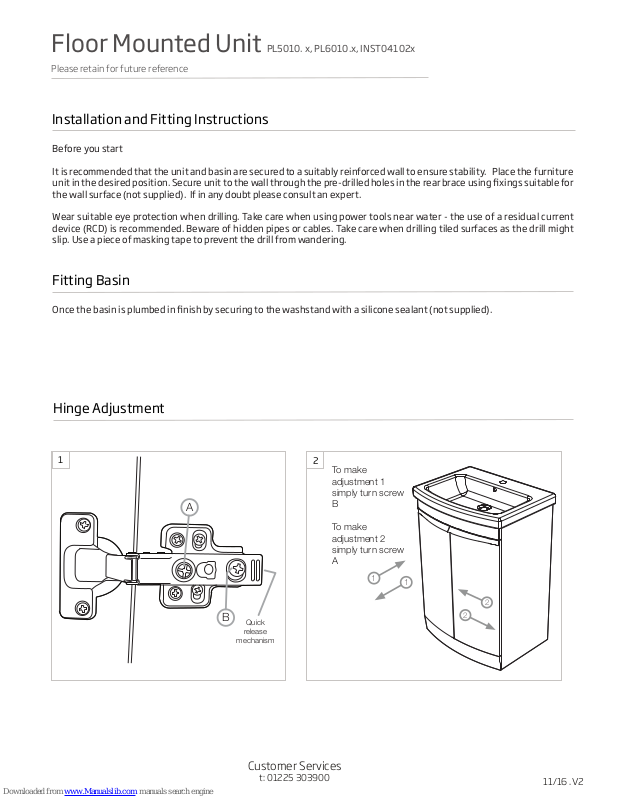

Installation and Fitting Instructions
Floor Mounted Unit PL5010. x, PL6010.x, INST04102x
Please retain for future reference
Hinge Adjustment
1
2
Once the basin is plumbed in nish by securing to the washstand with a silicone sealant (not supplied).
Fitting Basin
Quick
release
mechanism
B
A
1
1
2
2
To make
adjustment 1
simply turn screw
B
To make
adjustment 2
simply turn screw
A
11/16 .V2
Page 2
Customer Services
t: 01225 303900
Replacement components
Should you require any replacement components for this
product please contact customer services using the
contact details below.
As with all wooden furniture, this unit should be treated with care:
Furniture Aftercare Instructions
WAX FREE
POLISH
We recommend...
Wipe away any water splashes or
condensation after use. Excessive
exposure to water will deteriorate the
furniture.
All bathrooms should be well ventilated
with a suitable extractor fan.
Clean with a soft damp cloth only.
Use a wax free polish if one must be
used.
For removal of lime scale deposits use a
suitable proprietary cleaner. If necessary test on an nconspicuous area rst.
WIPE AWAY
Please DO NOT...
BLEACH
CLEANER
CREAM
CLEANER
Do not scrub or scour
Do not use abrasive cleaning agents
11/16 .V2
