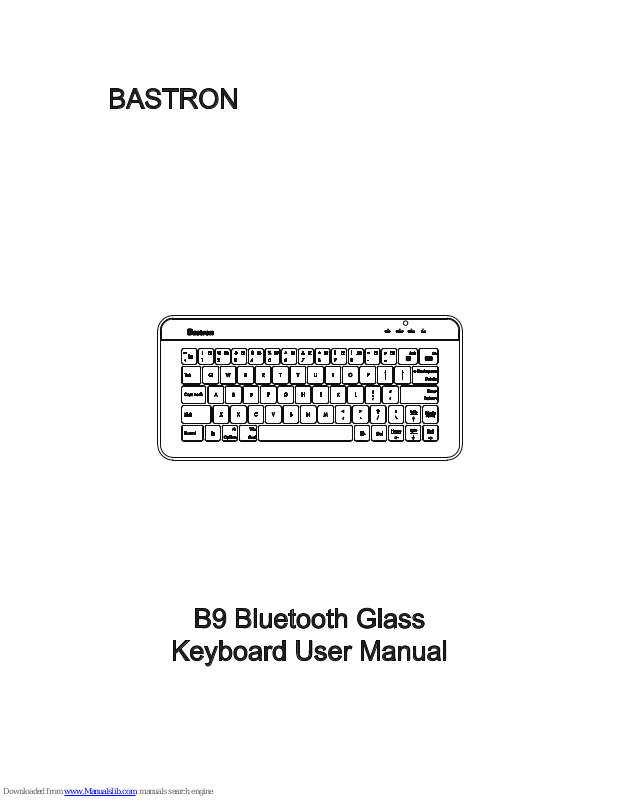

BASTRON
B9 Bluetooth Glass
Keyboard User Manual
To Dear User
Welcome to use our bluetooth glass keyboard,before using it in
the first time,please read the user manual carefully.The glass
keyboard is made of transparent tempered glass,and
combination of exquisite aluminum frame,beauty and
fashion.Supporting for multiple gesture control,can replace of
mouse,it is compatible with Mac OSX and Windows system,to
bring you a whole new different experience.
Package including
☆ 1 x Bluetooth Glass Keyboard
☆ 1 x Micro USB interface cable
☆ 1 x User Manual
☆ 1 x Clean Cloth
Specification
☆ Material: Tempered Glass+Aluminum alloy
☆ Bluetooth Version: 3.0 Transmission Distance: 10m
☆ Working Voltage: 5V
☆ Dimension: 340x162x13mm
☆ Supporting System: IOS / Windows/Mac OSX
☆ Battery Using Time: Around 10 hours
☆ Battery Capacity: 1040mAh
☆ Charging Time : Around 3 hours
☆ Waterproof: Surface waterproof
☆ Surface treatment: Anti-fingerprint coating
☆ Glass Properties: Hardness>6H, Intensity: CS≥
450MPa,DOL≥8um
☆ Working Temperature: -4-140 ℉
A1
Bluetooth mode fast using guide
Bluetooth Connecting:
1.Press the Power button to turn on the keyboard,both
Connect LED and Power LED will light up for 5 seconds,then
Connect LED will begin to flash,now enter into paring status.
2.Select the Settings icon on your tablet/PC/Mobile’s screen.
3.Locate and select Bluetooth from the setting menu.
4.Choose ”Glass Keyboard” to connect under searching
device.
5.Your bluetooth device should now show the keyboard has
connected successfully,then Connect LED will be turn off.
Charging:
1.The Power LED will remain illuminated while the Keyboard is
powered on.
The Power LED indicator will blink when the Keyboard’s
battery needs recharging.
2.The Charging LED illuminates red during charging, and
shuts off when charging is complete.
Notice:
1.To turn off the keyboard, press the Power button in 3
seconds,then the Power LED will turn off.
2.The Keyboard will automatically go into standby mode after
15 minutes of non-use in order to preserve battery life.Just
press Power button to reactivate the Keyboard.
3.If you power-off your Tablet/PC/Mobile, you may need to
re-sync.
4.In Touchpad mode,Caps LED start to flash.
A2
1. Default system: Mac OSX
Default mode: Keyboard mode
2.In Mac OSX system:
LED backlight is bright without touching,it turns dark aftertouching.
In Windows system:
LED backlight is dark without touching,it turns bright after touching.
3. The LED backlight will turn off after 30 consecutive seconds no
touching, it will turn on again after touching.
4. Switching the backlight to open or close status by touching the
sceen with ten fingers.
5. Interruption of power supply saving status: system status, LED
status and LED backlight status feedback. Interruption of power
supply without saving status: function status (press mose key is
setting to touchpad, press keyboard key is setting to keyboard).
Line transmission mode fast using guide
A3
1、B9 keyboard has two functions of keyboard and touchpad, you
need to switch mode when using different function .
2、Note:the touchpad function is only available using Mac OSX and
Windows systems.Not available for use on tablets/smartphones.
3、B9 operation gestures in Mac OSX and Windows systems is
distinguished by watermark.
4、All keys with the underline need to combine with Fn to use.
Mac OSX
Single finger: keep moving is mouse pointer, click with single
finger is left click.
.
switch the mode
Touchpad mode
Keyboard mode
switch the system
Fn +
Fn +
Mac system
Windows system
Gesture Guide
A4
Mac OSX
Two fingers: Click with two finger is right click; Swipe up/down with
two finger is mouse wheel.
Two fingers: (when viewing pictures) Swipe left/right is picture
switching.
A5
Mac OSX
Two fingers:Two finger separate and get close is zoom in and zoom
out.
Three fingers: Select function.
A6
Mac OSX
Four fingers move up for Mission Control or down for Application
Windows.(the system default shortcut is control+↑or↓）
Four fingers move right or left for Move right or left a space.(the
system default shortcut is control+←or →）
B1
Mac OSX
Five fingers: Flick with five fingers is show the desk.(The system
default shortcut: F11)
Five fingers: catch up with five finger is Launchpad(set the follow
steps)
1.System preference/Keyboard/Keyboard choose "Use all
F1,F2,etc.keys as standard functions keys"
2.System preference/Keyboard/Shortcuts/Launchpad&Dock choose
"Show Launchpad"and change to"Control+L"
B2
Windows
Single finger: keep moving is mouse pointer, click with single finger
is left click; Slide came from the right side is super button (Windows
8)
Two fingers: Two finger separate and get close is zoom in and
zoom out.
B3
Windows
Two fingers: Click with two finger is right click; Swipe up/down with
two finger is mouse wheel.
Two fingers: (when viewing pictures) Swipe left/right is picture
switching.
B4
Windows
Three fingers: Select function.
Four fingers: Swipe left/right is switch the task in left/right.
B5
Windows
Four fingers: Swipe up is maximize the current task(Windows
8);Swipe down is minimize the current task.
Five fingers:Flick with five fingers/catch up with fiver fingers is show
the desk.
B6
Ten fingers ：touch the screen at the same time to switch the
backlight
Mac OSX / Windows
B7
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
To assure continued compliance, any changes or modifications not expressly
approved by the party.
Responsible for compliance could void the user’s authority to operate this
equipment. (Example- use only shielded interface cables when connecting to
computer or peripheral devices).
This equipment complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that
may cause undesired operation.
RF warning statement:
The device has been evaluated to meet general RF exposure requirement. The
device can be used in portable exposure condition without restriction.
