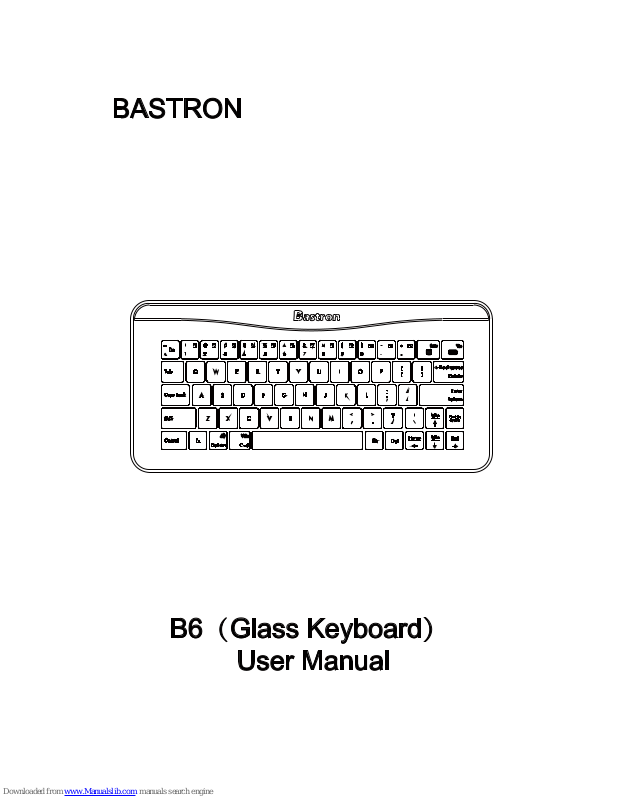

BASTRON
B6（Glass Keyboard）
User Manual
To Dear User
Welcome to use our transparent glass keyboard, before using it in
the first time, please read the user manual carefully, the
information and safety precautions mentioned elsewhere in this
manual will help you make better use of this product.
Package including
☆ 1 x Transparent Glass Keyboard
☆ 1 x User Manual
☆ 1 x Micro USB Interface Cable
☆ 1 x Clean Cloth
Specification
☆ Item No.: B6
☆ Material: Tempered Glass + Aluminum Alloy
☆ Connecting Methods: Micro USB Cable
☆ Product Net Weight : 0.4kg
☆ Product Size: 340mm x161mm x 12mm
☆ Waterproof: Surface Waterproof
☆ Working Voltage: 5V
☆ Power Consumption: ≤150mA
☆ Working Temperature: -20 °C ~60°C
☆ Support System: Windows/ Mac OSX / Android
☆ Glass Capacity: Rigidity> 6H
☆ Intensity: CS≥450mpa, DOL≥6um
A1
1. Taking out the keyboard and USB cable, connecting the
keyboard to your computer. After the keyboard connecting to the
computer successfully, the computer will install the driver
automatically, and it will display the installation status at the bottom
right corner of the computer.
2. Default system: Mac OSX
Default mode: Keyboard mode
3. In Mac OSX system:
LED backlight is bright without touching,it turns dark after touching.
In Windows system:
LED backlight is dark without touching,it turns bright after touching.
4. The LED backlight will turn off after 5 minutes without touching, it
will turn on when touch it again.
5. Interruption of power supply saving status: system status, LED
status and LED backlight status feedback. Interruption of power
supply without saving status: function status (press mose key is
setting to touchpad, press keyboard key is setting to keyboard).
Fast Using Guide
A2
Close / Open LED backlight status feedback
Switching the backlight brightness feedback
Fn
Close / open LED backlight status feedback
Switching the backlight brightness feedback
1、B6 keyboard has two functions of keyboard and touchpad, you
need to switch mode when using different functions .
2、Note:the touchpad function is only available using Mac OSX and
Windows systems.Not available for using on tablets/smartphones.
3、B6 operation gestures in Mac OSX and Windows systems is
distinguished by watermark.
4、All keys with the underline need to combine with Fn to use.
5、Ten fingers touch the screen at the same time to switch the
backlight .
Mac OSX
Single finger：Keep moving is mouse pointer, click with single
finger is left click.
.
switch the mode
Touchpad mode
Keyboard mode
switch the system
Fn +
Fn +
Mac system
Windows system
Gesture Guide
A3
Mac OSX
Two fingers：Click with two finger is right click; Swipe up/down with
two finger is mouse wheel.
Two fingers： (when viewing pictures) Swipe left/right is picture
switching.
A4
Mac OSX
Two fingers：Two finger separate and get close is zoom in and
zoom out.
Three fingers：Select function.
A5
Mac OSX
Four fingers：Move up for Mission Control or down for Application
Windows.(the system default shortcut is control+↑or↓）
Four fingers：Move right or left for Move right or left a space.(the
system default shortcut is control+←or →）
B1
Mac OSX
Five fingers：Flick with five fingers is show the desk.(The system
default shortcut: F11)
Five fingers：Catch up with five finger is Launchpad(set the follow
steps)
1.System preference/Keyboard/Keyboard choose "Use all
F1,F2,etc.keys as standard functions keys"
2.System preference/Keyboard/Shortcuts/Launchpad&Dock choose
"Show Launchpad"and change to"Control+L"
B2
Windows
Single finger：Keep moving is mouse pointer, click with single
finger is left click; Slide came from the right side is super button
(Windows 8)
Two fingers：Two finger separate and get close is zoom in and
zoom out.
B3
Windows
Two fingers：Click with two finger is right click; Swipe up/down with
two finger is mouse wheel.
Two fingers：(when viewing pictures) Swipe left/right is picture
switching.
B4
Windows
Three fingers：Select function.
Four fingers：Swipe left/right is switch the task in left/right.
B5
Windows
Four fingers：Swipe up is maximize the current task(Windows
8);Swipe down is minimize the current task.
Five fingers：Flick with five fingers/catch up with fiver fingers is
show the desk.
B6
