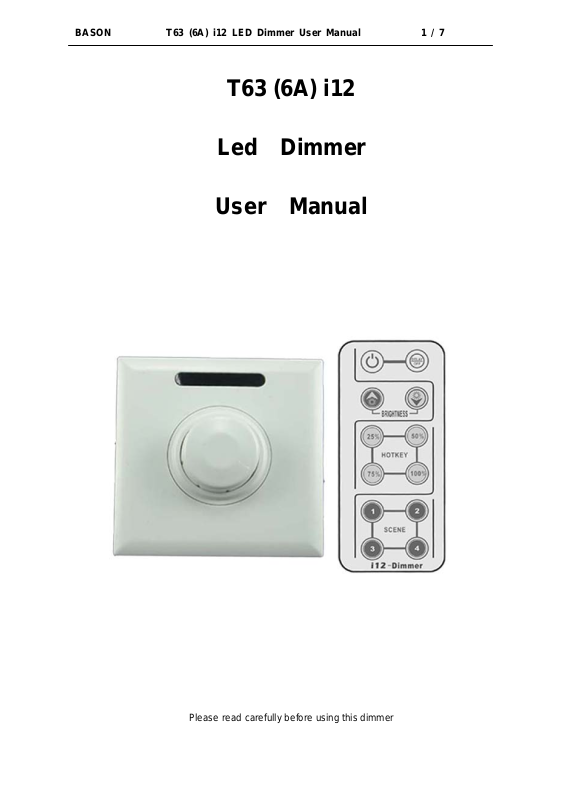

BASON T63 (6A) i12 LED Dimmer User Manual 1 / 7
T63 (6A) i12
Led Dimmer
User Manual
使用本调光器前，敬请通读本手册
Please read carefully before using this dimmer
BASON T63 (6A) i12 LED Dimmer User Manual 2 / 7
z Instructions
Thanks for using T63 (6A) dimmer of our company. Before installation, please read this manual
carefully to ensure fully understand and proper use in order to avoid unnecessary damages to the
dimmer.
Before using, please check to confirm whether there is any damage caused during the transport
process, if there is, please notify your supplier and do not use the product.
z After-sale services
Since the purchasing of the product, the company provides free of charge repair or replacement
service in one year if it is normally used according to the instructions.
If the customer does not follow the instructions and following provisions in this manual, which results
in product damage, the supplier is not responsible for any problems arising therefrom and defects, even
in the warranty period, maintenance costs borne by the customer.
1. Damage caused by misuse, such as not in accordance with the instructions.
2. Damages caused by unauthorized removal, repair, modify of the circuit; incorrect connection and
replacement of the chips.
3. Damage caused by transport, shock, and throw to the floor after purchase.
4. Damage caused by earthquakes, fires, floods, lightning and abnormal voltage.
5. Damage caused by negligence or improper maintenance, such as storage at high temperature and
humid environment, vicinity of hazardous chemical substances.
6. Replacement of products.
z Instructions for safety
To make sure the perfect condition and safe use of the product, please observe the instructions and
reminders on this manual. Operate cautiously and read these instructions carefully.
1. For installation, try to avoid the minefields, strong magnetic field and high-pressure area.
2. Ensure that the wire is connected correctly and firmly in order to avoid short-circuit damage to parts
and posing a fire hazard.
3. Please install controller in a well-ventilated place to ensure the surrounding temperature is moderate.
4. Before using this product, please check the DC power and voltage meet the product technical
requirements; positive and negative polarity is defined consistent to the product.
5. Prohibit live wiring, check to confirm wiring is correct, if no short-circuit, then power!
6. If any problems do not make unauthorized repairs. Any doubts please contact your local supplier.
This manual applies only to this product of our company, subject to changes without notice.
BASON T63 (6A) i12 LED Dimmer User Manual 3 / 7
z Introduction
T63 (6A) Series Dimmer is a smart RGB three color light controller dedicated to long-illumination
LED light, using the most advanced PWM (Pulse Width Modulation) digital dimming technology, the
dimming can be manually operated, or through infrared remote control. It is applicable to commercial use
and fitted out fitted or dark. The installation of LED Dimmer can meet commercial or home lighting at
different times with different light environment, to extend the LED life span, and save energy; LED lights
of any power can use this dimmer to decolorize.
1. Technology specifications
Type T63(6A) i12
Input voltage DC12V -24V
Output signal PWM
Max load current 6A
Brightness level 256
Dimmer dimension L87*W87 (mm)
Remote dimension L86*W40*H7.0(mm)
Packaging dimension L90*W60*H72(mm)
G.W. 200 g
2. Functions
(1) brightness adjustment from 0 to 100％ with knob + wireless remote control, convenient and
practical.
(2) 256-level gray-scale for soft and delicate lighting without flicker phenomenon.
(3) PWM digital dimming+ designed to eliminate current surges to extend the life span of the LED.
(4) Quick selection of four kinds of brightness 25%、50%、75%、100%.
(5) Four kinds of DIY modes, 30s delay turn-off, panel fluorescence (luminous) direct and many other
human-oriented designs.
BASON T63 (6A) i12 LED Dimmer User Manual 4 / 7
3. Structure
(1).View of master dimmer: (chart 1)
(2).View of remote controller:（chart 2）
BASON T63 (6A) i12 LED Dimmer User Manual 5 / 7
4. Connection diagram of dimmer
(1). Diagram of connection to low power LED: （chart 3）
=
(2).Descriptions for remote controller keys.
BASON T63 (6A) i12 LED Dimmer User Manual 6 / 7
keys names description
ON /OFF
on/off: turn on or off the led dimmer
Under off, press any key to start the dimmer.
DELAY
OFF
BRT+/BRT
-
HOTKEY
SCENE
5. Failure analysis and solutions
Delay/off: Press this key, led will delay turn-off for
30 seconds.
BRT+/BRT -: increase/decrease LED brightness, a
total of 256 level, press and hold can increase or
decrease continuously.
Hotkey: press any key to quickly select different
LED brightness level.
Scene: a total of four keys, press and hold a key for
3 seconds, dimmer light flashes 3 times. This
shows the dimmer has saved the current
brightness of the key on the keypad automatically,
next time press to enter the default brightness
directly, same settings for the other keys.
Failures Analysis Solutions
1.Switching power does not work
2.Reversed polarity of power supply
No light
Brightness of LED
is not consistent
Tips: The effective power of switching power supply is generally only 85% of the marked power, so it
3. Wrongly connected line or poor
contact.
4. The LED light has been bad.
1. Output line is too long to cause the
pressure drop.
2. Line diameter is too small to cause
the pressure drop.
3. Power overload.
4. Controller overload.
1. Check the power for the
switch.
2. Change the polarity of the
power supply.
3. Re-check the line connection.
1. Shorten supply lines or use loop
supply.
2. Calculate the current and
replacement of thick lines.
3. Change for a larger power.
4. Increase a power amplifier.
is recommended in selecting the power supply, the user choose a slightly larger one than the LED load
power, at least for more than 20%!
BASON T63 (6A) i12 LED Dimmer User Manual 7 / 7
6. Packaging
(1).Packaging details (chart 4)
External
Symbol Name Picture
dimension（mm）
QTY Unit
A
T63(6A)
dimmer
I24 remote
B
controller
C manual
(3). Carton packaging (chart 5).
Box packing: 21PCS/carton
31E0RGB
87*87*5.6M 1 PCS
L86*W40*H7.0 1 PCS
A6 sheet 1 PCS
