Baso BAS-6026 Operating Manual

BAS - 6026

(MINI PRINTER)

Operating Manual

BASO ENGINEERING CO.,LTD

<All right reserved in BASO Engineering Co., Ltd.>

THERMAL

PRINTER SPEC

BAS

-

6026

1.

Basic Features

1.) Type : PANEL Mounting or DESK top type

2.) Printing Type : THERMAL PRINT

3.) Printing Speed : 25mm / SEC

4.) Printing Column : 24 COLUMNS

5.) FONT : 24 X 24 DOT MATRIX

6.) Character : English, Numeric & Others

7.) Paper width : 57.5mm ± 0.5mm

8.) Character Size : 5times enlarge possible

9.) INTERFACE : CENTRONICS PARALLEL I/F

SERIAL I/F

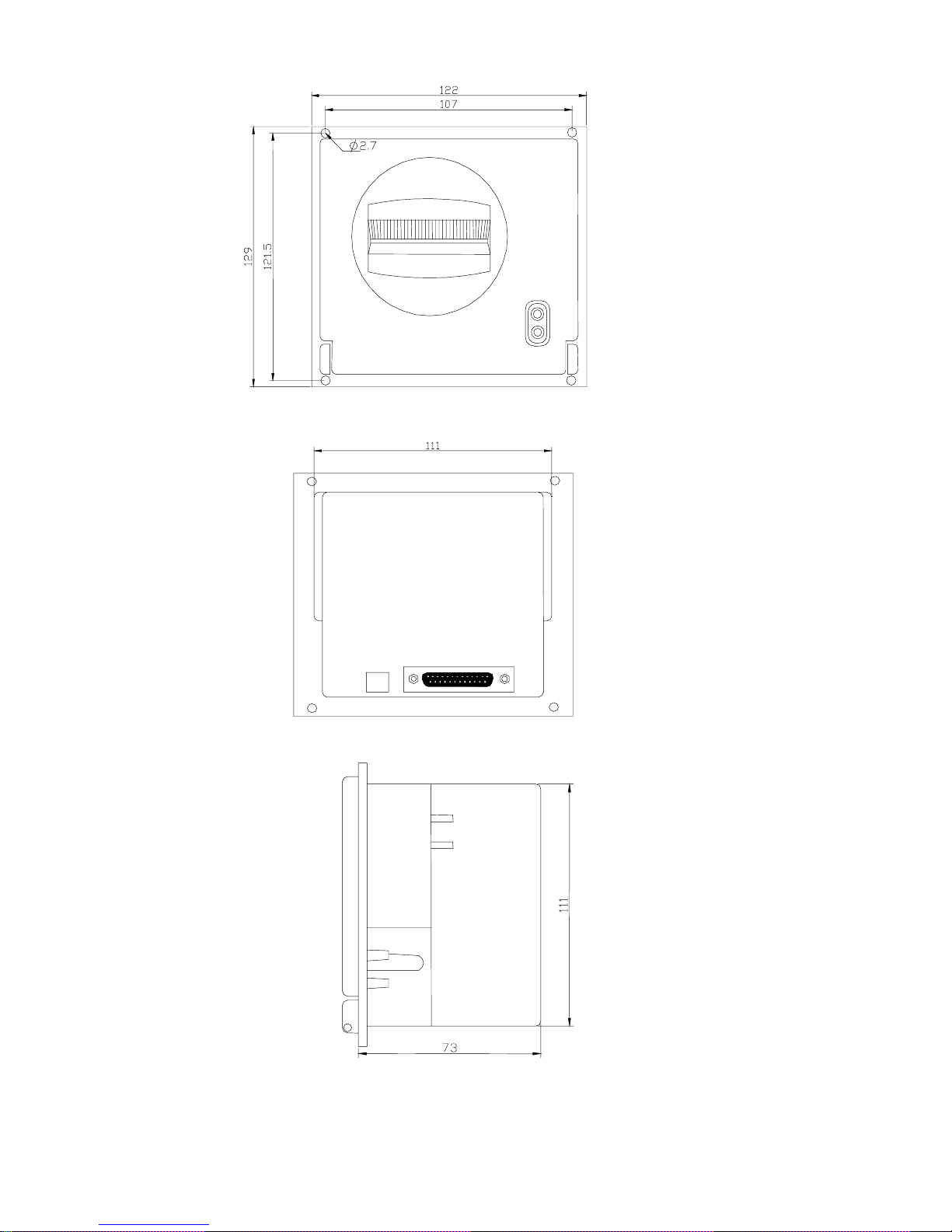

10.) DIMENSION : 122(W) X 90(D) X 129(H)

11.) Operating Temperature range : 0℃ - 50℃

12.) Storage Temperature range : -20℃ - 70℃

13.) Outlet Power : DC 12V ( 1.6 A )/ DC 5V ( 2.5 A)

14.) Application : Indicator, Scale, Factory automation equipments

and any other data recording, etc.,,

- 1 -

1)

SERIAL

INTERFACE

SPECIFICATION

* CONNECTOR : 25 P FEMALE PRINTER : 4 P CONNECTOR

3 ( TXD ) ----------------------- 2 ( RXD ) 2

2 ( RXD ) ----------------------- 1 ( TXD ) 3

7 ( GND ) ----------------------- 4 ( GND ) 5

2)

BAUD

RATE

SELECTION

* PROTOCOL : XON / XOFF Type

DIP SWITCH (4) ON : Combination type * DATA BIT : 8 BIT

STOP BIT : 1 STOP BIT

OFF: Complete type PARITY CHECK : NO PARITY
* DEFAULT VALUE : BAUD RATE

(9600 BPS)

- 2 -

DIP SWITCH

1 2 3

BUAD RATE

ON ON ON 150

OFF ON ON 300

ON OFF ON 600

OFF OFF ON 1200

ON ON OFF 2400

OFF ON OFF 4800

ON OFF OFF 9600

OFF OFF OFF 19200
