BASICLINE TS2030, TS1430 Schematic

COLOR TELEVISION

TS14"-20"

AUTION: THIS SERVICE MANUAL IS ONLY FOR PROFESSIONAL SERVICE PERSONNEL’S

REFERENCE. BEFORE SERVICING THIS CHASSIS, PLEASE READ THE

FOLLOWING NOTICE ITEMS.

1. SAFETY I NSTRUCTION AND GENERAL INSTRUCTION
Before servicing and aligning this equipment, please read the following “X-RAY RADIATION
PRECAUTION” ,”SAFETY PRECAUTION” and “PRODUCT SAFETY NOTICE”.

1.1 X-RAY RADIATION PRECAUTION

1） Excessive high voltage can produce potentially hazardous X-RAY RADIATION. To avoid such

hazards, the high voltage must not be above the specified limit. The normal value of the high voltage

of this receiver is under 24.5kV(21”) and 22.5KV(14”) at zero beam current (minimum brightness),

the high voltage must not, under any circumstances, exceed 30kV.

2） Each time a receiver requires servicing, the high voltage should be checked following the HIGH

VOLTAGE CHECK procedure in this manual. It is recommended the reading of the high voltage be

recorded as a part of service record. It is important to use an accurate and reliable high voltage

meter.

3） The primary source of X-RAY RADIATION in this TV receiver is the picture tube. For continuous

X-RAY RADIATION protection, the replacement tube must be exactly the same type tube as

specified in the parts list.

4） Some parts in this receiver have special safety-related characteristics for X-RAY RADIATION

protection. For continuous safety, parts replacement should be undertaken only after referring to the

PRODUCT SAFETY NOTICE below.

1.2 SAFETY PRECAUTION WARNING:

Service should not be attempted by anyone unfamiliar with the necessary precaution on this receiver.

The following are the necessary precautions to be observed before servicing this chassis.

1) Since the power supply circuit of this receiver is directly connected to the AC power line, an isolation

transformer should be used during any dynamic service to avoid possible shock hazard.

2) Always discharge the picture tube anode to the CRT conductive coating before handling the picture

tube. The picture tube is highly evacuated and if broken, glass fragments will be violently expelled.

Use shatter proof goggles and keep picture tube away from the unprotected body while handling.

3) When replacing a chassis in the cabinet, always be certain that all the protective devices are put

back in place, such as: non-metallic control knobs, insulating covers, shields, isolation

resistor-capacitor network etc.

4) When replacing parts or circuit boards, disconnect the power cord.

5) When replacing a high wattage resistor (oxiode metal film resistor) on the circuit board, keep the

resistor 10mm (1/2in) away from circuit board.

6) Connection wires must be kept away from components with high voltage or high temperature.

7) If any fuse in this TV receiver is blown, replace it with the FUSE specified in the chassis parts list.

1

1.3 PRODUCT SAFETY NOTICE

Many electrical and mechanical parts in the chassis have special safety-related characteristics. These

characteristics are often passed unnoticed by a visual inspection and the X-RAY RADIATION protection

afforded by them cannot necessarily be obtained by using replacement components rated for higher

wattage, etc. Replacement parts which have these special safety characteristics are identified in this

manual and its supplement electrical components having such features are shaded on the schematic

diagram and the parts list.
Before replacing any of these components, read the parts list in this manual carefully. The use of

substitute replacement parts which do not have the same characteristics as specified in the parts list

may create shock, fire, X-RAY RADIATION or other hazards.

2 Alignment items and procedur e

The alignment flow chart (see below figure).

EEPROM copy

B+ check

Focus adjust and aging

High-handed

Field breadth
and field line

White balance and sub-bright

RF AGC adjust

Audio check

VG2 adjust

H-field and center

field and field breadth

Filament voltage

X-radial protect

Picture and audio

Sub-brightness

White balance

OSD center position

Color pure and assemble

Foucs fine adjust

AV (S.DVD)

The button check

Leave factory state setup

Remote control check

check

Assemble check

Safety check

2

3 TEST EQUIPMENT

3.1 AUDIO VOLTAMETER

3.2 OSCILLOGRAPH

3.3 HIGH-VOLTAMETER

3.4 DIGITAL MULTIMETER

3.5 AC ATTACK PULL TEST EQUIPMENT

3.6 SCAN frequency signal generator BT-3

4 Debugging instruction

4.1 enter into the factory debugging m enu

use to the remote control(RC-A23),follow to the blow model enter into the factory:

DISPLAY → MUTE → MUTE → MUTE → enter into the factory

press “sleep” button for pages upward, press “return” button for pages downward, press “CH+/-” to

select alignment items and “VOL+/-” to adjust volume, press “MUTE” to exit.

If the remote sensor designed for alignment is unavailable, press the following buttons to enter by

using user remote sensor

4.2 B+ voltage adj ustment

Check B+ voltage ( negative pole of VD509) by using DC voltmeter DC 200V

14”110 V±1 V CRT 21”PF 100 V CRT A15QDX992X002(H)

21”110 V±1 V CRT 54SX503Y22-CD01 A51LVV898X12

4.3 AGC adjustment

Measure the voltage of RF AGC by connecting digital DC voltmeter with TP1, receive weak signal

(40dBu) and the static AGC voltage of TP1 AGC should be V1=4V±0.2V; the receive medium signal

(60dBu), adjust the value of PAGE8 RF. AGC of factory menu and the start-control voltage of TP1 AGC

should be V2=3.5V±0.2.if V2>3.5V, then the voltage is -1 or -2,if V2<3.5V, then the voltage is+1 or+2.

after adjustment the picture should not appear no-sync , distortion and moire.

White balance and screen-grid voltage VG2 adjustment

After enter PAGE3 of factory menu, use remote sensor directly to adjust white balance by pressing the

following digital buttons:

“1”=R.BIAS(+) “2”=G.BIAS(+) “3”=B.BIAS(+)

“4”=R.BIAS(-) “5”=G.BIAS(-) “6”=B.BIAS(-)

press “pp” button to select picture mode→T1→T2→bright→soft→nature→user→ the current picture

mode will be display on the screen.

The T1 mode has the maximum value of brightness and contrast with all the other items min. Value of all

the analog are minimum while in T2 mode.

Before adjustment you should set the following items :SUB-BRIGHT=50, R.B=100, G.B=100,

B.B=100, R.D=100, G.D=15, B.D=100

Adjustment method: 1. press PP button to select T2 picture mode, press CH+/- to select V.K, press vol+

to let the field scanning fail to oscillate, adjust the screen-grid potentiometer on FBT clockwise to let

horizontal bright line just appear on the screen; let the value of G.B unchanged, adjust R-BIAS and

B-BIAS to let the horizontal bright line appear white. If the green horizontal line don’t appear firstly,

fine-turn the screen-grid voltage, the adjust R.B and B.B until red , green and blue just appear. After

adjustment press VOL- to obtain normal field scanning mode.

4.4 Receive grey-scale signal (D8), enter PAGE4 of factory menu, press PP to select T2 picture mode,

3

adjustment SUB-BRIGHT to let picture on the screen microbright.

4.5 receive white balance adjustment signal

enter PAGE3 of factory menu, press PP to select T1 picture mode, let the value of GD unchange, adjust

RD and B.D to let the white part of the picture appear “white”.

4.6 Use white balancer to rectify the white balance under following conditions

colour temperature:12000K+8MPCD

x =0.270± 0.008 Y=0.283±0.008 dark space : 4.5nit, bright space: 60nit

Note:1. Check the white balance of bright field and dark field by receiving monochrome signal or

adjusting the degree of saturation to minimum under maintenance condition, adjust RGB BIAS in dark

field and RGB DRIVE in bright area, adjust bright/dark balance repeatedly until the bright and dark

field have no colour drift.

2. While the colour saturation changed from maximum to minimum, if the dark balance appears

changeable, adjust RY.DC.LVL and BY.DC.LVL (page3) to let it coincide with white balance.

3. If the dark balance appears changeable while connected with DVD, adjust YUV.BY.DC and

YUV.RY.DC (PAGE4) to let it conincide with white balance.

4.7 High voltage and fi l ament voltage check

Connect a high-voltage meter between anode cap of picture tube and the ground, measure the filament

voltage using rms voltmeter, set the picture mode to “standard”, the high-voltage: 24.5KV±1KV of 21”,

22.5KV±1KV of 14”,filament voltage: 6.3±0.1Vrms.

4.8 x -ray protection check

Receive local TV signal, set the picture mode to “standard”, shorten the circuit and measure the

value of TP1-TP2, restart the TV 30 seconds after turn off the power source and it should return to

normal.

4.9 AV function check

according to the owner’s manual require, connect to the AV equipment and the AV interface:

VIDEO IN: 1 Vp-p 75OHM AUDIO IN: (-8±3)dBm>47 kOHM

S interface Y IN: 1 Vp-p 75OHM C IN: 0.3 Vp-p 75OHM

DVD Y IN: 1 Vp-p 75OHM Cr IN: 0.7 Vp-p 75OHM

Cb IN: 0.7 Vp-p 75OHM

4.10 AV parts check

incept to standard the TV signal:

a） AV and crossfire and allophone and shake ;
b） The user control function ana picture model
c） The remote control function check;
d） Color pure and converge check.

4.11 leave factory state setup

Picture model (PP) STENDARD

language All the country language

Color system AUTO

C.CAPTION C1

CCD ON MUTE OFF

RECEPTION AIR

AFT ON

4

MTS AUTO

PASSWORD CLEAR

volume 30

4.12 the factory menu adjustment model pre-set

OSD item Pre-set model

P1-60

V SIZE 60HZ field amplitude 50 4.5.1

V SHIFT 60HZ field center 0 4.5.1

H-PHASE 60HZ H-center 9 4.5.1

V LINE 60HZ V-line 15 4.5.1

V SC 60HZ field S-correct 10 4.5.1

V COMP field amplitude compensate 7 fixed

L.BLK Left blanking 3 fixed

R.BLK Right blanking 3 fixed

P3-50

V SIZE 50HZ field amplitude 50 4.5.2

V SHIFT 50HZ field center 0 4.5.2

H-PHASE 50HZ H-center 6 4.5.2

V LINE 50HZ V-line 13 4.5.2

V SC 50HZ field S-correct 10 4.5.2

P5

LINE Level bright line 0 0=normal 1= Level bright line

RB Red cut off 100 4.4
GB Green cut off 100 4.4
BB Blue cut off 100 4.4
RD Red driver 100 4.4
GD Green driver 15 4.4
BD Blue driver 100 4.4

P6

RF AGC RF AGC 30 4.3

SUB-BRI Sub-brightness 127 4.4

SUB-CNT Sub-contrast 31 fixed

SUB-COL Sub-colour 15 fixed

SUB-SHP Sub-definition 15 fixed

SUB-TINT Sub-tint 28 fixed

P7

VOL.FIL Volume control ADC filter 0 fixed

OSD.COT OSD contrast 2 fixed

OSD.HPOS OSD center 6 fixed

AFT

VIF SW IF3=45.75MHZ 3 fixed

Line AFC loop gain and sync

gate switch

1

fixed

5

SIF SW Sound IF0=4.5MHZ 0 fixed

VIDEO LEVEL VIDEO LEVEL 3 fixed

P8

GY ANGLE G-Y demodulation angle 0 fixed

V.R TM Filed scan strting time 0 fixed

R/B ANG R-Y/B-Y demodulation angle 8 Fixed

R/B BAL R-Y/B-Ydemodulation balance 8 fixed

C TRAP Color trap filter 6 fixed

H FREQ H-frequency 16 fixed

C.BPF TEST

Color band filter center

frequency

0 fixed

P9

OVER.MOD.SW

OVER.MOD.LVL

BLK.STR

Selection over-modulation

function

Adjustment over-modulation

working point

Dark level expand starting

control point

0 Fixed,0=nothing 1=have

0 fixed

0 Fixed,0=40IRE 2=60IRE 3-OFF

BLK.GAIN Dark level expand gain 0 Fixed,0=MIN 2=MAX

Y.APF Selection color trap filter 0 0=trap filter,1= direct pass(YcbCr&Y/C)

PRE.ADJ Pre-shoot 3 fixed, 0=narrow 3=width

OVER ADJ overshoot 3 Fixed,a 0=narrow 3=width

C.VCO.ADJ

Color VCO frequency

adjustment

4

fixed,0－4－7=-120KHZ-0-90KHZ

P10

BRT.ABL.DEF Brightness ABL 0 fixed,0=ABL ON 1=ABL OFF

MID.STP.DEF ABL start control point 0 fixed

BRT.ABL.THR ABL threshold 7 fixed

WPL.OPE White peak limit 2 fixed

V BLK.SW Field blanking switch 0 fixed ,0=nomarl;1=width model

FBP BLK SW Horizontal blanking switch 1

fixed,0=inside produce;1=FBP and

inside logic “and”

DC REST DC recover rate 1 fixed,0=100% 1=107%

CD.MODE Field frequency division model 0 fixed,0=auto

P11

CORE GAIN Noise reduction 2 fixed,0=OFF 1=MIN 3=MAX

γ.GAMA

RGB TEMP.SW

RGB DC output

temperature speciality

A.MONI SW Selection pin5 output 1

SVO OR FSC Selection pin5 output 0

r-correct 0 fixed,0=OFF

1 fixed

fixed，1=SAO

fixed,0=VIDEO 1=FSC(color sub-carrier wave)

CROSS B/W Selection test signal 0 fixed,0=TV

6

CRAY.MODE Test signal 0 fixed,0=white(75%)1=grey(15%)

P12

BY TV Blue chromatism DC level 8

RY TV Red chromatism DC level 8

BY YUV

RY YUV

S.TRAP.TEST Sound trap filter adjustment 6 fixed

LOW.BRI Min-brightness 28 fixed

LOW.CONT Min-contrast 30 fixed

P13

COL.KILL Achromatic level 5 fixed,0=-30dB 3=-40dB

VCO.FREQ VCO frequency 32 fixed

P14

Y GAIN 0 fixed

Y TH 0 fixed

B OFFSET 0 fixed

B WIDTH 0 fixed

C OFFSET 0 fixed

C WIDTH 0 fixed

CAN.V CHIP V-CHIP 0/1 1=CAN.V-CHIP

OPTION

AV AV selec t io n 3 AV input select(3=AV1/AV2/S/DVD)

MTS MTS IC selection 1/0 0=nothing,1=72700 2=AN5832

V.OFF.MOTE Turn off model 1 0=discharge,1=close

PWR.MEM Turn on model 0/2 0=standby,1=auto turn on,2=memory

1115 select LV1115 0 fixed,0=nothing;1=have

BLCK GROND

N/PN

1115(the unit no use)

VOL.OFFSET

GAIN

PWM LOGIC

AVL M OD E

AVL DET LEVEL

AVL SLOPE

PWM SET

DVD input Blue chromatism

DC level

DVD input Red chromatism

DC level

No signal background

selection

South America and North

America selection

8

8

1

1/0 0=south america;1=north america

4.4 adjustment dark white balance (DVD

4.4 adjustment dark white balance(DVD

0=nothing 1/3=blue background;2=black

4.4 adjustment dark white

balance(TV/AV model)

4.4 adjustment dark white

balance(TV/AV model)

input)

input)

background

7

VOL 1 1% volume control speciality 30 fixed

VOL 25 25%volume control speciality 32 fixed

VOL 50 50%volume control speciality 68 fixed

VOL 75 75%volume control speciality 82 fixed

72700

ALC ALC 1 fixed ,1=ALC ON

VOL

SAP LEVEL SAP level 1 fixed

SIF.M/BB.M SIF and baseband model 0 fixed,0=SIF MODE 1=BB MODE

5832

AGC 1 fixed

Note:above “/” are the adjustment data for north america, below it are for south america.

Baseband model ,input level

adjustment

0 The unit no use

8

IC BLOCK DIA G RAM

LA76931

9

Function introduction to pin

pin function Reference

voltage

(V)

1 SIF output 2.28 64 PIF input1 2.86

2 PIF AGC 2.61 63 PIF input 2 2.86

3 SIF input 3.11 62 IF GND 0

4 FM filter 2.64 61 RF AGC output 4.55

5 FM filter/sound output 2.25 60 Video output 2.30

6 Sound output 2.24 59 AFT filter 2.50

7 SIF APC filter 2.24 58 APC filter 2.60

8 IF VCC(5V) 4.92 57 Black level detection

9 Expanded sound input 2.25 56 Internal video input and

10 ABL 3.21 55 Video, colour and

11 RGB VCC(8V/18Ma) 8.00 54 Expanded video input

12 R ouput 2.65 53 Colour APC filter 3.40

13 G ouput 2.65 52 Selection video output

14 B ouput 2.67 51 Cr input 2.50

15 AKB (undo) 2.31 50 4.43 MHZ crystal 2.73

16 Field sawtooth filter to

capacitance

17 Field output 2.34 48 Y(DVD) input

18 VCO Reference voltage 1.65 47 DDS filter 1.89

19 H/BUS VCC(5V/27mA) 6.81 46 Y(Y/C) input

20 H/APC filter 2.54 45 C(Y/C) input

21 H-output 0.28 44 Retrace impulse input 1.20

22 Video, colour and

deflexion ground

23

x -ray protection,

2.16 49 Cb input 2.50

0 43 CCD VCC 4.50

5.00 42 CPU GND 0

pin function Reference

voltage

(V)

2.50

filter

2.70

S-C input

4.90

deflexion power VCC

2.50

and Y input

2.40

and FSC output

low level availability

24 41 PLL 3.50

25 40 reset 4.00

26 IR control input 4.90 39 Button input 0.32

27 38 TV/AV H=TV L=AV 0

28 POWER H=OFF

0 37 AV1/AV2 5.00

L=ON

29 STAND-BY 5 36 MUTE high level 5.00

10

30 Mute, high

0 35 VDD 5.00

Level availability

31 I2C DATA 5.00 34 x T2 4.50

32 I2C CLOCK 5.00 33 x T1 2.70

KA5Q0565RT

Function introduction to pin

pin name function Reference

1 Drain drain output of MOSFET, current-limiting checking point of

internal drain current.

2 GND source of MOSFET,common ground and reference of circit

controlled by source.

3 Vcc Control cicuit power input, provide starting and stabling

Operating current.

4 Vfb Connect it with inverting input terminal of PWM comparator

,the collector of optical coupler can be connected to

it. To work stably , connect a capacitor between it and

the ground. If the voltage upon it reaches to 7.5V, the

overvoltage protection will work.

5 Sync Connect it with sync detector for quasi-resonance vonversion.

Normal quasi-resonance work, threshold voltage upon sync

comparator is 4.6V/2.6V. while expanding quasi-resonance

operating mode, the threshold voltage will change to

3.0V/1.8V.

Voltage(V)

283

0

23

1.35

5.65

11

AN7522

Pins function

pin function pin function

1
2
3
4
5
6

power

CH1+ output

GND

CH1- output

Stand-by

CH1 input

7
8

9
10
11
12

GND input

CH2 input

volume

CH1+ output

GND (CH2 output)

CH1+ output

LA78040

12

Pins function

pin function pin function

1 Inverting input 5 Ver. output

2 VCC 6 Output stage vcc

3 Pump up output 7 NON inverting input

4 GND

LA72700

pin function pin function

1 AC coupling input 19 dbx RMS detection

2 AC coupling output 20 Dbx main signal V/I charge filter

3 Stereo VCO PLL filter 21 Decoupling filter

4 Pilot level check 22 AC coupling output

5 Signal input 23 AC coupling input

6 GND 24 ALC filter

7 SAP carrier level check 25 R output

8 26 L output

9 SIF decoupling filter 27 Reference voltage(DC3.8V)

10 mute(5V) 28 AC coupling input

11 Serial data input(SDA) 29 AC coupling output

12 Serial clock input (SCL) 30 Voltage regulation filter

13 Decoupling filter 31 VCC(9V)

13

14 Stereo detection sensitivity 32 Model output: MONO=0.9V SAP=2.0V

STEREO=3.0V STEREO+SAP=3.8V

15 SAP detection sensitivity 33 Sub-carrier input(3.579545MHZ 200Mv)

16 dbx RMS detection 34 Filter adjustment check

17 Dbx broad band detection 35 Pilot dispel reference signal1

18 Dbx spectrum detection 36 Pilot dispel reference signal2

14

CRT

A

A

WIRING DIAGRAM

220V/50HZ

POWER SWITCH

XS602

AV P OR T

XS302

A2

S501

BOARDP667-TSC30-01

MAIN

XS301

XS502

XS202

XS701

A1

XS501

DEGASSINGP COIL

XS901

BOARDP667-TS2130-05

S PORT

XS604

N201

XS601

XS201

XS203

KEY

XS902

XS401

CRT PCB

TUNER

XS402

XS606

V BOARD

667-TS2130-29

M108

SPE

-

SCREEN

FOCUS

KER

+

-

+

15

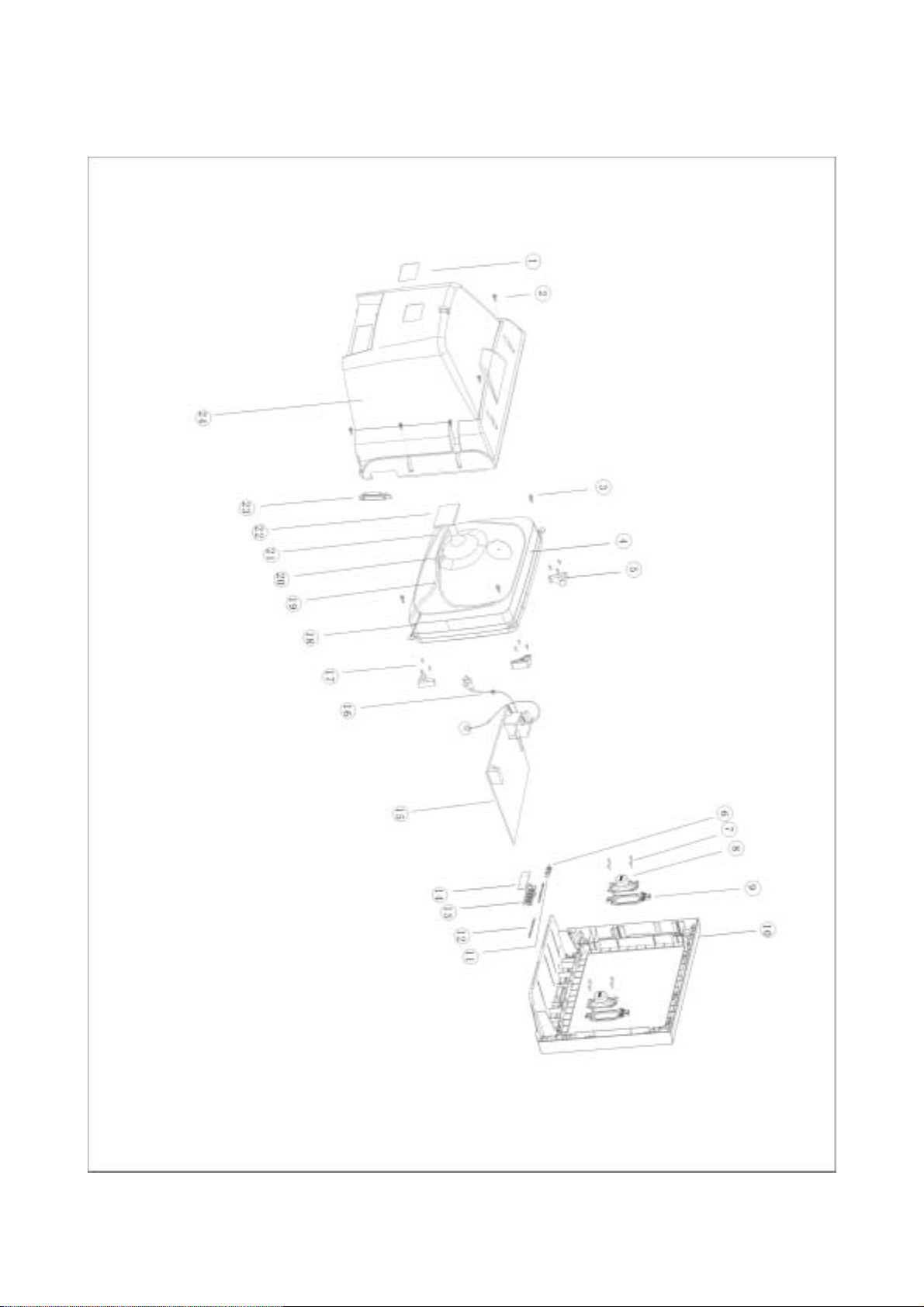

Exploded views

TS1433

16

TS1433 exploded views list

NO. DESCRIPTION NO. DESCRIPTION

1 SCREW 14 SIDE AV
2 CRT BOARD 15 BUTTON ASSY
3 CRT 16 MAIN BOARD ASSY
4 SCREW 17 REAR PANEL
5 CRT FI XER 18 THREDAD CLASP
6 LED COLUMN 19 SCREW
7 POWER SWITCH 20 BRAIDED PULLING SPRING
8 SCREW 21 DEGAUSSING COIL
9 SPEAKER 22 THREDAD CLASP
10 FRONT CABINET 23 BRAIDED PULLING
11 POWER KEY 24 HOLDER
12 SPEAKER 25 REAR CABINET
13 LOGO 26 LABEL

17

TS2026

25

1

24

23

22

21

20

19

18

2

3

4

5

6

7

8

9

17

10

11

12

13

14

16

15

18

TS2026 exploded views list

NO. DESCRIPTION NO. DESCRIPTION

1 SCREW 14 POWER KEY
2 CRT BO ARD 15 FRONT CABIET
3 SCREW 16 SUPPORT
4 CRT 17 MAIN BOARD ASSY
5 THREDAD CLASP 18 MAIN BOARD
6 SCREW 19 CRT FIXER
7 SPEAKER 20 BRAIDED PULLING SPRING
8 RUBBER WASHER 21 DEGAUSSING COIL
9 SPEAKER BRACKET 22 THREDAD CLASP
10 SUPPORT 23 SIDE AV
11 LED COLUMN 24 HOLDER
12 SPEAKER 25 LABEL
13 BUTTON ASSY

19

TS2050/TS2051

20

TS2050/TS2051 exploded views list

NO. DESCRIPTION NO. DESCRIPTION

1 REAR PANEL 14 SPEAKER
2 BACK CABINET 15 FRONT CABINET
3 HOLDER 16 BUTTON
4 CLASP 17 SCREW
5 MAIN BOARD ASSEMBLY 18 BUTTON BOARD
6 CRT 19 POWER SWITCH
7 CRT FIXER 20 SCREW
8 CRT SUPPORT 21 SCREW
9 SCREW 22 DEGAUSSING COIL
10 MAIN BOARD LEADING TRACK 23 CRT BOARD
11 SPEAKER BRACKET 24 SCREW
12 AV BRACKET 25 LABEL
13 RUBBER WASHER

21

TS2053/TS2055

22

TS2053/TS2055 exploded views list

NO. DESCRIPTION NO. DESCRIPTION

1 LABEL 14 BUTTON BOARD
2 SCREW 15 MAIN BOARD
3 SCREW 16 POWER COIL
4 CRT 17 SCREW
5 CRT FI XER 18 BRAIDED PULLING SPRING
6 LIGHT-TOUCH SWITCH 19 BRAIDED PULLING
7 SCREW 20 THREDAD CLASP
8 SPEAKER 21 DEGAUSSING COIL
9 SPEAKER SUPPORT 22 CRT BOARD ASSY
10 FRONT CABINET 23 REAR CABINET
11 LED COLUMN 24 SIDE AV SUPPORT
12 DECORATION PIECE
13 BUTTON

23

WARNING: BEFORE SERVICING THIS CHASSIS, READ THE "X-RAY RADIATION PRECAUTION
"SAFETY PRECAUTION" AND "COMPONENTS SAFETY NOTICE" ON PAGE 1 OF THIS MANUAL.

CAUTION: 1. The shaded areas makes in the schematic diagram and the parts list designate
componentswhich have special characteristics important for safety and should be replaced
only with type identical tothose in the original circuit or specified in the parts list. Before
replacing any of these components,read carefully the COMPONENTS SAFETY NOTICE
on page 1.

2. Do not degrade the safety of the receiver through improper servicing.

ELECTRICAL PARTS LIST FOR MAIN BOARD

MAIN PCB

782-TS2030-010A MAIN PCB

FUSE

569-13141-90 50TT3.15A/250VUL! FU501

POLYESTER CAPACITOR

462-2B422-M0U 250VAC-0.22uF-M! C501

462-83356-H0 CBB21-200V-0.056uF-J C304
462-83433-H0 CBB21-200V-0.33uF-J C339

462-88239-H0 CBB81-1600V-3900pF-J C310
462-00315-H02 CL11-100V-0.015uF-J C216
462-00322-H02 CL11-100V-0.022uF-J C510
462-00333-H02 CL11-100V-0.033uF-J C222

462-00347-K02 CL11-100V-0.047uF-K C512

462-00410-K0 CL11-100V-0.1uF-K C326

462-00410-K0 CL11-100V-0.1uF-K C328
462-B0410-H02 CL21X-50V-0.1uF-J C245
462-B0410-H02 CL21X-50V-0.1uF-J C520

462-B0410-H0 CL21X-50V-0.1uF-J C527
462-B0447-H02 CL21X-50V-0.47uF-J C214
462-B0510-H02 CL21X-50V-1uF-J C217

462-88256-H0 ECWH12H562JR C311

462-2B410-M0U MKP-300VAC-0.1UF-M! C502

CERAMIC CAPACITOR
459-2110H-102 CC45-CH1H101JYR C711
459-2110H-102 CC45-CH1H101JYR C712
459-2110H-102 CC45-CH1H101JYR C713
459-2110H-102 CC45-CH1H101JYR C714
459-2015H-102 CC45-CH1H150JYR C220
459-2015H-102 CC45-CH1H150JYR C221
459-2022H-102 CC45-CH1H220JYR C229
459-2127H-902 CC45-SL1H271JYR C404
459-2127H-902 CC45-SL1H271JYR C405
459-2127H-902 CC45-SL1H271JYR C406

1

459-B147M-20U CD11-B2GA471M-MYAS! C524
459-B147M-20U CD11-B2GA471M-MYAS! C525

459-2210K-002 CK45-B1H102KYR C333

459-5139K-002 CK45-B2H391KYR C306
459-2310R-002 CK45-F1H103ZYR C103
459-2310R-002 CK45-F1H103ZYR C105
459-2310R-002 CK45-F1H103ZYR C106
459-2310R-002 CK45-F1H103ZYR C107
459-2310R-002 CK45-F1H103ZYR C108
459-2310R-002 CK45-F1H103ZYR C207
459-2310R-002 CK45-F1H103ZYR C210
459-2310R-002 CK45-F1H103ZYR C219
459-2310R-002 CK45-F1H103ZYR C224
459-2310R-002 CK45-F1H103ZYR C232
459-2310R-002 CK45-F1H103ZYR C237
459-2310R-002 CK45-F1H103ZYR C241
459-2310R-002 CK45-F1H103ZYR C244
459-2310R-002 CK45-F1H103ZYR C707
459-2310R-002 CK45-F1H103ZYR C709

459-2215K-002 CT1-06-2B4-63V-152K C208

459-2233K-002 CT1-08-2B4-63V-332K C511
459-2322R-002 CT1-10-2F4-63V-223Z C202
459-2322R-002 CT1-10-2F4-63V-223Z C205
459-2347R-002 CT1-14b-2E-63V-473Z C231

459-5182K-002 DD06-999B812K500 C305
459-2410R-002 DD308-63F104Z50 C228
459-2410R-002 DD308-63F104Z50 C230
459-2410R-002 DD308-63F104Z50 C240

459-6147K-00 DE0705B471K1k C514
459-8133K-00 DE0707B331K2K C312
459-6215K-00 DE0905B152K1K C508
459-8210K-00 DE0907B102K2K C410
459-6247K-00 DE1205B472K1K C503
459-6247K-00 DE1205B472K1K C504
459-6247K-00 DE1205B472K1K C505
459-6247K-00 DE1205B472K1K C506

459-B222M-20 ECK-DNS222MEX! C523

459-2120H-902 RBU06SL201J-H46CA C252

459-5122K-002 RQC05B221K-6H46UA C302

459-5168K-002 RQC06B681K-6H46UA C315

459-5168K-002 RQC06B681K-6H46UA C318

459-5168K-002 RQC06B681K-6H46UA C323

459-5168K-002 RQC06B681K-6H46UA C513

459-5168K-002 RQC06B681K-6H46UA C515
459-2039H-102 CC45-CH1H390JYR C201

2

459-2039H-102 CC45-CH1H390JYR C203
459-2047H-102 CC45-CH1H470JYR C226

ELECTROLYTIC CAPACITOR

464-04747-M0R 200USP470MA35 C507

464-6C710-M0 CD110-10V-100uF-M C102
464-6C710-M02 CD110-10V-100uF-M C209
464-6C710-M02 CD110-10V-100uF-M C218

464-6C710-M0 CD110-10V-100uF-M C225

464-6C722-M0 CD110-10V-220uF-M C234
464-6C747-M02 CD110-10V-470uF-M C250

464-6D810-M0 CD110-16V-1000uF-M C519

464-6D810-M0 CD110-16V-1000uF-M C703
464-6D710-M02 CD110-16V-100uF-M C212
464-6D710-M02 CD110-16V-100uF-M C322
464-6D710-M02 CD110-16V-100uF-M C529
464-6D610-M02 CD110-16V-10uF-M C325
464-6D610-M02 CD110-16V-10uF-M C327
464-6D610-M02 CD110-16V-10uF-M C407
464-6D610-M02 CD110-16V-10uF-M C601
464-6D610-M02 CD110-16V-10uF-M C602
464-6D610-M02 CD110-16V-10uF-M C603
464-6D610-M02 CD110-16V-10uF-M C604
464-6D610-M02 CD110-16V-10uF-M C605
464-6D610-M02 CD110-16V-10uF-M C607
464-6D610-M02 CD110-16V-10uF-M C608
464-6D610-M02 CD110-16V-10uF-M C609

464-6D610-M0 CD110-16V-10uF-M C610
464-6D610-M02 CD110-16V-10uF-M C611
464-6D610-M02 CD110-16V-10uF-M C612
464-6D610-M02 CD110-16V-10uF-M C613
464-6D610-M02 CD110-16V-10uF-M C614
464-6D610-M02 CD110-16V-10uF-M C705
464-6D610-M02 CD110-16V-10uF-M C710
464-6D522-M02 CD110-16V-2.2uF-M C704
464-6D722-M02 CD110-16V-220uF-M C606
464-6D622-M02 CD110-16V-22uF-M C211
464-6D733-M02 CD110-16V-330uF-M C233
464-6D747-M02 CD110-16V-470uF-M C319

464-6D647-M0 CD110-16V-47uF-M C255

464-6E822-M0 CD110-25V-2200uF-M C329

464-6F810-M0 CD110-35V-1000uF-M C317
464-6F710-M02 CD110-35V-100uF-M C332

464-6F747-M0 CD110-35V-470uF-M C335

464-6F747-M0 CD110-35V-470uF-M C521

464-60433-M02 CD110-50V-0.33uF-M C227

3

464-60447-M02 CD110-50V-0.47uF-M C236

464-60610-M0 CD110-50V-10uF-M C104
464-60610-M02 CD110-50V-10uF-M C324
464-60510-M02 CD110-50V-1uF-M C204
464-60510-M02 CD110-50V-1uF-M C239
464-60510-M02 CD110-50V-1uF-M C242
464-60510-M02 CD110-50V-1uF-M C243
464-60510-M02 CD110-50V-1uF-M C247
464-60510-M02 CD110-50V-1uF-M C248
464-60510-M02 CD110-50V-1uF-M C249
464-60510-M02 CD110-50V-1uF-M C706

464-60510-M0 CD110-50V-1uF-M C708
464-60522-M02 CD110-50V-2.2uF-M C223
464-60522-M02 CD110-50V-2.2uF-M C238
464-60547-M02 CD110-50V-4.7uF-M C101
464-60547-M02 CD110-50V-4.7uF-M C330
464-60647-M02 CD110-50V-47uF-M C509
464-30447-M02 CD11W-50V-0.47uF-M C235

464-62710-M0 CD288-160V-100uF-M C301

464-62710-M0 CD288-160V-100uF-M C517
464-62547-M02 CD288-160V-4.7uF-M C307

464-65633-M0 CD288-250V-33uF-M C303

464-65547-M0 CD288-250V-4.7uF-M C338

POTENTIOMETER

468-32107-00 EVND8A-A03-B13 RP501

POWER FILTER

477-20028-00U LF21065 L501

TUNER

590-40707-00 115-B-8035AZ T101

DIODE
340-00011-003 1N4002 VD308
340-00001-003 1N4148 VD401
340-00001-003 1N4148 VD402
340-00001-003 1N4148 VD403
340-00001-003 1N4148 VD502
340-00001-003 1N4148 VD506
340-00001-003 1N4148 VD510
340-00001-003 1N4148 VD512
340-00001-003 1N4148 VD601

340-00257-00 BYT56J VD509
340-00079-00 FR103 VD304
340-00079-00 FR103 VD305
340-00079-00 FR103 VD306
340-00079-00 FR103 VD504
340-00079-00 FR103 VD505

4

340-00079-00 FR103 VD507
340-00010-00 S5295G VD313

340-00005-003 S5295J VD301

340-00291-00 TEU2YX VD508

FIXED COIL
477-40031-00 LG750 L301
477-40031-00 LG750 L503

IC
352-78050-00 KA7805(M) N503
352-04310-00 LM431A(M) N504
352-24080-50 M24C08BN6 N202
352-40530-00 TC4053BP(M) N601
352-06210-70 TLP621-GB(UL)(O)! N502
352-05740-00 uPC574(D) VD101
352-75220-00 AN7522N(M) N701
352-07400-10 KA5Q0740RT N501
352-76931-00 LA76931 N201
352-78040-70 LA78040N(D) N301

RELAY

457-12019-90 JQX-14FF-012-1HS! RL01

METAL RESISTOR
467-2E133-H0 1/2W-330Ω-JL R317
467-2F210-H0 1W-1KΩ-JL R315
467-2E001-H0 1/2W-1Ω-JL R321

467-2D418-H03 1/4W-180K-J R513

467-2D239-G0 1/4W-3.9K-G R312
467-2D330-G0 1/4W-30K-G R512

467-2D247-G03 1/4W-4.7K-G R511

467-2D251-F03 1/4W-5.1K-F R213

467-2D282-G0 1/4W-8.2K-G R311
467-2G312-H0 2W-12kΩ-JL R104
467-2G315-H0 2W-15kΩ-JL R413
467-2G315-H0 2W-15kΩ-JL R414
467-2G315-H0 2W-15kΩ-JL R415
467-2G015-H0 2W-15Ω-JL R520
467-2G291-H0 2W-9.1kΩ-JL R301

467-2H239-H0D 3W-3.9kΩ-JL R332

CRYSTAL
329-33204-00 32.768K G201
329-54401-00 JA184.433619MHZ G202

TRANSISTOR
343-10150-104 2SA1015YPr2.5 V202
343-10150-104 2SA1015YPr2.5 V501
343-18150-104 2SC1815-Y V201
343-18150-104 2SC1815-Y V303

5

343-18150-104 2SC1815-Y V503
343-18150-104 2SC1815-Y V504
343-18150-104 2SC1815-Y V505
343-18150-104 2SC1815-Y V507

343-26880-20 2SC2688L V401
343-26880-20 2SC2688L V402
343-26880-20 2SC2688L V403

343-27170-004 2SC2717 V101

343-01800-00 KSE180TO-126 V502

343-23830-604 2SC2383-0 V301

343-21400-00 TT2140 V302

SWITCHING TRANSFORMER

470-00361-00U SR4039C! T501

FUSIBLE RESISTOR
467-4FB33-H0 1W-0.33Ω-JL J046
467-4FB33-H0 1W-0.33Ω-JL R308

467-4F010-H0 1W-10Ω-JL R304

467-4FA24-H0 1W-2.4Ω-JL R306

467-4F001-H0 1W-1Ω-JL R307

467-4FA33-H0 1W-3.3Ω-JL R419

THERMISTOR
469-40004-00 5D2-14LC R502
469-10023-00 96708(9Ω) RT501

PEAKING COIL

471-2068K-10 LGA0410-68uH-K L102
471-2022K-003 SPT0305-220K-5 L201
471-2022K-003 SPT0305-220K-5 L202
471-2027K-003 SPT0305-270K-5 L203
471-2027K-003 SPT0305-270K-5 L204

471-2B56K-003 SPT0305-R56K-5 L101

SAW FILTER

458-07009-00 M1859M Z201

SOLID RESISTOR
467-8E522-H0A 1/2W-2.2M-J! R501
467-8E227-H0A 1/2W-2.7KΩ-J! R416
467-8E227-H0A 1/2W-2.7KΩ-J! R417
467-8E227-H0A 1/2W-2.7KΩ-J! R418

467-8E422-H0 1/2W-220KΩ-JL! R504

467-8E582-H0A 1/2W-8.2MΩ-J! R509

CARBON RESISTOR
467-1C212-H03 1/6W-1.2K-J R106
467-1C212-H03 1/6W-1.2K-J R410
467-1C215-H03 1/6W-1.5K-J R318
467-1C218-H03 1/6W-1.8K-J R708
467-1C410-H03 1/6W-100K-J R101

6

467-1C410-H03 1/6W-100K-J R344
467-1C410-H03 1/6W-100K-J R527
467-1C410-H03 1/6W-100K-J R614
467-1C410-H03 1/6W-100K-J R615
467-1C410-H03 1/6W-100K-J R617
467-1C410-H03 1/6W-100K-J R618
467-1C110-H03 1/6W-100Ω-J R102
467-1C110-H03 1/6W-100Ω-J R103
467-1C110-H03 1/6W-100Ω-J R108
467-1C110-H03 1/6W-100Ω-J R110
467-1C110-H03 1/6W-100Ω-J R218
467-1C110-H03 1/6W-100Ω-J R219
467-1C110-H03 1/6W-100Ω-J R224
467-1C110-H03 1/6W-100Ω-J R228
467-1C110-H03 1/6W-100Ω-J R232
467-1C110-H03 1/6W-100Ω-J R235
467-1C110-H03 1/6W-100Ω-J R401
467-1C110-H03 1/6W-100Ω-J R404
467-1C110-H03 1/6W-100Ω-J R407
467-1C310-H03 1/6W-10K-J R204
467-1C310-H03 1/6W-10K-J R206
467-1C310-H03 1/6W-10K-J R226
467-1C310-H03 1/6W-10K-J R236
467-1C310-H03 1/6W-10K-J R325
467-1C310-H03 1/6W-10K-J R514
467-1C310-H03 1/6W-10K-J R515
467-1C310-H03 1/6W-10K-J R516
467-1C310-H03 1/6W-10K-J R518
467-1C310-H03 1/6W-10K-J R521
467-1C310-H03 1/6W-10K-J R523
467-1C310-H03 1/6W-10K-J R707
467-1C310-H03 1/6W-10K-J R710
467-1C310-H03 1/6W-10K-J R713
467-1C310-H03 1/6W-10K-J R714
467-1C010-H03 1/6W-10Ω-J R309
467-1C010-H03 1/6W-10Ω-J R507
467-1C312-H03 1/6W-12K-J R310
467-1C312-H03 1/6W-12K-J R327
467-1C415-H03 1/6W-150K-J R225
467-1C415-H03 1/6W-150K-J R343
467-1C115-H03 1/6W-150Ω-J R107
467-1C315-H03 1/6W-15K-J R241
467-1C315-H03 1/6W-15K-J R619
467-1C118-H03 1/6W-180Ω-J R211
467-1C210-H03 1/6W-1K-J R202

7

467-1C210-H03 1/6W-1K-J R305
467-1C210-H03 1/6W-1K-J R508
467-1C210-H03 1/6W-1K-J R605
467-1C210-H03 1/6W-1K-J R606
467-1C210-H03 1/6W-1K-J R607
467-1C210-H03 1/6W-1K-J R608
467-1C210-H03 1/6W-1K-J R612
467-1C210-H03 1/6W-1K-J R613
467-1C210-H03 1/6W-1K-J R709
467-1C510-H03 1/6W-1M-J R223
467-1C222-H03 1/6W-2.2K-J R205
467-1C320-H03 1/6W-20K-J R227
467-1C320-H03 1/6W-20K-J R320
467-1C322-H03 1/6W-22K-J R214
467-1C322-H03 1/6W-22K-J R215
467-1C322-H03 1/6W-22K-J R216
467-1C322-H03 1/6W-22K-J R217
467-1C322-H03 1/6W-22K-J R220
467-1C322-H03 1/6W-22K-J R243
467-1C322-H03 1/6W-22K-J R319
467-1C324-H03 1/6W-24K-J R229
467-1C324-H03 1/6W-24K-J R230
467-1C324-H03 1/6W-24K-J R510
467-1C027-H03 1/6W-27Ω-J R109
467-1C239-H03 1/6W-3.9K-J R522
467-1C133-H03 1/6W-330Ω-J R203
467-1C133-H03 1/6W-330Ω-J R326
467-1C333-H03 1/6W-33K-J R328
467-1C033-H03 1/6W-33Ω-J R303
467-1C439-H03 1/6W-390K-J R207
467-1C439-H03 1/6W-390K-J R222
467-1C139-H03 1/6W-390Ω-J R403
467-1C139-H03 1/6W-390Ω-J R406
467-1C139-H03 1/6W-390Ω-J R409
467-1C339-H03 1/6W-39K-J R201
467-1C230-H03 1/6W-3K-J R212
467-1C230-H03 1/6W-3K-J R517
467-1C243-H03 1/6W-4.3K-J R610
467-1C243-H03 1/6W-4.3K-J R611
467-1C247-H03 1/6W-4.7K-J R210
467-1C247-H03 1/6W-4.7K-J R313
467-1C247-H03 1/6W-4.7K-J R402
467-1C247-H03 1/6W-4.7K-J R405
467-1C247-H03 1/6W-4.7K-J R408
467-1C147-H03 1/6W-470Ω-J R505

8

467-1C147-H03 1/6W-470Ω-J R519
467-1C347-H03 1/6W-47K-J R237
467-1C347-H03 1/6W-47K-J R238
467-1C256-H03 1/6W-5.6K-J R105
467-1C051-H03 1/6W-51Ω-J R208
467-1C156-H03 1/6W-560Ω-J R231
467-1C156-H03 1/6W-560Ω-J R234
467-1C156-H03 1/6W-560Ω-J R240
467-1C268-H03 1/6W-6.8K-J R524
467-1C268-H03 1/6W-6.8K-J R525
467-1C268-H03 1/6W-6.8K-J R528
467-1C268-H03 1/6W-6.8K-J R620
467-1C268-H03 1/6W-6.8K-J R711
467-1C268-H03 1/6W-6.8K-J R712
467-1C468-H03 1/6W-680K-J R233
467-1C168-H03 1/6W-680Ω-J R506
467-1C368-H03 1/6W-68K-J R242
467-1C275-H03 1/6W-7.5K-J R330
467-1C175-H03 1/6W-750Ω-J R209
467-1C175-H03 1/6W-750Ω-J R239
467-1C075-H03 1/6W-75Ω-J R601
467-1C075-H03 1/6W-75Ω-J R602
467-1C075-H03 1/6W-75Ω-J R603
467-1C075-H03 1/6W-75Ω-J R604
467-1C075-H03 1/6W-75Ω-J R609
467-1C075-H03 1/6W-75Ω-J R616
467-1C075-H03 1/6W-75Ω-J R621
467-1C075-H03 1/6W-75Ω-J R622
467-1C282-H03 1/6W-8.2K-J R715
467-1C282-H03 1/6W-8.2K-J R716
467-1D227-H03 RT14-1/4W-2.7K-J R302

467-1D251-H0 RT14-1/4W-5.1K-J R526

ZENER DIODE
340-50470-003 HZ5B1 VD503
340-50520-003 HZ5C3 VD201
340-50520-003 HZ5C3 VD309
340-50560-003 HZ6B1 VD202
340-50560-003 HZ6B1 VD203
340-50560-003 HZ6B1 VD204
340-50560-003 HZ6B1 VD513
340-50750-003 HZ7C2 VD307
340-51260-003 HZ12B1 VD515
340-50240-003 HZ2C2 VD514

CRT SOCKET

364-58210-00 GZS10-2-102G! XS403

9

WIRE ROUND RESISTOR

467-6F001-H0 RX21-1-1Ω-J R324

HORIZONTAL DRIVE TRANSFORMER

472-10001-00 XR0961 T302

FBT

472-24209-00U BSC24-3050! T301

LINERITY COIL

477-00065-00 HL1830H-X13 L302

RECTIFIER

340-80022-00 T2SB60 VD501

BUTTON PCB

782-TS2153-0500 BUTTON PCB

TACT SWITCH

360-10001-00 KFC-A06-4X4.5X5B SW901
360-10001-00 KFC-A06-4X4.5X5B SW902
360-10001-00 KFC-A06-4X4.5X5B SW903
360-10001-00 KFC-A06-4X4.5X5B SW904
360-10001-00 KFC-A06-4X4.5X5B SW905
360-10001-00 KFC-A06-4X4.5X5B SW906

CARBON RESISTOR
467-1C210-H0 1/6W-1K-J R902
467-1C222-H0 1/6W-2.2K-J R903
467-1C233-H0 1/6W-3.3K-J R904
467-1C247-H0 1/6W-4.7K-J R905
467-1C282-H0 1/6W-8.2K-J R906
467-1C312-H0 1/6W-12K-J R907
467-1C420-H0 1/6W-200K-J R909

IR RECEIVE PCB

782-TS2153-0900 IR RECEIVE PCB

ELECTROLYTIC CAPACITOR

464-6D647-M0 CD110-16V-47uF-M C901

DIODE

340-00001-00 1N4148 VD902

LED

340-10039-20 HFR205(RED ） VD901

IC

352-38060-60 HRM138BB3006(M) N901

CARBON RESISTOR
467-1C210-H0 1/6W-1K-J R911
467-1C047-H0 1/6W-47Ω-J R913

POWER CARD

491-702D0-02 UL!

10

CRT

335-21234-00U A51QDX993X001H!

11

D

6

R-O

XS01

8

54321

RS18

10K

GS01

RS19

5.1K

27pF

CS27

BVS04

2SC1815

RS20

2.2K

CS28

150pF

RS21

4.7K

E C

CS29

1200pF

RS09

1K

B

VS02

2SC1815

EC

RS08

2K

C

9V

SDA

GND

321

SIF

CS18

2.2uF

VS01

E C

2SC1815

B

B

VS02

RS07

680

2SC1815

L-O

GND

SCL

564

7

B

ZS01

2.2uF

CS17

E C

680

RS05

4.5MHz

ZS02

4.5MHz

CS30 10uF

RS16

36K

JS01

RS15

1.5K

RS17

VS05

2SC1815

E C

18K

RS14

1K

B

A

Number Revisi onSize

B

Title

Date: 6-Dec-2004 Sheet of

File : E: \PROTEL\ LHL.Ddb Drawn By:

LS01

10uH

CS22

47uF

CS21

30

REG

22uF

29

ST.O

CS19

2.2uF

CS20

1uF

28

L+R I

CS25

4.7uF

CS26

1uF

35

36

PLT LVL

PLT DET

34

FIL

0.1uF

CS23

CS24

0.01uF

32

33

FSC I

MODE O

31

VCC9V

27

VREF

RS05

1K

RS04

1K

26

L OUT

CS16

10uF

24

25

ALC

R OUT

CS12

3.3uF

CS13

4.7uF

CS14

23

L-R/SAP

4.7uF

CS15

1uF

19

20

21

22

OF.CNL

SPE I

S.R.DET

DBX O

CS

4n7

NS01

LA72700

DET.1
1

ST.PLL

BB.O
2

PLT DET

3

4

GND

BB/SIF
5

SAP DET

NC

6

7

8

SIF DEM
9

MUTE(H)

10

SDA

11

SCL

12

OFFSET

13

ST.SEN

14

SAP SEN

15

W.R.DET

16

WIDE DET

17

SPE.DET

18

NS01

LA72700

CS02

1uF

CS01

1uF

D

CS04

1uF

RS01

4.7K

0.1uF

CS03

1uF

CS05

CS06

0.1uF

CS07

0.1uF

C

RS02

100

RS03

100

0.1uF

CS08

CS09

22uF

B

CS11

4.7uF

CS10

4.7uF

1 2 3 4 56

A

2W

15K

R413

8

7654321

C714

100p

C713

100p

C712

100p

100p

C711

N701

AN7522

LRV

LV

R

IN OUT

CbYCr

14

XS601

1

XS602

3

3

T101

*

16

2

12

4

IF1

BP

OUT2(+)

GND

OUT2(-)

VOL

IN2

GND

IN1

STB

OUT1(-)

GND

OUT1(+)

VCC

TO MTS BOARD

13

221

4

SDA

SCL

AS

AGC

R416

2.7K

IN4148

VD401

R403

390

V401

2SC2688

E C

1

B

390p

C404

R401

100

R420

4K7

R402

12

R CRT

C401

100p

L+R-R+

L-

XS701

241

3

9V

10K

12

R714

C710

11

C709

10n

10

R713

9

R712

C708

1u/16V

8

10n

C707

7

R711

6

C706

1u/16V

5

C705

4

1K2

R710

3

R709

1K

C704

2

R708

1K8

1N4148

VD704

1

V702

1

5V-1

R707

10K

B

C703

2200u/16V

10K

R705

C702

16V 100u

1

A1015

560K

V701

R703

R702

10K

IN4148

1K

VD701

R701

1

L

R

GND

XS606

21

JUMPERA

10u

C606

220u

75

R609

20

19

C605

10u

R608

1K

C607

10u

18

17

10u

C604

R607

1K

15

5

10u

C603

R606

1K

4

3

C602

10u

R605

1K

1

9

R604

75

8

11

R603

75

10

14

75

R602

13

12

7

5

4

3

C601

10u

75

R601

6

2

1

R621

75

R622

75

11

9V

150

R107

L101

56uH

100

9

R108

BT/LOCK

5K6

R105

C106

L102

7

2W

6

5

4

100

3

R101

1

C101

D

R414

330

TO SPEAKER

10uf/16V

10K

10K

R716 10K

10K

10u/16V

2.2u 16V

C1815

E C

10K

R706

1N4148

VD703

1

1N4148

VD702

R704

10K

C701

16V 47u

SCL

SDA

56478

4.3K
R611

C608

R610

4.3K

L1

GV1 R1

XS603

G

C107

V101

C2717

B

0.01

2W 12K

R104

C105

C104

C103

R103

C102

10K
R102

100K

4u7 50V

D

2W

15K

VD402

B

V402

2SC2688

100

R404

13

C402

100p

G CRT

1234567

N601

TC4053

VD601

IN4148

1

9V

R715

10K

POWER OFF MUTE

9V

SIF

GND

321

FM

9V

SDA1
SCL1

0.01

0.01

C108

E C

R109

27

R106

1K2

100

R110

RD30E

VD101

0.01u

4u7

0.01

100u

IN4148

E C
1

R613

R612

RO
LO

JUMPERB

V OUT

LO

RO

L1

R1

Y-DVD

V1
S-Y

S-C

SDA1

SCL1

A

*

XS302

241

SCREEN

R304

10 1W

B

33

1

2n2

XR0961

3

390p

820

6

V301

2SC2383

3

7

C304

56n 200V

200V

1k

R305

6

1

L301

L2

1

VD301

C339

400V 0.33

1W

R301

9K1 2W

(390)

C313

C312

(390)

*

C311

5n6

C310

3n3

C309

470 2KV

E C

2

4

C307

160V 4u7

3W

R332

3K3 3W

2K7

R302

E C

B

Number Re visionSize

D

Title

Date: 6-Dec -2004 Sheet of

File: E:\PROTEL\LHL.Ddb Drawn By:

C301

33u 160V

C302

220p

S5295J

C303

33u 250V

1

C338

S5295G

250V 4u7

VD313

B+

ABL

68K

R344

150K

R343

B+

R516

5K1 1/4W

R526

5K1 1/4W

B

R510

24K

E C

1

V505

C1815

TBY56J

VD510

R513

180K

R512

14V

HZ6B1

VD514

1000u 25V

C519

C517

C514

1n 1KV

C518

103p

FR103

1

VD508

VD509

16

12

*

1

*

5

R507

10

IN4148

VD505

1

1

VD504

FR103

1 2

5

4

3

2

N501 KA5Q0565RT

341

1

4n7

C506

4n7

C505

4.5

C525

470pF 250V~

R502

4

2

2

L501

C524

1

470pF 250V~

C526

0.1

1K

30K

R511

RP501

R527

100K

4K7 1/4W

2

C527

10n

N504

TL431

3 1

100u 160V

1K

R508

TBY56J

R517

5K6

2

15

*

1

R509

8M2

3

C523

N502

4

3

1

680

R506

HZ5B1

VD503

R529

1W-1K

1W

0.1

C501

3

1

XS501

A

2n2 400V~

*

C511

3300

VD502

IN4148

330

R505

0.022

C510

VD515

HZ12B1

0.047

C512

47u 50V

C509

C508

HZ2C2

VD511

1500pF 1KV

C516

47u 50V

2.2M

R501

FU501

T2.5A 250V~

1 2 3 4 5 6 7 8

1

2

5

100n

C326

R316

R315

1 2

R317

0.1

C328

C329

2200u 25V1WR324

330

R326

C330

4u7 25V

33K

R328

12K

R327

1000

C333

123

VCC

TEST

100

R218

4K7

R216

VD201

HZ5C2

220

C218

10V 100u

0.47u

C215

C212

10V 100u

9V

C211

22u 16V

0.01

5V-2

0.022

C206

B

330

R203

1K

R202

22uH

33K

R908

SW907

AV/TV

POWER

B

*

1

3

1W 1K

1W

L303

1W 1K

1W

L302

330 1/2W

10

R309

1

680p

C323

0.68 1W

15K

TP1

TP1

R310

TP1

TP2

TP2

TP2

HZ7C2

VD307

B

V303

C1815Y

45

A2A1A0

N202

24C08

SCL

SDA GND

678

X-RAY

100

R219

SCL1

SDA1

10K

R243

4K7

R217

REM

5V-2

5V-1

R207

390K

JUMPERC

A OUT A IN

V201

2SA1815

E C

FM

R523

12V

150K

R909

RL01

B

VD306

C324

8K2

R311

10K

4

321 5

*

HV

*

T301

5

3

R308

1 1/2W

1W 3.6

S5295G

R307

680p

C318

10u 50V

C319

470u 16V

4K3

R312

C325

12V

100u 16V

31

4K7

R313

E C

N302

*

FOCUS

9

428

10

R306

1W 2.4

1

FR103

680p

VD304

C315

1

10n

C316

FR103

VD305

27V

C317

1000u 35V

7

C320

10n

24V

TT2140

V302

R303

2

7809

C322

9V

C308

T302

470u 16V

C306

C305

TP9

TP6

POWER OFF MUTE

1

2

3

4

C522

R522

1015

V501

C529

10u/16V

C1815

V503

VD506

1N4148

1

ON

OFF

POWER

BUS DEBUG

XS205

R524

6K8

R525

6K8

B

V504

C1815

E C

R528

6K8

*

R514

10K

R515

5K6

B

V507

C1815

E C

680

R519

75uH

L503

EC

V502

KSE180

HZ6B1

3K9

10K

R521

680

C515

T501

T501

R518

B

NPN2

VD513

2

B

7805

N503

1

10u

R520

15 1W

C520

1W

VD512

IN4148

1

POWER OFF MUTE

C521

470u 16V

680

1

C513

1

FR103

VD507

13

9

10

*

8

*

*

6

7

R504

1/2W 110K

R503

1/2W 110K

1 2

C507

150uF 400V

2

L502

L502

4n7

C504

10K

134

VD501

VD501

E C

2

4n7

GND

C503

0.1

C502

t

3

RT501

PTC

XS502

XS502

C

HV

*

C410

1n 2KV

4

2W

15K

R415

R418

2.7K

2.7K

R417

R406

390

390p

C405

330

R421

4K7

R405

1K

C610

10u

C609

10u

1K

R614 100K

100K
R615

L1

C613

16V 10u

C612

16V 10u

CRT B

CRT G

CRT R

IN4148

R409

390

VD403

E C

1

B

C406

390p

V403

2SC2688

330

R422

100

R407

4K7

R408

14

R410

1K2

B CRT

100p

C403

G

G

R2GL2

V2

XS604

43521

6

75

R616

C611

10u

V1

89

10111213141516

R619

15K

R620

7.5K

9V

AV1/AV2

R618

100K

C614

16V 1u

100K

R617

R1

C221

15p

15p

C220

5V-1

0.1

C245

10K

R246

15K

KEY

S-C

S-Y

R241

1u

C227

1M

R223

C223

50V 2.2

FBP

0.01

C224

100

R228

5V-2

47pF

C226

Y-DVD

C242

10V 220u

C229

18p

V OUT

9V

R231

C239

50V 1u

0.47
C235

R229

24K

V202

A1015

560

50V 1u
C243

R230

24K

C232

47K

47K

10K

R236

R239

680

15

2

3

C409

250V 10u

R412

C407

10u 16V

R CRT

XS401

XS201

5C1

VD202

*****************

G201

*

R222

390K

34

35

C253

68uH

L204

10V 100u

36

10k

R221

37

C244

0.01

39

40

47K

R225

41

100

R224

42

0.033

C222

43

C225

10V 100u

44

20K

R227

45

0.01uF
C219

46

50V 1u

C249

47

50V 1u

C248

750

R209

48

50V 1u

C247

49

C230

0.1
*

50

G202

51

0.1

100

C228

R232

52

0.047

C231

53

R247

2M2

54

0.01

55

22uH

L202

C233

10V 470u

56

R233

680K

50V 2.2u
C238

57

1K
R234

58

0.47

R238

C236

59

R237

60

560

R240

61

0.01
C237

62

63

4

64

*

Z201

2

6

358

G

CRT G

C1815

1K8

V404

R411

E C

B

12K

0.01

C408

G CRT

B CRT

43521

6

*

43521

6

VD705

IN4148

1

VD204

HZ5C1

BGR

5C1

VD203

33

XT1

34

XT2

VDD

35

36

37

38

TV/AV

39

KEY

40

RESET

41

PLL

42

43

FBP INH OUT

44

45

C(Y/C)

46

Y(Y/C)

47

DDS FIL

Y(DVD)

48

49

CB

50

4.43M

51

CR

52

53

C APC

AV IN

54

55

56

V IN

57

58

APC FIL

59

AFT FIL

60

V OUT

RF AGC

61

IF GND

62

PIF IN 2

63

PIF IN 1

64

B

R

CRT R

CRT B

PO4/MUTE

PO5/AV1\AV2

PO6/AN6

PO7/AN7

CPU GND

CCD VCC

LA76931

N201

N201

LA76931

V OUT/FSC

V/C/D VCC

B L D FIL

XS403

CRT

7

R419

N301 LA78040

4

3

3.3 1W

2

1

1K5

R318

HZ5B3

VD309

22K

R319

NON IN

OUT VCC

OUTPUT

GND

PUMP

VCC

INV IN

R226

32

P13/SCL1

31

P12/SDA1

VOLUME

30

P16 PWM3

29

P17 STB

28

P15 POW

P14

27

REM

26

PO3/INT3

PO2 BUS DET

25

PO1/INT1

24

P00 X-RAY

23

GND

22

21

H AFC

20

H VCC

19

VCO IREF

18

17

V OUT

16

V RAMPOSC

15

AKB

14

B OUT

13

G OUT

12

R OUT

11

RGB VCC

10

ABL

9

A IN

8

IF VCC

7

SIF APC FIL

6

A OUT

5

FM/A OUT

FM FIL

4

3

SIF IN

2

PIF AGC

1

SIF OUT

XS301

6

XS402

PIN4

10

22K

R320

7

C327

10u 16V

6

1 1/2W

R321

5

10p

C331

4

10K

R325

3

C332

100U 35V

2

1

IN4002

VD308

1

5K6

R330

C335

35V 100u

1

10K

R235

100

2

XS204

PIN2

C252

200pf

C250

10V 100u

32 33

SCL1

0.01

C240

31

SDA1

30

29

28

27 38

R245

10K

26

25

4K7

4K7

4K7

R214

R215

R220

24

23

22

1u

0.01

C217

R212

3K

C241

21

20

R211

19

0.015

C216

R242 68K

18

R213

1/4W 5K1

17

R2104K7

16

C214

0.47

15

0.1

C246

14

B

13

G

12

R

51

R208

11

10

10K

R206

9

C210

10u

2K2

68uH

R205

C213

L203

8

C209

100u

1500

C208

7

R204

10K

C207

0.01

6

5

C205

0.022

4

1u

39K

C204

R201

3

39pF

C203

2

0.022

C202

1

C201

39pF

L201

REM

KEY

5V-2

5V-1

241

3

XS202

*

PIN4

XS901

241

3

C901

22u 16V

2K

R912

123

47

R913

1

IN4148

VD902

LED

VD901

N901

HRM3806B

1k

R911

312

XS203

*

PIN3

312

XS902

1K

R902

33u

C902

SW901

SW902

VOL-

C

8K2

4K7

3K3

2K2

R904

R903

SW903

CH-

VOL+

12K

R906

R905

R907

SW906

SW904

SW905

CH+

MENU
