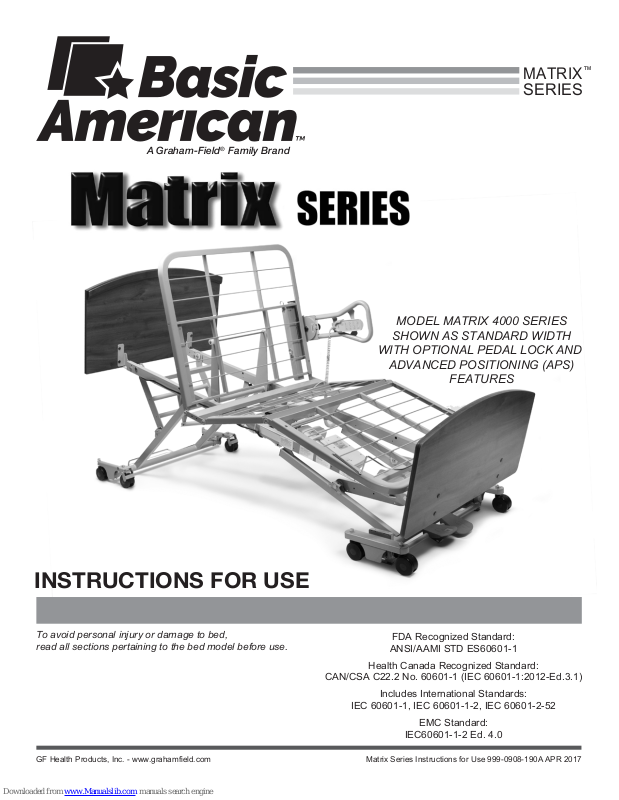

MATRIX SERIES

MODEL MATRIX 4000 SERIES

SHOWN AS STANDARD WIDTH

WITH OPTIONAL PEDAL LOCK AND

ADVANCED POSITIONING (APS)

FEATURES

™

INSTRUCTIONS FOR USE

To avoid personal injury or damage to bed, read all sections pertaining to the bed model before use.

GF Health Products, Inc. - www.grahamfield.com Matrix Series Instructions for Use 999-0908-190A APR 2017

FDA Recognized Standard:

ANSI/AAMI STD ES60601-1

Health Canada Recognized Standard:

CAN/CSA C22.2 No. 60601-1 (IEC 60601-1:2012-Ed.3.1)

Includes International Standards:

IEC 60601-1, IEC 60601-1-2, IEC 60601-2-52

EMC Standard:

IEC60601-1-2 Ed. 4.0

MATRIX SERIES

A Graham-Field® Family Brand

TABLE OF CONTENTS

IMPORTANT SAFETY AND WARNING INFORMATION ................................................................................ 3

IMPORTANT SAFETY AND WARNING INFORMATION ..................................................................... 4

ELECTROMAGNETIC COMPATIBILITY (EMC) INFORMATION ........................................................ 4

ENTRAPMENT AND COMPLIANCE INFORMATION .......................................................................... 5

RECOMMENDED MAINTENANCE ...................................................................................................... 6

MECHANICAL AND ELECTRICAL INFORMATION ....................................................................................... 7

OPERATING CONDITIONS .................................................................................................................. 8

STORAGE AND TRANSPORT CONDITIONS ..................................................................................... 8

DISPOSAL OF EQUIPMENT AND ACCESSORIES ............................................................................ 8

BED SETUP AND OPERATION INSTRUCTIONS .......................................................................................... 9

UNPACKING THE BED (MATRIX 4000 SERIES SHOWN) ................................................................. 9

HEADBOARD AND FOOTBOARD ASSEMBLY / INSTALLATION ................................................... 10

STANDARD MATTRESS RETAINER INSTALLATION ...................................................................... 14

MATRIX 4000 / 6000 SERIES WIREFORM WALLSAVER INSTALLATION ...................................... 15

MATRIX 4000 / 6000 SERIES — OPERATING THE CASTER PEDAL LOCK MECHANISM ........... 15

MATRIX 5000 SERIES WIREFORM WALLSAVER INSTALLATION ................................................. 16

PLUGGING IN THE FOOTBOARD STAFF CONTROL ..................................................................... 17

MATRIX SERIES OPTIONAL ACCESSORIES .................................................................................. 18

MATRIX SERIES HAND CONTROL PENDANT OPERATION .......................................................... 24

BED OPERATION - OPTIONAL STAFF CONTROL PANEL * ........................................................... 25

BED OPERATION - CHAIR POSITION .............................................................................................. 26

BED OPERATION - TRENDELENBURG / REVERSE TRENDELENBURG POSITION ................... 27

MATRIX 5000 SERIES BED OPERATION — STATIONARY / LOW ROLL POSITIONING .............. 28

TROUBLESHOOTING ................................................................................................................................... 31

LIMITED WARRANTY ................................................................................................................................... 34

These Instructions for Use cover the Matrix Series with Standard and Advanced Positioning (APS),

Standard Casters and Pedal-Lock option, for 35" and 42" Wide beds.

The Matrix Series is designed for Adult Patient and Caregiver use.

To order Matrix Series Bed service parts,

contact a GF Health Products, Inc. customer service representative at 1-770-368-4700.

For a list of Matrix Series bed service parts, visit www.grahameld.com.

To order a Matrix Series bed or accessories,

contact a GF Health Products, Inc. sales representative at 1-770-368-4700.

Important Notice: Check all parts for shipping damage and test before using. In case of damage,

DO NOT USE — contact qualied service personnel for examination and repair.

LABEL SYMBOL DEFINITIONS

Consult

Accompanying

Documents

GF Health Products, Inc. - www.grahameld.com Matrix Series Instructions for Use 999-0908-190A

Safe

Working

Load

Double

Insulated

Protected Grounded

Device

Type B

Equipment and

Applied Parts

Instructions

for Use

MATRIX SERIES

A Graham-Field® Family Brand

IMPORTANT SAFETY AND WARNING INFORMATION

This product is a variable height, adjustable mattress

platform. The expected service life of this product is

fteen years. Beds manufactured by Basic American Medical Products are designed for use within an institutional healthcare environment (i.e. assisted living, skilled nursing, transitional care, rehabilitation care, Environment (3), as dened in IEC60601-2-52 Safety Standard.).

The maximum safe working load for the Matrix series bed, including bedding, resident / patient, support surface, and accessories, is 450 lb (204.1 kg), with weight evenly distributed, and maximum patient weight is 400 lb (181.4 kg). Accessory weights follow:

ACCESSORY DESCRIPTION WEIGHT

Extension Kit, Standard Width 12 lb (5.4 kg)

Extension Kit, Wide 14 lb (6.4 kg)

Trapeze Adapter 13 lb (5.9 kg)

Trapeze 16 lb (7.3 kg)

Half Counter-Rotating Assist Device (Set of 2)

Fixed Assist Bar, Head 6 lb (2.7 kg)

Pivoting Assist Bar 10 lb (4.5 kg)

21 lb (9.5 kg)

The bed’s Hand Control Pendant Cable MUST BE

ROUTED AND SECURED PROPERLY to ensure it does not become entangled and eventually severed during use. Also ensure electrical cords DO NOT get tangled around the bed, side rails, or legs during transport or normal operation of the bed.

When using nasal-type or masked-type administering

equipment, all oxygen or air tubing MUST BE ROUTED AND SECURED PROPERLY to ensure the tubing does not become entangled and eventually severed during the normal operation of the bed.

Keep all moving parts free of obstructions (i.e. blankets / sheets, heating blankets / pads, wiring, etc.).

DO NOT use the assist devices as push handles for

moving the bed. Assist devices can be deformed or broken if excessive side pressure is exerted. Assist devices are not meant for patients considered high risks for entrapment (i.e. patients with pre-existing conditions such as confusion, restlessness, lack of muscle control, altered mental status, either organic or medicinal, or a combination thereof). Additional safety measures should be considered for such highrisk patients.

WARNING: To avoid risk of electric shock, this

equipment must be connected to a supply mains with protective earth (i.e. a grounded outlet).

DO NOT open assemblies such as the Actuators,

Hand Control Pendant, or Control Box. If unauthorized personnel perform work on these components, the manufacturer’s warranty becomes

void.

DO NOT use unauthorized parts, accessories, or

adapters other than those specied / authorized by GF Health Products, Inc.

When operating the HI/LO, Knee, or Back Functions

of the bed, ALWAYS ensure the conned individual is positioned properly within the connes of the bed. DO NOT let any extremities protrude over the side or between the bed rails when performing these functions.

The bed should be lowered to lowest position when

resident is left unattended. DO NOT lower the bed when objects are beneath it. Failure to inspect under the bed can result in personal injury or property

damage.

NEVER permit more than one person on / in the bed

at any time.

Body weight should be evenly distributed over the

sleeping surface of the bed. DO NOT allow the patient to lie, sit, or lean in such a way that their entire body weight is placed only on the raised head or foot section of the bed. This especially applies when repositioning or transferring a patient in or out of the bed. Increased risk may occur when the patient’s size and / or weight are inappropriate for the bed’s dimensions or weight capacity.

Risk of entanglement or injury may occur if the

mattress used with mattress retainers does not ll the entire width between stops or which compresses to less than 1.50 inches under user’s weight.

Mattress must be properly sized to t the mattress

support platform and must remain centered on the support platform relative to State and Federal guidelines. Recommended minimum dimensions of mattress are 35-36 inches wide and 6 inches deep. Length and width should match the mattress support platform. Use of an improperly tted mattress could result in injury or death. Standard mattresses are 35 inches wide and 6 inches deep, and wide mattresses are 42 inches wide and 6 inches deep.

GF Health Products, Inc. - www.grahameld.com Matrix Series Instructions for Use 999-0908-190A

MATRIX SERIES

A Graham-Field® Family Brand

IMPORTANT SAFETY AND WARNING INFORMATION

IMPORTANT: Powered air mattress surfaces may

pose a risk of entrapment. Prior to use, ensure the therapeutic benets outweigh the risk of entrapment.

The bed is intended for use within a temperature

range of 10˚C to 40˚C. It has a water resistance rating of IPX4 and IS NOT to be power washed or submerged. The bed may be cleaned as needed using an appropriate dilution of mild soap and water.

The head / back and knee / foot decks can be lifted

freely by hand for easy cleaning access when patients are not in the bed. If you lift the head / back or knee / foot deck for any reason, take great care when lowering back down to the prone position - ensure all body parts are clear of the space between the deck and the bed prior to slowly lowering any deck manually. To avoid injury, DO NOT LET DECKS FALL FREELY FROM ANY ANGLE.

Notice for California Customers - California

Proposition 65 WARNING: This product contains a chemical known to the State of California to cause cancer and reproductive or developmental harm.

WARNING: ALWAYS position bed so that the power

cord and plug are easily accessed.

Proper routing and tie-off of electrical cabling,

especially the power cord, is essential for proper operation and to ensure safety from electrical shock. In the event you are replacing any electrical cabling on your bed, you must ensure the cables are free from pinch points, obstructions, or stretched so tight that they may come loose or become damaged. In addition, cables should be tied off in such a way to secure them and keep them free from tangling on any part of the bed during normal operation. Refer to pages 27 and 28 for proper cable routing.

ELECTROMAGNETIC COMPATIBILITY (EMC) INFORMATION

WARNING: Medical Electrical Equipment needs

special precautions regarding EMC and needs to be installed and put into service according to the EMC information provided in this manual.

WARNING: Electronic equipment may be inuenced

by Radio Frequency (RFI). Caution should be exercised with regard to the use of portable communications in the area around such equipment. Portable RF communications equipment (including peripherals such as antenna cables and external antennas) should be used no closer than 30 cm (12 inches) to any part of the bed including specied bed cables. Degradation of the performance of the bed

could result.

IF RFI causes erratic behavior, unplug the

electric bed immediately. Leave unplugged while transmission is in progress.

WARNING: The use of accessories, tranducers,

and cables other than those specied by the manufacturer may result in increased emissions or decreased immunity of the bed. GF Health cables and accessories include motor cables, mains cable, pendant cables, back up battery and cable, USB port cable and UBL and cable.

WARNING: This bed should not be used adjacent

to or stacked with other equipment. If adjacent or stacked use with other equipment is necessary, this bed and the other equipment should be observed to verify that they are operating normally.

WARNING: The EMISSIONS characteristics of

this equipment make it suitable for use in industrial areas and hospitals (CISPR 11 class A). If it is used in a residential environment (for which CISPR 11 class B is usually required) this equipment might not offer adequate protection to radio frequency communication services. The user might need to take mitigation measures, such as relocating or reorienting the equipment.

GF Health Products, Inc. - www.grahameld.com Matrix Series Instructions for Use 999-0908-190A

MATRIX SERIES

A Graham-Field® Family Brand

ENTRAPMENT AND COMPLIANCE INFORMATION

On April 10, 2006, the FDA (U.S. Food and Drug Administration) released long-awaited guidelines for reducing the risk of bed entrapment: “Hospital Bed System Dimensional and Assessment Guidance to Reduce Entrapment”. The new Guidance identies potential entrapment areas and those body parts most at risk for entrapment; provides design criteria for manufacturers of new hospital/convalescent beds; recommends particular test methods to assess the conformance of existing hospital / convalescent bed systems; and answers frequently-asked questions about entrapment issues.

The new Guidance was a result of a long-standing collaboration between the FDA and the Hospital Bed Safety Workgroup (HBSW), formed in 1999. GF Health Products, Inc.’s Long Term Care Bed division: Basic American Medical Products, is an HBSW charter member. As a result of our commitment to product safety, all our current long-term

care beds have been strictly tested and conform to the new FDA Guidance.

The guidelines set forth by the FDA Guidance lay out specic dimensional limitations on potentially injury-threatening gaps and spaces that can occur between bed system components, such as rails, when not properly installed. GF Health Products, Inc. and Basic American Medical Products have conformed to these guidelines from a manufacturing aspect. However,

entrapment issues can often arise when a healthcare provider / facility has not correctly assembled the components on a bed. It is essential that the provider / facility fully understand their responsibility in complying to the guidelines set forth by the FDA in order to avoid injury. To that end, we have provided the FDA’s web address at right as a resource for understanding and following these guidelines for the safety of patients / residents.

It is also essential to have the correct bed components / accessories that correspond with the needs of the patient / resident and the particular bed you have purchased. Matching the correct bed component that correlates with the regulatory guidelines can be a daunting task. Our sales team at GF Health Products, Inc. and our friendly Customer Service Representatives at Basic American Medical Products can help you sift through the wide array of compliance and bed options. We will help you determine which bed / bed part is best for the patient’s / resident’s particular needs and help you with any compliance issues.

The MATRIX series bed and accessories listed in these instructions are in full compliance with FDA guidelines for reducing the risk of bed entrapment: “Hospital Bed

System Dimensional and Assessment Guidance to Reduce Entrapment”.

Details can be found at www.fda.gov.

GF Health Products, Inc. - www.grahameld.com Matrix Series Instructions for Use 999-0908-190A

MATRIX SERIES

A Graham-Field® Family Brand

RECOMMENDED MAINTENANCE

Regular maintenance of the Long Term Bed is necessary to ensure continuing proper and safe operation. Read and observe the following recommended maintenance schedule. Additional Maintenance Log pages are available at the end of these instructions.

RECOMMENDED

INSPECTION PERIODS

ITEM

Inspect

on Receipt

Every

3 Months

Every

6 Months

Maintenance Inspection of All Components at Receipt of Shipment

Ensure all parts / components are included (see

“Unpacking The Bed”).

Check all bed components for obvious damage. X

Inspect the power cord for any cuts and / or damage. X

Check to see all actuator / motor cables are routed

and connected properly to the control box.

Mechanical Inspection of Assemblies

Inspect all welds on the sleeping surface, frame, and base assemblies for stress fractures.

Inspect all fasteners for wear and looseness. X

IMPORTANT: Lubricate all pivot points, actuator / motor clevis pins, and control arm clevis pins as needed. White Lithium Grease is recommended.

Mechanical Inspection of Casters and Pedal Locking Mechanism

Check the pedal locking mechanism to ensure it

engages and disengages properly.

Check the casters and stationary foot pads on both

X the head end and foot end for any damage, wear, or debris. Replace if needed.

Check all rolling casters to ensure that they roll

X properly and are unobstructed.

Electrical Inspection of Control Box, Hand Control Pendant, and Staff Control

Check the external power cord that plugs into the

control box for any chang, cuts, or wear. Replace if

damaged.

Ensure all attaching hardware is securely tightened. X

MAINTENANCE

Performed byDate Comments

Check all electrical connections for wear or fractures. X

Check the external backup battery (if you have one). Replace if needed.

Check the hand control pendant cable for chang,

cuts, or wear.

Check all hand control pendant functions - check to ensure each button and associated function work properly (i.e. head section rises when the HEAD UP button is activated).

Electrical Inspection of Actuators / Motors

Check the actuator / motor cables for any chang,

cuts, or wear.

Check the range of movement on all motors to ensure they do not bind in the Full Up or Full Down positions.

GF Health Products, Inc. - www.grahameld.com Matrix Series Instructions for Use 999-0908-190A

MATRIX SERIES

A Graham-Field® Family Brand

MECHANICAL AND ELECTRICAL INFORMATION

MATRIX SERIES-MECHANICAL

Specication 4100 (35") 4100 (42") 5100 (35") 6100 (35")

Overall Bed Length (with boards and wallsaver)

Sleep Deck Width 35" 42" 35" 35"

Bed Width Including Boards 36" 42" 36" 36"

Maximum Height (oor to top of mattress support deck)

Minimum Height (oor to top of mattress support deck) 8.95" 8.95" 8.95" 8.95"

Maximum Head / Back Deck Angle 68° 68° 68° 68°

Maximum Knee / Foot Deck Angle 25° 25° 25° 25°

Maximum Trendelenburg / Reverse Trendelenburg Angle

Maximum Safe Working Load WITH WEIGHT EVENLY DISTRIBUTED - includes bedding, resident / patient, support surface, and accessories

Bed Mass (without assist devices or boards) 150 lb

76"

80"

81.2" 81.2" 82.7" 81.2"

83.1" 83.1" 83.9" 83.1"

27" 27" 27" 27"

12° 12° 13° 12°

450 lb (204.1 kg)

(68.0 kg)

NOTE: All dimensions are ±0.25 inches

450 lb (204.1 kg)

157 lb (71.2 kg)

450 lb (204.1 kg)

157 lb (71.2 kg)

450 lb (204.1 kg)

157 lb (71.2 kg)

MATRIX SERIES-ELECTRICAL (ALL MODELS)

Power / Frequency 120 Volt / 50/60 Hz

Output Rating 24Vdc

Maximum Amperage 4.0 Amps

Classication Class 1, Type B

Power (Electrical) Cord #18 AWG 3 Conductor Type SJT

Mode of Operations 10% Max. Duty Cycle (2 minutes on / 18 minutes off)

Battery Pack and Charger can be purchased separately as accessories.

TYPICAL MATRIX SERIES BED IDENTIFICATION LABELS

with Grounded Electrical Cable

GF Health Products, Inc. - www.grahameld.com Matrix Series Instructions for Use 999-0908-190A

Bed labels are an important part of identifying the bed’s make and model when ordering replacement parts. The Serial Number is essential if you are claiming parts or service under warranty. These helpful labels can be located on the main frame rails, immediately below the sleep decks on either side of the bed.

Have this IMPORTANT information ready when calling our Customer Service or Technical Support staff at 1-770-368-4700; it will allow us to better assist you and quickly answer your questions and concerns.

WARNING:

authorization from GF Health Products, Inc.

NOTE: For Matrix Series Service Parts, Technical Assistance, and Information, call our Customer

Service Department at 1-770-368-4700. list of Matrix Series bed service parts, visit

www.grahameld.com.

Do not modify this equipment without

For a

MATRIX SERIES

A Graham-Field® Family Brand

The following warning labels have been placed on the bed to help protect you and the bed from damage. Do not remove any labels from the bed.

WARNING!

DO NOT LOWER BED WHEN OBJECTS ARE BENEATH BED. FAILURE TO INSPECT UNDER BED CAN RESULT IN DAMAGE TO PROPERTY OR PERSONAL INJURY.

ATTENTION:

S’assurer de ne pas faire descendre le lit lorsque des objets se trouvent sous le lit. Ne pas inspecter le dessous du lit pourrait entrainer des dommages materiels et des risques de blessures.

THIS BED IS SUITABLE FOR USE ONLY WITH OXYGEN ADMINISTERING EQUIPMENT OF THE NASAL OR MASK TYPE OR A TENT COVERING ONLY THE UPPER HALF (HEAD END) OF THE BED. OXYGEN TENT CANOPIES SHOULD NOT EXTEND BELOW BED SPRING LEVEL. LOCK HAND CONTROL AT FOOT OF BED WHEN USING OXYGEN ADMINISTERING EQUIPMENT.

WARNING!

DO NOT LOWER BED WHEN OBJECTS ARE BENEATH BED. FAILURE TO INSPECT UNDER BED CAN RESULT IN DAMAGE TO PROPERTY OR PERSONAL INJURY.

ENVIRONMENTAL SPECIFICATIONS

OPERATING CONDITIONS

Ambient Temperature 10°C to 40°C

Relative Humidity

Atmospheric Pressure 700 hPa to 1060 hPa

Protected Against Splashing Water

30% to 75% Non-Condensing

IPX4

CAUTION

ATTENTION:

CE LIT PEUT ETRE UTILISE UNIQUEMENT AVEC UN EQUIPMENT DESTINE A L’ADMINISTRATION D’OXYGENE DE TYPE NASAL OU MASQUE OU AVEC UNE TENTE RECOUVRANT SEULEMENT LA MOTTIE AVENT (TETE) DU LIT. LES COTES DE LAS TENTE OXYGENE NE DOIVENT PAS SE PROLONGER PLUS DAS QUE LA SOMMIER DU LIT.

STORAGE AND TRANSPORT CONDITIONS

Temperature -10°C to 50°C

Relative Humidity 20% to 90%

Atmospheric Pressure 700 hPa to 1060 hPa

WARNING:

Incompatible mattresses can create hazards. Read Instructions for use.

ATTENTION:

Matelas incompatibles peuvent créer des dangers.

Lisez les Instructions d’utilisation.

DISPOSAL OF EQUIPMENT AND ACCESSORIES

Follow local governing ordinances and recycling plans regarding disposal of the device or components normally used in operation. The device does not generate waste or residue in operation. Any accessories not part of the device MUST be handled in accordance with the individual product marking for disposal.

GF Health Products, Inc. - www.grahameld.com Matrix Series Instructions for Use 999-0908-190A

MATRIX SERIES

A Graham-Field® Family Brand

BED SETUP AND OPERATION INSTRUCTIONS

UNPACKING THE BED (MATRIX 4000 SERIES SHOWN)

• Ensure all parts / components are included.

•

Check all bed components for obvious damage.

• Inspect the Power Cord for cuts or damage.

• Ensure all actuator / motor cables are routed and connected properly to the control box.

DISCARD

1) Foam Block (4)

2) Honeycomb Block (8)

3) Shipping Board (1)

4) Cable Tie (3) - Cut and Discard KEEP

5) Panel Mount Kit

6) Mattress Retainer

7) Pendant Holster

8) Wireform Wallsaver

NOTE:

END OF POWER CORD IS COILED FOR SHIPPING AND TIED, WITH CABLE TIE, TO GRID WIRE WITH HAND CONTROL PENDANT, PENDANT CABLE AND

HOLSTER.

GF Health Products, Inc. - www.grahameld.com Matrix Series Instructions for Use 999-0908-190A

MATRIX SERIES

A Graham-Field® Family Brand

HEADBOARD AND FOOTBOARD ASSEMBLY / INSTALLATION

MATRIX 4000 SERIES

MATRIX 4000 SERIES HEADBOARD

INSTALLATION *

The headboard may come with four pre-installed assemble the four inserts into the outside of the headboard as shown above.

2. Position a right (#1) and left (#2) mounting bracket on the inside of the headboard with headboard mounting holes facing outward as shown above.

3. Align the bracket top holes with the headboard top holes.

4. Insert a screw (#4) through each of the top holes and bottom holes and screw into each insert. Tighten loosely (hand tight) until after brackets are fastened to the bed frame.

GF Health Products, Inc. - www.grahameld.com Matrix Series Instructions for Use 999-0908-190A

inserts - if not already installed,

5. At the head deck end, slide the brackets into the main frame rail hollow ends.

6. FOR 80" BEDS: Slide the brackets in until the bracket hole aligns with the lower rail hole as shown above. 76" and 80" bracket labels will be visible. Pin brackets to frame with Clevis Pins and Hair Pins provided.

7. FOR 76" BEDS: Slide the mounting brackets in until the bracket hole aligns with the upper rail hole as shown above. Only 76" bracket label will be visible. Pin brackets to frame with Clevis Pins and Hair Pins provided.

8. Tighten screws with the hex key included in the kit.

MATRIX 4000 SERIES FOOTBOARD

A Graham-Field® Family Brand

INSTALLATION

MATRIX SERIES

The footboard may come with four pre-installed

inserts - if not already installed, assemble the four inserts into the outside of the footboard as shown above.

2. Position a right (#1) and left (#2) mounting bracket on the inside of the footboard with footboard mounting holes facing outward as shown above.

3. Align the bracket top holes with the footboard top holes.

4. Insert a screw (#4) through each of the top holes and bottom holes and screw into each insert. Tighten loosely (hand tight) until after brackets are fastened to the bed frame.

* For residents taller than 185 cm (6' 1"),

a 4" Length Extension Kit is available. Please contact Customer Service for more information.

5. At the foot deck end, slide the brackets into the main frame rail hollow ends.

6. FOR 80" BEDS: Slide the mounting brackets in until the bracket hole aligns with the

rst rail hole as shown above. 76" and 80"

bracket labels will be visible. Pin brackets to frame with Clevis Pins and Hair Pins provided.

7. FOR 76" BEDS: Slide the mounting brackets in until the bracket hole aligns with the second rail hole as shown above. Only 76" bracket label will be visible. Pin brackets to frame with Clevis Pins and Hair Pins provided.

8. Tighten screws with the hex key included in the kit.

GF Health Products, Inc. - www.grahameld.com Matrix Series Instructions for Use 999-0908-190A

MATRIX 5000 / 6000 SERIES

A Graham-Field® Family Brand

MATRIX 5000 / 6000 SERIES HEADBOARD

INSTALLATION *

MATRIX SERIES

The headboard may come with four pre-installed

inserts - if not already installed, assemble the four inserts into the outside of the headboard as shown above.

2. Position a right (#1) and left (#2) mounting bracket on the inside of the headboard with headboard mounting holes facing outward as shown above.

3. Align the bracket top holes with the headboard top holes.

4. Insert a screw (#4) through each of the top holes and bottom holes and screw into each insert. Tighten loosely (hand tight) until after brackets are fastened to the bed frame.

5. At the head deck end, slide the brackets into the main frame rail hollow ends.

6. FOR 80" BEDS: Slide the brackets in until

the rst bracket hole aligns with the upper rail

hole as shown above. 76" and 80" bracket labels will be visible. Pin brackets to frame with Clevis Pins and Hair Pins provided.

7. FOR 76" BEDS: Slide the mounting brackets in until the second bracket hole aligns with the upper rail hole as shown above. Only 76" bracket label will be visible. Pin brackets to frame with Clevis Pins and Hair Pins provided.

8. Tighten screws with the hex key included in the kit.

GF Health Products, Inc. - www.grahameld.com Matrix Series Instructions for Use 999-0908-190A

MATRIX 5000 / 6000 SERIES FOOTBOARD

A Graham-Field® Family Brand

INSTALLATION

MATRIX SERIES

The footboard may come with four pre-installed

inserts - if not already installed, assemble the four inserts into the outside of the footboard as shown above.

2. Position a right (#1) and left (#2) mounting bracket on the inside of the footboard with footboard mounting holes facing outward as shown above.

3. Align the bracket top holes with the footboard top holes.

4. Insert a screw (#4) through each of the top holes and bottom holes and screw into each insert. Tighten loosely (hand tight) until after brackets are fastened to the bed frame.

* For residents taller than 185 cm (6' 1"),

a 4" Length Extension Kit is available. Please contact Customer Service for more information.

5. At the foot deck end, slide the brackets into the main frame rail hollow ends.

6. FOR 80" BEDS: Slide the mounting brackets in until the bracket hole aligns

with the rst rail hole as shown above. 76"

and 80" bracket labels will be visible. Pin brackets to frame with Clevis Pins and Hair Pins provided.

8. Tighten screws with the hex key included in the kit.

GF Health Products, Inc. - www.grahameld.com Matrix Series Instructions for Use 999-0908-190A

MATTRESS RETAINER

MATRIX SERIES

A Graham-Field® Family Brand

STANDARD MATTRESS RETAINER INSTALLATION

USING 35" OR 42" WIDTH MATTRESS RETAINER

Matrix 5000 / 6000

Mattress Retainer

DETAIL A: INSERT HEAD END

Matrix 4000

Mattress Retainer

Inside holes

for 76" Beds

MATTRESS RETAINER

Outside holes

for 80" Beds

The Matrix Series Bed mattress retainer was designed to span the width of the sleeping surface.

One retainer is shipped with the Matrix 4000 and will t on the Foot End as shown (Note: An optional retainer can be ordered separately for the head end of the Matrix 4000 Series beds).

Two retainers, one for each end, are shipped with the Matrix 5000 / 6000.

1. Determine if you need to position your bed in an 80" or 76" conguration (80" length bed = outside holes; 76" length bed = inside holes).

2. Carefully squeeze the Mattress Retainer ends inward, toward the center of the retainer, and insert the ends into the proper holes. Lay the Mattress Retainer down so that the elbows rest on the decks and the long cross rod faces away from the bed as shown.

IMPORTANT: Ensure all three adjustable parts are properly positioned for 76" or 80" congurations

(see pages 10, 11, 12, 13 and 15).

DETAIL B:

INSERT FOOT END

Be sure to use a mattress that is properly sized to t

the sleep deck, which will remain centered on the deck relative to State and Federal Guidelines. Use of an improperly tted mattress could result in injury or

death.

GF Health Products, Inc. - www.grahameld.com Matrix Series Instructions for Use 999-0908-190A

Use a properly sized mattress in order to minimize

the gap between the side of the mattress and assist devices. This gap must be small enough to prevent resident / patient from getting their head or neck caught in this location.

Pedal Lock Engaged (RED DOWN = LOCKED POSITION)

MATRIX SERIES

A Graham-Field® Family Brand

MATRIX 4000 / 6000 SERIES WIREFORM WALLSAVER INSTALLATION

WALLSAVER ASSEMBLY

1. Position the Wireform Wallsaver with bent end facing upward and tab ends facing inward as shown at right.

2. Determine the position desired (see WALLSAVER POSITIONS below).

3. Gently squeeze the wallsaver tab ends inward toward the center of the wallsaver and, holding the tabs parallel with the caster base holes, slide the tabs into the holes while letting the wallsaver gently expand outward.

4. Turn the wallsaver downward until it

rests on the oor.

WALLSAVER REMOVAL

1. To remove or move the wallsaver to a new position, raise the wallsaver

off the oor until the end tabs are

horizontal.

2. Squeeze the ends toward the center of the wallsaver until the end tabs slide out of the caster base holes.

WALLSAVER POSITIONS

There are two positions for the Matrix series wallsaver. Holes nearest the center of the bed are for both 76" and 80" beds, and the holes closest to the head end are for use when a Trapeze Adapter is added to the bed.

The Standard Wallsaver will prevent the bed from making contact with the wall in all positions except Trendelenburg. If the Advanced Positioning (APS) bed is to be used in Trendelenburg position, the Trendelenburg Wallsaver must be used to prevent the bed from making contact with the wall.

A Trendelenburg Wallsaver is available when the bed is ordered with a Staff Control with Advanced Positioning.

MATRIX 4000 / 6000 SERIES —

OPERATING THE CASTER PEDAL

LOCK MECHANISM

LOCKED POSITION

To lock the foot end casters, step on the red pedal until the caster lock engages.

UNLOCKED POSITION

To unlock the foot end casters, step on the green release pedal until the caster lock disengages.

GREEN DOWN = ROLL

FOOT END

RED DOWN = LOCKED

GF Health Products, Inc. - www.grahameld.com Matrix Series Instructions for Use 999-0908-190A

FOOT END of Matrix 4000 Series Bed Shown with

MATRIX SERIES

A Graham-Field® Family Brand

MATRIX 5000 SERIES WIREFORM WALLSAVER INSTALLATION

WALLSAVER ASSEMBLY

1. Position the Wireform Wallsaver with bent end facing upward and tab ends facing inward as shown above.

2. Determine the position desired (see WALLSAVER POSITIONS below).

3. Gently squeeze the wallsaver tab ends inward toward the center of the wallsaver and, holding the tabs parallel with the caster base holes, slide the tabs into the slots while letting the wallsaver gently expand outward.

4. Turn the wallsaver downward until it rests on the oor.

WALLSAVER REMOVAL

1. To remove or move the wallsaver to a new position, raise the wallsaver off the oor until the end tabs are horizontal.

2. Squeeze the ends toward the center of the wallsaver until the end tabs slide out of the caster base slots.

WALLSAVER POSITIONS

1. The Matrix 5000 Series wallsaver features two standard positions for easy bed / mattress length recongurations - 76"

and 80".

2. For 76" beds, position the wallsaver ends in the BACK caster base slots (toward the foot end). For 76" beds using an optional Trapeze unit, position the wallsaver ends in the FRONT caster base slots (toward the head end.)

3. For 80" beds, position the wallsaver ends in the FRONT caster base slots (toward the head end).

4. If you plan to use an optional Trapeze unit for an 80" length bed conguration, you will need to order a separate

“custom wallsaver” in order to have the correct depth to protect your walls.

GF Health Products, Inc. - www.grahameld.com Matrix Series Instructions for Use 999-0908-190A

MATRIX SERIES

A Graham-Field® Family Brand

PLUGGING IN THE FOOTBOARD STAFF CONTROL

STEP 1 - ATTACHING THE FOOTBOARD

The Matrix series bed features a footboard Staff Control; however, the footboard is ordered separately with your bed because of the variety of board styles available. If ordered at the same time as the bed, the Staff Control Assembly and Shroud Cover will be pre-installed to the Footboard at the factory.

STEP 2 - CONNECTING THE CABLES: REFER TO DETAIL A AT RIGHT

a) Insert the T-Cable end (extending out the foot

end with phone jack) into the round plug, making sure the phone jack is seated correctly inside the female plug (arrow to arrow – see DETAIL A at right and photos below).

are screwed on securely

DETAIL A:

Ensure lock end caps

Improper Connection

(not completely seated)

b) Screw on the round lock cap onto the Staff Control female plug to secure as shown above.

GF Health Products, Inc. - www.grahameld.com Matrix Series Instructions for Use 999-0908-190A

Proper Connection

(completely seated)

Optional Counter-rotating Assist Device and Assist Bars

provide a sturdy and secure hand hold to assist residents in and out of bed. Assist devices are removable without tools and meet FDA Entrapment Guidelines.

• Move out of the way for lateral transfers.

• Pivot away from egress area.

• Provide toe clearance even in lowest position to prevent staff injury.

• Hand pendant mounts facing inward or outward and away from hand grab area.

Accessories

ZA84200

MATRIX SERIES

A Graham-Field® Family Brand

MATRIX SERIES OPTIONAL ACCESSORIES

MATRIX 4100 SERIES ONLY OPTIONAL ACCESSORIES

Pivot Assist Bar Fixed Assist Bar

ZA90350 ZA80300

Counter-Rotating Assist (set of 2) Head End Mattress Retainer

ZA78400 35" Deck: 999-0822-001SP

4-inch Length Extension Kit

35" Deck: ZA90000

42" Deck: ZA90200

GF Health Products, Inc. - www.grahameld.com Matrix Series Instructions for Use 999-0908-190A

42" Deck: 999-0902-001SP

Optional Counter-rotating Assist Device and Assist Bars

provide a sturdy and secure hand hold to assist residents in and out of bed. Assist devices are removable without tools and meet FDA Entrapment Guidelines.

• Move out of the way for lateral transfers.

• Pivot away from egress area.

• Provide toe clearance even in lowest position to prevent staff injury.

• Hand pendant mounts facing inward or outward and away from hand grab area.

Accessories

ZA84200

MATRIX SERIES

A Graham-Field® Family Brand

MATRIX 5100 / 6100 SERIES ONLY OPTIONAL ACCESSORIES

Pivot Assist Bar Fixed Assist Bar

ZA90300 ZA85000

Counter-Rotating Assist (pair) 42" Width Extension Kit

ZA84200

4-inch Length Extension Kit (extends 35" & 42")

ZA90840 ZA851000

GF Health Products, Inc. - www.grahameld.com Matrix Series Instructions for Use 999-0908-190A

MATRIX SERIES

A Graham-Field® Family Brand

MATRIX 4100 / 5100 / 6100 SERIES OPTIONAL ACCESSORIES

Trapeze Adapter Kit Trapeze

ZA90100 ZA78100

Long (Trendelenburg) WallSaver Side-WallSaver Bumper (set of 2)

ZA90070 ZA86200 (35")

ZA89200 (42")

GF Health Products, Inc. - www.grahameld.com Matrix Series Instructions for Use 999-0908-190A

MATRIX SERIES

A Graham-Field® Family Brand

Board-Mounted Hand Control Pendant Holster Backup Battery & Battery Charger

ZA79150 Backup Battery: 999-0831-003

Battery Charger: 999-0711-002

USB Phone Charger-Power Supply Kit Under-Bed-Light Kit (must be used with Staff Control

and/or APS Hand Control Pendant)

ZA90020 ZA90010

Advanced Positioning Hand Control with

Trendelenburg / Reverse Trendelenburg

ZA900306 999-0900-305SP

Advanced Positioning Staff Control

Advanced Positioning Hand Control

with Chair Position only

GF Health Products, Inc. - www.grahameld.com Matrix Series Instructions for Use 999-0908-190A

ZL90000

A Graham-Field® Family Brand

Standard Positioning Staff Control

ZL90050

MATRIX SERIES

Board-Mounted IV Socket Kit Edema Foot Ratchet Kit

ZA19000 ZA90030

GF Health Products, Inc. - www.grahameld.com Matrix Series Instructions for Use 999-0908-190A

MATRIX SERIES

A Graham-Field® Family Brand

1-Person Bed Transport Dolly (set)

ZA89900 unassembled ZA89900 assembled with bed

GF Health Products, Inc. - www.grahameld.com Matrix Series Instructions for Use 999-0908-190A

HAND CONTROL PENDANTOPERATION

MATRIX SERIES

A Graham-Field® Family Brand

MATRIX SERIES HAND CONTROL PENDANT OPERATION

MATRIX SERIES WITH

STANDARD POSITIONING

HAND CONTROL PENDANT

MATRIX SERIES WITH

ADVANCED POSITIONING

HAND CONTROL PENDANT

OPTIONAL ACCESSORY:

MATRIX SERIES WITH

TRENDELENBURG /

REVERSE TRENDELENBURG

HAND CONTROL PENDANT

BUTTON FUNCTION

1 HEAD DECK ANGLE UP

2 HEAD DECK ANGLE DOWN

3 HI/LO UP (RAISE ENTIRE BED)

4 HI/LO DOWN (LOWER ENTIRE BED)

5 KNEE AND FOOT DECK ANGLE UP

6 KNEE AND FOOT DECK ANGLE DOWN

7 SET TO CHAIR POSITION

8 UNDO CHAIR POSITION

9 REVERSE TRENDELENBURG POSITION

10 TRENDELENBURG POSITION

11 OPTIONAL UNDERBED LIGHT

NOTE:

The MATRIX Series Hand Control Pendant can be plugged into the T-cable plugs on either side of the bed for easy access. The opposite side of the T-Cable should always have the provided cap attached for safety.

The two vertical ends of the double T-Cable run toward the foot end of the bed, with one vertical end plugging directly into the control box (or optional Underbed Light if your bed has that feature) and the other longer end runs along the tie rod and extends out the foot end and plugs into the Staff Control cable.

GF Health Products, Inc. - www.grahameld.com Matrix Series Instructions for Use 999-0908-190A

MATRIX SERIES

A Graham-Field® Family Brand

BED OPERATION - OPTIONAL STAFF CONTROL PANEL *

GF Health Products, Inc. - www.grahameld.com Matrix Series Instructions for Use 999-0908-190A

* Staff Control with Advanced Positioning

functions is shown above. Staff Control with Standard Positioning functions is shown at left; all standard functions operate the same as

those dened above.

(orange lock

, press Lock icon button #1

(foot and

), press Chair

To release the chair feature and return the bed

MATRIX SERIES

A Graham-Field® Family Brand

BED OPERATION - CHAIR POSITION

3 2

HEAD

END

1. Ensure the Chair position on the Staff

Control panel is not locked out icon). To unlock and Chair icon button #2 (or “All Locked” button #3) simultaneously.

2. To move the bed to Chair position

knee decks angled up, head deck angled up, and head of bed tilted up

icon button #2.

to horizontal position, press Flat Bar icon #4.

FOOT

END

The Chair feature can also be operated using the Hand Control Pendant.

MATRIX SERIES WITH

ADVANCED POSITIONING

HAND CONTROL PENDANT

GF Health Products, Inc. - www.grahameld.com Matrix Series Instructions for Use 999-0908-190A

Chair position

UP and DOWN buttons

OPTIONAL ACCESSORY:

MATRIX SERIES WITH TRENDELENBURG /

REVERSE TRENDELENBURG

HAND CONTROL PENDANT

BED OPERATION - TRENDELENBURG /

A Graham-Field® Family Brand

REVERSE TRENDELENBURG POSITION

1. Ensure the Staff Control HI/LO function is not locked out (orange lock icon). To unlock, simultaneously press Key 1 and HI/LO Locked button 2.

2. To move the bed to Trendelenburg position (foot end up), press button 3.

3. To move the bed to Reverse Trendelenburg position (head end up), press button 4.

MATRIX SERIES

Matrix 4000 Shown

GF Health Products, Inc. - www.grahameld.com Matrix Series Instructions for Use 999-0908-190A

MATRIX SERIES

A Graham-Field® Family Brand

MATRIX 5000 SERIES BED OPERATION —

STATIONARY / LOW ROLL POSITIONING

The Matrix 5000 Series is sold as a “Low Roll” bed, giving the user the option of placing it in a stationary (non-moving) position or lowering it into a “low roll” position. This is accomplished by lowering the bed

until the stationary foot pads rise off the oor and the rolling casters contact the oor surface for easy

mobility.

GF Health Products, Inc. - www.grahameld.com Matrix Series Instructions for Use 999-0908-190A

MATRIX 4000 SERIES ELECTRICAL CABLING

FOOT END

A Graham-Field® Family Brand

Optional Battery Cable Connector

HEAD END

CONTROL

BOX

Power Cord Connector

Power Cord

Hand Control Pendant

Control Box

MATRIX SERIES

Actuator Cable HI/LO Actuator

(Head End)

Actuator Cable

Head Actuator

HI/LO Actuator

(Foot End)

Actuator Cable

Control Cable

Foot Actuator

Actuator Cable

GF Health Products, Inc. - www.grahameld.com Matrix Series Instructions for Use 999-0908-190A

MATRIX 5000 / 6000 SERIES ELECTRICAL CABLING

FOOT END

A Graham-Field® Family Brand

Optional Battery Cable Connector

HEAD END

CONTROL

BOX

Power Cord Connector

Power Cord

Hand Control Pendant

MATRIX SERIES

Control Box

Actuator Cable HI/LO Actuator

(Head End)

Actuator Cable

Head Actuator

HI/LO Actuator

(Foot End)

Actuator Cable

Control Cable

Foot Actuator

Actuator Cable

GF Health Products, Inc. - www.grahameld.com Matrix Series Instructions for Use 999-0908-190A

MATRIX SERIES

A Graham-Field® Family Brand

TROUBLESHOOTING

NOTHING WORKS — NO POWER

ALWAYS UNPLUG THE POWER CORD BEFORE PERFORMING MAINTENANCE ON THE BED.

1. Verify there is power in the wall outlet. Unplug the power cord from the outlet and test the outlet by plugging in a lamp or similar portable device. OUTLET WORKS: Move to Step 2.

2. Plug the power cord into the outlet – NOTHING WORKS: UNPLUG THE POWER CORD and check the power cord from the head end to the control box, ensuring it is not pinched, frayed, or damaged in any way.

a) POWER CORD IS PINCHED: With

power cord unplugged, move the bed part slightly to release the pinched cord. If you can release the cord, replug the power cord into the outlet and test the bed.

b) BED WORKS: Ensure the cord is not

frayed or exposed. If it is OK, you should not have to replace.

c) POWER CORD IS DAMAGED: Cut cable

ties and immediately replace power cord.

IF 3-PRONG POWER CORD IS DAMAGED,

REPLACE IT IMMEDIATELY!

TROUBLESHOOTING PENDANT AND DOUBLE T-CABLE: STAFF CONTROL

WORKS, BUT HAND CONTROL PENDANT FUNCTION DOESN’T

Check panel to see if Staff Control functions are locked out; if orange lock icon illuminates then that function is locked out. Press Key and Function (e.g. Head) buttons simultaneously until orange lock icon de-illuminates. Test function. If PENDANT STILL DOESN’T WORK: Go to step 2.

2. Check the connections at seat pan (Hand Control Pendant to T-cable) and Staff Control cable connection to T-cable at the foot end, ensuring plugs are fully engaged. Also check T-cable connection at Control Box. If you have the optional Underbed Light feature, ensure all cables are secure. If PENDANT STILL DOESN’T WORK: Go to step 3.

3. UNPLUG POWER CORD FROM WALL OUTLET.

Unplug Hand Control Pendant plug from T-cable end on either side of Seat Pan. Unplug Staff Control cable from foot end of T-cable and unplug other end from Control Box.

5. Plug Hand Control Pendant directly into Control Box HB port, ensuring it is fully seated. Plug in power cord and test Hand Control Pendant.

a) ALL BUTTONS WORK: Replace T-cable. b) NOTHING WORKS: Continue Troubleshooting on

next page.

Note: Staff Control with Advanced Positioning functions is shown in A above. Operation of Staff Control with Standard Positioning functions is identical.

GF Health Products, Inc. - www.grahameld.com Matrix Series Instructions for Use 999-0908-190A

MATRIX SERIES

A Graham-Field® Family Brand

TROUBLESHOOTING STAFF CONTROL: STAFF CONTROL LIGHTS BLINK;

NOTHING ON STAFF CONTROL WORKS, BUT HAND CONTROL PENDANT WORKS

ALWAYS UNPLUG THE POWER CORD

BEFORE PERFORMING MAINTENANCE ON THE BED.

1. This could mean the Staff Control is not getting enough power from the Control Box.

2. Unplug the power cord from the wall outlet. Unplug the Staff Control Cable from the T-Cable at the foot end of the bed.

3. If you have a spare Staff Control Assembly,

a) STAFF CONTROL WORKS AND

LIGHTS NO LONGER BLINK: Replace the Staff Control Assembly.

b) STAFF CONTROL DOESN’T WORK

AND LIGHTS STILL BLINK: Continue Troubleshooting below.

Note: Staff Control with Advanced Positioning

functions is shown above. Operation of Staff Control with Standard Positioning functions is identical.

plug the cable into the foot end T-cable and test.

TROUBLESHOOTING STAFF CONTROL: NOTHING ON STAFF CONTROL WORKS,

BUT HAND CONTROL PENDANT WORKS

1. Check the Staff Control connections at the foot end. Is the Staff Control cable plugged securely into the T-cable? Also check if the other end of the T-cable is plugged securely into the Control Box (or Underbed Light). If the STAFF CONTROL STILL DOESN’T WORK: go to step 2.

2. Unplug the power cord from the wall outlet. Remove the Cable Cover (Shroud) on the inside of the footboard and locate the single terminal end that plugs directly into the back of the Staff Control Panel. Ensure it is properly seated in the panel. Plug in the power cord and test the Staff Control. If the STAFF CONTROL STILL DOESN’T WORK: Replace the Staff Control Assembly.

GF Health Products, Inc. - www.grahameld.com Matrix Series Instructions for Use 999-0908-190A

MATRIX SERIES

A Graham-Field® Family Brand

TROUBLESHOOTING MOTOR CABLES AND CONTROL BOX:

A: HEAD, FOOT, OR HI/LO FUNCTION NOT WORKING

1. Check plugs to ensure they are plugged into the correct ports and

rmly seated (see picture at right).

2. Check all cables to ensure they are not frayed, pinched, or damaged in any way. If any cable is damaged, UNPLUG THE POWER CORD FROM THE WALL OUTLET AND REPLACE THE CABLE AND / OR THE ELECTRONIC COMPONENT.

3. HEAD DECK NOT RISING: Unplug power cord. Switch head and foot plugs (Ports 1 and 3). Replug power cord.

a) HEAD WORKS: Control Box head port is bad. Replace Control

Box and press the FOOT button to test.

b) HEAD DOESN’T WORK: Replace Head Motor.

NOTE: FOOT DOWN will not operate if bed frame is not level. Verify HI/LO is not in CHAIR or REVERSE TRENDELENBURG position.

4. FOOT AND KNEE DECKS NOT RISING: Unplug power cord. Switch head and foot plugs (Ports 1 and 3). Replug power cord.

a) FOOT WORKS: Control Box foot port is bad. Replace Control Box and press HEAD button to

test.

b) FOOT DOESN’T WORK: Replace Foot Motor.

5. This bed has 2 motors for the HI/LO function. If one of the HI/LO motors is not moving bed

up or bed down:

Before removing any motor cables, try to re-synchronize the HI/LO function by following the steps in section “B” below. After re-synchronizing, continue with next step if the problem continues.

If bed still does not move up / down remaining horizontal:

Possibility of a bad HI/LO motor or Control box. Unplug power cord from wall. At the control box,

switch the HI/LO motor cable for the potentially bad motor with the cable for the head motor (in port #1 of the Control box). Re-plug bed power cord into wall. Push Head up / down buttons on hand control. If HI/LO motor still does not run, replace that HI/LO motor. If HI/LO motor does run when pushing the head up / down buttons, try plugging the second HI/LO motor cable into the Head motor

port on the Control box. If that HI/LO motor does not run, replace that HI/LO motor. If both rst and

second HI/LO motors work when plugged into the Head motor port, replace the Control box.

Optional Battery Cable Connector

CONTROL

BOX

Power Cord Connector

B. IF NEITHER HI/LO MOTOR OR ONLY ONE HI/LO MOTOR WORKS

On the Hand Control Pendant, simultaneously press and hold both HI/LO Up and HI/LO Down buttons (Control Box should start beeping) for approximately

ve seconds until beeping stops. Release the

buttons, then press the HI/LO Down button and hold until bed is lowered completely into the lowest height position. When both HI/LO motors reach their lowest position, the HI/LO

motors will automatically resynchronize.

GF Health Products, Inc. - www.grahameld.com Matrix Series Instructions for Use 999-0908-190A

QUICK REFERENCE

• HI/LO AND FOOT WORKS, BUT HEAD DOES NOT: Switch Head and Foot Motor Cable at the Control Box and test (see step 3 above).

• HI/LO & HEAD WORKS, BUT FOOT DOES NOT: Switch Foot and Head Motor Cable at the Control Box and test (see Step 4 above).

• HEAD & FOOT WORKS, BUT HI/LO DOES NOT:

• Switch Head and Foot HI/LO Motor Cables at the

Control Box and test (see Step 5 above).

• Test to see if HI/LO Motors need to be resynchronized.

MATRIX SERIES

A Graham-Field® Family Brand

LIMITED WARRANTY

SCOPE OF WARRANTY

GF Health Products, Inc. (“GF”) warrants to the original purchaser only that it will replace or repair components, at GF’s sole discretion, that are defective in material or workmanship under normal use and service. All warranties are conditioned upon the proper use of the products strictly in accordance with good commercial practice and applicable GF instructions and manuals, including proper use and maintenance. To the extent that a component is warranted by a third party, GF conveys all of its rights under that warranty to the original purchaser, to the extent permitted.

This limited warranty shall only apply to defects that are reported to GF’s customer service team within the applicable warranty period and which, upon examination by GF or its authorized representative, prove to be a warranty item. This limited warranty is not transferable.

The warranted components and time period are set forth below:

Main Frame and welds: fteen years

Control Box and Actuator Motors: four years Hand Control Pendant, Staff Control, and Cabling three years Headboard and Footboard one year All other durable components not listed above: two years

Subsequent service parts under warranty until the original warranty set forth above expires, or for one year, whichever

is greater.

The applicable warranty period shall commence from date of shipment to the original customer, unless there is an expiration date on the component in which case the warranty shall expire on the earlier of warranty period or the expiration date.

OBTAINING WARRANTY SERVICE

A GF Customer Service Representative must authorize warranty service. Please contact the GF Customer Service department by calling 1-770-368-4700, sending a fax request to 1-770-368-2386 or by e-mailing a request to

cs@grahameld.com. Specic directions will be provided by the Customer Service Representative. Failure to abide by the specic directions will result in denial of the warranty claim.

EXCLUSIONS

The warranty does not cover and GF shall not be liable for the following:

1) Defects, damage, or other conditions caused, in whole or in part, by misuse, abuse, negligence, alteration, accident, freight damage, tampering or failure to seek and obtain repair or replacement in a timely manner;

2) Products which are not installed, used, or properly cleaned and maintained as required in the ofcial manual for the

applicable product;

3) Products considered to be of a non-durable nature including, but not limited to: casters, lters, fuses, gaskets,

lubricants, and charts;

4) Accessories or parts not provided by GF;

5) Charges by anyone for adjustments, repairs, replacement parts, installation or other work performed upon or in connection with such products which are not expressly authorized in writing, in advance, by GF;

6) Any labor or shipping charges incurred in the replacement part installation or repair;

7) Costs and expenses of regular maintenance and cleaning; and

8) Representations and warranties made by any person or entity other than GF.

GF Health Products, Inc. - www.grahameld.com Matrix Series Instructions for Use 999-0908-190A

MATRIX SERIES

A Graham-Field® Family Brand

ENTIRE WARRANTY, EXCLUSIVE REMEDY AND CONSEQUENTIAL DAMAGES DISCLAIMER

THIS WARRANTY IS GF’S ONLY WARRANTY AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. GF MAKES NO IMPLIED WARRANTIES OF ANY KIND INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

IF ANY MODEL OR SAMPLE WAS SHOWN TO THE CUSTOMER, SUCH MODEL OR SAMPLE WAS USED MERELY TO ILLUSTRATE THE GENERAL TYPE AND QUALITY OF THE PRODUCT AND NOT TO REPRESENT THAT THE PRODUCT WOULD NECESSARILY CONFORM TO THE MODEL OR SAMPLE IN ALL RESPECTS.

THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT OF THE DEFECTIVE PARTS. GF SHALL NOT BE LIABLE FOR AND HEREBY DISCLAIMS ANY DIRECT, SPECIAL, INDIRECT, INCIDENTAL, EXEMPLARY OR CONSEQUENTIAL DAMAGES, INCLUDING, BUT NOT LIMITED TO: DAMAGES FOR LOSS OF PROFITS OR INCOME, LOSS OF USE, DOWNTIME, COVER, OR EMPLOYEE OR INDEPENDENT CONTRACTOR WAGES, PAYMENTS AND BENEFITS.

The warranties contained herein contain all the representations and warranties with respect to the subject matter of this document, and supersede all prior negotiations, agreements and understandings with respect thereto. The recipient of this document hereby acknowledges and represents that it has not relied on any representation, assertion, guarantee, warranty, collateral contract or other assurance, except those set out in this document.

For additional information on this product or this warranty, contact a GF Customer Service Representative.

NOTES:

1) Additional terms and conditions may apply.

2) Freight claims must be notated on the appropriate shipping documents and must be made with immediacy.

International, federal and state regulations govern specic requirements for freight claims. Failure to abide by those regulations may result in a denial of the freight claim. GF will assist you in ling the freight claim.

3) Claims for any short shipment must be made within three (3) days of the invoice date.

GF Health Products, Inc. 2935 Northeast Parkway Atlanta, GA 30360 Tel 1-770-368-4700 Fax 1-770-368-2386

www.grahameld.com

If you have questions regarding a bed’s warranty,

contact Basic American Medical Products at 1-770-368-4700.

GF Health Products, Inc. - www.grahameld.com Matrix Series Instructions for Use 999-0908-190A

A Graham-Field Family Brand

Manufactured by: GF Health Products, Inc. Fond du Lac, WI 54937

The most current and complete product information can be found on our website.

Basic American Medical Products, Graham-Field, and Matrix are trademarks of GF Health Products, Inc.

Information contained herein is subject to change.

1.770.368.4700

www.grahameld.com

GF Health Products, Inc. is an ISO 13485 Certied Company.

Basic American Matrix 4000 Instruction Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
