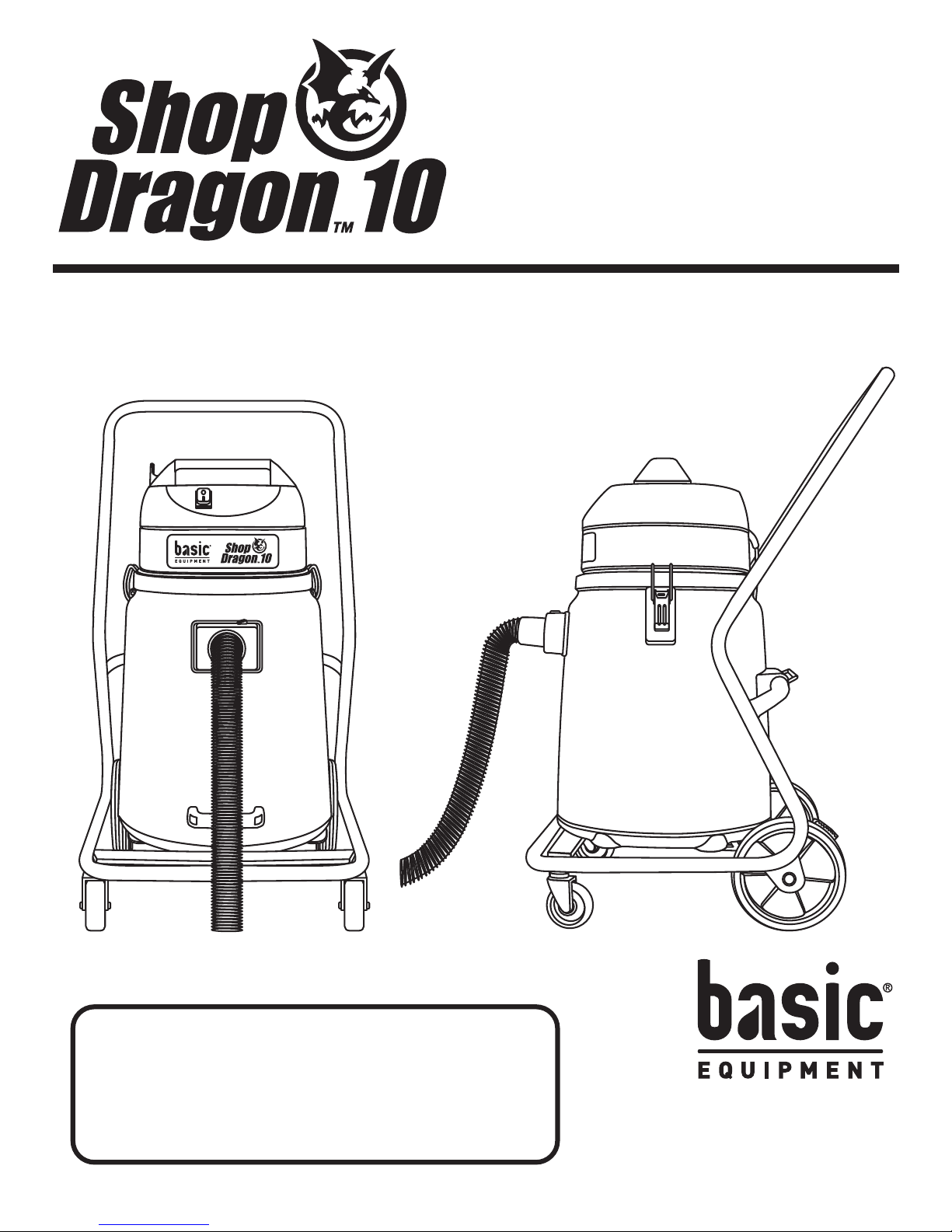

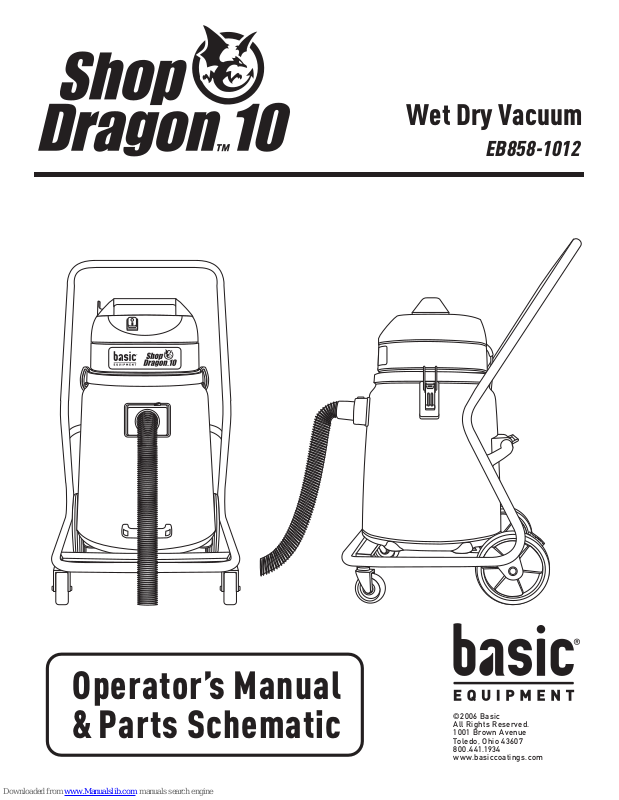

Page 1
Wet Dry Vacuum
EB858-1012
Operators Manual
& Parts Schematic
©2006 Basic
All Rights Reserved.
1001 Brown Avenue
Toledo, Ohio 43607
800.441.1934
www.basiccoatings.com
Page 2
Shop Dragon ™ 10-Gallon Wet/Dry Vacuums
Table of Contents
Technical Information & Safety Page 3, 4, 5
Preparation & Operation Page 5
After Use & Maintenance Page 6
Part Schematic:
10-Gallon TP Page 7, 8
(Metal cart)
Basic 1001 Brown Avenue Toledo, OH 43607 www.basiccoatings.com
Page 3
Operator Manual - Shop Dragon Wet/Dry Vacuums
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions should always be
followed, read all instructions before using.
! WARNING!
To reduce risk of fire, electric shock, or injury:
∗ Do not leave the machine when it is plugged in. Unplug the unit from
the outlet when not in use & before servicing.
∗ To avoid electric shock, do not expose machine to rain. Store indoors.
∗ Do not allow to be used as a toy. Close attention is necessary when
used by or near children.
∗ Use only as described in this manual. Use only manufacturer’s
recommended attachments.
∗ Do not use with damaged cord or plug. If machine is not working as it
should return it to a service center for inspection.
∗ Do not pull or carry by cord, use cord as a handle, close a door on a
cord, or pull cord around sharp edges or corners. Do not run machine
over cord. Keep cord away from heated surfaces.
∗ Do not unplug by pulling on cord. To unplug, grasp the plug, not the
cord.
∗ Do not handle plug or machine with wet hands.
∗ Do not put any foreign object into openings. Do not use with any
opening blocked; keep free of dust, lint, hair, & anything that may
reduce airflow.
∗ Keep hair, loose clothing, fingers, & all parts of body away from
openings & moving parts.
∗ Turn off all controls before unplugging.
∗ Do not use in or around flammable or combustible liquids such as
gasoline or use in areas where they may be present.
∗ Connect to a properly grounded outlet only. See grounding
instructions.
Page 4
Operator Manual - Shop Dragon Wet/Dry Vacuums
GROUNDING INSTRUCTIONS
This machine must be grounded. If it should electrically malfunction,
grounding provides a path of least resistance for electric current to reduce
the risk of electric shock. This machine is equipped with a cord having an
equipment-grounding conductor & grounding plug. The plug must be
plugged into an appropriate outlet that is properly installed & grounded in
accordance with all local codes & ordinances.
! DANGER
!
Improper connection of the equipment-grounding conductor can result in a
risk of electric shock. Check with a qualified electrician or service person
if you are in doubt as to whether the outlet is properly grounded. Do not
modify the plug provided with the machine. If plug will not fit the outlet,
have a proper outlet installed by a qualified electrician.
Replace the plug if the grounding pin is damaged or broken.
Extension cords connected to this machine should be 12 gauge, 3-wire
cords with 3-prong plugs & outlets. DO NOT use extension cords more
than 50 feet long.
PREPARING THE MACHINE FOR OPERATION
! WARNING
!
This machine contains moving parts. To reduce the risk of injury, always
unplug the power cord before servicing.
Unwrap the power cord completely & plug into a properly grounded outlet.
For wet pick up install head gasket and ring.
For dry pickup install cloth filter bag. (Optional paper bag and/or cartridge
may also be used.)
Attach swivel hose connector and hose to tank inlet.
Select proper floor tool. Wet squeegee for wet pick up. Dry floor tool for dry
pick up. Install selected tool on 2-bend wand.
Turn switch located on vacuum head to on position.
You are now ready to begin your cleaning task.
Page 5
Shop Dragon™ 10-Gallon Wet/Dry Vacuums
Technical Information
Tank Size
10-Gallon
Vacuum Motor
(All Models)
Noise Level
(All Models)
Filtration
(All Models)
Airflow
(All Models)
Water Lift
(All Models)
Power Cord
(All Models)
Transport Dolly 10DLY Only
Diameter 15”
Height 32”
Weight *
Tool Kit
(All Models)
Productivity
(All Models)
3
1.75 hp (2-stage bypass)
65 dB
Cloth
125 cfm
98”
50’
*
*
*
*
*
*35 lbs
Included
W/14” Tool: 2,500 sq. ft./hour
Basic 1001 Brown Avenue Toledo, OH 43607 www.basiccoatings.com
Page 6
Operator Manual - Shop Dragon Wet/Dry Vacuums
AFTER USE
Unplug the power cord, starting from the machine wrap the power cord
onto the head assembly.
Completely empty tank of water and debris. Flush tank and dry with a clean
towel.
Wipe vacuum head assembly with damp towel.
Wipe the entire machine with a clean, damp cloth.
Inspect the machine & all accessories for damage. Perform any required
maintenance or repairs before storage.
Store the machine in a clean, dry place.
Page 7
Shop Dragon Wet/Dry Vacuum 10-Gallon Tip Pour Metal Cart
View# SKU Cross Ref. Vacuum Head Parts
N
A 8324500 1300/115V HEAD Complete Vacuum Head
9 8203600 60048GR Handle Motor Top
10 8203700 60002 Screw
11 8203800 10531 Switch
12 8203900 60046/15-50' 50' Power Cord
13 8204000 60007GR/1 Motor Cover Switch Housing
14 8204100 60010 Screw
15 8204200 40506 Strain Reliever
16 8204300 60049GRS Upper Motor Housing Sleeve
17 8204400 60022 Upper Motor Plate
18 8204500 95006 Upper Spacer Ring
19 8204600 ALT1 Spacer
20 & 22 8204700 60037 Motor Gasket (View20&22 Same Item)
21 8204800 58016/115 Motor 115V
23 8204900 60027GR Bottom Mounting Plate
24 8205000 60028 Gasket For Mount Plate
25 8205100 27014 Float
26 8205200 58023 Float Cage
View# SKU Cross Ref. Tanks and Casters Parts
30 8208800 60070 10 Gal Tip Pour Tank
31 8208900 60017 Tank Intake Gasket
32 8203200 60043GR Tank Intake Hose Connector
33 832900 77.014 Caster Nut
34 NA 60.151 Rubber Bumper
35 820900 10552 10 Gal Tip Pour Front Caster
37 NA 58.035 10 Gal Tip Pour Rear Wheel
38 NA 58.074 10 Gal Tip Pour Cart Assembly
40 NA 58.07 Tank Mounting Bracket
41 NA 10.517 Tank Mounting Bolt
42 NA 58.005 Washer
43 NA 90.039 Washer
NA 8202700 PL061 Plastic Tank Clamps
NA NA NA 10 Gal Tip Pour Tank Handle
View# SKU Cross Ref. Filters and Tools
1 8332200 40136 2 Bend Steel Wand
2 8324600 95018 Foam Filter For Float
3 8201900 40142 Plastic Wand
4 8202000 36031 Dusting Tool
5 8202100 40134 Crevice Tool
6 8202200 40138 Hard Floor Brush Tool
7 8328400 40130 Vacuum Hose
8 8202300 40139 Squeegee Tool
28 8309900 PL109 10 Gal Complete Cloth Filter
NA 8201600 NA Front Mount Squeegee Assembly
Basic 1001 Brown Avenue Toledo, Ohio 43607 www.basiccoatings.com

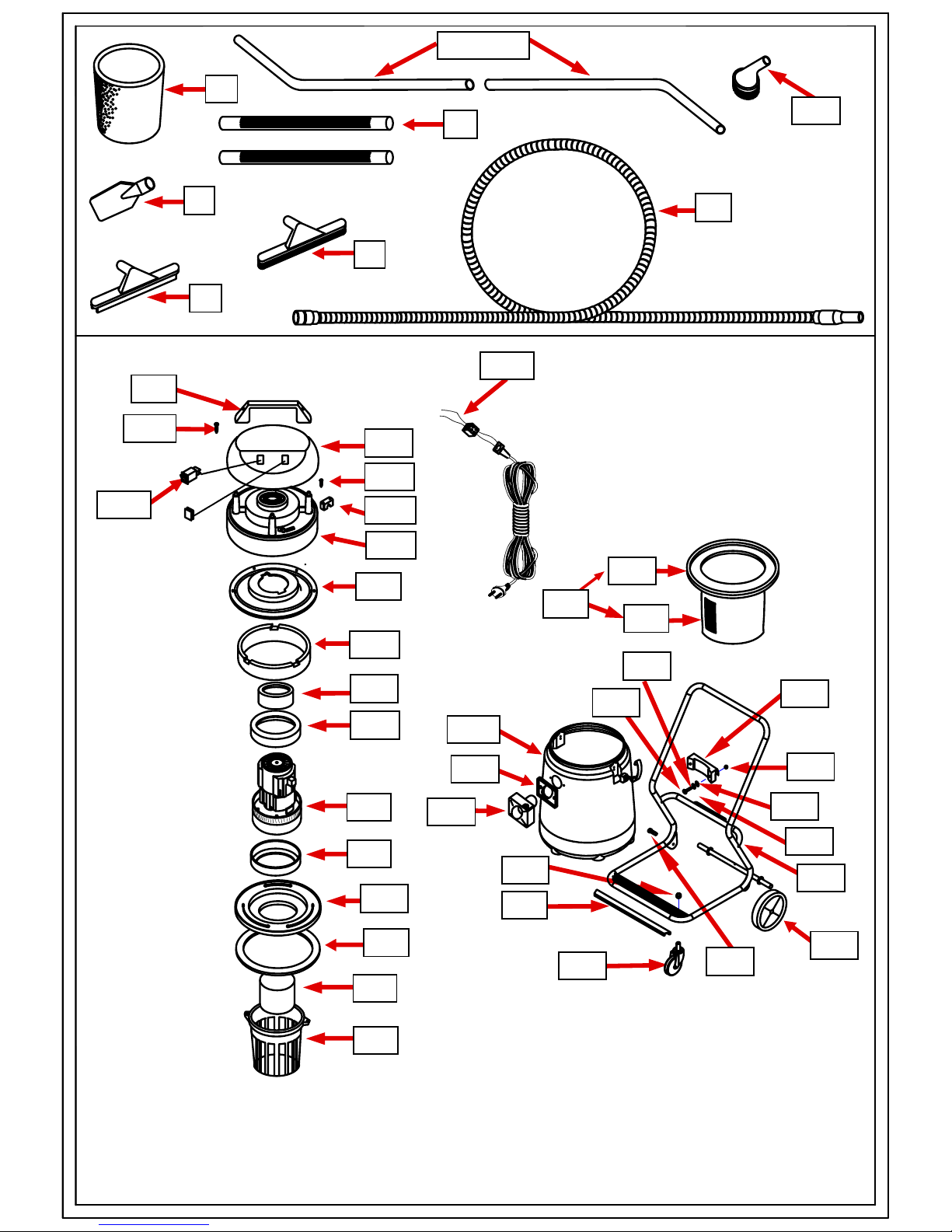

Page 8
121211
111313
10101010
99
8888
22
5555
4444
7777
3333
66
2727
22
1515
11
1414
11
1111
11
1111
3131
33
303033
202022
19191919
18181818
171711
16161616
2525
22
2424
2323
22
22222222
2121
22
323233
2626
22
3535
33
343433
3333
33
3636
33
3838
33
3939
33
4040
4343
4242
4141
373733
4444
