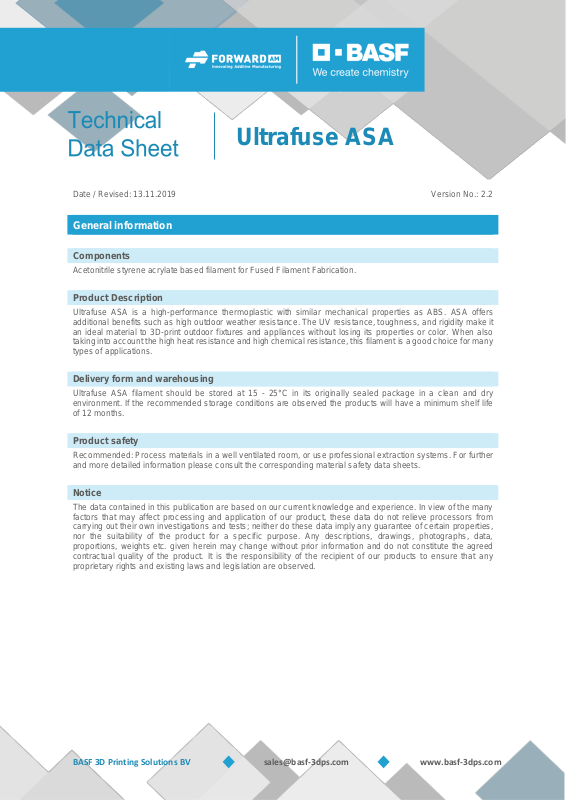

Page 1
BASF 3D Printing Solutions BV
www.basf-3dps.com
Date / Revised: 13.11.2019
Version No.: 2.2
General information
Components
Acetonitrile styrene acrylate based filament for Fused Filament Fabrication.
Product Description
Ultrafuse ASA is a high-performance thermoplastic with similar mechanical properties as ABS. ASA offers
additional benefits such as high outdoor weather resistance. The UV resistance, toughness, and rigidity make it
an ideal material to 3D-print outdoor fixtures and appliances without losing its properties or color. When also
taking into account the high heat resistance and high chemical resistance, this filament is a good choice for many
types of applications.
Delivery form and warehousing
Ultrafuse ASA filament should be stored at 15 - 25°C in its originally sealed package in a clean and dry
environment. If the recommended storage conditions are observed the products will have a minimum shelf life
of 12 months.
Product safety
Recommended: Process materials in a well ventilated room, or use professional extraction systems. For further
and more detailed information please consult the corresponding material safety data sheets.
Notice
The data contained in this publication are based on our current knowledge and experience. In view of the many
factors that may affect processing and application of our product, these data do not relieve processors from
carrying out their own investigations and tests; neither do these data imply any guarantee of certain properties,
nor the suitability of the product for a specific purpose. Any descriptions, drawings, photographs, data,
proportions, weights etc. given herein may change without prior information and do not constitute the agreed
contractual quality of the product. It is the responsibility of the recipient of our products to ensure that any
proprietary rights and existing laws and legislation are observed.
Ultrafuse ASA
Page 2
Technical Data Sheet for Ultrafuse ASA
Version No. 2.2
BASF 3D Printing Solutions BV
www.basf-3dps.com
Recommended 3D-Print processing parameters
Nozzle Temperature
260 – 280 °C / 500 – 536 °F
Build Chamber Temperature
Closed chamber, passively heated
Bed Temperature
100 – 120 °C / 212 – 248 °F
Bed Material
Spray, PC adhesive
Nozzle Diameter
≥ 0.4 mm
Print Speed
30 – 60 mm/s
Drying Recommendations
Drying recommendations to
ensure printability
60 °C in a hot air dryer or vacuum oven for 4 to 16 hours
Please note: To ensure constant material properties the material should always be kept dry.
General Properties
Standard
Printed Part Density
1069 kg/m3 / 66.7 lb/ft3
ISO 1183-1
Thermal Properties
Standard
HDT at 1.8 MPa
92 °C / 198 °F
ISO 75-2
HDT at 0.45 MPa
101 °C / 214 °F
ISO 75-2
Glass Transition Temperature
112 °C / 234 °F
ISO 11357-2
Melt Volume Rate
3.9 cm3/10 min / 0.2 in3/10 min (260 °C, 2.16 kg)
ISO 1133
Page 3
Technical Data Sheet for Ultrafuse ASA
Version No. 2.2
BASF 3D Printing Solutions BV
www.basf-3dps.com
Mechanical Properties
Print direction
Standard
XY
XZ
ZX
Flat
On its edge
Upright
Tensile strength
ISO 527
34.6 MPa / 5.0 ksi
-
12.0 MPa / 1.7 ksi
Elongation at Break
ISO 527
4.5 %
-
1.0 %
Young’s Modulus
ISO 527
1828 MPa / 265 ksi
-
1400 MPa / 203 ksi
Flexural Strength
ISO 178
59.4 MPa / 8.6 ksi
61.2 MPa / 8.9 ksi
19.9 MPa / 2.9 ksi
Flexural Modulus
ISO 178
1733 MPa / 251 ksi
1638 MPa / 238 ksi
1041 MPa / 151 ksi
Flexural Strain at Break
ISO 178
5.4 %
5.2 %
2.9 %
Impact Strength Charpy (notched)
ISO 179-2
8.9 kJ/m²
15.5 kJ/m²
2.7 kJ/m²
Impact Strength Charpy (unnotched)
ISO 179-2
42.7 kJ/m²
41.2 kJ/m²
5.1 kJ/m²
Impact Strength Izod (notched)
ISO 180
8.7 kJ/m²
11.4 kJ/m²
1.9 kJ/m²
Impact Strength Izod (unnotched)
ISO 180
36.8 kJ/m²
39.3 kJ/m²
6.8 kJ/m²
