The data contained in this publication are based on our current knowledge and experience. In view of the many factors that ma y affect processing
and application of our product, these data do not relieve processors from carrying out their own investigations and tests; neither do these data imply
any guarantee of certain properties, nor the suitability of the product for a specific purpose. Any descriptions, drawings, photographs, data,
proportions, weights etc. given herein may change without prior information and do not constitute the agreed contractual quality of the product. It is
the responsibility of the recipient of our products to ensure that any proprietary rights and existing laws and legislation are observed. The safety data
given in this publication is for information purposes only and does not constitute a legally binding MSDS. The relevant MSDS can be obtained upon
request from your supplier or you may contact BASF 3D Printing Solutions GmbH directly at [email protected]. Version 2.0
BASF 3D Printing Solutions GmbH [email protected] www.forward-am.com
General Properties
Norm
Typical Values
Viscosity, 30 °C
Cone/Plate Rheometer1
215 mPas
Viscosity, 50 °C
Cone/Plate Rheometer1
80 mPas
Density
ASTM D792
1.2 g/cm³
Density (liquid resin)
ASTM D4052-18a
1.12 g/cm³
Tensile Properties
Norm
Typical Values
E Modulus
ASTM D638
2300 MPa
Ultimate Tensile Strength
ASTM D638
62 MPa
Elongation at Break
ASTM D638
25 %
Flexural Properties
Norm
Typical Values
Flexural Modulus
ASTM D790
2430 MPa
Flexural Strength
ASTM D790
109 MPa
Impact Properties
Norm
Typical Values
Notched Izod (Machined), -30 °C
ASTM D256
20.2 J/m
Notched Izod (Machined), 23 °C
ASTM D256
20.8 J/m
Charpy notched, 23 °C
ISO 179-1
1.39 kJ/m²
Thermal Properties
Norm
Typical Values
HDT at 0.45 MPa
ASTM D648
73 °C
HDT at 1.82 MPa
ASTM D648
61 °C
Flammability
UV 94 1.5 mm
HB
Hardness
Norm
Typical Values
Shore D
ASTM D2240
81
Other
Norm
Biocompatibility
ISO 10993
Information available on request
____________________________________________________
1) Determined with TA-Instrument DHR rheometer, cone/plate, diameter 60 mm, shear rate 100 s
-1

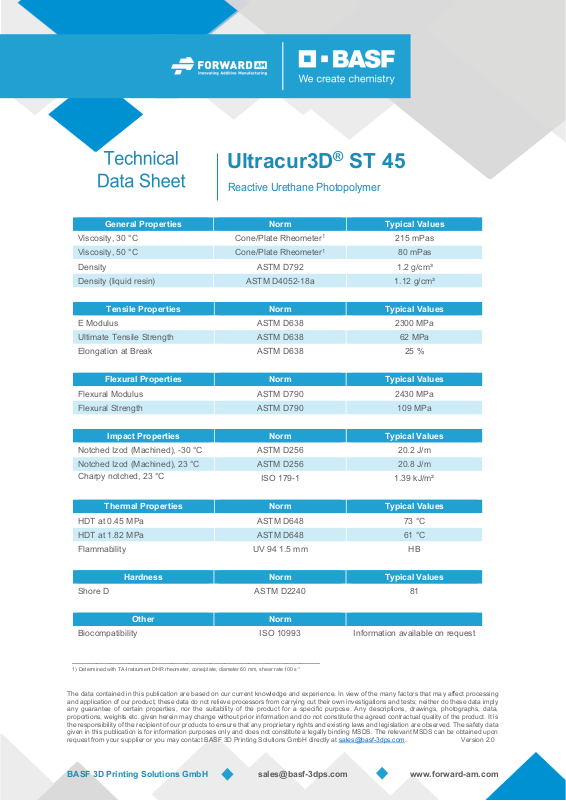

Ultracur3D® ST 45
Reactive Urethane Photopolymer
