PRODUCT DESCRIPTION:
------------------------------------------------------------------------------------
Name: ●
Article no.: ●
Construction: ● Chrome-nickel steel,
4 swivel castors, 2 with brake,
Dimensions: ● W 920 x D 600 x H 1540 mm
Shelf size: ● W 827 x D 510 mm
Distance between shelves: ● 265 mm
Load capacity: ● 150 kg
Weight: ● 18 kg

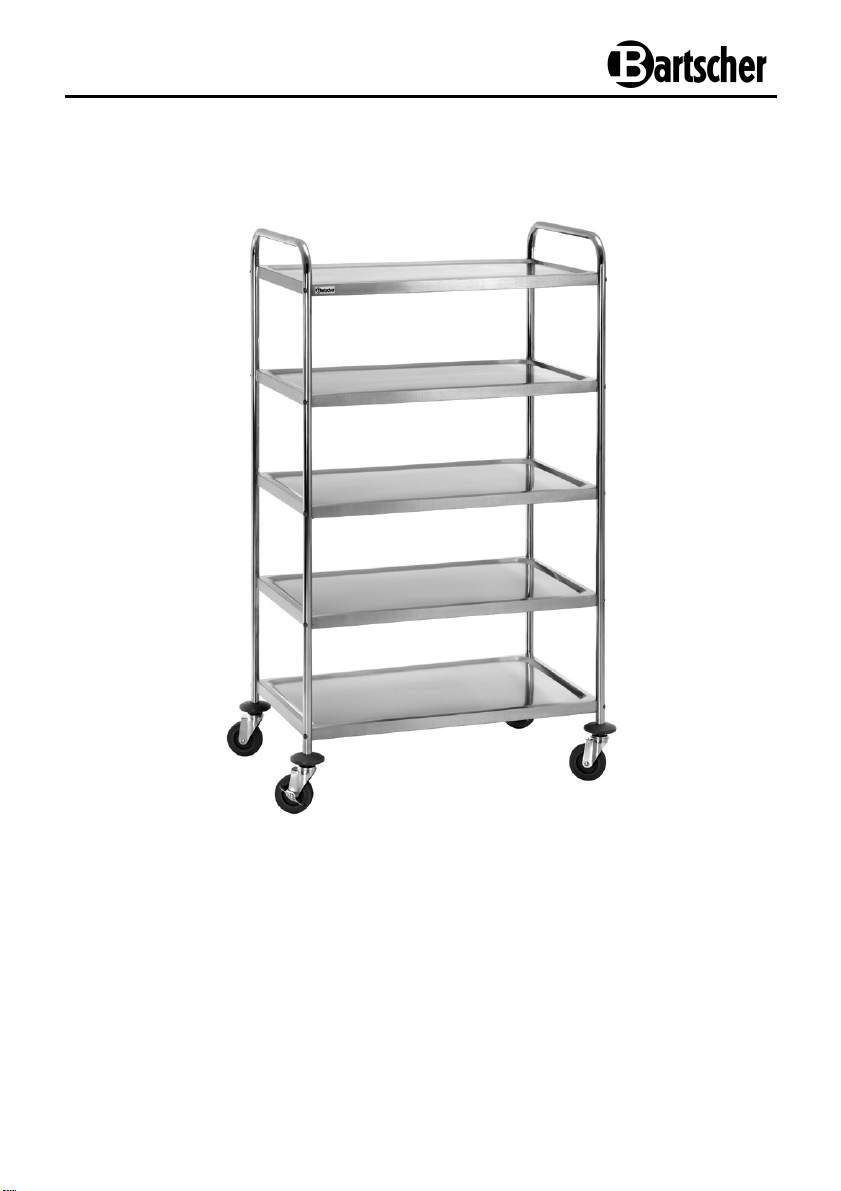

Trolley TS 500 with 5 shelves
300.065
-----------------------------------------------------------------------------------
Unit includes / Parts names
5 x shelf
2 x frame
2 x swivel castors without brake
2 x swivel castors with brake
20 x M8 screw
20 x washer
20 x nut
4 x bumper
1 x Allen key
1 x wrench
- 3 -
ASSEMBLY:
1. Unpack the unit’s parts and ensure all of them are present.
Remove all packing material.
2. Begin assembly by mounting the shelves to the
frame.
Screw in the shelves using the included Allen key,
beginning with the washers and nuts.
3. Turn the trolley upside-down and screw the
swivel castors into the frame. Place the
bumpers above the castors.
Screw
Nut
Washer
4. Carefully place the trolley on the ground and ensure all the castors are touching the
floor. Turn the screws tightly with the Allen key. Use the wrench included to turn the
nuts tightly.
5. The height of the wheels can be regulated as needed using the hex nuts.
NOTE!
Remove the protective film after assembly!
