TECHNICAL SPECIFICATIONS:
----------------------------------------------------------------------------------------
Name: ●
Article number: ●
Construction: ● Chrome nickel steel
Dimensions: ● W 515 x D 640 x H 925 mm
Platform size: ● W. 513 x D 583 mm
Carrying capacity: ● 120 kg

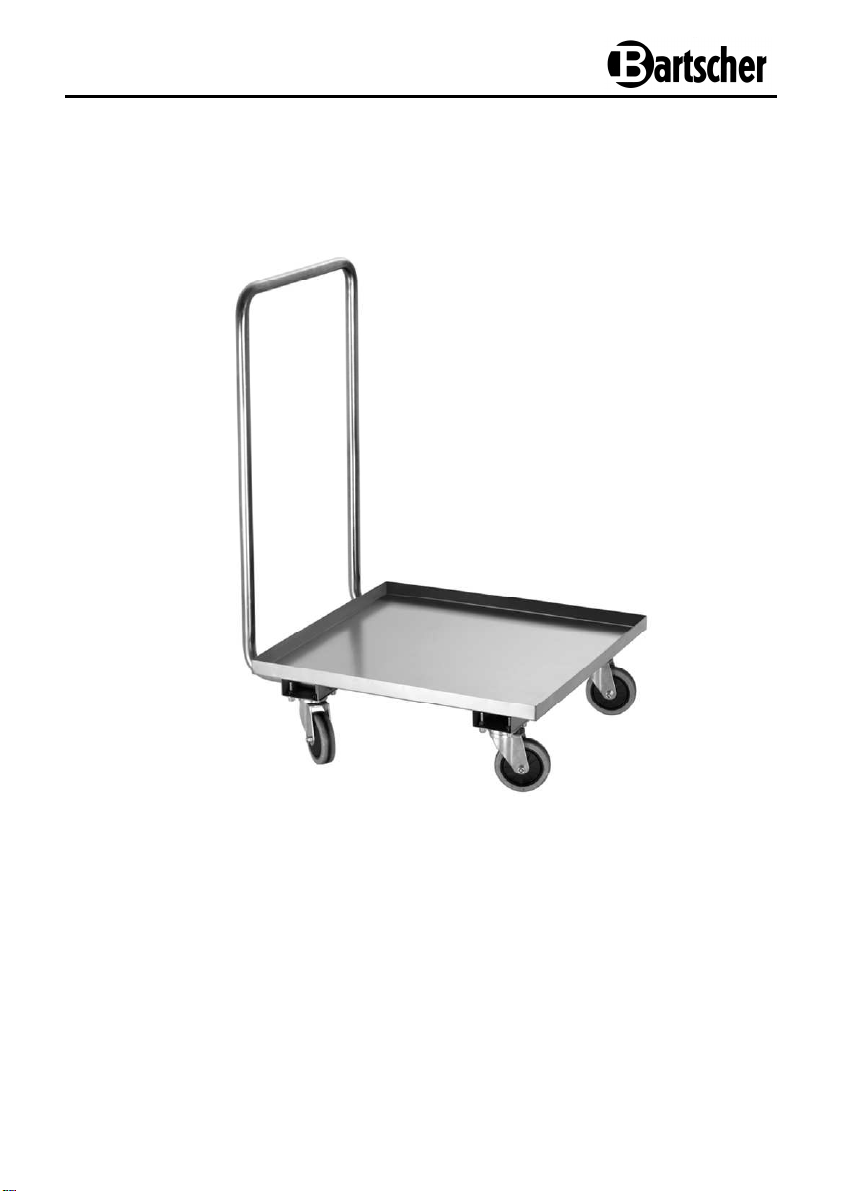

Dishwasher rack trolley
300.143
Weight: ● 8.75 kg
----------------------------------------------------------------------------------------
Elements included
1 x tray for dishwasher racks
1 x handle with M10 screws
2 x M10 nuts for assembling handle
4 x swivel castors,
Ø
100 x 25 mm
16 x M8*30 Allen screws
16 x spring washers
castors
16 x washers
six-sided Allen wrench
- 3 -
ASSEMBLY INSTRUCTIONS:
Remove the individual parts and check to ensure that all elements are present.
Remove the packing material.
Start by assembling the swivel castors to the tray. To do so, place the tray on a flat
surface with the bottom up. Screw the swivel castors into the tray using the Allen
screws. Remember to place the washers and spring washers between the screws
and the tray.
Place the tray with wheels on its side. To assemble the handle, slide it into the pipes and
screw in the handle using the nuts included with the unit.
Place the dishwasher rack trolley on the floor. Check that it is stable. If necessary, turn
the screws further with a six-sided Allen wrench.
NOTE!
After assembling the unit, remove the protective film!
To clean the trolley, use only a soft cloth and delicate cleaning liquid.
Never use scouring substances which may scratch the unit’s surface.
