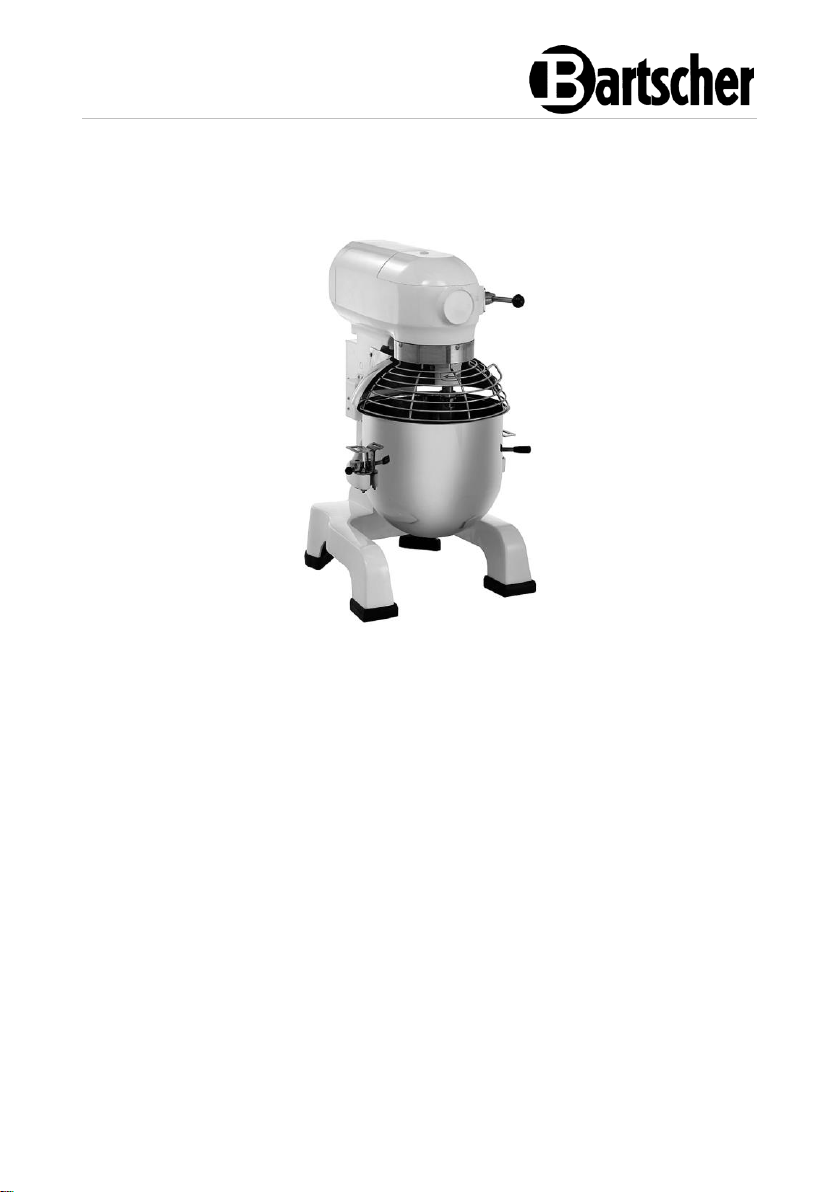

T 7,5kg/20L AS
101939
Bartscher GmbH
Franz-Kleine-Str. 28
D-33154 Salzkotten
Germany
Phone: +49 5258 971-0
Fax: +49 5258 971-120
Technical Support Hotline: +49 5258 971-197
www.bartscher.com
Version: 1.0
Date of preparation: 2023-08-09
EN
2
Original instruction manual
1 Safety ............................................................................................................ 2
1.1 Explanation of Signal Words .................................................................... 2
1.2 Safety instructions.................................................................................... 3
1.3 Intended Use ........................................................................................... 5
1.4 Unintended Use ....................................................................................... 5
2 General information ....................................................................................... 6
2.1 Liability and Warranty .............................................................................. 6
2.2 Copyright Protection ................................................................................ 6
2.3 Declaration of Conformity ........................................................................ 6
3 Transport, Packaging and Storage ................................................................ 7
3.1 Delivery Check ......................................................................................... 7
3.2 Packaging ................................................................................................ 7
3.3 Storage .................................................................................................... 7
4 Technical Data ............................................................................................... 8
4.1 Technical Specifications .......................................................................... 8
4.2 List of Components of the Appliance ....................................................... 9
4.3 Functions of the Appliance ..................................................................... 11
5 Installation and operation ............................................................................ 11
5.1 Installation .............................................................................................. 11
5.2 Operation ............................................................................................... 13
6 Cleaning and Maintenance .......................................................................... 19
6.1 Safety Instructions for Cleaning ............................................................. 19
6.2 Cleaning ................................................................................................. 19
6.3 Maintenance .......................................................................................... 20
7 Possible Malfunctions .................................................................................. 21
8 Disposal ....................................................................................................... 22
101939 1 / 22
Safety
EN
Read this instruction manual before using and keep it available
at all times!
DANGER!
The signal word DANGER warns against hazards that lead to severe
injuries or death if the hazards are not avoided.
Diese Bedienungsanleitung beschreibt di e Installation, Bedienung und Wartung des Geräts und gilt als wichtige Infor mationsquelle und Nachschlagewer k. Die Kenntnis aller enthaltenen Sicherh eitshinweise und Handlungsanweisunge n schafft die Voraussetzung für d as sichere und sachgerechte Ar beiten mit dem Gerät. Darüber hinaus müssen die für den Einsatzbereich des Geräts geltenden örtlichen Unfall verhütungsvorschriften und allgemeine n Sicherheitsbestimmungen eingehalt en werden. Diese Bedienungsanleitung is t Bestandteil des Produkts und muss in unmittelbarer Nähe des Ger äts für das In¬stallations-, Bedienu ngs-, Wartungs- und Reinigungspers onal jederzeit zugänglich auf¬bewahrt werd en. Wenn das Gerät an eine dritt e Person
weitergegeben wird, muss die Bedienungsa nleitung mit ausgehändigt werden.
This instruction manual contains information about installation, operation and
maintenance of the appliance and constitutes an important source of information
and reference guide. The knowledge of all operational and safety instructions
included in this manual is a prerequisite for safe and proper handling of the
appliance. Additionally, accident prevention, occupational health and safety, and
legal regulations in force in the area the appliance is used apply.
Before you start using the appliance, especially before turning it on, read this
instruction manual in order to avoid personal injuries and property damages.
Improper use may cause damage.
This instruction manual forms and integral part of the product and must be stored in
an immediate vicinity of the appliance and be available at all times. The instruction
manual should be transferred together with the appliance.
1 Safety
This appliance has been manufactured in accordance with technical standards
currently in force. However, the appliance may be a source of hazards if used
improperly or contrary to its intended purpose. All persons using the appliance must
consider information included in this instruction manual and observe safety
instructions.
1.1 Explanation of Signal Words
Important safety instructions and warning information are indicated in this
instruction manual with appropriate signal words. You must strictly follow the
instructions, to prevent accidents, personal injuries and property damages.
2 / 22 101939
Safety
EN
WARNING!
The signal word WARNING warns against hazards that may lead to
moderate or severe injuries or death if the hazards are not avoided.
CAUTION!
The signal word CAUTION warns against hazards that may lead to
light or moderate injuries if the hazards are not avoided.
IMPORTANT!
The signal word IMPORTANT indicates possible property damages,
which may occur if safety instructions are not observed.
NOTE!
The symbol NOTE indicates subsequent information and guidelines
for the user on usage of the appliance.
, die
1.2 Safety instructions
Electrical Current
• Too high a mains voltage or incorrect installation may cause electric shock.
• The appliance may be connected only if data on the rating plate correspond with
the mains voltage.
• To avoid short-circuit, the appliance should be kept dry.
• If there are malfunctions during operation, disconnect the appliance from the
power supply.
• Do not touch the appliance’s plug with wet hands.
• Never take hold of the appliance if it has fallen into water. Immediately
disconnect the appliance from the power supply.
• Any repairs or housing opening may be carried out by professionals and
relevant workshops only.
• Do not transport the appliance, holding it by the power cord.
• Do not allow the power cord to come into contact with heat sources or sharp
edges.
• Do not bend, pinch nor knot the power cord.
101939 3 / 22
Safety
EN
• Always completely unwind the power cord.
• Never place the appliance or other objects on the power cord.
• Always take hold of the plug to disconnect the appliance from the power supply.
• Check the power cord regularly for damage. Do not use the appliance if the
power cord is damaged. If this cable is damaged, it must be replaced by
customer service or a qualified electrician in order to avoid dangers.
Safety of planetary mixer operation
• Never touch the rotating parts of the appliance during operation.
• Keep hands, hair, clothes, spatulas, and similar kitchen utensils away from the
mixing bowl and whisk during the appliance operation.
• Whisks should be replaced only after complete stop of the drive which rotates
for a short time after the power supply is switched off.
Operating Personnel
• The appliance may only be operated by qualified personnel and trained
specialist personnel.
• This appliance may not be operated by persons (including children) with limited
physical, sensory or mental capabilities, nor by persons with limited experience
and/or limited knowledge.
• Children should be supervised to ensure that they are not playing with or
switching on the appliance.
Supervised Usage only
• Only supervised appliance may be used.
• Always remain in an immediate vicinity of the appliance.
4 / 22 101939
Safety
EN
Improper Use
• Unintended or prohibited use may cause damage to the appliance.
• The appliance may only be used when its technical condition is flawless and
allows for safe operation.
• The appliance may only be used when all connections are executed according
to rules of law in force.
• The appliance may only be used when it is clean.
• Use only original spare parts. Never attempt to repair the appliance on your own.
• Do not introduce any changes in the appliance nor modify it.
1.3 Intended Use
As described below, every use of the appliance for a purpose differing and/or
diverging from its intended standard use, is prohibited and considered to be an
unintended use.
The following is an intended use:
– Dough kneading for bread and pies
– Dough mixing for pies and cakes
– Whipping of creams, sour cream, and eggs
1.4 Unintended Use
An unintended use may lead to personal injuries or property damages caused by
hazardous voltage, fire or high temperature. The appliance may only be used to
perform tasks described in this instruction manual.
The following is an unintended use:
– Processing of inappropriate food products and other materials
101939 5 / 22
General information
EN
2 General information
2.1 Liability and Warranty
All information and instructions in this instruction manual account for legal
regulations in force, current level of technical engineering knowledge as well as our
expertise and experience, developed over the years. If special models or additional
options are ordered, or state-of-the-art technical solutions were implemented, the
actual scope of delivery of the appliance may, in some circumstances, differ from
descriptions and numerous drawings in this instruction manual.
The manufacturer is not liable for any damages nor faults stemming from:
– failure to observe instructions,
– unintended use,
– technical alterations introduced by the user,
– usage of unapproved spare parts.
We reserve the right to introduce technical modifications to the product, intended for
improvement of the appliance and its performance.
2.2 Copyright Protection
This instruction manual, and texts, drawings and images included in it, as well as its
other components are copyright protected. It is prohibited to reproduce this
instruction manual (including its excerpts), in any form and by any means, and to
use and/or transfer its content to third parties without manufacturer’s written
permission. Violation of the above results in obligation to pay compensation. We
reserve the right to claim further damages.
2.3 Declaration of Conformity
The appliance meets the currently applicable standards and guidelines of the
European Union. We confirm the above in the EC Declaration of Conformity. We
may provide relevant Declaration of Conformity upon request.
6 / 22 101939
Transport, Packaging and Storage
EN
3 Transport, Packaging and Storage
3.1 Delivery Check
Immediately upon reception, check the delivery for completeness and possible
shipping damage. In the case of visible transport damage refuse to accept the
appliance or accept it conditionally. Mark and note the scope of damage in shipping
documents/consignment list of the shipping company and lodge a complaint.
Concealed damage must be reported immediately upon its discovery, as
compensation claims may only be filed within applicable time limits.
If you find that parts or accessories missing, please contact our Customer Service
Department.
3.2 Packaging
Do not dispose of the appliance cardboard box. It may be used to store the
appliance when relocating or when shipping the appliance to our service point in the
case of any damages.
The packaging and its elements are made of recyclable materials. Particularly,
these are: plastic films and bags, cardboard box.
When disposing of the packaging, observe applicable domestic regulations.
Recyclable packaging materials should be recycled.
3.3 Storage
Leave the packaging closed until installation of the appliance; observe external
indications concerning method of placing and storage. Store the packaging in the
following conditions only:
– in closed rooms;
– in dry and dust-free surrounding;
– away from aggressive agents;
– in a location protected against sunlight;
– in a location protected against mechanical shocks.
In the case of extended storage (over three months), make sure you check the
condition of the packaging and the parts regularly. If needed, replace the packaging
with a new one.
101939 7 / 22
Technical Data
EN
Name:
Planetary mixer T 7,5kg/20L AS
Art. No.:
101939
Material:
cast aluminium
Mixing bowl material:
Stainless steel
Amount of dough production in kg/l:
7,5 / 20
Speed levels:
3

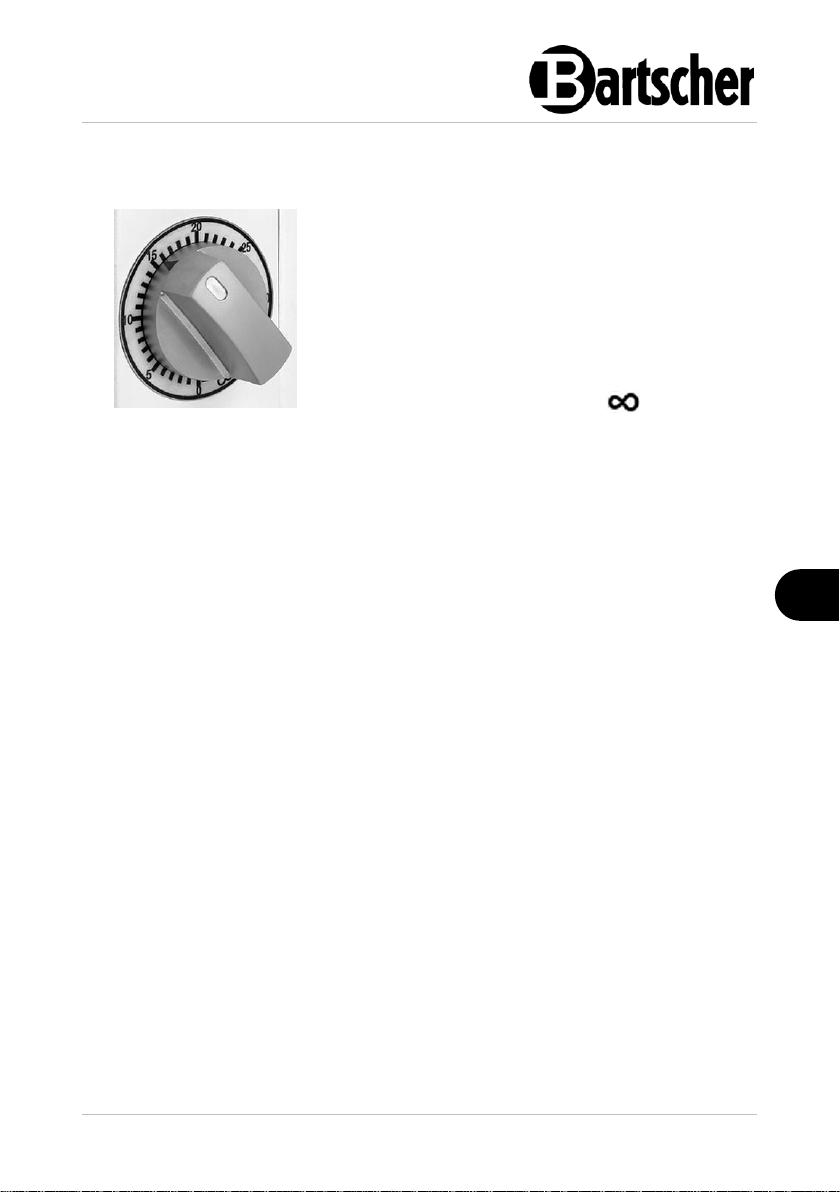

Time setting up – to, in minutes:
5 - 30 + endless
Time setting interval in minutes.
1
Power supply:
1,1 kW | 230 V | 50/60 Hz
Dimensions (W x D x H), in mm:
496 x 530 x 800
Weight in kg:
80,0
4 Technical Data
4.1 Technical Specifications
We reserve the right to implement technical modifications!
Version / Characteristics
• Appliance connection: ready to plug in
• Removable mixing bowl
• Safety switch
• Timer
• Motor protection
• ON/OFF switch
• The set includes:
– 1 flat stirrer, stainless steel
– 1 dough hook, stainless steel
– 1 whisk, stainless steel, aluminium
– 1 protective grating, stainless steel
8 / 22 101939
Technical Data
EN
Fig. 1
1. Housing
2. Control panel
3. Lever
4. Holder for mixing elements
5. Mixing bowl fixing lever
6. Base with rubber feet
7. Mixing bowl bracket
8. Protective mesh
9. Mixing bowl
10. Whisk
11. Dough hook
12. Flat stirrer
4.2 List of Components of the Appliance
101939 9 / 22
Technical Data
EN
Fig. 2
13. Speed controller
14. Start button (green)
15. Stop/off switch (red)
16. Timer
17. RESET button
Control Panel
Protective devices
The appliance is equipped with protective devices preventing start-up when:
– the protective mesh is opened,
– the mixing bowl is not placed on the bracket,
– the mixing bowl bracket is not lifted to the highest position with use of
lever.
For additional safety the appliance is equipped with power supply failure
protection. It means that after the power supply failure the appliance may be
restarted inly by pressing the Start button again. That element assures that after the
power supply restoration the appliance would not start automatically.
In case of overload the overheating protection is activated which automatically
stops the appliance. It is then required to turn off the appliance with Stop/Off switch
and after complete drive stop reduce the dough amount. Press the RESET button
on left side of the appliance. Restart the appliance.
10 / 22 101939
Installation and operation
EN
CAUTION!
Incorrect installation, positioning, operation, maintenance or misuse of
the appliance may lead to personal injury or property damage.
Positioning and installation, as well as repairs may be performed by
authorised technical service only and in compliance with the applicable
national law.
NOTE!
The manufacturer disclaims all liability and provides no warranty for
damages, which may be attributed to non-observance of regulations or
incorrect installation.
CAUTION!
Choking hazard!
Prevent children from accessing package materials, for instance: plastic
bags and EPS.
4.3 Functions of the Appliance
With this planetary mixer you can quickly prepare different types of cakes, cream
and mousse. The efficient mixer produces up to 7.5 kg of dough in one cycle.
5 Installation and operation
5.1 Installation
Unpacking / Positioning
• Unpack the appliance, remove all external and internal packaging elements and
shipment safeguards.
• If the appliance is covered with a protective film, remove it. Remove the film
slowly, so no glue residues are left. Remove any glue residues with the use of a
suitable solvent.
• Be careful not to damage the rating plate and warning labels fixed on the
appliance.
• Never place the appliance in humid or wet environment.
101939 11 / 22
Installation and operation
EN
• Place the appliance in a way making the connections easily accessible, so that
they may be quickly disconnected if such a need arises.
• The appliance should be placed on surfaces that are:
– even, with sufficient bearing capacity, resistant to water, dry and resistant
to high temperatures;
– sufficiently large, and thus enabling usage of the appliance with no
problems;
– easily accessible;
– well ventilated.
• Maintain sufficient clearance from table edges. The appliance might turn over
and fall down.
Power supply connection
• Verify if technical data of the appliance (see rating plate) correspond with the
local electric power grid specification.
• Connect the appliance to a single, properly grounded mains socket with
protective contact. Do not connect the appliance to a multi-socket.
• The power cord should be laid in a way preventing anyone from threading on it
or tripping against it.
• Do not use the appliance with an external timer or remote control.
12 / 22 101939
Installation and operation
EN
2. Install the mixing bowl on the bracket.
There are three fixing points:
– locking pin at the back of the bowl
which is inserted into appropriate hole
in the bowl bracket;
– two pins on right and left side of the
bowl bracket which must snap in the
holes on the bowl handles.
3. Pull the mixing bowl handle on right and
left side to the front.
Fig. 3
5.2 Operation
Before the First Use
1. Before the first use it is required to clean the appliance and accessories
thoroughly with use of hot water, soft cloth or sponge, and gentle detergent.
Follow the instructions in section 6.2 “Cleaning”.
2. Rinse the cleaned components in clean water and dry.
3. Install the mixing bowl and appropriate mixing elements in the appliance
according to the instructions below.
Installation of the mixing bowl
Before the mixing bowl installation the appliance must be turned off and the bowl
bracket must be in the lower position; to this end rotate the lever down.
1. Put required mixing elements in the mixing bowl.
101939 13 / 22
Installation and operation
EN

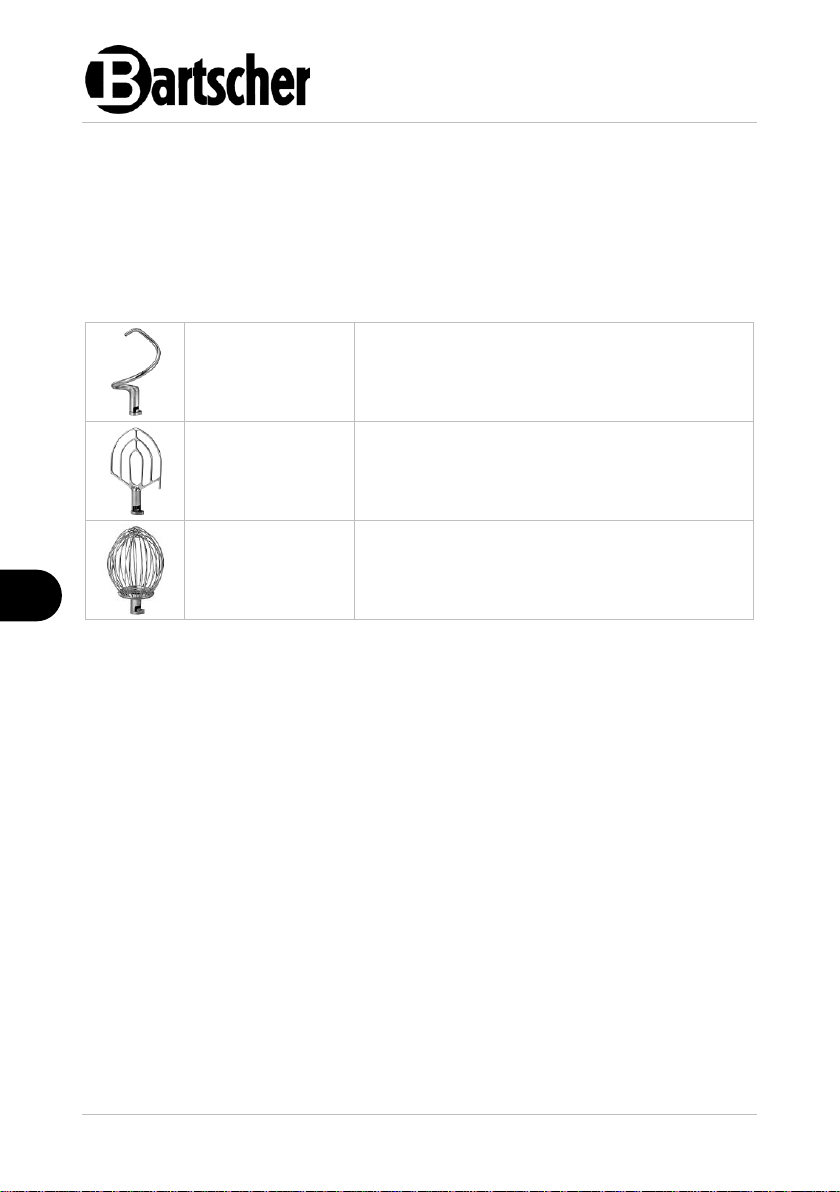

Dough hook
designed for heavy mixes, e.g. bread dough
Recommended speed level: 1
Flat stirrer
usually used for light pies, cakes, filling, and
vegetable puree
Recommended speed levels: 1, 2
Whisk
perfect for light mixes, e.g. whipped cream,
mayonnaise, eggs, egg white foam, pancakes,
souffles
Recommended speed levels: 1, 2, 3
Table 1
Selection of mixing elements
Flat stirrer, whisk, and dough hook are designed only for specific (appropriate)
works.
NOTE!
Do not use the flat stirrer for preparation of heavy dough and the whisk for
other works than whipping, scrambling, or preparation of light mixes.
Installation / removal of mixing elements
NOTE!
The mixing bowl must be in the lower position during the installation of
the mixing elements.
1. Open the protective mesh using the handle.
2. Slide selected mixing element into the holder and rotate it counterclockwise
until the drive pin reaches the L-shaped slot in the element.
CAUTION!
Make sure that the mixing element is firmly seated in the handle.
14 / 22 101939
Installation and operation
EN
3. To remove the mixing element, press it slightly towards the holder, rotate
clockwise, and then pull it down.
Filling with ingredients
1. After the installation of selected mixing element fill the mixing bowl with
ingredients to knead. Do not exceed the maximum filling level.
Maximum filling: approx. 7,5 kg
Recommendation: 2 kg of flour per 1 litre of water.
We recommend to put water (or other liquid) in the mixing bowl first, and then flour.
The appliance might be able to knead larger amounts, but it could lead to premature
wear and possible damage. The appliance overloading also extends the
mixing/kneading time and causes unsatisfactory results.
2. In case of drive overload stop the appliance by pressing the Stop/off switch (red)
and immediately reduce the mixing bowl filling.
101939 15 / 22
Installation and operation
EN
1. After adding the ingredients lift the mixing
bowl bracket using the handle (right
drawing).
The lever is located on right side of the
appliance.
2. Rotate it counterclockwise by 180° to lift the
mixing bowl bracket.
3. To lower it, rotate the handle clockwise by
180°.
4. Pay attention to the information next to the
handle.
Fig. 4
Lever and protective mesh
The mixing bowl bracket and the protective mesh are electrically connected so the
appliance operates only when:
– there is the mixing bowl on the bracket
– the protective mesh is closed
– the mixing bowl bracket is lifted all the way up.
After lifting the mixing bowl using the lever the appliance may be safely turned on.
16 / 22 101939
Installation and operation
EN
To start operation you need to set the timer.
1. Rotate the timer switch clockwise to the
selected temperature setting.
The time can be set between 5 and 30 minutes.
As soon as the set time elapses, the appliance
stops automatically.
It is also possible to set continuous operation
(infinite), by switching the timer to position.
Fig. 5
Time setting
The appliance is equipped with a timer (rotary time switch).
Setting the speed level
Selection of speed level (1 – 3) depends mostly on type, amount, and consistence
of ingredients to be processed.
Follow the recommended speed levels from table 1.
1. Use the speed controller to select one of those levels.
ATTENTION!
Before changing the speed level stop the appliance by pressing Stop/off
switch (red).
2. Always start from the lowest level and gradually select the higher levels until
reaching the required one.
101939 17 / 22
Installation and operation
EN
Appliance Start-up
1. Connect the appliance to a single grounded socket.
To make start-up possible:
– the mixing bowl must be locked in the upper position,
– the protective mesh must be closed,
– the Stop/off switch (red) must be pulled out.
2. Set the required time and speed level.
3. To start the appliance press Start button (green) on the control panel.
4. Process the required ingredients.
WARNING!
Risk of fingers and hands injury by rotating mixing elements!
Kitchen utensils may get caught by mixing elements during operation.
Never put rigid kitchen utensils through the protective mesh into the mixing
bowl.
Turn the appliance off, wait for the motor to stop and only then mix or remove
ingredients from the bowl.
5. When it is required to add any successive ingredients, open the protective mesh
using the handle.
The appliance stops automatically when the protective mesh is opened during the
operation.
6. Add the required ingredients.
7. Close the protective mesh.
8. Continue processing by pressing the Start button (green).
9. When processing is finished, press Stop/off switch (red) on the control panel to
turn the appliance off.
10. Lower the mixing bowl bracket, rotating the handle clockwise by 180°.
11. Remove the mixing elements by pressing them slightly towards the holder,
rotating clockwise, and then pulling down.
12. Put mixing elements in the mixing bowl.
13. Release both mixing bowl fixing levers by rotating them to the back.
14. Remove the mixing bowl from the bracket by pulling it up.
15. Remove mixing elements.
16. If needed, put the processed food products into a suitable container.
18 / 22 101939
Cleaning and Maintenance
EN
6 Cleaning and Maintenance
6.1 Safety Instructions for Cleaning
• Before cleaning, disconnect the appliance from the power supply.
• Leave the appliance to cool down completely.
• Make sure water does not enter the appliance. Do not immerse the appliance in
water or other liquids during cleaning. Do not clean the appliance with a
pressurized water jet.
• Do not use any sharp or pointed, nor metal implements (knife, fork, etc.). Sharp
or pointed implements may damage the appliance, and when in contact with live
parts, they may cause electric shock.
• For cleaning, do not use any scouring agents that contain solvents nor corrosive
cleaning agents. They may damage the surface.
6.2 Cleaning
1. Clean all appliance elements after each use.
2. To lower the mixing bowl bracket, rotate the handle clockwise by 180°.
3. Always remove the mixing elements for washing by pressing them slightly
towards the holder, rotating clockwise, and then pulling down.
4. Put the mixing elements in the mixing bowl.
5. Release both mixing bowl fixing levers by rotating them to the back.
6. Then lift the mixing bowl to remove it from the bracket with the mixing element.
7. Remove food residuals from the disassembled parts.
8. Clean the removed accessories (mixing bowl, mixing elements) thoroughly in
hot water with gentle washing agent.
9. Rinse the cleaned elements in pure water.
10. Leave the parts to dry in open air or dry with a lint-free cloth.
ATTENTION!
Washing agents used in dishwashers may damage the surface of the
mixing elements.
Never wash the mixing elements in a dishwasher.
101939 19 / 22
Cleaning and Maintenance
EN
11. Clean the mixing elements holder, protective mesh, mixing bowl bracket, and
appliance housing with use of soft, moist cloth and gentle cleaning agent.
12. Pay particular attention to remove the dough residuals from the mixing bowl
bracket pins, otherwise the mixing bowl will not be able to be positioned
correctly.
13. Wipe with clean water and dry the cleaned surfaces.
6.3 Maintenance
Let the appliance to be inspected by professional technician at least once a year or
as required.
• Order regular lubrication of appropriate points in the appliance when required.
20 / 22 101939
Possible Malfunctions
EN
Problem
Cause
Solution
The mixing elements
holder does not rotate
after start-up
Incorrectly connected
plug.
Connect the plug.
The premises connection
fuse tripped.
Disconnect the appliance
from mains supply, reset
the fuse and re-connect
the appliance.
Oil leak
Worn oil seals
Contact the supplier
The lever moves too
tightly
Corroded guides
Clean and lubricate the
guides
Threaded pin, bevel gear,
flywheel shaft, etc., are
dry
Lubricate the lever
elements
Motor temperature is too
high and is below the
rotational speed
Incorrect voltage
Check the supply voltage
Overload
Reduce the processed
amount
Selected speed level is
too high
Select appropriate speed
level
Selected mixing element
is inappropriate
Select appropriate mixing
element
7 Possible Malfunctions
Mögliche
The table below contains descriptions of possible causes and solutions to
malfunctions or errors during operation of the appliance. When malfunction cannot
be removed, contact the technical service.
In such a case, provide article number, model name and serial number. These data
may be found in the rating plate.
101939 21 / 22
Disposal
EN
Problem
Cause
Solution
Gear noise, excessive
temperature
Insufficient lubrication
Lubricate the appliance
Mixing element touches
the mixing bowl and
makes noise
Deformed mixing
elements in the mixing
bowl
Replace the deformed
elements
Electric appliances are marked with this symbol. Electrical
appliances must be disposed of and recycled in a correct
and environmentally friendly manner. You must not dispose
of electric appliances with household waste. Disconnect the
appliance from the power supply and remove power cord
from the appliance.
8 Disposal
Electrical Appliance
Electrical appliances should be returned to designated collection points.
22 / 22 101939
Loading...
