B1070
603175
Bartscher GmbH
Franz-Kleine-Str. 28
D-33154 Salzkotten
Germany
Phone: +49 5258 971-0
Fax: +49 5258 971-120
Service hotline: +49 5258 971-197
www.bartscher.com
Version: 1.0
Date of preparation: 2019-09-03
Original instruction manual
EN
EN
Name:

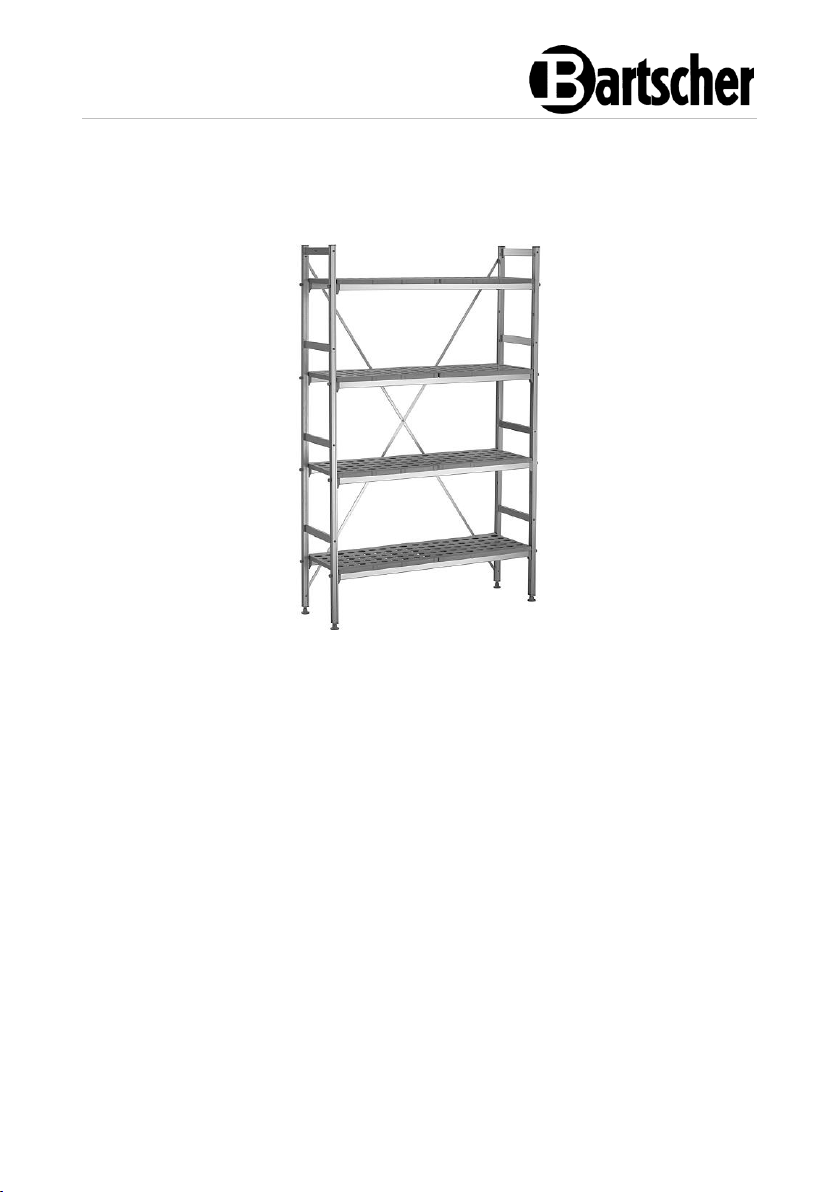

Shelf system B1070
Item No.:
603175
Material:
Aluminium, plastic
Number of shelves:
4
Width of shelves, in mm:
1050
Depth of shelves, in mm:
360
Total load-bearing capacity, max. in kg:
150
Load-bearing capacity per shelf, max. in
kg.:
50
Dimensions (W x D x H), in mm:
1145 x 365 x 1790
Weight in kg:
14,4
Technical Specifications
We reserve the right to implement technical modifications!
Version / Characteristics
• Shelf system type: stand-up
• Purpose:
– humid rooms
– canteens
– refrigeration rooms
– refrigeration cells
– freezer cells
• Version of shelves: perforated
• Height-adjustable shelves
• Compatible with GN containers: GN 1/3, GN 1/2, GN 2/3, GN 1/1
• Delivery form: self-assembly set (simple assembly)
• The self-assembly set includes: 2 shelf stands, 8 insert shelves
• Assembly type: plug system
• Practical optional use: possibility to use GN containers instead of shelves
• Adapted to the needs: 2 shelf systems may be connected into one corner
system
• The set includes: installation materials
<Endergebnis>
603175 3 / 7
EN
No.
Element
Number
Name
A 1
Crosswise bar
B 4
Bolts
C 4
Nuts
D 2
Side element
E 16
Screws connecting bars
Scope of Delivery / Part Name
1. Unpack the shelf system and remove all packing materials according to the
environmental regulations.
2. Check completeness of delivery according to the list below:
4 / 7 603175
EN
No.
Element
Number
Name
F 8
Crossbars
G 8
System shelf
1. Insert the screws connecting bars
into suitable bores in both side
elements.
2. Insert 8 crossbars onto the
connecting screws on side
elements.
Intended Use
The Kit 4 shelf system may be used in all areas of gastronomy. It may be used with
the equipment of choice: with system shelves or suitable GN containers.
Assembly
603175 5 / 7
EN
3. Assemble the system shelves on
the crossbars.
4. Assemble crosswise bars at the rear
of the system, using screws and
nuts.
Positioning
1. Place the shelf system in the required place.
2. Level the shelf system with the use of adjustable feet, screwing them out or in.
Tips for the User
The shelf system may be used with the enclosed system shelves or with suitable
GN containers (not part of the delivery).
Remove the system shelf and insert the GN container.
6 / 7 603175
EN
If needed, 2 shelf systems may be
connected into one corner system.
ATTENTION!
For cleaning, do not use any scouring agents containing solvents nor
corrosive cleaning agents. They may damage the surface.
Cleaning
1. Clean the shelf system and the system shelves regularly with warm water and
soft, damp cloth. Use mild cleaning agent if required.
2. Dry the shelf system with soft cloth.
3. Clean the used GN containers with warm water, mild washing agent and soft
cloth.
INDICATION: the system shelves are dishwasher-safe.
603175 7 / 7
