Powerfresh
150197
Bartscher GmbH
Franz-Kleine-Str. 28
D-33154 Salzkotten
Germany
Phone: +49 5258 971-0
Fax: +49 5258 971-120
Technical Support Hotline: +49 5258 971-197
www.bartscher.com
Version: 1.0
Date of preparation: 2020-10-21
EN
Original instruction manual
1 Safety ............................................................................................................ 2
1.1 Explanation of Signal Words .................................................................... 2
1.2 Safety instructions.................................................................................... 3
1.3 Intended Use ........................................................................................... 4
1.4 Unintended Use ....................................................................................... 4
2 General information ....................................................................................... 6
2.1 Liability and Warranty .............................................................................. 6
2.2 Copyright Protection ................................................................................ 6
2.3 Declaration of Conformity ........................................................................ 6
3 Transport, Packaging and Storage ................................................................ 7
3.1 Delivery Check ......................................................................................... 7
3.2 Packaging ................................................................................................ 7
3.3 Storage .................................................................................................... 7
4 Technical Data ............................................................................................... 8
4.1 Technical Specifications .......................................................................... 8
4.2 List of Components of the Appliance ....................................................... 9
4.3 Functions of the Appliance ....................................................................... 9
5 Installation and operation ............................................................................ 10
5.1 Installation .............................................................................................. 10
5.2 Operation ............................................................................................... 11
6 Cleaning ...................................................................................................... 18
6.1 Safety Instructions for Cleaning ............................................................. 18
6.2 Cleaning ................................................................................................. 18
7 Disposal ....................................................................................................... 20
150197 1 / 22
Safety
EN
Read this instruction manual before using and keep it available
at all times!
DANGER!
The signal word DANGER warns against hazards that lead to severe
injuries or death if the hazards are not avoided.
WARNING!
The signal word WARNING warns against hazards that may lead to
moderate or severe injuries or death if the hazards are not avoided.
Diese Bedienungsanleitung beschreibt di e Installation, Bedienung und Wartu ng des Geräts und gilt als wichtige Infor mationsquelle und Nachschlagewer k. Die Kenntnis aller enthaltenen Sicherh eitshinweise und Handlungsanweisu ngen schafft die Voraussetzung f ür das sichere und sachgerechte Ar beiten mit dem Gerät. Darüber hinaus müssen die für den Einsatzbereich des Geräts geltenden örtlichen Unfallverh ütungsvorschriften und allgemeinen Sicherheitsbestimmungen eingehalt en werden. Diese Bedienungsanleitung is t Bestandteil des Produkts und muss in unmittelbarer Nähe des Geräts für das In¬stallations-, Bedienu ngs-, Wartungs- und Reinigungspers onal jederzeit zugänglich auf¬bewahrt werd en. Wenn das Gerät an eine dritt e Person
weitergegeben wird, muss die Bedienungsa nleitung mit ausgehändigt werden.
This instruction manual contains information about installation, operation and
maintenance of the appliance and constitutes an important source of information
and reference guide. The knowledge of all operational and safety instructions
included in this manual is a prerequisite for safe and proper handling of the
appliance. Additionally, accident prevention, occupational health and safety, and
legal regulations in force in the area the appliance is used apply.
Before you start using the appliance, especially before turning it on, read this
instruction manual in order to avoid personal injuries and property damages.
Improper use may cause damage.
This instruction manual forms and integral part of the product and must be stored in
an immediate vicinity of the appliance and be available at all times. The instruction
manual should be transferred together with the appliance.
1 Safety
This appliance has been manufactured in accordance with technical standards
currently in force. However, the appliance may be a source of hazards if used
improperly or contrary to its intended purpose. All persons using the appliance must
consider information included in this instruction manual and observe safety
instructions.
1.1 Explanation of Signal Words
Important safety instructions and warning information are indicated in this
instruction manual with appropriate signal words. You must strictly follow the
instructions, to prevent accidents, personal injuries and property damages.
2 / 22 150197
Safety
EN
CAUTION!
The signal word CAUTION warns against hazards that may lead to
light or moderate injuries if the hazards are not avoided.
IMPORTANT!
The signal word IMPORTANT indicates possible property damages,
which may occur if safety instructions are not observed.
NOTE!
The symbol NOTE indicates subsequent information and guidelines
for the user on usage of the appliance.
, die
1.2 Safety instructions
Electrical Current
• Too high a mains voltage or incorrect installation may cause electric shock.
• The appliance may be connected only if data on the rating plate correspond with
the mains voltage.
• To avoid short-circuit, the appliance should be kept dry.
• If there are malfunctions during operation, disconnect the appliance from the
power supply.
• Do not touch the appliance’s plug with wet hands.
• Never take hold of the appliance if it has fallen into water. Immediately
disconnect the appliance from the power supply.
• Any repairs or housing opening may be carried out by professionals and
relevant workshops only.
• Do not transport the appliance, holding it by the power cord.
• Do not allow the power cord to come into contact with heat sources or sharp
edges.
• Do not bend, pinch nor knot the power cord.
• Always completely unwind the power cord.
• Never place the appliance or other objects on the power cord.
• Always take hold of the plug to disconnect the appliance from the power supply.
150197 3 / 22
Safety
EN
• Check the power cord regularly for damage. Do not use the appliance if the
power cord is damaged. If this cable is damaged, it must be replaced by
customer service or a qualified electrician in order to avoid dangers.
Operating personnel
• This appliance is not intended to be used by persons (including children) with
limited physical, sensory or mental capabilities, nor by persons with limited
experience and/or limited knowledge.
• Children should be supervised to ensure that they are not playing with or
switching the appliance on.
Supervised Usage only
• Only supervised appliance may be used.
• Always remain in an immediate vicinity of the appliance.
Improper Use
• Unintended or prohibited use may cause damage to the appliance.
• The appliance may only be used when its technical condition is flawless and
allows for safe operation.
• The appliance may only be used when all connections are executed according
to rules of law in force.
• The appliance may only be used when it is clean.
• Use only original spare parts. Never attempt to repair the appliance on your own.
• Do not introduce any changes in the appliance nor modify it.
1.3 Intended Use
As described below, every use of the appliance for a purpose differing and/or
diverging from its intended standard use, is prohibited and considered to be an
unintended use.
The following is an intended use:
– Making fruit and vegetable juices.
1.4 Unintended Use
4 / 22 150197
Safety
EN
An unintended use may lead to personal injuries or property damages caused by
hazardous voltage, fire or high temperature. The appliance may only be used to
perform tasks described in this instruction manual.
The following is an unintended use:
– Processing of unsuitable food products.
150197 5 / 22
General information
EN
2 General information
2.1 Liability and Warranty
All information and instructions in this instruction manual account for legal
regulations in force, current level of technical engineering knowledge as well as our
expertise and experience, developed over the years. If special models or additional
options are ordered, or state-of-the-art technical solutions were implemented, the
actual scope of delivery of the appliance may, in some circumstances, differ from
descriptions and numerous drawings in this instruction manual.
The manufacturer is not liable for any damages nor faults stemming from:
– failure to observe instructions,
– unintended use,
– technical alterations introduced by the user,
– usage of unapproved spare parts.
We reserve the right to introduce technical modifications to the product, intended for
improvement of the appliance and its performance.
2.2 Copyright Protection
This instruction manual, and texts, drawings and images included in it, as well as its
other components are copyright protected. It is prohibited to reproduce this
instruction manual (including its excerpts), in any form and by any means, and to
use and/or transfer its content to third parties without manufacturer’s written
permission. Violation of the above results in obligation to pay compensation. We
reserve the right to claim further damages.
2.3 Declaration of Conformity
The appliance meets the currently applicable standards and guidelines of the
European Union. We confirm the above in the EC Declaration of Conformity. We
may provide relevant Declaration of Conformity upon request.
6 / 22 150197
Transport, Packaging and Storage
EN
3 Transport, Packaging and Storage
3.1 Delivery Check
Immediately upon reception, check the delivery for completeness and possible
shipping damage. In the case of visible transport damage refuse to accept the
appliance or accept it conditionally. Mark and note the scope of damage in shipping
documents/consignment list of the shipping company and lodge a complaint.
Concealed damage must be reported immediately upon its discovery, as
compensation claims may only be filed within applicable time limits.
If you find that parts or accessories missing, please contact our Customer Service
Department.
3.2 Packaging
Do not dispose of the appliance cardboard box. It may be used to store the
appliance when relocating or when shipping the appliance to our service point in the
case of any damages.
The packaging and its elements are made of recyclable materials. Particularly,
these are: plastic films and bags, cardboard box.
When disposing of the packaging, observe applicable domestic regulations.
Recyclable packaging materials should be recycled.
3.3 Storage
Leave the packaging closed until installation of the appliance; observe external
indications concerning method of placing and storage. Store the packaging in the
following conditions only:
– in closed rooms;
– in dry and dust-free surrounding;
– away from aggressive agents;
– in a location protected against sunlight;
– in a location protected against mechanical shocks.
In the case of extended storage (over three months), make sure you check the
condition of the packaging and the parts regularly. If needed, replace the packaging
with a new one.
150197 7 / 22
Technical Data
EN
Name:
Juicer Powerfresh
Art. No.:
150197
Material:
Plastic, stainless steel
Speed levels:
1
Rotational speed (RPMs), max.:
3000
Volume of pulp container, in l:
7
Diameter of filling shaft, in mm:
80
Spout height, in mm:
210
Power supply:
0,7 kW / 220-240 V / 50-60 Hz
Dimensions (W x D x H), in mm:
245 x 455 x 530
Weight, in kg:
12,8
4 Technical Data
4.1 Technical Specifications
We reserve the right to implement technical modifications.
Version / Characteristics
• Designed for both hard and soft fruit and vegetables
• ON/OFF button
• Safety switch
• Control: button
• XXL filling shaft for whole fruits (e.g. apples) or vegetables
• Closed spout
• High-performance, low-noise motor
• Fine stainless steel sieve
• Individual parts are dishwasher-safe (except for base unit)
• The set includes: cleaning brush
8 / 22 150197
Technical Data
EN

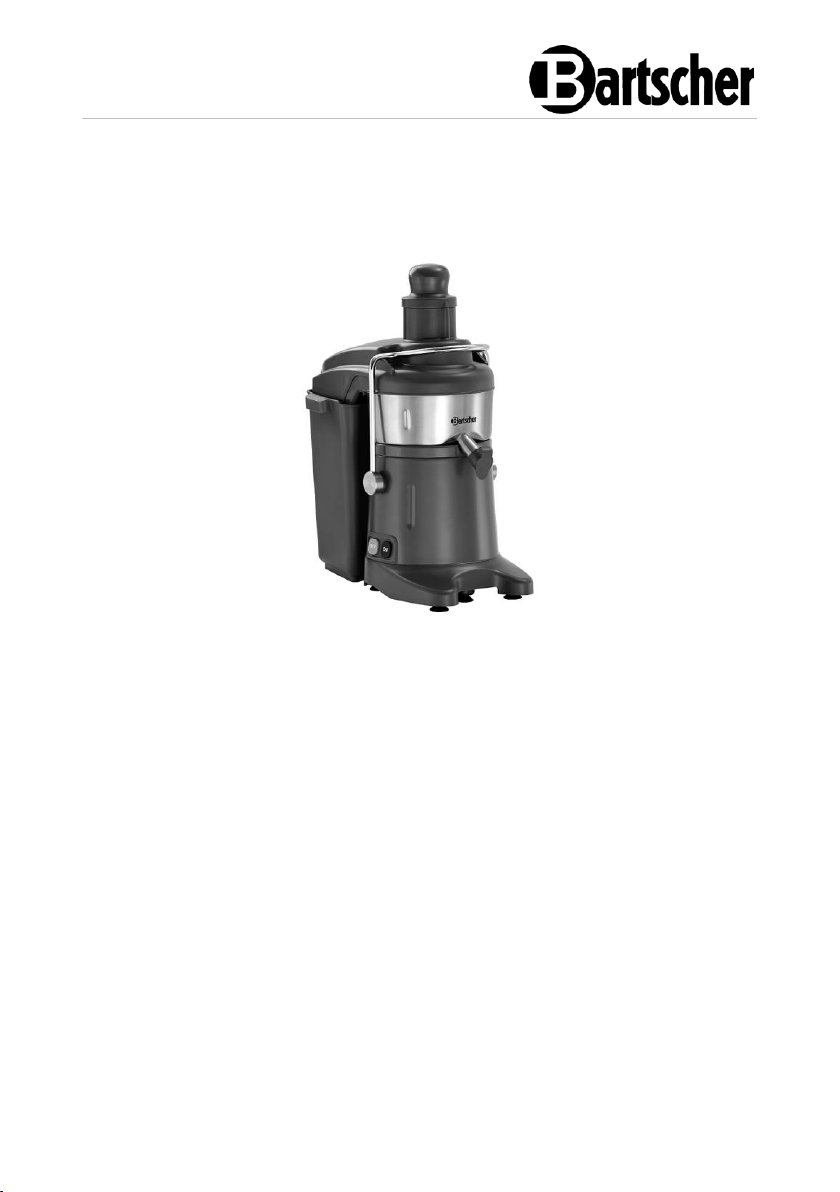

1. Pulp container
2. Operating elements
3. Motor drive
4. Locking bracket
5. Base unit / motor block
6. Base with rubber feet (5 pcs)
7. Filling shaft
8. Lid
9. Cleaning brush
10. Closable juice spout pipe
11. Juice bowl
12. Pusher
13. Sieve basket
14. Middle ring
4.2 List of Components of the Appliance
4.3 Functions of the Appliance
The appliance is designed for professional and efficient juice production. Powerful
motor — in connection with large filling shaft and pulp container — makes it
possible to effortlessly squeeze juice from whole fruit or vegetables.
150197 9 / 22
Installation and operation
EN
CAUTION!
Choking hazard!
Prevent children from accessing package materials, for instance: plastic
bags and EPS.
5 Installation and operation
5.1 Installation
Unpacking / Positioning
• Unpack the appliance, remove all external and internal packaging elements and
shipment safeguards.
• If the appliance is covered with a protective film, remove it. Remove the film
slowly, so no glue residues are left. Remove any glue residues with the use of a
suitable solvent.
• Be careful not to damage the rating plate and warning labels fixed on the
appliance.
• Never place the appliance in humid or wet environment.
• Place the appliance in a way making the connections easily accessible, so that
they may be quickly disconnected if such a need arises.
• The appliance should be placed on surfaces that are:
– even, with sufficient bearing capacity, resistant to water, dry and resistant
to high temperatures;
– sufficiently large, and thus enabling usage of the appliance with no
problems;
– easily accessible;
– well ventilated.
• Maintain sufficient clearance from table edges. The appliance might turn over
and fall down.
• Leave at least 20 cm clearance from flammable walls and items.
10 / 22 150197
Installation and operation
EN
Power supply connection
• Verify if technical data of the appliance (see rating plate) correspond with the
local electric power grid specification.
• Connect the appliance to a single, properly grounded mains socket with
protective contact. Do not connect the appliance to a multi-socket.
• The power cord should be laid in a way preventing anyone from threading on it
or tripping against it.
5.2 Operation
Preparation of Fruit and Vegetables
• When preparing fruit and vegetables, observe the following indications and data
in the below table.
• Before squeezing juice, fruit and vegetables should be washed thoroughly, to
remove any traces of contamination and plant protective agents (pesticides).
• To obtain better results and better taste, use only fresh fruit or fresh vegetables.
• For processing with juicer, particularly suitable are: apples, pineapples, oranges,
grapes, melons, carrots, celery roots, beets and tomatoes.
• Some food products, due to their compact texture, are not suitable for
processing with the juicer (e.g. coconuts).
• There is no need to peel off the vegetables with thin peel. You may rub it
through with a sponge to remove possible soiling or wax films.
• Fruit and vegetables with hard peel, e.g. melons, pineapples or citrus fruit
should be peeled off.
• Remove thick skin off of, for example, lemons, oranges or pineapples.
• Remove seeds and stones of stone fruit, like mango, papaya, etc., to avoid
damaging the blades in the sieve basket.
• Some stones of citrus fruit may be bitter. Remove the stones in such fruit before
you proceed to squeezing the juice.
• Cut the fruit and vegetables that are too large into smaller pieces. Conical
vegetables and fruits, such as carrots, introduce with a thin end first.
150197 11 / 22
Installation and operation
EN
Fruit/Vegetables
Preparation
Carrots
Peal and leave in whole, introduce 2–3 pieces a time
Apples
Wash and leave in whole (remove leaf stalks and labels)
Beets
Wash, cut into suitable pieces
Strawberries
Remove leaf stalks
Grapes
Remove leaf stalks
Bananas
Remove skin
Mangos
Remove skin and stones
Pineapples
Remove skin and cut into pieces
Citrus fruit (oranges,
lemons, mandarins,
grapefruit)
Peal the skin off of all citrus fruit. Oranges and lemons
may be left in whole
Melons
Remove skin and cut into pieces
Celery roots
Cut into 6–7 cm pieces
Cucumbers
Remove skin, cut into approx. 15 cm pieces
Tomatoes
-
Fennel
Cut into 6–7 cm pieces
Cherries
Remove stones
Apricots
Remove stones
Peaches
Remove stones
Plums/European
plums
Remove stones
12 / 22 150197
Installation and operation
EN
Indications and tips
• When squeezing juice from various fruit and vegetables, it may be helpful to
create different variations/combinations, e.g. when squeezing apple and orange
juice, it is best to start with soft fruit (oranges) and then proceed with the hard
fruit (apples). Thus, the best juice yield will be obtained.
• When squeezing juice from fresh herbs, for example, mint or parsley, they
should be processed in the so-called 'meantime', that is between squeezing
juice from fruit and vegetables, to obtained the possibly best yield. If the amount
of herbs is small, they should be squeezed together with a chunk of a fruit or
vegetable.
• Fruit that contain starch (bananas, papaya, figs, avocado, mango, etc.) are
difficult to squeeze juice (the produced mousse may lead to clogging of the
sieve basket). It is best to prepare these types of fruit in a food processor or a
blender. If, however, a juice needs the banana taste, banana should be
squeezed first or second in the line. Thanks to blending with other juices, the
banana nectar may drip a bit easier. Though, there may be frothing present in
the process.
• When squeezing juice from small fruit, for example, grapes or strawberries,
place them in the appliance in the handful size of portions and avoid throwing
them in one by one. This helps to obtain better results.
• Please remember that red beets dye all other fruit and vegetables. When
producing many different juices, the red beet juice should be squeezed at the
end, to avoid dying all other juices.
• The apple juice will quickly acquire a bronze colour in the open air; thus, add a
drop of lemon juice.
• The juice is best served directly after preparation, as with time in the open air
juices lose their tastes and nutritional values.
• Never put ice cubes nor frozen fruit in the hopper.
150197 13 / 22
Installation and operation
EN

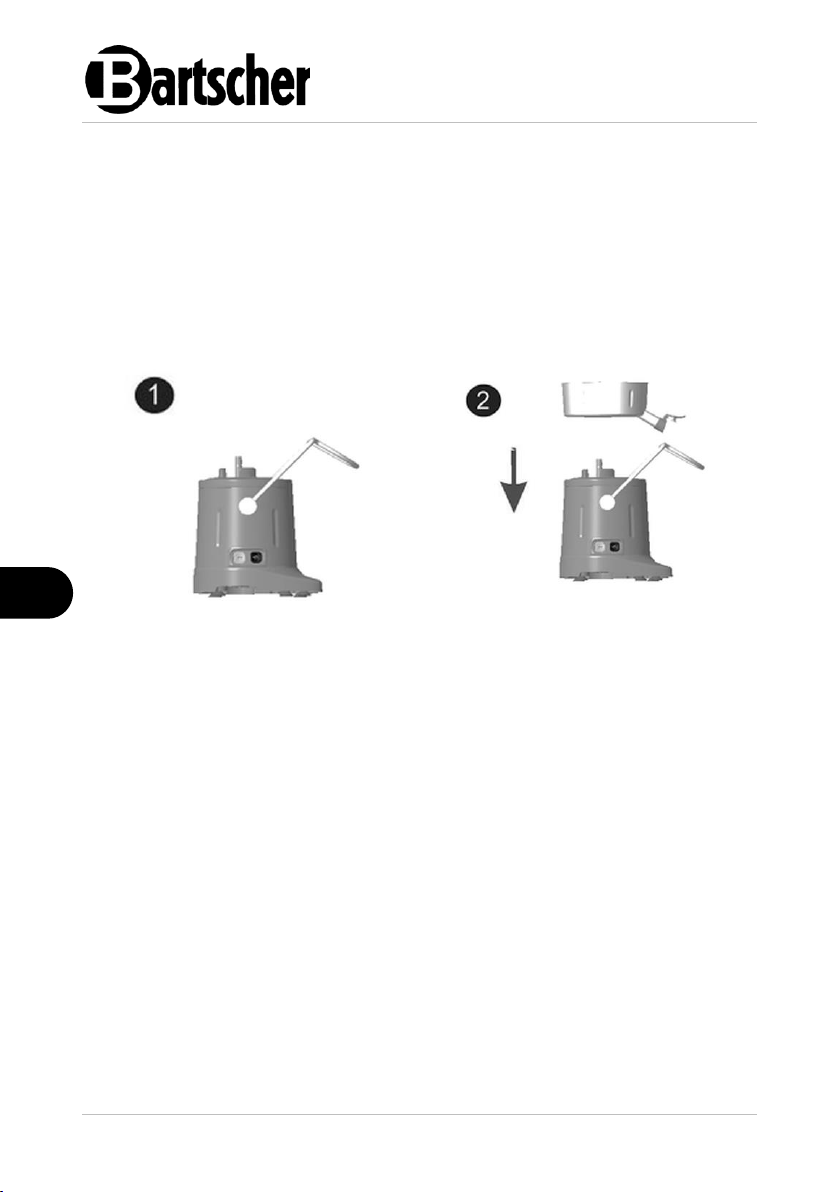

1. Set the motor block on a dry, even
surface, so that operating
elements are easily accessible.
Press the motor block well to the
surface, so that base unit rubber
feet are well fitted.
2. Place a juice bowl onto the motor
block, so that juice spout pipe with
the closure is found over the hollow
in the appliance base unit.
Before First Use
1. Prior to first use, clean all the removable components of the appliance
thoroughly, observing instructions in section 6 'Cleaning'.
2. Rinse the washed elements in clean water and then wipe with a linen-free cloth
or leave to dry in open air.
3. Wipe the motor block, base unit and supply cord with a soft, moistened cloth.
Assembly
14 / 22 150197
Installation and operation
EN

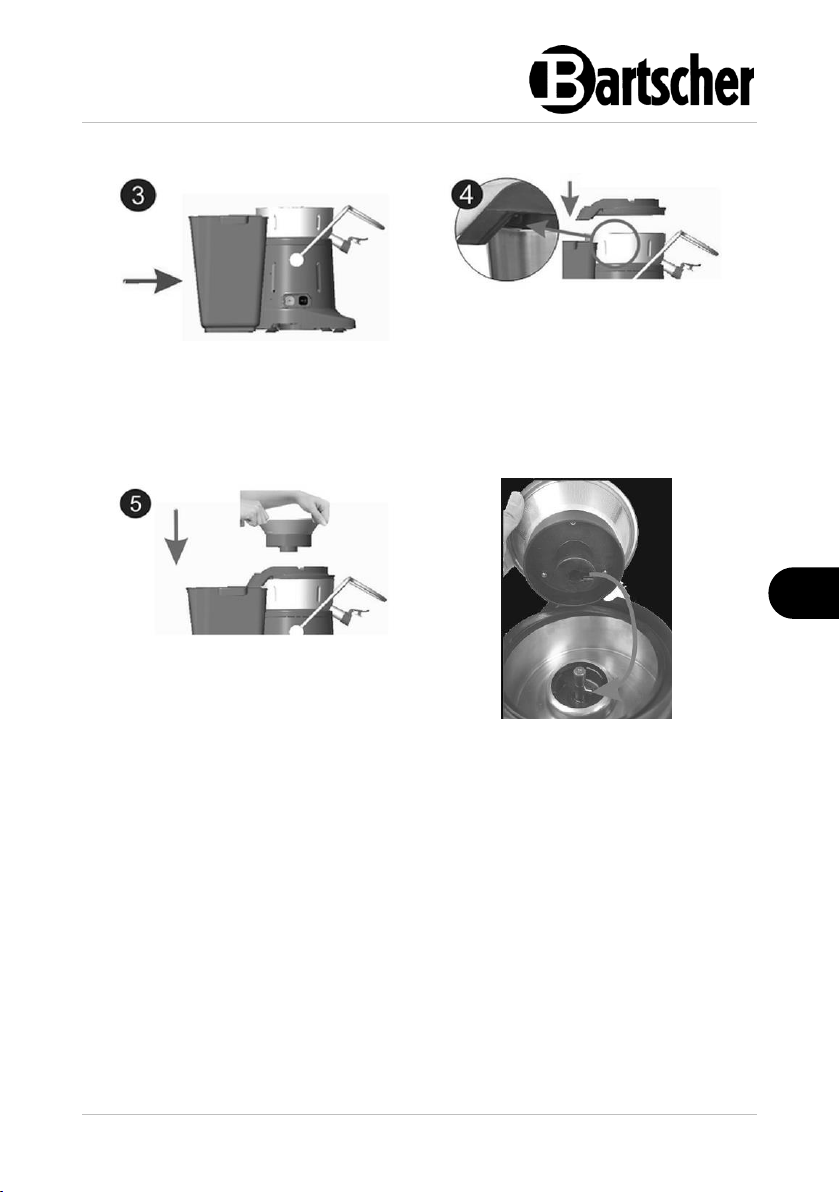

3. Place the pulp container on the
motor block.
4. Place the middle ring on the edge of
the juice bowl.
With it, make sure that the hollow for
pulp discharge is located opposite to
the juice spout pipe with a locking.
5. Insert the sieve basket into the juice
bowl and fit it through slight rotation
on the motor drive.
ATTENTION!
Make sure that the pin on motor
drive enters the hollow in the bottom
of the sieve basket.
150197 15 / 22
Installation and operation
EN

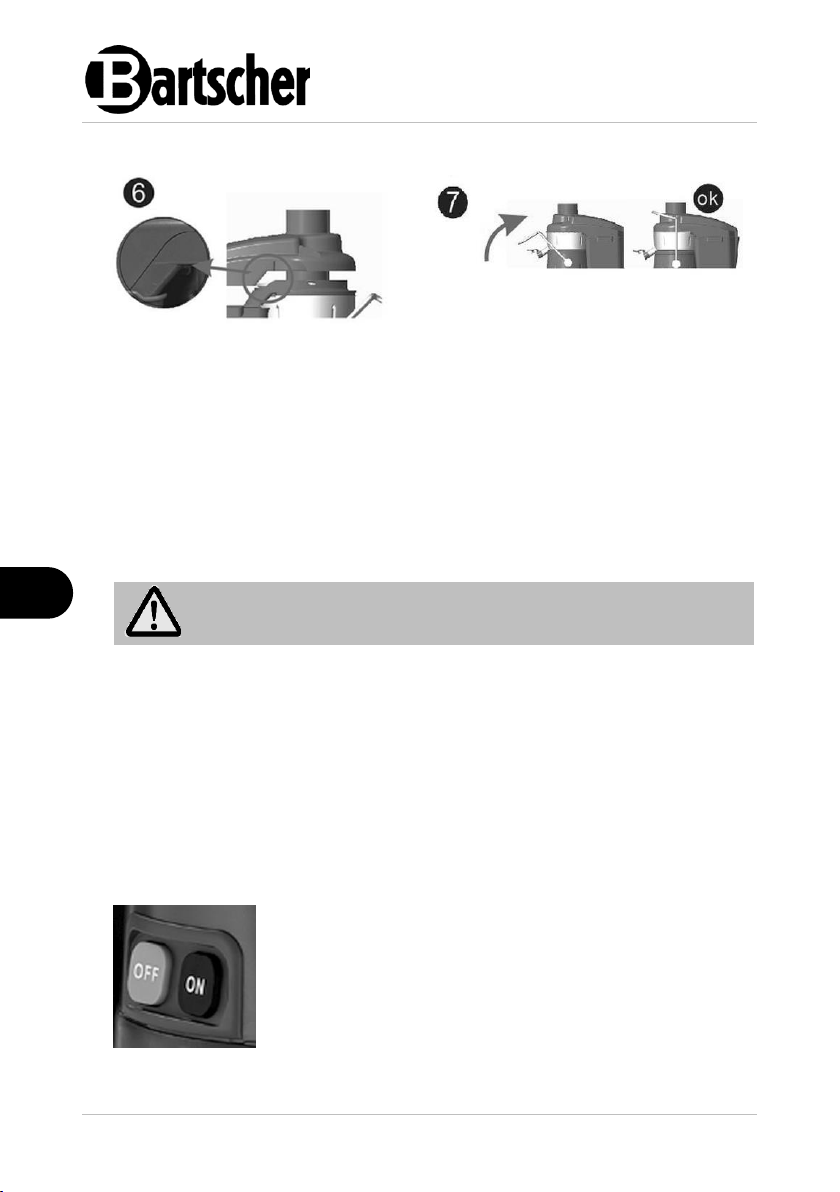

6. Then, place the lid, making sure that
the ribbing on the lid are correctly
aligned with recesses in the middle
ring.
7. To end with, pull the locking bracket
over the lid until it snaps in place.
Thus the connection with safety
switch is established.
WARNING!
Risk of injury caused by rotating components
Never introduce hands into the filling shaft. Always use the enclosed
pusher to press food products towards the sieve basket.
During operation, hair, hands, clothing and kitchens utensils should be
kept away of rotating elements.
Never remove the lid until the motor and sieve basket are not stopped
completely.
3. Press the black 'ON' button to start to switch the
appliance on.
ATTENTION!
The appliance operates only when all components are correctly fitted, and the
locking bracket with safety switch is engaged with the lid.
Squeezing Fruit and Vegetable Juice
1. Place a suitable container under the juice spout pipe.
2. Plug the appliance into a suitable single socket.
16 / 22 150197
Installation and operation
EN
The juice squeezed out of fruit or vegetables
flows out of the juice spout pipe and is collected
in a container that is provided underneath. The
pulp is separated and collected in the pulp
container.
Fruit or vegetables may be added provided that
the juice container or the pulp container are not
full.
6. During juice squeezing, always remember to
put a container underneath the juice spout
pipe locate in the juice bowl.
7. If the juice container is filled, it must be
replaced; to this end, close the juice spout
pipe using the locking and open it anew,
when a new container is placed underneath
it.
4. Fill the filling shaft with the prepared fruit and vegetables.
5. Introduce the pusher into the filling shaft, pressing it lightly. To obtain the
maximum amount of juice, press the pusher down slowly.
WARNING! Injury hazard!
Never push the fruit nor vegetables with your fingers nor kitchen utensils.
To this end, always use the designated pusher!
ATTENTION!
When pressed too hard, the amount of the obtained juice is reduced, and
the appliance may be damaged.
150197 17 / 22
Cleaning
EN
8. Observe the filling level of the pulp container during operation. As soon as it is
filled up, switch the appliance off with the use of the orange 'OFF' button and
empty the pulp container.
CAUTION!
Overfilled pulp container may cause that the appliance will cease to
operate correctly. The pulp excess that gets into the motor housing may
be the cause of damage. Observe the condition of the pulp container and
empty it regularly!
9. When the juice is squeezed from the prepared fruit and vegetables, leave the
appliance operating for a couple of seconds, so that the last drops of juice flow
out.
10. When the juice squeezing is finished, switch the appliance off with the 'OFF'
button.
11. Wait a couple of second until the motor stops completely and then disconnect
the appliance from the mains socket (pull the plug out).
6 Cleaning
6.1 Safety Instructions for Cleaning
• Before cleaning, disconnect the appliance from the power supply.
• Leave the appliance to cool down completely.
• Make sure water does not enter the appliance. Do not immerse the appliance in
water or other liquids during cleaning. Do not clean the appliance with a
pressurized water jet.
• Do not use any sharp or pointed, nor metal implements (knife, fork, etc.). Sharp
or pointed implements may damage the appliance, and when in contact with live
parts, they may cause electric shock.
• For cleaning, do not use any scouring agents that contain solvents nor corrosive
cleaning agents. They may damage the surface.
6.2 Cleaning
1. Clean the appliance after each use.
2. Immediately after use, disassemble the removable components for cleaning
purposes, observing the order of disassembly:
– release the locking bracket of the lid,
– remove the lid by lifting it from the middle ring,
– remove the sieve basket carefully from the juice bowl,
18 / 22 150197
Cleaning
EN
– remove the middle ring from the juice bowl,
– remove the juice bowl from the motor block,
– remove the pulp container and remove the pulp.
3. Clean all the removed elements of the appliance under warm, running water,
using a gentle washing agent.
WARNING! Injury hazard!
The blades of the appliance sieve are very sharp.
Use the enclosed dish-washing brush for cleaning the sieve basket.
4. All the cleaned parts should be rinsed thoroughly with fresh water.
5. Leave the parts to dry in open air or dry with a linen-free cloth.
NOTE: All detachable elements of the appliance are dishwasher-safe.
WARNING!
Never attempt to immerse the motor block in water, neither wash it under
running water, nor in a dishwasher.
6. Clean the motor block and power cord with a soft, damp cloth only.
7. Wipe the motor block and power cord at the end with a soft cloth.
8. Assemble all the parts after drying, and prior to subsequent use or storage of
the appliance.
150197 19 / 22
Disposal
EN
Electric appliances are marked with this symbol. Electrical
appliances must be disposed of and recycled in a correct
and environmentally friendly manner. You must not dispose
of electric appliances with household waste. Disconnect the
appliance from the power supply and remove power cord
from the appliance.
7 Disposal
Electrical Appliance
Electrical appliances should be returned to designated collection points.
20 / 22 150197
Loading...
