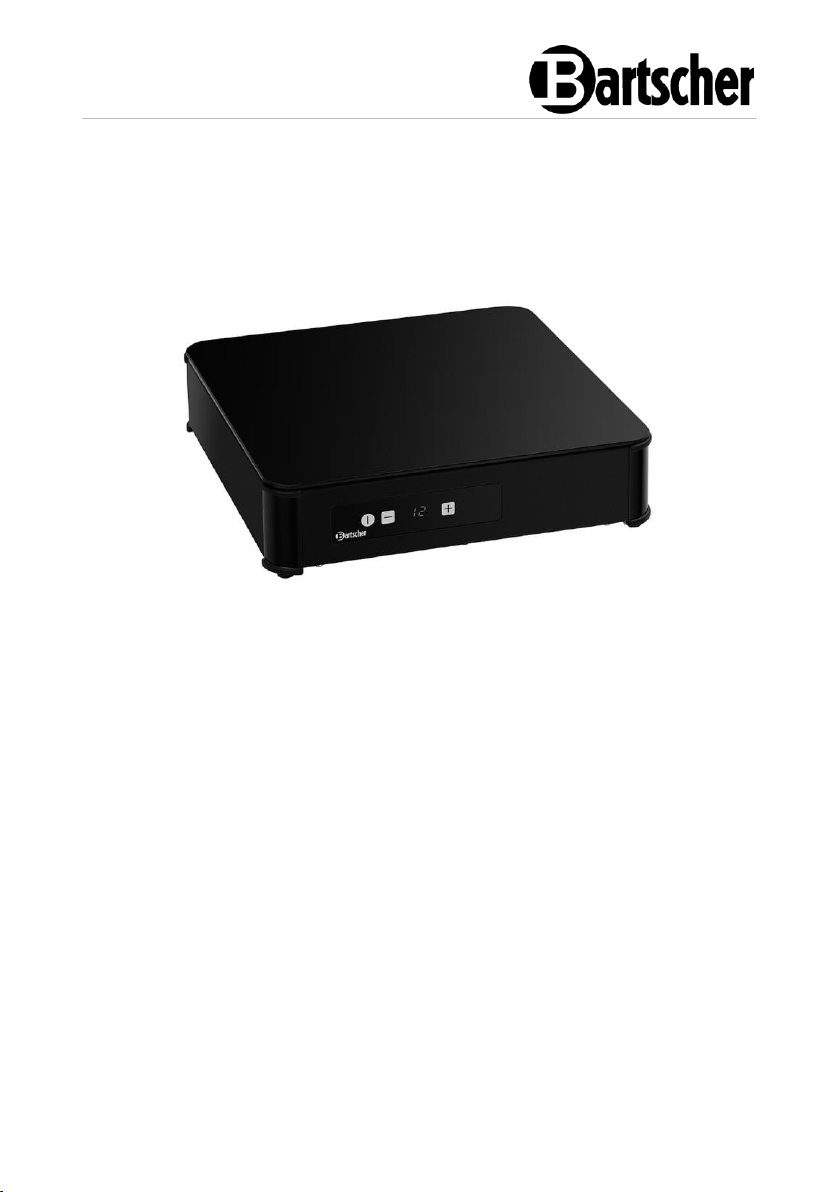

IW3-SW
105867
Bartscher GmbH
Franz-Kleine-Str. 28
D-33154 Salzkotten
Germany
Phone: +49 5258 971-0
Fax: +49 5258 971-120
Technical Support Hotline: +49 5258 971-197
www.bartscher.com
Version: 1.0
Date of preparation: 2022-10-28
EN
2
Original instruction manual
1 Safety ............................................................................................................ 2
1.1 Explanation of Signal Words .................................................................... 2
1.2 Safety instructions.................................................................................... 3
1.3 Intended Use ........................................................................................... 6
1.4 Unintended Use ....................................................................................... 6
2 General information ....................................................................................... 7
2.1 Liability and Warranty .............................................................................. 7
2.2 Copyright Protection ................................................................................ 7
2.3 Declaration of Conformity ........................................................................ 7
3 Transport, Packaging and Storage ................................................................ 8
3.1 Delivery Check ......................................................................................... 8
3.2 Packaging ................................................................................................ 8
3.3 Storage .................................................................................................... 8
4 Technical Data ............................................................................................... 9
4.1 Technical Specifications .......................................................................... 9
4.2 Functions of the Appliance ..................................................................... 10
4.3 List of Components of the Appliance ..................................................... 11
5 Installation and operation ............................................................................ 12
5.1 Installation .............................................................................................. 12
5.2 Operation ............................................................................................... 14
6 Cleaning ...................................................................................................... 17
6.1 Safety Instructions for Cleaning ............................................................. 17
6.2 Cleaning ................................................................................................. 18
7 Possible Malfunctions .................................................................................. 19
8 Disposal ....................................................................................................... 20
105867 1 / 20
Safety
EN
Read this instruction manual before using and keep it available
at all times!
DANGER!
The signal word DANGER warns against hazards that lead to severe
injuries or death if the hazards are not avoided.
Diese Bedienungsanleitung beschreibt di e Installation, Bedienung und Wartung des Geräts und gilt als wichtige Infor mationsquelle und Nachschlagewer k. Die Kenntnis aller enthaltenen Sicherh eitshinweise und Handlungsanweisunge n schafft die Voraussetzung für d as sichere und sachgerechte Ar beiten mit dem Gerät. Darüber hinaus müssen die für den Einsatzbereich des Geräts geltenden örtlichen Unfall verhütungsvorschriften und allgemeine n Sicherheitsbestimmungen eingehalt en werden. Diese Bedienungsanleitung is t Bestandteil des Produkts und muss in unmittelbarer Nähe des Ger äts für das In¬stallations-, Bedienu ngs-, Wartungs- und Reinigungspers onal jederzeit zugänglich auf¬bewahrt werd en. Wenn das Gerät an eine dritt e Person
weitergegeben wird, muss die Bedienungsa nleitung mit ausgehändigt werden.
This instruction manual contains information about installation, operation and
maintenance of the appliance and constitutes an important source of information
and reference guide. The knowledge of all operational and safety instructions
included in this manual is a prerequisite for safe and proper handling of the
appliance. Additionally, accident prevention, occupational health and safety, and
legal regulations in force in the area the appliance is used apply.
Before you start using the appliance, especially before turning it on, read this
instruction manual in order to avoid personal injuries and property damages.
Improper use may cause damage.
This instruction manual forms and integral part of the product and must be stored in
an immediate vicinity of the appliance and be available at all times. The instruction
manual should be transferred together with the appliance.
1 Safety
This appliance has been manufactured in accordance with technical standards
currently in force. However, the appliance may be a source of hazards if used
improperly or contrary to its intended purpose. All persons using the appliance must
consider information included in this instruction manual and observe safety
instructions.
1.1 Explanation of Signal Words
Important safety instructions and warning information are indicated in this
instruction manual with appropriate signal words. You must strictly follow the
instructions, to prevent accidents, personal injuries and property damages.
2 / 20 105867
Safety
EN
WARNING!
The signal word WARNING warns against hazards that may lead to
moderate or severe injuries or death if the hazards are not avoided.
CAUTION!
The signal word CAUTION warns against hazards that may lead to
light or moderate injuries if the hazards are not avoided.
IMPORTANT!
The signal word IMPORTANT indicates possible property damages,
which may occur if safety instructions are not observed.
NOTE!
The symbol NOTE indicates subsequent information and guidelines
for the user on usage of the appliance.
, die
1.2 Safety instructions
Electrical Current
• Too high a mains voltage or incorrect installation may cause electric shock.
• The appliance may be connected only if data on the rating plate correspond with
the mains voltage.
• To avoid short-circuit, the appliance should be kept dry.
• If there are malfunctions during operation, disconnect the appliance from the
power supply.
• Do not touch the appliance’s plug with wet hands.
• Never take hold of the appliance if it has fallen into water. Immediately
disconnect the appliance from the power supply.
• Any repairs or housing opening may be carried out by professionals and
relevant workshops only.
• Do not transport the appliance, holding it by the power cord.
• Do not allow the power cord to come into contact with heat sources or sharp
edges.
• Do not bend, pinch nor knot the power cord.
105867 3 / 20
Safety
EN
• Always completely unwind the power cord.
• Never place the appliance or other objects on the power cord.
• Always take hold of the plug to disconnect the appliance from the power supply.
• Check the power cord regularly for damage. Do not use the appliance if the
power cord is damaged. If this cable is damaged, it must be replaced by
customer service or a qualified electrician in order to avoid dangers.
Flammable Materials
• Never subject the appliance to contact with high temperature sources, e.g.:
oven, furnace, open flame, heat generating devices, etc.
• To avoid fire hazard, clean the appliance regularly.
• Do not cover the appliance with, e.g., aluminium foil or cloths.
• Use the appliance only with materials designated to this end and with correct
temperature settings. Materials, groceries and left-overs remaining in the
appliance may catch fire.
• Never use the appliance near flammable or inflammable materials, e.g.: petrol,
spirit, alcohol, etc. High temperature triggers evaporation of these materials,
and, as a result of contact with sources of ignition, an explosion may occur.
• In case of fire, disconnect the appliance from the power supply before
attempting suitable fire-extinguishing actions.
• Never attempt to extinguish fire with water if the appliance is connected to the
power supply. Following extinction of fire, ensure sufficient fresh air inflow.
Electromagnetic Fields
• Magnetized items, e.g. credit cards, data storage devices or calculators, may
not be placed in an immediate vicinity of the switched on appliance. Magnetic
field might damage them.
• Do not open the bottom cover!
• Cookware should always be placed in the middle of the cooking area, so that
pot bottom covered the electromagnetic field to the maximum extent.
• Scientific researches proved that induction cookers pose no threat.
Nevertheless, people with cardiac pacemaker should keep a distance of at least
60 cm from the working appliance.
Safety of Induction Plate Operation
• During operation, the heating area is getting very hot.
Information: Induction cooker does not generate heat in the process of
cooking. Nevertheless, the temperature of cookware heats up the heating
4 / 20 105867
Safety
EN
area and the surface remains hot after use. Do not touch any hot surfaces
of the appliance.
• You may transport and clean the appliance after it cools down entirely.
• It is prohibited to sprinkle hot surfaces with cold water or flammable liquids.
• Do not put metal kitchen utensils, lids, knifes nor any other metal objects on the
heating area. These objects might heat up after switching the appliance on.
• Remember that wearable items, e.g. rings, watches etc., may heat up when they
are close to the cooker’s plate.
• In order to avoid overheating, do not place any aluminium foil or metal plates on
the heating surface of the appliance.
• Do not heat up sealed containers, e.g. canned food, on the heating area of the
induction cooker. Resulting overpressure may cause explosion (rupture) of a
container or a can. The canned food is best to open it, put it in a pot filled with
water and place the pot on a heating area in order to heat it up.
• The heating area is made of a temperature-resistant glass. In case of damage,
even if it is only a small fracture, the device should be immediately disconnected
from the power supply and you should contact the service company.
Operating Personnel
Halten Sie Verpackungsmaterialien und S tyroporteile von Kindern fern. M ogłyby one si ę w nie zaplątać i udusić.
• The appliance may be used by people with reduced physical, sensory or mental
abilities and those with limited experience/knowledge as long as they are under
supervision or have been instructed on safe use of the appliance and possible
risks. Do not leave the appliance unattended during operation.
• Keep children away from the appliance and power supply cable.
• Children should be supervised to ensure that they are not playing with or
switching the appliance on.
Improper Use
• Unintended or prohibited use may cause damage to the appliance.
• The appliance may only be used when its technical condition is flawless and
allows for safe operation.
• The appliance may only be used when all connections are executed according
to rules of law in force.
• The appliance may only be used when it is clean.
• Use only original spare parts. Never attempt to repair the appliance on your own.
• Do not introduce any changes in the appliance nor modify it.
105867 5 / 20
Safety
EN
1.3 Intended Use
As described below, every use of the appliance for a purpose differing and/or
diverging from its intended standard use, is prohibited and considered to be an
unintended use.
The following is an intended use:
– Heating-up foods and keeping them warm with the use of suitable plates.
1.4 Unintended Use
An unintended use may lead to personal injuries or property damages caused by
hazardous voltage, fire or high temperature. The appliance may only be used to
perform tasks described in this instruction manual.
The following is an unintended use:
– Heating-up flammable, hazardous to health and volatile, etc. liquids and
materials.
6 / 20 105867
General information
EN
2 General information
2.1 Liability and Warranty
All information and instructions in this instruction manual account for legal
regulations in force, current level of technical engineering knowledge as well as our
expertise and experience, developed over the years. If special models or additional
options are ordered, or state-of-the-art technical solutions were implemented, the
actual scope of delivery of the appliance may, in some circumstances, differ from
descriptions and numerous drawings in this instruction manual.
The manufacturer is not liable for any damages nor faults stemming from:
– failure to observe instructions,
– unintended use,
– technical alterations introduced by the user,
– usage of unapproved spare parts.
We reserve the right to introduce technical modifications to the product, intended for
improvement of the appliance and its performance.
2.2 Copyright Protection
This instruction manual, and texts, drawings and images included in it, as well as its
other components are copyright protected. It is prohibited to reproduce this
instruction manual (including its excerpts), in any form and by any means, and to
use and/or transfer its content to third parties without manufacturer’s written
permission. Violation of the above results in obligation to pay compensation. We
reserve the right to claim further damages.
2.3 Declaration of Conformity
The appliance meets the currently applicable standards and guidelines of the
European Union. We confirm the above in the EC Declaration of Conformity. We
may provide relevant Declaration of Conformity upon request.
105867 7 / 20
Transport, Packaging and Storage
EN
3 Transport, Packaging and Storage
3.1 Delivery Check
Immediately upon reception, check the delivery for completeness and possible
shipping damage. In the case of visible transport damage refuse to accept the
appliance or accept it conditionally. Mark and note the scope of damage in shipping
documents/consignment list of the shipping company and lodge a complaint.
Concealed damage must be reported immediately upon its discovery, as
compensation claims may only be filed within applicable time limits.
If you find that parts or accessories missing, please contact our Customer Service
Department.
3.2 Packaging
Do not dispose of the appliance cardboard box. It may be used to store the
appliance when relocating or when shipping the appliance to our service point in the
case of any damages.
The packaging and its elements are made of recyclable materials. Particularly,
these are: plastic films and bags, cardboard box.
When disposing of the packaging, observe applicable domestic regulations.
Recyclable packaging materials should be recycled.
3.3 Storage
Leave the packaging closed until installation of the appliance; observe external
indications concerning method of placing and storage. Store the packaging in the
following conditions only:
– in closed rooms;
– in dry and dust-free surrounding;
– away from aggressive agents;
– in a location protected against sunlight;
– in a location protected against mechanical shocks.
In the case of extended storage (over three months), make sure you check the
condition of the packaging and the parts regularly. If needed, replace the packaging
with a new one.
8 / 20 105867
Technical Data
EN
Name:
Induction warming plate IW3-SW
Art. No.:
105867
Material:
steel
Heating plate material:
glass
Number of heating plates:
1
Max. pot diameter, in mm:
200 - 380
Glass hob dimensions (W x D), in mm:
390 x 390
Max. power, in W:
300
Temperature range, min.–max., in °C:
40 - 95
Number of temperature levels:
12
Temperature setting intervals, in °C:
5
Connected load:
0,3 kW | 220-240 V | 50-60 Hz
Dimensions (W x D x H), in mm:
395 x 395 x 100
Weight, in kg:
5,5
4 Technical Data
4.1 Technical Specifications
We reserve the right to implement technical modifications.
105867 9 / 20
Technical Data
EN
Version / Design
• Colour: black
• Type of heating plate: induction
• Control: power output
• Control panel: on the appliance
• Possibility of combining: 4 appliances may be connected in sequence
in 1 power circuit
• Cookware detection
• Digital display
• Overheating protection
• ON/OFF switch
• Control: electronic, touch
• Appliance connection: ready to plug in
4.2 Functions of the Appliance
Dishes are kept warm on the induction heating plate at the set temperature with the
use of suitable cookware.
There is a possibility of combining 4 appliances in one power circuit owing to
optionally available cord.
10 / 20 105867
Technical Data
EN
Rys. 1
1. Glass hob
2. Control elements
3. Housing
4. IEC socket for additional appliances
5. Power cord with mains plug
6. Appliance power cord plug-in socket
7. Ventilation openings
8. Ventilation openings
9. Feet (4x)
4.3 List of Components of the Appliance
105867 11 / 20
Installation and operation
EN
CAUTION!
Choking hazard!
Prevent children from accessing package materials, for instance: plastic
bags and EPS.
5 Installation and operation
5.1 Installation
Unpacking / Positioning
• Unpack the appliance, remove all external and internal packaging elements and
shipment safeguards.
• If the appliance is covered with a protective film, remove it. Remove the film
slowly, so no glue residues are left. Remove any glue residues with the use of a
suitable solvent.
• Be careful not to damage the rating plate and warning labels fixed on the
appliance.
• Never place the appliance in humid or wet environment.
• Place the appliance in a way making the connections easily accessible, so that
they may be quickly disconnected if such a need arises.
• The appliance should be placed on surfaces that are:
– even, with sufficient bearing capacity, resistant to water, dry and resistant
to high temperatures;
– sufficiently large, and thus enabling usage of the appliance with no
problems;
– easily accessible;
– well ventilated.
• Do not place the appliance in the vicinity of devices or objects that are sensitive
to magnetic fields (e.g. radio, television, etc.).
• Leave at least 5 -10 cm clearance from flammable walls and other objects.
12 / 20 105867
Installation and operation
EN
Fig. 2
Power supply connection
• Verify if technical data of the appliance (see rating plate) correspond with the
local electric power grid specification.
• Connect the appliance to a single, properly grounded mains socket with
protective contact. Do not connect the appliance to a multi-socket.
• The power cord should be laid in a way preventing anyone from threading on it
or tripping against it.
• Do not use the appliance with an external timer or remote control.
• The appliance is connected to the electric power supply using the supplied
power cord to the corresponding plug-in socket of the appliance.
• The appliance also has an integrated IEC socket for powering another induction
heating plate that can be installed in series (up to 4 units). The corresponding
cable must be purchased separately.
105867 13 / 20
Installation and operation
EN
5.2 Operation
Method of operation of heating plates
In induction cookers the electric voltage is applied to a conductive coil under the
glass. This generates magnetic field, which being a physical effect, heats the
bottom of a cookware directly.
This translates to savings of time and energy, as — contradictory to traditional
heating areas — there is no heating up of a heater and then of the glass heating
plate.
Another advantage of the technical features described above is the very short
cooking time.
Additionally, inflow of heat changes instantly with every change of settings and it
may be controlled precisely. The induction heating plate reacts to changes in
settings as fast a gas cooker, for the energy is delivered immediately to a pot,
without the need to prior heating up of other materials.
The induction technology combines the speed of reaction with a basic benefit of the
current, making it possible to precisely control heat inflow.
14 / 20 105867
Installation and operation
EN
Cookware Pieces
The induction appliance is equipped with a cookware detection mechanism.
To check if a cookware piece is suitable for induction, perform the following test:
– place a cookware piece on the hob of the appliance,
– use the control unit to select level 4,
– if the display does not blink, the cookware piece is compatible;
– if the display blinks, the cookware piece is not recognised and thus it
cannot be used.
The compatibility of cookware pieces can also be checked with a magnet: if a
magnet sticks to the bottom of a cookware piece, such cookware piece is suitable
for induction appliances.
Suitable Cookware:
• Iron cookware
• Enamelled iron cookware
• Steel or enamelled cast iron pots/pans
• Cast iron pots/pans
• Stainless steel cookware
• Aluminium cookware with special bottom
Unsuitable Cookware:
• Glass, ceramic or clay cookware
• Aluminium cookware without special bottom
• Bronze or copper cookware
• Cookware with feet
• Containers with bulged bottoms
ATTENTION!
Do not place plastic containers onto a hot hob of the appliance.
To obtain better results, use only cookware/containers with a diameter of 200–
380 mm.
105867 15 / 20
Installation and operation
EN
Fig. 3
1. ON/OFF key
2. Setting value decrease key
3. Digital display
4. Setting value increase key
Control elements
Before Use
1. Before the first use, clean the appliance observing indications in section 6.
'Cleaning'.
2. Place an appropriate cookware / container with food on the hob.
3. Plug the appliance into a suitable single socket.
Settings
1. Switch the appliance on with the ON/OFF key
2. Use the '+' or '-' keys and select a temperature level from the range of 1–12, as
suitable for a given dish.
The temperature may be set with 5 °C increments.
The set temperature level will be shown in the digital display.
16 / 20 105867
Cleaning
EN
Temperature level
Temperature (°C)
Temperature (°F)
1
40
104 2 45
113
3
50
122 4 55
131
5
60
140
6
65
149
7
70
158 8 75
167
9
80
176
10
85
185
11
90
194
12
95
203
The below table contains temperature values suitable for individual levels.
3. When the intended effect is obtained or when the appliance will not be used any
more, switch it off with the ON/OFF key.
4. Disconnect the appliance from the mains socket (pull the plug out).
6 Cleaning
6.1 Safety Instructions for Cleaning
• Before cleaning, disconnect the appliance from the power supply.
• Leave the appliance to cool down completely.
• Make sure water does not enter the appliance. Do not immerse the appliance in
water or other liquids during cleaning. Do not clean the appliance with a
pressurized water jet.
• Do not use any sharp or pointed, nor metal implements (knife, fork, etc.). Sharp
or pointed implements may damage the appliance, and when in contact with live
parts, they may cause electric shock.
• For cleaning, do not use any scouring agents that contain solvents nor corrosive
cleaning agents. They may damage the surface.
105867 17 / 20
Cleaning
EN
6.2 Cleaning
1. Clean the appliance daily; more often should it be needed.
2. Clean the lightly soiled glass hob, housing and control panel with a soft, damp
cloth and a mild, non-scouring, cleaning agent. Wipe with a clean cloth.
3. For burnt stains, proceed as follows:
– moisten the soiled area with warm water,
– remove the soiling with a special glass scraper,
– wipe the place with the scrubbing side of a sponge for cleaning sensitive
surfaces,
– finally, wipe the surface dry with a soft cloth.
4. For limescale stains, apply warmed wine vinegar or commercially available
descaling agent to the area, wait for it to work, and then wipe off with a soft,
damp cloth.
5. For deposits caused by spilled sugar, melted plastic or aluminium, apply a
special glass/ceramic glass cleaner (with silicone if possible) to the surface, then
wipe the surface.
6. After cleaning, dry cleaned surfaces thoroughly with a soft cloth.
7. Ventilation openings at the bottom of the appliance should not be obstructed
with dirt nor dust. Clean them regularly with a brush or vacuum cleaner.
18 / 20 105867
Possible Malfunctions
EN
Error Code
Cause
Solution
Hi. U
Faulty electrical
connection, voltage
>275 V
Make sure that the appliance
connection is compatible
(voltage greater than or equal
to 230 V ±10%)
ER 03
Overheating under the hob
Cool the top side of the
appliance to correct the error,
otherwise contact the service
department
ER 15
ER 21
Appliance safety related to
poor quality cookware
Switch the appliance off and
replace the cookware to
correct the fault
ER 09
Faulty electrical connection or
voltage drop <207 V
Make sure that the appliance
connection is compatible
(voltage greater than or equal
to 230 V ±10%)
Other (ER XX)
Product flaw
Switch the appliance off and
on again
If the fault persists, contact
the service company
7 Possible Malfunctions
Mögliche
The table below contains descriptions of possible causes and solutions to
malfunctions or errors during operation of the appliance. When malfunction cannot
be removed, contact the technical service.
In such a case, provide article number, model name and serial number. These data
may be found in the rating plate.
105867 19 / 20
EN
Error Code
Cause
Solution
Display without
messages
Appliance overheating
Pull the plug out
Leave the appliance to cool
off for 10 minutes
Switch the appliance on again
and check the condition of the
filter
Appliance
cannot be
switched on
No power supply
Check the fuse on the
appliance
Damaged electrical supply or
connection
Check electrical supply and
connection cable
Defective fuse
Check fuse and circuit
breaker of electrical system
Electric appliances are marked with this symbol. Electrical
appliances must be disposed of and recycled in a correct
and environmentally friendly manner. You must not dispose
of electric appliances with household waste. Disconnect the
appliance from the power supply and remove power cord
from the appliance.
8 Disposal
Electrical Appliance
Disposal
Electrical appliances should be returned to designated collection points.
20 / 20 105867
Loading...
