Original instruction manual
1 Safety ............................................................................................................ 2
1.1 Explanation of Signal Words .................................................................... 2
1.2 Safety instructions.................................................................................... 3
1.3 Intended Use ........................................................................................... 5
1.4 Unintended Use ....................................................................................... 5
2 General information ....................................................................................... 6
2.1 Liability and Warranty .............................................................................. 6
2.2 Copyright Protection ................................................................................ 6
2.3 Declaration of Conformity ........................................................................ 6
3 Transport, Packaging and Storage ................................................................ 7
3.1 Delivery Check ......................................................................................... 7
3.2 Packaging ................................................................................................ 7
3.3 Storage .................................................................................................... 7
4 Technical Data ............................................................................................... 8
4.1 Technical Specifications .......................................................................... 8
4.2 Functions of the Appliance ....................................................................... 9
4.3 List of Components of the Appliance ..................................................... 10
5 Installation and operation ............................................................................ 11
5.1 Installation .............................................................................................. 11
5.2 Operation ............................................................................................... 12
6 Cleaning ...................................................................................................... 15
6.1 Safety Instructions for Cleaning ............................................................. 15
6.2 Cleaning ................................................................................................. 15
7 Disposal ....................................................................................................... 16
150175 1 / 18
Safety
EN
Read this instruction manual before using and keep it available
at all times!
DANGER!
The signal word DANGER warns against hazards that lead to severe
injuries or death if the hazards are not avoided.
WARNING!
The signal word WARNING warns against hazards that may lead to
moderate or severe injuries or death if the hazards are not avoided.
Diese Bedienungsanleitung beschreibt di e Installation, Bedienung und Wartu ng des Geräts und gilt als wichtige Infor mationsquelle und Nachschlagewer k. Die Kenntnis aller enthaltenen Sicherh eitshinweise und Handlungsanweisu ngen schafft die Voraussetzung f ür das sichere und sachgerechte Ar beiten mit dem Gerät. Darüber hinaus müssen die für den Einsatzbereich des Geräts geltenden örtlichen Unfallverh ütungsvorschriften und allgemeinen Sicherheitsbestimmungen eingehalt en werden. Diese Bedienungsanleitung is t Bestandteil des Produkts und muss in unmittelbarer Nähe des Geräts für das In¬stallations-, Bedienu ngs-, Wartungs- und Reinigungspers onal jederzeit zugänglich auf¬bewahrt werd en. Wenn das Gerät an eine dritt e Person
weitergegeben wird, muss die Bedienungsa nleitung mit ausgehändigt werden.
This instruction manual contains information about installation, operation and
maintenance of the appliance and constitutes an important source of information
and reference guide. The knowledge of all operational and safety instructions
included in this manual is a prerequisite for safe and proper handling of the
appliance. Additionally, accident prevention, occupational health and safety, and
legal regulations in force in the area the appliance is used apply.
Before you start using the appliance, especially before turning it on, read this
instruction manual in order to avoid personal injuries and property damages.
Improper use may cause damage.
This instruction manual forms and integral part of the product and must be stored in
an immediate vicinity of the appliance and be available at all times. The instruction
manual should be transferred together with the appliance.
1 Safety
This appliance has been manufactured in accordance with technical standards
currently in force. However, the appliance may be a source of hazards if used
improperly or contrary to its intended purpose. All persons using the appliance must
consider information included in this instruction manual and observe safety
instructions.
1.1 Explanation of Signal Words
Important safety instructions and warning information are indicated in this
instruction manual with appropriate signal words. You must strictly follow the
instructions, to prevent accidents, personal injuries and property damages.
2 / 18 150175
Safety
EN
CAUTION!
The signal word CAUTION warns against hazards that may lead to
light or moderate injuries if the hazards are not avoided.
IMPORTANT!
The signal word IMPORTANT indicates possible property damages,
which may occur if safety instructions are not observed.
NOTE!
The symbol NOTE indicates subsequent information and guidelines
for the user on usage of the appliance.
, die
1.2 Safety instructions
Electrical Current
• Too high a mains voltage or incorrect installation may cause electric shock.
• The appliance may be connected only if data on the rating plate correspond with
the mains voltage.
• To avoid short-circuit, the appliance should be kept dry.
• If there are malfunctions during operation, disconnect the appliance from the
power supply.
• Do not touch the appliance’s plug with wet hands.
• Never take hold of the appliance if it has fallen into water. Immediately
disconnect the appliance from the power supply.
• Any repairs or housing opening may be carried out by professionals and
relevant workshops only.
• Do not transport the appliance, holding it by the power cord.
• Do not allow the power cord to come into contact with heat sources or sharp
edges.
• Do not bend, pinch nor knot the power cord.
• Always completely unwind the power cord.
• Never place the appliance or other objects on the power cord.
• Always take hold of the plug to disconnect the appliance from the power supply.
Supervised Usage only
150175 3 / 18
Safety
EN
• Only supervised appliance may be used.
• Always remain in an immediate vicinity of the appliance.
Operating personnel
• This appliance is not intended to be used by persons (including children) with
limited physical, sensory or mental capabilities, nor by persons with limited
experience and/or limited knowledge.
• Children should be supervised to ensure that they are not playing with or
switching the appliance on.
Improper Use
• Unintended or prohibited use may cause damage to the appliance.
• The appliance may only be used when its technical condition is flawless and
allows for safe operation.
• The appliance may only be used when all connections are executed according
to rules of law in force.
• The appliance may only be used when it is clean.
• Use only original spare parts. Never attempt to repair the appliance on your own.
• Do not introduce any changes in the appliance nor modify it.
4 / 18 150175
Safety
EN
1.3 Intended Use
As described below, every use of the appliance for a purpose differing and/or
diverging from its intended standard use, is prohibited and considered to be an
unintended use.
The following is an intended use:
– mincing, mixing, mashing, shaking, and chopping of suitable food
products
– ice crushing.
1.4 Unintended Use
An unintended use may lead to personal injuries or property damages caused by
hazardous voltage, fire or high temperature. The appliance may only be used to
perform tasks described in this instruction manual.
– processing of unsuitable food products.
150175 5 / 18
General information
EN
2 General information
2.1 Liability and Warranty
All information and instructions in this instruction manual account for legal
regulations in force, current level of technical engineering knowledge as well as our
expertise and experience, developed over the years. If special models or additional
options are ordered, or state-of-the-art technical solutions were implemented, the
actual scope of delivery of the appliance may, in some circumstances, differ from
descriptions and numerous drawings in this instruction manual.
The manufacturer is not liable for any damages nor faults stemming from:
– failure to observe instructions,
– unintended use,
– technical alterations introduced by the user,
– usage of unapproved spare parts.
We reserve the right to introduce technical modifications to the product, intended for
improvement of the appliance and its performance.
2.2 Copyright Protection
This instruction manual, and texts, drawings and images included in it, as well as its
other components are copyright protected. It is prohibited to reproduce this
instruction manual (including its excerpts), in any form and by any means, and to
use and/or transfer its content to third parties without manufacturer’s written
permission. Violation of the above results in obligation to pay compensation. We
reserve the right to claim further damages.
2.3 Declaration of Conformity
The appliance meets the currently applicable standards and guidelines of the
European Union. We confirm the above in the EC Declaration of Conformity. We
may provide relevant Declaration of Conformity upon request.
6 / 18 150175
Transport, Packaging and Storage
EN
3 Transport, Packaging and Storage
3.1 Delivery Check
Immediately upon reception, check the delivery for completeness and possible
shipping damage. In the case of visible transport damage refuse to accept the
appliance or accept it conditionally. Mark and note the scope of damage in shipping
documents/consignment list of the shipping company and lodge a complaint.
Concealed damage must be reported immediately upon its discovery, as
compensation claims may only be filed within applicable time limits.
If you find that parts or accessories missing, please contact our Customer Service
Department.
3.2 Packaging
Do not dispose of the appliance cardboard box. It may be used to store the
appliance when relocating or when shipping the appliance to our service point in the
case of any damages.
The packaging and its elements are made of recyclable materials. Particularly,
these are: plastic films and bags, cardboard box.
When disposing of the packaging, observe applicable domestic regulations.
Recyclable packaging materials should be recycled.
3.3 Storage
Leave the packaging closed until installation of the appliance; observe external
indications concerning method of placing and storage. Store the packaging in the
following conditions only:
– in closed rooms;
– in dry and dust-free surrounding;
– away from aggressive agents;
– in a location protected against sunlight;
– in a location protected against mechanical shocks.
In the case of extended storage (over three months), make sure you check the
condition of the packaging and the parts regularly. If needed, replace the packaging
with a new one.
150175 7 / 18
Technical Data
EN
Name:
Blender 2,6L
Art. No.:
150175
Material:
stainless steel, plastic
Mixing beaker material:
plastic
Blade design:
stainless steel, 6-blade
Volume, in l:
2,6
Usable volume, in l:
2
Rotational speed (RPMs), max.:
30.000
Power supply:
2,2 kW / 220-240 V / 50-60 Hz
Dimensions (W x D x H), in mm:
220 x 215 x 485
Weight in kg:
5,0
4 Technical Data
4.1 Technical Specifications
We reserve the right to implement technical modifications!
8 / 18 150175
Technical Data
EN
Version / Characteristics
• Designed for: mincing, mixing, mashing, shaking, chopping, ice crushing
• Speed control: stepless
• 3 preset programs:
– smoothie / juices
– soups / sauces
– crushed ice / iced beverages
• Pulse operation function
• BPA free: <0,1 mg/kg
• Control: knob, button
• Safety switch: on the beaker
• Motor protection
• ON/OFF switch
• Feet: hard rubber
• Filling opening at top of the appliance
• Integrated dosing cap
• Handy handle
• Durable stainless steel coupling
• Easily legible scale
• The set includes: 1 pusher
4.2 Functions of the Appliance
The blender is equipped with 3 preset programs and additional pulse operation
function. Together with high power, they provide for fast and simple preparation of
smoothies, soups, sauces, iced beverages, etc.
150175 9 / 18
Technical Data
EN
1. Lid closing / dosing cap
2. Safety interlock in the lid
3. Mixing beaker handle
4. Mixing beaker base
5. Blade
6. Mixing beaker
7. Lid
8. Motor drive
9. Mixing beaker positioning handle
10. Microswitch
11. Pulse operation function button
12. Crushed ice / iced beverages button
13. Smoothie / juices button
14. Soups / sauces button
15. Speed controller
16. Feet (4x)
17. Motor block
18. Pusher
19. ON/OFF switch
4.3 List of Components of the Appliance
10 / 18 150175
Installation and operation
EN
CAUTION!
Choking hazard!
Prevent children from accessing package materials, for instance: plastic
bags and EPS.
5 Installation and operation
5.1 Installation
Unpacking / Positioning
• Unpack the appliance, remove all external and internal packaging elements and
shipment safeguards.
• If the appliance is covered with a protective film, remove it. Remove the film
slowly, so no glue residues are left. Remove any glue residues with the use of a
suitable solvent.
• Be careful not to damage the rating plate and warning labels fixed on the
appliance.
• Never place the appliance in humid or wet environment.
• Place the appliance in a way making the connections easily accessible, so that
they may be quickly disconnected if such a need arises.
• The appliance should be placed on surfaces that are:
– even, with sufficient bearing capacity, resistant to water, dry and resistant
to high temperatures;
– sufficiently large, and thus enabling usage of the appliance with no
problems;
– easily accessible;
– well ventilated.
• Maintain sufficient clearance from table edges. The appliance might turn over
and fall down.
• Leave at least 20 cm clearance from flammable walls and items.
150175 11 / 18
Installation and operation
EN
WARNING!
Injury hazard!
The blade at the bottom of the mixing beaker is very sharp!
Do not reach into the mixing beaker.
Hot surface!
Moving elements become hot during prolonged use!
Do not touch moving elements.
Risk of scalding by escaping vapour and spatters!
Hot dishes should be prepared only with the lowest speed and with the lid
and the lid closing tightly fitted.
Power supply connection
• Verify if technical data of the appliance (see rating plate) correspond with the
local electric power grid specification.
• Connect the appliance to a single, properly grounded mains socket with
protective contact. Do not connect the appliance to a multi-socket.
• The power cord should be laid in a way preventing anyone from threading on it
or tripping against it.
• Do not use the appliance with an external timer or remote control.
5.2 Operation
Preparation of the Appliance
1. Prior to first use, thoroughly clean the appliance and equipment according to
instructions in section 6 'Cleaning'.
2. All washed parts should be dried thoroughly.
3. Set the motor block on an even surface and make sure it stands stably on the
surface.
4. Insert the mixing beaker onto the positioning handles on the motor block. Pay
attention, so that mixing beaker handle is at the right.
NOTE: For safety reasons, the appliance is equipped with a safety switch,
which makes it possible to operate the appliance only with the container
correctly set and the lid closed.
Appliance Start-Up
12 / 18 150175
Installation and operation
EN
1. Prepare food products for processing.
NOTE: Hard food products, like fruit and vegetables must be sliced into
pieces no larger than 20x20 mm.
2. Put the required food products / liquids in the mixing beaker.
WARNING!
Never fill the mixing beaker with food products / liquids over the MAX
marking.
3. Put the mixing beaker lid on, so that the safety interlock in the lid is tightly
connected with the mixing beaker handle.
4. Insert the lid closing into the lid.
5. Plug the appliance into a suitable single socket.
6. Switch the appliance on with the ON/OFF switch.
7. Put your hand on the lid.
8. Rotate the speed controller clockwise to increase the speed and counterclockwise to reduce the speed.
Speed may be set accordingly to the processed food products in the range from 'I'
(the lowest speed) to 'X' (the highest speed).
9. The appliance should not operate continuously for more than 2 minutes without
a break. Cool the appliance for 5 minutes before proceeding to the next mixing
process.
Function Buttons / Preset Programs
The appliance is equipped with 3 preset programs and with pulse operation
function, as well as appropriate function buttons.
NOTE!
The preset programs may be run only when the speed controller is rotated
first into '0' position.
150175 13 / 18
Installation and operation
EN

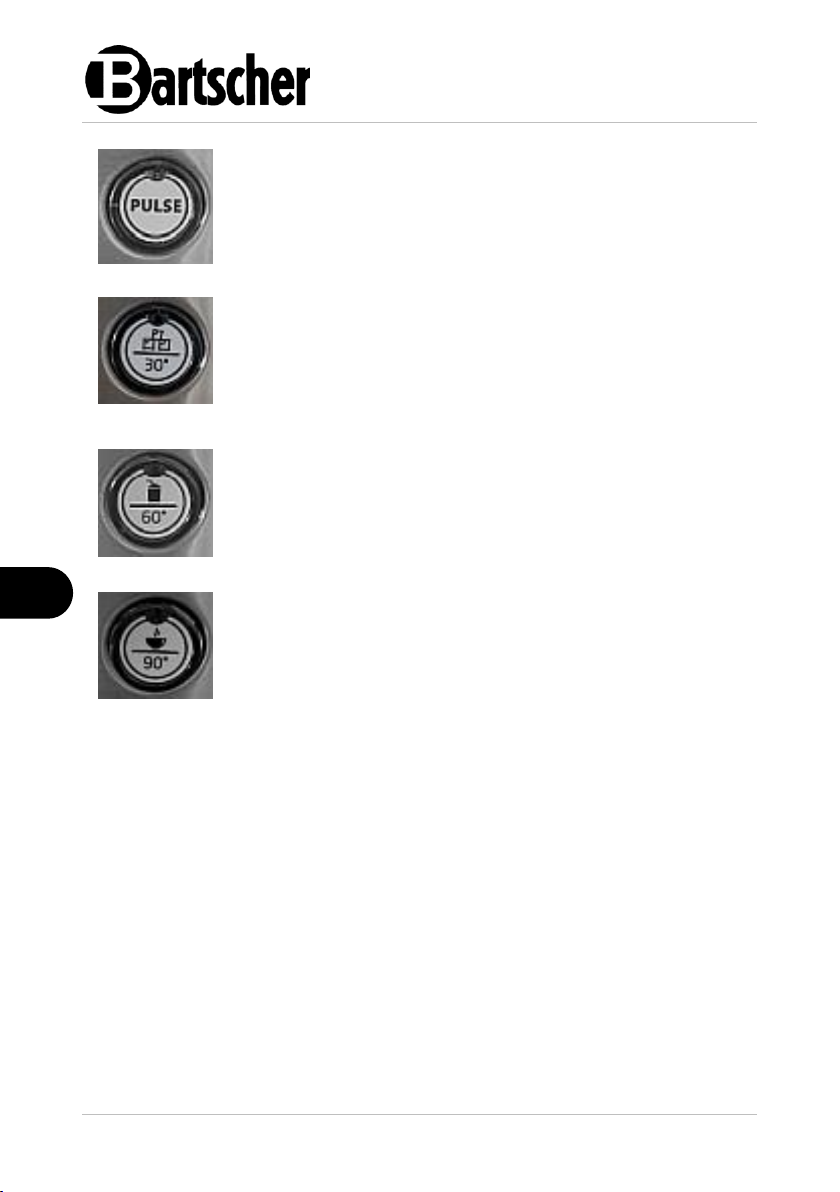

Pulse operation button (11)
After pressing the pulse operation button, the motor works with
full speed as long as the pulse operation button remains
pressed.
When the pulse operation button is released, the motor stops.
Crushed ice / iced beverages button
1. To crush ice, start the process by pressing the crushed ice
button.
The factory default time is 30 seconds.
When this time elapses, the pulse operation button surface
blinks, which means the process is finished.
Smoothie / juices button
2. To prepare a smoothies or juices, press appropriate button.
The factory default time is 60 seconds.
When this time elapses, the pulse operation button surface
blinks, which means the process is finished.
Soups / sauces button
3. Press this button if you want to mix / mash soups or sauces.
The factory default time is 90 seconds.
When this time elapses, the pulse operation button surface
blinks, which means the process is finished.
4. To end the mixing process before the time elapses, press the selected function
button again.
5. Before removing the lid closing and the lid from the mixing beaker for the
purpose of adding subsequent ingredients, always switch the appliance first.
6. Use the pusher if needed, to push the ingredients down.
Switching the Appliance Off
1. Rotate the speed controller to '0' position.
2. Before removing the lid and the lid closing from the mixing beaker or the mixing
beaker from the motor block, wait until the motor stops completely.
When the mixing beaker is removed from the motor block, there is no contact with
the microswitch and the motor switches off automatically.
3. When the appliance is not to be used any more, it should be switched off with
the ON/OFF switch, and the plug should be disconnected from the outlet.
14 / 18 150175
Cleaning
EN
WARNING!
Danger of injury inflicted by the appliance's blade unit!
Do not touch the cutting edges of the blade during cleaning.
Electric shock hazard!
Never immerse the bottom part of the mixing beaker in water or other
liquids.
Make sure no water enters the motor unit!
ATTENTION!
Leak when the blade unit is removed!
Do not attempt to remove the blade unit from the mixing beaker.
6 Cleaning
6.1 Safety Instructions for Cleaning
• Before cleaning, disconnect the appliance from the power supply.
• Leave the appliance to cool down completely.
• Make sure water does not enter the appliance. Do not immerse the appliance in
water or other liquids during cleaning. Do not clean the appliance with a
pressurized water jet.
• Do not use any sharp or pointed, nor metal implements (knife, fork, etc.). Sharp
or pointed implements may damage the appliance, and when in contact with live
parts, they may cause electric shock.
• For cleaning, do not use any scouring agents that contain solvents nor corrosive
cleaning agents. They may damage the surface.
6.2 Cleaning
1. Clean the appliance regularly after the end of each working day, and also
between subsequent mixing process if needed.
4. Insert the mixing beaker onto the motor unit, to clean the blade unit and the
mixing beaker.
2. Pour water and mild cleaning agent into the mixing beaker.
3. Insert the lid onto the mixing beaker, and place the lid closing in the lid opening.
4. Start the appliance with the smoothie function.
150175 15 / 18
Disposal
EN
Electric appliances are marked with this symbol. Electrical
appliances must be disposed of and recycled in a correct
and environmentally friendly manner. You must not dispose
of electric appliances with household waste. Disconnect the
appliance from the power supply and remove power cord
from the appliance.
5. When the time elapses and the motor stops, remove the mixing beaker from the
motor block.
6. Switch the appliance off with the ON/OFF switch and disconnect it from the
power supply.
7. Rinse the mixing beaker thoroughly with fresh water.
8. Wash the lid, lid closing and pusher thoroughly in warm water and mild cleaning
agent. Rinse the components under running water.
9. Wipe the appliance motor block with a soft, moist cloth.
10. Dry all the cleaned parts and surfaces completely with a soft cloth.
7 Disposal
Electrical Appliance
Electrical appliances should be returned to designated collection points.
16 / 18 150175
Loading...
