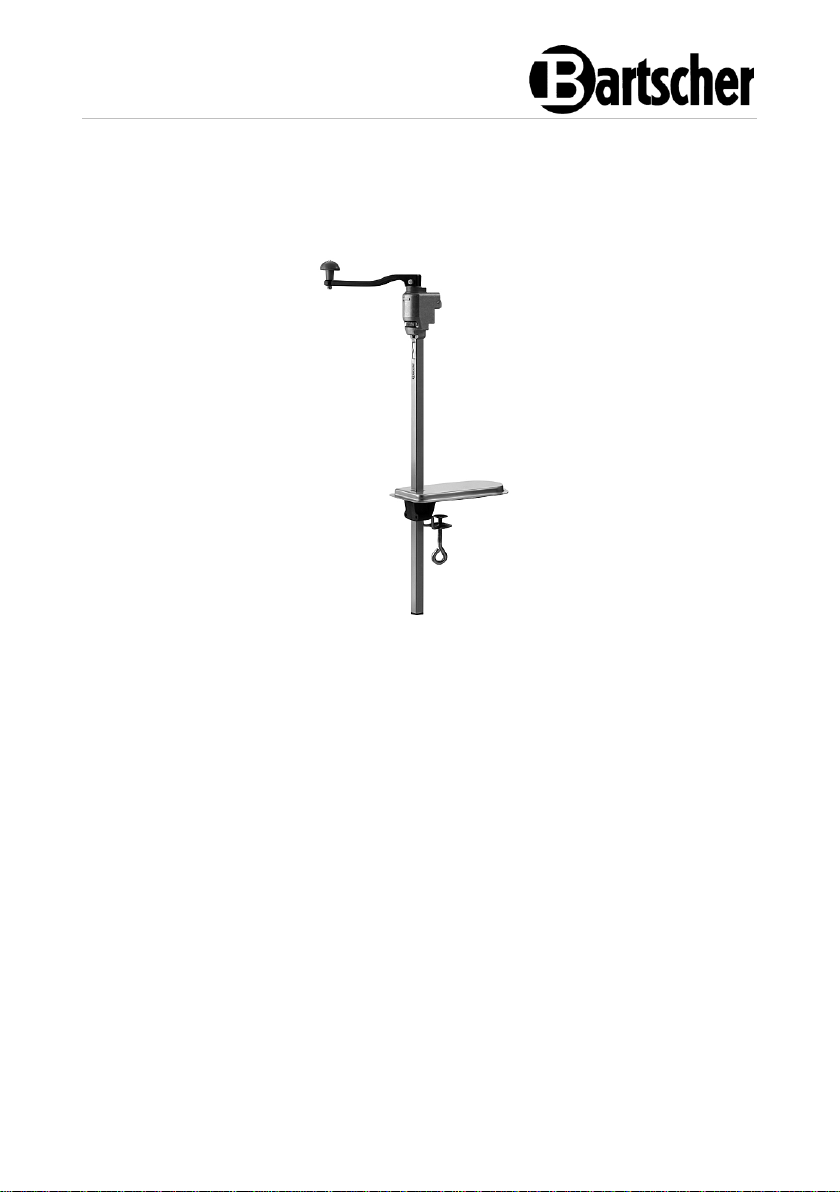

KB565
A120355
Bartscher GmbH
Franz-Kleine-Str. 28
D-33154 Salzkotten
Germany
Phone: +49 5258 971-0
Fax: +49 5258 971-120
Service hotline: +49 5258 971-197
www.bartscher.com
Version: 1.0
Date of preparation: 2019-10-21
Original instruction manual
EN
EN
Name:
Can opener KB565
Item No.:
A120355
Material:
Stainless steel, plastic
Material of blade:
Stainless steel
Surface material:
Stainless steel
Max. container height, in mm:
565
Max. worktop thickness, in mm:
60
Dimensions of surface, in mm:
131 x 294
Dimensions (W x D x H), in mm:
125 x 290 x 940
Weight in kg:
2,5
Transport wheel KB565
Spare transport wheel for can opener
KB565
• Material: steel, chrome-plated
• Dimensions: W 39 x D 39 x H 10
mm
• Weight: 0.08 kg
Art. No. A120357
Blade KB565
Spare blade for can opener KB565
• Material: stainless steel
• Dimensions: W 66 x D 36 x H 76
mm
• Weight: 0.1 kg
Art. No. A120356
Technical Specifications
We reserve the right to implement technical modifications!
Version / Characteristics
• Crank drive with spring mechanism
• Clamp fastening (prepared for screw fastening)
Height-adjustable
Auxiliary Equipment (not included in the delivery)
A120355 3 / 9
EN
Fig. 1
1. Crank
2. Crank handle
3. Bearing
4. Square pipe
5. Clamp handle
6. Cap
7. Eye bolt
8. Clamp plate
9. Clamp attachment
10. Blade
11. Transport wheel
12. Screws in the blade handle
List of Components of the Appliance
Intended Use
The can opener is designed for opening cans up to a height of 565 mm.
4 / 9 A120355
EN
Fig. 2
Fig. 3
1. Place the clamp attachment on an
even, non-slip surface.
2. Turn the eye bolt until the surface
for placing cans will be screwed well
to the tabletop.
3. The clamp attachment may be
additionally attached to the tabletop
with 3 bolts by screwing them into
designated holes.
4. Insert the square pipe of the can
opener to the hole in the clamp
attachment. Put a cap on a lower
end of the square pipe.
5. The square pipe may be set at
different heights, depending on the
can.
Fig. 4
Assembly
Opening of Cans
1. Before the first use, make sure that the stainless steel blade and transport wheel
are clean, because they will come into contact with food. Observe the
instructions included in section “Cleaning”.
2. Before opening, clean the can’s lid with a moist cloth.
A120355 5 / 9
EN
Fig. 5
Fig. 6
3. Pull the square pipe upwards and
place the can on the clamp
attachment, so that it stands directly
next to the pipe and below the
transport wheel.
4. Press firmly the crank to cut
through the can’s lid with the blade.
5. Press the crank onto the centring
plate in order to set the right
position of the can's rim, between
the blade and the cutting surface.
Fig. 7
Fig. 8
6. When the can's lid is punctured,
press the crank to the horizontal
position.
The distance between the blade and the
transport wheel is diminished. The can is
tightly clamped between the blade and
the transport wheel.
7. To open the can, turn the crank in
the direction pointed by the arrow.
6 / 9 A120355
EN
8. When the can is opened, lift the
crank (Fig. 9).
9. Remove the opened can from the
clamp attachment (Fig. 10).
Fig. 9
Fig. 10
Cleaning
1. Clean the can opener regularly after the end of each working day, or more
frequently if needed.
2. Clean the transport wheel in the case of more stubborn soiling with the use of a
dish-washing brush or a toothbrush.
3. Wipe with a clean cloth to remove the cleaning agent residues.
4. Wipe the remaining elements of the appliance with a soft, moist cloth.
5. To end with, dry the elements to leave them to dry in open air.
A120355 7 / 9
EN
Fig. 11
Fig. 12
1. Press the crank in the presented
direction, to disassemble the blade
mechanism.
2. To clean the blade, remove it from
the handle. Proceed the following
way:
– Unscrew the screws in the blade
handle.
– Pull out the blade from the handle.
Cleaning of Blade
CAUTION! Injury hazard!
The blade is very sharp!
Use gloves resistant to cutting during cleaning of the blade.
3. Clean the blade with soft, moistened cloth and gentle cleaning agent.
4. Reinsert the blade.
5. Fix the blade in the handle and fasten the screws again.
8 / 9 A120355
EN
Problem
Possible Cause
Solution
The crank does not turn
or turns with a resistance.
Food residues on the
transport wheel.
Clean the transport wheel
with a toothbrush.
The can cannot be
opened.
Damaged blade.
Contact the service
company.
Damaged transport
wheel.
Contact the service
company.
Loose screws of the
blade handle.
Tighten the screws in the
blade handle.
The can opener swings
during operation.
Loose clamp attachment.
Tighten the clamp
attachment.
The can slides during
rotation of the crank.
The slanting toothing is
deformed.
Contact the service
company.
There may be food on the
drive.
Check and clean the
drive.
Maintenance
1. If used intensively, the can opener blade and the transport wheel may get
deformed, thus they should be controlled regularly. If the elements are worn out,
replace them by contacting the service company.
2. Control the blade handle regularly, and tighten the screws if necessary.
Possible Malfunctions
A120355 9 / 9
