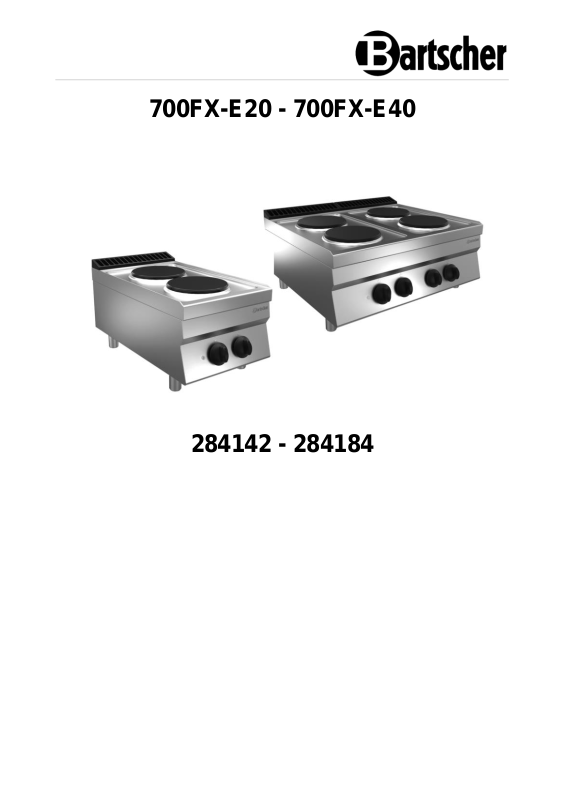

700FX-E20 - 700FX-E40
284142 - 284184
Bartscher GmbH
Franz-Kleine-Str. 28
D-33154 Salzkotten
Germany
Phone: +49 5258 971-0
Fax: +49 5258 971-120
Technical Support Hotline: +49 5258 971-197
www.bartscher.com
Version: 1.0
Date of preparation: 2022-10-26
EN
2
Original instruction manual
1 Safety ............................................................................................................ 2
1.1 Explanation of Signal Words .................................................................... 2
1.2 Safety instructions.................................................................................... 3
1.3 Residual Risks ......................................................................................... 6
1.4 Personal Protective Equipment ................................................................ 8
1.5 Intended Use ........................................................................................... 9
1.6 Unintended Use ....................................................................................... 9
2 General information ..................................................................................... 10
2.1 Liability and Warranty ............................................................................ 10
2.2 Copyright Protection .............................................................................. 10
2.3 Declaration of Conformity ...................................................................... 10
3 Transport, Packaging and Storage .............................................................. 11
3.1 Delivery Check ....................................................................................... 11
3.2 Packaging .............................................................................................. 11
3.3 Storage .................................................................................................. 11
4 Technical Data ............................................................................................. 12
4.1 Technical Specifications ........................................................................ 12
4.2 List of Components of the Appliance ..................................................... 14
4.3 Functions of the Appliance ..................................................................... 15
5 Installation Instructions ................................................................................ 16
5.1 Installation .............................................................................................. 16
5.2 Electrical Connection ................................ ............................................. 18
6 Operating Instruction ................................................................................... 19
6.1 Operation ............................................................................................... 20
7 Cleaning ...................................................................................................... 21
7.1 Safety Instructions for Cleaning ............................................................. 21
7.2 Cleaning ................................................................................................. 21
8 Possible Malfunctions .................................................................................. 22
9 Disposal ....................................................................................................... 22
284142 1 / 22
Safety
EN
Read this instruction manual before using and keep it available
at all times!
DANGER!
The signal word DANGER warns against hazards that lead to severe
injuries or death if the hazards are not avoided.
Diese Bedienungsanleitung beschreibt di e Installation, Bedienung und Wartung d es Geräts und gilt als wichtige Infor mationsquelle und Nachschlagewerk. Die Kenntnis aller enthaltenen Sicherheits hinweise und Handlungsanweisunge n schafft die Voraussetzung für das sich ere und sachgerechte Arbeiten mit d em Gerät. Darüber hinaus müssen die f ür den Einsatzbereich des Geräts gelt enden örtlichen Unfallverhütungsvorsc hriften und allgemeinen Sicherheitsb estimmungen eingehalten werden. Dies e Bedienungsanleitung ist Bestandteil d es Produkts und muss in unmittelb arer Nähe des Geräts für das In¬stallations -, Bedienungs-, Wartungs- und R einigungspersonal jederzeit zugängli ch auf¬bewahrt werden. Wenn das Gerät a n eine dritte Person
weitergegeben wird, muss die Bedienungsa nleitung mit ausgehändigt werden.
This instruction manual contains information about installation, operation and
maintenance of the appliance and constitutes an important source of information
and reference guide. The knowledge of all operational and safety instructions
included in this manual is a prerequisite for safe and proper handling of the
appliance. Additionally, accident prevention, occupational health and safety, and
legal regulations in force in the area the appliance is used apply.
Before you start using the appliance, especially before turning it on, read this
instruction manual in order to avoid personal injuries and property damages.
Improper use may cause damage.
This instruction manual forms and integral part of the product and must be stored in
an immediate vicinity of the appliance and be available at all times. The instruction
manual should be transferred together with the appliance.
1 Safety
This appliance has been manufactured in accordance with technical standards
currently in force. However, the appliance may be a source of hazards if used
improperly or contrary to its intended purpose. All persons using the appliance must
consider information included in this instruction manual and observe safety
instructions.
1.1 Explanation of Signal Words
Important safety instructions and warning information are indicated in this
instruction manual with appropriate signal words. You must strictly follow the
instructions, to prevent accidents, personal injuries and property damages.
2 / 22 284142
Safety
EN
WARNING!
The signal word WARNING warns against hazards that may lead to
moderate or severe injuries or death if the hazards are not avoided.
CAUTION!
The signal word CAUTION warns against hazards that may lead to
light or moderate injuries if the hazards are not avoided.
IMPORTANT!
The signal word IMPORTANT indicates possible property damages,
which may occur if safety instructions are not observed.
NOTE!
The symbol NOTE indicates subsequent information and guidelines
for the user on usage of the appliance.
, die
1.2 Safety instructions
Electrical Current
• Too high a mains voltage or incorrect installation may cause electric shock.
• The appliance may be connected only if data on the rating plate correspond with
the mains voltage.
• To avoid short-circuit, the appliance should be kept dry.
• If there are malfunctions during operation, disconnect the appliance from the
power supply.
• Do not touch the appliance’s plug with wet hands.
• Never take hold of the appliance if it has fallen into water. Immediately
disconnect the appliance from the power supply.
• Any repairs or housing opening may be carried out by professionals and
relevant workshops only.
• Do not transport the appliance, holding it by the power cord.
• Do not allow the power cord to come into contact with heat sources or sharp
edges.
• Do not bend, pinch nor knot the power cord.
284142 3 / 22
Safety
EN
• Always completely unwind the power cord.
• Never place the appliance or other objects on the power cord.
• Always take hold of the plug to disconnect the appliance from the power supply.
• Check the power cord regularly for damage. Do not use the appliance if the
power cord is damaged. If this cable is damaged, it must be replaced by
customer service or a qualified electrician in order to avoid dangers.
Flammable Materials
• Never subject the appliance to contact with high temperature sources, e.g.:
oven, furnace, open flame, heat generating devices, etc.
• To avoid fire hazard, clean the appliance regularly.
• Do not cover the appliance with, e.g., aluminium foil or cloths.
• Use the appliance only with materials designated to this end and with correct
temperature settings. Materials, groceries and left-overs remaining in the
appliance may catch fire.
• Never use the appliance near flammable or inflammable materials, e.g.: petrol,
spirit, alcohol, etc. High temperature triggers evaporation of these materials,
and, as a result of contact with sources of ignition, an explosion may occur.
• In case of fire, disconnect the appliance from the power supply before
attempting suitable fire-extinguishing actions.
• Never attempt to extinguish fire with water if the appliance is connected to the
power supply. Following extinction of fire, ensure sufficient fresh air inflow.
4 / 22 284142
Safety
EN
Supervised Usage only
• Only supervised appliance may be used.
• Always remain in an immediate vicinity of the appliance.
Operating Personnel
• The appliance may only be operated by qualified personnel and trained
specialist personnel.
• This appliance may not be operated by persons (including children) with limited
physical, sensory or mental capabilities, nor by persons with limited experience
and/or limited knowledge.
• Children should be supervised to ensure that they are not playing with or
switching on the appliance.
Improper Use
• Unintended or prohibited use may cause damage to the appliance.
• The appliance may only be used when its technical condition is flawless and
allows for safe operation.
• The appliance may only be used when all connections are executed according
to rules of law in force.
• The appliance may only be used when it is clean.
• Use only original spare parts. Never attempt to repair the appliance on your own.
• Do not introduce any changes in the appliance nor modify it.
284142 5 / 22
EN
Residual risks
Hazardous situation
Warning
Slipping and falling
hazard
The user may slip on the floor
due to the presence of water or
dirt.
Wear non-slip protective
footwear when using the
appliance.
Burns and scalding
The operator intentionally
touches the appliance.
Operator intentionally comes in
contact with hot substances (oil,
water, steam, etc.).
Electrical injury
(Electric shock)
Touching electrically conductive
parts of the equipment during
maintenance without first
disconnecting the electrical
supply. The operator carries out
operations (using a power tool or
without interrupting the electrical
supply to the machine) while lying
on a wet floor.
Maintenance of the
machine must only be
carried out by qualified
personnel, equipped
with personal protective
equipment providing
protection against
electric shock.
Electric shock caused by a faulty
earthing system or faulty
electrical protective equipment.
Protective devices in
accordance with relevant
standards must be
installed upstream of the
appliance.
Falling hazard
The operator performs activities
on the upper part of the appliance
using inappropriate aids (such as
a ladder with rungs, or climbing
onto the appliance).
Do not carry out any
work on the upper part
of the appliance using
unsuitable aids (such as
ladders with rungs or
climbing on the
machine).
Tipping over
hazard
Carrying the appliance or
appliance parts without suitable
aids.
When moving the
appliance or its
packaging, it is
necessary to use
suitable aids or lifting
equipment.
1.3 Residual Risks
Safety
6 / 22 284142
Safety
EN
Residual risks
Hazardous situation
Warning
Chemical materials
The operator is handling
chemicals (e.g.: cleaning agents,
descaling agents, etc.).
Take appropriate
precautions. Always
follow the instructions on
the safety data sheets
and labels of the
products used. Use
personal protective
equipment
recommended in safety
data sheets.
Injury hazard
There is an injury hazard during
maintenance work if internal parts
of the appliance frame are
touched.
Maintenance work may
only be carried out by
qualified personnel
equipped with suitable
protective equipment
(cut-resistant gloves,
forearm protectors).
Crushing hazard
Personnel are at risk of crushing
fingers or hands when handling
moving parts.
Maintenance work may
only be carried out by
qualified personnel
equipped with protective
equipment (safety
gloves).
Ergonomics
The operator works on the
appliance without wearing the
required personal protective
equipment.
The operator must wear
personal protective
equipment when working
on the appliance.
284142 7 / 22
Safety
EN
Phase
Safety
clothing
Safety
footwear
Gloves
Eye protection
Hearing
protection
Respiratory
tract
protection
Head
protection
Transport
X
Moving
X
Unpacking
X
Assembly
X
Standard usage
X X X (*)
Settings
X
Standard
cleaning
X
Special cleaning
X X
Maintenance
X X (*)
Dismantling
X
Disposal
X
X Personal protective equipment provided
Personal protective equipment is available or
must be used if required
Personal protective equipment not provided
1.4 Personal Protective Equipment
* Gloves intended for standard usage and maintenance works must be resistant to
high temperatures to protect operator's hands when the operator touches hot
elements of the appliance or hot substances (oil, water, steam, etc.).
8 / 22 284142
Safety
EN
1.5 Intended Use
As described below, every use of the appliance for a purpose differing and/or
diverging from its intended standard use, is prohibited and considered to be an
unintended use.
The following is an intended use:
– Preparing and heating-up foods with the use of suitable cookware.
1.6 Unintended Use
An unintended use may lead to personal injuries or property damages caused by
hazardous voltage, fire or high temperature. The appliance may only be used to
perform tasks described in this instruction manual.
The following is an unintended use:
– Heating of rooms.
– Heating-up flammable, hazardous to health and volatile, etc. liquids and
materials.
284142 9 / 22
General information
EN
2 General information
2.1 Liability and Warranty
All information and instructions in this instruction manual account for legal
regulations in force, current level of technical engineering knowledge as well as our
expertise and experience, developed over the years. If special models or additional
options are ordered, or state-of-the-art technical solutions were implemented, the
actual scope of delivery of the appliance may, in some circumstances, differ from
descriptions and numerous drawings in this instruction manual.
The manufacturer is not liable for any damages nor faults stemming from:
– failure to observe instructions,
– unintended use,
– technical alterations introduced by the user,
– usage of unapproved spare parts.
We reserve the right to introduce technical modifications to the product, intended for
improvement of the appliance and its performance.
2.2 Copyright Protection
This instruction manual, and texts, drawings and images included in it, as well as its
other components are copyright protected. It is prohibited to reproduce this
instruction manual (including its excerpts), in any form and by any means, and to
use and/or transfer its content to third parties without manufacturer’s written
permission. Violation of the above results in obligation to pay compensation. We
reserve the right to claim further damages.
2.3 Declaration of Conformity
The appliance meets the currently applicable standards and guidelines of the
European Union. We confirm the above in the EC Declaration of Conformity. We
may provide relevant Declaration of Conformity upon request.
10 / 22 284142
Transport, Packaging and Storage
EN
3 Transport, Packaging and Storage
3.1 Delivery Check
Immediately upon reception, check the delivery for completeness and possible
shipping damage. In the case of visible transport damage refuse to accept the
appliance or accept it conditionally. Mark and note the scope of damage in shipping
documents/consignment list of the shipping company and lodge a complaint.
Concealed damage must be reported immediately upon its discovery, as
compensation claims may only be filed within applicable time limits.
If you find that parts or accessories missing, please contact our Customer Service
Department.
3.2 Packaging
Do not dispose of the appliance cardboard box. It may be used to store the
appliance when relocating or when shipping the appliance to our service point in the
case of any damages.
The packaging and its elements are made of recyclable materials. Particularly,
these are: plastic films and bags, cardboard box.
When disposing of the packaging, observe applicable domestic regulations.
Recyclable packaging materials should be recycled.
3.3 Storage
Leave the packaging closed until installation of the appliance; observe external
indications concerning method of placing and storage. Store the packaging in the
following conditions only:
– in closed rooms;
– in dry and dust-free surrounding;
– away from aggressive agents;
– in a location protected against sunlight;
– in a location protected against mechanical shocks.
In the case of extended storage (over three months), make sure you check the
condition of the packaging and the parts regularly. If needed, replace the packaging
with a new one.
284142 11 / 22
Technical Data
EN
4 Technical Data
4.1 Technical Specifications
Version / Characteristics
• Type: Table-top unit
• Operating mode: Electric
• Device connection: 3 NAC
• Hob type: Electric
• Control: Power output controller
• Features: Scotch-Brite finish
• Including 4 feet, height-adjustable
• May be used as a tabletop appliance or in connection with the base as a free-
standing appliance
• May be connected and installed in a row with other 700FX series appliances
12 / 22 284142
Technical Data
EN
Name:
Electric stove 700FX-E20
Art. No.:
284142
Material:
CNS 18/10
Number of hobs:
2
Distribution of hobs:
2 x 2,6
Hob diameter, in mm:
Ø 260
Connected load:
5,2 kW | 400 V | 50/60 Hz
Degree of protection:
IPX4
Dimensions (W x D x H), in mm:
400 x 700 x 295
Weight, in kg:
35,0
Name:
Electric stove 700FX-E40
Art. No.:
284184
Material:
CNS 18/10
Number of hobs:
4
Distribution of hobs:
4 x 2,6
Hob diameter, in mm:
Ø 260
Connected load:
10,4 kW | 400 V | 50/60 Hz
Degree of protection:
IPX4
Dimensions (W x D x H), in mm:
800 x 700 x 295
Weight, in kg:
62,0
We reserve the right to implement technical modifications.
We reserve the right to implement technical modifications.
284142 13 / 22
Technical Data
EN
Fig. 1
1. Ventilation chimney
2. Hobs (2 pcs)
3. Housing
4. Power output controller (2 pcs)
5. Operation indicator light
(orange)
6. Height-adjustable feet (4 pcs)
4.2 List of Components of the Appliance
284142
14 / 22 284142
Technical Data
EN
Fig. 2
1. Ventilation chimney
2. Hobs (4 pcs)
3. Housing
4. Power output controller (4 pcs)
5. Operation indicator light
(orange)
6. Height-adjustable feet (4 pcs)
284184
4.3 Functions of the Appliance
The 2-hob or 4-hob electric stove offers the greatest flexibility: it can be used as a
table-top or a free-standing appliance. The hobs, with diameter of 26 cm and output
power of 2.6 kW each, provide for optimum transfer of heat to cookware owing to
their cast iron structure.
284142 15 / 22
Installation Instructions
EN
CAUTION!
Incorrect installation, positioning, operation, maintenance or misuse of
the appliance may lead to personal injury or property damage.
Positioning and installation, as well as repairs may be performed by
authorised technical service only and in compliance with the applicable
national law.
NOTE!
The manufacturer disclaims all liability and provides no warranty for
damages, which may be attributed to non-observance of regulations or
incorrect installation.
CAUTION!
Choking hazard!
Prevent children from accessing package materials, for instance: plastic
bags and EPS.
5 Installation Instructions
5.1 Installation
Unpacking / Positioning
• Unpack the appliance, remove all external and internal packaging elements and
shipment safeguards.
• If the appliance is covered with a protective film, remove it. Remove the film
slowly, so no glue residues are left. Remove any glue residues with the use of a
suitable solvent.
• Be careful not to damage the rating plate and warning labels fixed on the
appliance.
• Never place the appliance in humid or wet environment.
• Place the appliance in a way making the connections easily accessible, so that
they may be quickly disconnected if such a need arises.
• The appliance should be placed on surfaces that are:
– even, with sufficient bearing capacity, resistant to water, dry and resistant
to high temperatures;
16 / 22 284142
Installation Instructions
EN
– sufficiently large, and thus enabling usage of the appliance with no
problems;
– easily accessible;
– well ventilated.
• Screw 4 feet in.
– To level the appliance, you may adjust the height of feet.
IMPORTANT!
Never use the appliance without feet.
• Maintain sufficient clearance from table edges. The appliance might turn over
and fall down.
• Leave at least 10 cm clearance from flammable walls and items.
284142 17 / 22
Installation Instructions
EN
5.2 Electrical Connection
• Verify if the technical specification of the appliance (see the rating plate)
corresponds to the characteristics of the local electric mains grid.
• The power cord should be laid in a way preventing anyone from threading on it
or tripping against it.
• A circuit breaker of sufficient capacity to disconnect all poles from the power
supply must be installed upstream of the appliance, in an easily accessible
place; its contact opening width must ensure complete separation according to
overvoltage category III, in accordance with the installation regulations. The
maximum permissible leakage current of the appliance is 1 mA/kW.
• Flexible, oil-resistant rubber hoses type H05RN-F or H07RN-F must be used for
connection. Cord cross-section is stated in the technical data table.
• Connect the power cord to the terminal block according to the wiring diagram
supplied with the unit.
• Secure the part of the power cord outside the appliance with a metal tube or
rigid plastic hose.
• In the event of damage to the power cord, have it repaired by the manufacturer,
service company or a professional to exclude any risk.
• Connect the electrical appliance to a working earthing.
• Connect the protective conductor to the terminal marked with the earth symbol
next to the input terminal block.
• Connect the metal structure of the electrical appliance to a protective
equipotential bonding device.
• Connect the conductor to the terminal marked with the equipotential bonding
symbol on the outside of the bottom of the appliance.
• This symbol indicates that the appliance must be integrated into the
equipotential bonding system and connected in accordance with applicable
regulations.
• Do not use the appliance with an external timer or remote control.
18 / 22 284142
Operating Instruction
EN
Fig. 3
1. Rear hob power output controller
2. Front hob power output controller
3. Heating-up indicator light (orange)
6 Operating Instruction
Control Elements
Settings
The power output controller features the following operating positions:
• 0: off
• 1: minimum temperature
• 2–5: intermediate temperatures
• 6: maximum temperature
284142 19 / 22
Operating Instruction
EN
6.1 Operation
Before First Use
1. Before use, clean the appliance observing indications in section 'Cleaning'.
2. Dry the appliance thoroughly.
Appliance Start-Up
1. Connect the appliance into a mains socket.
2. Switch the safety switch on.
3. Set the required temperature (1–5) for the selected hob, using the relevant
temperature controller.
The orange indicator light lights up and is lit until the power output controller(s) is
(are) set to '0'.
Heating Up / Keeping Food Warm
WARNING!
The food in containers may slid or fall if the appliance is not set on even
and stable surface.
Pay attention to the surface you are putting cookware taken off of the appliance.
Never move the appliance with food on top of it; remove the food first.
Use protective gloves when moving cookware.
1. Place an appropriate cookware with food on the heating plate.
ATTENTION!
Do not place an empty cookware on the hob, as otherwise, this may result
in damage to the appliance and cookware.
2. Rotate the power output controller clockwise to switch the appliance on.
3. Select the required setting, suitable for the processed product.
4. Heat the product up.
20 / 22 284142
Cleaning
EN
Switching the Appliance OFF
1. If the appliance is not used, rotate the power output controller to '0' position.
2. Disconnect the appliance from mains power supply.
7 Cleaning
7.1 Safety Instructions for Cleaning
• Before cleaning, disconnect the appliance from the power supply.
• Leave the appliance to cool down completely.
• Make sure water does not enter the appliance. Do not immerse the appliance in
water or other liquids during cleaning. Do not clean the appliance with a
pressurized water jet.
• Do not use any sharp or pointed, nor metal implements (knife, fork, etc.). Sharp
or pointed implements may damage the appliance, and when in contact with live
parts, they may cause electric shock.
• For cleaning, do not use any scouring agents that contain solvents nor corrosive
cleaning agents. They may damage the surface.
7.2 Cleaning
1. Clean the appliance regularly after end of each working day, or more frequently
if needed. Thanks to this you may avoid burning of food residues.
2. The heating plate of a hob may be cleaned only when they have cooled down.
3. Everyday soiling of the heating plate, hob and housing (fingerprints, food stains
or glass soilings that do not contain sugar) should be cleaned off with a soft,
damp dish-washing cloth.
4. Clean the appliance control panel with a soft, damp cloth.
5. Wipe with a soft cloth moistened in fresh water.
6. Dry the washed surfaces.
284142 21 / 22
Possible Malfunctions
EN
Error Code
Cause
Solution
The appliance is
connected to the power
supply, the temperature
is set, but the hobs do
not heat up
Abnormal or
interrupted power
supply
Check the power supply and
the power cord for damage
Electric power supply
safety fuse damaged
Check the fuse (replace if
necessary), and check the
appliance after connecting it
to another socket
No power supply
Check the electric power
supply
Temperature is not set
Set the temperature using the
power output controller
Damaged energy
controller
Contact the service company
Damaged heating
element
Contact the service company
Electric appliances are marked with this symbol. Electrical
appliances must be disposed of and recycled in a correct
and environmentally friendly manner. You must not dispose
of electric appliances with household waste. Disconnect the
appliance from the power supply and remove power cord
from the appliance.
8 Possible Malfunctions
Mögliche
The table below contains descriptions of possible causes and solutions to
malfunctions or errors during operation of the appliance. When malfunction cannot
be removed, contact the technical service.
In such a case, provide article number, model name and serial number. These data
may be found in the rating plate.
9 Disposal
Electrical Appliance
Electrical appliances should be returned to designated collection points.
22 / 22 284142
Loading...
