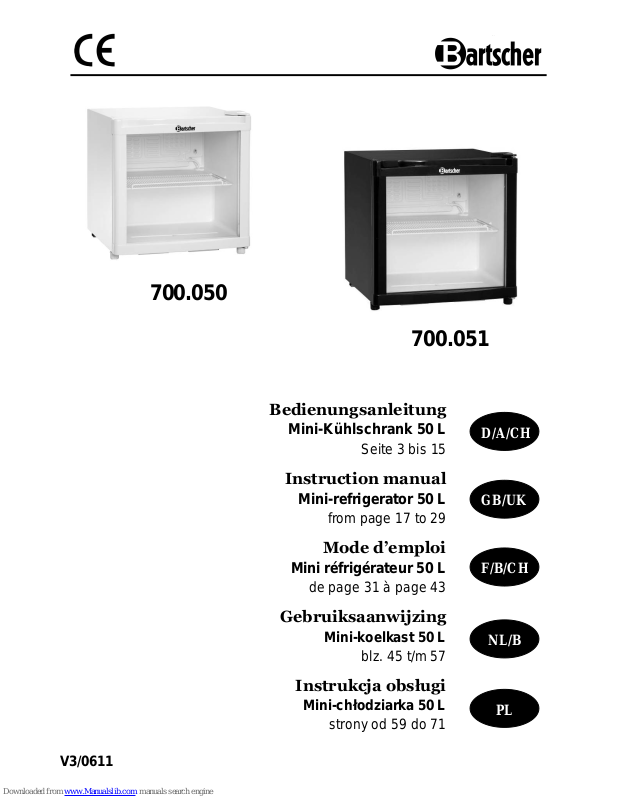

Bedienungsanleitung
Mini-Kühlschrank 50 L
Seite 3 bis 15
Instruction manual
Mini-refrigerator 50 L
from page 17 to 29
Mode
d’emploi
Mini réfrigérateur 50 L
de page 31 à page 43
Gebruiksaanwijzing
Mini-koelkast 50 L
blz. 45 t/m 57
Instrukcja
obsługi
Mini-chłodziarka 50 L
strony od 59 do 71
D/A/CH
GB/UK
F/B/CH
NL/B
PL
V3/
0611
Page 2
- 17 -
1. General Information 18
1.1 Information about the instruction manual
18
1.2 Key to symbols
18
1.3 Liability and Warrantees
19
1.4 Copyright protection
19
1.5 Declaration of conformity
19
2. Safety
20
2.1 General information
20
2.2 Safety instructions for use of the device
20-21
2.3 Intended use
21
3. Delivery, packaging and storage
22
3.1 Delivery check
22
3.2 Packaging
22
3.3 Storage
22
4. Technical data
23
5. Installation and operation
23
5.1 Safety instructions
23-24
5.2 Installation and connection
24
5.3 Instructions for use
25
6. Cleaning and maintenance
25
6.1 Safety advice
25
6.2 Cleaning
26
6.3 Safety instructions for maintenance
27
7. Possible Malfunctions
27-28
8. Waste disposal
29
Bartscher GmbH
Franz-Kleine-Str. 28
D-33154 Salzkotten phone: +49 (0) 5258 971-0
Germany fax: +49 (0) 5258 971-120
GB/UK
Keep this instruction manual
ready to hand at the product!
Page 3
- 18 -
1. General information
1.1 Information about the instruction manual
This instruction manual contains information about the installation, operation and
maintenance of the device and should be consulted as an important source of
information and reference guide.
Awareness of the safety instructions and instructions for use in this manual will ensure
the safe and correct use of the device.
In addition to the information given here, you should comply with any local Health and
safety Controls and generally applicable safety regulations.
The instruction manual forms part of the product and should be kept near the device
and easily accessible for anyone carrying out the installation, servicing, maintenance or
cleaning.
1.2 Key to symbols
In this manual, symbols are used to highlight important safety instructions and any
advice relating to the device. The instructions should be followed very carefully to avoid
any risk of accident, personal injury or material damage.
WARNING!
This symbol highlights hazards, which could lead to injury.
Please follow the instructions very carefully and proceed with particular attention
in these cases.
WARNING! Electrical hazard!
This symbol draws attention to potential electrical hazards. If you do not follow
the safety instructions, you may risk injury or death.
CAUTION!
This symbol highlights instructions, which should be followed to avoid any risk of
damage, malfunctioning and/or breakdown of the device.
NOTE!
This symbol highlights tips and information, which have to be followed for
an efficient and trouble-free operation of the device.
Page 4
- 19 -
1.3 Liability and Warrantees
All the information and instructions in this manual take into account standard safety
regulations, current levels of technical engineering as well as the expertise and
experience we have developed over the years.
The instruction manual was translated with all due care and attention. However, we do
not accept liability for any translation errors. The German version of this instruction
manual is definitive.
If the delivery consists of a special model, the actual scope of delivery may differ from
the descriptions and illustrations in this manual. This is also the case for special orders
or when the device has been modified in line with new technology. If you have any
questions, you should contact the manufacturer.
NOTE!
Read the instruction manual carefully before using the device. The manufacturer
does not accept liability for any damage or malfunction resulting from not
following the instructions for use.
The instruction manual should be kept near the device, easily accessible for anyone
wishing to work with or using it. We reserve the right to make technical changes for
purposes of developing and improving the useful properties.
1.4 Copyright protection
The instruction manual including any texts, drawings, images or other illustrations is
copyright. No part of this publication may be reproduced, transmitted or used in any
form or by any means without permission in writing from the manufacturer. Any person
who commits any unauthorized act in relation to this publication shall be liable to claims
for damages. All rights reserved.
NOTE!
The contents, texts, drawings, pictures and any other illustrations are copyright
and subject to other protection rights. Any person unlawfully using this
publication is liable to criminal prosecution.
1.5 Declaration of conformity
The device complies with the current standards and directives of the EU.
We certify this in the EC declaration of conformity.
If required we will be glad to send you the according declaration of conformity.
Page 5
- 20 -
2. Safety
This section provides an overview of all important safety aspects.
In addition every chapter provides precise safety advice for the prevention of dangers
which are highlighted by the use of the above mentioned symbols.
Furthermore, attention should be paid to all pictograms, markers and labels on the
device, which must be kept in a permanent state of legibility.
By following all the important safety advice you gain an optimal protection against all
hazards as well as the assurance of a safe and trouble-free operation.
2.1 General Information
This device is designed in accordance with the presently applicable technological
standards. However, the device can pose a danger if handled improperly and
inappropriately.
Knowing the contents of the instruction manual as well as avoiding mistakes and thus
operating this device safely and in a fault-free manner is very essential to protect
yourselves from the hazards.
To prevent hazards and to ensure optimum efficiency, no modifications or alterations to
the device that are not explicitly approved by the manufacturer may be undertaken.
This device may only be operated in technically proper and safe condition.
2.2 Safety instructions for use of the device
The specifications regarding the industrial safety are based on the Regulations of the
European Union applicable at the time of manufacturing the device.
If the device is used commercially, the user is obliged to ensure that the said industrial
safety measures concur with the state of the rules and regulations applicable at the
time in question for the entire period of use of the device and to comply with the new
specifications. Outside the European Union, the industrial safety laws applicable at the
place of installation of the device and the regional territorial provisions must be
complied with.
Besides the industrial safety instructions in the instruction manual, the general safety
and accident prevention regulations as well as environment protection regulations
applicable for area of application of the device must be followed and complied with.
Page 6
- 21 -
CAUTION!
o The unit is not intended for use by individuals (including children) with physical or
mental disabilities, insufficient experience, and/or insufficient knowledge unless such
persons are under the care of a person responsible for their safety or have received
instructions regarding appropriate use of the unit.
o Children should be observed to ensure that they are not playing with the unit.
o Preserve this manual safely. When passing on/selling the device to a third party, the
manuals must be handed over along with the device.
o Every person using the device must act in accordance to the manuals and under
consideration of the safety advice.
o The device is to be used indoors only.
2.3 Intended use
Safe operation is only guaranteed when using the device for its intended purpose.
Any technical interventions, as well as assembly and maintenance are to be made by a
qualified customer service only.
The mini refrigerator is designed for cooling of foods or beverages only.
Do not use the mini refrigerator for any of the following:
- Storage of inflammable or explosive items such as ether, petroleum, alcohol or
adhesives;
- Storage of pharmaceutical products or units of stored blood.
CAUTION!
Do not use the device for anything beyond or other than its intended use.
The manufacturer and/or authorized parties do not accept any claims resulting
from damage caused by using the device not according to its intended use.
The operator is totally liable for any such damage.
Page 7
- 22 -
3. Transport, packaging and storage
3.1 Delivery check
Please check the delivery upon completeness and transport damage immediately after
receipt.
In case of visible damage do not accept or accept the delivery with reservation only.
Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint.
Hidden damages should be reclaimed immediately after notice, as claims for damages
can only be asserted within the effective period for complaints.
3.2 Packaging
Please do not throw away the covering carton of your device as it might be useful for
storage purposes, when moving or, in case of damages, when the device must be sent
back to a repair center. The outer and inner packing material should be removed
completely from the device before installation.
NOTE!
If you liked to dispose the packing, consider the regulations applicable in
your country. Supply re-usable packing materials to the recycling.
Please inspect the device upon completeness. In case any part is missing please
contact our customer service center immediately.
3.3 Storage
Keep the package closed until installation and under consideration of the outside
indicated positioning- and storage markings.
Packages should be stored under consideration of the following:
- Do not store outdoors.
- Keep it dry and dust-free.
- Do not expose it to aggressive media.
- Do not expose it to direct sunlight.
- Avoid mechanical shocks and vibration.
- In case of longer storage (> 3 months) make sure you
check the state of the packaging and the parts regularly.
If required refresh or renew.
Page 8
- 23 -
4. Technical data
Description: Mini- refrigerator 50 L
Item no.:
700.050 700.051
Model: white black
Refrigeration temperature: 0 – 10° C
Volume: 50 litres
Connection: 230 V ~ 50 Hz 0,068 kW
Dimensions: W 470 x D 535 x H 490 mm
Weight: 20.0 kg
Accessories: 1 grid
We reserve the right to make technical changes!
5. Installation and operation
5.1 Safety instructions
WARNING! Electrical hazard!
The device must only be connected to a properly installed single socket with
protective contact.
Never yank cord to disconnect from outlet.
Cable must not touch any hot parts.
• See that the cable does not touch any heat sources or sharp edges. Do not let the
cable dangle over the counter edge.
• Do not use the device in case it does not function properly, has been damaged or
dropped.
• Do not use any accessory or spare parts that have not been recommended by the
manufacturer. These can be dangerous for the user or lead to damages of the
device or personal injury, and further, the warranty expires.
• Do not lay the cable over carpets or heat insulations. Do not cover the cable. Keep
away the cable from operating range and do not dunk it into water.
WARNING! Electrical hazard!
Avoid water splashes on the mini-refrigerator and do not expose the device to
rain water, dripping water or any other kind of moisture.
Page 9
- 24 -
• Do not move or tilt the device when in operation.
WARNING! Hazard via electrical current!
The device can cause injuries due to improper installation!
Before installation the local power grid specification should be compared with
that of the device (see type label).
Connect the device only in case of compliance!
Take note of the security advice!
5.2 Installation and connection
• Discard the complete packing material after unpacking the device.
• Place the device on top of an even and safe surface which supports the weight of
the device.
• Not at any time should you place the device on an inflammable surface.
• You must not position the device near open fireplaces, electric ovens/arc furnaces,
furnaces/electric heaters or other heat sources. Heat can damage the surface of the
device. It can also affect the cooling capacity and increase energy consumption.
• In order to avoid failures of the compressor when assembling or transporting the
mini-refrigerator, it should not be tilted over an angle of 45° at any time. Always use
condenser and door with care as damages affect the optimal use.
• The height-adjustable legs of the device should be set adequately until the device
stands in a stable position.
• Place the device in such a manner that there is a minimum of 10 cm between it and
other objects, including walls, in order to ensure proper air circulation.
• Do not set up the mini-refrigerator at places with high humidity or high temperatures,
as these effects may damage the device.
• Never punch holes into the mini-refrigerator. Never install foreign matters/
substances on the mini-refrigerator.
• Do not keep heavy, poisonous or rusty objects in the mini-refrigerator.
• The electrical circuit in the socket must be secured to at least 16A. Only connect the
device directly to the wall socket; do not use any extension cords or power strips.
• Place the device so that the plug is easily accessible and can be quickly removed
from its socket in case of necessity.
Page 10
- 25 -
5.3 Instructions for use
• When using for the first time, allow the mini-refrigerator to reach the desired tempera-
ture before you put bottles and cans in. This will take on the average 2 to 3 hours.
• The temperature can be adjusted using the thermostatic control. In general it can be
said that a medium setting is most suitable for normal use.
• The more filled bottles or cans there are in the mini-refrigerator, the longer the door is
opened, the higher therefore the energy consumption and the higher the resulting
defects.
• In order to cool effectively the door should never be opened for a long time.
Furthermore, the door should not be opened too often.
• In case of a sudden power breakdown the door should not be opened in order to
minimize the loss of cool air.
• The mini-refrigerator should never be longer than 10 minutes without a supply of energy.
• After pulling the power pug or a power breakdown the device should not be connected
to any power source for at least 5 minutes.
Keep food in the refrigerator
• Leave sufficient space between the objects in the miniature refrigerator to ensure
effective cool air circulation.
• Wipe off any kind of water and use sealed plastic bags or containers to protect the
food from drying up and prevent changes in the flavour.
• Hot food should be left to cool down before placing it in the refrigerator; otherwise
the energy consumption increases.
6. Cleaning and maintenance
6.1 Safety advice
o Before beginning with repair or cleaning works make sure the device has been
disconnected from power socket (pull the power plug!!!) and has cooled down.
o Do not use any acid agents and make sure no water ingresses the device.
o To protect yourself from electric shock, never immerse the device, its cables and the
plug in water or other liquids.
CAUTION!
The device is not suited for direct washing via water jets. Therefore, you must not
use any kind of pressure water jet for cleaning the device!
Page 11
- 26 -
6.2 Cleaning
o Clean the device regularly.
o Take out the grid and wash them off using a soft cloth and a mild cleaning agent.
o Clean the inside and outside of the mini-refrigerator by using warm water, a soft
cloth and a mild cleaning agent.
o Use clear water for wiping over.
o Cleaning the door seal constantly. Use a soft cloth and soup water then wipe it
with dry soft cloth.
CAUTION!
Never use hot water for cleaning the device!
Never use abrasive cleaning agents, e.g. abrasive scouring powder, agents
containing alcohol, thinners, which could damage the plastic parts and/or the
coating.
o After the cleaning procedure you should use a soft and dry cloth to wipe dry and
polish the surface.
Defrosting
o The device must be defrosted if there is a layer of ice thicker than 3 to 4 mm on the
evaporator board.
o Prior to defrosting, turn the refrigerator off, take the food out and store it in an
alternative place.
o Leave the door of the device open. The ice thaws automatically and the water flows
into the water receptacle on the rear of the device.
o Empty the water receptacle.
CAUTION!
Never scratch or scrape on the device. The use of sharp or pointed objects may
severely damage the evaporator of the device.
When the mini-refrigerator is not in use over longer periods:
o Please pull the power plug from the socket;
o Remove all foods and beverages from the mini-refrigerator;
o Clean the inside and outside of the mini-refrigerator. Remove and clean off all water
and mould spots;
o Leave the door open, so the mini-refrigerator can dry quicker.
Page 12
- 27 -
6.3 Safety instructions for maintenance
o Check the mains connection cable for damage from time to time. Never operate the
device when the cable is damaged. A damaged cable must immediately be replaced
by customer service or a qualified electrician to avoid dangers.
o In case of damage or malfunction, please contact your stockist or our customer
service centre. Pay attention to the troubleshooting tips in pt. 7.
o Only a qualified technician and using original spare parts and accessories should
carry out repairs and maintenance of the device. Do not attempt to repair the
device yourself.
7. Possible Malfunctions
Problem Cause Solution
No cooling effect
at all.
• Plug not connected to
socket.
• Defective fuse.
• Power breakdown.
• Connect the plug properly.
• Check the power supply.
• Check the power supply.
Cooling effect
insufficient.
• Direct sunlight or heat
sources nearby.
• Bad air circulation around
the device.
• Door is not closed
properly or has been open
for too long.
• Door sealing is damaged
or deformed.
• Interspaces between the
foods or beverages are
too small or too many
foods are stored.
• Temperature control was
adjusted falsely.
• Remove mini-refrigerator
from the heat source.
• Arrange sufficient space
between walls and other
items.
• Properly close the door.
Keep the door opening
periods low.
• Contact the retailer.
• Arrange sufficient space
between the foods or
beverages in the minirefrigerator and remove
dispensable foods or
beverages.
• Re-adjust the temperature
control.
Page 13
- 28 -
Problem Cause Solution
Heavy noise.
• Mini-refrigerator does not
stand on an even surface.
• Mini-refrigerator touches
walls or other items.
• Set the mini-refrigerator
on an even surface.
• Arrange sufficient space
between mini-refrigerator
and walls and/or other
items.
The compressor
does not switch off
automatically.
• The mini-refrigerator is
too full.
• Door has been open for
too long.
• Remove dispensable
foods or beverages.
• Keep the door opening
periods low.
The above described problem cases are given for orientation and as examples.
Should these or similar problems occur, please turn off the machine immediately
and don´t use it anymore. In order to check and repair your machine, please
contact a qualified expert or the manufacturer immediately.
The following phenomena are no failures:
1. The sound of flowing water. This may be heard at regular operation and results from
the flowing coolant inside the device.
2. The formation of condensed water on the outer glazing is normal at high air
humidity. Just wipe off the condensed water by using a soft cloth.
3. The mini-refrigerator requires some time to reach the desired temperature: If the
inside temperature is increased and at high outdoor temperatures, this time is
extended partly appreciably.
4. The surface of the compressor may become very hot during regular use.
WARNING! BURN HAZARD!
Therefore, you must never touch the compressor with bare hands.
Page 14
- 29 -
8. Waste disposal
Discarding old devices
At the end of its service life the discarded device has to be disposed in accordance with
the national regulations. It is advisable to contact a company which is specialized in
waste disposal, or just contact the local disposal service in your community.
WARNING!
To exclude any abuse and the dangers involved make the waste device unfit for
use before disposal. For that purpose disconnect device from mains supply and
remove mains connection cable from the device.
NOTE!
For the disposal of the device please consider and act
according to the national and local rules and regulations.
Bartscher GmbH
Franz-Kleine-Str. 28
D-33154 Salzkotten phone: +49 (0) 5258 971-0
Germany fax: +49 (0) 5258 971-120
Loading...
