500-1Z
151510
Bartscher GmbH
Franz-Kleine-Str. 28
D-33154 Salzkotten
Germany
Phone: +49 5258 971-0
Fax: +49 5258 971-120
Technical Support Hotline: +49 5258 971-197
www.bartscher.com
Version: 6.0
Date of preparation: 2023-08-03
EN
2
Original instruction manual
1 Safety ............................................................................................................ 2
1.1 Explanation of Signal Words .................................................................... 2
1.2 Safety instructions.................................................................................... 3
1.3 Intended Use ........................................................................................... 6
1.4 Unintended Use ....................................................................................... 6
2 General information ....................................................................................... 7
2.1 Liability and Warranty .............................................................................. 7
2.2 Copyright Protection ................................................................................ 7
2.3 Declaration of Conformity ........................................................................ 7
3 Transport, Packaging and Storage ................................................................ 8
3.1 Delivery Check ......................................................................................... 8
3.2 Packaging ................................................................................................ 8
3.3 Storage .................................................................................................... 8
4 Technical Data ............................................................................................... 9
4.1 Technical Specifications .......................................................................... 9
4.2 Functions of the Appliance ....................................................................... 9
4.3 List of Components of the Appliance ..................................................... 10
5 Installation and operation ............................................................................ 11
5.1 Installation .............................................................................................. 11
5.2 Operation ............................................................................................... 13
6 Cleaning ...................................................................................................... 16
6.1 Safety Instructions for Cleaning ............................................................. 16
6.2 Cleaning ................................................................................................. 17
7 Possible Malfunctions .................................................................................. 17
8 Disposal ....................................................................................................... 18
151510 1 / 18
Safety
EN
Read this instruction manual before using and keep it available
at all times!
DANGER!
The signal word DANGER warns against hazards that lead to severe
injuries or death if the hazards are not avoided.
Diese Bedienungsanleitung beschreibt di e Installation, Bedienung und Wartung des Geräts und gilt als wichtige Infor mationsquelle und Nachschlagewer k. Die Kenntnis aller enthaltenen Sicherh eitshinweise und Handlungsanweisunge n schafft die Voraussetzung für d as sichere und sachgerechte Ar beiten mit dem Gerät. Darüber hinaus müssen die für den Einsatzbereich des Geräts geltenden örtlichen Unfall verhütungsvorschriften und allgemeine n Sicherheitsbestimmungen eingehalt en werden. Diese Bedienungsanleitung is t Bestandteil des Produkts und muss in unmittelbarer Nähe des Ger äts für das In¬stallations-, Bedienu ngs-, Wartungs- und Reinigungspers onal jederzeit zugänglich auf¬bewahrt werd en. Wenn das Gerät an eine dritt e Person
weitergegeben wird, muss die Bedienungsa nleitung mit ausgehändigt werden.
This instruction manual contains information about installation, operation and
maintenance of the appliance and constitutes an important source of information
and reference guide. The knowledge of all operational and safety instructions
included in this manual is a prerequisite for safe and proper handling of the
appliance. Additionally, accident prevention, occupational health and safety, and
legal regulations in force in the area the appliance is used apply.
Before you start using the appliance, especially before turning it on, read this
instruction manual in order to avoid personal injuries and property damages.
Improper use may cause damage.
This instruction manual forms and integral part of the product and must be stored in
an immediate vicinity of the appliance and be available at all times. The instruction
manual should be transferred together with the appliance.
1 Safety
This appliance has been manufactured in accordance with technical standards
currently in force. However, the appliance may be a source of hazards if used
improperly or contrary to its intended purpose. All persons using the appliance must
consider information included in this instruction manual and observe safety
instructions.
1.1 Explanation of Signal Words
Important safety instructions and warning information are indicated in this
instruction manual with appropriate signal words. You must strictly follow the
instructions, to prevent accidents, personal injuries and property damages.
2 / 18 151510
Safety
EN
WARNING!
The signal word WARNING warns against hazards that may lead to
moderate or severe injuries or death if the hazards are not avoided.
CAUTION!
The signal word CAUTION warns against hazards that may lead to
light or moderate injuries if the hazards are not avoided.
IMPORTANT!
The signal word IMPORTANT indicates possible property damages,
which may occur if safety instructions are not observed.
NOTE!
The symbol NOTE indicates subsequent information and guidelines
for the user on usage of the appliance.
, die
1.2 Safety instructions
Electrical Current
• Too high a mains voltage or incorrect installation may cause electric shock.
• The appliance may be connected only if data on the rating plate correspond with
the mains voltage.
• To avoid short-circuit, the appliance should be kept dry.
• If there are malfunctions during operation, disconnect the appliance from the
power supply.
• Do not touch the appliance’s plug with wet hands.
• Never take hold of the appliance if it has fallen into water. Immediately
disconnect the appliance from the power supply.
• Any repairs or housing opening may be carried out by professionals and
relevant workshops only.
• Do not transport the appliance, holding it by the power cord.
• Do not allow the power cord to come into contact with heat sources or sharp
edges.
• Do not bend, pinch nor knot the power cord.
151510 3 / 18
Safety
EN
• Always completely unwind the power cord.
• Never place the appliance or other objects on the power cord.
• Always take hold of the plug to disconnect the appliance from the power supply.
• Check the power cord regularly for damage. Do not use the appliance if the
power cord is damaged. If this cable is damaged, it must be replaced by
customer service or a qualified electrician in order to avoid dangers.
Flammable Materials
• Never subject the appliance to contact with high temperature sources, e.g.:
oven, furnace, open flame, heat generating devices, etc.
• To avoid fire hazard, clean the appliance regularly.
• Do not cover the appliance with, e.g., aluminium foil or cloths.
• Use the appliance only with materials designated to this end and with correct
temperature settings. Materials, groceries and left-overs remaining in the
appliance may catch fire.
• Never use the appliance near flammable or inflammable materials, e.g.: petrol,
spirit, alcohol, etc. High temperature triggers evaporation of these materials,
and, as a result of contact with sources of ignition, an explosion may occur.
• In case of fire, disconnect the appliance from the power supply before
attempting suitable fire-extinguishing actions.
• Never attempt to extinguish fire with water if the appliance is connected to the
power supply. Following extinction of fire, ensure sufficient fresh air inflow.
4 / 18 151510
Safety
EN
Hot Surfaces
• Surfaces of the appliance become hot during operation. Burning hazard! High
temperature remains for some time after switching the appliance off.
• Do not touch any hot surfaces of the appliance. Use the provided handling
elements and holders.
• You may transport and clean the appliance after it cools down entirely.
• It is prohibited to sprinkle hot surfaces with cold water or flammable liquids.
Supervised Usage only
• Only supervised appliance may be used.
• Always remain in an immediate vicinity of the appliance.
Operating Personnel
• The appliance may only be operated by qualified personnel and trained
specialist personnel.
• This appliance may not be operated by persons (including children) with limited
physical, sensory or mental capabilities, nor by persons with limited experience
and/or limited knowledge.
• Children should be supervised to ensure that they are not playing with or
switching on the appliance.
Improper Use
• Unintended or prohibited use may cause damage to the appliance.
• The appliance may only be used when its technical condition is flawless and
allows for safe operation.
• The appliance may only be used when all connections are executed according
to rules of law in force.
• The appliance may only be used when it is clean.
• Use only original spare parts. Never attempt to repair the appliance on your own.
• Do not introduce any changes in the appliance nor modify it.
151510 5 / 18
Safety
EN
1.3 Intended Use
As described below, every use of the appliance for a purpose differing and/or
diverging from its intended standard use, is prohibited and considered to be an
unintended use.
The following is an intended use:
– Cooking au gratin, roasting, heating up and maintaining food warm in
suitable containers.
1.4 Unintended Use
An unintended use may lead to personal injuries or property damages caused by
hazardous voltage, fire or high temperature. The appliance may only be used to
perform tasks described in this instruction manual.
The following is an unintended use:
– Preparation of food without suitable containers.
6 / 18 151510
General information
EN
2 General information
2.1 Liability and Warranty
All information and instructions in this instruction manual account for legal
regulations in force, current level of technical engineering knowledge as well as our
expertise and experience, developed over the years. If special models or additional
options are ordered, or state-of-the-art technical solutions were implemented, the
actual scope of delivery of the appliance may, in some circumstances, differ from
descriptions and numerous drawings in this instruction manual.
The manufacturer is not liable for any damages nor faults stemming from:
– failure to observe instructions,
– unintended use,
– technical alterations introduced by the user,
– usage of unapproved spare parts.
We reserve the right to introduce technical modifications to the product, intended for
improvement of the appliance and its performance.
2.2 Copyright Protection
This instruction manual, and texts, drawings and images included in it, as well as its
other components are copyright protected. It is prohibited to reproduce this
instruction manual (including its excerpts), in any form and by any means, and to
use and/or transfer its content to third parties without manufacturer’s written
permission. Violation of the above results in obligation to pay compensation. We
reserve the right to claim further damages.
2.3 Declaration of Conformity
The appliance meets the currently applicable standards and guidelines of the
European Union. We confirm the above in the EC Declaration of Conformity. We
may provide relevant Declaration of Conformity upon request.
151510 7 / 18
Transport, Packaging and Storage
EN
3 Transport, Packaging and Storage
3.1 Delivery Check
Immediately upon reception, check the delivery for completeness and possible
shipping damage. In the case of visible transport damage refuse to accept the
appliance or accept it conditionally. Mark and note the scope of damage in shipping
documents/consignment list of the shipping company and lodge a complaint.
Concealed damage must be reported immediately upon its discovery, as
compensation claims may only be filed within applicable time limits.
If you find that parts or accessories missing, please contact our Customer Service
Department.
3.2 Packaging
Do not dispose of the appliance cardboard box. It may be used to store the
appliance when relocating or when shipping the appliance to our service point in the
case of any damages.
The packaging and its elements are made of recyclable materials. Particularly,
these are: plastic films and bags, cardboard box.
When disposing of the packaging, observe applicable domestic regulations.
Recyclable packaging materials should be recycled.
3.3 Storage
Leave the packaging closed until installation of the appliance; observe external
indications concerning method of placing and storage. Store the packaging in the
following conditions only:
– in closed rooms;
– in dry and dust-free surrounding;
– away from aggressive agents;
– in a location protected against sunlight;
– in a location protected against mechanical shocks.
In the case of extended storage (over three months), make sure you check the
condition of the packaging and the parts regularly. If needed, replace the packaging
with a new one.
8 / 18 151510
Technical Data
EN
Name:
Lift-Salamander 500-1Z
Art. No.:
151510
Material:
stainless steel
Number of heating elements:
1
Number of heating zones:
1
Temperature range in °C:
400
Grill grate dimensions (W x D), in mm:
445 x 325
Connected load:
2,8 kW | 230 V | 50/60 Hz
Dimensions (W x D x H), in mm:
470 x 525 x 535
Weight, in kg:
38,8
4 Technical Data
4.1 Technical Specifications
We reserve the right to implement technical modifications.
Version / features
• Appliance connection: ready to plug in
• Heat source: radiator heating element
• Height-adjustable heating element
• Energy controller: Simmerstat
• Grease collection tray
• Control: knob
• Indicator lights:
– heating-up
– ON/OFF
• The set includes: 1 grill grate
4.2 Functions of the Appliance
Salamander is intended for cooking au gratin, roasting and keeping food warm
thanks to efficient radiators located in the top section of the appliance. Heat
emission can be adjusted with the use of lift.
151510 9 / 18
Technical Data
EN
Fig. 1
1. Handle of the top part of the
appliance
2. Top part of the appliance, height
adjustment
3. Radiator heating element
4. Grill grate
5. Grease collection tray
6. Heating up indicator lamp (orange)
7. Feet (4x)
8. Power output controller
9. Power light (green)
10. Lower part of the device
11. Ventilation slots
12. Height adjustment guide
4.3 List of Components of the Appliance
10 / 18 151510
Installation and operation
EN
CAUTION!
Incorrect installation, positioning, operation, maintenance or misuse of
the appliance may lead to personal injury or property damage.
Positioning and installation, as well as repairs may be performed by
authorised technical service only and in compliance with the applicable
national law.
NOTE!
The manufacturer disclaims all liability and provides no warranty for
damages, which may be attributed to non-observance of regulations or
incorrect installation.
CAUTION!
Choking hazard!
Prevent children from accessing package materials, for instance: plastic
bags and EPS.
5 Installation and operation
5.1 Installation
Unpacking / Positioning
• Unpack the appliance, remove all external and internal packaging elements and
shipment safeguards.
• If the appliance is covered with a protective film, remove it. Remove the film
slowly, so no glue residues are left. Remove any glue residues with the use of a
suitable solvent.
• Be careful not to damage the rating plate and warning labels fixed on the
appliance.
• Never place the appliance in humid or wet environment.
• Place the appliance in a way making the connections easily accessible, so that
they may be quickly disconnected if such a need arises.
• The appliance should be placed on surfaces that are:
– even, with sufficient bearing capacity, resistant to water, dry and resistant
to high temperatures;
151510 11 / 18
Installation and operation
EN
– sufficiently large, and thus enabling usage of the appliance with no
problems;
– easily accessible;
– well ventilated.
• Maintain sufficient clearance from table edges. The appliance might turn over
and fall down.
• Keep minimum distance from flammable walls and objects; maintain clearance
of 10 cm at both sides and 20 cm at the rear.
Power supply connection
• Verify if technical data of the appliance (see rating plate) correspond with the
local electric power grid specification.
• Connect the appliance to a single, properly grounded mains socket with
protective contact. Do not connect the appliance to a multi-socket.
• The power cord should be laid in a way preventing anyone from threading on it
or tripping against it.
12 / 18 151510
Installation and operation
EN
WARNING
Risk of burning!
The appliance and food containers heat up considerably during
operation.
To remove the food, always use dish-washing cloth or oven mitts that are
resistant to high temperatures.
The grill grate and grease collection tray heat up considerably during
preparation of food.
Before emptying and cleaning them wait until the grill grate and grease
collection tray cool down.
After the appliance has been switched off it remains hot for longer time.
Before cleaning, leave the appliance to cool down.
Never relocate the operating appliance.
ATTENTION!
Direct preparation of food on grill grate may cause damage to the
appliance.
Always use suitable utensil/container, resistant to high temperatures.
The surface of the appliance may be damaged if it comes into contact
with concentrated acids, vinegar essence, kitchen salt solution,
seasoning mixtures.
If possible, such soilings should be wiped out immediately.
5.2 Operation
Warning Indications
Before First Use
1. Prior to first operation, clean the appliance and its equipment observing
instructions in section 6 'Cleaning'.
2. The appliance and entire equipment must be thoroughly dried.
3. Insert the grease collection tray.
4. Place the grill grate on the grease collection tray.
WARNING!
Grease and left-over food may enter the appliance.
The grease collection tray must always be inserted during operation.
151510 13 / 18
Installation and operation
EN
2. Use the handle to lift the top of the
appliance upwards.
3. Place the prepared food in a suitable
containers (plates, bowls, baking trays,
etc.) on the grill grate and under the
radiator heating element.
4. Then, lower down the upper part of the
appliance with the integrated radiator so
that the required distance from the food
surface is maintained.

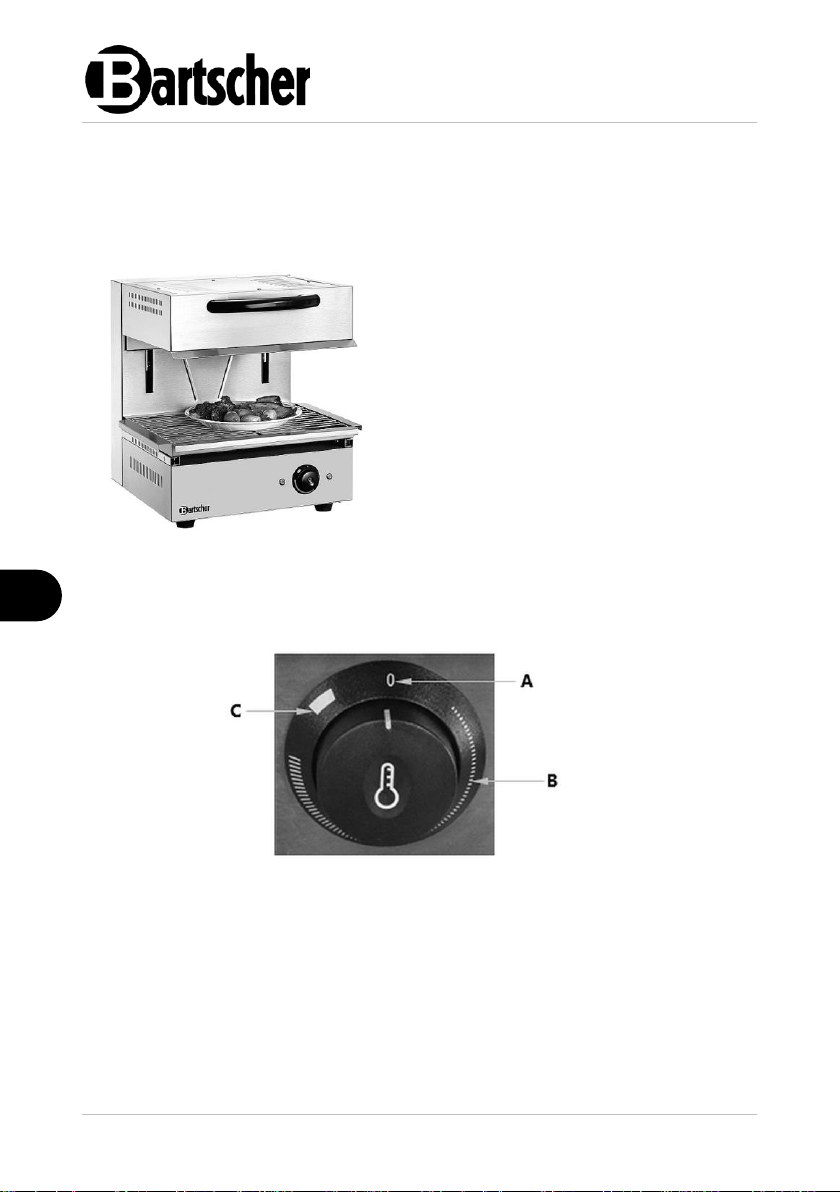

Fig. 2
Fig. 3
A
OFF position
B
Temperature setting, liquids
C
‘Continuous operation’ setting
• Reinigen Sie das Gerät und Zubehörteile vor dem Ge brauch gründlic h nach den An weisungen im Absch nitt 6 „Reinigung“ . Uważ ać, aby do instal acji elektr ycznej i skrzynki rozdzi elczej nie dost ała się woda. Tr ocknen Sie das Gerät und Zubeh örteile gründlich ab!
• Setzen Sie die Boden-Abdeckung in das Becken ein. Osłona pełni funkcję rozp órki pomiędzy el ementem grze wczym a tacką na resztki jedze nia itd.
• Setzen Sie den Schaltkasten mit Heizele ment vorsichtig auf den hinteren Rand des Gerätes. Sworzeń w dolnej cz ęści skrzynki roz dzielczej musi wchodzić w otw ór w urządzeniu głównym. D ann ist der Schaltkasten richtig positio niert.
Operation of the Appliance
1. Plug the device into a suitable single socket.
The red power indicator light will be lit and will remain on during the entire working
process.
• Prior to operation, clean the appliance an d its accessories observing the instructi ons in section 6 'Cleaning'. Make sur e no water enters electric install ation and connection box. Dry the appli ance and equipment thoroughly!
• Insert the bottom cover into the appliance. The cover acts as a spacer between t he heating element and left-over f ood tray.
• Carefully insert the connection box with the heating element at the back edge of t he appliance. The pin in the botto m part of the connection box must enter t he hole in the main appliance. Ne xt, set the connection box in the right positi on.
Temperature Setting
Temperature up to 400°C can be smoothly set for each heating zone.
The recommended temperature is approx. 300°C to 400°C.
14 / 18 151510
Installation and operation
EN
The orange heating indicator light will be lit, signalling that the appliance is switched
on.
When the set temperature has been reached the orange heat up indicator light is off
and the radiator heating element automatically switches off.
When, during the heating up phase, the temperature drops the power output
controller restarts and the device is being heated up again. This process is repeated
unless the energy regulator is set to ‘OFF’ or the device is disconnected from the
power supply.
If the device is to be operated continuously, choose the setting ‘Continuous
operation’.
• Prior to operation, clean the appliance an d its accessories observing the instructi ons in section 6 'Cleaning'. Make sur e no water enters electric installation and connection box. Dry the appliance and equipment thoroughly!
• Insert the bottom cover into the appliance. The cover acts as a spacer between t he heating element and left-over f ood tray.
• Carefully insert the connection box with th e heating element at the back edge of t he appliance. The pin in the botto m part of the connection box must e nter the hole in the main appliance. Ne xt, set the connection box in the right positi on.
Warming up / roasting food
1. Set the required temperature with the use of the energy controller (turn it
clockwise) or select the setting ‘Continuous operation’.
2. Make sure the food does not come in contact with the radiator heating element.
HINT!
This distance may be modified any time as needed by moving the upper
part of the appliance upwards or downwards.
3. When the food is ready, lift up the top part of the appliance using the handle to
safely remove the ready food.
WARNING!
Do not use force to adjust the height of the device.
4. Remove the ready food in containers from the grill grate, using oven cloths or
doilies resistant to high temperatures, and serve.
Switching the appliance OFF
1. If the appliance is not used, rotate the power output controller to 'OFF' position.
2. Disconnect the appliance from power supply (pull the plug out).
151510 15 / 18
Cleaning
EN
Grease Collection Tray / Grill Grate
The appliance is equipped with grease collection tray and grill grate.
1. Observe the grease collection tray during operation.
2. If needed, empty the grease collection tray.
WARNING!
The grill grate and grease collection tray heat up considerably during
preparation of food.
Before removing the grease collection tray and grill grate from the appliance and
cleaning them, leave them to cool down.
3. Clean the grease collection tray and grill grate observing instructions in the
'Cleaning' section.
6 Cleaning
6.1 Safety Instructions for Cleaning
• Before cleaning, disconnect the appliance from the power supply.
• Leave the appliance to cool down completely.
• Make sure water does not enter the appliance. Do not immerse the appliance in
water or other liquids during cleaning. Do not clean the appliance with a
pressurized water jet.
• Do not use any sharp or pointed, nor metal implements (knife, fork, etc.). Sharp
or pointed implements may damage the appliance, and when in contact with live
parts, they may cause electric shock.
• For cleaning, do not use any scouring agents that contain solvents nor corrosive
cleaning agents. They may damage the surface.
16 / 18 151510
Possible Malfunctions
EN
6.2 Cleaning
1. At the end of a working day, clean the appliance thoroughly.
2. Remove the cooled down grease collection tray and the grill grate from the
appliance.
3. Remove the grill grate from the grease collection tray.
4. Empty the grease collection tray.
5. Wash the grill grate and grease collection tray with warm water and a dash of a
mild cleaning agent. Use a soft cloth, sponge or dish-washing brush.
6. Thoroughly rinse the cleaned elements in fresh water.
7. Clean the appliance housing with a commercially available surface cleaning and
de-greasing agent.
NOTE!
Observe instructions of such a cleaning agent's manufacturer.
8. Dry the cleaned surfaces thoroughly with a clean cloth.
9. Finally, dry all cleaned parts and surfaces with a soft cloth.
10. Wipe the power cord with a slightly damp cloth only.
11. Regularly check the appliance ventilation slots, and if soiled, clean them with a
dry dish-washing plastic brush.
12. Re-insert the grease collection tray with grill grate in the appliance.
7 Possible Malfunctions
Mögliche
The table below contains descriptions of possible causes and solutions to
malfunctions or errors during operation of the appliance. When malfunction cannot
be removed, contact the technical service.
In such a case, provide article number, model name and serial number. These data
may be found in the rating plate.
151510 17 / 18
EN
Error
Possible cause
Solution
The appliance is
connected to the power
supply but the green
power supply indicator is
not lit.
Plug not connected
properly
Remove the plug and
insert it properly into a
socket
Damaged fuse
Replace the fuse
Damaged indicator light
Contact the service
company
Appliance is connected to
the power supply, the
temperature is set but the
appliance does not heat up
Damaged energy
controller
Contact the service
company
Damaged radiator
heating element
Contact the service
company
Indicator light (orange) is
not lit even though the
radiator heating element is
operating
Damaged heating
control light
Contact the service
company
The top of the appliance
cannot be raised nor
lowered
Height adjustment
mechanism is blocked
Remove obstacles from
the height adjustment
mechanism
Damaged height
adjustment mechanism
Contact the service
company
Electric appliances are marked with this symbol. Electrical
appliances must be disposed of and recycled in a correct
and environmentally friendly manner. You must not dispose
of electric appliances with household waste. Disconnect the
appliance from the power supply and remove power cord
from the appliance.
8 Disposal
Electrical Appliance
Disposal
Electrical appliances should be returned to designated collection points.
18 / 18 151510
