ASP700
300147
Bartscher GmbH
Franz-Kleine-Str. 28
D-33154 Salzkotten
Germany
Phone: +49 5258 971-0
Fax: +49 5258 971-120
Service hotline: +49 5258 971-197
www.bartscher.com
Version: 1.0
Date of preparation: 2019-07-03
Original instruction manual
EN
EN
Name:
Dishwasher basket trolley ASP700
Item No.:
300147
Material:
Stainless steel
Number of guide pairs:
7
Guide dimensions (W x D) in mm:
505 x 545
Distance between guide pairs in mm:
200
Load-bearing capacity per guide pair, max.
in kg.:
20
Number of swivel casters:
4
Locking swivel casters:
2
Diameter of casters in mm:
100
Number of caster dampers:
4
Material of caster dampers:
plastic
Total load-bearing capacity, max. in kg:
100
Dimensions (W x D x H) in mm:
630 x 615 x 1750
Weight in kg:
15,8
Technical Specifications
We reserve the right to implement technical modifications!
Version / Characteristics
• Area of application: clearing/storage
• Version: guides
• Designed for: dishwasher baskets 500 x 500 mm
• May be loaded from both sides
• Square tubing frame, 25 x 25 mm section
• One basket lock per front and rear of the trolley
• Delivery state: building kit, plug system (simple assembly)
<Endergebnis>
300147 3 / 7
EN

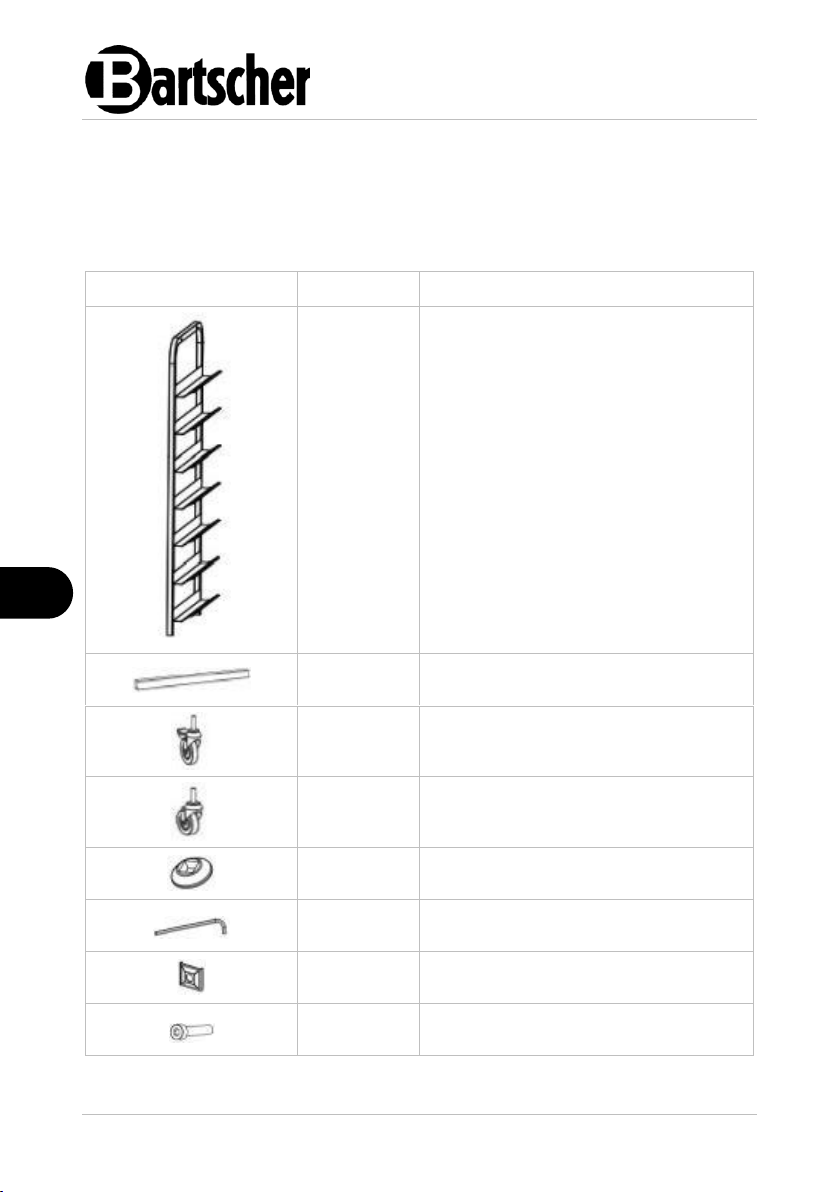

Element
Number
Name
2
Lateral sections with 7 preinstalled
guides and
1 basket lock per each
6
Crossbars
2
Locking swivel casters
2
Swivel casters without locking
4
Swivel caster dampers
1
Allen wrench
20
Square washers
12
Bolts
Scope of Delivery / Part Name
• Unpack the dishwasher basket trolley and remove the packing material pursuant
to environmental regulations.
• Check completeness of delivery according to the list below:
4 / 7 300147
EN
Fig. 1
Fig. 2
Intended Use
The dishwasher basket trolley is intended for storing suitable dishwasher baskets,
with dimensions of 500 x 500, in commercial kitchens.
Assembly
1. Place one lateral section on the ground.
2. Take 6 crossbars (top, middle and bottom) and mount them on the lateral
section of the dishwasher basket trolley (Fig 1).
3. Each time, with top and bottom crossbar, use square washer between a
crossbar and the lateral section and between lateral section and a bolt.
4. Then, use Allen wrench and tighten the bolt.
5. Each time, with middle crossbars, use only one square washer between the
lateral section and a bolt.
6. Use Allen wrench and tighten the bolt.
7. Mount 6 crossbars on the second lateral section, using washers and blots, as
described above (Fig. 1).
300147 5 / 7
EN
8. Place the dishwasher basket
trolley on its side.
9. Mount 4 swivel caster dampers
onto square tubing of lateral
sections.
10. Finally, screw swivel casters into
square tubing of lateral sections.
(Fig. 3)
Fig. 3
1. Place required number of suitable
dishwasher baskets in guides.
2. Secure dishwasher baskets at front and
rear with basket locks, lifting them up and
closing before dishwasher baskets (Fig. 4).
Basket locks stop dishwasher baskets from
slipping, tilting or falling out.
3. Zabezpieczyć kosze do zmywarek z przod u i z tyłu za po mocą blokad kosza, podciągaj ąc je do gór y i zamykając prze d koszami do zmywarek (R ys. 4). Bloka dy kosza zapobieg ają ześlizgi waniu się, przech ylaniu lub wypadaniu z koszy do zmywarek.
Fig. 4
Positioning
1. Set the dishwasher basket trolley on swivel casters and check its stability.
2. Thedishwasher basket trolley may be levelled through screwing in and out
swivel casters.
3. After setting the dishwasher basket trolley in a designated place, lock 2 swivel
casters with lockings to prevent accidental relocation or overturn of the trolley.
Loading of the dishwasher basket trolley / Fixing of the basket locks
6 / 7 300147
EN
CAUTION!
For cleaning, do not use any scouring agents containing solvents nor
corrosive cleaning agents. They may damage the surface.
Cleaning
1. Clean the dishwasher basket trolley regularly with warm water and soft, damp
cloth. Use mild cleaning agent if required.
2. Dry the dishwasher basket trolley with soft cloth.
