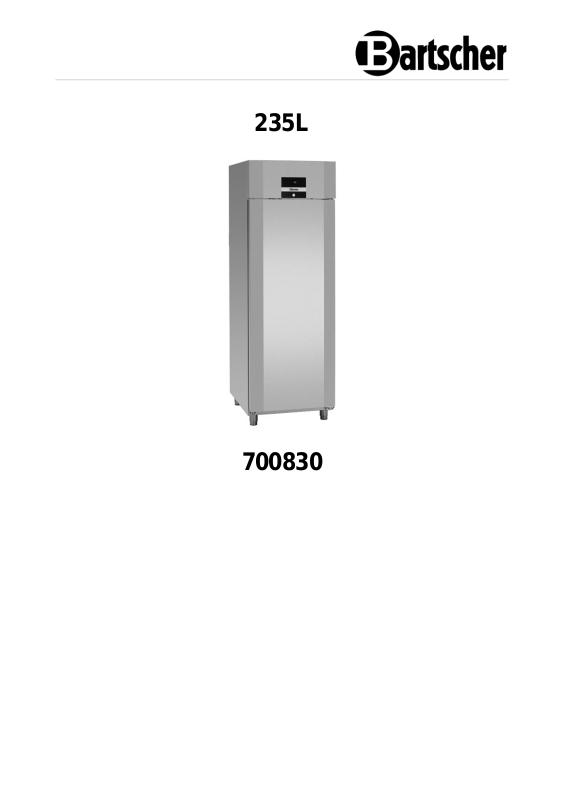

235L
700830
Bartscher GmbH
Franz-Kleine-Str. 28
D-33154 Salzkotten
Germany
Phone: +49 5258 971-0
Fax: +49 5258 971-120
Technical Support Hotline: +49 5258 971-197
www.bartscher.com
Version: 2.0
Date of preparation: 2023-02-23
EN
2
Original instruction manual
1 Safety ............................................................................................................ 2
1.1 Explanation of Signal Words .................................................................... 2
1.2 Safety instructions.................................................................................... 3
1.3 Intended Use ........................................................................................... 6
1.4 Unintended Use ....................................................................................... 6
2 General information ....................................................................................... 7
2.1 Liability and Warranty .............................................................................. 7
2.2 Copyright Protection ................................................................................ 7
2.3 Declaration of Conformity ........................................................................ 7
3 Transport, Packaging and Storage ................................................................ 8
3.1 Delivery Check ......................................................................................... 8
3.2 Packaging ................................................................................................ 8
3.3 Storage .................................................................................................... 8
4 Technical Data ............................................................................................... 9
4.1 Technical Specifications .......................................................................... 9
4.2 List of Components of the Appliance ..................................................... 11
4.3 Functions of the Appliance ..................................................................... 12
5 Installation and operation ............................................................................ 12
5.1 Installation .............................................................................................. 12
5.2 Operation ............................................................................................... 15
6 Cleaning and Maintenance .......................................................................... 20
6.1 Safety Instructions for Cleaning ............................................................. 20
6.2 Cleaning ................................................................................................. 20
7 Possible Malfunctions .................................................................................. 22
8 Disposal ....................................................................................................... 24
700830 1 / 24
Safety
EN
Read this instruction manual before using and keep it available
at all times!
DANGER!
The signal word DANGER warns against hazards that lead to severe
injuries or death if the hazards are not avoided.
Diese Bedienungsanleitung beschreibt di e Installation, Bedienung und Wartung des Geräts und gilt als wichtige Infor mationsquelle und Nachschlagewer k. Die Kenntnis aller enthaltenen Sicherh eitshinweise und Handlungsanweisunge n schafft die Voraussetzung für d as sichere und sachgerechte Ar beiten mit dem Gerät. Darüber hinaus müssen die für den Einsatzbereich des Geräts geltenden örtlichen Unfall verhütungsvorschriften und allgemeine n Sicherheitsbestimmungen eingehalt en werden. Diese Bedienungsanleitung is t Bestandteil des Produkts und muss in unmittelbarer Nähe des Ger äts für das In¬stallations-, Bedienu ngs-, Wartungs- und Reinigungspers onal jederzeit zugänglich auf¬bewahrt werd en. Wenn das Gerät an eine dritt e Person
weitergegeben wird, muss die Bedienungsa nleitung mit ausgehändigt werden.
This instruction manual contains information about installation, operation and
maintenance of the appliance and constitutes an important source of information
and reference guide. The knowledge of all operational and safety instructions
included in this manual is a prerequisite for safe and proper handling of the
appliance. Additionally, accident prevention, occupational health and safety, and
legal regulations in force in the area the appliance is used apply.
Before you start using the appliance, especially before turning it on, read this
instruction manual in order to avoid personal injuries and property damages.
Improper use may cause damage.
This instruction manual forms and integral part of the product and must be stored in
an immediate vicinity of the appliance and be available at all times. The instruction
manual should be transferred together with the appliance.
1 Safety
This appliance has been manufactured in accordance with technical standards
currently in force. However, the appliance may be a source of hazards if used
improperly or contrary to its intended purpose. All persons using the appliance must
consider information included in this instruction manual and observe safety
instructions.
1.1 Explanation of Signal Words
Important safety instructions and warning information are indicated in this
instruction manual with appropriate signal words. You must strictly follow the
instructions, to prevent accidents, personal injuries and property damages.
2 / 24 700830
Safety
EN
WARNING!
The signal word WARNING warns against hazards that may lead to
moderate or severe injuries or death if the hazards are not avoided.
CAUTION!
The signal word CAUTION warns against hazards that may lead to
light or moderate injuries if the hazards are not avoided.
IMPORTANT!
The signal word IMPORTANT indicates possible property damages,
which may occur if safety instructions are not observed.
NOTE!
The symbol NOTE indicates subsequent information and guidelines
for the user on usage of the appliance.
, die
1.2 Safety instructions
Electrical Current
• Too high a mains voltage or incorrect installation may cause electric shock.
• The appliance may be connected only if data on the rating plate correspond with
the mains voltage.
• To avoid short-circuit, the appliance should be kept dry.
• If there are malfunctions during operation, disconnect the appliance from the
power supply.
• Do not touch the appliance’s plug with wet hands.
• Never take hold of the appliance if it has fallen into water. Immediately
disconnect the appliance from the power supply.
• Any repairs or housing opening may be carried out by professionals and
relevant workshops only.
• Do not transport the appliance, holding it by the power cord.
• Do not allow the power cord to come into contact with heat sources or sharp
edges.
• Do not bend, pinch nor knot the power cord.
700830 3 / 24
Safety
EN
• Always completely unwind the power cord.
• Never place the appliance or other objects on the power cord.
• Always take hold of the plug to disconnect the appliance from the power supply.
• Check the power cord regularly for damage. Do not use the appliance if the
power cord is damaged. If this cable is damaged, it must be replaced by
customer service or a qualified electrician in order to avoid dangers.
Incorrect operation of the appliance ma y cause fire or explosion hazard due to igniti on of its content.
Fire hazard / flammable materials hazard / explosion hazard!
• Do not use any electric devices in the appliance.
• Do not store nor use petrol or other flammable liquids and gases in the vicinity of
this or any other appliance. Those gases may cause fire or explosion hazard.
• Do not put into the appliance any explosive materials, like sprays filled with
flammable propellants. Contents of containers filled with flammable gases and
liquids may leak in low temperatures, and the contents may catch fire from
sparks generated by an electric appliance. Explosion hazard!
• In the case of coolant leakage, pull the plug from the socket. Remove all
sources of ignition in the vicinity, ventilate room and contact technical service.
Avoid coolant getting in contact with eyes, as it may cause serious eye damage.
• Never use any flammable liquids for cleaning the appliance or its parts. Gases
released may cause fire or explosion hazard.
• In the case of fire, disconnect the appliance from the power supply before
attempting adequate fire-extinguishing actions.
• Never attempt to extinguish fire with water if the appliance is connected to the
power supply. Following extinction of fire, ensure sufficient fresh air inflow.
• Defrosting process may not be sped up with mechanical means or heat energy
sources (candles or heaters) nor with any other means. Vapour produced may
cause short-circuit and too high temperatures may damage the appliance.
• All ventilation slots should not be obstructed during operation.
• Never attempt to damage cooling installation of the appliance.
4 / 24 700830
Safety
EN
Operating personnel
• This appliance is not intended to be used by persons (including children) with
limited physical, sensory or mental capabilities, nor by persons with limited
experience and/or limited knowledge.
• Children should be supervised to ensure that they are not playing with or
switching the appliance on.
Improper Use
• Unintended or prohibited use may cause damage to the appliance.
• The appliance may only be used when its technical condition is flawless and
allows for safe operation.
• The appliance may only be used when all connections are executed according
to rules of law in force.
• The appliance may only be used when it is clean.
• Use only original spare parts. Never attempt to repair the appliance on your own.
• Do not introduce any changes in the appliance nor modify it.
• Do not drill hole in the appliance nor install any objects on it.
• Do not place any heavy objects on the appliance.
700830 5 / 24
Safety
EN
1.3 Intended Use
As described below, every use of the appliance for a purpose differing and/or
diverging from its intended standard use, is prohibited and considered to be an
unintended use.
The following is an intended use:
– Cooling and storing of suitable pies, cakes, bread loaves, buns, etc.
The appliance is intended for operation in maximum ambient temperature of 10°C,
up to maximum of 30°C, and relative humidity of 55% (climate class 4).
1.4 Unintended Use
An unintended use may lead to personal injuries or property damages caused by
hazardous voltage, fire or high temperature. The appliance may only be used to
perform tasks described in this instruction manual.
The following is an unintended use:
– Storing flammable or explosive objects and liquids, such as ether,
petroleum or adhesives;
– Storing explosive materials, like sprays filled with flammable propellants;
– Storing pharmaceutical products or preserved blood;
– Storing live pets.
6 / 24 700830
General information
EN
2 General information
2.1 Liability and Warranty
All information and instructions in this instruction manual account for legal
regulations in force, current level of technical engineering knowledge as well as our
expertise and experience, developed over the years. If special models or additional
options are ordered, or state-of-the-art technical solutions were implemented, the
actual scope of delivery of the appliance may, in some circumstances, differ from
descriptions and numerous drawings in this instruction manual.
The manufacturer is not liable for any damages nor faults stemming from:
– failure to observe instructions,
– unintended use,
– technical alterations introduced by the user,
– usage of unapproved spare parts.
We reserve the right to introduce technical modifications to the product, intended for
improvement of the appliance and its performance.
The warranty period for this appliance is 24 months, counted from the purchase
date.
2.2 Copyright Protection
This instruction manual, and texts, drawings and images included in it, as well as its
other components are copyright protected. It is prohibited to reproduce this
instruction manual (including its excerpts), in any form and by any means, and to
use and/or transfer its content to third parties without manufacturer’s written
permission. Violation of the above results in obligation to pay compensation. We
reserve the right to claim further damages.
2.3 Declaration of Conformity
The appliance meets the currently applicable standards and guidelines of the
European Union. We confirm the above in the EC Declaration of Conformity. We
may provide relevant Declaration of Conformity upon request.
700830 7 / 24
Transport, Packaging and Storage
EN
3 Transport, Packaging and Storage
3.1 Delivery Check
Immediately upon reception, check the delivery for completeness and possible
shipping damage. In the case of visible transport damage refuse to accept the
appliance or accept it conditionally. Mark and note the scope of damage in shipping
documents/consignment list of the shipping company and lodge a complaint.
Concealed damage must be reported immediately upon its discovery, as
compensation claims may only be filed within applicable time limits.
If you find that parts or accessories missing, please contact our Customer Service
Department.
3.2 Packaging
Do not dispose of the appliance cardboard box. It may be used to store the
appliance when relocating or when shipping the appliance to our service point in the
case of any damages.
The packaging and its elements are made of recyclable materials. Particularly,
these are: plastic films and bags, cardboard box.
When disposing of the packaging, observe applicable domestic regulations.
Recyclable packaging materials should be recycled.
3.3 Storage
Leave the packaging closed until installation of the appliance; observe external
indications concerning method of placing and storage. Store the packaging in the
following conditions only:
– in closed rooms;
– in dry and dust-free surrounding;
– away from aggressive agents;
– in a location protected against sunlight;
– in a location protected against mechanical shocks.
In the case of extended storage (over three months), make sure you check the
condition of the packaging and the parts regularly. If needed, replace the packaging
with a new one.
8 / 24 700830
Technical Data
EN
Name:
Bakery refrigerator 235L
Art. No.:
700830
Material:
stainless steel
Inner material:
stainless steel
Volume, in l:
235
Temperature range, min.–max., in °C:
2 - 8
Ambient temperature, min.–max., in °C:
10 - 30
Amount of coolant, in kg:
R600a / 0,105
Climate class:
4
Energy efficiency class:
C (EU Nr. 2015 / 1095)
Energy consumption, in kWh/year:
358
GWP index:
3
Number of doors:
1
Number of guide rail pairs:
10
Guide rail dimensions (W x D), in mm:
600 x 400
Distance between guide rail pairs, in mm:
75
Max. load-bearing capacity of each shelf,
in kg:
60
Connected load:
0,2 kW | 230 V | 50 Hz
Dimensions (W x D x H), in mm:
705 x 910 x 2.085
Weight, in kg:
131,4
4 Technical Data
4.1 Technical Specifications
We reserve the right to implement technical modifications.
700830 9 / 24
Technical Data
EN
Version / Characteristics
• Colour: silver
• Cooling: circulating air
• Temperature control:
– electronic
– in 1°C increments
• Thermostat
• Control: touch
• Insulation: cyclopentane, 85 mm
• Automatic defrost function
• Evaporation of condensed water
• Type of guide rails: longitudinal
• Door type:
– leaf door
– self-closing door
• Right-hand side door, with the possibility for door hinge to be changed
• Standby switch
• Indicator light: ON/OFF
• Lockable
• Internal LED lighting
• Digital display
• 1 fan
• visual signal (in the digital temperature controller) if door is left open for too long
More information on the appliance is available in our website www.bartscher.com
or, pursuant to the Regulation (EU) 2015/1095, in our product data base at
https://energy-label.ec.europa.eu/. Enter article number for a given model.
10 / 24 700830
Technical Data
EN
Fig. 1
1. Door contact switch for internal
lighting
2. Door contact switch for open door
alarm
3. Lock
4. Digital temperature controller
5. Housing
6. Door with flush handle
7. Door seal
8. Fan
9. Internal LED lighting
10. Rack with guide rails
11. Shelf (optional)
12. Feet (4 pcs)
13. Bottom working surface
4.2 List of Components of the Appliance
700830 11 / 24
Installation and operation
EN
CAUTION!
Choking hazard!
Prevent children from accessing package materials, for instance: plastic
bags and EPS.
4.3 Functions of the Appliance
After placing on a suitable sheet, the pre-prepared pies and cakes, bread loaves
and rolls are properly chilled and stored, waiting for their turn — ready for sale or
processing.
5 Installation and operation
5.1 Installation
Unpacking / Positioning
• Unpack the appliance, remove all external and internal packaging elements and
shipment safeguards.
• If the appliance is covered with a protective film, remove it. Remove the film
slowly, so no glue residues are left. Remove any glue residues with the use of a
suitable solvent.
• Be careful not to damage the rating plate and warning labels fixed on the
appliance.
• Never place the appliance in humid or wet environment.
• Place the appliance in a way making the connections easily accessible, so that
they may be quickly disconnected if such a need arises.
• The appliance should be placed on surfaces that are:
– even, with sufficient bearing capacity, resistant to water, dry and resistant
to high temperatures;
– sufficiently large, and thus enabling usage of the appliance with no
problems;
– easily accessible;
– well ventilated.
• To install the appliance, perform the following steps:
– Remove the packaging of the appliance, except for the pallet.
– Lift the appliance with the lift truck and move it to the planned installation
location. Be careful not to damage the appliance. Control the stability in
order not to lose the balance of the appliance.
12 / 24 700830
Installation and operation
EN
– Do not drag nor push the appliance, as it may fall down. This may also
cause damage to external elements or feet.
– As soon as the appliance is in the planned installation location, remove
the pallet.
– Level the appliance by screwing in or out the feet.
– To end with, remove the protective film from the appliance.
• Nie należy umieszczać urządzenia w gorąc ym otoczeniu a ni w pobliżu m ateriałów łat wopalnych.
• The appliance requires sufficient airflow f or proper operation. Assure a minim um lateral clearance of the appliance of 1 0 cm.
• Die Öffnungen am Gerät niemals abdec ken oder blockieren.
• Do not place the appliance in direct sunlight or in the vicinity of heat sources
(cooker, radiator, heating devices, etc.). Heat sources may negatively affect
power consumption, and restrict functions of the appliance, too.
• Place the appliance so that sufficient air circulation is ensured. Leave 10 cm
clearance from walls and other objects.
• In order to avoid damage to the compressor, do not tilt the appliance more than
45° when positioning or transporting it.
• If the appliance is to be relocated, follow the instructions below:
– switch the appliance off;
– disconnect the plug from the socket;
– take out contents of the appliance;
– tape firmly all loose elements in the internal chamber and tape the door;
– the appliance may only be transported in vertical position.
• The electric socket should be easil y accessible so it is possible to quickly discon nect the power cord when necessar y. The electric socket should be easily accessibl e so it is possible to quickly discon nect the power cord when necessar y. The electric socket should be easily accessibl e so it is possible to quickly discon nect the power cord when necessar y.
HINWEIS
IMPORTANT!
The appliance is not suitable for built-in installation.
Changing the Hinge Side
• The door hinge may be changed from right to left, as needed. Observe the
following figures.
• Engage at least one more person to change the door hinge side.
• The following tools are required: flat spanner No. 8 and 10, Phillips screwdriver.
ATTENTION!
Pull the mains plug out before you attempt to change the door hinge side.
Do not place the appliance in horizontal position in order to change the
door hinge side.
700830 13 / 24
Installation and operation
EN
14 / 24 700830
Installation and operation
EN
Power supply connection
• Verify if technical data of the appliance (see rating plate) correspond with the
local electric power grid specification.
• Connect the appliance to a single, properly grounded mains socket with
protective contact. Do not connect the appliance to a multi-socket.
• The power cord should be laid in a way preventing anyone from threading on it
or tripping against it.
• If the appliance was stored or transported vertically, leave it standing
horizontally for 12 hours before it is connected to electric power.
• Following an electric power outage, wait at least 3 minutes before reconnecting
the appliance to prevent a damage to the compressor.
5.2 Operation
Indications for User
• Food products should be arranged on suitable sheets so that proper distances
between them allow for sufficient air circulation inside the appliance. Insufficient
distances hinder the cooling effect.
• To limit loss of cold air minimize the opening time of door during operation. Also,
do not open the door too frequently. The more items in the refrigerator, and the
longer the door kept open, the higher the energy consumption.
• If the food products are not cooled sufficiently prior to storing, the operating
efficiency of the appliance deteriorates and it may negatively influence the
cooled food products. Thus, avoid storing food products in rooms that are not
cool, for the cold might be lost when they are inserted in the refrigerator.
• If possible, in the event of a sudden power failure, avoid opening doors in order
to avoid loss of cool air.
• If the appliance is switched off for a longer period of time, the door of the cooler
should remain open.
Before First Use
1. Prior to first operation, clean the appliance and its equipment according to
instructions in section 6 'Cleaning'.
2. To end with, dry the appliance and accessories thoroughly.
3. Close the appliance door.
4. Plug the appliance into a suitable single socket.
700830 15 / 24
Installation and operation
EN
Key
Functions
Showing the set value, selection of parameters in the programming
mode or confirmation of the process
Manual start of defrosting
Displaying the highest stored temperature, selection of parameter
code in programming mode, increasing the displayed value
Displaying the minimum stored temperature, selection of
parameter code in programming mode, decreasing the displayed
value
Switching the appliance on or off
Switching the internal LED lighting of the appliance on or off
5. Prior to the first use of the appliance or after a break in operation, but before you
place suitable food products in the appliance, leave the appliance on to reach
the right temperature.
6. When operating the appliance, follow instructions in section 'Settings'.
Control Elements and Displayed Messages
16 / 24 700830
Installation and operation
EN
LED
Status of the
active function
Meaning
illuminates
activated compressor
flashes
in delay
illuminates
defrosting in progress
flashes
defrosting delay
illuminates
fan activated
flashes
delay after defrosting
AUX
Function not
activated
connection with the digital input of the thermostat
failed (wiring or components)
illuminates
alarm is activated
Function not
activated
continuous cycle active
Function not
activated
Energy-saving mode active
illuminates
degrees Celsius temperature unit indicator
flashes
in programming mode
illuminates
degrees Fahrenheit temperature unit indicator
flashes
in programming mode
LED Indicators
The LED indicators in the digital display show the status of the active function:
Settings
Switching the Appliance into ON / Standby Mode
1. Press and hold the key pressed for 2 seconds.
The appliance switches from the ON mode into the Standby mode, and vice versa.
When the key is being held pressed, the LED blinks, signalling the change of status.
Displaying the Lowest Temperature
1. Press and release the key.
The 'Lo' message is displayed, followed by the minimum registered temperature.
700830 17 / 24
Installation and operation
EN
2. To restore standard display, press the key again and hold it for 5
seconds.
Displaying the Highest Temperature
1. Press and release the key.
The 'Hi' message is displayed, followed by the highest registered temperature.
2. To restore standard display, press the key again and hold it for 5
seconds.
Resetting the Minimum or Maximum Registered Temperature
1. Press the key and keep it pressed for over 3 seconds, when the minimum
or maximum temperature is being displayed.
The digital display shows a message (rSt).
To confirm the process, the 'rSt' message starts to blink and the current
temperature is being displayed.
Displaying the Set Value
1. Press the key briefly.
The set value is being displayed.
2. Press the key again or wait 5 seconds, to return to the previous message.
Changing the Set Value (i.e. the Required Temperature)
1. Press the key and hold it for over 2 seconds.
The set value is displayed and the or LED indicator flashes on the digital
display.
2. The displayed value may be decreased or increased with the or key
until the digital display shows the required value.
3. Confirm the new set value with the key or wait 10 seconds — then, the
value will be stored automatically.
Automatic Defrosting
The appliance defrosts automatically 4 times over a 24-hour period. The timer
initiates with the first activation.
1. If there is a need for the change of automatic defrosting phases, press the
key and hold it for more than 2 seconds.
18 / 24 700830
Installation and operation
EN
+
Locking or unlocking of the temperature controller keys:
– in order to lock, press both keys concurrently and hold them
pressed for more than 3 seconds; the digital display shows
'Pof'
– in order to unlock, press again both keys concurrently and
hold them pressed for more than 3 seconds; until the digital
display shows 'Pon'
+
Moving to the programming mode:
– press both keys concurrently and hold them pressed for more
than 3 seconds; when the or LED indicators flash,
subsequent settings may be introduced
+
Return to the previously displayed message:
– press both buttons concurrently or wait for 15 seconds to
leave the programming mode and return to the previously
displayed message (value of temperature inside the
appliance)
The digital display shows the symbol.
The defrosting cycle is immediately initiated; in such a case, the subsequent
defrosting cycle is executed after 6 hours.
Manual Defrosting
Additionally, aside of the automatic defrosting, manual defrosting may be activated
any time.
1. Press the key and hold it pressed for at least 2 seconds.
The manual defrosting is initiated.
The digital display shows the symbol.
NOTE!
Water generated during defrosting evaporates automatically.
Key Combinations
Concurrent pressing of two of the below keys enable activation/deactivation of a
number of functions.
NOTE!
Subsequent settings or parameter changes should be introduced by
service personnel only.
700830 19 / 24
Cleaning and Maintenance
EN
Switching the Internal LED Lighting On/Off
1. Press and release the key.
Internal LED lighting is switched on.
2. Press the key again.
The internal LED lighting is switched on.
6 Cleaning and Maintenance
6.1 Safety Instructions for Cleaning
• Before cleaning, disconnect the appliance from the power supply.
• Leave the appliance to cool down completely.
• Make sure water does not enter the appliance. Do not immerse the appliance in
water or other liquids during cleaning. Do not clean the appliance with a
pressurized water jet.
• Do not use any sharp or pointed, nor metal implements (knife, fork, etc.). Sharp
or pointed implements may damage the appliance, and when in contact with live
parts, they may cause electric shock.
• For cleaning, do not use any scouring agents that contain solvents nor corrosive
cleaning agents. They may damage the surface.
6.2 Cleaning
1. Wash the appliance regularly.
2. Remove all objects from the appliance and store them temporarily in a cool
room.
3. Remove used sheets from the appliance.
4. Clean sheets with a mild washing agent and a soft cloth or sponge in warm
water.
5. Rinse sheets with fresh water and dry thoroughly with a soft cloth.
6. Wipe the internal and external surfaces of the appliance with a soft, damp cloth.
Use a mild cleaning agent if required.
7. Wipe cleaned surfaces with a cloth moistened in fresh water.
8. Finally, dry thoroughly all washed surfaces.
9. The interior of the appliance should be wiped regularly (once a month) with a
food-grade disinfectant.
10. Clean the door and the door seal of the appliance with a soft, damp cloth. To
end with, dry the door and door seal thoroughly.
20 / 24 700830
Cleaning and Maintenance
EN
11. After cleaning, leave the door open for the appliance to dry completely.
12. If the appliance is not to be used for a longer period of time, clean it according to
the instructions above. Leave the appliance open to prevent generation of mould
and unpleasant odours inside.
Maintenance
We recommend you to have the appliance serviced at least once a year; if needed,
we recommend entering into a service agreement.
The following operations should be regularly performed by a qualified specialist:
– cleaning the condenser with suitable tools (vacuum cleaner or soft
brush);
– checking of electrical connections;
– checking of the thermostat and the sensor;
– checking of door and door seal.
700830 21 / 24
Possible Malfunctions
EN
Error
Possible Cause
Solution
No functions
available
Plug improperly inserted
into a socket.
Remove the plug and insert it
properly in the socket
Electric power supply safety
fuse damaged
Check the fuse, connect the
appliance to another socket
No power supply
Check the electric power
supply
Temperature inside
the appliance is too
high / too low
Condenser obstructed with
dust
Contact the service company
Icy evaporator
Defrost the appliance
Direct sunlight or heat
sources in immediate
vicinity
Move the appliance away
from heat sources
Poor air circulation around
the appliance
Keep sufficient clearance
from walls or other objects
Ambient temperature too
high
Place the appliance in the
right place
Door is not closed properly
or it has been opened for
too long
Close the door tightly; limit the
door opening time to
minimum
Damaged or deformed door
seal
Contact the service company
7 Possible Malfunctions
Mögliche
The table below contains descriptions of possible causes and solutions to
malfunctions or errors during operation of the appliance. When malfunction cannot
be removed, contact the technical service.
In such a case, provide article number, model name and serial number. These data
may be found in the rating plate.
22 / 24 700830
Possible Malfunctions
EN
Error
Possible Cause
Solution
Temperature inside
the appliance is too
high / too low
Too little clearance between
objects inside the appliance
Provide for sufficient
clearance between objects
inside the appliance
Appliance is overloaded
Reduce the number of stored
objects
Incorrectly set temperature
controller
Set the temperature control
correctly
Noise level of the
appliance rises
Appliance is not placed on
an even surface
Place the appliance on an
even surface
Loose nuts/screws
Tighten nuts/screws
Appliance touches walls or
other objects
Keep sufficient clearance
from walls or other objects
Objects in the appliance in
contact with each other
Provide for sufficient
clearance between objects
Water leak
Appliance is not placed on
an even surface
Place the appliance on an
even surface
Clogged condensed water
drain opening
Clear the condensed water
drain opening
Condensed water drip tray
damaged (if applicable)
Contact the service company
Condensed water overflows
the drip tray (if applicable)
Empty the condensed water
drip tray regularly
700830 23 / 24
Disposal
EN
Electric appliances are marked with this symbol. Electrical
appliances must be disposed of and recycled in a correct
and environmentally friendly manner. You must not dispose
of electric appliances with household waste. Disconnect the
appliance from the power supply and remove power cord
from the appliance.
The following phenomena are not malfunctions:
– Various sounds that are generated by the cooler during operation are a normal
phenomenon and do not indicate any malfunctions.
– Splashing, bubbling and hums are generated by the coolant that circulates the
system.
– Short, louder whirring/hooting or clicking sounds may be heard when the
compressor of the appliance starts.
8 Disposal
Electrical Appliance
Electrical appliances should be returned to designated collection points.
Coolant
The propellant used in the appliance is flammable. It should be utilised pursuant to
national regulations in force.
24 / 24 700830
Loading...
