12L-10 - 12L-20
162650 - 162651
Bartscher GmbH
Franz-Kleine-Str. 28
D-33154 Salzkotten
Germany
Phone: +49 5258 971-0
Fax: +49 5258 971-120
Technical Support Hotline: +49 5258 971-197
www.bartscher.com
Version: 1.0
Date of preparation: 2023-03-02
EN
2
Original instruction manual
1 Safety ............................................................................................................ 2
1.1 Explanation of Signal Words .................................................................... 2
1.2 Safety instructions.................................................................................... 3
1.3 Intended Use ........................................................................................... 6
1.4 Unintended Use ....................................................................................... 6
2 General information ....................................................................................... 7
2.1 Liability and Warranty .............................................................................. 7
2.2 Copyright Protection ................................................................................ 7
2.3 Declaration of Conformity ........................................................................ 7
3 Transport, Packaging and Storage ................................................................ 8
3.1 Delivery Check ......................................................................................... 8
3.2 Packaging ................................................................................................ 8
3.3 Storage .................................................................................................... 8
4 Technical Data ............................................................................................... 9
4.1 Technical Specifications ........................................................................ 10

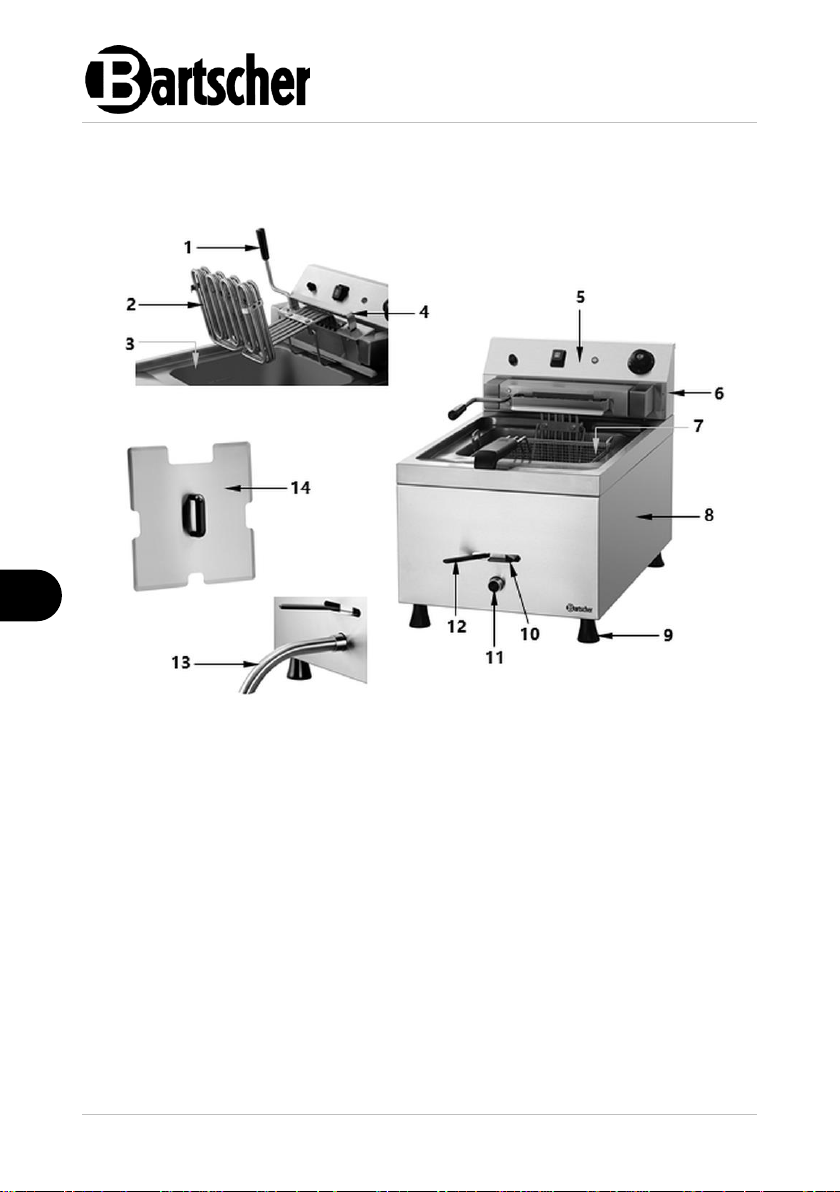

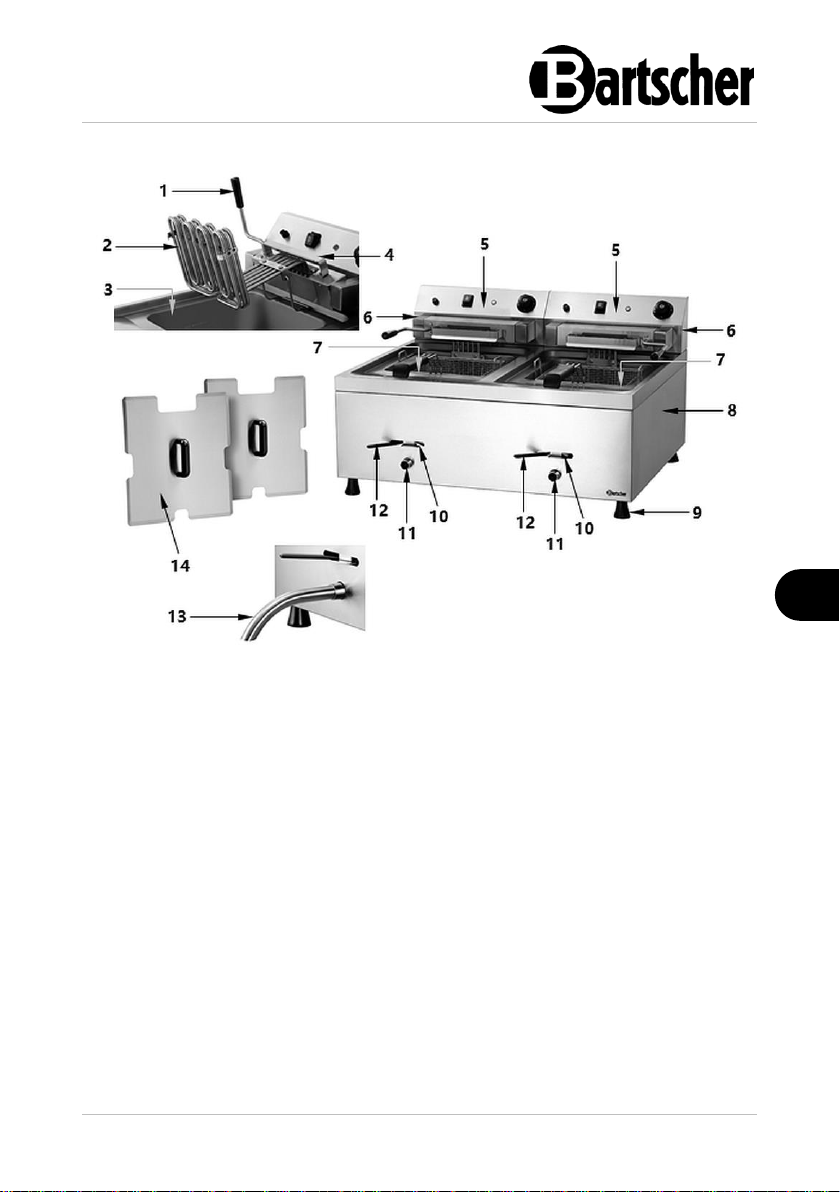

4.2 List of Components of the Appliance ..................................................... 12
4.3 Functions of the Appliance ..................................................................... 14
5 Installation and operation ............................................................................ 15
5.1 Installation .............................................................................................. 15
5.2 Operation ............................................................................................... 17
6 Cleaning ...................................................................................................... 23
6.1 Safety Instructions for Cleaning ............................................................. 23
6.2 Cleaning ................................................................................................. 23
7 Possible Malfunctions .................................................................................. 24
8 Disposal ....................................................................................................... 26
162650 1 / 26
Safety
EN
Read this instruction manual before using and keep it available
at all times!
DANGER!
The signal word DANGER warns against hazards that lead to severe
injuries or death if the hazards are not avoided.
Diese Bedienungsanleitung beschreibt di e Installation, Bedienung und Wartung d es Geräts und gilt als wichtige Infor mationsquelle und Nachschlagewer k. Die Kenntnis aller enthaltenen Sicherh eitshinweise und Handlungsanweisu ngen schafft die Voraussetzung f ür das sichere und sachgerechte Ar beiten mit dem Gerät. Darüber hinaus müssen die für den Einsatzbereic h des Geräts geltenden örtlichen Unfall verhütungsvorschriften und allgemeine n Sicherheitsbestimmungen eingehalten werden. Diese Bedienungsanleitung is t Bestandteil des Produkts und muss in unmittelbarer Nähe des Geräts für das In¬stallations-, Bedienu ngs-, Wartungs- und Reinigungspers onal jederzeit zugänglich auf¬bewahrt werd en. Wenn das Gerät an eine dritt e Person
weitergegeben wird, muss die Bedienungsa nleitung mit ausgehändigt werden.
This instruction manual contains information about installation, operation and
maintenance of the appliance and constitutes an important source of information
and reference guide. The knowledge of all operational and safety instructions
included in this manual is a prerequisite for safe and proper handling of the
appliance. Additionally, accident prevention, occupational health and safety, and
legal regulations in force in the area the appliance is used apply.
Before you start using the appliance, especially before turning it on, read this
instruction manual in order to avoid personal injuries and property damages.
Improper use may cause damage.
This instruction manual forms and integral part of the product and must be stored in
an immediate vicinity of the appliance and be available at all times. The instruction
manual should be transferred together with the appliance.
1 Safety
This appliance has been manufactured in accordance with technical standards
currently in force. However, the appliance may be a source of hazards if used
improperly or contrary to its intended purpose. All persons using the appliance must
consider information included in this instruction manual and observe safety
instructions.
1.1 Explanation of Signal Words
Important safety instructions and warning information are indicated in this
instruction manual with appropriate signal words. You must strictly follow the
instructions, to prevent accidents, personal injuries and property damages.
2 / 26 162650
Safety
EN
WARNING!
The signal word WARNING warns against hazards that may lead to
moderate or severe injuries or death if the hazards are not avoided.
CAUTION!
The signal word CAUTION warns against hazards that may lead to
light or moderate injuries if the hazards are not avoided.
IMPORTANT!
The signal word IMPORTANT indicates possible property damages,
which may occur if safety instructions are not observed.
NOTE!
The symbol NOTE indicates subsequent information and guidelines
for the user on usage of the appliance.
, die
1.2 Safety instructions
Electrical Current
• Too high a mains voltage or incorrect installation may cause electric shock.
• The appliance may be connected only if data on the rating plate correspond with
the mains voltage.
• To avoid short-circuit, the appliance should be kept dry.
• If there are malfunctions during operation, disconnect the appliance from the
power supply.
• Do not touch the appliance’s plug with wet hands.
• Never take hold of the appliance if it has fallen into water. Immediately
disconnect the appliance from the power supply.
• Any repairs or housing opening may be carried out by professionals and
relevant workshops only.
• Do not transport the appliance, holding it by the power cord.
• Do not allow the power cord to come into contact with heat sources or sharp
edges.
• Do not bend, pinch nor knot the power cord.
162650 3 / 26
Safety
EN
• Always completely unwind the power cord.
• Never place the appliance or other objects on the power cord.
• Always take hold of the plug to disconnect the appliance from the power supply.
• Check the power cord regularly for damage. Do not use the appliance if the
power cord is damaged. If this cable is damaged, it must be replaced by
customer service or a qualified electrician in order to avoid dangers.
Flammable Materials
• Never subject the appliance to contact with high temperature sources, e.g.:
oven, furnace, open flame, heat generating devices, etc.
• To avoid fire hazard, clean the appliance regularly.
• Do not cover the appliance with, e.g., aluminium foil or cloths.
• Use the appliance only with materials designated to this end and with correct
temperature settings. Materials, groceries and left-overs remaining in the
appliance may catch fire.
• Never use the appliance near flammable or inflammable materials, e.g.: petrol,
spirit, alcohol, etc. High temperature triggers evaporation of these materials,
and, as a result of contact with sources of ignition, an explosion may occur.
• In case of fire, disconnect the appliance from the power supply before
attempting suitable fire-extinguishing actions.
• Never attempt to extinguish fire with water if the appliance is connected to the
power supply. Following extinction of fire, ensure sufficient fresh air inflow.
Safety during deep fat frying
• Never leave the operating appliance without supervision. Possible malfunctions
may lead to overheating and ignition of frying oil / fat in cubes (blocks).
• If due to overheating, the frying oil / fat in cubes (blocks) catches fire, put the lid
on and disconnect the appliance from the power supply.
• Spatters or outbursts of hot oil/fat may cause scalding of hands, arms and face.
Use protective kitchen mitts.
• Do not use wet nor humid products. Dry them before use. Remove excess of ice
from deep frozen products prior to frying them.
• Do not hang frozen food in the basket over the tank filled with hot frying oil / fat
in cubes (blocks). When deep frying in fat, even the smallest drop of water may
cause spatters of hot oil or even small outbursts.
Hot Surfaces
4 / 26 162650
Safety
EN
• Surfaces of the appliance become hot during operation. Burning hazard! High
temperature remains for some time after switching the appliance off.
• Do not touch any hot surfaces of the appliance. Use the provided handling
elements and holders.
• You may transport and clean the appliance after it cools down entirely.
• It is prohibited to sprinkle hot surfaces with cold water or flammable liquids.
Health hazard due to burnt food products
• Acrylamides that are present in burnt food products are hazardous to health and
may cause cancer. In order to avoid or reduce acrylamide content, products
should always be fried to the point, when their colour is golden–yellowish, and
not dim and dark nor brown.
• Burnt left-overs and scrubs should be regularly removed from frying oil.
• Products containing starch — cereals and potato products in particular —
should be fried in a maximum temperature of 180 °C.
Operating Personnel
• The appliance may only be operated by qualified personnel and trained
specialist personnel.
• This appliance may not be operated by persons (including children) with limited
physical, sensory or mental capabilities, nor by persons with limited experience
and/or limited knowledge.
• Children should be supervised to ensure that they are not playing with or
switching on the appliance.
162650 5 / 26
Safety
EN
Improper Use
• Unintended or prohibited use may cause damage to the appliance.
• The appliance may only be used when its technical condition is flawless and
allows for safe operation.
• The appliance may only be used when all connections are executed according
to rules of law in force.
• The appliance may only be used when it is clean.
• Use only original spare parts. Never attempt to repair the appliance on your own.
• Do not introduce any changes in the appliance nor modify it.
1.3 Intended Use
As described below, every use of the appliance for a purpose differing and/or
diverging from its intended standard use, is prohibited and considered to be an
unintended use.
The following is an intended use:
– Deep fat frying of adequate food products.
1.4 Unintended Use
An unintended use may lead to personal injuries or property damages caused by
hazardous voltage, fire or high temperature. The appliance may only be used to
perform tasks described in this instruction manual.
The following is an unintended use:
– Deep fat frying of inadequate food products.
– Deep fat frying of wet or humid food products.
– Do not hang frozen food in the fryer’s basket over the hot frying oil/fat.
6 / 26 162650
General information
EN
2 General information
2.1 Liability and Warranty
All information and instructions in this instruction manual account for legal
regulations in force, current level of technical engineering knowledge as well as our
expertise and experience, developed over the years. If special models or additional
options are ordered, or state-of-the-art technical solutions were implemented, the
actual scope of delivery of the appliance may, in some circumstances, differ from
descriptions and numerous drawings in this instruction manual.
The manufacturer is not liable for any damages nor faults stemming from:
– failure to observe instructions,
– unintended use,
– technical alterations introduced by the user,
– usage of unapproved spare parts.
We reserve the right to introduce technical modifications to the product, intended for
improvement of the appliance and its performance.
2.2 Copyright Protection
This instruction manual, and texts, drawings and images included in it, as well as its
other components are copyright protected. It is prohibited to reproduce this
instruction manual (including its excerpts), in any form and by any means, and to
use and/or transfer its content to third parties without manufacturer’s written
permission. Violation of the above results in obligation to pay compensation. We
reserve the right to claim further damages.
2.3 Declaration of Conformity
The appliance meets the currently applicable standards and guidelines of the
European Union. We confirm the above in the EC Declaration of Conformity. We
may provide relevant Declaration of Conformity upon request.
162650 7 / 26
Transport, Packaging and Storage
EN
3 Transport, Packaging and Storage
3.1 Delivery Check
Immediately upon reception, check the delivery for completeness and possible
shipping damage. In the case of visible transport damage refuse to accept the
appliance or accept it conditionally. Mark and note the scope of damage in shipping
documents/consignment list of the shipping company and lodge a complaint.
Concealed damage must be reported immediately upon its discovery, as
compensation claims may only be filed within applicable time limits.
If you find that parts or accessories missing, please contact our Customer Service
Department.
3.2 Packaging
Do not dispose of the appliance cardboard box. It may be used to store the
appliance when relocating or when shipping the appliance to our service point in the
case of any damages.
The packaging and its elements are made of recyclable materials. Particularly,
these are: plastic films and bags, cardboard box.
When disposing of the packaging, observe applicable domestic regulations.
Recyclable packaging materials should be recycled.
3.3 Storage
Leave the packaging closed until installation of the appliance; observe external
indications concerning method of placing and storage. Store the packaging in the
following conditions only:
– in closed rooms;
– in dry and dust-free surrounding;
– away from aggressive agents;
– in a location protected against sunlight;
– in a location protected against mechanical shocks.
In the case of extended storage (over three months), make sure you check the
condition of the packaging and the parts regularly. If needed, replace the packaging
with a new one.
8 / 26 162650
Technical Data
EN
4 Technical Data
Version / Characteristics 162650 / 162651
• Type: table-top appliance
• Type of power supply: electric
• Equipment connection: 3 NAC
• Deep-drawn basin
• Heating element:
– stainless steel
– can be pivoted out
• Temperature control: manual
• Control: knob
• Cold zone
• Grease drain tap
• Safety thermostat
• ON/OFF switch
• Indicator lights:
– heating-up
– ON/OFF
• The set includes:
– 1 or 2 baskets
– 1 or 2 lids
– 1 or 2 sieves for breadcrumb coating
162650 9 / 26
Technical Data
EN
Name:
Deep fat fryer 12L-10
Art. No.:
162650
Material:
stainless steel
Number of basins:
1
Basin volume, in litres:
12
Basin dimensions (W x D x H), in mm:
290 x 308 x 210
Number of baskets:
1
Basket volume, in l:
6,5
Basket dimensions (W x D x H), in mm:
250 x 230 x 110
Temperature range, min.–max., in °C:
50 - 190
Degree of protection:
IPX4
Connected load:
9,0 kW | 400 V | 50 Hz
Dimensions (W x D x H), in mm:
400 x 650 x 485
Weight, in kg:
15,4
4.1 Technical Specifications
We reserve the right to implement technical modifications.
10 / 26 162650
Technical Data
EN
Name:
Deep fat fryer 12L-20
Art. No.:
162651
Material:
stainless steel
Number of basins:
2
Basin volume, in litres:
12
Basin dimensions (W x D x H), in mm:
290 x 308 x 210
Number of baskets:
2
Basket volume, in l:
6,5
Basket dimensions (W x D x H), in mm:
250 x 230 x 110
Temperature range, min.–max., in °C:
50 - 190
Degree of protection:
IPX4
Connected load:
18,0 kW | 400 V | 50 Hz
Dimensions (W x D x H), in mm:
800 x 650 x 485
Weight, in kg:
29,0
We reserve the right to implement technical modifications.
162650 11 / 26
Technical Data
EN
Fig. 1
1. Lever for setting heating element
drip position
2. Heating element
3. Basin
4. Bracket for hanging the basket
5. Control panel
6. Control box
7. Basket
8. Main appliance
9. Feet (4 pcs)
10. Grease drain mechanism lock
11. Grease drain stub
12. Grease drain mechanism lever
13. Grease drain tap
14. Lid with handle
4.2 List of Components of the Appliance
162650
12 / 26 162650
Technical Data
EN
Fig. 2
1. Lever for setting heating element
drip position (2 pcs)
2. Heating element (2 pcs)
3. Basin (2 pcs)
4. Bracket for hanging the basket (2 pcs)
5. Control panel (2 pcs)
6. Control box (2 pcs)
7. Basket (2 pcs)
8. Main appliance
9. Feet (4 pcs)
10. Grease drain mechanism lock (2 pcs)
11. Grease drain mechanism stub
(2 pcs)
12. Grease drain mechanism lever (2 pcs)
13. Grease drain tube (2 pcs)
14. Lid with handle (2 pcs)
162651
162650 13 / 26
Technical Data
EN
Deep frying basket 12L-10/20
Material: high-alloy steel;
Basket dimensions: W 250 x D 230 x H 110 mm
Volume: 6.5 litres
Dimensions: W 253 x D 510 x H 215 mm
Weight: 0.95 kg
Art. No.: 162653
Accessories (not included in the scope of delivery)
4.3 Functions of the Appliance
The deep fat fryer is used to fry suitable food products in hot fat at a suitable
temperature setting. The deep fat fryer — being a robust tabletop appliance — is
perfectly adapted to using especially i professional kitchens, foremost, thanks to 12litre basin. The grease drain tap, removable sieve for breadcrumbs coating and
pivoted-out heating element facilitate cleaning.
14 / 26 162650
Installation and operation
EN
CAUTION!
Incorrect installation, positioning, operation, maintenance or misuse of
the appliance may lead to personal injury or property damage.
Positioning and installation, as well as repairs may be performed by
authorised technical service only and in compliance with the applicable
national law.
NOTE!
The manufacturer disclaims all liability and provides no warranty for
damages, which may be attributed to non-observance of regulations or
incorrect installation.
CAUTION!
Choking hazard!
Prevent children from accessing package materials, for instance: plastic
bags and EPS.
5 Installation and operation
5.1 Installation
Unpacking / Positioning
• Unpack the appliance, remove all external and internal packaging elements and
shipment safeguards.
• If the appliance is covered with a protective film, remove it. Remove the film
slowly, so no glue residues are left. Remove any glue residues with the use of a
suitable solvent.
• Be careful not to damage the rating plate and warning labels fixed on the
appliance.
• Never place the appliance in humid or wet environment.
• Place the appliance in a way making the connections easily accessible, so that
they may be quickly disconnected if such a need arises.
• The appliance should be placed on surfaces that are:
– even, with sufficient bearing capacity, resistant to water, dry and resistant
to high temperatures;
162650 15 / 26
Installation and operation
EN
– sufficiently large, and thus enabling usage of the appliance with no
problems;
– easily accessible;
– well ventilated.
• Fix the enclosed feet to the appliance by screwing them into the provided
openings.
• Compensate for smaller unevenness in the place of installation through
screwing the feet in and out.
• Maintain sufficient clearance from table edges. The appliance might turn over
and fall down.
• Leave at least 20 cm clearance from flammable walls and items.
Electric Connection
• Before connecting the appliance to the power supply, make sure that voltage
and frequency values on the rating plate are conforming to the existing electric
installation.
The allowable voltage deviation is ±10%.
• Make sure that appropriate connection with protection conductor is available,
conforming to the valid regulations. Use a cord of sufficient cross section for
connection to the power supply.
• Between the appliance and electric supply grid must be installed an active multipole breaker, suitable for the power of the appliance. The breaker must be
located in an easily accessible location. The breaker contacts should feature a
minimum opening of 3 mm.
• Connect the appliance to an electric mains installation according to the valid
international, national, and local regulations.
• Do not use the appliance with an external timer or remote control.
16 / 26 162650
Installation and operation
EN
WARNING!
Fire hazard!
Operation of the appliance with the oil level below MIN mark may lead to
overheating of frying oil and cause oil to catch fire.
The oil level should be between MIN and MAX marks on the side wall of a
tank.
If overheated during operation, the frying oil or fat in cubes (blocks)
may catch fire.
The appliance should not remain in use for extended periods of time.
During breaks between subsequent frying processes, the temperature
control knob should be set to lower values.
WARNING!
Risk of burns!
Due to lower flashpoint, old oil that had already been used for frying,
exhibits a tendency for self-ignition and favours frothing.
Do not use old oil for frying. Regularly change frying oil.
When the oil level is above the MAX mark during operation of the
appliance, hot oil may spill out.
The oil level should be between MIN and MAX marks on the side wall of a
tank.
If the basket is overfilled with products for frying, the frying oil or fat in
cubes (blocks) may boil over.
Observe the maximum allowable level of filling the basket with products
for frying.
If water enters hot frying oil, it may cause spatters of oil and scalding.
Use only dry products for frying.
When deep frying in fat, even drops of water under the lid may cause
spatters of hot oil or even small outbursts.
Never place the lid on during or immediately after the frying process.
The lid is used only for protection against dirt or for keeping the
temperature of frying oil / fat in cubes (blocks) in the case of possible
interruptions of operation.
5.2 Operation
• Setzen Sie die Boden-Abdeckung in das Becken ein. The cover acts as a spac er between the heating element and left- over food tray.
Ostrożnie osadzić skrzynkę rozdzielczą z elementem gr zewczym na t ylnej krawędzi urz ądzenia. Sworz eń w dolnej częś ci skrzynki r ozdzielczej musi wchodzić w otwór w urządzeniu głó wnym. W ta ki sposób skrzynka r ozdzielcza jest prawidłowo usta wiona.
162650 17 / 26
Installation and operation
EN
Before placing the lid, make sure that it is dry, so that no water drips into
the tank.
When pouring hot frying oil / fat in cubes (blocks) be aware of the risk
of burns.
Cool the frying oil / fat in cubes (blocks) before pouring.
CAUTION!
The deep fat fryer can only be used by individuals who have been
instructed in the proper use of the appliance and hazards that may arise
during the frying process.
Appliance Preparation
1. Remove the equipment from the appliance (lid, deep frying basket, sieve for
breadcrumb coating).
2. Before use, thoroughly clean the appliance and equipment according to
instructions in section 6 'Cleaning'. Then thoroughly dry the appliance and the
entire equipment.
3. After cleaning, lower the heating element using the lever for setting the drip
position by pulling it down.
ATTENTION!
For safety reasons, the appliance operates only when the heating element
is properly lowered in the basin, so that the microswitch enables the
appliance to be ready for operation.
18 / 26 162650
Installation and operation
EN
The grease drain mechanism of the appliance
must be closed (locked).
1. Press the lock upwards and move the
lever to the left.
Fig. 3
2. Prior to switching on, the basin must be
filled carefully with the required amount of
liquid frying oil or fat in cubes (blocks).
The oil level should be between MIN and
MAX marks on the side wall of the basin. The
marks are at the side wall of the basin.
Fig. 4
Instructions for using frying oil or fat in cubes (blocks)
• Always use oil suitable for frying (e.g. vegetable oil, sunflower oil, peanut oil,
etc.) or fat in cubes/blocks only.
NOTE!
Melt (dissolve) the fat in cubes (blocks) beforehand in a separate dish!
• Use only oils and fats that are suitable for frying in high temperatures.
• Never mix different types of oil or fat as their boiling points may vary.
Filling the Basin with Frying Oil or Fat in Cubes (Blocks)
WARNING!
Prior to filling with the frying oil or liquid fat in cubes (blocks), the tank
must be clean and dry.
162650 19 / 26
Installation and operation
EN
Fig. 5
1. Reset button
2. ON/OFF switch with integrated
power indicator light (green)
3. Heating-up indicator lamp (orange)
4. Temperature controller
3. During operation observe the level of oil in the basin and, if needed, top up with
frying oil or fat in cubes (blocks).
ATTENTION!
Never use the appliance if there is no oil for frying or fat in cubes (blocks)
in the basin.
Control Panel
Switching-On
1. Connect the appliance to the power supply.
2. Switch the appliance on with the ON/OFF switch.
The green power indicator light in the ON/OFF switch lights up.
3. Set the temperature controller by turning it clockwise to the required
temperature.
The temperature may be set within the range of 50–190°C.
While heating up the orange heating indicator light will come on, and will go off
when the preset temperature is reached.
When the temperature in the basin drops, the appliance re-starts heating to
maintain the fat temperature at the set level.
The orange heating up indicator light lights up again.
4. For best results, wait until the appliance reaches the desired temperature and
then place food products in the frying basin.
20 / 26 162650
Installation and operation
EN
WARNING!
Do not use frying oil / fat in cubes (blocks) for an extended period of time
in too low a temperature, as they cease to be suitable for use.
In the case of longer interruptions between the frying processes, set the
temperature controller to lower value.
Deep Fat Frying of Food Products
1. Put the prepared food products in the enclosed deep frying basket.
NOTE!
In the case of overfilling, the temperature of the frying oil / fat in cubes
(blocks) in the basin drops, and food products become very greasy.
Never overfill the deep fat frying basket with products.
2. Slowly lower the deep fat drying basket into the basin with frying oil.
3. Place the deep frying basket on the sieve for breadcrumbs coating.
4. Prepare food products in the deep fat fryer.
5. When the frying process is finished, lift the deep frying basket carefully, using
the handle.
6. Using hooks, hang the deep frying basket on the bracket for hanging the basket
on the control box of the appliance.
7. Soak the ready products well.
8. Rotate the temperature controller to '0' position as soon as the frying process is
finished and the appliance will be no longer used.
9. Lift the heating element to drip position by pulling the lever upwards.
162650 21 / 26
Installation and operation
EN
Fig. 6
Exchange and removal of frying oil / liquid fat in cubes (blocks)
1. The frying oil / liquid fat in cubes (blocks) should be replaced regularly when it
no longer fulfils legal requirements.
2. After cooling, the frying oil / fat in cubes (blocks) should be drained from the
basin via fat drain tap into a suitable container.
3. Make sure that the container is placed stably.
NOTE!
Remove used frying oil / fat with care for environment and according to
the valid regulations.
4. Before draining the frying oil with the bayonet lock, fix the grease drain tube (13)
on the pipe stub (11).
5. Open the grease drain mechanism by pressing the lock (10) upwards, and
setting the lever (12) to the right with your other hand.
6. Carefully drain the frying oil to a collection container.
Overheating Protection System
If the fryer is accidentally switched on without frying oil / fat in cube (block), or if the
basin is filled with fat to the level below required minimum, the overheating
protection system automatically switches off the appliance. This function serves the
purpose of protecting the appliance against possible damages.
Perform the following steps:
– disconnect the appliance from mains power supply;
– leave the appliance to cool down completely;
– screw off plastic cover over the RESET button on the control box,
rotating it counter-clockwise;
– press the RESET key;
– screw the plastic cover anew by rotating it clockwise;
– switch the appliance on as usual.
22 / 26 162650
Cleaning
EN
6 Cleaning
6.1 Safety Instructions for Cleaning
• Before cleaning, disconnect the appliance from the power supply.
• Leave the appliance to cool down completely.
• Make sure water does not enter the appliance. Do not immerse the appliance in
water or other liquids during cleaning. Do not clean the appliance with a
pressurized water jet.
• Do not use any sharp or pointed, nor metal implements (knife, fork, etc.). Sharp
or pointed implements may damage the appliance, and when in contact with live
parts, they may cause electric shock.
• For cleaning, do not use any scouring agents that contain solvents nor corrosive
cleaning agents. They may damage the surface.
6.2 Cleaning
1. At the end of a working day, clean the appliance thoroughly.
2. Remove the deep frying basket from the basin.
3. Remove the sieve for breadcrumbs coating from the basin.
4. Lift the heating element using the lever for setting the drip position by pulling it
up. This allows for easy washing of the heating element and the basin.
5. Drain the cooled frying oil from the basin.
NOTE!
Observe instructions in section 'Exchange and Removal of Frying Oil /
Liquid Fat in Cubes (Blocks)'.
6. Clean the heating element with soft, damp cloth and gentle cleaning agent.
Wipe with a clean cloth.
7. Wash the basin with warm water and mild cleaning agent. Use a soft cloth or
sponge. After cleaning, drain water to an appropriate container using the grease
drain tube. Then rinse the basin with fresh water and drain it again using the
grease drain tube.
8. Wipe the control panel, external surface of the appliance and power cord only
with a slightly damp cloth.
9. Wash the deep frying basket, sieve for breadcrumbs covering and lid in hot
water and a mild cleaning agent. Rinse in fresh water.
10. Finally, dry all cleaned appliance elements thoroughly with a soft, lint-free cloth.
162650 23 / 26
Possible Malfunctions
EN
Error
Possible Cause
Solution
Appliance is connected to
the power supply, switch
on, but the ON/OFF switch
indicator light is not lit.
Interrupted power
supply
Check the power supply
and the cord for damage or
faults
Power supply
protection device
tripped
Check the fuse, and check
the appliance after
connecting it to another
socket
No power supply
Restore the electric power
supply
No contact with the
microswitch
Lower the heating element
into the basin by pressing
the lever for setting the drip
position down
The heating-up indicator
light is on but temperature
does not rise
Interrupted contact with
the heating element
Contact the service
company
Damaged heating
element
Contact the service
company
7 Possible Malfunctions
Mögliche
The table below contains descriptions of possible causes and solutions to
malfunctions or errors during operation of the appliance. When malfunction cannot
be removed, contact the technical service.
In such a case, provide article number, model name and serial number. These data
may be found in the rating plate.
24 / 26 162650
Possible Malfunctions
EN
Error
Possible Cause
Solution
The power supply indicator
light is on but despite the
preset temperature the
heating-up indicator light is
off
The preset
temperature has been
reached
Check appliance operation
after modification of
settings
Damaged temperature
controller
Contact the service
company
Damaged indicator
light
Contact the service
company
Appliance stops heating
after some time
Overheating
protection tripped:
Too high a
temperature in the
basin (approx. 230°C)
Wait for the appliance to
cool down
Restart the appliance
following indication in
section 'Overheating
Protection'
162650 25 / 26
Disposal
EN
Electric appliances are marked with this symbol. Electrical
appliances must be disposed of and recycled in a correct
and environmentally friendly manner. You must not dispose
of electric appliances with household waste. Disconnect the
appliance from the power supply and remove power cord
from the appliance.
8 Disposal
Electrical Appliance
Electrical appliances should be returned to designated collection points.
Used frying oil
Dispose of the used frying oil according to provisions of natural environment
protection law in force.
26 / 26 162650
Loading...
