Original instruction manual
1 Safety ............................................................................................................ 2
1.1 Explanation of Signal Words .................................................................... 2
1.2 Safety instructions.................................................................................... 3
1.3 Intended Use ........................................................................................... 5
1.4 Unintended Use ....................................................................................... 5
2 General information ....................................................................................... 6
2.1 Liability and Warranty .............................................................................. 6
2.2 Copyright Protection ................................................................................ 6
2.3 Declaration of Conformity ........................................................................ 6
3 Transport, Packaging and Storage ................................................................ 7
3.1 Delivery Check ......................................................................................... 7
3.2 Packaging ................................................................................................ 7
3.3 Storage .................................................................................................... 7
4 Technical Data ............................................................................................... 8
4.1 Technical Specifications .......................................................................... 8
4.2 Functions of the Appliance ....................................................................... 8
4.3 List of Components of the Appliance ....................................................... 9
5 Installation and operation ............................................................................ 10
5.1 Installation .............................................................................................. 10
5.2 Operation ............................................................................................... 12
6 Cleaning and Maintenance .......................................................................... 16
6.1 Safety Instructions for Cleaning ............................................................. 16
6.2 Cleaning ................................................................................................. 16
6.3 Maintenance .......................................................................................... 17
7 Disposal ....................................................................................................... 18
120840 1 / 18
Safety
EN
Read this instruction manual before using and keep it available
at all times!
DANGER!
The signal word DANGER warns against hazards that lead to severe
injuries or death if the hazards are not avoided.
Diese Bedienungsanleitung beschreibt di e Installation, Bedienung und Wartung des Geräts und gilt als wichtige Infor mationsquelle und Nachschlagewer k. Die Kenntnis aller enthaltenen Sicherh eitshinweise und Handlungsanweisunge n schafft die Voraussetzung für d as sichere und sachgerechte Ar beiten mit dem Gerät. Darüber hinaus müssen die für den Einsatzbereich des Geräts geltenden örtlichen Unfall verhütungsvorschriften und allgemeine n Sicherheitsbestimmungen eingehalt en werden. Diese Bedienungsanleitung is t Bestandteil des Produkts und muss in unmittelbarer Nähe des Ger äts für das In¬stallations-, Bedienu ngs-, Wartungs- und Reinigungspers onal jederzeit zugänglich auf¬bewahrt werd en. Wenn das Gerät an eine dritt e Person
weitergegeben wird, muss die Bedienungsa nleitung mit ausgehändigt werden.
This instruction manual contains information about installation, operation and
maintenance of the appliance and constitutes an important source of information
and reference guide. The knowledge of all operational and safety instructions
included in this manual is a prerequisite for safe and proper handling of the
appliance. Additionally, accident prevention, occupational health and safety, and
legal regulations in force in the area the appliance is used apply.
Before you start using the appliance, especially before turning it on, read this
instruction manual in order to avoid personal injuries and property damages.
Improper use may cause damage.
This instruction manual forms and integral part of the product and must be stored in
an immediate vicinity of the appliance and be available at all times. The instruction
manual should be transferred together with the appliance.
1 Safety
This appliance has been manufactured in accordance with technical standards
currently in force. However, the appliance may be a source of hazards if used
improperly or contrary to its intended purpose. All persons using the appliance must
consider information included in this instruction manual and observe safety
instructions.
1.1 Explanation of Signal Words
Important safety instructions and warning information are indicated in this
instruction manual with appropriate signal words. You must strictly follow the
instructions, to prevent accidents, personal injuries and property damages.
2 / 18 120840
Safety
EN
WARNING!
The signal word WARNING warns against hazards that may lead to
moderate or severe injuries or death if the hazards are not avoided.
CAUTION!
The signal word CAUTION warns against hazards that may lead to
light or moderate injuries if the hazards are not avoided.
IMPORTANT!
The signal word IMPORTANT indicates possible property damages,
which may occur if safety instructions are not observed.
NOTE!
The symbol NOTE indicates subsequent information and guidelines
for the user on usage of the appliance.
, die
1.2 Safety instructions
Electrical Current
• Too high a mains voltage or incorrect installation may cause electric shock.
• The appliance may be connected only if data on the rating plate correspond with
the mains voltage.
• To avoid short-circuit, the appliance should be kept dry.
• If there are malfunctions during operation, disconnect the appliance from the
power supply.
• Do not touch the appliance’s plug with wet hands.
• Never take hold of the appliance if it has fallen into water. Immediately
disconnect the appliance from the power supply.
• Any repairs or housing opening may be carried out by professionals and
relevant workshops only.
• Do not transport the appliance, holding it by the power cord.
• Do not allow the power cord to come into contact with heat sources or sharp
edges.
• Do not bend, pinch nor knot the power cord.
120840 3 / 18
Safety
EN
• Always completely unwind the power cord.
• Never place the appliance or other objects on the power cord.
• Always take hold of the plug to disconnect the appliance from the power supply.
• Check the power cord regularly for damage. Do not use the appliance if the
power cord is damaged. If this cable is damaged, it must be replaced by
customer service or a qualified electrician in order to avoid dangers.
Operating Personnel
• The appliance may only be operated by qualified personnel and trained
specialist personnel.
• This appliance may not be operated by persons (including children) with limited
physical, sensory or mental capabilities, nor by persons with limited experience
and/or limited knowledge.
• Children should be supervised to ensure that they are not playing with or
switching on the appliance.
Supervised Usage only
• Only supervised appliance may be used.
• Always remain in an immediate vicinity of the appliance.
Improper Use
• Unintended or prohibited use may cause damage to the appliance.
• The appliance may only be used when its technical condition is flawless and
allows for safe operation.
• The appliance may only be used when all connections are executed according
to rules of law in force.
• The appliance may only be used when it is clean.
• Use only original spare parts. Never attempt to repair the appliance on your own.
• Do not introduce any changes in the appliance nor modify it.
4 / 18 120840
Safety
EN
1.3 Intended Use
As described below, every use of the appliance for a purpose differing and/or
diverging from its intended standard use, is prohibited and considered to be an
unintended use.
The following is an intended use:
– Chopping meat and vegetables.
1.4 Unintended Use
An unintended use may lead to personal injuries or property damages caused by
hazardous voltage, fire or high temperature. The appliance may only be used to
perform tasks described in this instruction manual.
The following is an unintended use:
– Chopping unsuitable food products.
120840 5 / 18
General information
EN
2 General information
2.1 Liability and Warranty
All information and instructions in this instruction manual account for legal
regulations in force, current level of technical engineering knowledge as well as our
expertise and experience, developed over the years. If special models or additional
options are ordered, or state-of-the-art technical solutions were implemented, the
actual scope of delivery of the appliance may, in some circumstances, differ from
descriptions and numerous drawings in this instruction manual.
The manufacturer is not liable for any damages nor faults stemming from:
– failure to observe instructions,
– unintended use,
– technical alterations introduced by the user,
– usage of unapproved spare parts.
We reserve the right to introduce technical modifications to the product, intended for
improvement of the appliance and its performance.
2.2 Copyright Protection
This instruction manual, and texts, drawings and images included in it, as well as its
other components are copyright protected. It is prohibited to reproduce this
instruction manual (including its excerpts), in any form and by any means, and to
use and/or transfer its content to third parties without manufacturer’s written
permission. Violation of the above results in obligation to pay compensation. We
reserve the right to claim further damages.
2.3 Declaration of Conformity
The appliance meets the currently applicable standards and guidelines of the
European Union. We confirm the above in the EC Declaration of Conformity. We
may provide relevant Declaration of Conformity upon request.
6 / 18 120840
Transport, Packaging and Storage
EN
3 Transport, Packaging and Storage
3.1 Delivery Check
Immediately upon reception, check the delivery for completeness and possible
shipping damage. In the case of visible transport damage refuse to accept the
appliance or accept it conditionally. Mark and note the scope of damage in shipping
documents/consignment list of the shipping company and lodge a complaint.
Concealed damage must be reported immediately upon its discovery, as
compensation claims may only be filed within applicable time limits.
If you find that parts or accessories missing, please contact our Customer Service
Department.
3.2 Packaging
Do not dispose of the appliance cardboard box. It may be used to store the
appliance when relocating or when shipping the appliance to our service point in the
case of any damages.
The packaging and its elements are made of recyclable materials. Particularly,
these are: plastic films and bags, cardboard box.
When disposing of the packaging, observe applicable domestic regulations.
Recyclable packaging materials should be recycled.
3.3 Storage
Leave the packaging closed until installation of the appliance; observe external
indications concerning method of placing and storage. Store the packaging in the
following conditions only:
– in closed rooms;
– in dry and dust-free surrounding;
– away from aggressive agents;
– in a location protected against sunlight;
– in a location protected against mechanical shocks.
In the case of extended storage (over three months), make sure you check the
condition of the packaging and the parts regularly. If needed, replace the packaging
with a new one.
120840 7 / 18
Technical Data
EN
Name:
Cutter 1000
Art. No.:
120840
Material:
stainless steel, plastic
Volume, in l:
6
Maximum rotational speed, in RPMs:
2.100
Diameter of filling shaft, in mm:
40
Dimensions of stainless steel bowl | height
in mm:
270 | 156
Blade design:
2 blades (double knife), stainless
steel
Safety switch:
2
Connected load:
1,8 kW | 220-240 V | 50/60 Hz
Dimensions (W x D x H), in mm:
315 х 520 х 400
Weight, in kg:
18,4
4 Technical Data
4.1 Technical Specifications
We reserve the right to implement technical modifications.
Version / characteristics
• Speed control: stepless
• ON/OFF switch
• Easy cleaning
• Blade, pot and lid are dishwasher-safe
4.2 Functions of the Appliance
The cutter has been designed as an aid in food preparation. Thanks to the double
knife, the cutter cuts vegetables or meat into the finest pieces in a very short time —
ideal for soups, sauces, stuffing for pasties or tender roasts.
8 / 18 120840
Technical Data
EN

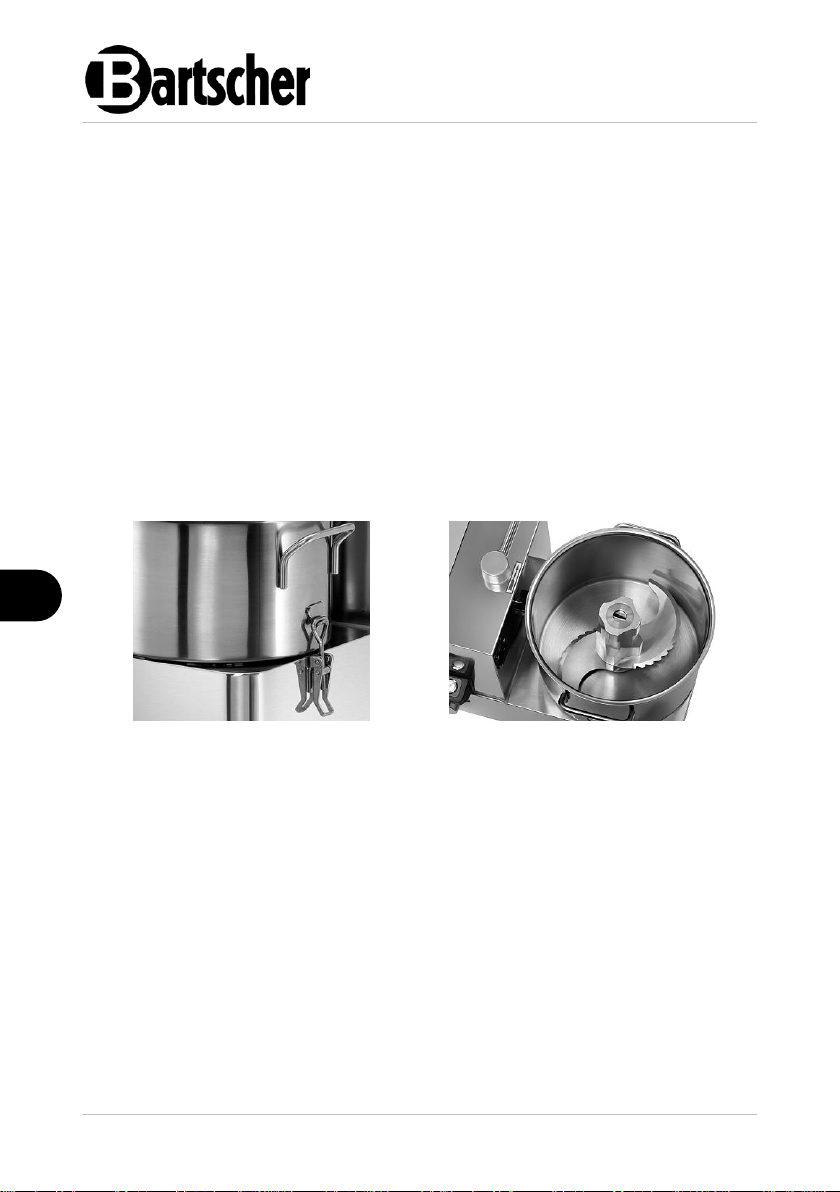

Fig. 1
1. Start button
2. Stop button
3. Speed controller
4. Safety element in the lid
5. Lever with micro-switch
6. Bowl attachment
7. Housing
8. Rubber grommets for insulation
protection
9. Blade
10. Stainless steel bowl safety lock (2
pcs)
11. Blade drive shaft
12. Rubber feet (4 pcs)
13. Lid lock
14. Plastic lid
15. Stainless steel bowl
4.3 List of Components of the Appliance
120840 9 / 18
Installation and operation
EN
CAUTION!
Incorrect installation, positioning, operation, maintenance or misuse of
the appliance may lead to personal injury or property damage.
Positioning and installation, as well as repairs may be performed by
authorised technical service only and in compliance with the applicable
national law.
NOTE!
The manufacturer disclaims all liability and provides no warranty for
damages, which may be attributed to non-observance of regulations or
incorrect installation.
Safety Devices
Mechanical protection for plastic lid:
Micro-switch for plastic lid
When the plastic lid is not correctly applied, the appliance motor will not start.
Electrical protection:
Micro-switch in the lever
When the lever is not positioned in the centre of the plastic lid and, thus, does
not press on the plastic lid, the motor does not start.
If the lever is removed from the plastic lid during operation, the operation of the
appliance stops.
Relay
When power is restored after a power interruption, the appliance must be
restarted by pressing the Start button.
5 Installation and operation
5.1 Installation
10 / 18 120840
Installation and operation
EN
CAUTION!
Choking hazard!
Prevent children from accessing package materials, for instance: plastic
bags and EPS.
Unpacking / Positioning
• Unpack the appliance, remove all external and internal packaging elements and
shipment safeguards.
• If the appliance is covered with a protective film, remove it. Remove the film
slowly, so no glue residues are left. Remove any glue residues with the use of a
suitable solvent.
• Be careful not to damage the rating plate and warning labels fixed on the
appliance.
• Never place the appliance in humid or wet environment.
• Place the appliance in a way making the connections easily accessible, so that
they may be quickly disconnected if such a need arises.
• The appliance should be placed on surfaces that are:
– even, with sufficient bearing capacity, resistant to water, dry and resistant
to high temperatures;
– sufficiently large, and thus enabling usage of the appliance with no
problems;
– easily accessible;
– well ventilated.
• Maintain sufficient clearance from table edges. The appliance might turn over
and fall down.
Power supply connection
• Verify if technical data of the appliance (see rating plate) correspond with the
local electric power grid specification.
• Connect the appliance to a single, properly grounded mains socket with
protective contact. Do not connect the appliance to a multi-socket.
• The power cord should be laid in a way preventing anyone from threading on it
or tripping against it.
120840 11 / 18
Installation and operation
EN
Fig. 2
Fig. 3
2. Place the stainless steel bowl on the
lower housing of the appliance so
that it is secured to the bowl
attachment on the housing and to
the blade drive shaft.
3. Fasten the stainless steel bowl with
two securing locks on the left and
right side.
4. Place the blade on the drive shaft in
the stainless steel bowl.
5.2 Operation
Before First Use
1. Before use, clean the appliance observing instructions in section 6 'Cleaning'.
2. Then dry the appliance thoroughly.
Appliance Assembly
1. Before commissioning, assemble the appliance observing the following
instructions.
WARNING! Injury hazard!
The blade is very sharp!
Be very careful when attaching the blade.
Wear safety gloves resistant to cutting.
12 / 18 120840
Installation and operation
EN
5. Place the plastic lid on the stainless
steel bowl. Ensure that it fits
correctly into the lid fixing on the
appliance housing and on the
stainless steel bowl.
6. Place the lid lock in the plastic lid.
7. Slide the lever onto the plastic lid.
Fig. 4
Checking Readiness for Operation
1. Plug the appliance into a suitable single socket.
2. Press the 'I' switch and then the 'O' switch to check the operation of these
buttons.
3. Check that the speed controller is working properly by rotating it to one of the
settings.
4. Check safety devices of the appliance:
– release the lever by rotating it counter-clockwise,
– remove the plastic lid,
– switch the appliance on using the switch. The motor should not start.
ATTENTION!
The cutter only works if the plastic lid is correctly placed on the stainless
steel bowl and the lever is positioned in the middle of the plastic lid.
If either of these conditions is not met, the appliance will not operate.
120840 13 / 18
Installation and operation
EN
5. Place the plastic lid correctly on the
stainless steel bowl again.
6. Rotate the lever clockwise as far as it
will go to press the plastic lid onto the
stainless steel bowl.
7. Press the switch.
Fig. 5
Food Products Placing and Processing
ATTENTION!
Food products should only be placed with the motor switched off.
Rotate the speed controller with the marking down (OFF setting).
1. Prepare food products for processing. Before placing in the stainless steel bowl,
large pieces should be cut into smaller pieces.
2. To undo the plastic lid, rotate the lever counter-clockwise.
3. Remove the plastic lid from the stainless steel bowl.
4. Now, place the required food products in the stainless steel bowl.
ATTENTION!
The stainless steel bowl can only be filled with food products up to the
'MAX' marking.
14 / 18 120840
Installation and operation
EN
8. Depending on food products to be processed,
use the speed controller to set the speed by
rotating it to one of the settings, 'High' or 'Low'.
Fig. 6
ATTENTION!
Food products should not be processed at low speed for a long time.
After processing at low speed for a short time, rotate the speed controller to a
higher setting.
9. During food processing, if necessary, additional ingredients can be added to the
stainless steel bowl through the lid opening. To this end, remove the lid lock.
ATTENTION!
If the appliance stops during food processing, press the red Stop button
and disconnect the appliance from the mains power supply.
Remove the cause of the interruption (e.g., too many food products in the
stainless steel bowl) and restart the appliance.
120840 15 / 18
Cleaning and Maintenance
EN
6 Cleaning and Maintenance
6.1 Safety Instructions for Cleaning
• Before cleaning, disconnect the appliance from the power supply.
• Leave the appliance to cool down completely.
• Make sure water does not enter the appliance. Do not immerse the appliance in
water or other liquids during cleaning. Do not clean the appliance with a
pressurized water jet.
• Do not use any sharp or pointed, nor metal implements (knife, fork, etc.). Sharp
or pointed implements may damage the appliance, and when in contact with live
parts, they may cause electric shock.
• For cleaning, do not use any scouring agents that contain solvents nor corrosive
cleaning agents. They may damage the surface.
6.2 Cleaning
ATTENTION!
Hazard of injury inflicted by cutting edges of the blade!
Be very careful when removing and cleaning the blade.
Wear safety gloves resistant to cutting.
1. Clean the appliance thoroughly at the end of the working day and, if necessary,
also between cycles.
2. Release the lever by rotating it counter-clockwise.
3. Remove the plastic lid from the stainless steel bowl.
4. Carefully pull the blade out of the stainless steel bowl by lifting it and pulling it
away from the drive shaft.
5. Release the bowl safety locks and remove the bowl from the drive shaft.
6. Wash the plastic lid, lid lock, stainless steel bowl and blade thoroughly with
warm water, a mild cleaning agent and a soft cloth or sponge. If needed, use
plastic dish-washing brush.
NOTE!
The plastic lid, stainless steel bowl and blade are dishwasher-safe.
7. Then rinse the cleaned parts with fresh water.
8. Leave the cleaned parts to air dry or dry them with a lint-free cloth.
9. Wipe the appliance housing, the stainless steel bowl setting surface, the lever
and the connection cable with a slightly damp cloth.
16 / 18 120840
Cleaning and Maintenance
EN
10. Then dry the appliance thoroughly.
6.3 Maintenance
Let the appliance to be inspected by professional technician at least once a year or
as required.
The following maintenance work should be carried out regularly:
1. Belt does not need adjustments. The belt should be replaced every nine
months. When time comes, contact the service company and order a new belt
from your dealer.
2. Check the feet regularly; replace if damaged.
3. Check the power cord regularly. If damaged, have it replaced by a service
company or a qualified electrician.
4. Check the blade knives regularly. If the blade is no longer sharp enough and
does not cut food satisfactorily, replace it. To this end, contact the service
company to order a replacement blade.
120840 17 / 18
Disposal
EN
Electric appliances are marked with this symbol. Electrical
appliances must be disposed of and recycled in a correct
and environmentally friendly manner. You must not dispose
of electric appliances with household waste. Disconnect the
appliance from the power supply and remove power cord
from the appliance.
7 Disposal
Electrical Appliance
Electrical appliances should be returned to designated collection points.
18 / 18 120840
Loading...
