Bartscher 101966 User Manual

Pos. Artikelbeschreibung Description of item

A

A

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37

bdeckblech

cover 0SL3334
Welle shaft
Kette 1/2"x5/16" chain 1/2"x5/16"
Hülse spacer
Lager 6205 2RS bearing 6205 2RS
Lager 6005 2RS bearing 6005 2RS
Lagerbock support
Schaltnocken cam
Mutter zum Schaltnocken cam
Mikroschalter microswitch
Haltewinkel bracket
Zahnrad 1/2"x5/16" Z=29 geer 1/2"x5/16" Z=29
Lagerbock UCF205 support UCF 205
Abdeckungsblech oben cover plate
Elektronik 230V/1Ph/50Hz electric installtion 230V/1Ph/50Hz
Abdeckungsblech cover
Zahnrad 1/2"x5/16" Z=15 geer 1/2"x5/16" Z=15
Passfeder 6x6x25 key 6x6x25
Spaltkeil 8x7x40 splitter 8x7x40
Welle shaft
Getriebe gear box
Motor 230V/1Ph/50Hz motor 230V/1Ph/50Hz
Zugentlastung PG11 cable clamp
Kabel 1Ph+N+Gnd electric cable
Fuss foot
Gehäuse base
Gehäuse zum Schalter "Start" und "Stop" box
Dichtung zum Gehäuse gasket
Schalter "Stop" push button "Stop"
Schalter "Start" push button "Start"
Zahnrad 3/8"x7/32" Z=85 crown 3/8"x7/32" Z=85
Kette 3/8"x7/32" chain 3/8"x7/32"
Stange rod
Achse klein shaft
Lager 6004 ZZ bearing 6004 ZZ
Lagerbock support
Lager 3204 bearing 3204

rtikel Nr./Item No.

0SL0076
0SL3365
0SL3264
0SL0233
0SL0241
0SL3261
0SL0035
0SL0036
0SL0885
0SL0397
0SL0084
0SL0086
0SL3335
0SA1220
0SL3367
0SL3265
0SL1056
0SL3410
0SA1024
0SL3338
0SL3214
0SL1668
A0SL1671
0SL3361
0SL3332
0SL0937
0SL0396
0SL0807
0SL1049
0SL0100
0SL3366
0SL3371
0SL0072
0SL0073
0SL0074
0SL0103

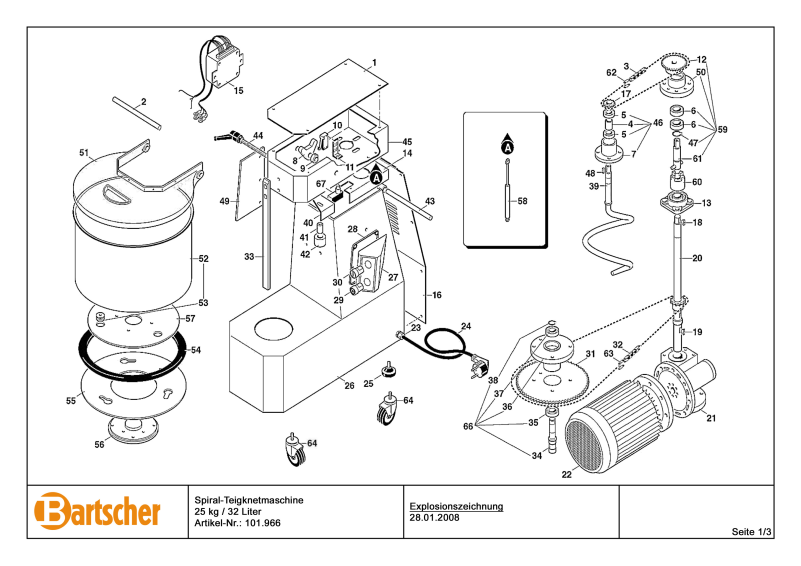

Spiral-Teigknetmaschine
25 kg / 32 Liter
Artikel-Nr.: 101.966

Ersatzteilliste

28.01.2008
Seite 2/3
