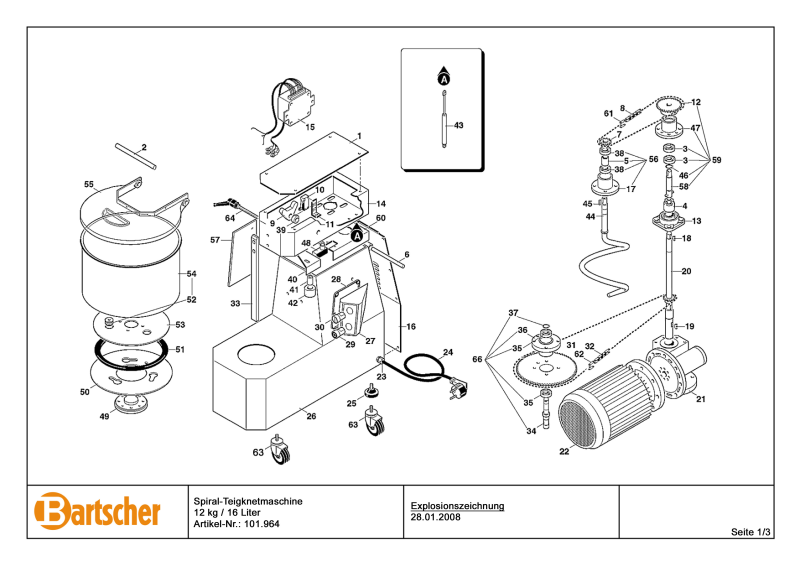

Bartscher 101964 User Manual

Pos. Artikelbeschreibung Description of item

A

A

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37

bdeckblech cover 0SL0002
Welle shaft
Lager bearing
Kupplung socket
Hülse spacer
Stift pin
Zahnrad 3/8"x7/32" Z=15 geer 3/8"x7/32" Z=15
Kette 3/8"x7/32" chain 3/8"x7/32"
Schaltnocken cam
Mikroschalter microswitch
Haltewinkel bracket
Zahnrad 3/8"x7/32" Z=29 geer 3/8"x7/32" Z=29
Lagerbock UCF204 support UCF 204
Gehäusekasten oben cover
Elektronik 230V/1Ph/50Hz electric installtion 230V/1Ph/50Hz
Abdeckungsblech cover
Lagerbock support
Passfeder 5x5x20 key 5x5x20
Spaltkeil 8x7x40 splitter 8x7x40
Welle shaft
Getriebe gear box
Motor 230V/1Ph/50Hz motor 230V/1Ph/50Hz
Zugentlastung PG11 cable clamp
Kabel 1Ph+N+Gnd electric cable
Fuss foot
Gehäuse base
Gehäuse zum Schalter "Start" und "Stop" box
Dichtung zum Gehäuse gasket
Schalter "Stop" push button "Stop"
Schalter "Start" push button "Start"
Zahnrad 8x3 Z=85 crown 8x3 Z=85
Kette 8x3 chain 8x3
Stange rod
Achse klein shaft
Lager 6203 2RS bearing 6203 2RS
Lagerbock support
Seegering Ø 17 seeger Ø 17

rtikel Nr./Item No.

0SL0021
0SL1799
0SL2524
0SL2617
0SL2624
0SL0024
0SL2680
0SL0035
0SL0885
0SL0397
0SL0030
0SL0032
0SL2568
0SA1220
0SL2845
0SL0022
A0SL0010
0SL3410
0SA1023
0SL3186
0SL3212
0SL1668
A0SL1671
0SL3352
0SL3358
0SL0937
0SL0396
0SL0807
0SL1049
0SL0057
0SL2682
0SL3370
0SL0014
0SL0015
0SL0016
0SL0017

Spiral-Teigknetmaschine
12 kg / 16 Liter
Artikel-Nr.: 101.964

Ersatzteilliste

28.01.2008
Seite 2/3
