Thermophil® INFRAsmart

R300/R301/R302

Thermophil® INFRAht

R310/R311/R312/R320

Operating Instructions

BA 040120

Contents

I - 1

Operating Instructions Radiation sensors R3XX

Table of Contents

1 System description ......................................................................................................................... 1

1.1 Properties and fields of use .................................................................................................... 1

1.2 Sensor versions ...................................................................................................................... 2

1.3 Scope of delivery .................................................................................................................... 3

1.4 Technical data ........................................................................................................................ 4

1.4.1 Thermophil® INFRAsmart .................................................................................................... 4

1.4.2 Thermophil® INFRAht .......................................................................................................... 5

2 Safety precautions .......................................................................................................................... 9

2.1 General information ................................................................................................................ 9

2.2 Installation location ................................................................................................................. 9

2.3 Electrical connection .............................................................................................................10

2.4 Operating the equipment ......................................................................................................10

3 Installation......................................................................................................................................12

3.1 Installation location ...............................................................................................................12

3.2 Measurement distance .........................................................................................................13

3.3 Aids, accessories ..................................................................................................................14

3.3.1 Safety instructions for the operation of Laserpointer type R300-101 ................................26

3.3.2 Safety instructions for the utilisation of the IR protection window Zn-Se ..........................26

type R300-136 (order no. 301954)

3.4 Connection ...........................................................................................................................27

3.4.1 R 300, R 301, R 302 ..........................................................................................................27

3.4.1.1 Connection via plug ........................................................................................................27

3.4.2 R 310, R311, R312, R320 .................................................................................................28

4 Operation........................................................................................................................................31

4.1 Measurement operation ........................................................................................................31

4.2 Configuration ........................................................................................................................31

4.2.1 Configuration with transmitter TR 41-10 ............................................................................32

4.2.1.1 Configuration process ....................................................................................................32

4.2.1.2 Parameters .....................................................................................................................33

4.2.1.3 Default values .................................................................................................................37

4.2.1.4 Configuration of the sensor data (not implemented) .....................................................38

4.2.1.5 Test mode .......................................................................................................................41

4.2.2 Configuration with the HART® modem, Type R 300-107 ..................................................42

4.2.2.1 Connecting the HART® modem ......................................................................................42

4.2.2.2 Software .........................................................................................................................43

5 Configuration PACTware ..............................................................................................................45

6 Maintenance ...................................................................................................................................57

7 HART® protocol .............................................................................................................................61

8 Additional instructions for use in dust-explosive areas ...........................................................65

HART® is a registered trademark of the HART Communication Foundation

Contents
I - 2

Operating Instructions Radiation sensors R3XX

All rights reserved. Subject to change without prior notice.
No part of this document may be reproduced, processed or distributed
in any form or by any means without the prior written permission of
BARTEC BENKE

Copyright © 2019 by

BARTEC BENKE

Schulstraße 30

D-94239 Gotteszell

Document / Version:

BA 040120

Valid from / Author:

01.04

G. Rothe

Revised at/ by:

10.12.2018

K. Hacker

Translation:

System description

1

Operating Instructions Radiation sensors R3XX

1 System description

1.1 Properties and fields of use

INFRA radiation sensors from the R 3XX series are robust, stationary
measuring sensors that are used in connection with indicating devices,
controllers or recording instruments for contact-free temperature
measurement and temperature monitoring, control or registration.

They enable you to record surface temperatures quickly and reliably even in
situations where traditional contact-based measurement is very difficult, is
only possible to a limited extent or is not actually possible at all. For
instance, they can be used on moving objects, materials with a poor thermal
conductivity, plastic materials and aggressive substances, small components
with a low thermal capacity, current-carrying elements and rails.

The radiation sensor collects the thermal radiation emitted from the
measurement object and uses a lens to concentrate it on the internal
infrared sensor. An optical filter restricts the sensor’s spectral region.

The IR sensor transforms the collected heat energy into an electric signal,
which is then processed in a microprocessor and converted into a linear
current output of 4...20 mA. The influence of the ambient temperature on the
measuring cell and electronics is compensated.

Sensors from the R3XX series are designed using the two-wire technique.
They therefore allow measured values to be transmitted so as to be immune
to interference – even over long distances – and make wiring particularly
simple. Interfering measured value peaks that occur in quick succession can
be suppressed by a variable attenuator.

The size of the measuring field recorded depends on the optics of the sensor
concerned and on the distance between the sensor and the measurement
object (see measuring field diagrams). It is possible to set the emission
factor (which is important for the radiation measurement), the transmission
factor and other parameters.

An interface with a HART® protocol is used to transmit the measured values
from the sensor and to transmit program information to the sensor.

Thanks to the features mentioned, measurement sensors from the R3XX
series can also be used in places where other measuring systems fail due to
unfavourable ambient conditions. Examples include:
Thermoforming machines for plastics
Extruders for plastics
Calendering lines for plastic films
Coating machines
Glassworking
Metalworking
Monitoring of goods in transit on conveyor belts
Monitoring of plant overheating

Properties

Fields of use

System description
2

Operating Instructions Radiation sensors R3XX

1.2 Sensor versions

The radiation sensors are delivered both in a compact form, with a built-in
measuring amplifier (Thermophil® INFRAsmart), and in a two-part form, with
a small radiation sensor and a separate measuring amplifier (Thermophil®
INFRAht). In this case, the radiation sensors and measuring amplifiers are
connected using a heat-resistant cable. The measuring amplifiers available
are types TR 40-10 (in a die-cast aluminium housing) and TR 41-10 (in a
plastic housing, with a display and keypad).

In order to protect the sensor against dust, vapours and other environmental
influences, its measurement opening is sealed with a solid disc or lens. It
can be cleaned without difficulty if it is steamed up or damaged. In the case
of a highly polluted atmosphere it is a good idea to use an air nozzle (see
accessories), which will largely keep the measurement opening clear by
continuously cleaning the air. For the event that the sensor is used at fairly
high ambient temperatures, special cooling jackets with a cooling water
connection are available.

Thermophil® INFRAsmart

Type R300 Sensor with cone 1.7:1, fitted measuring amplifier in IP 65

stainless steel housing

Type R301 Sensor with lens 20:1, fitted measuring amplifier in IP 65

stainless steel housing

Type R302 Sensor with lens 33:1, fitted measuring amplifier in IP 65

stainless steel housing

R 300 / R301

R 302

System description

3

Operating Instructions Radiation sensors R3XX

Thermophil® INFRAht

Type R310 Sensor with cone 1.7:1, separate measuring amplifier

(TR 41-10 or TR 40-10)

Type R311 Sensor with lens 20:1, separate measuring amplifier

(TR 41-10 or TR 40-10)

Type R312 Sensor with lens 33:1, separate measuring amplifier

(TR 41-10 or TR 40-10)

Type R320 Sensor with cone 1.7:1, separate measuring amplifier

(TR 41-10 or TR 40-10)
(Same as R 310, but has the design of the old Type R22)

1.3 Scope of delivery

 Sensor, type as ordered, including measuring amplifier
 One Operating Instructions manual
 Work inspection specification
 Accessories as ordered

R 310 / R 311

R 312

R 320

TR 41-10

TR 40-10

System description
4

Operating Instructions Radiation sensors R3XX

1.4 Technical data

1.4.1 Thermophil® INFRAsmart

Measuring range

Overall

max. 0...+ 400 °C with R 300

max. 0...+ 2000 °C with R 301/R 302

Spectral response

8 ...14 µm; 2 ... 2,7µm; 4,9 ... 5,5µm; 7,9µm (R300 only)

Emission factor

0.1 to 1, settable externally via the HART® interface

Measuring field

Depending on distance (see “Distance ratio“)

Interface

HART® protocol (FSK BELL 202, 1,2 kb/s)

Functions configurable via HART®-Interface see page 6 (Transmitter)

Output (current interface)

Output signal

4...20 mA, linear

Permissible load

 500  for standard version/UH = 24 V

Intrinsically safe circuit Ex ib IIC

max. input voltage Ui = 28 V
max. input current Ii = 105 mA
max. power input Pi = 1,0 W
max. internal capacity Ci = 12 nF
max. internal inductance Li = 0,2 mH

Regulatory information

Equipment Group / - Category

II 2 G / II 2 D

Type of Ex-Protection

Ex ib IIC T6 … T5 Gb / Ex ib IIIC T

100

105°C / 160°C Db

Certificates

IBExU 06 ATEX 1089, IECEx IBE 17.0033

Standards

IEC / EN 60079-0, IEC / EN 60079-11

Accuracy

Measuring accuracy

 1 % of measuring range (at 23 °C and for emission factor = 1)

Temperature sensitivity

 0.03 %/C°

Response time

t 0.9 = 0.2 s

Ambient conditions

Ex

Type

Ambient

Temperature

Temperature

Class

Max. Surface

Temperature

R30x

-20°C … +60°C

T6

T

100

105°C

Permissible operating
temperature

0...+70 °C

Permissible storage temperature

-10...+70 °C

Climatic class

KSF according to DIN 40040

Power supply

UH = DC 12...30 V , max. 25 mA, max. residual ripple  150 mV rms

Connection

4-pole plug connector, degree of protection IP 64

Mechanical data

Type

R 300

R 301

R 302

Housing material

Stainless steel (material no. 1.4301)

Degree of protection

IP 65

Weight

1100 g

1100 g

1460 g

System description

5

Operating Instructions Radiation sensors R3XX

Dimensions

R 300

R 301

R 302

Distance ratio

R 300

R 301

R 302

1.4.2 Thermophil® INFRAht

Sensors

Measuring range

Overall

max. 0...+400 °C with R 310/R 320

max. 0...+2000 °C with R 311/R 312

Spectral response

8 to 14 µm; 2 ... 2.7 µm; 4.9 ... 5.5 µm; 7.9 µm (R 310/R 320 only)

Measuring field

Depending on distance (see "Distance ratio")

Ambient conditions

Ex

Type

Ambient

Temperature

Temperature Class

Max. Surface

Temperature

R31x, R320

-20° C…+70°C

T5

T

100

105°C

-20° C…+125°C

T4

T

100

160°C

Permissible operating temperature

0…+ 125 °C

Permissible storage temperature

-10…+ 125 °C

Climatic class

KKF according to DIN 40040

Mechanical data

Type

R 310

R 311

R 312

R 320

Housing material

Stainless steel (material no. 1.4301)

Degree of protection

IP 64

Weight

925 g

925 g

980 g

520 g

System description
6

Operating Instructions Radiation sensors R3XX

Dimensions

R 310 / R311

R 312

R 320

Distance ratio

R 310 / R320

R 311

R 312

Transmitters

Input

For R 310, R 311, R 312, R 320

PT100 for ambient temperature (TR 41-10)

Interface

HART® protocol (FSK BELL 202, 1,2 kb/s)

Functions (configurable via HART® interface, with TR 41-10 also via keyboard)

Unit of measurement

°C or °F

Lower/upper range limits

0…2000 °C (32…3632 °F)

Emission factor

0.1…1

Transmission factor

0.1…1

Ambient temperature alarm

20...70 or 125 °C (68...158 or 257 °F), sensor-dependent

Damping

0...999.9 s

Maximum mode

0...999.9 s

Minimum mode

0...999.9 s

Fault current

3.9...21.5 mA

Fieldbus address

0...15 (0 = point to point, 1…15 = multidrop)

HART® address

0...15 (0 = point to point, 1…15 multidrop)

Display

LC-Display (TR 41-10)

Analogue output

Output signal

4...20 mA, linear

Permissible load

 500  for standard version/UH = 24 V

Accuracy

Measuring accuracy

 1 % of measuring range (at 23 °C and for ε = 1)
R 312:  1% above 50 °C object temperature, less than 50 °C  3%

Temperature sensitivity

 0.03 %/C°

System description

7

Operating Instructions Radiation sensors R3XX

Response time

t 0.9 = 0.2 s (without damping)

Power supply

UH = DC 12...30 V, max. 25 mA, residual ripple  150 mV eff.

Sensor connection

Pin

Signal

Colour

Description

1 – – 2 – – 3

R+

rt

Thermistor

4

R–

or

Thermistor

5

U–

sw

Thermopile –

6

U+

bn

Thermopile +

Ambient conditions

Permissible operating temperature

0...+ 60 °C

Permissible storage temperature

-10...+ 70 °C

Climatic class

KSF according to DIN 40040

Mechanical data

Type

TR 40-10

TR 41-10

Housing material

Die-cast aluminium

Plastic

Weight

480 g

520 g

Degree of protection

IP 65

Dimensions

TR 40-10

TR 41-10

System description
8

Operating Instructions Radiation sensors R3XX

Safety precautions

9

Operating Instructions Radiation sensors R3XX

2 Safety precautions

The equipment is produced in line with the regulations currently in force and
only leaves the factory following thorough safety tests to ensure that it is in
perfect condition. Please follow the instructions provided with regard to
installing and operating the equipment.

2.1 General information

 Please read the operating instructions prior to installing and starting up

the equipment. Should you have any questions or difficulties, please
contact our service staff.

 Provide your operating and maintenance staff with detailed instructions

and provide them with all the information they need.

 The equipment’s internal self-monitoring systems and fault reports do

not replace the safety facilities in the overall system into which the unit is
integrated.

 Make sure that all regulations relating to the operation of your system

are observed.

 The equipment must be installed and maintained by qualified technical

personnel.

 Make sure that the data and operating conditions specified by BARTEC

are observed.

 For the utilisation of the IR protection window ZnSe, please observe the

safety instructions under chapter 3.3.2.

2.2 Installation location

 When installing the equipment, make sure that you observe the

permissible climatic and temperature conditions in line with the technical
data.

 If exceptional conditions exist at the installation location, suitable

measures must be taken to protect the equipment (cover, cooling,
heating). Please also look at the accessories we offer with respect to
this.

 Install the equipment in a location that is not subject to vibrations.
 Do not choose a location near any equipment that generates

electromagnetic fields (transformers, motors, power lines, magnets,
semiconductor actuators, high-frequency generators and the like).

 The sensors should be installed in a separate location to protective

circuits wherever possible.

 If, due to the local circumstances, inductive consumers such as

contactors or solenoid valves are installed nearby, interference in the
contactor coil should be suppressed using an RC circuit. Usually, the
manufacturers of this equipment offer appropriate suppressor
accessories.

Safety precautions
10

Operating Instructions Radiation sensors R3XX

2.3 Electrical connection

 Before connecting the equipment, check whether the rated voltage

specified on the rating plate corresponds to that available at the
installation location.

 The wiring must be carried out by trained specialists.
 Lay sensor and signal lines at a sufficient distance from live lines, in

separate cable ducts wherever possible.

2.4 Operating the equipment

 Before switching on the auxiliary power, make sure that the permissible

operating voltage for the equipment is not exceeded.

 For the power supply, use only a direct current voltage source with a

residual ripple below a maximum of 150 mV rms.

 It is important that the sensing head does not exceed the permissible

operating temperature during operation.

 During measurement operation, make sure that the radiation entrance

point is kept clear. The solid disc or the lens must not be clouded by
splashed water or condensed water and must not have any deposits of
dirt.

 In the event of faults, first determine whether you can rectify them

yourself. If this is not possible, switch off the equipment and send it to
BARTEC for repair, together with a precise specification of the fault.

 If you discover any signs of damage or destruction to any parts of the

equipment or if safe operation of the equipment cannot be guaranteed
for any other reason, do not start up the equipment or, if already in
operation, shut it down immediately. Notify the local service centre.
Make sure that the equipment cannot be switched on again until the
damage has been remedied.

 Contact our service specialists if you discover any faults or defects

during operation or if you have cause to doubt whether the equipment is
working properly.

Safety precautions

11

Operating Instructions Radiation sensors R3XX

Exclusion of liability

BARTEC BENKE GmbH and its vicarious agents only assume liability in the
case of deliberate acts or gross negligence. The extent of liability in such a
case is limited to the value of the order placed with BARTEC BENKE
GmbH.
BARTEC BENKE accepts no liability for any damage resulting from non­observance of the safety regulations or from non-compliance with the
operating instructions or operating conditions. Secondary damage is
excluded from the liability.

EU-Declaration of
conformity

We,BARTEC BENKE GmbH, Schulstraße 30, D-94239 Gotteszell,hereby
declare, that this product is in compliance with the essential requirements of
the relevant EU-Directives

The EU-Declaration of conformity for this product can be obtained from
BARTEC BENKE GmbH, Schulstraße 30, D-94239 Gotteszell,

[e-mail]

Installation
12

Operating Instructions Radiation sensors R3XX

3 Installation

3.1 Installation location

 The ambient conditions at the installation location must be within the

permissible temperature and climate ranges. The corresponding data
can be found in Section 1.4 Technical data.

 The installation location should be free from vibrations and free of

electromagnetic interference fields. Please also refer to the notes in
Section 2 with respect to this.

 When choosing an installation location, please make sure that the

permissible operating temperature for the particular sensor (Sensor
housing temperature) is adhered to (see 1.4).

 In the case of a fairly high ambient

temperature, position the sensor in such a
way that it is not exposed to heat
convection from the measurement object
(example 1).

 If such an arrangement is not possible, the sensor must be operated

with an additional cooling jacket (example 2). The cooling jackets are
fitted with a mounting flange (see accessories).

In order to prevent inadmissible heating or damage to the sensor in the
event that the supply of cooling water is cut off, it is also necessary to
monitor the water circulation. BARTEC offers suitable flow control
instruments.

Note:

The Thermophil® INFRAht radiation sensors must be positioned in such a
way that the cable between the radiation sensor and measuring amplifier is
not moved during measurement.

Example 1

W

Water supply

Sensor

Heat sink

Example 2

Installation

13

Operating Instructions Radiation sensors R3XX

3.2 Measurement distance

The laws of optics must be taken into account when measuring radiation.
Depending on the distance between the radiation sensors and the
measurement object there will be certain minimum measuring field
diameters – see distance ratio (technical data).
The sensor type that is needed in each case, with the appropriate focal
length, must be determined in accordance with the required measuring field
size at the measurement object and the possible measurement distance. In
order to avoid incorrect measurements, the measurement object must fill the
entire field of view of the sensor lens. The lens field of view must therefore
be no larger than the measurement object itself.

The temperature of a plastic plate with the dimensions 220 x 400 mm is to
be measured using a Type R 300 radiation sensor.
At what distance must the sensor be mounted?

The smallest edge of the plastic plate measures 220 mm in length. For a
measuring field diameter of 220 mm, the measuring field diagram for Type R
300 sensors (see also 1.4.1) gives rise to a measurement distance of
approximately 380 mm.
Therefore, the distance between the sensor and the measurement object
should be no more than 380 mm.

Example

Installation
14

Operating Instructions Radiation sensors R3XX

3.3 Aids, accessories

Depending on the installation conditions and the ambient conditions where
the sensor is used, various installation aids and accessories can be used.
The following overview lists the accessories that can be delivered. Please
feel free to request assistance from BARTEC where required.

Designation

Type

Dimensions

For sensor

Order

No.

R300

R301

R302

R310

R311

R312

R320

Adapter replacing R20 with R302

R 300-100



216298

Laser pointer

R 300-101

    



216299

Cooling jacket for pyrometer

R 300-102

    



216711

Installation

15

Operating Instructions Radiation sensors R3XX

Designation

Type

Dimensions

For sensor

Order

No.

R300

R301

R302

R310

R311

R312

R320

Cooling jacket/air nozzle
Combined, series B

WN 268



U03012268

Fixed bracket

R 300-105

    



216975

Adjustable bracket

R 300-106

    



216976

RS 232/HART®modem incl.
software

R 300-107

      

220930

Installation
16

Operating Instructions Radiation sensors R3XX

Designation

Type

Dimensions

For sensor

Order

No.

R300

R301

R302

R310

R311

R312

R320

Test set for testing pyrometers
R30x

R300-110

  

241933

Sensor bracket with air flush

R 300-111



 



242754

Mounting plate for TR40-10

R300-112

  



245891

Sensor bracket with air flush
(plastics)

R300-113



 



246173

Sensor bracket with air flush
(without cable protection)

R300-114

    



247210

Sensor bracket with air flush
plastics (without cable
protection)

R300-115

    



247802

Installation

17

Operating Instructions Radiation sensors R3XX

Designation

Type

Dimensions

For Sensor

Order

No.

R300

R301

R302

R310

R311

R312

R320

Pyrometer slewing device

R300-116





277319

Connecting kit for pyrometer
slewing device

R300-117

R300-116

277409

Cooling water connecting kit for
pyrometer

R300-132

R300-116

286185

Pyrometer protection tube
(stainless steel)

R300-118





277420

Cooling jacket for pyrometer

R300-120



279028

Installation
18

Operating Instructions Radiation sensors R3XX

Designation

Type

Dimensions

For Sensor

Order

No.

R300

R301

R302

R310

R311

R312

R320

Cooling jacket for pyrometer

R300-121



279027

Protective cap for pyrometer

R300-122

    



279030

Sensor bracket with air nozzle
(aluminium)

R300-123





279031

USB/HART-modem incl.
software

R300-125

      

281175

USB/profibus-modem incl.
software

R300-126

      

281176

Installation

19

Operating Instructions Radiation sensors R3XX

Designation

Type

Dimensions

For Sensor

Order

No.

R300

R301

R302

R310

R311

R312

R320

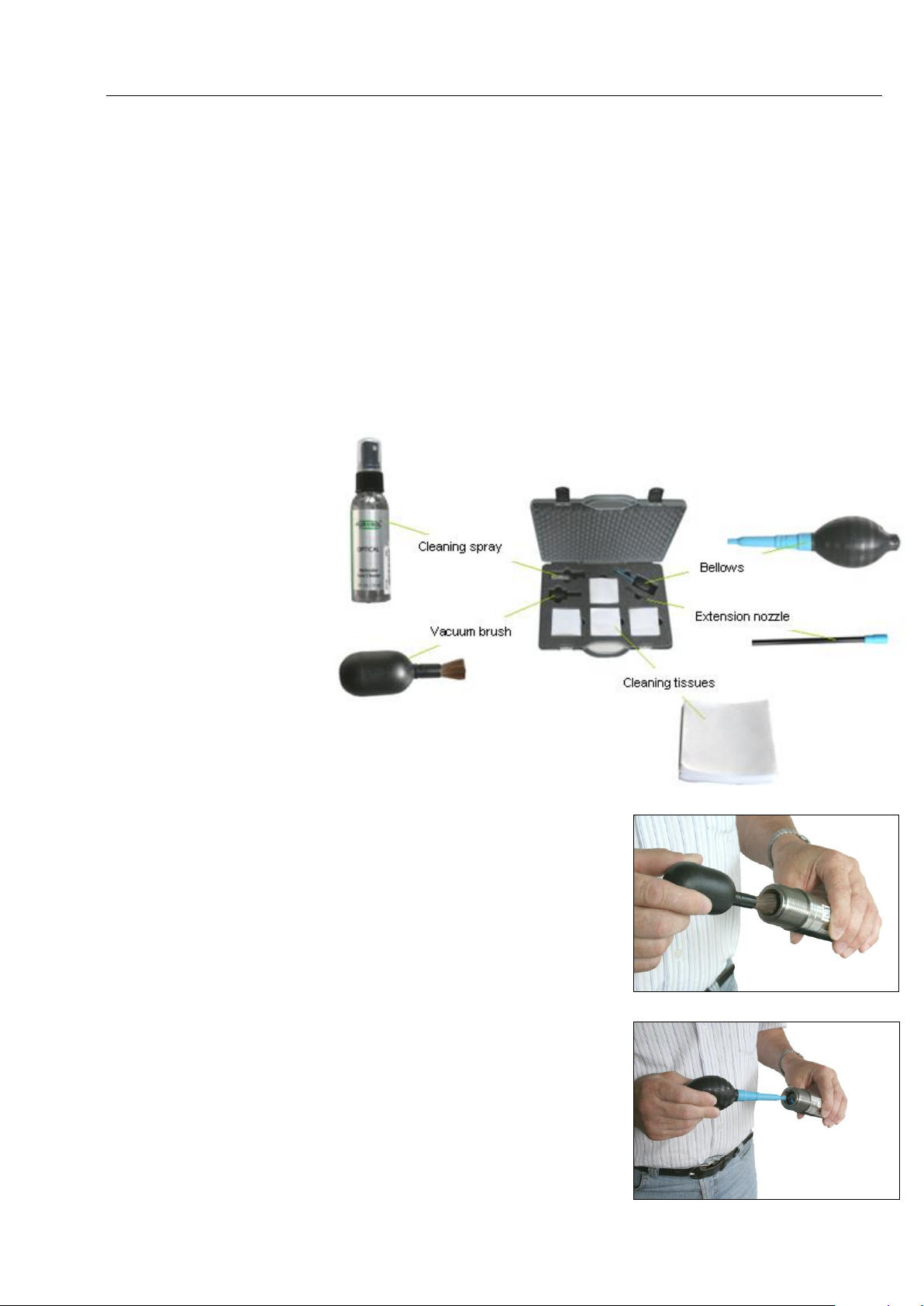

Cleaning kit for pyrometer

R300-128

      

282302

IR silicon slice with seal
e.g. together with R 300-111,
R 300-113

Transmission factor  0,8

R300-129



 



285141

Pyrometer protection tube
D = 50 mm L = 800 mm

R300-130





285875

Pyrometer protection tube
D = 50 mm L = 300 mm

R300-131





285876

IR safety glass Zn-Se
Transmission factor  0,71

R300-136



 



301954

Installation
20

Operating Instructions Radiation sensors R3XX

Bezeichnung

Typ

Abmessungen

für Sensor

Beste

ll-Nr.

R300

R301

R302

R310

R311

R312

R320

Adapter Schlauchanschluss 6 zu
8 mm

R300-137

      

307181

Anschlussrohr mit Flansch,
500 mm

R300-139





319192

Flansch F Führungsrohr R300­118/130/131

R300-140





334137

Kugelgelenk für Sensorhalterung

R300-141

    



363526

Installation

21

Operating Instructions Radiation sensors R3XX

Bezeichnung

Typ

Abmessungen

für Sensor

Beste

ll-Nr.

R300

R301

R302

R310

R311

R312

R320

Digitalanzeige 830R mit Kabel
R3x

R300-142

      

307181

Adapter 1 ½“ AG / M38x1,5 IG

R300-143

    



408812

Mounting nut

R 300­00-024

    



216989

Connection coupling 4-pole,
(axial)

  

Installation
22

Operating Instructions Radiation sensors R3XX

Bezeichnung

Typ

Abmessungen

für Sensor

Beste

ll-Nr.

R300

R301

R302

R310

R311

R312

R320

U233085

Connection coupling
4-pole, (90°)

  

U266182

Power supply unit 230 V, output
24 V DC in rail-mounting housing

5906-3

      

U8901159063

Power supply unit 230 V, output
24 V DC in surface housing

5906-4

      

U8901159064

Installation

23

Operating Instructions Radiation sensors R3XX

Designation

Type

Dimensions

For Sensor

Order

No.

R300

R301

R302

R310

R311

R312

R320

Extension cable, 4 pole

connector and 4 pole clip

WN 293-5

  

Connection cable, open ends

WN 293-6

  

3 m = U01110322936
6 m = U01110622936
10 m = U01191022936

15 m = 246691
20 m = 290525
30 m = 246596
40 m = 246597
50 m = 246598
60 m = 246600
70 m = 246601

Connection cable Ex,
open ends

WN 293-8

  

3 m = 245550
6 m = 245551
10 m = 245552
15 m = 245546
20 m = 280130
30 m = 288916
60 m = 288933
100 m = 286613

Connection cable R3x,
flexible hose 3 m,

WN 293-9

  

5 m = 314166
8 m = U01110822935

Installation
24

Operating Instructions Radiation sensors R3XX

Designation

Type

Dimensions

For Sensor

Order

No.

R300

R301

R302

R310

R311

R312

R320

open ends

6 m = 286186
10 m = 286188
15 m = 286189
30 m = 286190
40 m = 286191
50 m = 286192
60 m = 286193
70 m = 286194

Installation

25

Operating Instructions Radiation sensors R3XX

Designation

Type

Dimensions

For Sensor

Order

No.

R300

R301

R302

R310

R311

R312

R320

Connection cable
Connection coupling 90°

WN 293-10

  

35 m = 294041

Connection cable Ex
Connection coupling 90°

WN 293-11

  

10 m = 302906
60 m = 290261

Installation
26

Operating Instructions Radiation sensors R3XX

3.3.1 Safety instructions for the operation of
Laserpointer type R300-101

To operate the Laserpointer type R300-101, please keep in mind the
following instructions:

The beam emitted by this LASER is strongly bundled.

Caution:

Do not look into the laser beam or at direct reflexes of reflecting or polished
surfaces - not even by means of optical instruments.

The working area has to be protected by suitable protective shields which
prevent the laser beam from leaving the protected area in an uncontrolled
way.

After the laser beam has crossed the setting range, it has to be blocked and
absorbed by means of a suitable shield.
Do NOT lead the laser beam at eye level.

Attach LASER warning signs at clearly visible locations next to all accesses
to the laser working area.

Caution:

Use of laser protective goggles is mandatory if you work with an open laser
beam.
The device should only be operated by persons who know these safety
instructions and are familiar with complying to them.

3.3.2 Safety instructions for the utilisation of
the IR protection window Zn-Se type
R300-136 (order no. 301954)

For the utilisation of the IR protection window ZnSe, observe the following
basic instructions:

 The IR protection window contains zinc selenide (ZnSe).
 Avoid any damage to the protection window.
 Damaged filters can cause dust formation. Inhaling or swallowing dust or

splints can cause intoxication. Call a doctor in case of emergency.

 For removing broken protection windows, wear gloves and in urgent

cases a respiratory protection mask and protection goggles.

 Wear gloves to clean the window.
 The protection window should only be replaced by persons familiar with

the safety instructions and observing them.

Installation

27

Operating Instructions Radiation sensors R3XX

3.4 Connection

3.4.1 R 300, R 301, R 302

The sensors can be connected either using a 4-pole plug or using a
connected cable with free ends.

3.4.1.1 Connection via plug

Note:

When connecting the sensors, make sure that the maximal permissible load
at the sensor output is not exceeded.
The combined resistance of the connected units and cables must not
exceed the maximum value shown in the diagram. This value depends on
the auxiliary power used.

At a supply voltage of 24 V d.c., the maximum permissible load is 500  .

Plug connector

3 2 4

1

External view /
connector soldering side

R 300 /301 /302







Power

1

2

Evaluator

4...20 mA

+

+ – Shield

Example

Max. permissible load (Ω)

Auxiliary power (DC)

0 100 200 300 400 500 600 700 800

15 V

20 V

25 V

30 V

Installation
28

Operating Instructions Radiation sensors R3XX

3.4.2 R 310, R311, R312, R320

The sensors are connected to the terminals of the measuring amplifier, Type
TR 40-10 or TR 41-10.

Sensor connection

Pin

Signal

Colour

1
2
3
4
5
6

-

­R+
R­U­U+

-

­red
orange
black
brown

Disc

Shield cone

Shield,
14 mm, stripped

Cable gland

4...20 mA

– + Shield

Power

Connection to TR 41-10

Installation

29

Operating Instructions Radiation sensors R3XX

Connection to TR 40-10

Sensor connection

Pin

Signal

Colour

1
2
3
4
5
6

-

­R+
R­U­U+

-

­red
orange
black
brown

Disc

Shield

Shield,
14 mm, stripped

Cable gland

4...20 mA

– + Shield

Operation

31

Operating Instructions Radiation sensors R3XX

4 Operation

4.1 Measurement operation

Once the auxiliary power has been switched on, measurement operation can
be commenced.
Further operation depends on what the sensors are being used for. Please
consult the operating instructions for the connected equipment (e.g. display,
recording instruments, controllers).

Please heed the following during measurement operation:
 The sensor’s measurement opening must be clean. Dust deposits or

moisture may falsify the measured values and must therefore be
removed.

 Precision specifications are only valid for the measurement range

specified on the sensor.

 The radiation sensors must not be subjected to any radiation that is far

above the largest measurement range value for the series in question
(approximately 30 %). It is important that the radiation sensor does not
exceed the permissible operating temperature.

 Please also heed the safety precautions in Section 2.

Error messages

The following error messages can be displayed:

Above upper measurement range limit (“Messbereichsüberschreitung”)

This message is displayed if the value exceeds the preset measurement
range by more than 1 %.

(measurement range = upper range limit – lower range limit)

Below lower measurement range limit (”Messbereichsunterschreitung”)

This message is displayed if the value falls short of the preset measurement
range by more than 1 %.

(measurement range = upper range limit – lower range limit)

4.2 Configuration

Under various operating conditions it is necessary to select or change
certain settings. Configuration is carried out using an interface with a HART®
protocol.
A HART® programming device or a suitable PC software solution needs to
be used in order to change parameters. The HART® commands are
described in Section 7.
Sensors R 310, R 311, R 312 and R 320 can also be configured using
measured value transmitter TR 41-10.

ERR H

ERR L

Operation
32

Operating Instructions Radiation sensors R3XX

4.2.1 Configuration with transmitter TR 41-10

Sensors R 310, R 311, R 312 and R 320 can be configured using a
connected transmitter, Type TR 41-10.

4.2.1.1 Configuration process
Starting configuration mode

In order to start configuration, press the mode button  .

Selecting parameters

Each time you press the mode button  , you branch to the next parameter.

Changing parameters

You can use the  and  buttons to increase or decrease the entered
values one value at a time. You can also hold down the respective button,
with the result that the value will change slowly to begin with and then speed
up. The value will be saved when you proceed to the next parameter using
the mode button  .

Quitting configuration mode

You quit configuration mode when you press the mode button  for the final
parameter. Measurement operation will be continued with the changed
parameters.
If no button is pressed for around 20s during configuration mode, the system
will automatically return to measurement operation. All changes made to
parameters up to then will also be adopted.

Mode button

Increase value

Decrease value

Operation

33

Operating Instructions Radiation sensors R3XX

4.2.1.2 Parameters

The following overview lists the configurable parameters in the order in
which they appear on the display when you press the mode button  .

Password prompt

Before you can make any changes to the following parameters, you must
enter the valid password here. The password is changed with the last
parameter in configuration mode.

Display

C

Minimum value

0

Maximum value

1999

Increment

1

Default value

0

Emission factor

The emission factor is a measure of the ability of materials to absorb or emit
infrared radiation.

The value can be between 0.1 and 1.0. A “full radiator”, for instance, has an

emission factor of 1.0, whereas a mirror has an emission factor of 0.1.
An emission factor that is set too high will cause the temperature display to

be too low.

Display

E

Minimum value

0.100

Maximum value

1.000

Increment

0.001

Default value

0.950

Damping

(Calculating the average)
A time over which an average is to be calculated is set here. Each
temperature value that is measured is stored in the memory. Once the fixed
time has passed, the system calculates the average over all values located
in the memory. This damps the temperature display.
The time is set in seconds.

Display

A

Minimum value

0.0

Maximum value

999.9

Increment

0.1

Default value

0.3

C 0

E 1.000

A 0.0

Operation
34

Operating Instructions Radiation sensors R3XX

Maximum mode

A “hold time” for maximum values is set here. The maximum value that has

occurred in each case is held for the set time and output. If a new maximum
value occurs during the hold time, the hold time will begin all over again.
The time is set in seconds.

Display

P

Minimum value

0.0

Maximum value

999.9

Increment

0.1

Default value

0.0

Minimum mode

A “hold time” for minimum values is set here. The minimum value that has
occurred in each case is held for the set time and output. If a new minimum
value occurs during the hold time, the hold time will begin all over again.
The time is set in seconds.

Display

M

Minimum value

0.0

Maximum value

999.9

Increment

0.1

Default value

0.0

Example

Example

th Hold time
Actual temperature pattern
Temperature pattern that is output

P 0.0

M 0.0

Operation

35

Operating Instructions Radiation sensors R3XX

Lower measurement range limit

This is where you set the value for the lower measurement range limit. The
value defined corresponds to an output signal of 4 mA.

Display

L

Minimum value

0 (corresponds to 32
°F)

Maximum value

1250 (corresponds to
2282 °F)

Increment

1 °C (1 °F)

Default value

Corresponds to the sensor
measurement range

Upper measurement range limit

This is where you set the value for the upper measurement range limit. The
value defined corresponds to an output signal of 20 mA.

Display

U

Minimum value

0 (corresponds to 32
°F)

Maximum value

1250 (corresponds to
2282 °F)

Increment

1 °C (1 °F)

Default value

Corresponds to the sensor
measurement range

If you define the lower measurement range limit as being a temperature
higher than that for the upper measurement range limit, an inverse
characteristic curve will be generated for the analogue output.

Transmission factor

The transmission factor specifies the percentage of radiation that passes an
additional protective window.
Examples 1.000 = 100% transmission (no protective window)

0.800 = 80% transmission

Display

T

Minimum value

0.000

Maximum value

1.000

Increment

0.001

Default value

1.000

To obtain the transmission factor, please refer to the documentation for the
protective window (see also page A-70).

L 0

U 0

T 1.000

Operation
36

Operating Instructions Radiation sensors R3XX

Ambient temperature alarm

As soon as the inside temperature of the radiation sensor exceeds the
defined value, the temperature display will start flashing and the analogue
output will switch to the programmed state (see fault current).

Display

S

Minimum value

20.0 (corresponds to 68 °F)

Maximum value

70.0 or 125.0
(corresponds to 158.0 or 257.0°F)

Increment

0.1 °C (0.1 °F)

Default value

Sensor-related: 65.0 or 125.0 °C
(corresponds to 149.0 or 257.0 °F)

Fault current

This is where you define what current is to be output via the analogue output
in the event of a fault.
The current is set in mA.

Display

ER

Minimum value

3.9

Maximum value

21.5

Increment

0.1

Default value

21.0

Unit of measurement

You can choose °C or °F as the unit of measurement for the temperature
display.

Display

D

Minimum value

°C

Maximum value

°F

Default value

°C

HART® address

You can operate up to 15 transmitters in parallel (multidrop mode). Each
sensor (transmitter) then requires an individual address between 1 and 15.
The address must be set to 0 if you want to operate the transmitter in
standalone operation (point-to-point operation).

Display

HA

Minimum value

0

Maximum value

15

Increment

1

Default value

0

S 65.0

ER 21.0

D °C

HA 0

Operation

37

Operating Instructions Radiation sensors R3XX

Changing the password

Once you have started configuration mode and entered the valid password,
this menu for changing the password will appear.

Display

C

Minimum value

0

Maximum value

1999

Increment

1

Default value

Current password

4.2.1.3 Default values

You can reset the equipment to the factory settings and delete the
password.

Starting default value mode

Keep the  button pressed down and additionally press the  button for at
least 2 seconds. Then let go of the two buttons. The display should then
appear as in the screenshot on the left.

Setting default values

After starting default value mode, press the  button. The display will then
appear as in the screenshot on the left.
You can use the  and  buttons to increase or decrease the value
displayed.
Set one of the following values:
32  The factory settings will be used until the equipment is switched off.
34  The factory settings will be used permanently.

Display

ORG

Minimum value

0

Maximum value

99

Increment

1

Default value

0

Deleting the password

After starting default value mode, press the  button twice. The display will
then appear as in the screenshot on the left.
You can use the  and  buttons to increase or decrease the value
displayed.
Set the following value:
32  The user password (code) will be set to 0.

Display

CODE

Minimum value

0

Maximum value

99

Increment

1

Default value

0

C 0

ORG 0

CODE 0

DEFAULT

Operation
38

Operating Instructions Radiation sensors R3XX

4.2.1.4 Configuration of the sensor data

(not implemented)

After you have exchanged a sensor you need to enter the associated
configuration data. You can find the data in the relevant sensor
documentation.
Before you can enter values you must first enter the valid password (see
Section 4.2.1.2, Password prompt).

Starting sensor configuration

Keep the  and  buttons pressed down and additionally press the 
button for at least 2 seconds. Then let go of the  first. The display should
then appear as in the screenshot on the left.

Selecting a service register

Each time you press the mode button  , you branch to the next service
register. The service register in question will appear on the display (S0…S9).

Changing parameters

You can use the  and  buttons to increase or decrease the entered
values one value at a time. You can also hold down the respective button,
with the result that the value will change slowly to begin with and then speed
up. The value will be saved when you proceed to the next register using the
mode button  .

Quitting sensor configuration

You quit sensor configuration when you press the mode button  for the
final service register – assuming that no error message is displayed (see
page 40 ).
If no button is pressed for around 20s during sensor configuration, the
system will automatically end configuration and return to measurement
operation.

Meaning of the service registers

Service register 0

Display

S0

Minimum value

0

Maximum value

65535

Increment

1

Default value

0

Meaning

Configuration word

Service register 1

Display

S1

Minimum value

0

Maximum value

65535

Increment

1

Default value

0

Meaning

Thermistor offset

SERVICE

S0 0

Operation

39

Operating Instructions Radiation sensors R3XX

Service register 2

Display

S2

Minimum value

0

Maximum value

65535

Increment

1

Default value

0

Meaning

Thermistor gradient

Service register 3

Display

S3

Minimum value

0

Maximum value

65535

Increment

1

Default value

0

Meaning

Used

Service register 4

Display

S4

Minimum value

0

Maximum value

65535

Increment

1

Default value

0

Meaning

Cell gradient (part 1)

Service register 5

Display

S5

Minimum value

0

Maximum value

65535

Increment

1

Default value

0

Meaning

Cell gradient (part 2)

Service register 6

Display

S6

Minimum value

0

Maximum value

65535

Increment

1

Default value

0

Meaning

Used

Service register 7

Display

S7

Minimum value

0

Maximum value

65535

Increment

1

Default value

0

Meaning

Used

Operation
40

Operating Instructions Radiation sensors R3XX

Service register 8

Display

S8

Minimum value

0

Maximum value

65535

Increment

1

Default value

0

Meaning

Reserve

Service register 9

Display

S9

Minimum value

0

Maximum value

65535

Increment

1

Default value

0

Meaning

Checksum

Error messages

If any errors have occurred, they will be displayed once you have left the last
service register (S9). Pressing the mode button  takes you back to the
beginning of the menu (S0). If a checksum error has occurred, you can
make any necessary corrections in the service registers.
If an error is reported, you can only quit the sensor configuration by not
pressing any button for around 20 seconds or by switching off the unit.
The following messages may be output:

Incorrect checksum Check the settings in the service registers and

change them as appropriate.

EEPROM access incorrect Please contact your service centre.

ERR CHK1

ERR CHK2

Operation

41

Operating Instructions Radiation sensors R3XX

4.2.1.5 Test mode

In test mode, you can test downstream equipment by outputting defined
current values.

Starting test mode

Keep the  button pressed down and additionally press the  button for at
least 2 seconds. Then let go of the two buttons. The display should then
appear as in the screenshot on the left.

Selecting a test

Each time you press the mode button  , you branch to the next test. The
test in question will appear on the display (T1…T3).

Quitting test mode

You quit test mode when you press the mode button  for the final test
(T3).
If no button is pressed for around 20s during test mode, the system will
automatically quit the mode and return to measurement operation.

Outputting current test values

After starting test value mode, press the  button. The display will then
appear as in the screenshot on the left.
You can use the  and  buttons to select the current value to be output.
You can set the following values:

Display

Test value

T 1 I-OUT

Current measured value

T 1 4 MA

4 mA

T 1 5 MA

5 mA

T 1 10 MA

10 mA

T 1 12 MA

12 mA

T 1 16 MA

16 mA

T 1 20 MA

20 mA

T 1 21 MA

21 mA

Displaying the infrared sensor temperature

After starting test value mode, press the  button twice. The display will
then appear something like in the screenshot on the left (example).
The last temperature determined will be displayed in °C.

Displaying the infrared sensor voltage

After starting test value mode, press the  button three times. The display
will then appear something like in the screenshot on the left (example).
The last voltage determined will be displayed in mV (temperature­compensated value).

TEST

T1 I-OUT

T2 25.2 OC

T3 22.1234

Operation
42

Operating Instructions Radiation sensors R3XX

4.2.2 Configuration with the HART® modem,
Type R 300-107

In the case of radiation sensors not operated with a transmitter that has a
display, configuration is carried out using the R 300-107 HART® modem and
a PC software solution that is delivered with the modem.

4.2.2.1 Connecting the HART® modem

Connect the modem as described in the documentation provided (see
diagram).

Operation

43

Operating Instructions Radiation sensors R3XX

4.2.2.2 Software

 Install the HART infrared configuration software that is delivered together

with the HART® modem.
 Start the HART infrared configuration software.
Set the interface parameters as shown in the diagram below, choosing the

interface that is connected to the HART® modem.

 Click the [Verbindung_aufbauen] (Set up connection) button.

Operation
44

Operating Instructions Radiation sensors R3XX

Changing parameters

Once the connection has been set up, the parameters of the connected
HART® unit will be read and displayed.

You can enter the configuration data in the “Temperatur Prozess

Einstellungen” (temperature process settings) section (see Section 4.2.1.2).

Configuration PACTware

45

Operating Instructions Radiation sensors R3XX

5 Configuration PACTware

The following installation was carried out on a system running Windows XP
Professional Version 2002 SP3.

Installation of the INFRA DTM driver for
PACTware

1. Insert the supplied installation CD-ROM for the R 300 software into the

CD-ROM drive.

2. Cancel the installation of the HART Infraconfigurator, as it is not needed

in conjunction with the DTM driver.

3. Start the setup programme (setup.exe) for INFRA DTM.

4. The installation commences → follow the on-screen instructions.

Configuration PACTware
46

Operating Instructions Radiation sensors R3XX

5. Installation steps:

Configuration PACTware

47

Operating Instructions Radiation sensors R3XX

Installing the isHRT USB interface driver

1. Please refer to the isHRT USB user manual.

2. The driver software must be installed before connecting the device!

3. Insert the supplied installation CD-ROM for the isHRT driver software

into the CD-ROM drive.

4. If the installation does not start automatically, call up the setup

programme for isHRT Multidriver.

5. The installation commences → follow the on-screen instructions:

Configuration PACTware
48

Operating Instructions Radiation sensors R3XX

6. Installation steps:

Configuration PACTware

49

Operating Instructions Radiation sensors R3XX

Installing the isHRT FDT driver for PACT­ware

1. Please refer to the isHRT FDT user manual.

2. Insert the supplied installation CD-ROM for the isHRT driver software

into the CD-ROM drive.

3. Start the setup programme for isHRT FDT Setup.

4. The installation commences → follow the on-screen instructions.

5. Installation steps:

Configuration PACTware
50

Operating Instructions Radiation sensors R3XX

Enter the CD code supplied:
→ Supply your company information
(e.g. company, city)
→ CD code as supplied
(e.g. 1111-2222-AAAA-3333-BB44)

Configuration PACTware

51

Operating Instructions Radiation sensors R3XX

Installing PACTware

1. Insert the supplied installation CD-ROM for the R 300 software into the

CD-ROM drive.

2. Cancel the installation of the HART Infraconfigurator, as it is not needed

in conjunction with PACTware.

3. Decompress the installation archive pw35ics.zip. Start the setup

programme (setup.exe) for PACTware. Where required, download the
current PACTware version from www.pactware.com.

Configuration PACTware
52

Operating Instructions Radiation sensors R3XX

4. The installation commences → follow the on-screen instructions.
Several programme parts are installed.

5. Installation steps:

Configuration PACTware

53

Operating Instructions Radiation sensors R3XX

Configuring the isHRT USB modem

1. You can now connect the isHRT USB modem to your PC.

2. Windows will now install the driver modem. Follow the on-screen
instructions. The following should be displayed on-screen, once
installation has concluded successfully.

3. You now need to configure the modem. Call up the programme isHRT
Configurator.

4. Find the modem with the function 'Search attached device'. The
modem's serial number will be displayed.

Configuration PACTware
54

Operating Instructions Radiation sensors R3XX

Configuration PACTware

1. Start the PACTware programme.

2. Call up the menu point Tools → Manage Device Catalogue. The device
entries 'BARTEC Thermophil DTM' and 'isHART USB v2' must be
displayed there. Should these entries not be visible, try locating the
driver with 'Update Device Catalogue'.

Configuration PACTware

55

Operating Instructions Radiation sensors R3XX

3. Create a new device configuration. Press OK when prompted to add
the BARTEC Thermophil DTM driver.

4. Supply the sensor with voltage and connect the HART modem to the
sensor.

Configuration PACTware
56

Operating Instructions Radiation sensors R3XX

5. Read the device data from the sensor.

Maintenance

57

Operating Instructions Radiation sensors R3XX

6 Maintenance

Cleaning kit type R300-128 for pyrometers

BARTEC pyrometers are very durable and almost maintenance-free.
Maintenance is restricted to checking and cleaning the optics. If it is cleaned
regularly and carefully, the high reliability of the measuring system can be
preserved and guaranteed.
Arranged in a stable and convenient carrying case, the cleaning kit contains
all facilities to carry out the cleaning quickly and thoroughly and without any
risk for the process and the sensor.
If required, the components contained in the kit can be re-ordered
individually.

Use the vacuum brush to remove
loose dirt and dust particles. Dust that
is raised can be sucked off by means
of the rubber bellows.

Use the bellows to remove dirt
particles even from areas of the optics
that are difficult to access for the
brush.
To access deeper areas, you can
attach an extension nozzle.

Maintenance
58

Operating Instructions Radiation sensors R3XX

The air stream can be emitted either
continuously or as a strong air blast. Change the
position of the air outlet nozzle accordingly.

Use the cleaning spray if there are deposits
or hard-sticking dirt particles.
Let the fluid take effect for a short time.

With a cleaning tissue and by applying only
little pressure, carefully wipe off the dissolved
dirt.

Attention:

Never wipe across the lens before solid particles have been removed or
dissolved.

Attention:

For the utilisation of the IR protection window ZnSe, please observe the
safety instructions under chapter 3.3.2.

Ordering details

Designation

Order number

Cleaning kit type R300-128 complete

282302

Cleaning fluid PUROSOL

282366

Cleaning tissues PREMATEX

282367

Vacuum brush

282368

Bellows

282369

Air stream

Air blast (press hard!)

Maintenance

59

Operating Instructions Radiation sensors R3XX

HART® protocol

61

Operating Instructions Radiation sensors R3XX

7 HART® protocol

The following table contains an overview of the relevant HART® commands
in HART® Version 7.

No and function

Data in the instruction

Data in the reply

0 Read unique identifier

1 Read primary variable

Byte
Range unit code
Float
PV

2 Read current and percent of range

Float
Current
Float
Percent of range

3 Read current and four (predefined)

dynamic variables

Float
Current (present output current)
byte
Range unit code
float
PV (object temperature)
byte
Range unit code
float
SV (present housing temperature
UT)
byte
Range unit code
float
TV (object temperature prior to
damping)
byte
Range unit code
float
VV (object temperature prior to
min/max value)

6 Write polling address

byte
HART-address
byte
Loop Current Mode
(not implemented)

byte
HART-address
Byte
Loop Current Mode
(not implemented)

8 Read dynamic variable

configuration

11 Read unique ident. Associated with

tag

12 Read message

13 Read tag, descriptor, date

14 Read PV sensor information

15 Read output information

16 Read final assembly number

17 Write message
Only stored in RAM!

18 Write tag, descriptor, date

19 Write final assembly number
Only stored in RAM!

HART® protocol
62

Operating Instructions Radiation sensors R3XX

No and function

Data in the instruction

Data in the reply

34 Write damping value for the PV

float
average value 0…999.9 s

float
average value 0…999.9 s

35 Write range values for the PV

byte
range unit code
float
upper range value (MBE)
float
lower range value (MBA)

byte
range unit code
float
upper range value (MBE)
float
lower range value (MBA)

38 Reset "config changed" flag

40 Enter/exit fixed current mode loop

test (fix the analogue current at
specified value

float
current
(0 = exit fixed current mode)

float
current

128 Read emissivity

float
Emissivity

129 Write emissivity

float
Emissivity 0.100…1.000

float
Emissivity

130 Read reflectivity

float
Reflectivity

131 Write reflectivity

float
Reflectivity 0.100…1.000

float
Reflectivity

132 Read transmissivity

float
Transmissivity

133 Write transmissivity

float
Transmissivity 0.100…1.000

float
Transmissivity

134 Read error current

float
error current [mA]

135 Write error current

float
error current

float
error current [mA]

136 Read max/min hold time

float
Max hold time [s]
float
Min hold time [s]

137 Write max/min hold time

float
Max hold time 0.0 … 999.9 s
float
Min hold time 0.0 … 999.9 s

float
Max hold time [s]
float
Min hold time [s]

138 Read alarm values

float
Alarm value [°C]

139 Write alarm values

float
Alarm value [°C]

float
Alarm value [°C]

144 Special command (read only)
see description

float
Value 1
float
Value 2

float
Value 1
float
Value 2

145 Special command
see description

float
Value 1
float
Value 2

float
Value 1
float
Value 2

146 Read factory settings and write

them to EEPROM

int
Password
Password [32] >only RAM
Password [34] >EEPROM

int
Success message (0 = error ; 1 =
ok)

HART® protocol

63

Operating Instructions Radiation sensors R3XX

No and function

Data in the instruction

Data in the reply

148 Read device data

long
ANr
char[15]
Type
int
Software version

Description of command 144

Command

Data in the instruction
float
float

Data in the reply
float
float

144

0
Unimportant
Display service register no. 0

0
Content of service register

144

1
Unimportant
Display service register no. 1

1
Content of service register

144

2
Unimportant
Display service register no. 2

2
Content of service register

144

3
Unimportant
Display service register no. 3

3
Content of service register

144

4
Unimportant
Display service register no. 4

4
Content of service register

144

5
Unimportant
Display service register no. 5

5
Content of service register

144

6
Unimportant
Display service register no. 6

6
Content of service register

144

7
Unimportant
Display service register no. 7

7
Content of service register

144

8
Unimportant
Display service register no. 8

8
Content of service register

144

9
Unimportant
Display service register no. 9

9
Content of service register

HART® protocol
64

Operating Instructions Radiation sensors R3XX

Description of command 145

Command

Data in the instruction
float
float

Data in the reply
float
float

145

0
Value
Describe service register no. 0

0
Content of service register

145

1
Value [0-65536]
Describe service register no. 1

1
Content of service register

145

2
Value [0-65536]
Describe service register no. 2

2
Content of service register

145

3
Value [0-65536]
Describe service register no. 3

3
Content of service register

145

4
Value [0-65536]
Describe service register no. 4

4
Content of service register

145

5
Value [0-65536]
Describe service register no. 5

5
Content of service register

145

6
Value [0-65536]
Describe service register no. 6

6
Content of service register

145

7
Value [0-65536]
Describe service register no. 7

7
Content of service register

145

8
Value [0-65536]
Describe service register no. 8

8
Content of service register

145

9
Value [0-65536]
Describe service register no. 9

9
Content of service register

Upon error:
999990 = checksum incorrect

145

10
Value [0-65536]
Check sensor data and write to EEPROM
Password [34]

10
Content of service register

Upon error:
999990 = checksum incorrect
999991 = errors when writing to
EEPROM

145

146
Value [0…65536]
Read factory settings and write them to EEPROM
Password [32] >only RAM
Password [34] >EEPROM

146
Return value

0 = error
1 = ok

Instruction

65

Operating Instructions Radiation sensors R3XX

8 Additional instructions for

use in dust-explosive areas

This supplementary chapter provides additional instructions for the safe
usage of

 Thermophil INFRAsmart type R300 / R301 / R302 and
 Thermophil



INFRAht Typ R310 / R311 / R312 / R320 with measuring

amplifier TR40-10

in potentially explosive areas.

General information

Installation

2), 3)

 The following details on the type plate have to meet the requirements of

the Ex field of application on site: device group, category, temperature
class, maximum surface temperature
(II 2 G Ex ib IIC T6…T4, II 2 D Ex ib IIC T

100

105°C / 160°C)

 Make sure there is no potentially explosive atmosphere during

installation.

 Installation and start-up may only be carried out by an appropriately

qualified electrician. The electrical connection is carried out via the
respective cable or the respective connection assembly. For
Thermophil INFRAsmart with connection via plug, only use the
appropriate connectors or connection cables which guarantee a
protection type of at least IP 64 (see “accessories”). The connectors
have to be mounted correctly.

 The intrinsically safe cables and wires leading to the device and

between the measuring head and the measuring amplifier have to be
designated as intrinsically safe. This can be done by means of an
appropriate label or by a light-blue wrapping.

 Check the compatibility of the housing sealing materials to the mediums

existing at the place of application by taking into consideration the
ambient temperature (see resistance).

 Do not open the housing with the exception of the measurement

amplifier type TR40-10!

 Avoid or, if this is not possible, safely discharge any electrostatic

charges. It may be necessary to earth the metallic housing and any
parts in the environment. If a purge air facility is used at the optical
system, pay attention to the risk of a separation of charges caused by
flowing air polluted by dust.

Instruction
66

Operating Instructions Radiation sensors R3XX

 Caution! Before working with circuits and before opening the connection

assembly within a potentially explosive area, switch off the power supply
of the circuits. Within a potentially explosive area, only the tools and
measurement equipment approved for this purpose may be used.

Maintenance

 Dust deposits should be restricted or completely prevented if possible. In

order to prevent any unusual temperature rise at the dust-proof housing
caused by excessive dust deposits, clean the housing regularly.

Ambient conditions

The maximum surface temperature or the temperature class depends on

 the type
 the maximum ambient temperature

Type

Ambient temperature

Temperatur
e class IIG

Maximum surface
temperature II D

1)

R300, R301, R302,
TR40-10

-20°C … +60°C

T6

T

100

105°C

-20°C … +70°C

T5

R310, R311; R312,
R320

-20°C … +60°C

T6

-20°C … +70°C

T5

-20°C … +125°C

T4

T

100

160°C

Safety instructions

 Potentially explosive areas are defined under atmospheric conditions

within a temperature range from –20°C to +60°C and a pressure range
between 0.8 bar and 1.1 bar. Any operation outside these limits may
result in additional restrictions.

 Make sure that any potential dust deposits do not exceed a maximum

thickness of 100 mm.

Resistance

The following plastic materials are used as sealing materials for the housing:

 polybutylenterephthalate (PBT)4)
 viton (O-rings)

Before the application, the operator has to check the resistance of these
plastic materials to the mediums existing at the place of application by also
taking into consideration the climatic ambient conditions at the place of
application (temperature, humidity..).

Instruction

67

Operating Instructions Radiation sensors R3XX

Technical data

At the (+) and (-) connections of the auxiliary energy (supply / signal circuit)
the device has to be supplied with a certified intrinsically safe Ex ib IIC circuit
or with a certified intrinsically safe EEx ia IIC circuit with the following
maximum values:

Maximum input voltage Ui 28 V
Maximum input current Ii 105 mA
Maximum input power Pi 1,0 W

The maximum internal capacity and inductance including a cable of up to 15
m are as follows:

Maximum internal capacity Ci 12 nF
Maximum internal inductance Li 0,2 mH

Note 1: The internal capacity between the intrinsically safe supply /signal
circuit and the housing is 12 nF. Any potential differences between the
intrinsically safe supply /signal circuit and the housing have to be avoided. If
required, the installation location of the device and / or the device as well as
the environment of the cable routing have to be integrated in the potential
compensation.

Note 2: The mentioned values are safety-related maximum values. The
operating values / nominal values for tension are UH = DC 12 V ... DC 24 V
and for maximal current consumption = 25 mA.

Typ

Connections of supply / signal circuit

R300,
R301,
R302

Pin 2 (-)

Pin 1(+)

blue (+)

brown (-)

TR40-10

l-(-) l+(+)

1) The details on the maximum surface temperature on the rating plate are based on measurements under

normal ambient and installation conditions. Changes of these conditions (e.g. constricted conditions of
installation) may have considerable effects on the temperature.

2) see also EN 50281-1-2

3) see also EN 60079-14

4) male / female connector of the connection assembly (auxiliary energy)

Instruction
68

Operating Instructions Radiation sensors R3XX

Annex

A - 69

Operating Instructions Radiation sensors R3XX

Annex

Emission factor

If you want to measure the temperature of an object without contact, you

need to know the emission degree “E” and include it in the measurements.

The calibration basis for IR temperature measuring units and control units is
the black body with the emission degree E = 1.

Determining the actual E factor

The emission factor depends on the material and the condition of its surface.
Theoretical values are specified in the corresponding literature.
Due to the fact that the E factor also depends on the wavelength, the
temperature and the direction in which the radiation is emitted, however, the
values listed in the table can only be used as rough approximates, for
instance for project planning. It can generally be said that raw, matt or
oxidized surfaces have a higher E factor than shiny materials.

Table showing the emission factor E at room temperature

Surface

Temperature (°C)

E factor

Asbestos slate
Bakelite varnish
Lead, oxidized
Chrome nickel, oxidized 20 Ni 25 Cr 55 Fe
Chrome nickel, oxidized 20 Ni 25 Cr
Chrome nickel, oxidized 60 Ni 12 Cr 28 Fe
Roofing felt
Ice, smooth, water layer
Ice, rough surface
Enamel, white / porcelain
Iron, oxidized
Iron, oxidized
Iron, rusty
Iron, rolling skin
Plaster
Glass
Graphite
Rubber, soft, grey
Rubber, hard
Skin, dry
Radiator varnish, oil paint
Wood (beech)
Plastics (PVC, PTFE, PE at thicknesses of 0.4 mm
or more)
Copper, oxidized
Matt varnish, e.g. 3 M 1020
Brass, oxidized
Paper
Steel, raw
Clay, baked
Brick, mortar, plaster

20
80
200
200
500
270
20
0
0
20
100
500
25
20
20

20...90
20
25
25
30
85

20...70

20...150

20...130

20...120

200...600
20

40...400
70
20

0.93

0.935

0.63

0.90

0.97

0.89

0.93

0.966

0.985

0.9...0.92

0.74

0.84

0.85

0.77

0.85

0.94

0.45

0.86...0.94

0.955

0.96

0.925

0.915

0.91

0.77

0.96

0.60

0.85

0.79...0.94

0.91

0.93

Annex
A - 70

Operating Instructions Radiation sensors R3XX

In practice, it is a good idea to verify the E factor once by taking a
comparison measurement. Various measurement procedures may be
suitable depending on the circumstances.

Drill hole method:
A hole with a depth of 2 - 3 mm is drilled into the measurement object and
an immersion measurement is taken in the hole using a low-mass sensor
(semiconductor or thermal element,  0.5 mm). Then, the temperature is
measured using a radiation sensor and the E factor is adjusted until the “true
temperature” determined beforehand is displayed.

Emission conversion:
The surface of the measurement object is covered with a substance for
which the E factor is known (e.g. black 3M "Velvet Coating 2010" matt
varnish; E 0.93).

You can also apply this method if you want to measure the surface
temperature of shiny rollers (E 0.2). Usually, it is possible to apply the
adhesive matt varnish at the edge of this isothermally heated calendar.

If this is not possible, or if the temperature distribution across the roller
length is irregular, you should use what is called an emission converter, like
the one shown in the picture. In the process, a thin black Teflon strip (E

0.95) stretched on a frame makes contact with the roller and is measured
using the radiation sensor.

Taking a measurement on a slow-running roller with the aid of the emission
converter:

Contact-based measurement:
Measure the surface temperature of the measurement object, for instance
using a low-mass thermal spiral or band element. This method cannot be
used for substances with a very poor thermal conductivity, though.

Convection measurement:
If it is not possible to take a contact-based measurement because the
measurement object is moving extremely quickly (as may be the case for a
calendar or roller, for instance), a roller sensor that works based on the
convection principle can be used. The large time constant of the sensor
must be taken into account but it does not interfere with this one-off
measurement.

Test method:
If you blacken part of a material sample (e.g. with Velvet Coating from 3M)
and then, for instance, heat it up in a climatic test cabinet, you can take a
differential measurement to establish the exact value of the emission factor.
In other words, with the E factor set to 1, you take a measurement on the
blackened part and then take a measurement on the part that has not been
blackened. By changing the E factor, you set the same display as before and
can now read the E factor on the E regulator.

Teflon strip

Annex

A - 71

Operating Instructions Radiation sensors R3XX

Transmission factor

The transmission factor specifies the percentage of radiation that passes an
additional protective window.
If you do not have the details of the transmission factor for the protective
window used, you can work it out yourself.

Determining the transmission factor

 Measure the temperature of the measurement object with the

sensing head, without using the protective window. When you do
this, make sure that the correct emission factor is set.

 In the configuration, enter 1.000 as the transmission factor (see

page 35 Transmission factor).

 Use the protective window.
 Change the transmission factor in the configuration and repeat the

measurement. Compare the measured temperature with the
temperature that was measured without the protective window.

 Keep repeating this process until the temperature displayed is the

same as that for the measurement without the protective window.

Operating Instructions Radiation sensors R3XX

***
