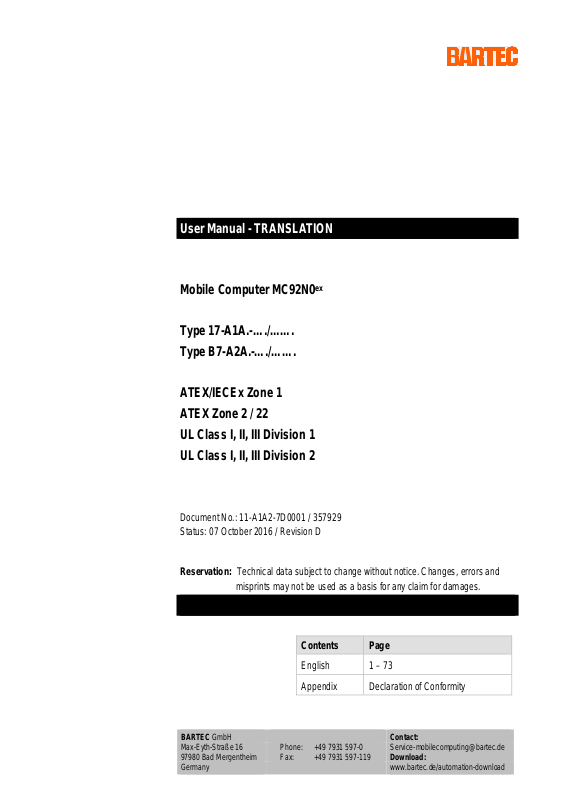

User Manual - TRANSLATION
Mobile Computer MC92N0ex
Type 17-A1A.-…./…….
Type B7-A2A.-…./…….
ATEX/IECEx Zone 1
ATEX Zone 2 / 22
UL Class I, II, III Division 1
UL Class I, II, III Division 2
Document No.: 11-A1A2-7D0001 / 357929
Status: 07 October 2016 / Revision D
Reservation: Technical data subject to change without notice. Changes, errors and
misprints may not be used as a basis for any claim for damages.
Contents Page
English 1 – 73
Appendix Declaration of Conformity
Table of Content
Mobile Computer MC92N0ex
Type 17-A1A.-………… and Type B7-A2A.-…………
Technical data subject to change without notice.
Revision D / Status 10/2016
Table of Content
Mobile Computer MC92N0ex
Type 17-A1A.-………… and Type B7-A2A.-…………
Technical data subject to change without notice.
Revision D / Status 10/2016
Mobile Computer MC92N0ex
Type 17-A1A.-………… and Type B7-A2A.-…………
1. Basic Security Information................................................................................................................... 1
1.1 Information on this User Manual ....................................................................................... 1
1.1.1 Languages ........................................................................................................................ 2
1.1.2 Changes in the document ................................................................................................. 2
1.2 Handling the product ........................................................................................................ 2
1.3 Intended use ..................................................................................................................... 2
1.3.1 Exclusive purpose ............................................................................................................ 2
1.3.2 Unintended use ................................................................................................................ 2
1.4 Duties of the operator ....................................................................................................... 3
1.5 Safety information............................................................................................................. 3
1.5.1 General safety information ............................................................................................... 3
1.6 Maintenance ..................................................................................................................... 3
1.6.1 Servicing ........................................................................................................................... 3
1.6.2 Inspection ......................................................................................................................... 3
1.6.3 Repairs ............................................................................................................................. 4
1.6.4 Commissioning ................................................................................................................. 4
1.7 Protection type, test certificate and standards .................................................................. 4
1.8 Warranty ........................................................................................................................... 4
1.9 Co-applicable documents – Set of documents ................................................................. 6
1.10 Definitions ......................................................................................................................... 6
1.11 Configuration .................................................................................................................... 7
Table of Content
2. Product Description .............................................................................................................................. 8
2.1 Definition MC92N0
2.2 Definition MC92N0
2.3 Operation ........................................................................................................................ 10
2.3.1 RFID / RuBee ................................................................................................................. 11
3. Technical Data ..................................................................................................................................... 12
3.1 Explosion protection IS ................................................................................................... 12
3.2 Explosion protection NI ................................................................................................... 13
3.3 Other applicable standards ............................................................................................. 14
3.4 Features ......................................................................................................................... 16
3.4.1 Performance features ..................................................................................................... 16
3.4.2 Physical features ............................................................................................................ 16
3.4.3 User environment ........................................................................................................... 18
3.4.4 Application development ................................................................................................ 19
3.4.5 Voice and data transmission Wireless LAN .................................................................... 20
3.4.6 Voice and data transmission Wireless PAN ................................................................... 20
3.4.7 Headset .......................................................................................................................... 20
3.4.8 Data Capture Options ..................................................................................................... 21
3.4.9 Decodable barcode types ............................................................................................... 26
3.4.10 RFID/RuBee Option ........................................................................................................ 26
3.5 Battery ............................................................................................................................ 31
3.6 External interfaces .......................................................................................................... 31
3.7 Product labelling ............................................................................................................. 32
3.8 Laser labels .................................................................................................................... 33
Technical data subject to change without notice.
Revision D / Status 10/2016
ex
-IS Version ....................................................................................... 8
ex
-NI Version ....................................................................................... 9
Table of Content
4. Transport and Storage ....................................................................................................................... 34
5. Commissioning ................................................................................................................................... 35
Mobile Computer MC92N0ex
Type 17-A1A.-………… and Type B7-A2A.-…………
4.1 Transport ........................................................................................................................ 34
4.2 Storage ........................................................................................................................... 34
5.1 Scope of delivery ............................................................................................................ 35
5.1.1 Accessories optional....................................................................................................... 35
5.2 Requirements in potentially explosive atmosphere ........................................................ 36
5.3 First steps ....................................................................................................................... 37
5.4 Structure ......................................................................................................................... 37
5.5 Handling accessories ..................................................................................................... 38
5.5.1 Insert battery .................................................................................................................. 38
5.5.2 Change keypad .............................................................................................................. 39
5.5.3 Insert SD card................................................................................................................. 42
5.5.4 Remove/replace screen protector .................................................................................. 43
5.5.5 Leather holster ............................................................................................................... 44
5.5.6 Headset .......................................................................................................................... 44
5.6 RFID/RuBee ................................................................................................................... 45
5.6.1 Versions ......................................................................................................................... 45
5.6.2 Reading range/direction ................................................................................................. 46
5.6.3 Software ......................................................................................................................... 47
5.7 Connection to a PC ........................................................................................................ 47
5.7.1 Active Sync ..................................................................................................................... 47
5.7.2 Windows Mobile Device Center ...................................................................................... 47
6. Operation ............................................................................................................................................. 48
6.1 Final inspection............................................................................................................... 48
6.2 Handling ......................................................................................................................... 48
6.3 Care and cleaning .......................................................................................................... 49
6.3.1 Care ................................................................................................................................ 49
6.3.2 Cleaning ......................................................................................................................... 49
6.3.3 Suitable materials ........................................................................................................... 50
6.4 Operation recommendations and requirements ............................................................. 51
6.4.1 Basic safety and health protection requirements ............................................................ 51
6.4.2 Instructions on the use of Wireless Devices ................................................................... 53
6.4.3 Equipment of the laser devices ...................................................................................... 54
6.4.4 LED Devices ................................................................................................................... 55
6.4.5 Restrictions to wireless devices ...................................................................................... 55
6.5 Frequency of Operation – FCC and IC ........................................................................... 56
6.6 Electromagnetic fields .................................................................................................... 58
6.6.1 International .................................................................................................................... 58
6.6.2 Handheld devices ........................................................................................................... 59
6.7 Optimise operating times/change energy settings (WEH 6.5.3 only).............................. 60
6.7.1 Automatic shutdown in the case of lengthy standby periods .......................................... 60
6.7.2 Change display backlight (increases the operating time of the battery) ......................... 60
6.7.3 Change keypad background lighting (increases the operating time of the battery) ........ 61
6.7.4 Switch off radio connections ........................................................................................... 62
6.8 Software versions ........................................................................................................... 62
6.8.1 OEM ............................................................................................................................... 62
Technical data subject to change without notice.
Revision D / Status 10/2016
Mobile Computer MC92N0ex
Type 17-A1A.-………… and Type B7-A2A.-…………
6.8.2 AKU ................................................................................................................................ 63
6.8.3 Bluetooth ........................................................................................................................ 63
6.8.4 “Fusion”software ............................................................................................................. 64
7. Faults and Troubleshooting ............................................................................................................... 65
7.1 Resetting the MC92N0
7.1.1 Windows Embedded Handheld and Windows CE Devices ............................................ 65
7.1.2 On a Windows CE 7.0 device ......................................................................................... 65
7.1.3 On a Windows Embedded Handheld 6.5.3 device ......................................................... 67
8. Service, Inspection, Repair ................................................................................................................ 69
8.1 Service intervals ............................................................................................................. 69
8.2 Inspection ....................................................................................................................... 69
8.3 Service and repair work .................................................................................................. 69
8.3.1 Information on sending in for repairs .............................................................................. 70
9. Disposal ............................................................................................................................................... 71
10. Dispatch and Packaging Information ................................................................................................ 71
ex
................................................................................................. 65
Table of Content
11. Accessories, Spare Parts ................................................................................................................... 72
12. Additional Information ........................................................................................................................ 74
12.1 Links ............................................................................................................................... 74
Appendix: Declaration of Conformity
Technical data subject to change without notice.
Revision D / Status 10/2016
- blank -
Mobile Computer MC92N0ex
The User Manual is a fixed part of the product. It must be kept in the direct vicinity of
and the installation, operating and service staff must have access to it at all
Manual contains important information, safety instr uctions and test certif icat e s
is directed at all individuals concerned with the assembly, installation,
g and servicing of the product. The applicable guidelines and standards
strict
. Accidents,
circumspect handling and
serve to illustrate the information and descriptions.
They are not necessarily completely transferrable and may differ slightly from the actual
If not avoided, death or severe injury
describes a possibly imminent danger. If not avoided, death or severe
ded, mild or slight injury
he plant or
Type 17-A1A.-………… and Type B7-A2A.-…………
1. Basic Security Information
1.1 Information on this User Manual
Read carefully before putting the devices into operation.
the device
times.
The User
which are necessary for the perfect function of the device in operation.
The User Manual
commissionin
for areas with gas and dust atmosphere (99/92/EC, EN 60079-17, EN 60079-19,
IEC 60079-17, IEC 60079-19) must be observed when conducting this work.
Basic Security Informat ion
Knowledge of the safety and warning information in this User Manual and the
compliance with it is essential for safe installation and commissioning
injuries and material damage can be avoided by
systematically following the instructions.
The figures in this User Manual
execution of the device.
Safety and warning information is particularly emphasised in this User Manual and
marked by symbols.
DANGER
DANGER describes a directly imminent danger.
will be the consequence.
WARNING
WARNING
injury may be the consequence.
CAUTION
CAUTION describes a possibly imminent danger. If not avoi
may be the consequence.
ATTENTION
ATTENTION describes a possibly damaging situation. If not avoided, t
objects in its vicinity may be damaged.
Important information on effective, economic & environmenta lly compliant hand ling.
Technical data subject to change without notice.
Revision D / Status 10/2016
1/73
Basic Security Informat ion
Mobile Computer MC92N0ex
Type 17-A1A.-………… and Type B7-A2A.-…………
1.1.1 Languages
The original User Manual is written in German. All other available languages are
translations of the original User Manual.
The User Manual is available in German and English. If further languages are required,
these must be requested from BARTEC or stated on placing an order.
1.1.2 Changes in the document
BARTEC reserves the right to change the content of this document without notification.
No warranty is assumed for the correctness of the information. In cases of doubt, the
German safety instructions apply because it is not possible to rule out errors of translation
or printing. In the case of legal disputes, the “General Terms and Conditions of Business”
of the BARTEC Group also apply.
The current versions of the datasheets, operating instructions, certificates and EC
declarations of conformity can be downloaded from www.bartec-group.com
Products and Solutions in the product area “Automation technology” or may be requested
directly from BARTEC GmbH.
under
1.2 Handling the product
The product described in this User Manual left the factory in a perfect and tested state in
terms of safety. To maintain this state and to achieve a perfect and safe operation of this
product, it may only be operated in the manner described by the manufacturer. In
addition, the perfect and safe operation of this product requires correct transportation,
proper storage and careful operation.
The safe and perfect handling of the Mobil e Computer is a prerequisite for its perfect and
correct functioning.
1.3 Intended use
1.3.1 Exclusive purpose
The Mobile Computer MC92N0
purpose of the mobile recording, processing and radio transmission of data within
potentially explosive atmospheres.
It is used exclusively in combination with devices which comply with the requirements
placed on the overvoltage category I.
The admissible operating data of the device used must be considered.
ex
is a handheld piece of electrical equipment. It serves the
1.3.2 Unintended use
2/73
Any other use is unintended and may lead to damage and accidents. The manufacturer
shall not be liable for any use extending beyond the exclusive purpose.
Technical data subject to change without notice..
Revision D / Status: 10/2016
Mobile Computer MC92N0ex
Type 17-A1A.-………… and Type B7-A2A.-…………
1.4 Duties of the operator
The operator undertakes to only permit persons to work with the Mobile Computers who
are acquainted with the basic regulations on safety and accident prevention, and who
have been inducted in the use of the Mobile Computer;
have read and understood the documentation, the safety chapter and the warnings.
The operator checks that the safety and accident prev ention regulations applicable to the
respective case of use have been observed.
1.5 Safety information
1.5.1 General safety information
Do not dry wipe or clean devices in potentially explosive atmospheres!
Do not open devices in potentially explosive atmospheres.
General statutory provisions or guidelines on occupational health and safety, accident
prevention provisions and environmental protection laws must be heeded, e.g.
German Industrial Health and Safety Ordinance (BetrSichV) and nationally applicable
ordinances.
Basic Security Informat ion
1.6 Maintenance
1.6.1 Servicing
Use suitable clothing and shoes with respect to the danger of hazardous electrostatic
charges.
Avoid heat influences outside the specified temperature range.
Protect device from external influences! Do not expose device to caustic/aggressive
liquids, vapours or spray. In the case of malfunction or damaged enclosure, remove
the device immediately from the potentially explosive atmosphere and bring it to a
safe place.
The pertinent erection and operating provisions for electrical systems must be observed!
(e.g. Directive 99/92/EC, Directive 94/9/EC, BetrSichV and nationally applicable
ordinances EN 60079-14, IEC 60079-14 and the series DIN VDE 0100)!
Observe the national waste disposal regulations when disposing of the devices.
No constant servicing will be necessary if operated correctly under consideration of the
assembly instructions and environmental conditions. See Chapter “Service, inspection,
repair” in this respect.
1.6.2 Inspection
According to EN 60079-17, IEC 60079-17, EN 60079-19 and IEC 60079-19, the operator
of electrical systems in potentially explosive atmospheres is obliged to have these
inspected by an electrician to ensure correct condition.
Technical data subject to change without notice.
Revision D / Status 10/2016
3/73
Basic Security Informat ion
No changes or conversions may be made without the manufacturer’s written
those specified are used, explosion protection will no longer
be assured. It cannot be guaranteed that parts procured from other suppliers have
been designed and manufactured in conformance to safety requirements and with the
for spare parts
Mobile Computer MC92N0ex
Type 17-A1A.-………… and Type B7-A2A.-…………
1.6.3 Repairs
Repairs to explosion-protected devices may only be performed by authorised personnel
with original spare parts and according to the state of the art. The applicable provisions
must be observed in this respect.
1.6.4 Commissioning
It must be checked that all components and documents are available before
commissioning.
1.7 Protection type, test certificate and standards
Labels on explosion protection and the test certificate are attached to the device. See
Chapter 3 “Technical data” with respect to labelling.
The guidelines and standards applicable to the Mobile Computer for devices and
protected systems for intended use in potentially explosive atmospheres are provided in
Chapter 3 “Technical data”.
1.8 Warranty
WARNING
consent.
If components other than
necessary stress tolera n ce.
Contact the manufacturer and obtain his approval before performing any changes
or retrofits. Use only original spare and expendable parts.
The manufacturer shall exclusi vely assume the complete warranty only
ordered from him.
Our “General Terms and Conditions of Sale and Delivery” shall apply in principle. These
shall be made available to the operator on signing of contract at the latest. Warranty and
liability claims in the case of injury and damage to property shall be excluded if they a re
attributable to one or several of the following causes:
4/73
Technical data subject to change without notice..
Revision D / Status: 10/2016
Mobile Computer MC92N0ex
Type 17-A1A.-………… and Type B7-A2A.-…………
Unintended use of the Mobile Computers.
− Incorrect assembly, commissioning, operation and servicing.
− Failure to observe the information in the User Manual with respect to transport,
storage, assembly, installation, commissioning, operation and service.
− Independent structural changes.
− Faulty monitoring of parts subject to wear and tear.
− Incorrectly performed repairs.
− Cases of disaster through the impact of foreign bodies and force majeure.
We grant a warranty period of one year starting from the date of delivery from the Bad
Mergentheim factory on the Mobile Computers and their accessories (exception: battery 6
months). This warranty covers all parts of the delivery and shall be restricted to the free
replacement or repair of the defective parts in our Bad Mergentheim factory. For this
purpose, any packaging supplied must be kept where possible. In the case of warranty,
the goods must be returned to us after written agreement. There shall be no claim to
repair at the sight of erection.
Basic Security Informat ion
The versions, components, monitors and windows shown in this User Manual are merely
examples and may deviate from the actual display.
The information contained herein refers to the explosion-protected version of series
MC92N0
ex
.
This User Manual contains all important information on the subject of explosion protection.
The original user manuals and product information of ZEBRA with information on handling
and commissioning are also available. In the case of overlaps, the information in this User
Manual shall take priority and shall supersede the information from ZEBRA.
Technical data subject to change without notice.
Revision D / Status 10/2016
5/73
Basic Security Informat ion
Mobile Computer MC92N0ex
Type 17-A1A.-………… and Type B7-A2A.-…………
1.9 Co-applicable documents – Set of document s
BARTEC
− User Manual to the Mobile Computer series MC92N0ex – The use of the explosion-
protected version of the Mobile Computer series MC92N0
Manual.
− Technical datasheet for the explosion-protected version of the Mobile Computer
ex
series MC92N0
relevant technical data as well as general technical data.
ZEBRA
The set of documentation of the MC9200 contains information on the respective user
requirements and covers the following:
– This technical datasheet contains the most important explosion-
ex
is described in this User
1.10 Definitions
− Quick Start Guide for the MC9200 – The commissioning of the Mobile Computer
MC9200 is described in this User Manual.
− User Manual for the MC92N0 – The use of the Mobile Computer MC MC9200 is
described in this User Manual.
− Integration Manual for the MC9200 – The setting up of the Mobile Computer MC9200
including accessories is described in this User Manual.
− User Manual for Microsoft® applications for Windows Embedded Handheld 6.5.3 for
Enterprise Mobility devices – The use of Microsoft applications is described in this
User Manual.
Some abbreviations are used in the documentation.
IS = Intrinsically Safe / Intrinsic Safety =>
is used as an umbrella term for Zone 1 and Division 1 versions
NI = Non-Incendive / non-sparking =>
is used as an umbrella term for Zone 2 and Division 2 versions
MC92N0
ex
= Stands for the entire explosion-proof product series.
6/73
Technical data subject to change without notice..
Revision D / Status: 10/2016
Mobile Computer MC92N0ex
Configuration
Version
Wireless
WLAN: 802.11 a/b/g/n
Reader options
Display
3.7" VGA Color Display
Memory
Scanner
1D-Laser Scanner Normal Range
Operating
Keypad
28 Keypad (Numeric keys can be used direct, Alpha keys
d alpha keys cen be used direct,
Type 17-A1A.-………… and Type B7-A2A.-…………
1.11 Configuration
This Manual refers to the following configurations:
WPAN: Bluetooth 2.1 EDR
RFID-LF 125 kHz / 134 kHz
RFID-HF 13.56 MHz
RFID-UHF (EU) 865.6 to 867.5 MHZ
RFID-UHF (US) 902 to 928 MHz
RuBee 65.5 kHz / 131 kHz
1 GB RAM / 2 GB Flash Memory
Basic Security Informat ion
options
system options
options
1D-Laser Scanner Long Range
1D-/2D-Imager Short Range
1D-/2D-Imager Mid Range (only NI-version)
1D-/2D-Long Range Imager (only NI-version)
1D-/2D-Imager DPM (Direct Part Marking)
Windows WEH 6.5.3
Windows CE 7.0
Android KitKat 4.4
and other key functions can be used via function keys)
43 Keypad (Numeric- and function keys can be used direct,
alpha keys and other key functions can be used via function
keys)
53 Keypad (Numeric- an
other key functions can be used via function keys)
53 Keypad with layout for VT Emulation
The Emulation software is not part of the device.
Other specific information on the keypad is provided under Technical Data or in the
Technical data subject to change without notice.
Revision D / Status 10/2016
ZEBRA documentation.
53 Keypad with layout for 3270 Emulation
53 Keypad with layout for 5250 Emulation
7/73
Product Description
Mobile Computer MC92N0ex
Type 17-A1A.-………… and Type B7-A2A.-…………
2. Product Description
2.1 Definition MC92N0ex-IS Version
The MC92N0ex-IS Mobile Computer is a robust mobile computer designed for industrial
use and has been specially modified by BARTEC for use in hazardous (potentially
explosive) areas in
− ATEX and IECEx Zone 1
− UL Class I, II Division 1
− UL Class III
This means that the extensive communication and data acquisition options which are
already standard in other areas are available to the user in hazardous areas also.
8/73
Its ergonomic design and easy operation make it an ideal support in the attainment of fast
data availability in enterprise processes. Various versions of keypad are available for
manual data capture.
Other data capture options are provided by the integrated 1D or 1D/2D scan engine for
capturing barcodes and various optional RFID/RuBee readers.
The ergonomically mounted scan triggers on the MC92N0
easily in one-hand operation. Several technologies are available for data communication
with other systems and company divisions.
− Wireless LAN (WLAN),
− Wireless PAN (WPAN) (Bluetooth)
− Ethernet or USB connection through docking station
Technical data subject to change without notice..
ex
-IS allow data to be captured
Revision D / Status: 10/2016
Mobile Computer MC92N0ex
Type 17-A1A.-………… and Type B7-A2A.-…………
These modules, which are integrated in the device, allow a seamless transmission of
voice and data into the company’s network.
Other advantages in use are its sturdy c onstruction, easy-to-read 3.7'' VGA colour display
with touch technology and highly efficient lithium-ion battery.
A 1 GHz dual-core processor in the MC92N0
application development is facilitated by the three operating systems, Microsoft Windows
WEH 6.5.3, CE 7.0 or Anroid KitKat 4.4, in conjunction with the Enterprise Mobility
Developer Kits (EMDK) or RohMobile Suite from Zebra.
1 GB RAM and 2 GB flash memory are integrated in the device for storing user-defined
applications and data. For larger applications and volumes of data, BARTEC offers SD
memory cards.
Product Description
ex
-IS ensures fast process execution. Easy
2.2 Definition MC92N0ex-NI Version
The MC92N0ex-NI Mobile Computer is a robust mobile computer designed for industrial
use and has been specially modified by BARTEC for use in hazardous (potentially
explosive) areas in
− ATEX Zone 2 / 22
− UL Class I, II Division 2
− UL Class III.
This means that the extensive communication and data acquisition options which are
already standard in other areas are available to the user in hazardous areas also.
Technical data subject to change without notice.
Revision D / Status 10/2016
9/73
Product Description
VORSICHT – CAUTION – PRUDENCE
Abweichungen von den hier angegebenen Verfahren oder Einstellungen
Use of controls or adjustments or performance of procedures other than those
L’usage de commandes ou de réglages, ou la réalisation de procédures
autres que ceux spécifiés dans le présent document peuvent exposer l’utilisateur à des
Mobile Computer MC92N0ex
Type 17-A1A.-………… and Type B7-A2A.-…………
Its ergonomic design and easy operation make it an ideal support in the attainment of fast
data availability in enterprise processes. Various versions of keypad are available for
manual data capture.
Other data capture options are provided by the integrated 1D or 1D/2D scan engine for
capturing barcodes, RuBee reader and various optional RFID readers.
The ergonomically mounted scan triggers on the MC92N0
easily in one-hand operation. Several technologies are available for data communication
with other systems and company divisions.
− Wireless LAN (WLAN),
− Wireless PAN (WPAN) (Bluetooth)
− Ethernet or USB connection through docking station
These modules, which are integrated in the device, allow a seamless transmission of
voice and data into the company’s network.
ex
-NI all ow data to be captured
2.3 Operation
Other advantages in use are its sturdy c onstruction, easy-to-read 3.7'' VGA colour display
with touch technology and highly efficient lithium-ion battery.
A 1 GHz dual-core processor in the MC92N0
ex
-NI ensures fast process execution. Easy
application development is facilitated by the three operating systems, Microsoft Windows
WEH 6.5.3, CE 7.0 or Android KitKat 4.4, in conjunction with the Enterprise Mobility
Developer Kits (EMDK) or RohMobile Suite from Zebra.
1 GB RAM and 2 GB flash memory are integrated in the device for storing user-defined
applications and data. For larger applications and volumes of data, BARTEC offers SD
memory cards.
The Mobile Computer MC92N0ex-IS is a handheld electrical device. It serves the purposes
of the mobile entry, processing and radio transmission of data within potentially explosive
atmospheres.
It is used exclusively in combination with devices which comply with the requirements
placed on the overvoltage category I.
VORSICHT
können zu einer gesundheitsgefährdenden Strahlenbelastung führen.
CAUTION
specified herein may result in hazardous radiation exposure.
PRUDENCE
radiations dangereuses.
10/73
Technical data subject to change without notice..
Revision D / Status: 10/2016
Mobile Computer MC92N0ex
Type 17-A1A.-………… and Type B7-A2A.-…………
The Mobile Computer MC92N0
use in the following potent ial ly explosive atmospheres
− ATEX/IECEx Zone 1
− UL Class I Division 1 Groups C and D
− UL Class II Division 1 Groups F and G
− UL Class III
− ATEX/IECEx Zone 2
− UL Class I Division 2 Groups C and D
− UL Class II Division 2 Groups F and G
The Mobile Computer MC92N0ex-IS, Type 17-A1A.-…./…….. may not be used in the
following zones:
− ATEX/IECEx Zone 0
− ATEX/IECEx Zone 21/22
Product Description
ex
-IS, Type 17-A1A.-…./…….. have been modified for
− UL Class I Division 1 Groups A and B
− UL Class II Division 1 Group E
− UL Class II Division 2 Group E
The Mobile Computer MC92N0
ex
-NI, Type B7-A2A.-…./…….. have been modified for
use in the following potentially explosive atmospheres
− ATEX Zone 2
− ATEX Zone 22
− UL Class I Division 2 Groups A, B, C and D
− UL Class II Division 2 Groups F and G
− UL Class III
The Mobile Computer MC92N0ex-NI, Type B7-A2A.-…./…….. may not be us ed in the
following zones:
− ATEX/IECEx Zone 0 and 1
− ATEX/IECEx Zone 21
− UL Class II Division 1 Groups A, B, C, D, E, F and G
− UL Class II Division 2 Group E
2.3.1 RFID / RuBee
The RFID- and RuBee-Reader in the Mobile Computer MC92N0ex-IS is triggered only
by manual operation (with outstretched hand).
Technical data subject to change without notice.
Revision D / Status 10/2016
11/73
Technical Data
Type
Ex protection
Type 17-A1A3-R..C/S…….
Ex protection
Certificate
PTB 13 ATEX 2019 X
Standards
EN 60079-0:2012
Type 17-A1A3-0…/S…….
MC92N0ex-IS
Ex protection
Ex q [ib] IIC T4 Gb
Type 17-A1A3-R..C/S…….
Ex protection
Ex q [ib] IIB T4 Gb
Certificate
IECEx PTB 13.0043X
Standards
IEC 60079-0:2011 Edition 6
ATEX and IECEx Directives
ATEX 94/9/EC EMV
Product labelling
0044
Type 17-A1A2-0…/S…….
MC92N0ex-IS
Ex protection
Certificate USA and Canada
E226123
Standards
USA Standard UL 913, 5 Edition.
Mobile Computer MC92N0ex
Type 17-A1A.-………… and Type B7-A2A.-…………
3. Technical Data
3.1 Explosion protection IS
ATEX Zone 1
17-A1A3-0…/S…….
17-A1A3-R…/S……
17-A1A3-R..D/S…….
IECEx Zone 1
17-A1A3-R…/S…….
17-A1A3-R..D/S…….
ex
MC92N0
MC92N0
-IS
ex
-IS RFID
II 2G Ex q [ib] IIC T4 Gb
ex
MC92N0
-IS RFID
II 2G Ex q [ib] IIB T4 Gb
EN 60079-5:2007
EN 60079-11:2012
MC92N0ex-IS RFID
ex
MC92N0
-IS RFID
UL Class I, II, III Division 1
17-A1A2-R…/S…….
IEC 60079-5:2007 Edition 3
IEC 60079-11:2011 Edition 6
2004/108/EC
R&TTE 1999/5/EC RoHS
2002/95/EC
MC92N0ex-IS RFID/RuBee
Class I Division 1 Groups C and D
Class II Division 1 Groups F and G
Class III
National Standard of Canada C22.2 No. 157-92
12/73
Technical data subject to change without notice..
Revision D / Status: 10/2016
Mobile Computer MC92N0ex
Type B7-A2A4-0…/S…….
MC92N0ex-NI
Ex protection
Certificate
B1-A2A3-7C0001
Type B7-A2A4-R..C/S…….
Ex protection
Certificate
B1-A2A3-7C0002
Standards
EN 60079-0:2009
Type B7-A2A4-0…/S…….
MC92N0ex-NI
Ex protection
Class I Division 2 Groups A, B, C and D
Certificate USA and Canada
E226123
Standards
ANSI/ISA 12.12.01, UL 60950,
Type 17-A1A.-………… and Type B7-A2A.-…………
3.2 Explosion protection NI
ATEX Zone 2/22
Technical Data
B7-A2A4-R…/S…….
B7-A2A4-R..D/S…….
UL Class I, II, III Division 2
B7-A2A4-R…/S…….
MC92N0ex-NI RFID/RuBee
II 3G Ex nA IIC T6 Gc
II 3D Ex tc IIIC T80 °C Dc
-20 °C ≤ Ta ≤ +50 °C
ex
MC92N0
-NI RFID
II 3G Ex nA IIB T6 Gc
II 3D Ex tc IIIB T80 °C Dc
-20 °C ≤ Ta ≤ +50 °C
EN 60079-15:2010
EN 60079-31:2009
MC92N0ex-NI RFID/RuBee
Class II Division 2 Groups F and G
Class III
Canada National Standard C22.2
No. 60950-1-07 2nd edition
Technical data subject to change without notice.
Revision D / Status 10/2016
13/73
Technical Data
Electromagnetic compatibility and Radio
Broadband Radio Access Networks (BRAN) -
Limitation of human exposure to electromagnetic
Assessment of the compliance of low power
Assessment of electronic and electrical
Safety of laser products -
Mobile Computer MC92N0ex
Type 17-A1A.-………… and Type B7-A2A.-…………
3.3 Other applicable standards
Electrical safety
EN 60950-1:2006 +A12:2011
Information technology equipment - Safety Part 1: General requirements
Radio Specification - WLAN / Bluetooth
spectrum Matters (ERM) - Wideband
EN 300 328 V1.8.1
transmission systems - Data transmission
equipment operating in the 2,4 GHz ISM band
and using wide band modulation techniques
EN 301 893 V1.7.1
5 GHz high performance RLAN
Safety Specifications – Specific Absorption Rate (SAR)
EN 50364:2010
EN 62479: 2010
fields from devices operating in the frequency
range 0 Hz to 300 GHz, used in Electr onic Article
Surveillance
electronic and electrical equipment with the basic
restrictions related to human exposure to
electromagnetic fields
(10 MHz to 300 GHz)
14/73
EN 62311: 2008
equipment related to human exposure
restrictions for electromagnetic fields
(0 Hz - 300 GHz)
Saftey Specifications – Laser and/or LED Products:
EN 60825-1: 2007 (Laser)
EN 60825-1: 2001 (LED)
Part 1: Equipment classification and
requirements
Safety of laser products -
Part 1: Equipment classification, requirements
and user's guide
Technical data subject to change without notice..
Revision D / Status: 10/2016
Mobile Computer MC92N0ex
EMC Tests on Radio and Telecommunications
ElectroMagnetic Compatibility and Radio
Information technology equipment - Radio
Limits - Limitation of voltage changes, voltage
Limits - Limits for harmonic current emissions
47 CFR Part 15, Subpart B, Class B
ICES 003 Issue 5, Class B
Electromagnetic compatibility and Radio
Electromagnetic compatibility and Radio
Electromagnetic compatibility and Radio
Type 17-A1A.-………… and Type B7-A2A.-…………
Electro Magnetic Compatibility (EMC) Specifications
Technical Data
EN 301 489-1 V1.9.2
EN 301 489-3 V1.6.1
EN 301 489-1-3
EN 301 489-17 V2.2.1
EN 55022: 2010 +AC:2011 Class B
EN 55024: 2010
Terminal Equipment Part 1: Common EMC
Requirements
Electromagnetic compatibility and Radio
spectrum Matters (ERM); ElectroMagnetic
Compatibility (EMC) standard for radio
equipment and services
Electromagnetic compatibility and Radio
spectrum Matters (ERM); ElectroMagnetic
Compatibility (EMC) standard for radio
equipment and services
spectrum Matters (ERM); ElectroMagnetic
Compatibility (EMC) standard for radio equipment and services. Part 17: Specific conditions
for Wideband data and HIPERLAN equipment.
disturbance characteristics - Limits and methods
of measurement
Information technology equipment - Immunity
characteristics - Limits and methods of
measurement
Technical data subject to change without notice.
Revision D / Status 10/2016
EN 61000-3-3 :2008
EN 61000-3-2:2006 +A2:2009
EN 300 330-1 V1.8.1
EN 300 330-2 V1.6.1
EN 302 208-2 V1.4.1 (2011-11)
fluctuations and flicker in public low-voltage
supply systems, for equipment with rated current
<=16 A per phase and not subject to conditional
connection
(equipment input current <= 16 A per phase)
spectrum Matters (ERM); Short Range Devices
(SRD); Radio equipment in the frequency range
9 kHz to 25 MHz and inductive loop systems in
the frequency range 9 kHz to 30 MHz
spectrum Matters (ERM); Short Range Devices
(SRD); Radio equipment in the frequency range
9 kHz to 25 MHz and inductive loop systems in
the frequency range 9 kHz to 30 MHz
spectrum Matters (ERM); Radio Frequency
Identification Equipment operating in the band
865 MHz to 868 MHz with power levels up to 2 W
15/73
Technical Data
CPU
Dual-Core 1 GHz OMAP 4430-Processor
Operating system
Windows Embedded Handheld WEH 6.5.3 or
Memory
1 GB RAM; 2 GB Flash
Extension slot
SD card slot with SDHC support (up to 32 GB)
Interfaces
RS232
Dimensions in mm/inch
Height x width x depth
Dimensions
in mm/inch
Weight ATEX/IECEx (including
Depends on version and configuration
Weight UL Division 1 (including
Depends on version and configuration
Weight UL Division 2 und ATEX
Depends on version and configuration
Mobile Computer MC92N0ex
Type 17-A1A.-………… and Type B7-A2A.-…………
3.4 Features
3.4.1 Performance features
Windows CE 7.0
Optionally extendable with SD card:
1 GB Order number 17-28BE-F006/0002
2 GB Order number 17-28BE-F006/0003
4 GB Order number 17-28BE-F006/0004
8 GB Order number 17-28BE-F006/0005
16 GB Order number 17-28BE-F006/0006
32 GB Order number 17-28BE-F006/0007
3.4.2 Physical features
Gun:
Gun RFID/RuBee:
Brick:
Brick RFID/RuBee:
battery) Gun :
Brick:
Gun RFID:
Brick RFID:
battery) Gun :
Brick:
Gun RFID/RuBee:
Brick RFID/RuBee:
USB
231 x 91 x 193 mm 9.1 x 3.6 x 7.6 inch
231 x 115 x 193 mm 9.1 x 4.5 x 7.6 inch
Height x width x depth
231 x 91 x 59 mm 9.1 x 3.6 x 2.3 inch
231 x 115 x 105 mm 9.1 x 4.5 x 4.1 inch
approx. 1060 g approx. 37 oz
approx. 980 g approx. 34 oz
approx. 1400 g approx. 49 oz
approx. 1320 g approx. 46 oz
approx. 830 g approx. 29 oz
approx. 700 g approx. 24 oz
approx. 1170 g approx. 41 oz
approx. 1040 g approx. 40 oz
16/73
Zone 2/22 (including battery)
Gun :
Brick:
Gun RFID/RuBee:
Brick RFID/RuBee:
approx. 810 g approx. 26 oz
approx. 680 g approx. 22 oz
approx. 850 g approx. 30 oz
approx. 720 g approx. 26 oz
Technical data subject to change without notice..
Revision D / Status: 10/2016
Mobile Computer MC92N0ex
Display
3,7"-VGA- colour display
Touchscreen
Analogue-resistive touchscreen
Background lighting
LED technology
Network connections
Ethernet (via charge station);
Interactive sensor technology
– Three-axes accelerometer for motion sensor
Keypad versions
– 28 Keypad (Numeric keys can be used direct,
Numeric keypad with
28 keys
43 keys
53 keys
Type 17-A1A.-………… and Type B7-A2A.-…………
Technical Data
VGA mode:
QVGA mode:
480 (width) x 640 pixel (height)
240 (width) x 320 pixel (height) (Windows C E only)
Full-Speed USB, Host or Client
application for dynamic screen orientation
– power monitoring
– recognition of free fall
Alpha keys and other key functions can be
used via function keys)
– 43 Keypad (Numeric- and Function keys can
be used direct, Alpha keys and other key
functions can be used via function keys)
– 53 Keypad (Numeric- and Alpha keys can be
used directly, other key functions can be used
via function keys)
– 53 Keypad with layout for VT Emulation
– 53 Keypad with layout for 3270 Emulation
– 53 Keypad with layout for 5250 Emulation
Numeric keypad
(F) function keys
Alpha numeric keypad
Technical data subject to change without notice.
Revision D / Status 10/2016
17/73
Technical Data
Alpha numeric keypad
Alpha numeric keypad
Alpha numeric keypad
53 keys
53 keys
53 keys
No emulation software is installed on the Mobile Computers with the emulation key
Operating temperature
Type 17-A1A.-…
Operating temperature
Type B7-A2A.-…
Operating temperature
0 °C to +40 °C
Storage temperature
-40 °C to +70 °C
Air humidity
5 % to 95 % (non-condensing)
Class of protection (EN 60529)
IP 54
Class of protection
Mobile Computer MC92N0ex
Type 17-A1A.-………… and Type B7-A2A.-…………
3.4.3 User environment
with printing for VT
emulation
with printing for 3270
emulation
with printing for 5250
emulation
version. The customer must order the emulation software separately from Zebra Solutions
and its distributors and install it himself.
The devices are modified to suit the selected keypad version. The end user can replace
the keypad later himself.
When replacing the keyboard, follow the instructions in this manual.
only IS Version
only NI Version
during charging
(without battery)
only IS Version
(EN 60529)
only IS Version
only NI Version
-20 °C to +40 °C
-4 °F to +104 °F
-20 °C to +50 °C
-4 °F to +122 °F
+32 °F to +104 °F
-40 °F to +158 °F
Type 17-A1A3-… (ATEX/IECEx Zone 1)
IP 64
Type 17-A1A2-…. (UL Division 1)
Type B7-A2A.-…
18/73
Technical data subject to change without notice..
Revision D / Status: 10/2016
Mobile Computer MC92N0ex
PSDK (Platform Software Development Kit) and EMDK (Enterprise Mobility Developer
Available for
C
.Net
Browser support:
RhoMobile Suite Toolkit
Technology-independent applications are prepared
RhoStudio
One tool simplicity for application development,
Further applications are
CtLPanelWM
for the classification of applications in
RFID
SDK is available for C#
how to implement the RFID reader in an
application.
Type 17-A1A.-………… and Type B7-A2A.-…………
3.4.4 Application development
Kit) is available via the ZEBRA Solutions Website.
Pocket Browser or “RhoMobile Suite” from ZEBRA Solutions for application development.
Technical Data
−
−
consists of:
−
− Rhodes.
− RhoElements
− RhoConnect
− RhoHub
− RhoGallery
available from ZEBRA
Solutions, e.g.
using this toolkit. Device type, operating system and
screen size no longer play a role.
RhoMobile applications run simply on all popular
mobile devices used in your company.
debugging and testing.
Open source cross-platform development framework
for consumer applications
Cross-platform development framework for
enterprise applications.
A mobile application and integration server for easy
backend system integration and synchronization.
Hosted services that simplify m obile a pplicatio n
development and deployment.
An enterprise app store to deploy, manage and
secure mobile apps.
− for the processing of device settings.
Application Launcher
−
categories and access regulation for indi vidual
applications or operating system.
Data Wedge
− Barcodes in applications can be read such as
Excel or Word using.
−
− The SDK was created in Visua l Studio 2008.
− Includes all necessary drivers and DLL files for
− A RFID demo available in open source to show
Technical data subject to change without notice.
Revision D / Status 10/2016
implementation.
19/73
Technical Data
WLAN radio module
Radio standard
Data rate
IEEE802.11a: up to 54 Mbit/sec.
Frequency range
Operating channels
Safety
Spread procedure
DSSS (Direct Sequence Spread Spectrum) and
Language support
Voice over IP
Antenna
internal
Bluetooth
Class II, version 2.1 with EDR
Maximum Output Power
2.5 mW
Maximale Datenrate
up to 2.1 Mbit/s
Maximum range
10 m
Antenna
Internal chip aerial
Headset Connector
Ex protection
Ex ib IIC
I0 = 354 mA
P0 = 479 mW
C0 = 930 nF
L0 = 460 µH
Mobile Computer MC92N0ex
Type 17-A1A.-………… and Type B7-A2A.-…………
3.4.5 Voice and data transmission Wireless LAN
(country-dependent)
Tri Mode IEEE 802.11a/b/g/n
IEEE802.11b: up to 11 Mbit/sec.
IEEE802.11g: up to 54 Mbit/sec.
IEEE802.11n: up to 65 Mbit/sec.
IEEE802.11a: 5 GHz
IEEE802.11b: 2.4 GHz
IEEE802.11g: 2.4 GHz
IEEE802.11n: 2.4 GHz and 5 GHz
IEEE802.11a
IEEE802.11b/g
3.4.6 Voice and data transmission Wireless PAN
Channel 8 - 165 5040 MHz - 5825 MHz
Channel 1 – 13 2412 MHz - 2472 MHz
Channel 14 2484 MHz Japan only
The actual operating channels and frequencies are
subject to the applicable rules and the certification
authorities
WPA2 Enterprise, 802.1x; EAP-TLS; TTLS (CHAP,
MS-CHAP, MS-CHAPv2, PAP or MD5); PEAP (TLS,
MSCHAPv2, EAP-GTC); LEAP, EAP-FAST (TLS, MSCHAPv2, EAP-GTC), WPA2/AES, CCX v4, FIPS 1402 conform and IPv6
Orthogonal Frequency Division Multiplexing
3.4.7 Headset
20/73
32.8 feet
U0 = 8.6 V
Technical data subject to change without notice..
Revision D / Status: 10/2016
Mobile Computer MC92N0ex
Five available configuration
– 1D-Standard-Range Laser Scanner
The various scan engines maximum ranges depend on the bar code symbology/type and
SE965 1D scan engine decodes/reads 1D barcodes/symbols.
For MC92N0ex-K (Brick) and MC92N0ex-G (Gun) versions:
Laser class
CDRH Class II / IEC Class 2
Decode range
up to approx. 2.5 m
Optical resolution
0.005 inch - minimum element width
Skew
± 40° from the vertical
Pitch
± 65° from the starting position
Roll
± 50° from the vertical
Ambient light immunity
86,111 lux
Scan rate
Scan angle
47° ± 3° far range
Laser energy at 650 nm
1.7 mW peak
Type 17-A1A.-………… and Type B7-A2A.-…………
3.4.8 Data Capture Options
Technical Data
possibilities
the module width (in mil) used.
3.4.8.1 1D- Standard-Range Laser Scanner (SE965)
Further detailed information on the SE965 can be found in the “User Manual“ or “Integrator
Guide” from Zebra Solutions.
The decode range depends on the quality and size of the bar code and on the scan
engine’s software setting.
(SE965)
– 1D-Long-Range Laser Scanner
Lorax SE1524)
– 1D-/2D-Imager
(Blockbuster SE4500-SR)
– 1D-/2D-Imager DPM
(Direct Part Marking)
(Blockbuster SE4500-HD)
Only for NI Version
– 1D-/2D-Long Range Imager
(SE4600-LR)
with Code 39, 55 mil
Technical data subject to change without notice.
Revision D / Status 10/2016
up to approx. 100 inch
104 (± 12) scans/sec. (bi-directional)
35° ± 3° medium distance
10° ± 3° near range
21/73
Technical Data
Lorax SE1524 1D scan engine decodes/reads 1D barcodes/symbols
For MC92N0ex-G (Gun) versions:
Laser class
CDRH Class II / IEC Class 2
Decode range
up to approx. 13.7 m
Ambient light immunity
86,111 lux
Scan rate
35 (± 5) scans/sec. (bi-directional)
Scan angle
13.5° ± 0.7°
Laser energy at 650 nm
1.0 mW nominal value
SE4500-SR 1D/2D Imager Engine (omni-directional) decodes/reads 1D and 2D
For MC92N0ex-G (Gun) and MC92N0ex-K (Brick) versions:
Laser class
CDRH Class II / IEC Class 2
Decode range, near
up to approx. 5.3 cm
Decode range, far
up to approx. 19.1 cm
Focus distance
Resolution
752 x 480 pixels HxV (grey phase)
Rotational tolerance
360°
Angle of inclination
Skew tolerance
Ambient light immunity
96,900 lux
Aiming LED (VLD)
655 Nm ± 10 nm
Exposure element (LED)
625 Nm ± 5 nm LEDs (2x)
Field of view
Horizontal 40 °
Mobile Computer MC92N0ex
Type 17-A1A.-………… and Type B7-A2A.-…………
3.4.8.2 1D-Long-Range Laser Scanner (Lorax SE1524)
Further detailed information on the Lorax SE1524 can be found in the “User Manual“ or
“Integrator Guide” from Zebra Solutions.
The decode range depends on the quality and size of the bar code and on the scan
engine’s software setting.
up to approx. 45 ft.
3.4.8.3 1D-/2D-Imager (Blockbuster SE4500-SR)
barcodes/symbols
Further detailed information on the SE4500-SR Blockbuster can be found in the “User
Manual“ or “Integrator Guide” from Zebra Solutions.
The decode range depends on the quality and size of the bar code and on the scan
engine’s software setting.
with code 39, 5 mil
with code 39, 5 mil
up to approx. 2.1 inches
up to approx. 7.5 inches
From the centre of the scanner window
SR --- 19 cm
22/73
± 60° from the starting position
± 60° from the starting position
Vertical 25 °
Technical data subject to change without notice..
Revision D / Status: 10/2016
Mobile Computer MC92N0ex
SE4500-HD 1D/2D Imager Engine with DPM decodes/reads a wide range of DPM
For MC92N0ex-G (Gun) and MC92N0ex-K (Brick) versions:
Laser class
CDRH Class II / IEC Class 2
Decode range, near
up to approx. 4.1 cm
Decode range, far
up to approx. 9.7 cm
Focus distance
From the centre of the scanner window
Resolution
Roll tolerance
360°
Pitch angle
± 60° from the starting position
Skew tolerance
± 60° from the starting position
Ambient light immunity
96,900 lux
Aiming LED (VLD)
655 Nm ± 10 nm
Exposure element (LED)
625 Nm ± 5 nm LEDs (2x)
Field of view
Horizontal 40 °
SE4750-SR 1D/2D Imager Engine (omni-directional) decodes/reads 1D and 2D
For MC92N0ex-G (Gun) and MC92N0ex-K (Brick) versions:
Type 17-A1A.-………… and Type B7-A2A.-…………
3.4.8.4 1D-/2D-Imager DPM (Blockbuster SE4500-HD)
markings on metal, plastic and glass surfaces, including dot peening, laser etching,
casting, stamping or moulding.
Further detailed information on the Blockbuster SE4500-HD can be found in the “User
Manual“ or “Integrator Guide” from Zebra Solutions.
The decode range depends on the quality and size of the bar code and on the scan
engine’s software setting.
Technical Data
with code 39, 3 mil
with code 39, 3 mil
3.4.8.5 1D-/2D-Imager (Blockbuster SE4750-SR)
up to approx. 1.6 inches
up to approx. 3.8 inches
SR --- 19 cm
752 x 480 pixels HxV (grey phase)
Vertical 25 °
barcodes/symbols
Further detailed information on the SE4750-SR Blockbuster can be found in the “User
Manual“ or “Integrator Guide” from Zebra Solutions.
The decode range depends on the quality and size of the bar code and on the scan
engine’s software setting.
Technical data subject to change without notice.
Revision D / Status 10/2016
23/73
Technical Data
Laser class
CDRH Class II / IEC 825 Class 2
Decode range, near
up to approx. 5.8 cm
Decode range, far
up to approx. 22.1 cm
Focus distance
From the centre of the scanner window
Resolution
Rotational tolerance
Angle of inclination
± 60° from the starting position
Skew tolerance
± 60° from the starting position
Ambient light immunity
96,900 lux
Aiming LED (VLD)
655 Nm ± 10 nm
Field of view
Horizontal 48 °
SE4750-MR 1D/2D Imager Engine (omni-directional) decodes/reads 1D and 2D
For MC92N0ex-G (Gun) and MC92N0ex-K (Brick) versions:
Laser class
CDRH Class II / IEC 825 Class 2
Decode range, near
up to approx. 18.8 cm
Decode range, far
up to approx. 40.6 cm
Focus distance
From the centre of the scanner window
Resolution
1280 x 960 pixels
Rotational tolerance
360°
Angle of inclination
± 60° from the starting position
Skew tolerance
Ambient light immunity
96,900 lux
Aiming LED (VLD)
655 Nm ± 10 nm
Field of view
Horizontal 31 °
Mobile Computer MC92N0ex
Type 17-A1A.-………… and Type B7-A2A.-…………
with 5 mil Code 128
with 5 mil Code 128l
3.4.8.6 1D-/2D-Imager (Blockbuster SE4750-MR)
barcodes/symbols
up to approx. 2.3 inches
up to approx. 8.7 inches
SR --- 7.38 inches
1280 x 960 pixels
360°
Vertical 36.7 °
Further detailed information on the SE4750-MR Blockbuster can be found in the “User
Manual“ or “Integrator Guide” from Zebra Solutions.
The decode range depends on the quality and size of the bar code and on the scan
engine’s software setting.
with 5 mil Code 128
with 5 mil Code 128
up to approx. 7.4 inches
up to approx. 16.0 inches
MR --- 14.2 inches
± 60° from the starting position
Vertical 23 °
24/73
Technical data subject to change without notice..
Revision D / Status: 10/2016
Mobile Computer MC92N0ex
SE4500-SR 1D/2D Imager Engine (omni-directional) decodes/reads 1D and 2D
For MC92N0ex-G (Gun), type B7-A2A4-.G.. versions:
Laser class
Decode range, near
up to approx. 20.32 cm
Decode range, far
up to approx. 9.14 cm
Type 17-A1A.-………… and Type B7-A2A.-…………
3.4.8.7 1D-/2D-Long Range Imager (SE4600-LR)
barcodes/symbols
Further detailed information on the SE4600-LR can be found in the “User Manual“ or
“Integrator Guide” from Zebra Solutions.
The decode range depends on the quality and size of the bar code and on the scan
engine’s software setting.
Technical Data
CDRH Class II / IEC Class 2
with code 39, 5 mil
with code 39, 5 mil
up to approx. 8 inches
up to approx. 30 feet
Technical data subject to change without notice.
Revision D / Status 10/2016
25/73
Technical Data
All supported 2D-Barcodes
1D-Symbol/Codes
2D-Symbol/Codes
Code 11
Code 39
Aztec
Micro PDF-417
Code 93
Code 128
Australian 4-state
Maxi Code
Codabar
Coupon code
Canadian 4-state
PDF-417
Chinesisch 2 of 5
Discrete 2 aus 5
Composite AB
QR Code
Interleaved 2 of 5
Trioptic 39
Composite C
TLC39
EAN-8
EAN-13
Data Matrix
UK 4-state
UPCA
UPCE
Dutch Kix
US Planet
UPC/EAN
Supplementals
USPS 4-state
(US4CB)
(Macro) Micro
PDF-417
Five different RFID/RuBee
LF (Low Frequency)
The maximum read / write ranges of the different RFID/RuBee readers are dependent on
RFID Option with
RFID Option with
Mobile Computer MC92N0ex
Type 17-A1A.-………… and Type B7-A2A.-…………
3.4.9 Decodable barcode types
Webcode RSS-14 PDF-417 Macro
RSS Limited RSS Expanded
3.4.10 RFID/RuBee Option
All supported 1D-Barcodes
options available
(only supported with Imager versions)
MSI Japanese 4-state US Postnet
microQR
HF (High Frequency)
UHF (EU) Ultra High Frequency)
UHF (US) Ultra High Frequency)
RuBee
various environmental and ambient conditions and refer in the following to office
environment. e.g.
Transponder (Tag), size
Mounting surface (metal, wood or different)
Environment conditions
Magnetic influence from outside
Temperature
Humidity
RFID Option with
internal reader
RFID Option with
internal reader +
mounted antenna
extended reader
extended reader +
mounted antenna
26/73
Technical data subject to change without notice..
Revision D / Status: 10/2016
Mobile Computer MC92N0ex
Nominal reading / writing
up to approx. 5 cm
Antenna
Integrated as ferrite antenna or air coil antenna
Frequency range
125/134 kHz (automatic switching)
Transmitting power
100 mW ± 2dB
Supported standards
HITAG S 2 kbit
HDX (Multipage)
EM4xxx (UNIQUE)
HITAG 1
EM4xxx (UNIQUE)
FDX-B
HITAG 2
FDX-B
BDE
Q5
BDE
ISO 11784/5
ATA5567
ISO 117845
ISO Animal
EM4305
ISO Animal
Nominal reading / writing
up to approx. 5 cm
Antenna
Frequency range
125/134 kHz (automatic switching)
Transmitting power
100 mW ± 2dB
Supported standards
HITAG S256
HDX - RO
EM 4450/4550
HITAG S 2 kbit
HDX (Multipage)
EM4xxx (UNIQUE)
HITAG 1
EM4xxx (UNIQUE)
FDX-B
HITAG 2
FDX-B
BDE
ATA5567
ISO 117845
ISO Animal
EM4305
ISO Animal
Type 17-A1A.-………… and Type B7-A2A.-…………
3.4.10.1 LF Reader (internal module) For MC92N0ex-G (Gun) and MC92N0ex-K (Brick)
Combination with Scan Engine is not possible!
Technical Data
distance
HITAG S256 HDX - RO EM 4450/4550
3.4.10.2 LF Reader (extended module) For MC92N0ex-G (Gun) and MC92N0ex-K (Brick)
up to approx. 1.9 inches
distance
up to approx. 1.9 inches
Integrated in the extended module as ferrite antenna
or air coil antenna
Q5 BDE ISO 11784/5
Technical data subject to change without notice.
Revision D / Status 10/2016
27/73
Technical Data
Supported standards
Nominal reader calibration width
Nominal writing distance
Antenna
integrated
Frequency range
13.56 MHz
Transmitting power
250 mW ± 2 dB
Supported standards
Nominal reader calibration width
Nominal writing distance
Antenna
integrated
Frequency range
13.56 MHz
Transmitting power
250 mW ± 2 dB
Mobile Computer MC92N0ex
Type 17-A1A.-………… and Type B7-A2A.-…………
3.4.10.3 HF Reader (internal module) For MC92N0ex-G (Gun) and MC92N0ex-K (Brick)
Combination with Scan Engine is not possible!
HF ISO 15693
HF ISO 14443
HF ISO 15693
HF ISO 14443
HF ISO 15693
HF ISO 14443
3.4.10.4 HF Reader (extended module) For MC92N0ex-G (Gun) and MC92N0ex-K (Brick)
I-Code SLI, Tag-IT HFI, my-d vicinity,
STM LRI512
mifare, mifare Ultra Light, my-d proximity,
I-Code 1 (optional)
up to approx. 5 cm up to approx. 1.97 inch
up to approx. 5 cm up to approx. 1.97 inch
(with tags in cheque card format)
up to approx. 5 cm up to approx. 1.97 inch
up to approx. 5 cm up to approx. 1.97 inch
(with tags in cheque card format)
HF ISO 15693
HF ISO 14443
HF ISO 15693
HF ISO 14443
HF ISO 15693
HF ISO 14443
I-Code SLI, Tag-IT HFI, my-d vicinity,
STM LRI512
mifare, mifare Ultra Light, my-d proximity,
I-Code 1 (optional)
up to approx. 2 cm up to approx. 4.72 inch
up to approx. 6 cm up to approx. 2.36 inch
(with tags in cheque card format)
up to approx. 12 cm up to approx. 4.72 inch
up to approx. 6 cm up to approx. 2.36 inch
(with tags in cheque card format)
28/73
Technical data subject to change without notice..
Revision D / Status: 10/2016
Mobile Computer MC92N0ex
Supported standards
EPC Class 1 Gen 2 tag
Nominal reading range
up to approx. 30 cm up to approx. 11.8 inch
Nominal writing distance
up to approx. 30 cm up to approx. 11.8 inch
Antenna
integrated
Frequency range Europe
865.6 to 867.5 MHz (EN302 208)
Transmitting power
200 mW ± 2dB
Supported standards
EPC Class 1 Gen 2 tag
Nominal reading range
up to approx. 150 cm up to approx. 59 inches
Nominal writing distance
up to approx. 150 cm up to approx. 59 inches
Antenna
Frequency range Europe
865.6 to 867.5 MHz (EN302 208)
Transmitting power
Supported standards
EPC Class 1 Gen 2 tag
Nominal reading range
up to approx. 50 cm up to approx. 19.6 inch
Nominal writing distance
Antenna
Frequency range Europe
865.6 to 867.5 MHz (EN302 208)
Transmitting power
Type 17-A1A.-………… and Type B7-A2A.-…………
3.4.10.5 UHF Reader (internal module) For MC92N0ex-G (Gun) and MC92N0ex-K (Brick)
Combination with Scan Engine is not possible!
Technical Data
USA
3.4.10.6 UHF Reader (internal module + mounted antenna) For MC92N0ex-G (Gun) and MC92N0ex-K (Brick)
ATEX/IECEx protection type: II 2G Ex q [ib] IIB T4 Gb
USA
3.4.10.7 UHF Reader (extended module)
902.0 to 928.0 MHz (FCC CFR 47 part 15.247)
external (UPM Raflatac)
902.0 to 928.0 MHz (FCC CFR 47 part 15.247)
200 mW ± 2dB
Technical data subject to change without notice.
Revision D / Status 10/2016
For MC92N0ex-G (Gun) and MC92N0ex-K (Brick)
up to approx. 50 cm up to approx. 19.6 inch
integrated
USA
902.0 to 928.0 MHz (FCC CFR 47 part 15.247)
200 mW ± 2dB
29/73
Technical Data
Supported standards
EPC Class 1 Gen 2 tag
Nominal reading range
up to approx. 150 cm up to approx. 59 inches
Nominal writing distance
Antenna
external (UPM Raflatac)
Frequency range Europe
865.6 to 867.5 MHz (EN302 208)
Transmitting power
200 mW ± 2dB
For MC92N0ex-G (Gun) and MC92N0ex-K (Brick)
Nominal reading / writing
up to approx. 5 cm
Antenna
Integrated as ferrite antenna and air coil antenna
Frequency range
65.5 kHz inductive power
Transmitting power
Mobile Computer MC92N0ex
Type 17-A1A.-………… and Type B7-A2A.-…………
3.4.10.8 UHF Reader (extended module + mounted antenna) For MC92N0ex-G (Gun) and MC92N0ex-K (Brick)
ATEX/IECEx protection type: II 2G Ex q [ib] IIB T4 Gb
up to approx. 50 cm up to approx. 59 inches
USA
3.4.10.9 RuBee Reader (extended module)
Combination with Scan Engine is possible!
distance
902.0 to 928.0 MHz (FCC CFR 47 part 15.247)
up to approx. 1.9 inches
131 kHz data communication
30/73
Technical data subject to change without notice..
Revision D / Status: 10/2016
Mobile Computer MC92N0ex
Battery
(charge only outside of hazardous location)
Operating temperature
Storage temperature
-20 °C to +50 °C -4 °F to 122 °F
Relative air humidity
20 % - 95 % (non-condensing)
Backup battery
Ni-MH battery 2.4 V/15 mAh (rechargeable)
Battery performance
approx. 8 hours depending on the device settings
The battery life depends on various usage factors and on the device settings such as
PIN
Signal name
Function
PIN
Signal name
Function
1
USB_GND
USB
10
Cradle_DET
Grounded with
cradle
2
USB_D_Plus
USB
11
DTR
RS232C
3
TxD
RS232C
12
Not assigned
Not assigned
4
RxD
RS232C
13
Power_IN
12 V / 2.5 A max.
5
DCD
RS232C
14
CTS
RS232C
6
RTS
RS232C
15
USB_5V_DET
USB
7
DSR
RS232C
16
USB_D_Minus
USB
8
GND
Ground, 2.5 A max.
17
EXT_Power_OUT
3.3 V / 500 mA
9
RI
RS232C
Type 17-A1A.-………… and Type B7-A2A.-…………
3.5 Battery
Technical Data
Type 17-A1Z0-0001
Type 17-A1Z0-0002
Type B7-A2Z0-0006
− During charging
−
During discharging
e.g.
Use and setting of WLAN / Bluetooth
Backlighting
for type 17-A1A3-…
for type 17-A1A2-….
for type B7-A2A4-...
Lithium Ions 7.4 V / 2400 mAh
0 °C to +40 °C +32 °F to 104 °F
-20 °C to +50 °C -4 °F to 122 °F
Integrated in the device and only replaceable in
the factory.
Frequency of scanner utilisation
Frequency of RFID utilisation
3.6 External interfaces
Restrictions:
− The 17-pole data interface should only be used outside the potentially explosive
atmosphere and exclusively with the devices stated by the manufacturer!
− The headset connection should only be used outside the potentially explosive
atmosphere and exclusively with the devices stated by the manufacturer!
device inside of
Technical data subject to change without notice.
Revision D / Status 10/2016
31/73
Technical Data
Mobile Computer MC92N0ex
Type 17-A1A.-………… and Type B7-A2A.-…………
3.7 Product labelling
Laser warning
Laser Mark of Compliance
Laser warning
Type label
e.g. for: ATEX/IECEx Zone 1
RFID-LF internal
CAUTION - CLASS 3R LASER LIGHT WHEN OPEN.
AVOID DIRECT EYE EXPOSURE.
ATTENTION - LUMIÈRE LASER DE CLASSE 3R, EN CAS D’OUVERTURE.
EXPOSITION DANGEREUSE AU FAISCEAU.
VORSICHT - LASERLICHT KLASSE 3R, WENN ABDECKUNG GEÖFFNET.
DIREKTE BESTRAHLUNG DER AUGEN VERMEIDEN.
32/73
Laser warning
CAUTION - CLASS 2 LED LIGHT.
WHEN OPEN. DO NOT STARE INTO THE BEAM.
ATTENTION - LUMINERE LED DE CLASSE 2.
EN CAS D’OUVERTURE. NE PAS REGARDER DANS LE FAISCEAU
VORSICHT - LED LICHT KLASSE 2.
WENN ABDECKUNG GEÖFFNET. NICHT IN DEN STRAHL BLICKEN.
Technical data subject to change without notice..
Revision D / Status: 10/2016
Mobile Computer MC92N0ex
ITALIAN / ITALIANO
PORTUGUESE / PORTUGUÊS
Type 17-A1A.-………… and Type B7-A2A.-…………
Battery
Technical Data
Type 17-A1Z0-0001
Type 17-A1Z0-0002
Type B7-A2Z0-0006
3.8 Laser labels
DEUTSCH
KLASSE 1 KLASSE 1 LASER PRODUKT
KLASSE 2 LASERLICHT
NICHT IN DEN LASERSTRAHL SEHEN
KLASSE 2 LASER PRODUKT
ENGLISH
CLASS 1 CLASS 1 LASER PRODUCT
CLASS 2 LASER LIGHT
DO NOT STARE INTO BEAM
CLASS 2 LASER PRODUCT
CLASSE 1 PRODOTTO AL LASER DI CLASSE 1
CLASSE 2 LUCE LASER
NON FISSARE IL RAGGIOPRODOTTO
AL LASER DI CLASSE 2
DUTCH / NEDERLANDS
KLASSE 1 KLASSE-1 LASERPRODUKT
KLASSE 2 LASERLICHT
NIET IN STRAAL STAREN
KLASSE-2 LASERPRODUKT
In compliance with IEC 60825 and EN 60825, Clause 5 the following information is
provided:
FRENCH / FRANÇAIS
CLASSE 1 PRODUIT LASER DE CLASSE 1
CLASSE 2 LUMIERE LASER NE PAS REGARDER LE
RAYON FIXEMENT
PRODUIT LASER DE CLASSE 2
CLASSE 1 PRODUTO LASER DA CLASSE 1
CLASSE 2 LUZ DE LASER NÃO FIXAR O RAIO
LUMINOSO
PRODUTO LASER DA CLASSE 2
DANISH / DANSK
KLASSE 1 KLASSE 1 LASERPRODUKT
KLASSE 2 LASERLYF
SE IKKE IND I STRÅLEN
KLASSE 2 LASERPRODUKT
NORWEGIAN / NORSK
Technical data subject to change without notice.
Revision D / Status 10/2016
KLASSE 1 LASERPRODUKT, KLASSE 1
KLASSE 2 LASERLYS IKKE STIRR INN I
LYSSTRÅLEN
LASERPRODUKT, KLASSE 2
FINNISH / SUOMI
LUOKKA 1 LUOKKA 1 LASERTUOTE
LUOKKA 2 LASERVALO
ÄLÄ TUIJOTA SÄDETTÄ
LUOKKA 2 LASERTUOTE
33/73
Transport and Storage
Report any transport damage or incomplete deliveries immediately after receipt in
Any damage caused through incorrect storage shall not be covered by the warranty
Property damage through incorrect storage!
Mobile Computer MC92N0ex
Type 17-A1A.-………… and Type B7-A2A.-…………
4. Transport and Storage
4.1 Transport
writing to the forwarding company and BARTEC GmbH.
provisions of BARTEC GmbH.
4.2 Storage
ATTENTION
Observe storage temperatures.
Keep humidity away from the Mobile Computers.
Additional information on the batteries
The batteries of BARTEC (Type 17-A1Z0-0001, 17-A1Z0-0002 and B7-A2Z0-0006) are
developed and manufactured in accordance with the highest industrial standards. The
operating time or storage period of a battery is restricted, however. The actual life of a
battery is influenced by different factors, e.g. hot, cold, rough operating environment and
falling from a great height. If a battery is kept longer than six months, the performance
may be impaired on a permanent basis. Keep the batteries in a dry, cool place. For longer
periods of storage, remove the batteries from the device to prevent self-discharge, rusting
of metallic parts and the escape of electrolyte.
Batteries kept for the duration of 6 months or longer should be charged and then
discharged again at least every 3 months. If electrolyte has escaped, do not touch the
areas affected and dispose of the batteries as prescribed. Replace the battery if the
operating time has shortened considerably.
The standard warranty period for all BARTEC batteries is 6 months, whereby it is
irrelevant whether the battery was acquired separately or was contained in the scope of
ex
delivery of the MC92N0
.
34/73
Technical data subject to change without notice..
Revision D / Status: 10/2016
Mobile Computer MC92N0ex
Avoid electrostatic charging in potentially explosive atmosphere.
Unintended use endangers explosion protection.
Type 17-A1A.-………… and Type B7-A2A.-…………
5. Commissioning
Before you assemble the device, make sure that all components and documents exist.
DANGER
Commissioning
There is a risk of fatal injury in an explosive atmosphere!
Do not wipe or clean the devices with a dry cloth.
Wear suitable clothing and shoes.
Do not use rubber gloves or similar.
DANGER
There is a risk of fatal injury in an explosive atmosphere!
Do not make any changes to the Mobile Computer.
In the case of functional disturbances or damage to the enclosure, the device
should be removed immediately from the potentially explosive atmosphere to a
safe place. Remove battery to decommission the device!
Do not use any battery replicas or batteries from other manufacturers.
5.1 Scope of delivery
1 x MC92N0ex
1 x Lithium-ion battery 7.4 V / 2400 mAh
1 x Stylus
1 x User Manual
5.1.1 Accessories optional Authorised accessories from BARTEC:
− SD card
− Replacement stylus
− Battery 7.4 V / 2400 mAh
− Cradle for communication and charging
− Charging station
− Screen protector
− Leather holster
Technical data subject to change without notice.
Revision D / Status 10/2016
35/73
Commissioning
Mobile Computer MC92N0ex
Type 17-A1A.-………… and Type B7-A2A.-…………
5.2 Requirements in potentially explosive atmosphere
Mobile Computer
1. The Mobile Computer may not be opened.
2. Do not use, swap or replace any non-specified components.
3. Do not retrofit any components to the internal plugs or slots.
4. Protect the Mobile Computer from impact!
5. Do not expose the Mobile Computer to caustic/aggre ssi ve li quids, vapo u rs, mists!
6. Avoid the impact of moisture outside the specifications.
7. Avoid thermal impact outside the specified temperature range.
8. Use the 17-pole data interface only outsi de the potentially explosive atmosphere and
exclusively with the devices specified by the manufacturer!
9. Use the headset connection only outside the potentially explosive atmosphere and
exclusively with the devices specified by the manufacturer!
Battery
1. The battery may not be opened.
2. Change battery type 17-A1Z0-0001, 17-A1Z0-0002 and B7-A2Z0-0006 only outside
of hazardous area.
3. Only charge the battery outside the potentially explosive atmosphere.
Only use the battery for the purpose listed in this User Manual. Is only suitable for
the Mobile Computer MC92N0
Battery type 17-A1Z0-0001 is only suitable for MC92N0
(type 17-A1A3-…./……..)
Battery type 17-A1Z0-0002 is only suitable for MC92N0
(type 17-A1A2-…./……..)
Battery type B7-A2Z0-0006 is only suitable for MC92N0
(type B7-A2A4-…./……..)
4. There is a danger of burning if used incorrectly. Do not expose the battery to
temperatures of more than +50 °C (122 °F).
5. Battery acid may escape from the cells and cause burning in the case of damage.
6. Defective batteries must be disposed of immediately, whereby the provisions on
battery disposal applicable in the respective region must be observed.
7. The battery may explode if it catches fire!
8. Do not short circuit the battery!
ex
.
ex
-IS
ex
-IS
ex
-NI
36/73
Technical data subject to change without notice..
Revision D / Status: 10/2016
Mobile Computer MC92N0ex
Type 17-A1A.-………… and Type B7-A2A.-…………
Accessories
1. Only install or replace accessories outside the potentially explosive atmosphere.
2. Use accessories exclusively which have been tested or certified by BARTEC for this
purpose.
3. The end user can replace the SD card, screen protector, keypad and leather holster
himself.
5.3 First steps
Unpack the Mobile Computer.
Insert the battery into the Mobile Computer.
Charge the battery on the cradle.
Commissioning
5.4 Structure
Switch on the Mobile Computer.
Optional:
Charge the battery in a charger.
Insert a SD card.
Remove/replace screen protector.
The individual steps are explained on the following pages.
Technical data subject to change without notice.
Revision D / Status 10/2016
37/73
Commissioning
Non-certified accessories endanger explosion protection.
Type
Order
Charge time
Mobile Computer MC92N0ex
Type 17-A1A.-………… and Type B7-A2A.-…………
5.5 Handling accessories
DANGER
There is a risk of fatal injury in an explosive atmosphere!
Only use original accessories from BARTEC/ZEBRA.
Only permitted outside the potentially explosive atmosphere:
Charge battery.
Insert/replace SD card.
Remove/replace screen protector.
Further information is also provided by the ZEBRA documentation.
5.5.1 Insert battery
Depending on configuration, the MC92N0
ex
-IS is supplied with a 7.4 V/2200 mAh battery.
number
Battery (EU) for ATEX/IECEx
17-A1Z0-0001 Less than 8 hours
Lithium-ion battery 7.4 V / 2400 mAh
Battery (US) fo UL Division 1
17-A1Z0-0002 Less than 8 hours
Lithium-ion battery 7.4 V / 2400 mAh
Battery for UL Division 2 and ATEX Zone 2/22
B7-A2Z0-0006 Less than 8 hours
Lithium-ion battery 7.4 V / 2400 mAh
Work steps:
1. Charge the battery only outside hazardous areas.
2. Use only batteries which have been tested or certified by BARTEC for this
purpose.
3. Insert the battery with the battery contacts facing forwards into the battery
compartment under the keypad.
4. Make sure that the battery’s charging contacts agree with the charging contacts
in the battery compartment.
5. Push the battery into the battery compartment until it locks into place.
38/73
Technical data subject to change without notice..
Revision D / Status: 10/2016
Mobile Computer MC92N0ex
Non-certified accessories endanger explosion protection.
Incorrect handling may cause damage to property!
Type 17-A1A.-………… and Type B7-A2A.-…………
5.5.2 Change keypad
The MC92N0
There is a risk of fatal injury in an explosive atmosphere!
It must be ensured that only original keypads are used in safety-oriented operation.
The use of imitation keypads from other manufacturers will render the type of
Only permitted outside the potentially explosive atmosp her e:
The keypad may only be changed outside the hazardous area!
Follow proper ESD precautions to avoid damaging the SD card. Proper ESD
ex
has interchangeable modular keypads.
DANGER
ignition protection ineffective and there will then be a risk of fire or explosion.
precautions include, but are not limited to, working on an ESD mat and ensuring
that the operator is property grounded.
Commissioning
ATTENTION
Power off the MC92N0
Put the MC92N0
properly remove the battery may cause the MC92N0
ex
before start of change parts.
ex
into suspend mode before you remove the battery. Failure to
ex
to cold boot and potential
loss of data.
Work steps:
1. Turn off the MC92N0
ex
2. Remove the battery (see chapter 5.5.1 "Insert battery").
3. Take out the screws at the top edge of the keypad.
Technical data subject to change without notice.
Revision D / Status 10/2016
39/73
Commissioning
Mobile Computer MC92N0ex
Type 17-A1A.-………… and Type B7-A2A.-…………
4. Pull the keypad downwards in the direction of the arrow and then forwards to take it
ex
out of the MC92N0
5. Check that the contacts and seals are clean and in good condition.
6. Insert both of the keyboard’s guide pins into the guide grooves (see illustration) on
the mobile computer housing.
.
7. Snap on the keypad in the direction (see following illustration) of the arrow and push
it upwards until the boreholes for the screws are over the threaded sleeves.
40/73
Technical data subject to change without notice..
Revision D / Status: 10/2016
Mobile Computer MC92N0ex
Incorrect handling may cause damage to property!
Type 17-A1A.-………… and Type B7-A2A.-…………
8. Check that the keypad is mounted correctly.
Commissioning
9. Tighten the screws (torque = 0.452 Nm / torque = 4.0 in-lbs); 0.5 Nm is advisable.
Attention: Always use the correct torque.
10. After the exchange of the keyboard a cold boot (see chapter 7.1 "Resetting the
ex
MC92N0
") must be performed.
11. The current drivers are installed on the unit and initialized automatically by the cold
boot.
ATTENTION
Do not apply more than 0.5 NM or 4 in-lbs of torque when tightening the keypad
screws.
Technical data subject to change without notice.
Revision D / Status 10/2016
41/73
Commissioning
Damage to the SD card through electrostatic discharges!
5.5.3 Insert SD card
Mobile Computer MC92N0ex
Type 17-A1A.-………… and Type B7-A2A.-…………
ATTENTION
Use an antistatic base.
Ensure that the operator is correctly earthed.
Use only specified SD cards
1 GB Order number 17-28BE-F006/0002
2 GB Order number 17-28BE-F006/0003
4 GB Order number 17-28BE-F006/0004
8 GB Order number 17-28BE-F006/0005
16 GB Order number 17-28BE-F006/0006
32 GB Order number 17-28BE-F006/0007
Work steps:
1. Only install or replace the SD card outside the potentially explosive atmosphere.
2. Only use SD cards which have been tested and certified by BARTEC for this
purpose.
ex
3. Press the red button "ON/OFF" to suspend the MC92N0
.
4. Remove the battery (see chapter 5.5.1 "Insert battery")
5. Remove the two keypad screws and slide the keypad down and lift off
(see chapter 5.5.2 "Change keypad").
6. Lift the SD card retaining door and position the SD card, with the contacts down, into
the SD card holder (shown in the illustration).
7. Snap the retaining door closed.
8. Replace the keypad and re-attach using the two screws
(see chapter 5.5.2 "Change keypad")
9. Perform a warm boot that the keypad is recognized by the system
ex
(see chapter 7.1 "Resetting the MC92N0
").
10. Check in the File Explorer or the settings, if the SD card has been recognized.
42/73
Technical data subject to change without notice..
Revision D / Status: 10/2016
Mobile Computer MC92N0ex
to IIB.
in combination with
order screen protector from your customer consultant or from BARTEC.
Installation instructions for the screen protector are part of the delivery scope. Part
Type 17-A1A.-………… and Type B7-A2A.-…………
5.5.4 Remove/replace screen protector
The screen protector protects the touch screen and improves the user friendliness of the
device. With its relatively hard surface, the screen protector offers a mechanical protection
against scratches for example and reduces disturbing light reflecti ons.
DANGER
Use of a screen protector changes the Ex protection type of the MC92N0ex
There is a risk of explosion when you use the MC92N0ex
screen protector in hazardous area with gas group IIC.
Use of screen protector change the Ex protection type of the MC92N0 from IIC to
IIB.
ATTENTION
Commissioning
Incorrect handling may cause damage to property!
Use a screen protector so as not to impair the device warranty.
Only use screen protector (Type 17-A1Z0-0003) from BARTEC.
Observe the installation instructions for the screen protector.
Do not use any sharp objects to remove the screen protector!
Work steps
1. Only remove or replace the screen protector outside the potentially explosive
atmosphere.
2. Lift a corner of the screen protector and remove it from the display.
3. Attach the screen protector in accordance with the “Screen protector installation
instructions”.
You can
number: 17-A1Z0-0003 screen protector, pack of 5.
Technical data subject to change without notice.
Revision D / Status 10/2016
43/73
Commissioning
Non-certified accessories endanger explosion protection. There is a risk of fatal
Headset what are not compliant to the safety data of the headset connector
There is a risk of fatal injury in an explosive
Ex protection
Ex ib IIC
U0 = 8.6 V
I0 = 354 mA
P0 = 479 mW
C0 = 930 nF
L0 = 460 µH
5.5.5 Leather holster
Mobile Computer MC92N0ex
Type 17-A1A.-………… and Type B7-A2A.-…………
BARTEC offers holsters to protect the MC92N0
different versions.
DANGER
ex
series. The holsters are available in
5.5.6 Headset
injury in an explosive atmosphere!
Use only the original leather holsters.
Leather holster with ining
− for MC92N0
− for MC92N0
− for MC92N0
ex
-K RFID/RuBee 03-9809-0023
ex
-G RFID/RuBee 03-9809-0024
ex
-G and MC92N0ex-K with belt clip and turned part 03-9809-0026
− Turned part for holster 03-9809-0027
Leather holster with ining and keypad protection foil
− for MC92N0
− for MC92N0
− for MC92N0
ex
-K RFID/RuBee 03-9809-0019
ex
-G RFID/RuBee 03-9809-0020
ex
-G and MC92N0ex-K with belt clip and turned part 03-9809-0022
− Turned part for holster 03-9809-0027
DANGER
endanger a risk of explosion.
atmosphere!
Use only headsets which observe the safety data in the EC Type Examination
Certificate.
Safety data of headset connector:
44/73
Technical data subject to change without notice..
Revision D / Status: 10/2016
Mobile Computer MC92N0ex
option onto the mobile computer
Type 17-A1A.-………… and Type B7-A2A.-…………
5.6 RFID/RuBee
The MC92N0ex can be optionally equipped with RFID/RuBee
This unique idea makes it possible to combine state-of-the-art technologies so that one
device can capture barcode data or RFID/RuBee technology. Thanks to modular
keyboards and a colour display, the data can be edited directly on the device. The data
can be wirelessly transferred by means of WLAN or Bluetooth to other company divisions
for further processing and accordingly be available in real time for further editing.
5.6.1 Versions Several versions of the RFID option are available.
− Internal RFID Reader LF 125/134 kHz (without Scan Engine)
− Extended RFID Reader LF 125/134 kHz
− Internal RFID Reader HF 13,56 MHz (without Scan Engine)
− Extended RFID Reader HF 13,56 MHz
− Internal RFID Reader UHF EU 865.5 up to 867.5 MHz (without Scan Engine)
− Extended RFID Reader UHF EU 865.5 up to 867.5 MHz
− Internal RFID Reader UHF US 902 up to 928 MHz (without Scan Engine)
− Extended RFID Reader UHF US 902 up to 928 MHz
− Internal RFID Reader UHF EU 865.5 up to 867.5 MHz + mounted antenna
(without Scan Engine)
− Extended RFID Reader UHF EU 865.5 up to 867.5 MHz + mounted antenna
− Internal RFID Reader UHF US 902 up to 928 MHz + mounted antenna
(without Scan Engine)
− Extended RFID Reader UHF US 902 up to 928 MHz + mounted antenna
Commissioning
− Extended RuBee Reader 65.5/131 kHz
The customer cannot mount the RFID/RuBee
him/herself.
If the MC92N0ex is to be retrofitted at a later date, this may only be done in the factory.
Technical data subject to change without notice.
Revision D / Status 10/2016
45/73
Commissioning
Internal LF Reader
Internal HF Reader
Internal UHF Reader
Internal UHF Reader +
up to 150 cm
Extended LF Reader
Extended HF Reader
Extended UHF Reader
Extended UHF Reader +
Extended RuBee Reader
Mobile Computer MC92N0ex
Type 17-A1A.-………… and Type B7-A2A.-…………
5.6.2 Reading range/direction
The following specifications relating to ranges refer to an office environment and depend
on the standard used, the tags and the environmental influences.
up to 5 cm
up to 5 cm
up to 30 cm
mounted antenna
up to 5 cm
up to 12 cm
up to 50 cm
mounted antenna
up to 150 cm
up to 5 cm
46/73
Technical data subject to change without notice..
Revision D / Status: 10/2016
Mobile Computer MC92N0ex
to install ActiveSync (Version 4.5 or higher) on the host computer for
with the host
the host computer exist on both
on the host computer
Mobile Computer
the host computer
Type 17-A1A.-………… and Type B7-A2A.-…………
5.6.3 Software
A demo in Open Source and an SDK (created in Visual Studio 2008) are available as
software for developing applications. The SDK file is available in the C# programming
language and contains all the resources necessary for developing applications. On the
one hand, the Open Source Demo serves to show the reading process and on the other
hand it serves as a good example for application developers for programming readers.
The following operating systems are supported by the SDK and the Demo.
− WEH (Windows Embedded Handheld) 6.5.3
− Windows CE 7.0
− Android KitKat 4.4
The SDK, the demo and the relevant descriptions are available free of charge on the
BARTEC Download page.
http://www.bartec.de/automation-download/
5.7 Connection to a PC
Commissioning
The MC92N0ex-IS series is supplied with the Microsoft WEH 6.5.3 or higher operating
system. Microsoft provides software free of charge for connection to a PC for
synchronisation, installation and data exchange.
5.7.1 Active Sync
It is recommended
communication with different computers installed under Windows XP or earlier
operating systems.
ActiveSync synchronises the information from the Mobile Computer
computer. Changes made on the Mobile Computer or
devices after synchronisation.
ActiveSync is available for download as freeware at www.microsoft.com.
Supporting operating system: Windows XP or e arlier operating systems
More information on ActiveSync is available in the ZEBRA Integration Manual or on the
Microsoft website.
5.7.2 Windows Mobile Device Center
It is recommended to install the Windows Mobile Device Center
for the communication with different host computers installed under Windows Vista,
Windows 7, 8 or Windows 10.
The Windows Mobile Device Center synchronises the data from the
with the host computer. Changes made on the Mobile Computer or
exist on both devices after synchronisation.
The Windows Mobile Device Center is available for download as freeware at
www.microsoft.com
.
Supporting operating systems: Windows Vista, Windows 7, 8 or Windows 10
More information on Windows Mobile Device Center is available in the ZEBRA Integration
Manual or on the Microsoft website.
Technical data subject to change without notice.
Revision D / Status 10/2016
47/73
Operation
Mobile Computer MC92N0ex
Type 17-A1A.-………… and Type B7-A2A.-…………
6. Operation
The operator using an electric system in an potentially explosive environment must keep
the accompanying operation equipment in a good condition, operate and monitor it
correctly and conduct the requisite services and repairs. Before commissioning the
devices, it must be checked that all components and documents are available.
6.1 Final inspection
The following aspects must be checked before putting the device into operation:
Is there any damage to the display, scanner window or enclosure?
Is the battery used certified?
Is the battery compartment cover closed?
Does the screen protector (if used) have the requisite certification?
Is the SD card specified for the MC92N0
ex
-IS?
6.2 Handling
Optimum standby position
Right:
The Mobile Computer is protected from damage.
48/73
Wrong:
The Mobile Computer can be damaged by objects on the surface or may fall down.
Technical data subject to change without notice..
Revision D / Status: 10/2016
Mobile Computer MC92N0ex
Display
Enclosure
Environment
Battery
of charge drops to approximately 5 %. It is not necessary to
discharge the battery completely. Charging the battery every
day doesn’t do any damage either. Batteries nowadays do not
quickly, it is time to replace the battery. The battery’s expected
There is a risk of fatal injury in an explosive atmosphere!
Type 17-A1A.-………… and Type B7-A2A.-…………
6.3 Care and cleaning
We recommend that the devices be cleaned regularly depending on use and also treated
with care to ensure smooth and trouble-free operation.
6.3.1 Care
− Only use with supplied stylus for the touchscreen
− Use screen protector
− Use a soft cloth to clean and do not use aggressive cleaners
− Protect device from impacts
− Do not expose to extreme load, e.g. strong knocks and fall ing
− Do not expose to extreme temperatures and
− Do not leave in dirty, moist or wet environment
Operation
from great heights
− Change regularly
− Discharge and charge regularly (every 3 months)
− If storing for a lengthy time, take the batteries out of the Mobile
Computer and keep them in a cool environment at about 0°C to
+10°C and at a state of charge of approximately 40-50 %.
− It is recommendable to charge the battery again once the state
have a “memory effect”.
− If the battery state of charge drops from 100 % to half of that too
service life is approx. 500 charges with standard usage.
6.3.2 Cleaning
DANGER
Only clean the devices and the accessories outside the potentially explosive
atmosphere.
Technical data subject to change without notice.
Revision D / Status 10/2016
49/73
Operation
Keys and intermediate
Mobile Computer MC92N0ex
Type 17-A1A.-………… and Type B7-A2A.-…………
The following precautionary measures should be taken for your own safety and to
ensure the operational safety of the device:
ATTENTION
Devices and accessories can be destroyed if handled incorrectly.
Generally separate the charger from the power supply.
6.3.3 Suitable materials
− Alcohol cleaning cloths
− Lens cleaning cloths
− Cotton swabs
− Isopropanol
− Compressed air spray with tube
Enclosure − With alcohol cleaning cloths
spaces
Only clean the cradle contacts if the battery has been removed.
There should be no residue, e.g. fluff on the contacts.
There should be no moisture residue on the contacts.
Heed the safety precautions when drying with compressed air.
− With alcohol cleaning cloths
Screen − With alcohol cleaning cloths
Scanner window − Cleaning agent for optical devices
Battery contacts
Cradle contacts
50/73
Avoid collections of fluid and rub with smooth cloths
Remove the battery from the device to clean.
− Soak the cotton swabs in an alcohol solution to remove all grease
and dirt deposits on the contacts.
− Repeat cleaning several times
Before replacing the battery, the contacts must be completely dry and
no fluff should remain.
To clean the cradle contacts, remove the battery from the device.
− Soak the cotton swabs in an alcohol solution to remove all grease
and dirt deposits on the contacts.
− Repeat cleaning several times
Before the device is replaced in the cradle, the cradle contacts must be
completely dry and no fluff should remain.
Technical data subject to change without notice..
Revision D / Status: 10/2016
Mobile Computer MC92N0ex
Type 17-A1A.-………… and Type B7-A2A.-…………
Charger plug-in connector
Separate the charger from the power supply to clean the charger
contacts.
− Soak the cotton swabs in an alcohol solution to remove all grease
and dirt deposits on the contacts.
− Repeat cleaning several times
Before the charger is reconnected to the power supply, the contacts
must be completely dry and no fluff should remain.
6.4 Operation recommendations and requirements
6.4.1 Basic safety and health protection requirements
Consult your local health and safety officer to ensure that you are acquainted with the
safety regulations in your company which serve to protect employees at the work place.
Operation
6.4.1.1 Ergonomic recommendation
The following recommendations should be considered for everyday work at the
workplace:
− Avoid one-sided, constantly repetitive movements.
− Body posture should be as neutral as possible.
− Avoid exercising great force.
− Keep objects which are used frequently within a functional distance.
− Adjust the working height to the body height and type of work.
− Erect objects without vibration.
− Avoid the exercise of direct pressure.
− Ensure that tables and chairs are adjustable.
− There must be sufficient room for body movements.
− Ensure that the working environment is suitable.
− Optimise workflows.
− Alternate between the left and right hand as frequently as possible when conducting
repetitive tasks.
Technical data subject to change without notice.
Revision D / Status 10/2016
51/73
Operation
horn sounds or light
6.4.1.2 Vehicle installation
Mobile Computer MC92N0ex
Type 17-A1A.-………… and Type B7-A2A.-…………
RF signals may impair incorrectly installed or inadequately shielded electronic systems in
vehicles (including safety systems). If you have any questions on your vehicle, get in
touch with the manufacturer or a sales person. You can also learn from the manufacturer
whether additional equipment has been fitted to the vehicle. An airbag has a strong
impact. Do NOT place objects, such as installed or portable radio equipment, in the area
above the airbag or in the area of deployment of the airbag. If the radio equipment was
not correctly installed in the vehicle, severe injuries may result if the airbag is triggered.
Position the device within good range. Ensure that you have access to the device without
having to take your eye off the road.
It is not permitted to connect a warning device which leads to
signals when receiving a call in road traffic.
Road traffic safety
Do not take any notes and do not use the device when driving. Making a list of to-do’s or
browsing through the address book when driving has a negative influence on safe driving.
When driving on the roads, you must primarily think of your safety and that of the other
road users. You should therefore concentrate completely on the road. Check the legal
provisions on the use of wireless devices in road traffic of the respective region. Always
observe these. If you use a wireless device during driving, rely on your good judgment
and remember the following:
1. Become acquainted with the wireless device and its functions such as the shortcut
dialing or dial repetition. These functions may prove to be useful if you would like to
make a call without taking your eye off the road.
2. Where possible, use hands-free equipment.
3. Let your dialogue partner know that you are behind the steering wheel. Where
necessary, discontinue the call in dense traffic or poor weather conditions. Rain,
sleet, snow, ice and even very dense traffic represent dangers.
4. Dial the required numbers carefully and estimate the traffic situation. Make your calls
when you have brought your car to a stop or before you leave. Plan your calls such
that they can be made when the car is parked. If you really must make a call during
the trip, only dial a part of the number, check the road and look in the rear view
mirror and then dial the rest of the number.
5. Do not surccumb to stressful and emotional telephone conversations which could
take your attention from the road. Let your dialogue partner know that you are i n a
car and refrain from conversations whic h coul d take your attention away from the
road.
52/73
Technical data subject to change without notice..
Revision D / Status: 10/2016
Mobile Computer MC92N0ex
Type 17-A1A.-………… and Type B7-A2A.-…………
6. Call for help using your mobile device if necessary. Dial the emergency services (91-1 in the USA and 1-1-2 in Europe) or other local emergency service numbers in
the event of fire, accidents or medical emergences. Remember that these calls are
free of charge on the wireless device! The call can be made independently of
security code or networks with or without the SIM card.
7. Help your fellow humans in emergency situations with your mobile device. If you
witness a serious accident, crime or other emergency, call the emergency service (91-1 in the USA and 1-1-2 in Europe) or another local emergency service number
because you could be the one who needs help next time.
8. Call the breakdown service or a special mobile radio number for support if you
encounter problems on the road. If you pass a car with a breakdown, which does not
represent a serious impediment to traffic, pass traffic lights which do not function, a
traffic accident with slight dam age and without injured people or a possibly stolen
car, please get in touch with the road police or another special mobi le radio number
for support.
Operation
“The mobile communication industry requests you to give safety priority when using your
device/telephone.”
6.4.2 Instructions on the use of Wireless Devices
Observe all warnings relating to the use of wireless devices.
6.4.2.1 Safety in aircraft
Switch off the wireless device when asked to do so by the ground staff and by employees
of the airline. If your device has a flight mode or a similar function, find out about its
correct use from the aircraft staff.
6.4.2.2 Safety in hospitals
Wireless devices emit radio frequencies and can cause disturbances to medical technical
electrical devices. Wireless devices should be switched off on request when you are in
hospitals, clinics or health establishments. This is intended to avoid any possible
interference with sensitive medical equipment.
Technical data subject to change without notice.
Revision D / Status 10/2016
53/73
Operation
6.4.2.3 Heart pacemakers
Mobile Computer MC92N0ex
Type 17-A1A.-………… and Type B7-A2A.-…………
Manufacturers recommend that a minimum distance of 15 cm be observed between a
wireless handheld device and a pacem aker to avoid potential interference. This guideline
is in line with independent research results and recommendations of Wireless Technology
Research.
− Wearers of heart pacemakers
− Persons with heart pacemakers shoul d ALWAYS keep at least 15 cm away from the
activated device.
− The device may not be worn by these persons in the breast pocket.
− The device should be held to the ear which is furthest away from the heart
pacemaker.
− If you have reason to assume that interference has arisen, you should SWITCH OFF
the device immediately.
6.4.2.4 Hearing aids
The wireless device may cause disturbances to hearing devices. Get in contact with the
manufacturer of your hearing device in the case of disturbances to ask about possible
solutions.
− The device may not be worn in the breast pocket of these persons.
− The device should be held to the ear which is furthest away from the heart
pacemaker.
− If you have reason to assume that interference has arisen, you should SWITCH OFF
the device immediately.
6.4.2.5 Other medical equipment
Ask your doctor or the manufacturer of the medical device to determine whether putting
the wireless product into operation impairs the medical device.
6.4.3 Equipment of the laser devices
Devices from Symbol/ZEBRA equipped with lasers comply with the Guidelines
21CFR1040.10 and 1040.11. (with the exception of the deviations set out in the Laser
Notice No. 50 dated 24 June 2007) and EN 60825-1:2001,2007 und EN 62471:2006. The
classification of the laser device is stated on a plate attached to the device.
54/73
Class 1 Laser devices are not considered to be hazardous when used for their intended
purpose.
CAUTION
Laser radiation! Risk of damage to eyesight!
Do not look into the laser beam.
Technical data subject to change without notice..
Revision D / Status: 10/2016
Mobile Computer MC92N0ex
The use of wireless devices is possibly forbidden or restricted. This applies primarily on
or under other
re not sure which regulations apply to the use of the
Type 17-A1A.-………… and Type B7-A2A.-…………
Laser devices of Class 2 work with a visible low volt light emitting diode. As for every
bright light source, for example the sun, you shoul d not look directly into the light beam.
There is no information about the hazards of being briefly exposed to the laser light of a
laser scanner of Class 2.
The use of control elements, adjustments or the application of procedures which do not
comply with the instructions described here may lead to hazardous exposure to beams.
6.4.4 LED Devices
Complies with EN60825-1:2001 and EN 62471:2006.
6.4.5 Restrictions to wireless devices
Operation
board aircraft, in hospitals, in the vicinity of explosive substances
hazardous conditions. If you a
device, ask permission before switching it on.
Radio Modules
The device contain approved radio module(s). These module(s) are identified below.
BARTEC/Zebra radio module supporting WLAN 802.11 a/b/g/n and Bluetooth.
Type(s): 21-148603-0B
Bluetooth® Wireless Technology
This is an approved Bluetooth® product. For more information or to view End Product
Listing, please visit https://www.bluetooth.org/tpg/listings,cfm
Country-specific roaming
This device has the International Roaming function (IEEE802.11d) which ensures that the
device is used on the channels prescribed for the respective country.
Ad-hoc operation
The ad-hoc operation is restricted to the channels 36–48 (5150–5250 MHz). The use of
this bandwidth is restricted to indoor areas; use outdoors is not permitted.
Technical data subject to change without notice.
Revision D / Status 10/2016
55/73
Operation
Mobile Computer MC92N0ex
Type 17-A1A.-………… and Type B7-A2A.-…………
6.5 Frequency of Operation – FCC and IC
5 GHz Only
The use in the UNII (Unlicensed National Information Infrastructure) band 1 5150 -5250
MHz band is restricted to Indoor Use Only; any other use will make the operation of this
device illegal.
Industry Canada Statement
Caution: The device for the band 5150-5250 MHz is only for indoor usage to reduce
potential for harmful interference to co-Channel mobile satellite systems. High power
radars are allocated as primary users (meaning they have priority) of 5250-5350 MHz and
5650-5850 MHz and these radars could cause interference and/or damage to LE-LAN
devices.
Avertissement: Le dispositive fonctionnant dans la bande 5150-5250 MHz est r éservé
uniquement pour une utilisation à l'intérieur afin de réduire les risques de brouillage
préjudiciable aux systèmes de satellites mobiles utilisant les memes canaux.
Les utilisateurs de radars de haute puissance sont désignés utilisateurs principaux (c.-àd., qu'ils ont la priorité) pour les bands 5250-5350 MHz et 5650-5850 MHz et que ces
radars pourraient causer du brouillage et/ou des dommages aux dispositifs LAN-EL.
2.4 GHz Only
The available channels for 802.11 b/g operation in the US are Channels 1 to 11. The
range of channels is limited by firmware.
Radio Frequency Interference Requirements - FCC
Note: This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However there is
no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
56/73
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Note according to 15.21
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Technical data subject to change without notice..
Revision D / Status: 10/2016
Mobile Computer MC92N0ex
Type 17-A1A.-………… and Type B7-A2A.-…………
Radio Transmitters (Part 15)
This device complies with Part 15 of the FCC rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference
that may cause undesired operation.
Radio Frequency Interference Requirements - Canada
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Radio Transmitters
This device complies with RSS 210 of Industry & Science Canada. Operation is subject to
the following two conditions:
(1) this device may not cause harmful interference and
Operation
(2) this device must accept any interference received, including interference
that may cause undesired operation.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d'en compromettre le fonctionnement.
Label Marking: The Term "IC:" before the radio certification only signifies that "Industry
Canada" technical specifications were met.
Country approvals
Regulatory markings, subject to certification, are applied to the device signifying the
radio(s) is/are approved for use in the following countries: United States, Canada, Japan,
China, S. Korea, Australia, and Europe.
Detailed information on the test symbol for other countries is provided in the EC
declaration of conformity.
− Note: For 2.4-GHz-products: Europe covers, Belgium, Bulgaria, Denmark, Germany,
Estonia, Finland, France, Greece, Great Britain, Ireland, Iceland, Italy, Latvia,
Liechtenstein, Lithuania, Luxembourg, Malta, Netherlands, Norway, Austria, Poland,
Portugal, Romania, Sweden, Switzerland, Slovakia, Slovenia, Spain, Czech Republic,
Hungary and Cyprus.
WARNING
Operation of the device without regulatory approval is illegal.
Technical data subject to change without notice.
Revision D / Status 10/2016
57/73
Operation
Mobile Computer MC92N0ex
Type 17-A1A.-………… and Type B7-A2A.-…………
Radio Transmitters
For RLAN Devices:
The use of 5 GHz RLAN’s, for use in Canada, have the following restrictions:
− Restricted Band 5.60 – 5.65 GH z
This device complies with RSS 210 of Industry Canada. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable aux
appareils radio exempts de licence. Son fonctionnement est sujet aux deux conditions
suivantes:
(1) le dispositif ne doit pas produire de brouillage préjudiciable, et
(2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de
provoquer un fonctionnement indésirable.
Label Marking: The Term “IC:” before the radio certification only signifies that Industry
Canada technical specifications were met.
6.6 Electromagnetic fields
6.6.1 International
Reducing RF Exposure – Use Properly
Only operate the device in accordance with the instructions supplied.
International
The device complies with internationally recognized standards covering human exposure
to electromagnetic fields from radio devices. For information on “International” human
exposure to electromagnetic fields refer to the BARTEC and Zebra Declaration of
Conformity (DoC) at
http://www.motorolasolutions.com/doc
For further information on the safety of RF energy from wireless devices – see
http://responsibility.motorolasolutions.com/index.php/downloads/
located under Wireless Communications and Health.
Europe
58/73
Handheld Devices
This device was tested for typical body-worn operation. Use only BARTEC Zebra tested
and approved belt-clips, holsters, and similar accessories to ensure EU Compliance.
Technical data subject to change without notice..
Revision D / Status: 10/2016
Mobile Computer MC92N0ex
Type 17-A1A.-………… and Type B7-A2A.-…………
US and Canada
Co-located statement
To comply with FCC RF exposure compliance requirement, the antenna used for this
transmitter must not be co-located or operating in conjunction with any other
transmitter/antenna except those already approved in this filling.
Handheld Devices
This device was tested for typical body-worn operation. Use only BARTEC tested and
approved belt-clips, holsters, and similar accessories to ensure FCC Compliance. The
use of third-party belt-clips, holsters, and similar accessories may not comply with FCC
RF exposure compliance requirements, and should be avoided.
The MC92N0ex should only be worn on the body when switched off.
Operation
6.6.2 Handheld devices
To comply with the FCC guidelines for high frequency devices, the aerial of the transmitter
should be used in the direct vicinity of, or in an operation unit with, other
transmitters/aerials with the exception of those approved in this document.
SD card
The SD card slot provides a secondary, non-volatile memory. The slot is under the
keypad of the MC92N0
ex
. Further information is provided in the documentation supplied
with the card. Observe the manufacturer’s recommendations on use.
Technical data subject to change without notice.
Revision D / Status 10/2016
59/73
Operation
Mobile Computer MC92N0ex
Type 17-A1A.-………… and Type B7-A2A.-…………
6.7 Optimise operating times/change energy settings (W EH 6.5.3 onl y)
Factory settings of the MC92N0ex-IS for the WWAN and WLAN radio devices: ON.
6.7.1 Automatic shutdown in the case of lengthy standby periods
Symbols
In the start menu under:
> Settings symbol
> System symbol
> Power symbol
> Advanced tab
> Activate “Turn off device if not
used for” box and select a value
from the dropdown list.
> Confirm selection with “OK”.
6.7.2 Change display backlight (increases the operating time of the battery)
Symbols
In the start menu under:
> Settings symbol
> System symbol
> Backlight symbol
> Battery Power tab
> Activate “Disable backlight if
device is not used for” box and select
a value from the dropdown list.
> Brightness tab
> Select Disable backlight option. The
brightness of the backlight can be
regulated with a controller.
60/73
> Confirm selection with “OK”.
Technical data subject to change without notice..
Revision D / Status: 10/2016
Mobile Computer MC92N0ex
Type 17-A1A.-………… and Type B7-A2A.-…………
6.7.3 Change keypad background lighting (increases the operating time of the battery)
Operation
Symbols
In the start menu under:
> Settings symbol
> System symbol
> Keylight symbol
> Battery Power tab
Activate “Disable keylight if device if
not used for” option and select a value
from the dropdown list.
> Advanced tab
Select “Disable keylight” option. The
brightness of the backlight can be
regulated with a controller or
switched off.
> Confirm selection with “OK”.
Technical data subject to change without notice.
Revision D / Status 10/2016
61/73
Operation
deactivate and configure all wireless
Mobile Computer MC92N0ex
Type 17-A1A.-………… and Type B7-A2A.-…………
6.7.4 Switch off radio connections
Products with Bluetooth® Wireless technology:
This device is an approved Bluetooth® product. Further information is available at
http://www.bluetooth.org/tpg/listings.cfm Manufacturer: ZEBRA
Symbols
Windows Embedded Handheld 6.5.3
devices have a simple and central possibility
in the form of the Wireless Manager to
functions of the device.
In the start menu under:
> Settings symbol
> Connections symbol
> Wireless Manager symbol
Activate/deactivate wireless connection:
> activate respective button.
> All button
Wireless connections depend on the configuration.
6.8 Software versions
Existing software versions and operating systems in the MC92N0ex–IS:
6.8.1 OEM
Symbols
The software is not relevant to the explosion protection of the device.
See the ZEBRA documentation for further information.
In the start menu under:
> Settings symbol
> System symbol
> System Info symbol
> System tab
62/73
Technical data subject to change without notice..
Revision D / Status: 10/2016
Mobile Computer MC92N0ex
The last part of the build number contains
“User Manual on
The MC92N0 with Bluetooth technology uses either the StoneStreet Bluetooth stack or
the Microsoft Bluetooth stack. To write an application that uses the StoneStreet One
Enterprise Mobility Developer Kit
“User Manual on
Type 17-A1A.-………… and Type B7-A2A.-…………
6.8.2 AKU
Operation
Symbols
6.8.3 Bluetooth
Symbols
In the start menu under:
> Settings symbol
> System symbol
> About symbol
> Version tab
storage battery number.
The “BTExplorer” application is only avail able if the “StoneStreet One Bluetooth Stack”
function is activated. Further information is provided in the ZEBRA
Integration”.
In the start menu under:
> Moto BT UI Information symbol
> My Device Information symbol
Bluetooth stack APIs refer to the Zebra Solutions
(EMDK) Help. Further information is provided in the ZEBRA
Integration”.
Technical data subject to change without notice.
Revision D / Status 10/2016
63/73
Operation
6.8.4 “Fusion”software
Mobile Computer MC92N0ex
Type 17-A1A.-………… and Type B7-A2A.-…………
Symbols
In the start menu under:
> Wireless Companion symbol
> Wireless Status symbol
> Point 7 “Versions”
64/73
Technical data subject to change without notice..
Revision D / Status: 10/2016
Mobile Computer MC92N0ex
There is a risk of fatal injury in an explosive atmosphere!
on fault rectification is provided in the User Manual or the Integration
Type 17-A1A.-………… and Type B7-A2A.-…………
7. Faults and Troubleshooting
DANGER
Examine defective devices and any accessories only outside the potentially
explosive atmosphere.
Information
Manual from ZEBRA.
http://www.motorola.com/Business/US-EN/Enterprise+Mobility
on the ZEBRA website.
ZEBRA website for the MC9200 manuals for the non-Ex protected vers ion
Faults and
Troubleshooting
− Support
− Mobile Computer, Barcode Scanners & RFID/RuBee => Get Product Manuals
− Product Manuals
− Mobile Computers
− MC9200
− Click on “More” to obtain the complete list.
7.1 Resetting the MC92N0ex
7.1.1 Windows Embedded Handheld and Windows CE Devices
If the applications stop working while the MC92N0
reboot the device.
There are two re-booting functions: warm boot and cold boot. If these types of rebooting
ex
don’t help, the MC92N0
„CleanBoot“.
operating system can be reset to the factory defaults by a
ex
is used, it is recommendable to
7.1.2 On a Windows CE 7.0 device
− A warm boot starts the MC92N0
− A cold boot also restarts the MC92N0
RAM. Data saved in flash memory or a memory card i s not lost. In addition it returns
formats, preferences and other settings to the factory default settings.
Technical data subject to change without notice.
Revision D / Status 10/2016
ex
again and shuts down all running programs.
ex
, but erases all stored records and entries in
65/73
Faults and
Incorrect handling may cause damage to property!
Any data previously synchronized with a computer can be restored during the next
Troubleshooting
Mobile Computer MC92N0ex
Type 17-A1A.-………… and Type B7 -A2A.-…………
ATTENTION
7.1.2.1 Warm boot
7.1.2.2 Cold Boot
Data stored in the flash memory or on a memory card is not lost. First perform a
warm boot. The MC92N0
preserved. If the MC92N0
ex
is re-started and all stored data records and entries are
ex
still does not respond after a warm boot, perform a
cold boot.
ActiveSync operation.
To perform a warm boot
1. Hold down the Power button for approximately five seconds. As soon as the
MC92N0
ex
starts to perform a warm boot release the Power button.
ATTENTION
Incorrect handling may cause damage to property!
Performing a cold boot restores formats, preferences and other settings to the
default settings.
To perform a cold boot:
1. Press the red Power button. The PowerKey Action window appears.
2. Tap Safe Battery Swap.
3. Press the primary battery release on the MC92N0
the MC92N0
4. While the battery is partially released, simultaneously press and release the handle
trigger and the Power button.
5. Push the battery to fully re-insert it in the MC92N0
as the battery is fully inserted.
6. The MC92N0
7. Calibrate the sc reen. See Calibrating the Screen in the Zebra User Guide to calibrate
the MC92N0
ex
(see chapter 5.5.1 Insert battery)
ex
reboots.
ex
screen.
ex
to partially eject the battery from
ex
. One audible click can be heard
66/73
Technical data subject to change without notice..
Revision D / Status: 10/2016
Mobile Computer MC92N0ex
Incorrect handling may cause damage to property!
Any data previously synchronized with a computer can be restored during the next
Incorrect handling may cause damage to property!
Type 17-A1A.-………… and Type B7-A2A.-…………
7.1.3 On a Windows Embedded Handheld 6.5.3 device
− A warm boot starts the MC92N0
− A cold boot also restarts the MC92N0ex, but erases all stored records and entries in
RAM. In addition, some new drivers are installed
ATTENTION
Faults and
Troubleshooting
ex
again and shuts down all running programs.
7.1.3.1 Warm Boot
7.1.3.2 Cold Boot
Data stored in the flash memory or on a memory card is not lost. First perform a
warm boot. The MC92N0
preserved. If the MC92N0
ex
is re-started and all stored data records and entries are
ex
still does not respond after a warm boot, perform a
cold boot.
ActiveSync operation.
To perform a warm boot
1. Hold down the Power button for approximately five seconds. As soon as the
ex
MC92N0
starts to perform a warm boot release the Power button.
ATTENTION
Performing a cold boot restores formats, preferences and other settings to the
default settings.
To perform a cold boot:
2. Press the red Power button. The PowerKey Action window appears.
3. Tap Safe Battery Swap.
4. Press the primary battery release on the MC92N0ex to partially eject the battery from
ex
the MC92N0
. (described in chapter 5.4.1 Insert battery)
5. While the battery is partially released, simultaneously press and release the handle
trigger and the Power button.
6. Push the battery to fully re-insert it in the MC92N0
as the battery is fully inserted.
ex
7. The MC92N0
reboots.
Technical data subject to change without notice.
Revision D / Status 10/2016
ex
. One audible click can be heard
67/73
Faults and
Incorrect handling may cause damage to property!
Troubleshooting
7.1.3.3 Clean Boot
Mobile Computer MC92N0ex
Type 17-A1A.-………… and Type B7 -A2A.-…………
ATTENTION
Performing a clean boot restores formats, preferences and other settings to the
factory settings.
1. Download the Clean Boot Package from the Zebra Support Central. Follow the
instructions included in the package for installing the package onto the MC92N0
ex
.
68/73
Technical data subject to change without notice..
Revision D / Status: 10/2016
Mobile Computer MC92N0ex
Prevent electrostatic charging in potentially explosive atmospheres.
Type 17-A1A.-………… and Type B7-A2A.-…………
8. Service, Inspection, Repair
Commissioning and service of Mobile Computers may be conducted exclusively by
trained and qualified staff! The staff is familiar with the installation, assembly,
commissioning and operation of the Mobile Computers, has been informed about the risks
and has the qualifications necessary for this work.
8.1 Service intervals
The mechanical state of the devi ce should be regularly checked. The service intervals will
depend on the ambient conditions. We recommend that a service be conducted at least
once a year. Regular servicing is not necessary if the device is correctly operated in
accordance with the installation instructions and under appropriate consideration of the
ambient conditions.
DANGER
Service, Inspection, Repair
There is a risk of fatal injury in an explosive atmosphere!
Do not dry wipe or clean devices.
8.2 Inspection
According to EN 60079-17, IEC 60079-17, EN 60079-19 and IEC 60079-19, the
owner/operator of electrical plants in potentially explosive atmospheres is obliged to have
these plants checked by an electrician to ensure that they are in a correct condition.
8.3 Service and repair work
In addition to Directive 99/92/EC, standards EN 60079-17, IEC 60079-17, EN 60079-19
and IEC 60079-19 also apply to the servicing and repair as well as the testing of
accompanying operating devices.
Work connected with assembly/dismantling, operation and servicing may only be
conducted by trained specialists. All statutory requirements and other binding guidelines
on occupational health and safety, accident prevention and environmental protection must
be observed.
Technical data subject to change without notice.
Revision D / Status 10/2016
69/73
Disposal, Dispatch and
Packaging
Mobile Computer MC92N0ex
Type 17-A1A.-………… and Type B7-A2A.-…………
8.3.1 Information on sending in for repairs
The following information is required for the repair.
− Series number of the device (see manufacturer’s label)
− Model number or product name (see manufacturer’s label)
− Software type and version number (see Chapter 6.7)
Please read through the handling guidelines for the RMA process before you send in a
defective device for repair. Then complete the RMA form (Return Merchandise
Authorization), sign it and send it to our “Returns Centre”.
E-Mail: services@bartec.de
Fax: +49 7931 597-119
We cannot guarantee the processing within the contractually agreed period for any
returns received by us without RMA number.
The handling guidelines and the RMA form are available for download from our website:
http://www.bartec.de
> Quality and culture
> RMA form
If you have any questions, please send us an e-mail or give us a call.
E-Mail: services@bartec.de
Telephone: +49 7931 597-444
70/73
Technical data subject to change without notice..
Revision D / Status: 10/2016
Mobile Computer MC92N0ex
Our devices are intended as professional electric devices for business use only,
Directive. The WEEE directive sets the
framework for waste electric and electronic equipment handling procedures which are
oughout the EU. This means that you are not permitted to dispose of this
equipment in normal household refuse. It should not be given to the collection sites set
up by the public waste management authorities either but instead it should be
Any product we supply can be returned by our customers to us when the time has
come to dispose of it. We will ensure that it is disposed of in accordance with the
Sensitive devices! Damage may be caused by incorrect packaging!
Type 17-A1A.-………… and Type B7-A2A.-…………
9. Disposal
The Mobile Computers contain metallic and plastic parts and electronic components.
referred to as B2B devices under the WEEE-
to apply thr
disposed of in a separate collection in an environmentally sound manner.
respective applicable statutory regulations.
Service, Inspection, Repair
The sender pays the costs of the dispatch/packaging.
10. Dispatch and Packaging Information
ATTENTION
Use original packaging for transport.
Technical data subject to change without notice.
Revision D / Status 10/2016
71/73
Accessories, Spare Part s
Mobile Computer MC92N0ex-IS
Spare keypad with blue overlay for ATEX / IECEx / UL - ATEX and Division 1
Mobile Computer MC92N0ex-NI
Mobile Computer MC92N0ex
Type 17-A1A.-………… and Type B7-A2A.-…………
11. Accessories, Spare Parts
Description Order number
Spare battery
7.4 V/2400 mAh, Li-Ion Battery ATEX/IECEx 17-A1Z0-0001
7.4 V/2400 mAh, Li-Ion Battery UL 17-A1Z0-0002
with 28 keys 05-0080-0438
with 43 keys 05-0080-0440
with 53 keys 05-0080-0441
with 53 keys for VT Emulation 05-0080-0442
with 53 keys for 3270 Emulation 05-0080-0443
with 53 keys for 5250 Emulation 05-0080-0444
Description Order number
Spare battery
7.4 V/2400 mAh, Li-Ion Battery ATEX/IECEx B7-A2Z0-0006
7.4 V/2400 mAh, Li-Ion Battery UL B7-A2Z0-0006
Spare keypad with green overlay for ATEX Zone 2 and Zone 22 / UL Division 2
with 28 keys 05-0080-0577
with 43 keys 05-0080-0578
with 53 keys 05-0080-0579
with 53 keys for VT Emulation 05-0080-0580
with 53 keys for 3270 Emulation 05-0080-0581
with 53 keys for 5250 Emulation 05-0080-0582
72/73
Technical data subject to change without notice..
Revision D / Status: 10/2016
Mobile Computer MC92N0ex
General
SD cards
with 1 GB
17-28BE-F006/0002
with 2 GB
17-28BE-F006/0003
with 4 GB
17-28BE-F006/0004
with 8 GB
17-28BE-F006/0005
with 16 GB
17-28BE-F006/0006
with 32 GB
17-28BE-F006/0007
for gas group IIA and IIB
17-A1Z0-0003
Leather Holster
for MC92N0ex-K RFID
03-9809-0023
for MC92N0ex-G RFID
03-9809-0024
for MC92N0ex-G und MC92N0ex-K with belt clip and
turned part for holster
03-9809-0027
for the non Ex area
05-0079-0018
4-Slot Ethernet Cradle
03-9849-0026
Power supply
03-9911-0021
AC Line cord - 3 wired - EU
03-9609-0011
AC Line cord - 3 wired - US
03-9609-0021
4-Slot Charging station
03-9849-0052
Power supply
03-9911-0021
DC Line cord Power supply <-> Cradle
03-9919-0010
AC Line cord - 3 wired - EU
03-9609-0011
4-Slot Rapid Charging Station UBC2000
for the non Ex area incl. power supply and DC line cord
03-9915-0004
Battery adapter
03-9919-0007
AC Line cord - 3 wired - EU
03-9609-0011
AC Line cord - 3 wired - US
03-9609-0021
Type 17-A1A.-………… and Type B7-A2A.-…………
Description Order number
Protective Display Foil
Accessories, Spare Part s
turned part
03-9809-0026
Single Slot Cradle Set
4-Slot Ethernet Cradle Set for the non Ex area
DC Line cord Power supply <-> Cradle 03-9919-0010
4-fach Charging station Set for the non Ex area
AC Line cord - 3 wired - US 03-9609-0021
Technical data subject to change without notice.
Revision D / Status 10/2016
73/73
Accessories, Spare Part s
Mobile Computer MC92N0ex
Type 17-A1A.-………… and Type B7-A2A.-…………
12. Additional Information
12.1 Links
http://www.bartec-group.com
BARTEC website
http://www.bartec.de/automation-download/
BARTEC Downoad website
http://www.motorolasolutions.com/US-EN/Enterprise+Mobility
ZEBRA website
The ZEBRA page for the MC9200 User Manuals and software of the non-explosion
protected version
− Support
− Mobile Computers, Barcode Scanners => Selelect a Produkt
Mobile Computers
− Handheld Computers
− MC9200
− Click on “More” for complete list
The ZEBRA product information page for the MC9200 of the non-explosion protected
version
− Products
− Mobile Computers
− Handheld Computers
− MC9200
74/73
http://www.Microsoft.com
Microsoft page for Active Sync or Windows Mobile Device Center
Technical data subject to change without notice..
Revision D / Status: 10/2016
Mobile Computer MC92N0ex
Type 17-A1A.-………… and Type B7-A2A.-…………
Declaration of Conformity
Mobile Computer MC92N0ex-IS – Zone 1
Appendix
Technical data subject to change without notice.
Revision C / Status 09/2015
Appendix
Mobile Computer MC92N0ex
Type 17-A1A.-………… and Type B7-A2A.-…………
Mobile Computer MC92N0
ex
-NI – Zone 2/22
Mobile Computer MC92N0
ex
-NI – Zone 2/22
All certification see www.bartec-group.com
Technical data subject to change without notice.
Revision C / Status 09/2015
Loading...
