1 Product Description

The MC 9090ex RFID mobile computer is a compact portable device and is designed by BARTEC specially for use in
hazardous areas. Accordingly the extensive communication options, already standard in other areas, are available to the
user in hazardous areas also.

The MC 9090ex RFID mobile computer is available in two versions, with pistol grip (MC9090ex Gun) and without (MC9090ex
Brick). In these versions the MC9090ex is a compact unit for scanning bar codes and RFID tags reliably.

The scan trigger is ideally positioned on the device, which allows bar codes and RFID tags to be captured easily. The
integrated radio module ensures a real-time exchange of data with the host system.

The MC 9090ex RFID combines the advantages of the Microsoft Pocket PC Platform with the strengths of the Intel®
XScaleTM PXA270 processor with 624 MHz.

The large, easy-to-read 1/4 VGA colour display is equipped with touchscreen technology. The device works with the
IEEE802.11 a/b/g (direct sequence) radio standard.

4

Supplement for RFID

2 Safety Instructions

2.1 Electromagnetic Fields

2.1.1 International

The device complies with internationally recognised standards covering human exposure to electromagnetic fields from
radio devices.

Reducing RF Exposure - Use Properly

Only operate the device in accordance with the instructions supplied.

2.1.2 US and Canada

Portable Devices

.

The Mobile Computer must be switched off before it may be carried on the body.

Co-Location Statement

To comply with the FCC RF exposure compliance requirement, the antenna used for this transmitter must not be co-located
or operating in conjunction with any other transmitter/antenna except those already approved in this filing.

5

Supplement for RFID

2.2 Warnings for Use of Wireless Devices

Please observe all warning notices with regard to the usage of wireless devices.

2.2.1 Radio Frequency Interference Requirements - FCC

Note: This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio
communications. However there is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the following measures:

 Reorient or relocate the receiving antenna.

 Increase the separation between the equipment and receiver.

 Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

 Consult the dealer or an experienced radio/TV technician for help.

FCC Note according to 15.21

Any changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.

Radio Transmitters (Part 15)

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference
that may cause undesired operation.

2.2.2 Radio Frequency Interference Requirements - Canada

This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

Radio Transmitters

This device complies with RSS 210 of Industry & Science Canada. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference and
(2) this device must accept any interference received, including interference
that may cause undesired operation.

Label Marking: The Term "IC:" before the radio certification only signifies that "Industry Canada" technical specifications
were met.

6

3 Technical Data

3.1 RFID / LF Internal Module

3.1.1 Explosion Protection

Types : 17-A129-R*04/H*******
Ex Protection Type Class I Division 1 Groups C und D
Certification : UL File E226123

Types : 17-A169-R*04/H*******

Supplement for RFID

Ex Protection Type Class I Division 1 Groups C and D

Class II Division 1 Groups F and G
Class III Division 1

Certification : UL File E226123

3.1.2 General Data

Ambient Temperature : -20 °C to +40 °C -4 °F to +104 °F
Weight including battery : MC9090ex - K

approx. 700 g approx. 24 oz
MC9090ex - G

approx. 830 g approx. 29 oz

3.1.3 Radio Data Transmission RFID / LF Internal Module

Nominal writing distance : approx. 5 cm approx. 1.9 inch
Antenna : Integrated in the device

as ferrite antenna or air coil antenna

Frequency range : 125/134 kHz
Transmitting power : 100 mW ±2dB

7

Supplement for RFID

3.1.4 Standards Supported by Firmware

Firmware Version
Btrw-rw.V.1.40.frm

HITAG S 256 HDX –RO EM 4450/4550

HITAG S 2 kbit HDX (Multipage) EM4xxx(UNIQUE)

HITAG 1 EM4xxx(UNIQUE) FDX-B

HITAG 2 FDX-B BDE

Q5 BDE ISO 11784/5 ISO Animal

ATA5567 ISO 11784/5 ISO Animal

EM4305

Firmware Version
Btrw-hdx.V.1.40.frm

Firmware Version
Btrw-ti.V.1.40.frm

8

3.2 RFID / LF External Module

3.2.1 Explosion Protection

Types : 17-A129-R**1/H*******
Ex Protection Type Class I Division 1 Groups C and D
Certification : UL File E226123

Types : 17-A169-R**1/H*******
Ex Protection Type Class I Division 1 Groups C and D

Class II Division 1 Groups F and G
Class III Division 1

Certification : UL File E226123

Supplement for RFID

3.2.2 General Data

Ambient Temperature : -20 °C to +40 °C -4 °F to +104 °F
Dimensions (length x width x height) : MC9090ex - K

231 x 91 x 105 mm 9.1 “ x 3.6 “ x 4.1 “ (inches)
MC9090ex - G

231 x 91 x 193 mm 9.1 “ x 3.6 “ x 7.6 “

Weight including battery (UL) : MC9090ex - K

approx. 1040 g approx. 40 oz
MC9090ex - G

approx. 1170 g approx. 41 oz

3.2.3 Radio Data Transmission RFID / LF External Module

Nominal writing distance : approx. 5 cm approx. 1.9 “
Antenna : Integrated in the device

as ferrite antenna or air coil antenna

Frequency range : 125/134 kHz
Transmitting power : 100 mW ±2dB

9

Supplement for RFID

3.2.4 Standards Supported by Software

Firmware Version
Btrw-rw.V.1.40.frm

HITAG S 256 HDX -RO EM 4450/4550

HITAG S 2 kbit HDX (Multipage) EM4xxx(UNIQUE)

HITAG 1 EM4xxx(UNIQUE) FDX-B

HITAG 2 FDX-B BDE

Q5 BDE ISO 11784/5 ISO Animal

ATA5567 ISO 11784/5 ISO Animal

EM4305

Firmware Version
Btrw-hdx.V.1.40.frm

Firmware Version
Btrw-ti.V.1.40.frm

3.3 RFID / HF External Module

3.3.1 Explosion Protection

Types : 17-A129-R**2/H*******
Ex Protection Type Class I Division 1 Groups C and D
Certification : UL File E226123

Types : 17-A169-R**2/H*******
Ex Protection Type Class I Division 1 Groups C and D

Class II Division 1 Groups F and G
Class III Division 1

Certification : UL File E226123

3.3.2 General Data

Ambient Temperature : -20 °C to +40 °C -4 °F to +104 °F
Dimensions (length x width x height) : MC9090ex –K

231 x 91 x 105 mm 9.1 “ x 3.6 “ x 4.1 “
MC9090ex –G

231 x 91 x 193 mm 9.1 “ x 3.6 “ x 7.6 “

Weight including battery (UL) : MC9090ex –K

approx. 1040 g approx. 40 oz
MC9090ex –G

approx. 1170 g approx. 41 oz

10

3.3.3 Radio Data Transmission RFID / HF External Module

Supported standards : HF ISO 15693

HF ISO 14443

Nominal reading range : HF ISO 15693

approx. 7 cm to 12 cm approx. 2.75 “ to 4.72 “
HF ISO 14443

approx. 1 cm to 6 cm approx. 0.4 “ to 2.36 “
(with tags in cheque card format)

Nominal writing distance : HF ISO 15693

approx. 7 cm to 12 cm approx. 2.75 “ to 4.72 “
HF ISO 14443

approx. 1 cm to 6 cm approx. 0.4 “ to 2.36 “
(with tags in cheque card format)

Antenna : Integrated
Frequency range : 13.56 MHz

Supplement for RFID

Transmitting power 250 mW ±2dB

3.3.4 Standards Supported by Firmware

ISO14443-A-compatible ISO14443-B-compatible ISO15693-compatible

e.g. mifare, mifare Ultra Light, my-d
proximity

I-Code 1 (optional)

e.g. I-Code SLI, Tag-IT HFI, my-d
vicinity, STM LRI512

11

Supplement for RFID

3.4 RFID / UHF External Modul

3.4.1 Explosion Protection

Types : 17-A129-R**3/H*******
Ex Protection Type Class I Division 1 Groups C and D
Certification : UL File E226123

Types : 17-A169-R**3/H*******
Ex Protection Type Class I Division 1 Groups C and D

Class II Division 1 Groups F and G
Class III Division 1

Certification : UL File E226123

3.4.2 General Data

Ambient temperature : -20 °C to +40 °C -4 °F to +104 °F
Dimensions (length x width x height) : MC9090ex –K

231 x 91 x 105 mm 9.1” x 3.6” x 4.1”
MC9090ex –G

231 x 91 x 193 mm 9.1” x 3.6” x 7.6”

Weight including battery (UL) : MC9090ex –K

approx. 1040 g approx. 40 oz
MC9090ex –G

approx. 1170 g approx. 41 oz

3.4.3 Radio Data Transmission RFID / UHF External Module

Supported standards : EPC Class 1 Gen 2 Tag
Nominal reading range : approx. 30 cm to 50 cm approx. 11.8” to 19.6”
Nominal writing range : approx. 30 cm to 50 cm approx. 11.8” to 19.6”
Antenna : Integrated
Frequency range : 902.0 to 928.0 MHz (FCC CFR 47 Part 15.247) for USA
Transmitting power : 200 mW ±2dB

12

3.5 RFID / UHF External Module + External Antenna

3.5.1 Explosion Protection

Types : 17-A129-R**5/H*******
Ex Protection Type Class I Division 1 Groups C and D
Certification : UL File E226123

Types : 17-A169-R**5/H*******
Ex Protection Type Class I Division 1 Groups C and D

Class II Division 1 Groups F and G
Class III Division 1

Certification : UL File E226123

Supplement for RFID

3.5.2 General Data

Ambient Temperature : -20 °C to +40 °C -4 °F to +104 °F
Dimensions (length x width x height) : MC9090ex –K

231 x 119 x 105 mm 9.1” x 4.7” x 4.1”
MC9090ex –G

231 x 119 x 193 mm 9.1” x 4.7” x 7.6”

Weight including battery (UL) : MC9090ex –K

approx. 1040 g approx. 40 oz
MC9090ex –G

approx. 1170 g approx. 41 oz

3.5.3 Radio Data Transmission RFID / UHF External Module + External Antenna

Supported standards : EPC Class 1 Gen 2 Tag
Nominal Reading Range : approx. 150 cm approx. 59”
Nominal Writing range : approx. 30 cm to 50 cm approx. 11.8” to 19.6”
Antenna : external (UPM Raflatac)
Frequency range : 902.0 to 928.0 MHz (FCC CFR 47 Part 15.247) for USA
Transmitting power : 200 mW ±2dB

13

Supplement for RFID

3.6 Notes re. Directives and Standards, Marking and In-Process Inspections

3.6.1 Product Marking Mobile Computer MC 9090

MC 9090ex RFID / LF internal

ex

RFID / LF internal (UL Class I Division 1)

E

Laser Warning

FCC Testmark

CE and Ex

protection type

Typ: 17-A129-… Class I Division 1, Groups C and D

Laser Warning

See type label

MC 9090

Typ: 17-A169-…

No Scan Engine available!

ex

RFID / LF internal

Class I Division 1 Groups C and D
Class II Division 1 Groups F and G
Class III Division 1

No Scan Engine available!

14

GmbH.

you will need to be able to quote type number and serial number if you make

E

Type label

Supplement for RFID

Labels in

battery compartment

Licence sticker for Windows MobileTM 5.0 Premium operating system

Label contains details on the Motorola device before it was modified by BARTEC

- CE sign and notified body used by Motorola

- Manufacturer Motorola (formerly Symbol Technologies Incorporation)

- Type number (part)

- Serial number ((S) S/N)

Important:
enquiries directly to the Technical Support department at Motorola.

15

Supplement for RFID

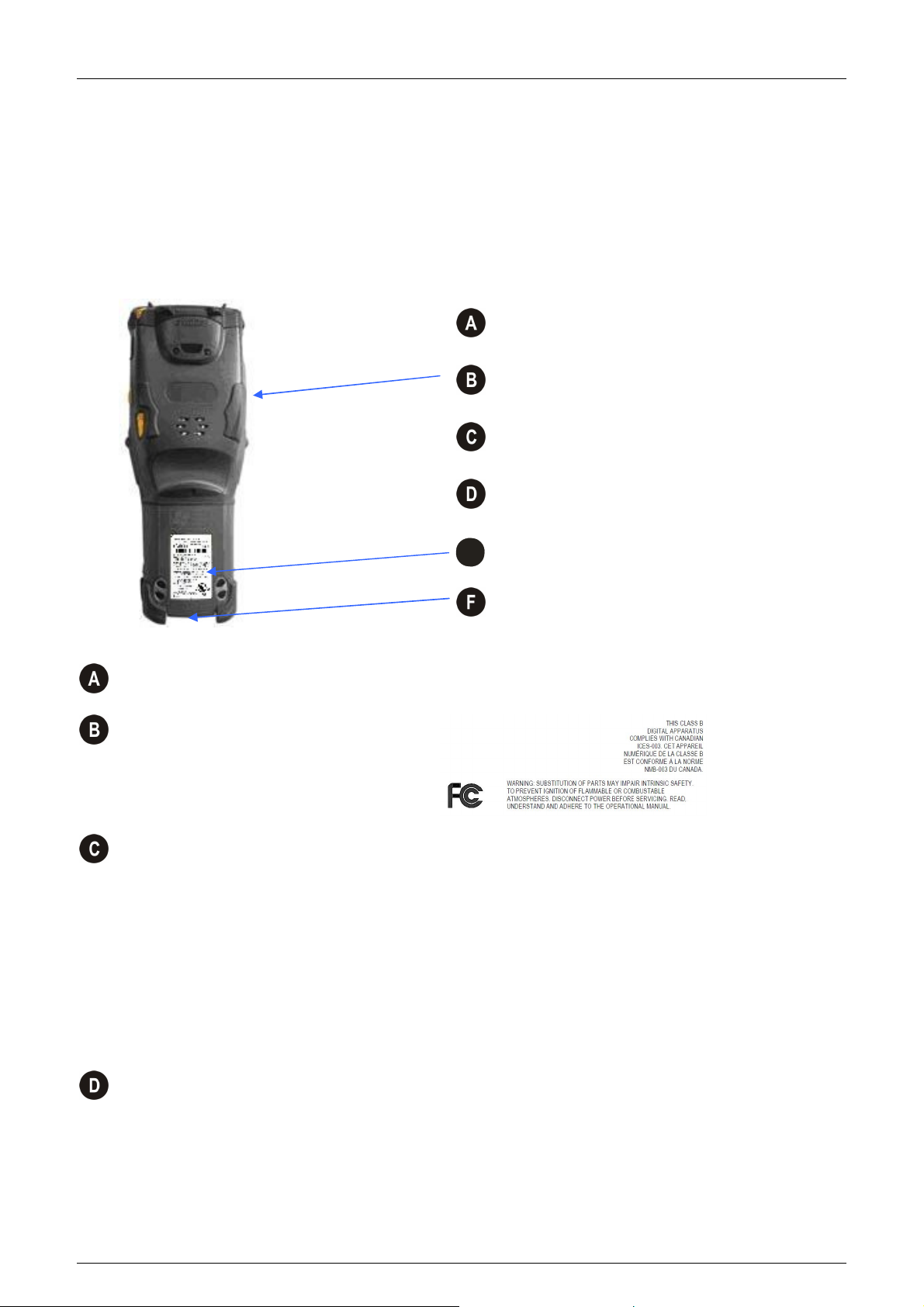

3.6.2 Product Marking Mobile Computer MC 9090ex RFID / LF / HF / UHF external (UL Class I Division 1)

MC 9090ex RFID / LF / HF / UHF external

Laser Warning

CAUTION - CLASS 3R LASER LIGHT WHEN OPEN. AVOID DIRECT EYE EXPOSURE.
ATTENTION - LUMIÈRE LASER DE CLASSE 3R, EN CAS D’OUVERTURE. EXPOSITION DANGEREUSE AU

FAISCEAU.
VORSICHT - LASERLICHT KLASSE 3R, WENN ABDECKUNG GEÖFFNET. DIREKTE BESTRAHLUNG DER

AUGEN VERMEIDEN.

MC 9090ex RFID / LF / HF / UHF external

E

Laser and FCC

MC 9090ex RFID / LF / HF / UHF external

Testmark

CE and Ex

See type label

protection type

MC 9090

ex

RFID / LF / HF / UHF external

Typ: 17-A129-… Class I Division 1, Groups C and D

Typ: 17-A169-…

Class I Division 1 Groups C and D
Class II Division 1 Groups F and G
Class III Division 1

16

Supplement for RFID

Laser Warning

E

Type label

MC 9090

MC 9090

ex

RFID / LF / HF / UHF external

ex

RFID / LF / HF / UHF external

Licence sticker for Windows MobileTM 5.0 Premium operating system

Labels in

battery compartment

Label contains details on the Motorola device before it was modified by BARTEC GmbH.

- CE sign and notified body used by Motorola

- Manufacturer Motorola (formerly Symbol Technologies Incorporation)

- Type number (part)

- Serial number ((S) S/N)

Important: you will need to be able to quote type number and serial number if you make
enquiries directly to the Technical Support department at Motorola.

17

Supplement for RFID

MC 9090 ex RFID/LF/HF/UHF external

18

Manual and Software for Windows Mobile from Motorola

4 Commissioning

Supplement for RFID

4.1 MC 9090

ex

Link:

http://support.symbol.com/support/product/manuals.do

 Mobile Computers

 MC9090 WM

 List of the available manuals and software downloads for the standard Motorola versions

4.2 MC9090ex RFID Documentation from BARTEC

Use the following link to access the available documentation and downloads.
If you have any further questions, please contact us directly under [e-mail].

Link to German homepage:

http://www.BARTEC.de/

Link to English homepage:

http://www.BARTEC.de/index_eng.htm

4.3 MC9090ex RFID Software

The software has been programmed as a demonstration program to test the devices.
The demonstration has been written into Open Source so that every operator with the development tools can
view and use the structure.

The DLL files and the demonstration program are available on request as downloads on a password-protected
page.
Password can be inquired from BARTEC at [e-mail].

19

Supplement for RFID

5 Additional Information

5.1 Order Numbers MC9090ex (UL Class I Division 1)

1 7 - A 1 2 9 - R _ _ _ / H C _ F A _ _

Version ↓

MC9090ex –G gun G

MC9090ex –K brick K

Barcode Scanning ↓

None (only with LF internal)

SE1524 1-D long-range scan engine (only gun) J
SE950 1-D standard-range scan engine (only brick) A

SE4400 1-D/2-D imager engine K

RFID ↓

LF external module 1

HF external module 2
UHF (USA) external module 3

LF internal module (no scan engine) 4
UHF (USA) external module + external antenna 5

Keyboard ↓

28 keys, numeric A
33 keys, numeric L

43 keys, alphanumeric F
53 keys, alphanumeric E

53 keys, alphanumeric with layout for VT emulation G
53 keys, alphanumeric with layout for 3270 emulation H

53 keys, alphanumeric with layout for 5250 emulation J

SD cards ↓ ↓

Without SD card 0 0

With 512 MB SD card 0 1
With 1 GB SD card 0 2

With 2 GB SD card 0 3

For example: MC 9090ex –K RFID/LF without scan engine, internal RFID/LF module, 28 keys and
without SD card.

Type 17-A129-RK04/HCAFA600

20

Supplement for RFID

5.2 Order Numbers MC9090ex (UL Classes I, II, III Division 1)

1 7 - A 1 6 9 - R _ _ _ / H C _ F A _ _

Version ↓

MC9090ex –G Gun G
MC9090ex –K Brick K

Barcode Scanning ↓

None (only with LF internal)
SE1524 1-D long-range scan engine (only gun) J

SE950 1-D standard-range scan engine (only brick) A
SE4400 1-D/2-D imager engine K

RFID ↓

LF external module 1
HF external module 2

UHF (USA) external module 3
LF internal module (no scan engine) 4

UHF (USA) external module + external antenna 5

Keyboard ↓

28 keys, numeric A

33 keys, numeric L
43 keys, alphanumeric F

53 keys, alphanumeric E
53 keys, alphanumeric with layout for VT emulation G
53 keys, alphanumeric with layout for 3270 emulation H

53 keys, alphanumeric with layout for 5250 emulation J

SD cards ↓ ↓

Without SD card 0 0
With 512 MB SD card 0 1

With 1 GB SD card 0 2
With 2 GB SD card 0 3

For example: MC 9090ex –G RFID/UHF with long-range scan engine, external RFID/UHF module,
53 keys and without SD card.

Type 17-A169-RGJ3/HCEFA600

21
