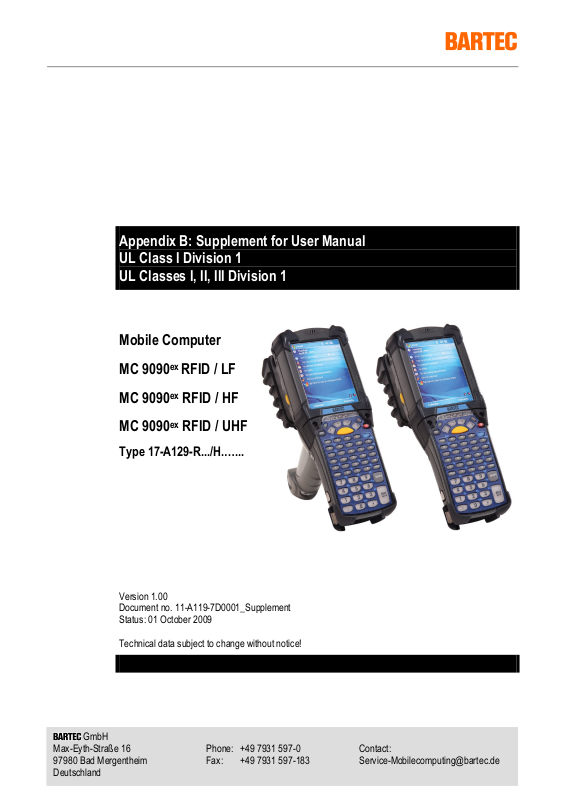

BARTEC RFIDLF User Manual

GmbH

GmbH

Appendix B: Supplement for User Manual
UL Class I Division 1
UL Classes I, II, III Division 1

Mobile Computer

ex

MC 9090

MC 9090

MC 9090

RFID / LF

ex

RFID / HF

ex

RFID / UHF

Type 17-A129-R.../H.…...

Version 1.00
Document no. 11-A119-7D0001_Supplement
Status: 01 October 2009

Technical data subject to change without notice!

Max-Eyth-Straße 16 Telefon: [phone] Kontakt:

Max-Eyth-Straße 16 Phone: [phone] Contact:
97980 Bad Mergentheim Telefax: [phone] [e-mail]

97980 Bad Mergentheim Fax: [phone] [e-mail]
Deutschland

Deutschland

Table of Contents

1

Product Description........................................................................................................................................................4

2

Safety Instructions..........................................................................................................................................................5

2.1

Electromagnetic Fields.....................................................................................................................................5

2.1.1

International ....................................................................................................................................................5

2.1.2

US and Canada...............................................................................................................................................5

2.2

Warnings for Use of Wireless Devices.............................................................................................................6

2.2.1

Radio Frequency Interference Requirements - FCC.......................................................................................6

2.2.2

Radio Frequency Interference Requirements - Canada..................................................................................6

3

Technical Data.................................................................................................................................................................7

3.1

RFID / LF Internal Module................................................................................................................................7

3.1.1

3.1.2

3.1.3

3.1.4

3.2

3.2.1

3.2.2

3.2.3

3.2.4

3.3

3.3.1

3.3.2

3.3.3

3.3.4

3.4

3.4.1

Explosion Protection .......................................................................................................................................7

General Data...................................................................................................................................................7

Radio Data Transmission RFID / LF Internal Module......................................................................................7

Standards Supported by Firmware..................................................................................................................8

RFID / LF External Module...............................................................................................................................9

Explosion Protection .......................................................................................................................................9

General Data...................................................................................................................................................9

Radio Data Transmission RFID / LF External Module.....................................................................................9

Standards Supported by Software................................................................................................................10

RFID / HF External Module............................................................................................................................10

Explosion Protection .....................................................................................................................................10

General Data.................................................................................................................................................10

Radio Data Transmission RFID / HF External Module..................................................................................11

Standards Supported by Firmware................................................................................................................11

RFID / UHF External Modul............................................................................................................................12

Explosion Protection .....................................................................................................................................12

3.4.2

3.4.3

3.5

3.5.1

3.5.2

3.5.3

3.6

3.6.1

3.6.2

General Data.................................................................................................................................................12

Radio Data Transmission RFID / UHF External Module ...............................................................................12

RFID / UHF External Module + External Antenna..........................................................................................13

Explosion Protection .....................................................................................................................................13

General Data.................................................................................................................................................13

Radio Data Transmission RFID / UHF External Module + External Antenna................................................13

Notes re. Directives and Standards, Marking and In-Process Inspections.....................................................14

Product Marking Mobile Computer MC 9090

Product Marking Mobile Computer MC 9090ex RFID / LF / HF / UHF external (UL Class I Division 1).........16

ex

RFID / LF internal (UL Class I Division 1).............................14

2

Supplement for RFID

4

Commissioning.............................................................................................................................................................19

4.1

MC 9090

4.2

MC9090ex RFID Documentation from BARTEC.............................................................................................19

4.3

MC9090ex RFID Software...............................................................................................................................19

5

Additional Information..................................................................................................................................................20

5.1

Order Numbers MC9090ex (UL Class I Division 1).........................................................................................20

5.2

Order Numbers MC9090ex (UL Classes I, II, III Division 1)............................................................................21

ex

Manual and Software for Windows Mobile from Motorola ...........................................................19

Appendix - EC Declaration of Conformity and Type Examination Certificate

3

Supplement for RFID

1 Product Description

The MC 9090ex RFID mobile computer is a compact portable device and is designed by BARTEC specially for use in
hazardous areas. Accordingly the extensive communication options, already standard in other areas, are available to the
user in hazardous areas also.

The MC 9090
Brick). In these versions the MC9090ex is a compact unit for scanning bar codes and RFID tags reliably.

The scan trigger is ideally positioned on the device, which allows bar codes and RFID tags to be captured easily. The
integrated radio module ensures a real-time exchange of data with the host system.

The MC 9090ex RFID combines the advantages of the Microsoft Pocket PC Platform with the strengths of the Intel®
XScaleTM PXA270 processor with 624 MHz.

The large, easy-to-read 1/4 VGA colour display is equipped with touchscreen technology. The device works with the
IEEE802.11 a/b/g (direct sequence) radio standard.

ex

RFID mobile computer is available in two versions, with pistol grip (MC9090ex Gun) and without (MC9090ex

4

Supplement for RFID

2.1 Electromagnetic Fields

2 Safety Instructions

2.1.1 International

The device complies with internationally recognised standards covering human exposure to electromagnetic fields from
radio devices.

Reducing RF Exposure - Use Properly

Only operate the device in accordance with the instructions supplied.

2.1.2 US and Canada

Portable Devices

This device was tested for typical body-worn operation. Use only BARTEC tested and approved belt clips, holsters, and
similar accessories to ensure FCC compliance. The use of third-party belt-clips, holsters, and similar accessories may not
comply with FCC RF exposure compliance requirements, and should be avoided.

The Mobile Computer must be switched off before it may be carried on the body.

Co-Location Statement

To comply with the FCC RF exposure compliance requirement, the antenna used for this transmitter must not be co-located
or operating in conjunction with any other transmitter/antenna except those already approved in this filing.

5

Supplement for RFID

2.2 Warnings for Use of Wireless Devices

Please observe all warning notices with regard to the usage of wireless devices.

2.2.1 Radio Frequency Interference Requirements - FCC

Note: This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio
communications. However there is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the following measures:



Reorient or relocate the receiving antenna.



Increase the separation between the equipment and receiver.



Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.



Consult the dealer or an experienced radio/TV technician for help.

FCC Note according to 15.21

Any changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.

Radio Transmitters (Part 15)

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference
that may cause undesired operation.

2.2.2 Radio Frequency Interference Requirements - Canada

This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

Radio Transmitters

This device complies with RSS 210 of Industry & Science Canada. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference and
(2) this device must accept any interference received, including interference
that may cause undesired operation.

Label Marking: The Term "IC:" before the radio certification only signifies that "Industry Canada" technical specifications
were met.

6

3 Technical Data

3.1 RFID / LF Internal Module

3.1.1 Explosion Protection

Types : 17-A129-R*04/H*******
Ex Protection Type Class I Division 1 Groups C und D
Certification : UL File E226123

Types : 17-A169-R*04/H*******

Supplement for RFID

Ex Protection Type Class I Division 1 Groups C and D

Class II Division 1 Groups F and G
Class III Division 1

Certification : UL File E226123

3.1.2 General Data

Ambient Temperature : -20 °C to +40 °C -4 °F to +104 °F
Weight including battery : MC9090ex - K

approx. 700 g approx. 24 oz
MC9090ex - G

approx. 830 g approx. 29 oz

3.1.3 Radio Data Transmission RFID / LF Internal Module

Nominal writing distance : approx. 5 cm approx. 1.9 inch
Antenna : Integrated in the device

as ferrite antenna or air coil antenna

Frequency range : 125/134 kHz
Transmitting power : 100 mW ±2dB

7
