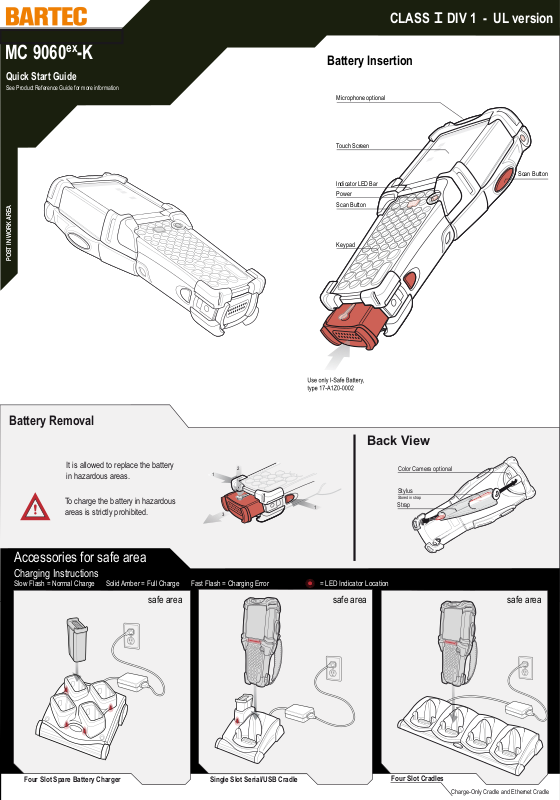

BARTEC MC9060KEX QRG
CLASS I DIV 1 - UL version
MC 9060ex-K
Quick Start Guide
See Product Reference Guide for more information
POST IN WORK AREAPOST IN WORK AREA
Battery Insertion
Microphone optional
Touch Screen
Scan Button
Indicator LED Bar
Power
Scan Button
Keypad
Battery Removal
It is allowed to replace the battery
in hazardous areas.
To charge the battery in hazardous
areas is strictly prohibited.
Accessories for safe area
Charging Instructions
Slow Flash = Normal Charge
Solid Amber = Full Charge
safe area
2
1
3
Fast Flash = Charging Error
Back View
1
= LED Indicator Location
safe area
Color Camera optional
Stylus
Stored in strap
Strap
safe area
Four Slot Spare Battery Charger
Single Slot Serial/USB Cradle
Four Slot Cradles
Charge-Only Cradle and Ethernet Cradle
Indicator LED Bar
Power
Scan Button
Scan Button
Color Camera
optional
Stylus
stored in strap
Strap
Optimum Upright Body Posture
CLASS I DIV 1 - UL version
Optimum Imaging and Scanning Positions
012345
Battery
Camera Use
CORRECT
012345
CORRECT
012345
WRONG
Scanning/Imaging
Avoid Extreme Wrist Angles
Optimum Body Posture
for Low Scanning
ALTERNATE LEFT
AND RIGHT KNEES
AVOID EXTREME
WRIST ANGLES
POST IN WORK AREAPOST IN WORK AREA
MC 9060ex-K
http://www.bartec.de/MC 9060ex
03-0300-0069 / 241290 / REV 1 / November 2005
Recommended Usage Guide
AVOID BENDIN G
AVOID REACHI NG
ALTERNATE LEFT AND RIGHT HANDSALTERNATE LEFT AND RIGHT HANDS
BARTEC GmbH, Max-Eyth-Strasse 16, 97980 Bad Mergentheim Deutschland/Germany
