BARTEC LFG1, UHFG1 integration manual
Integration Manual

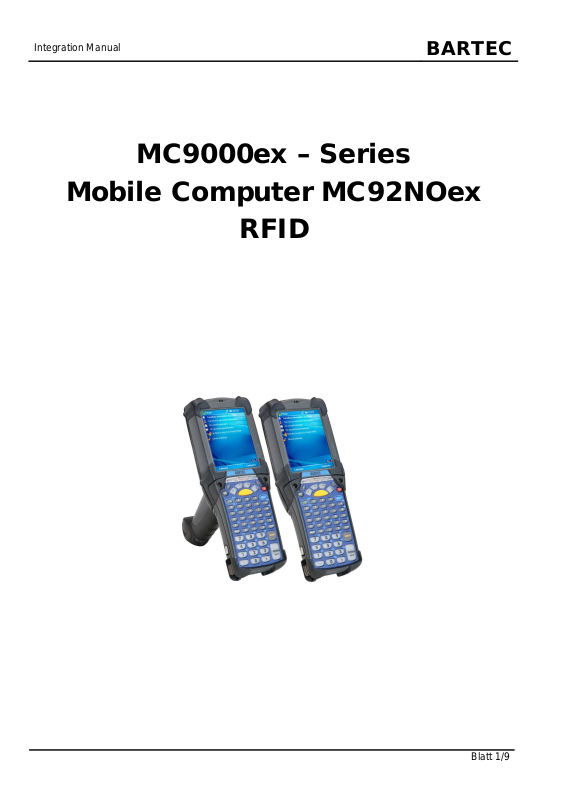

Mobile Computer MC92NOex
BARTEC
MC9000ex – Series
RFID
Blatt 1/9
Integration Manual
1. Assembly Housing
1.1 BRICK
1)
2)
BARTEC
Drill 7 holes (1,0mm ) and 4 holes (5,5mm) with the
fixture in the lower housing.
Press 4 inserts into the big holes.
Lead the 7 wires (each with different colour) through the
drillings.
(LiY 0.08mm², d
> 0.2mm)
iso
3)
4)
5)
Fill the RFID upper housing with Sikaflex as shown in
the picture.
Fix the RFID lower housing with 4 screws and 4
washers on the housing.
Seal the screw heads and the wire openings with
Sikaflex.
Blatt 2/9
Integration Manual
1.2 GUN
1)
2)
BARTEC
Drill 7 holes (1,0mm ) and 4 holes (5,5mm) with the
fixture in the lower housing.
Press 4 inserts into the big holes.
Lead the 7 wires (each with different colour) through the
drillings.
(LiY 0.08mm², d
Fill the RFID upper housing with Sikaflex as shown in
the picture.
> 0.2mm)
iso
3)
4)
Fix the RFID lower housing with 4 screws and 4
washers on the top housing.
Seal the screw heads and the wire openings with
Sikaflex.
Blatt 3/9
